Vevor CNC Spindle Motor Kit Air Cooled with Variable Frequency Drive 2.2kW 220V New
Product Overview
This VEVOR CNC spindle motor kit includes a premium air-cooled spindle motor, variable frequency drive, and an 80 mm aluminum spindle clamp for engraving and milling applications. The spindle is designed for high-speed operation up to 24,000 RPM with air cooling to help manage heat. The VFD supports single-phase input with three-phase output and multiple control/setting methods for flexible speed regulation. The kit also includes a set of ER20 collets and milling bits to help you get started on wood, stone, molds, and metal.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

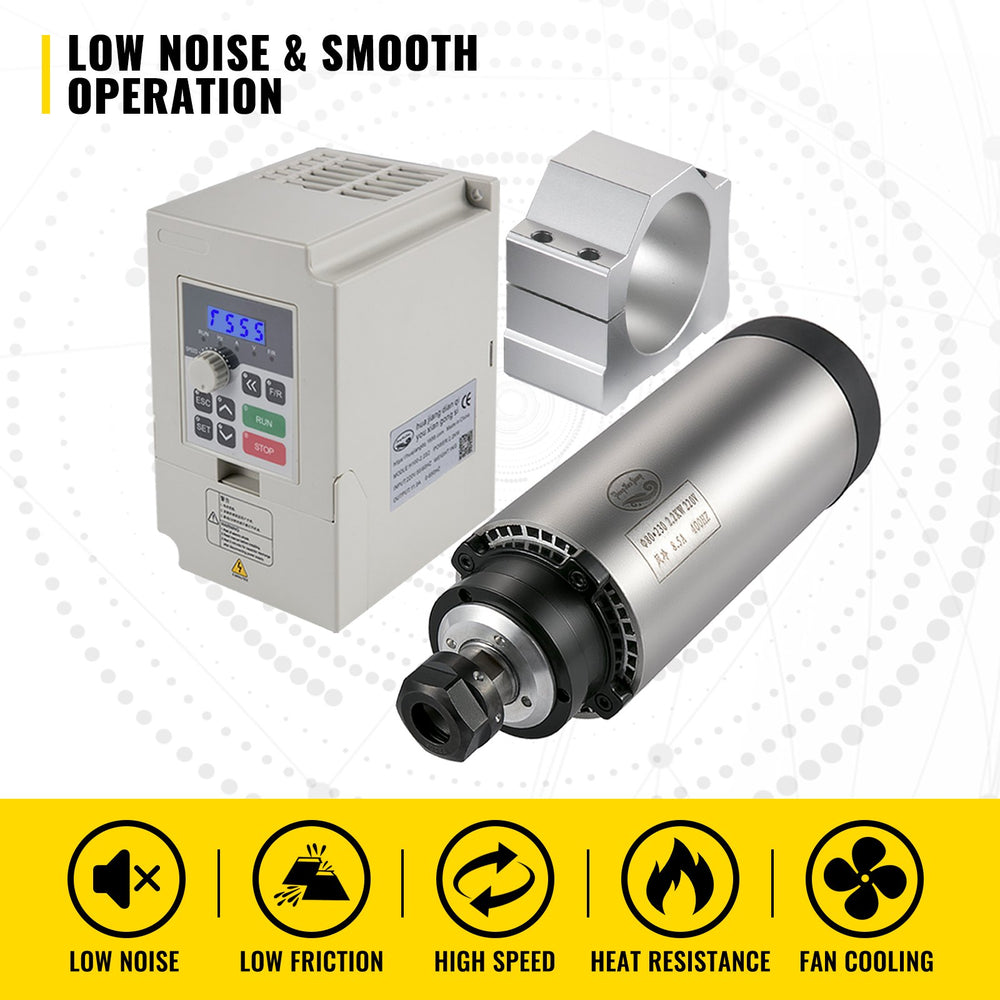

- EXCELLENT PERFORMANCE: - The CNC spindle motor kit is of low noise, low friction, and long service life. It takes advantage of air circulation to cool the spindle's heat with 24000 rpm high speed. Besides, large cooling holes and air-cooled fans facilitate good heat dissipation and smooth running.

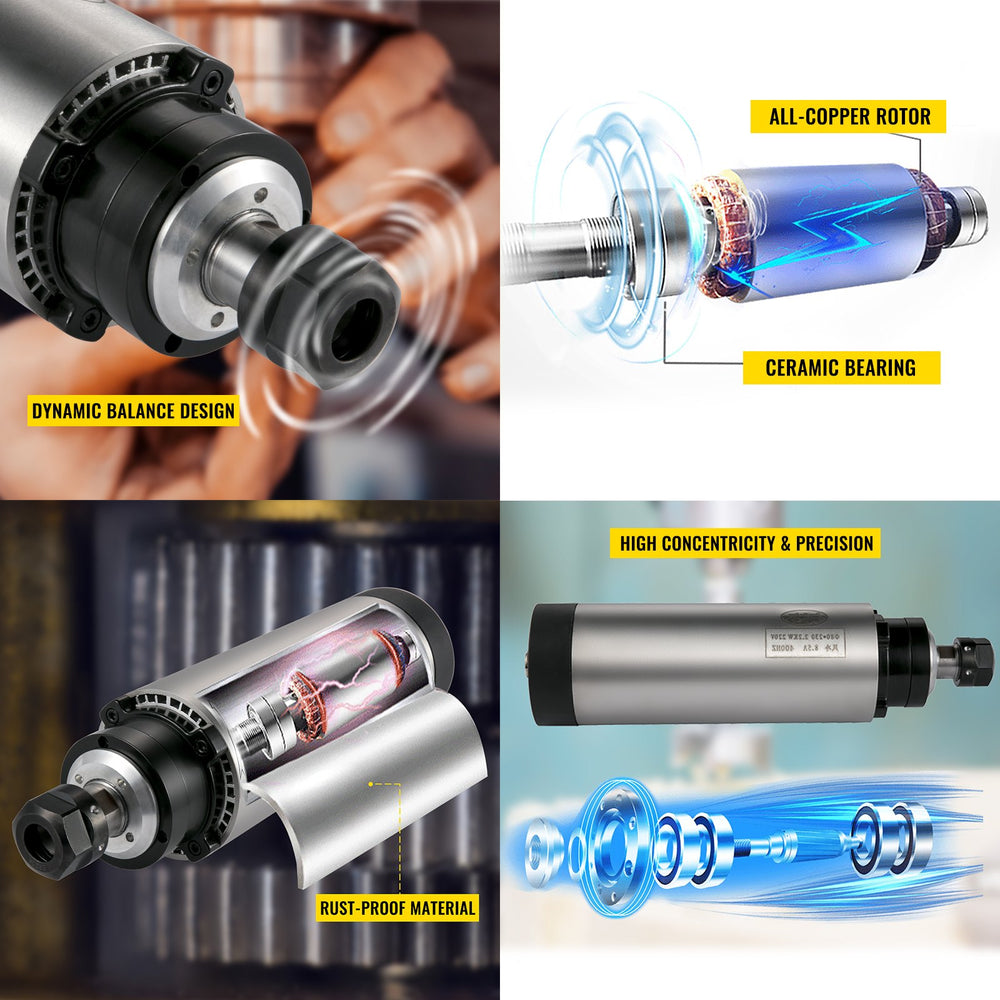

- PREMIUM SPINDLE MOTOR: - The air cooled spindle motor with upgraded ceramic bearings adopts rust-proof materials and dynamic balance technology to reduce noise, wear and tear during the actual operation. And the one-time molding design features high concentricity & high precision for an excellent performance.

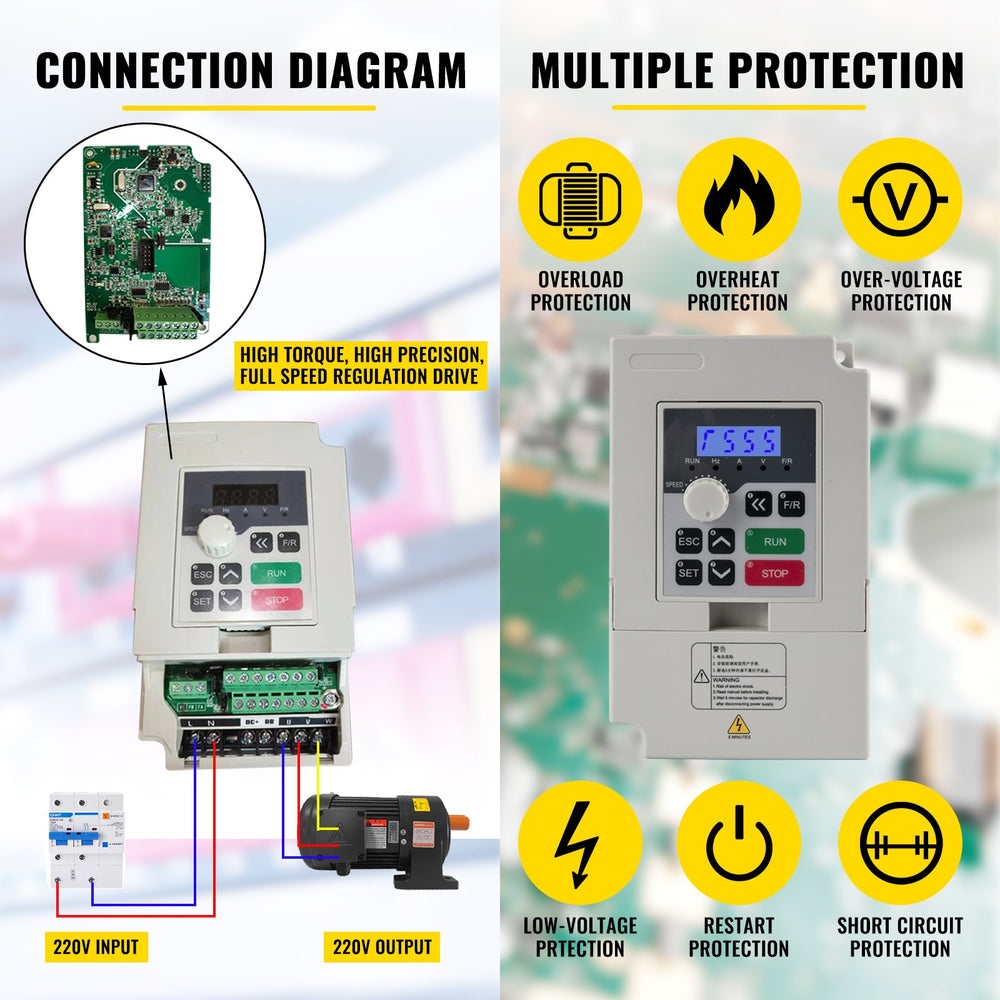

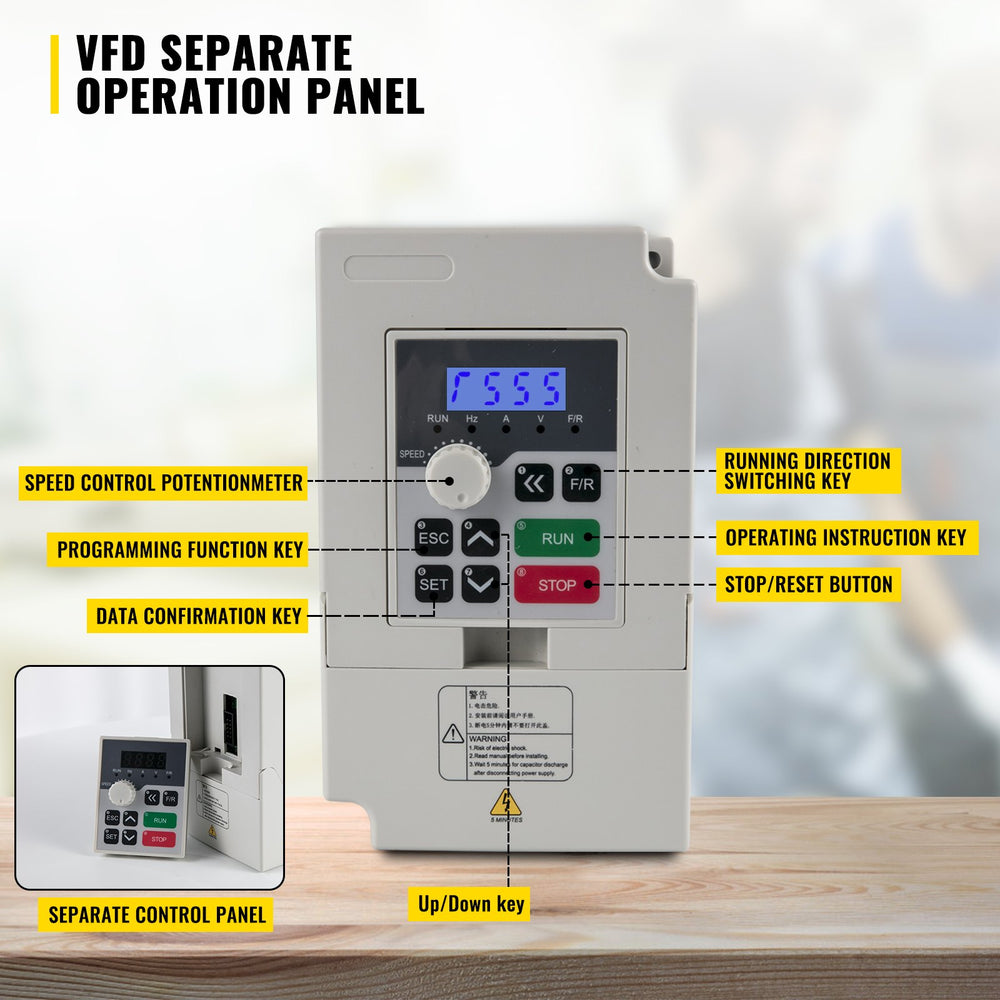

- VARIABLE FREQUENCY DRIVE: - This VFD driver has a single-phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting, etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. And the unique control mode attains high torque, high precision, full speed regulation drive, and can adapt to the poor power grid, temperature, humidity, and dust interference ability.

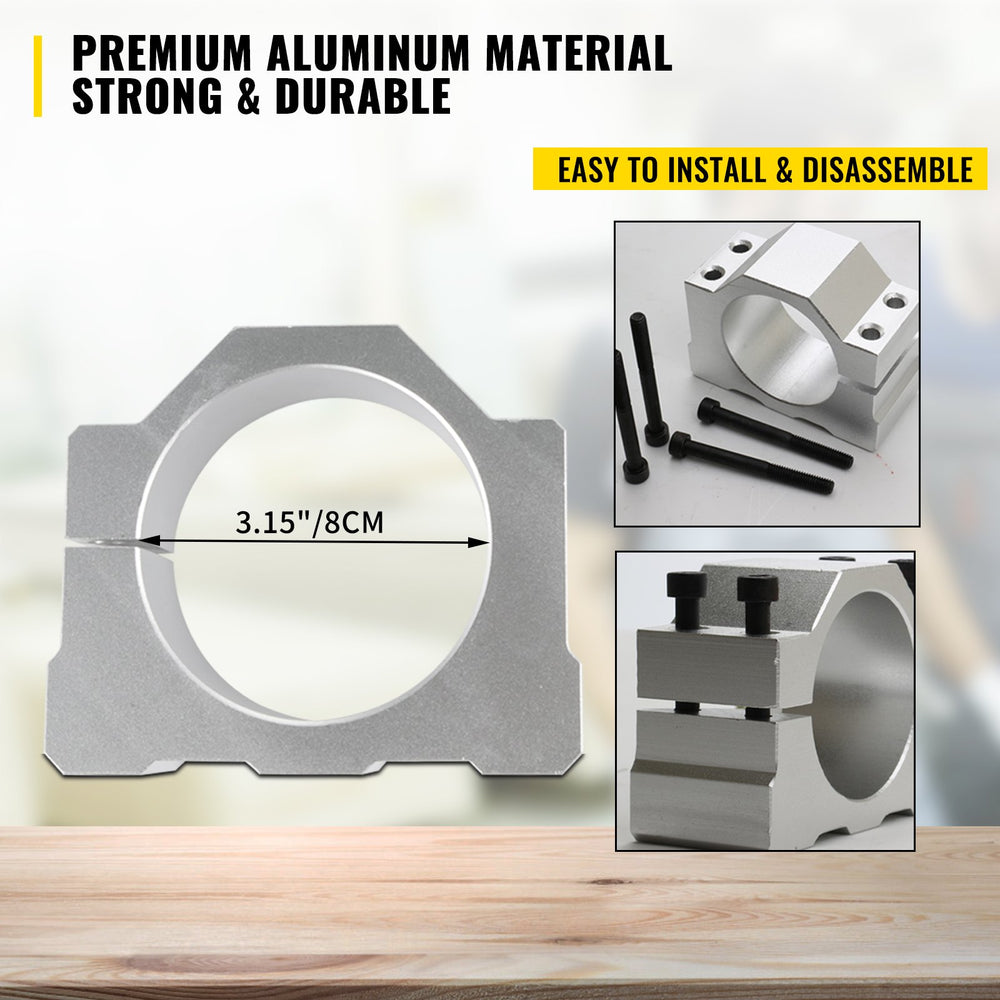

- DURABLE SPINDLE CLAMP: - The clamp of the CNC spindle motor is constructed of high-quality cast aluminum for sturdiness and durability. And the well-finished surface is designed to provide a better smoothness. It is high-efficiency for you to fasten the spindle.

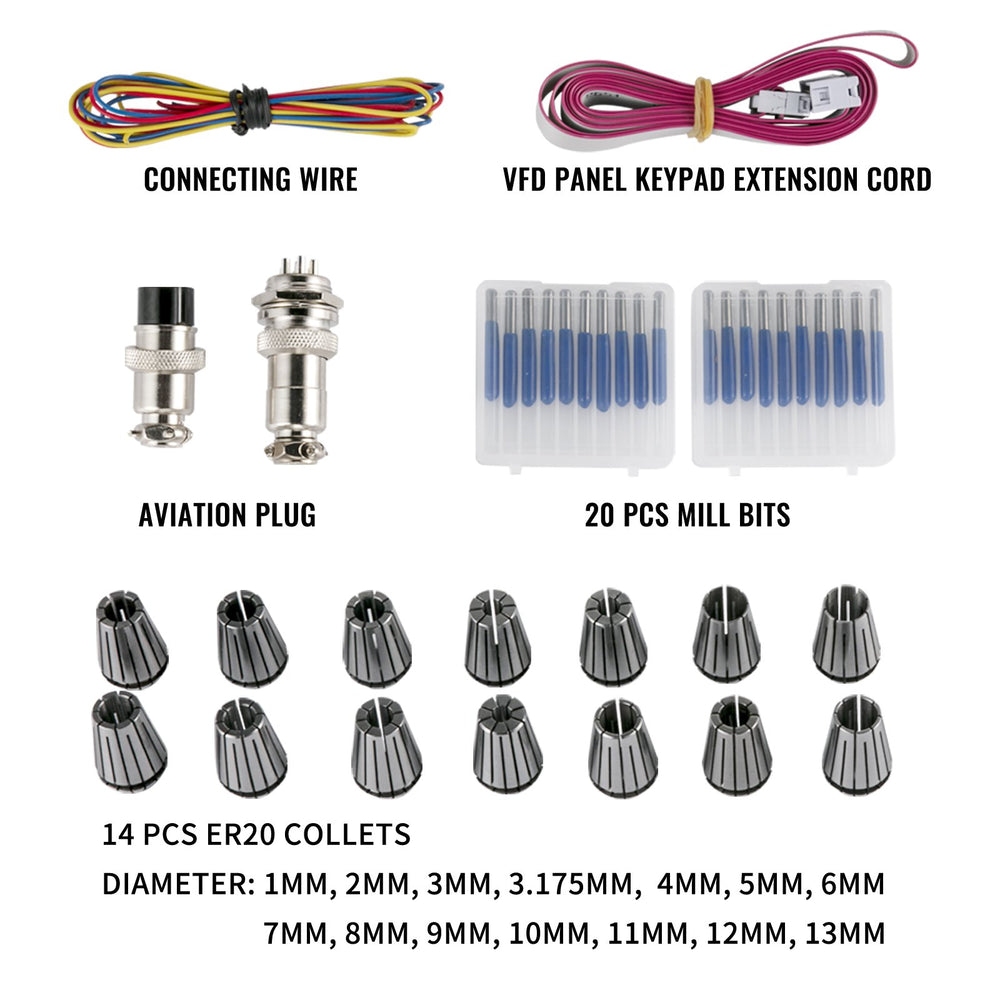

- EXTENSIVE APPLICATION: - With ER20 collets, milling drill bits, aviation plugs, the extension cord, and the connecting wire, this VFD CNC spindle motor kits are widely applicable to engraving machine for carving materials such as wood, stone, mold & metal, etc.
Specifications
| Spindle Motor Power | 2.2KW |
|---|---|
| Spindle Motor Voltage | 220V |
| Spindle Motor Frequency | 400 Hz |
| Spindle Speed Range | 0-24000 RPM |
| Spindle Motor Current | 8.5A |
| Collet Chuck | ER20 |
| Cooling | Air-cooled |
| Accuracy | 0.002 in (0.05 mm) |
| Runout Off | 0.002 in (0.05 mm) |
| Bearings | 6002/7005 |
| VFD Power | 2.2 KW |
| VFD Input Voltage | 220V |
| VFD Output Voltage | 220V |
| VFD Input Phase | 1 Phase |
| VFD Output Phase | 3 Phase |
| VFD Input Frequency | 50 Hz |
| VFD Output Frequency | 0-400 Hz |
| VFD Output Current | 11A |
| Package Size | 3.50 x 5.83 x 4.68 in (89 x 148 x 119 mm) |
|---|---|
| Gross Weight | 2.2 lbs (1 kg) |
| Spindle Clamp Diameter | 3.15 in (80 mm) |
| Spindle Clamp Material | Aluminum |
| ER20 Collet Diameter Range | 0.12 /0.13 /0.16 /0.2 /0.24 /0.3 /0.28 /0.32 /0.35 /0.4 /0.43 /0.47 /0.5 /0.51 inch |

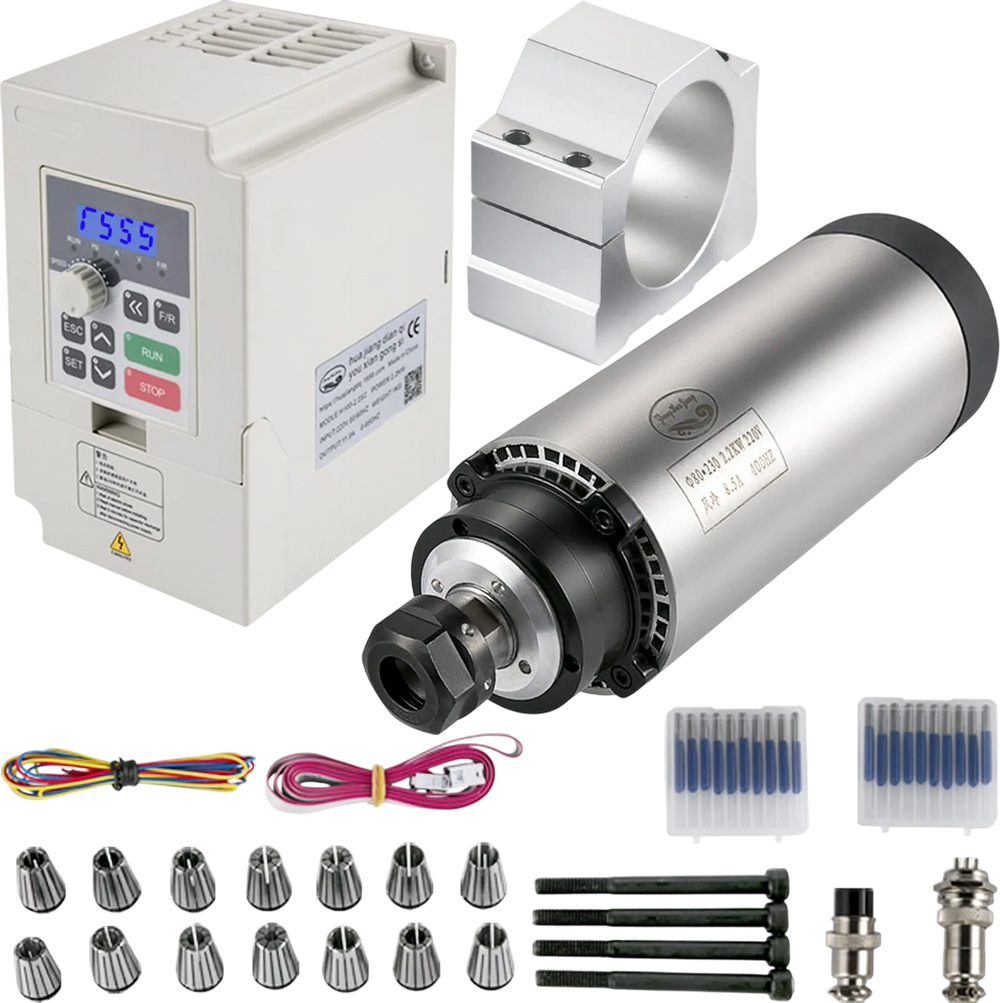

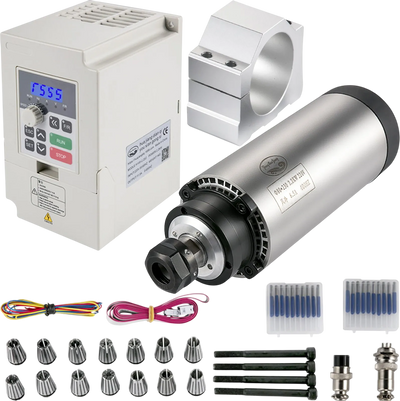

Package Contents
Vevor CNC Spindle Motor Kit
Air Cooled Spindle Motor
Variable Frequency Drive
Spindle Clamp
(14) ER20 Collets
(20) Mill Bits
(2) Aviation Plugs
VFD Panel Keypad Extension Cord
Connecting Wire
User Manual
Warranty
This item comes with a 1 year factory warranty.
