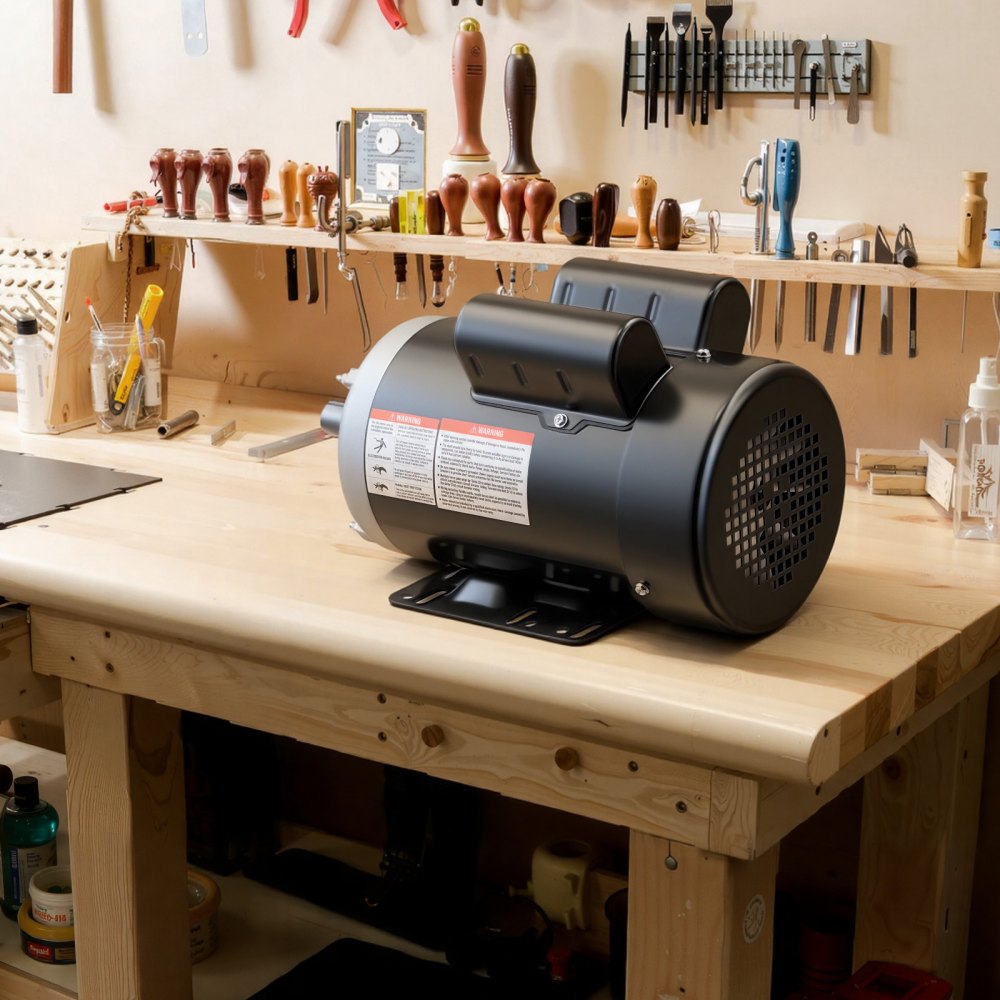

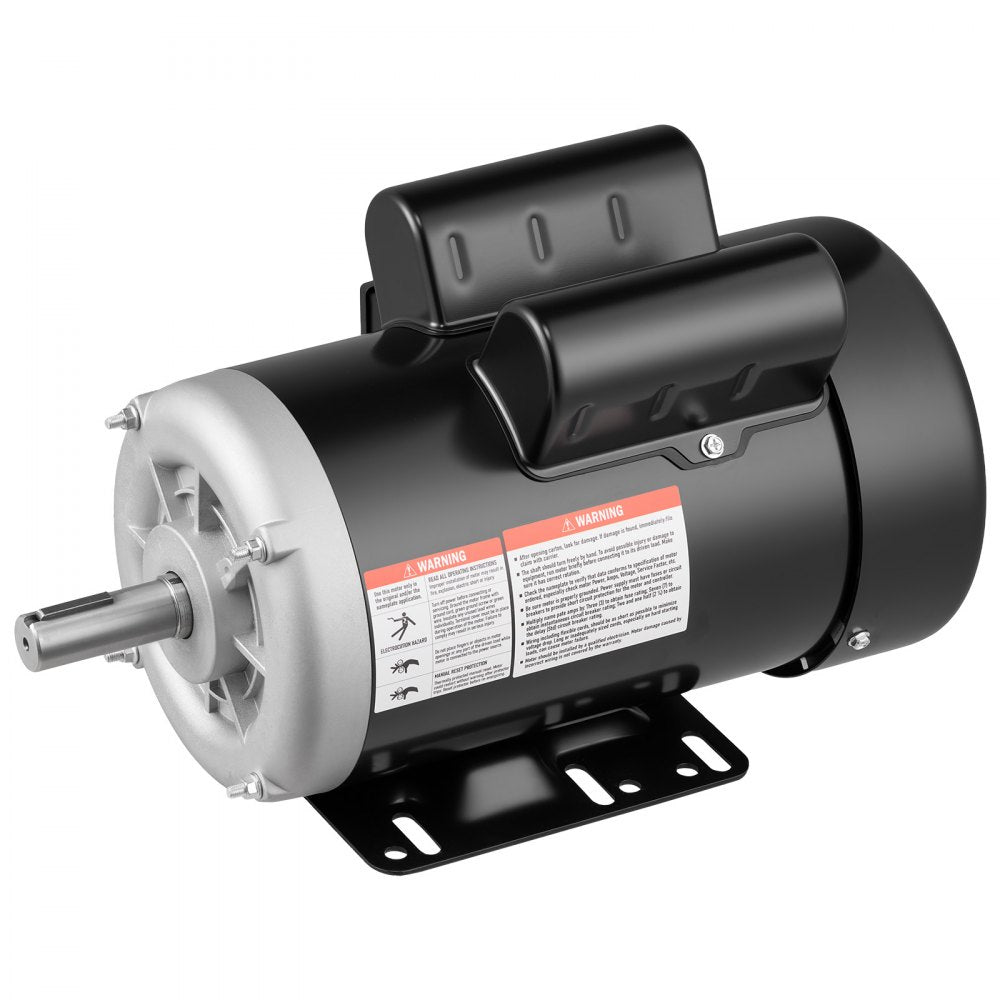

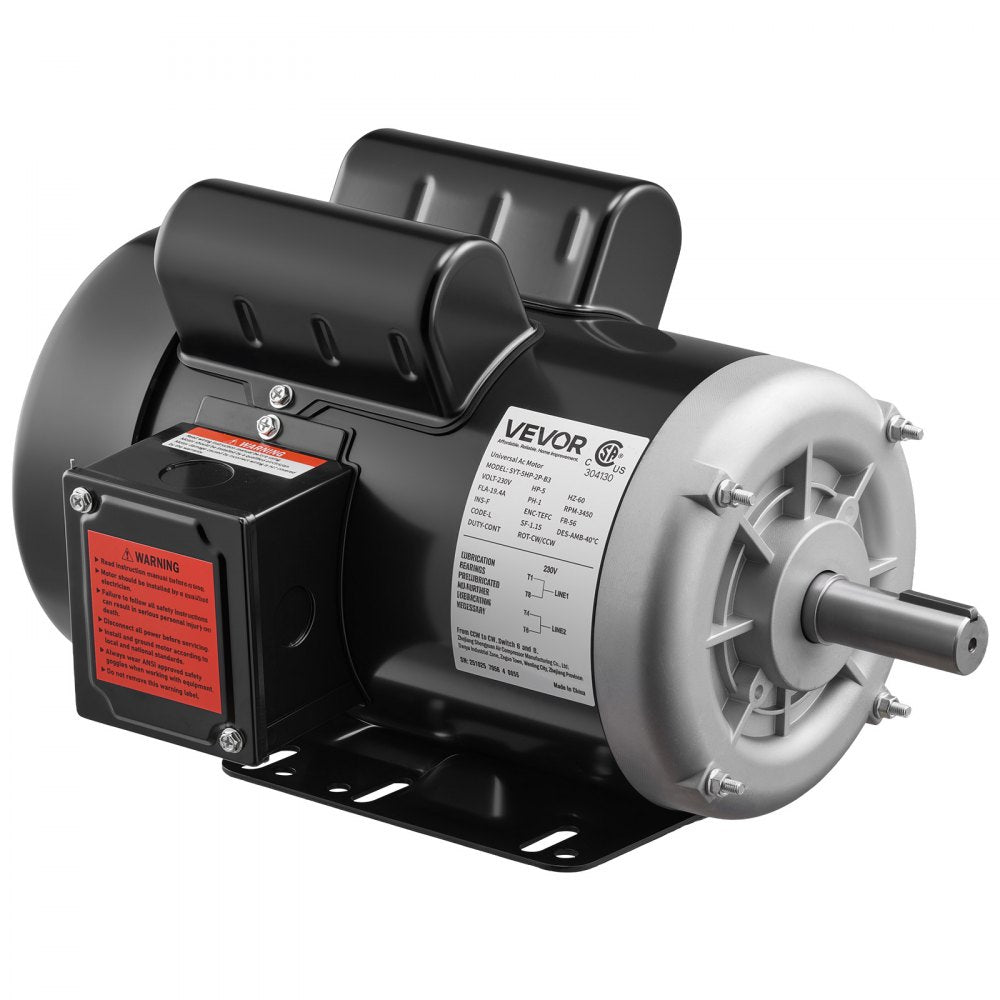

Vevor Electric Motor 5 HP 3450 RPM Air Compressor Single-Phase 230V TEFC New

Manufacturer: Vevor

SKU: TYJLDJ5HP345GTKEP001V7

×
SMS
Messenger
WhatsApp
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling
VEVOR 5 HP Electric Motor, 3450RPM Air Compressor Motor, CW/CCW Rotation, 0.875 inch Shaft Diameter, 2.25inch Shaft Length, 10.14N.m Torque, Single-Phase, 230V, TEFC Cooling

Power Options





Rotation Speed Options





QTY

Product successfully added to your wishlist.
View wishlist

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$347.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

    Customers Also Purchased

    Vevor Electric Motor 5 HP 3450 RPM Air Compressor Single-Phase 230V TEFC New

    Vevor Electric Motor 5 HP 3450 RPM Air Compressor Single-Phase 230V TEFC New

    ×
    SMS
    Messenger
    WhatsApp
    Add To Wishlist
    Remove From Wishlist

    Product Overview

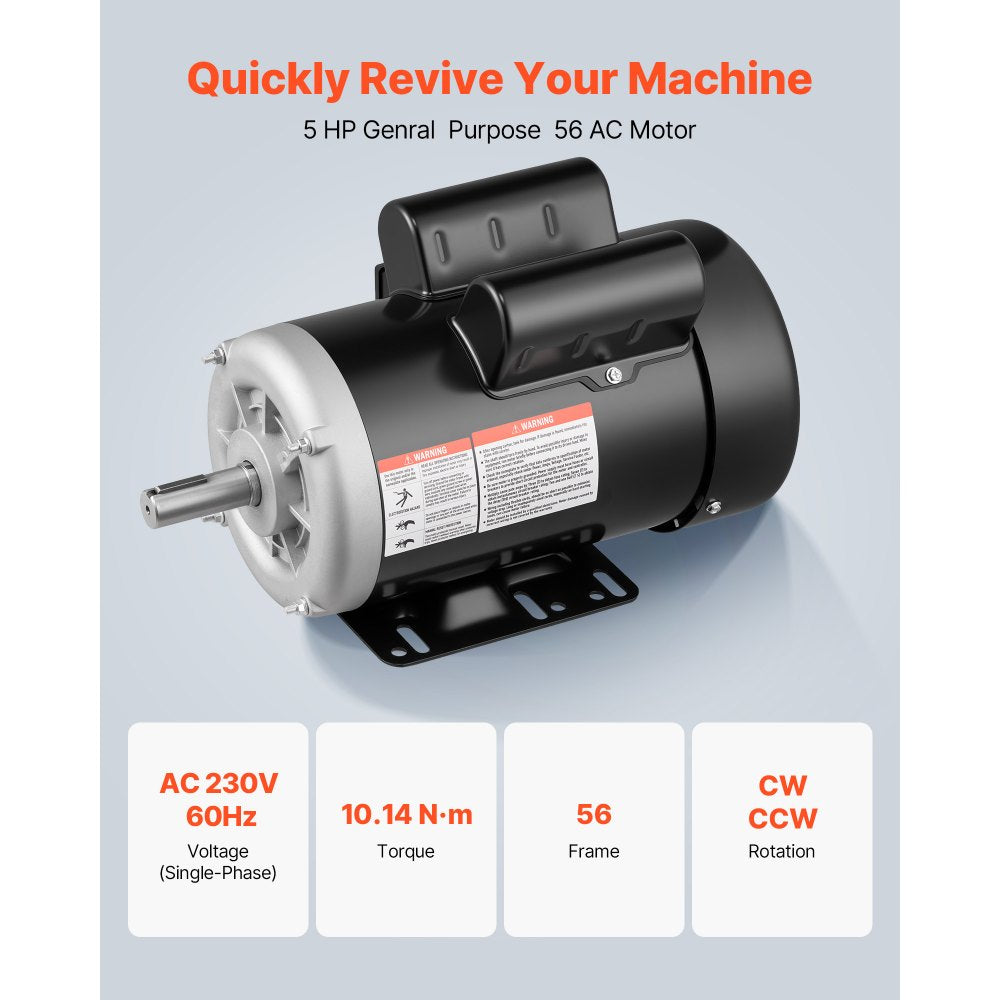

    The Vevor 5 HP electric motor is a high-performance air compressor motor designed for single-phase AC 230V, 60Hz power. It delivers 3450 RPM operation with 10.14 N·m rated torque for dependable power in demanding applications. The motor supports reversible CW/CCW rotation for flexible installation and features TEFC cooling for reliable heat dissipation. Its rugged steel construction, overload protection, and CSA certification make it suitable for repair, replacement, and general equipment use.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

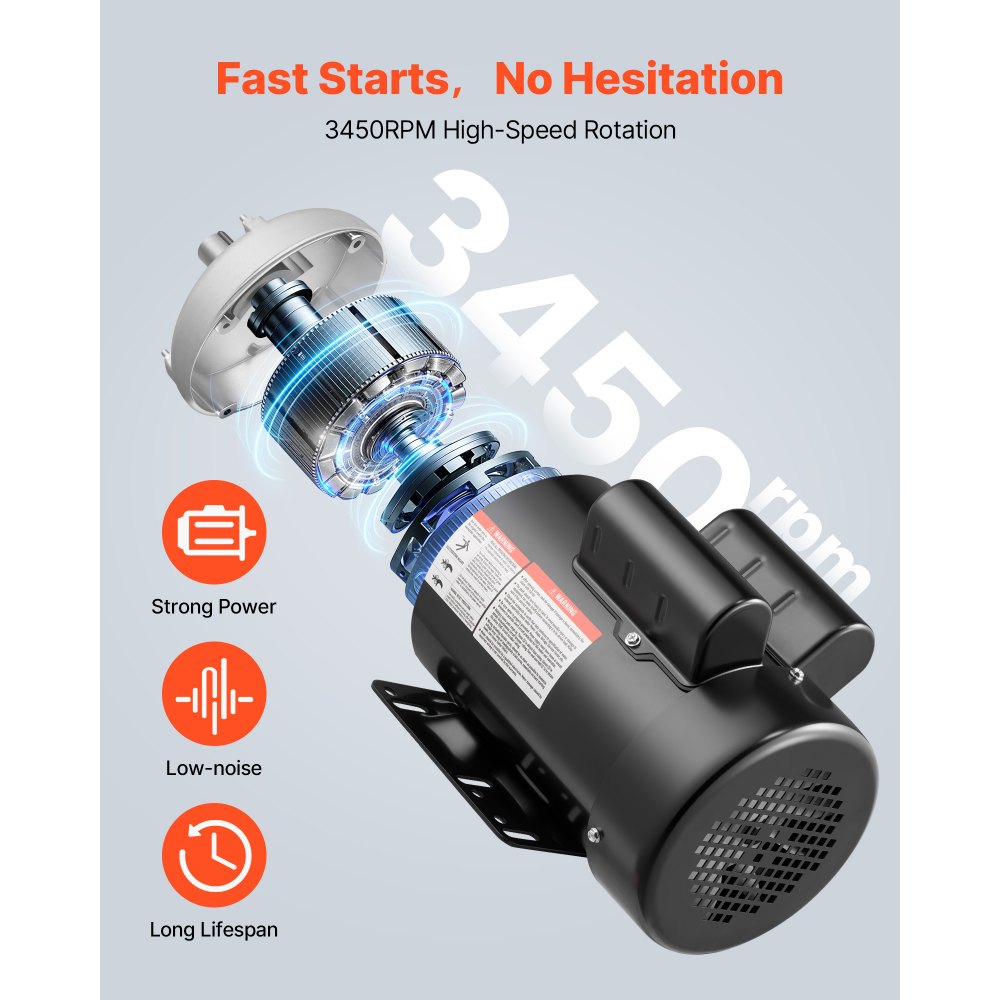

    • High Performance: 5HP high-performance motor featuring 10.14 N.m rated torque. Designed for AC 230V 60Hz, single-phase power. The air compressor electric motor operates at 3450 RPM for fast, reliable speed

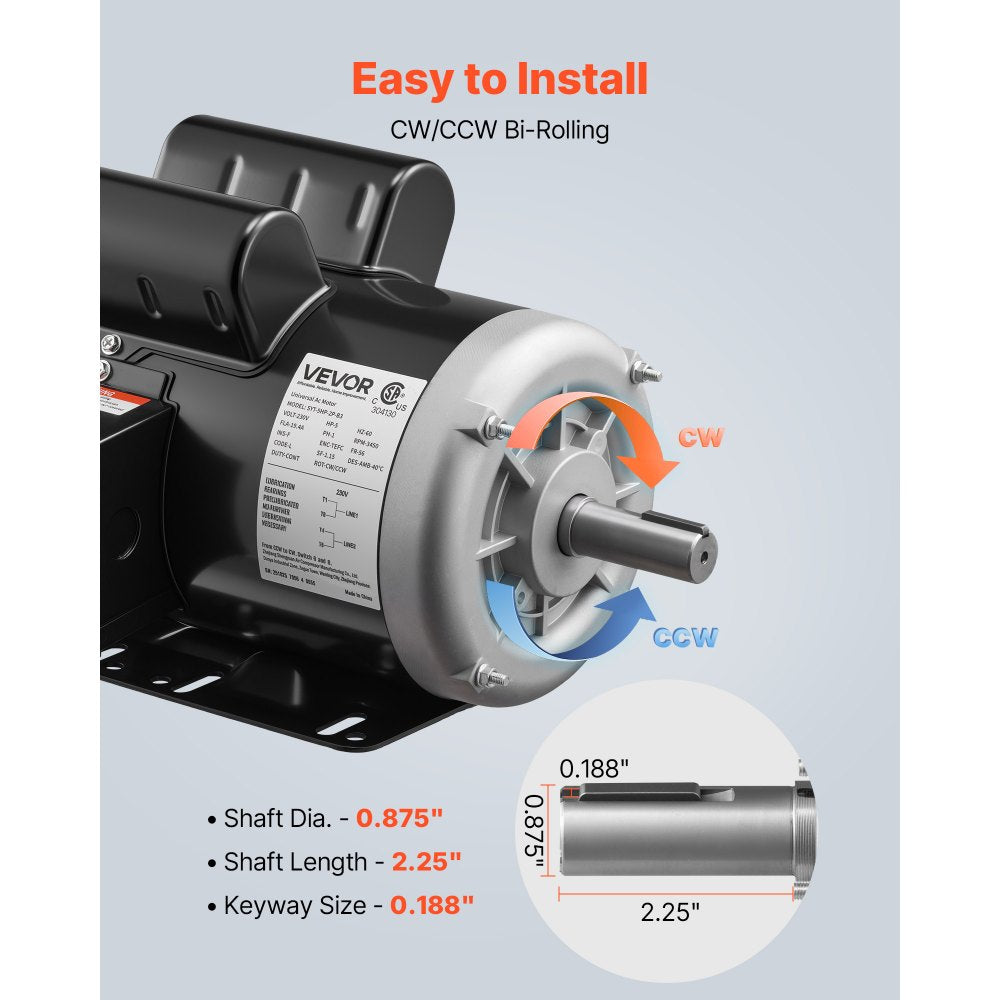

    • Rugged Construction: The electric motor includes a 0.875-inch shaft diameter, 2.25-inch shaft length, and keyway size: 0.188 inch / 4.77 mm width x 0.094 inch / 2.38 mm depth. Its reinforced build supports consistent performance in demanding applications
    • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

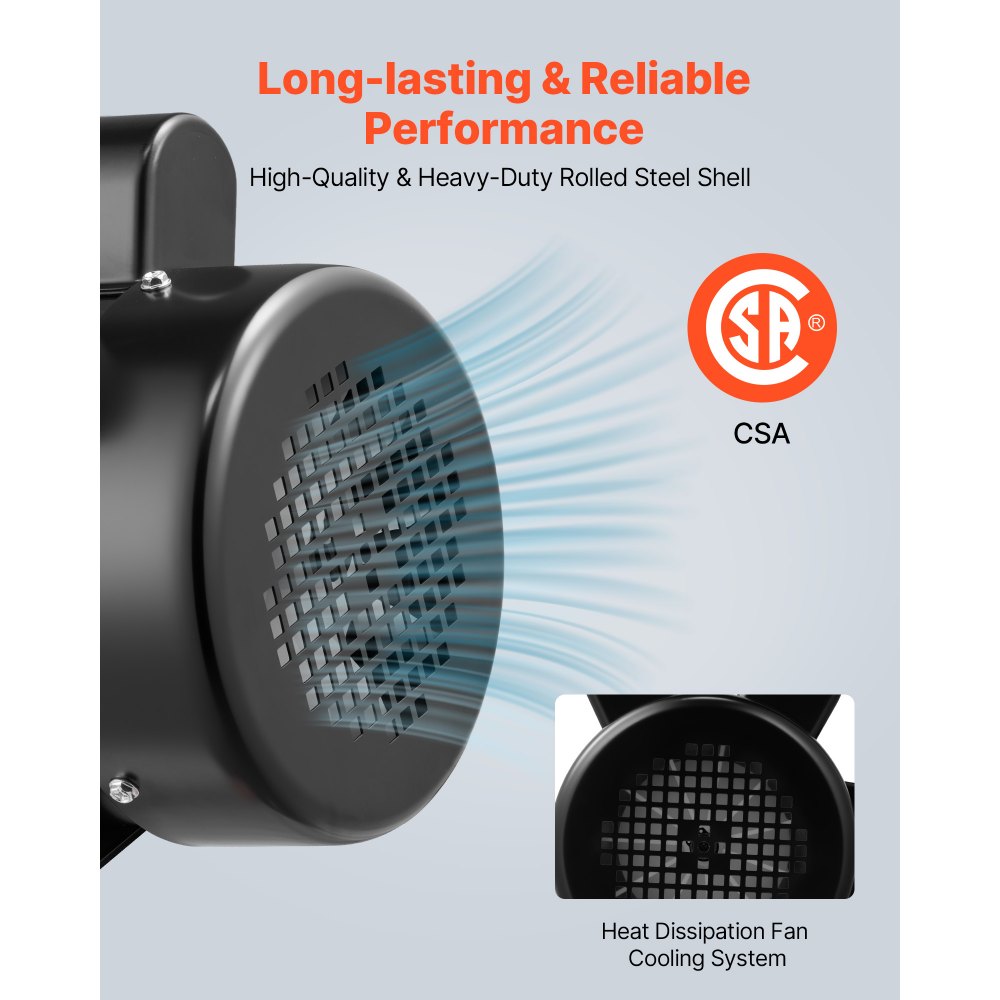

    • Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
    • Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

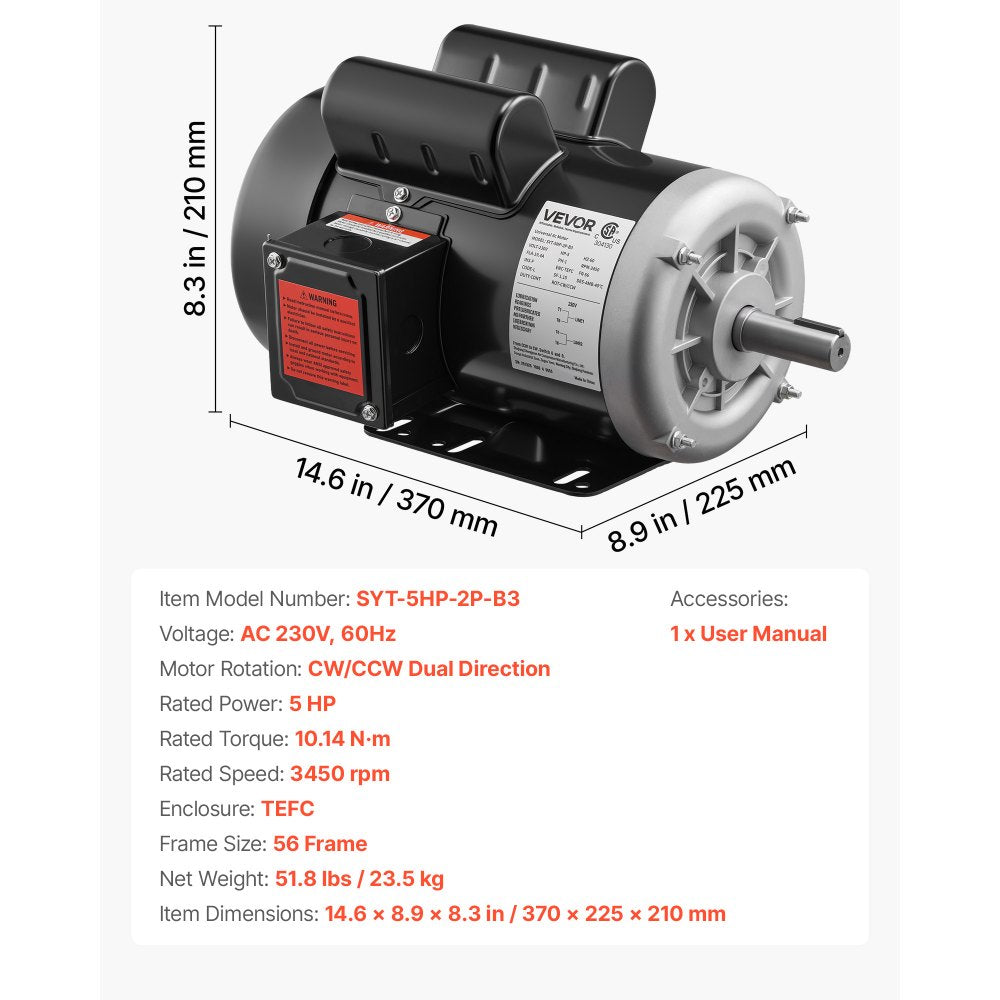

    Specifications

    Item Model Number SYT-5HP-2P-B3
    Product Type Electric Motor
    Voltage / Frequency AC 230V, 60Hz
    Phase Single-Phase
    Rotation Direction CW/CCW Dual Direction
    Horsepower 5 HP
    Rated Torque 10.14 N·m
    Speed 3450 RPM
    Cooling Type TEFC
    Main Materials Steel Plate
    Shaft Diameter 0.875"
    Shaft Length 2.25"
    Keyway Size 0.188" width x 0.094" depth
    Certification CSA
    Net Weight 51.8 lbs
    Dimensions 14.6 x 8.9 x 8.3"

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
