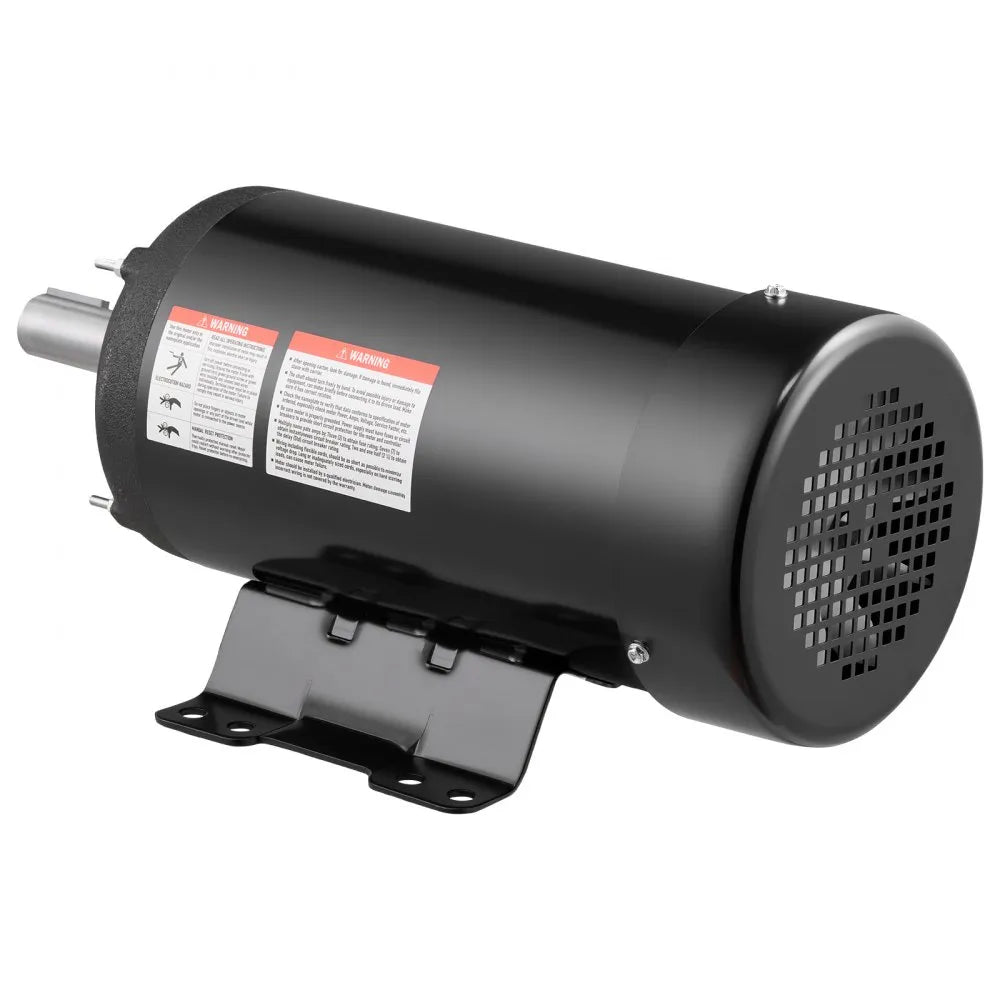

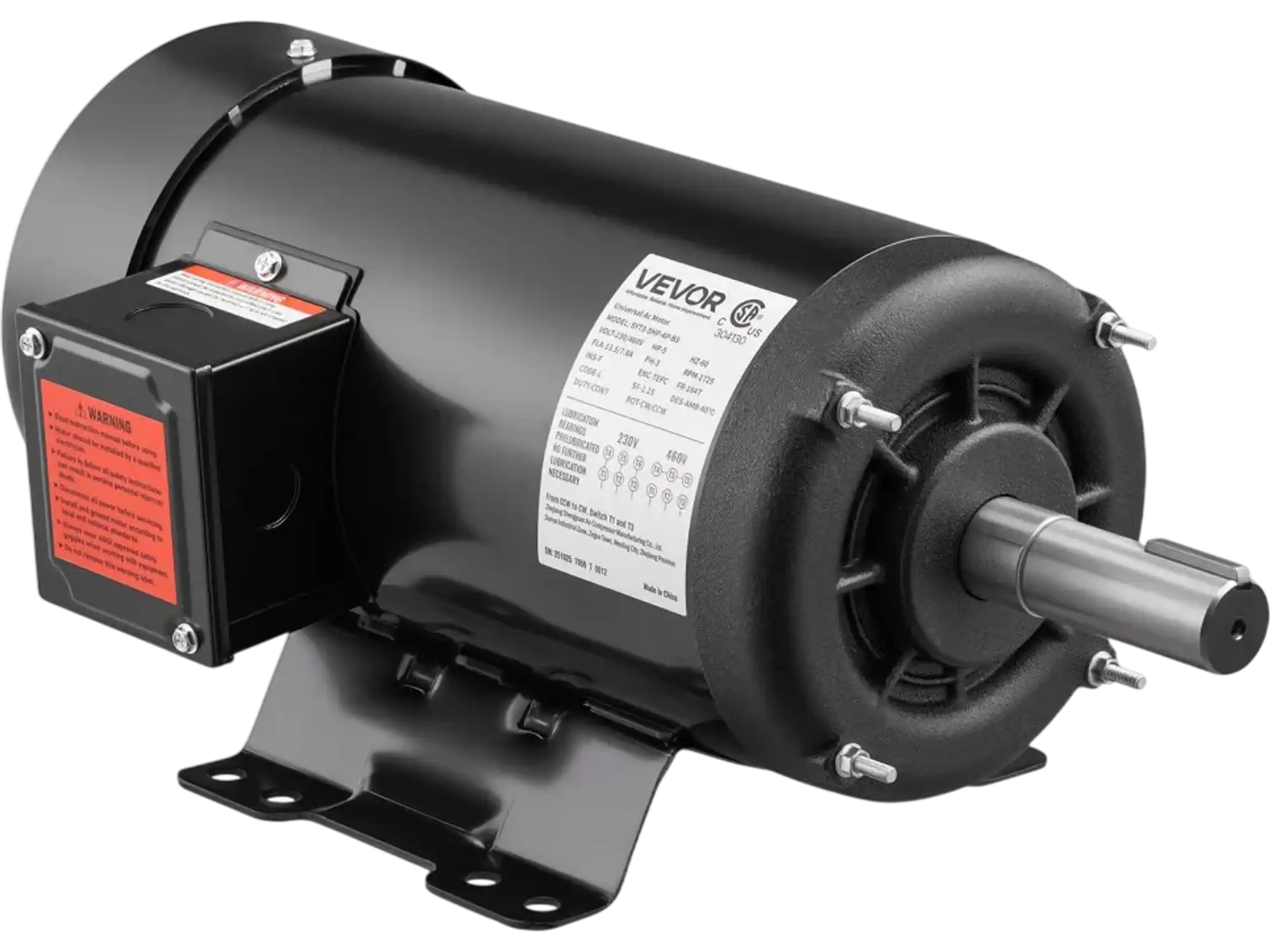

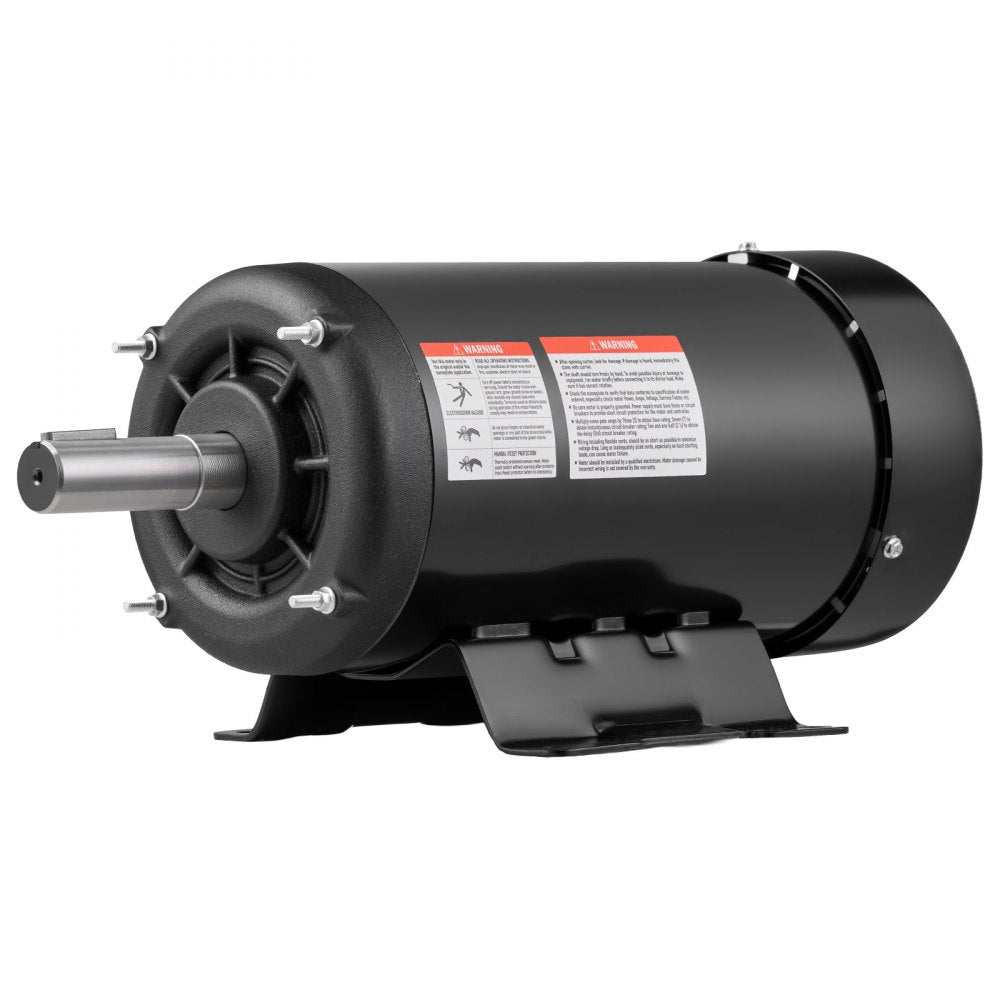

Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New

Manufacturer: Vevor

SKU: TYJLDJ5HP1720JMHT001V8

SMS
Messenger
WhatsApp
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame

Power Options





QTY

Product successfully added to your wishlist.
View wishlist

or

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$555.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

Customers Also Purchased

VEVOR 1 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 5/8 inch Shaft Diameter, 1.88inch Shaft Length, 4.1N.m Torque, Single-Phase, TEFC Cooling, 115V/230V, 56 Frame Vevor Electric Motor 1 HP 1725 RPM Air Compressor New

$250.00

VEVOR 1 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 5/8 inch Shaft Diameter, 1.88inch Shaft Length, 4.1N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 56C Frame Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New

$201.00

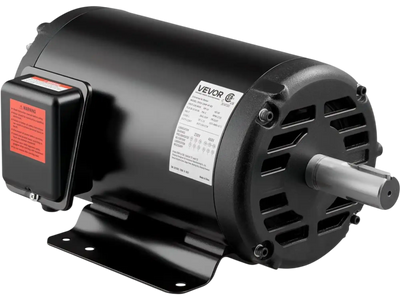

VEVOR 10 HP Electric Motor, 1770RPM Air Compressor Motor, CW/CCW Rotation, 1.375 inch Shaft Diameter, 3.88inch Shaft Length, 40N.m Torque, Three-Phase, 230V/460V, ODP Cooling, 215T Frame Vevor Electric Motor 10 HP 1770 RPM Air Compressor Three-Phase 230V/460V ODP 215T Frame New

$718.00

VEVOR 1.5HP Electric Motor 3450 rpm, AC 115V/230V, 56 Frame, Air Compressor Motor Single Phase, 5/8 Vevor Electric Motor 1.5 HP 3450 RPM 56 Frame Single Phase 5/8" Keyed Shaft 115/230V New

$166.00

VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8 Vevor Air Compressor Motor 3 HP 230V 3450 RPM Reversible Single Phase New

$167.00

VEVOR 1.5HP Electric Motor 3450 rpm, AC 115V/230V, 56C Frame, Air Compressor Motor Single Phase, 5/8 Vevor Electric Motor 1.5 HP 3450 RPM 56C Frame 5/8" Keyed Shaft Single Phase 115/230V New

$215.00

Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New

Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New

SMS
Messenger
WhatsApp
Add To Wishlist
Remove From Wishlist

Product Overview

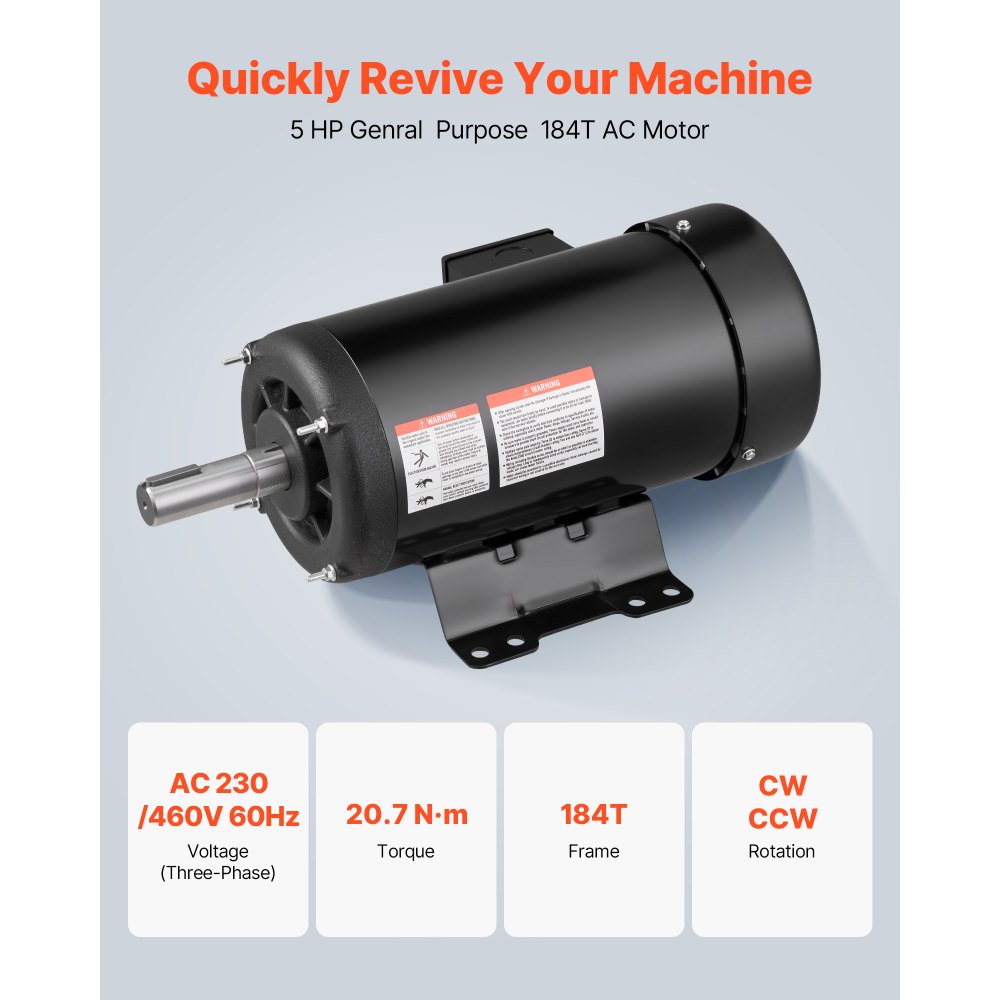

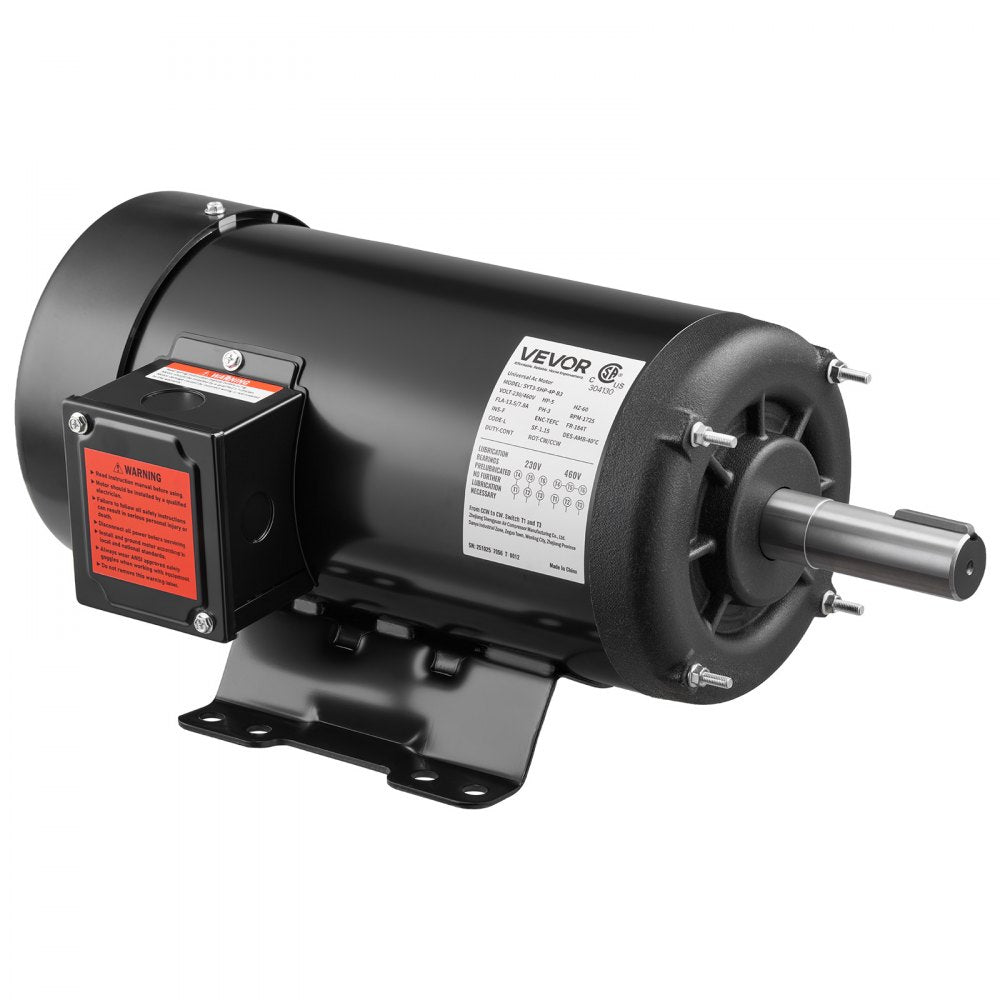

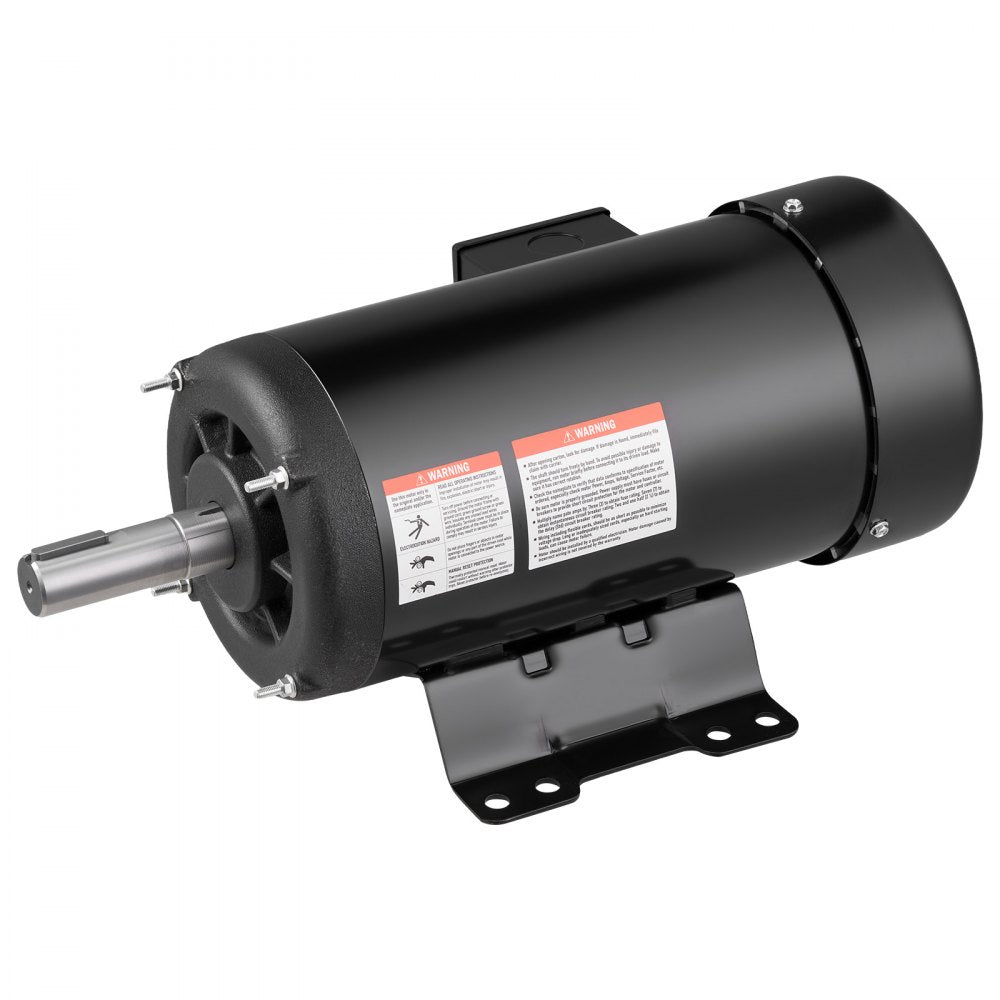

The Vevor 5 HP electric motor is a three-phase air compressor motor designed for dependable performance at 1725 RPM. It supports CW/CCW dual-direction rotation for flexible installation and operates on AC 230V/460V, 60Hz power. Built with a steel plate body and TEFC cooling, it is designed to help reduce overheating during demanding use. This motor features a 184T frame, 1.125" shaft diameter, and 2.75" shaft length for general-purpose replacement and repair applications. It is suitable for air compressors, water pumps, agricultural machinery, and other equipment.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

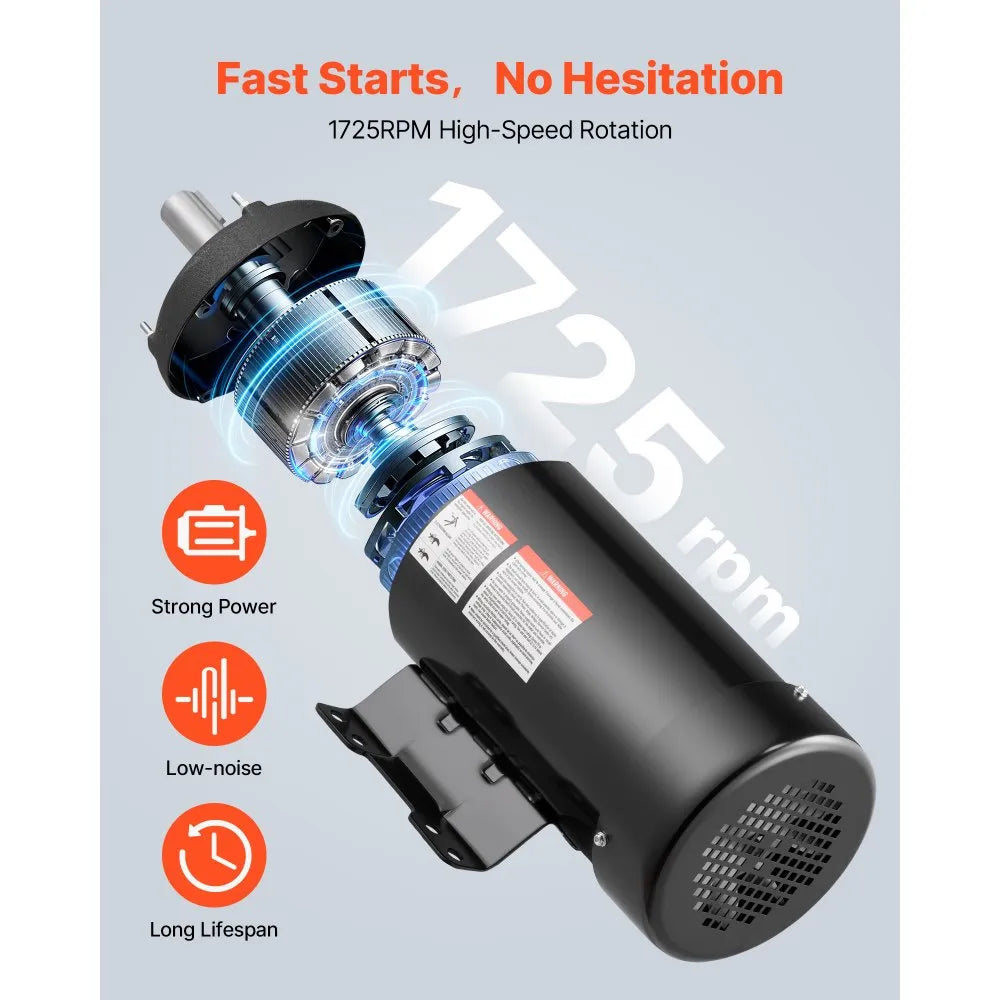

  • High Performance: 5HP high-performance motor featuring 20.7 N.m rated torque. Designed for AC 230/460V 60Hz, three-phase power. The air compressor electric motor operates at 1725 RPM for fast, reliable speed

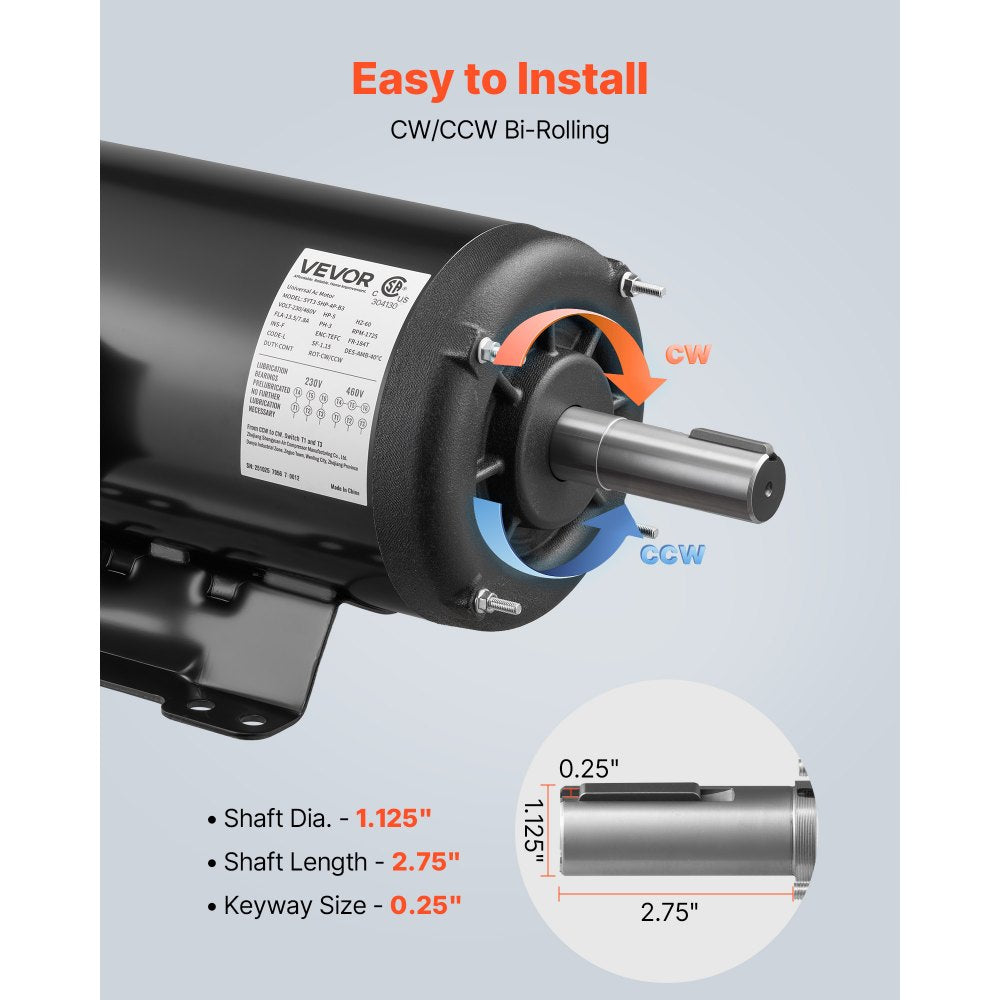

  • Rugged Frame Type: The 184T frame of this electric motor includes a 1.125-inch shaft diameter, 2.75-inch shaft length, and keyway size: 0.188 inch ( 0.25 inch / 6.35 mm width x 0.125 inch / 3.18 mm depth)
  • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

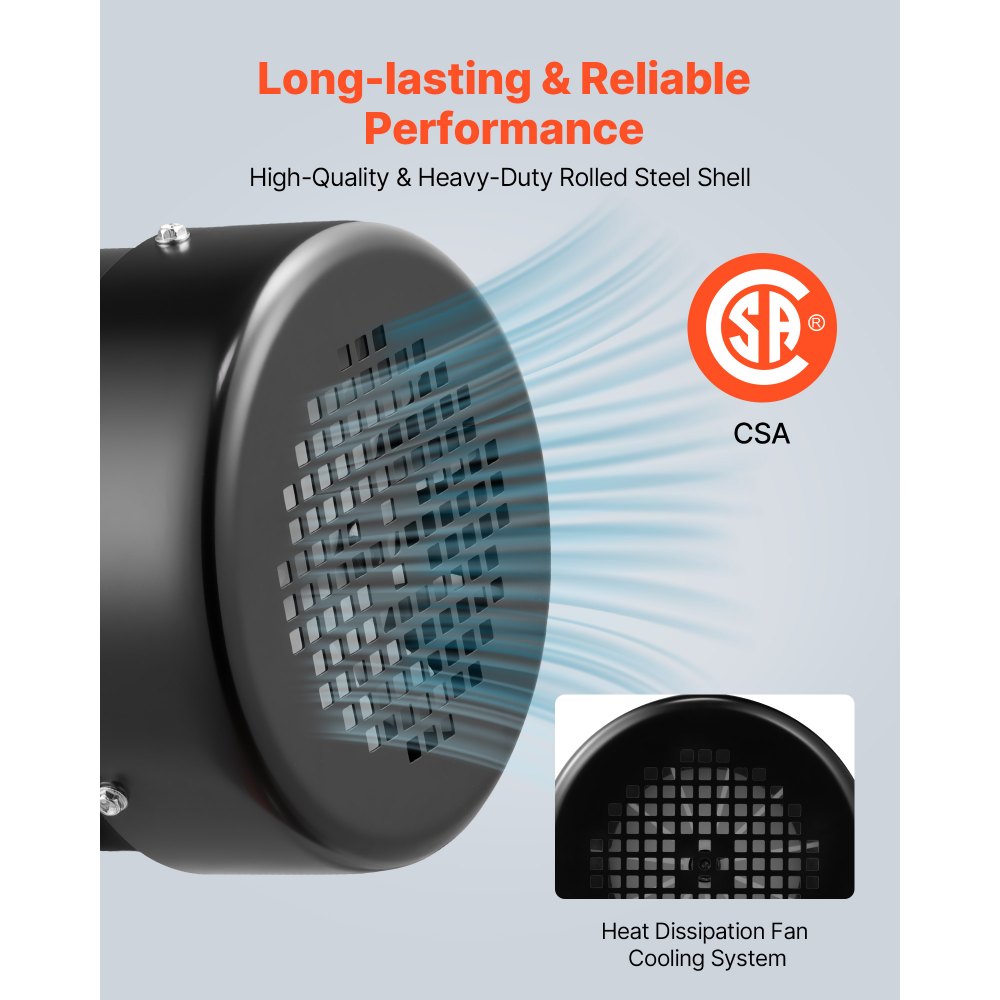

  • Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
  • Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

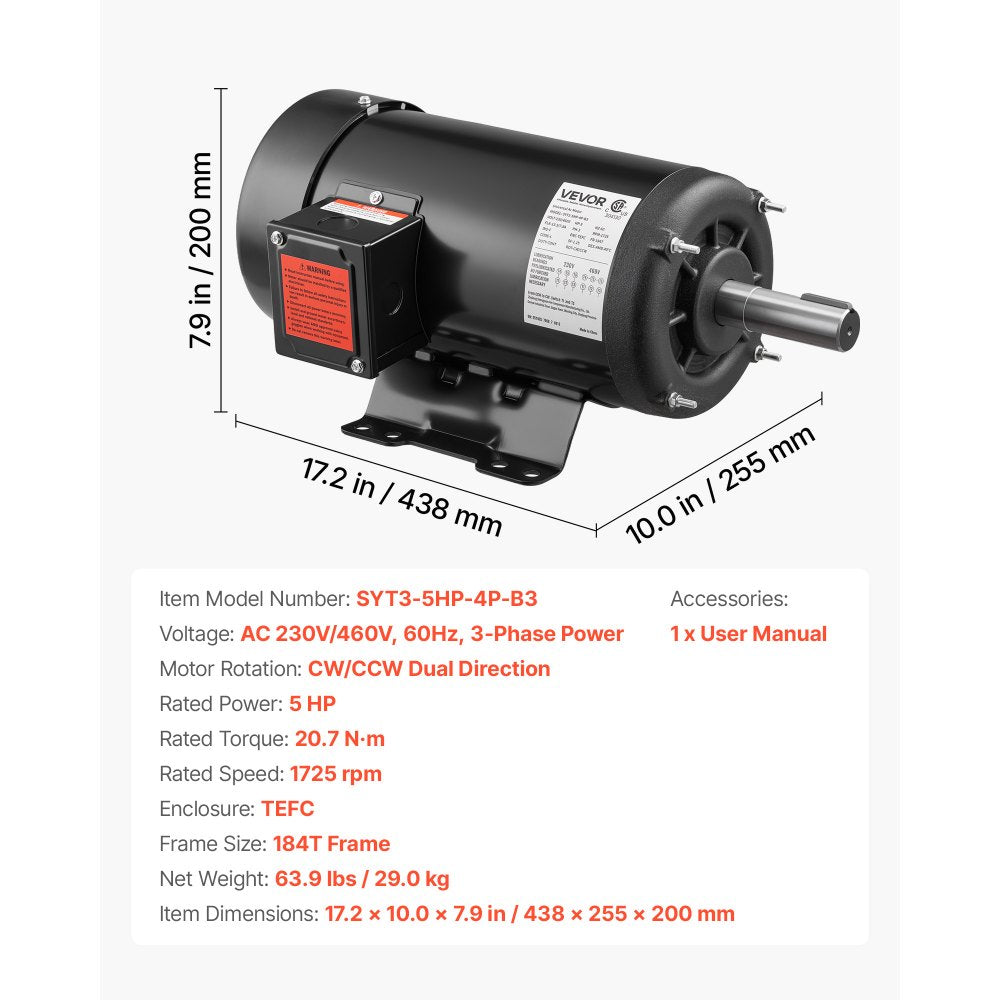

Specifications

Model SYT3-5HP-4P-B3
Voltage / Frequency AC 230V / 460V, 60Hz, 3-Phase Power
Rotation Direction CW/CCW Dual Direction
Horsepower 5 HP
Rated Torque 20.7 N.m
Speed 1725 RPM
Cooling Type TEFC
Frame 184T
Shaft Diameter 1.125"
Shaft Length 2.75"
Keyway Size 0.188" 0.25" width x 0.125" depth
Material Steel Plate Body
Net Weight 63.9 lbs
Dimensions 17.2 x 10.0 x 7.9"

Package Contents

1 x Electric Motor

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
