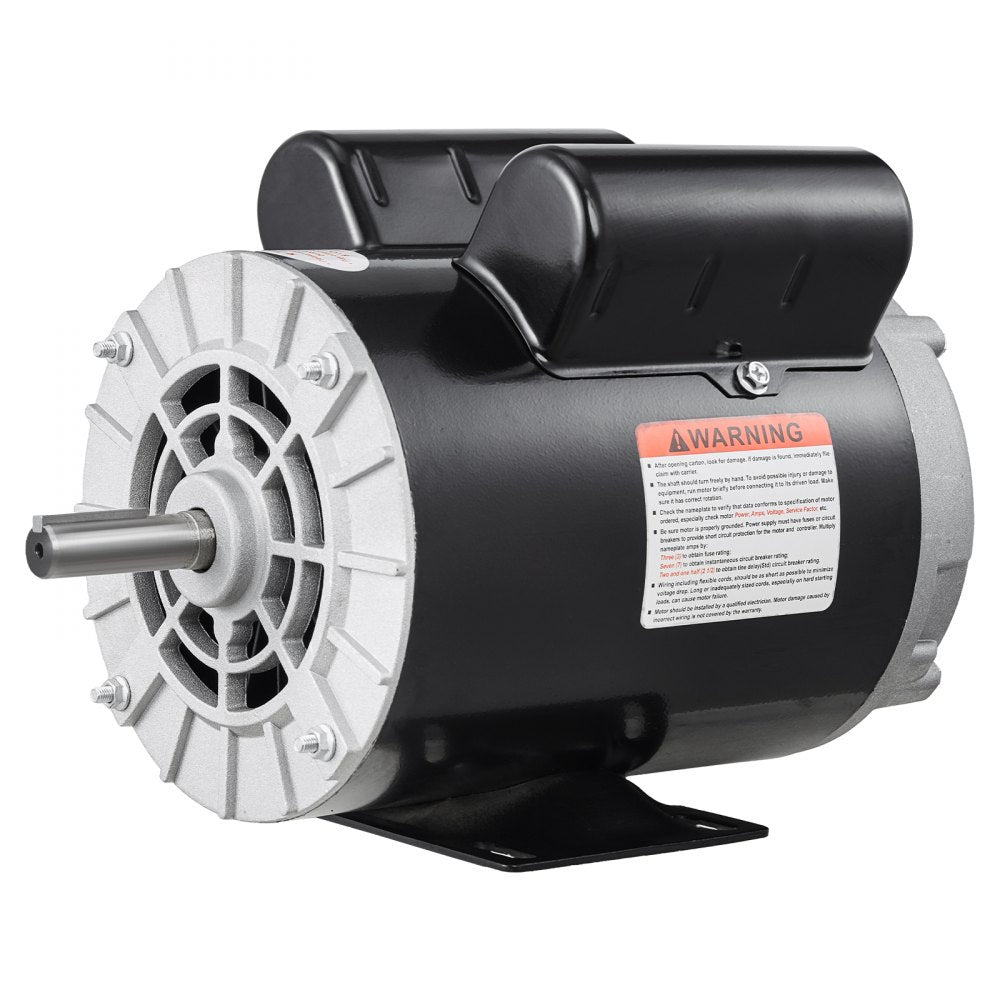

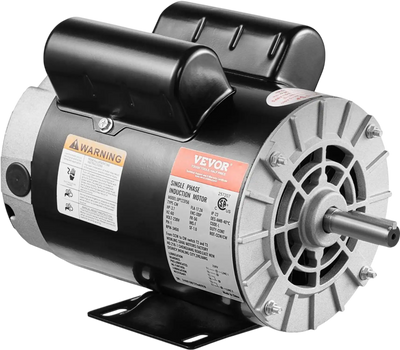

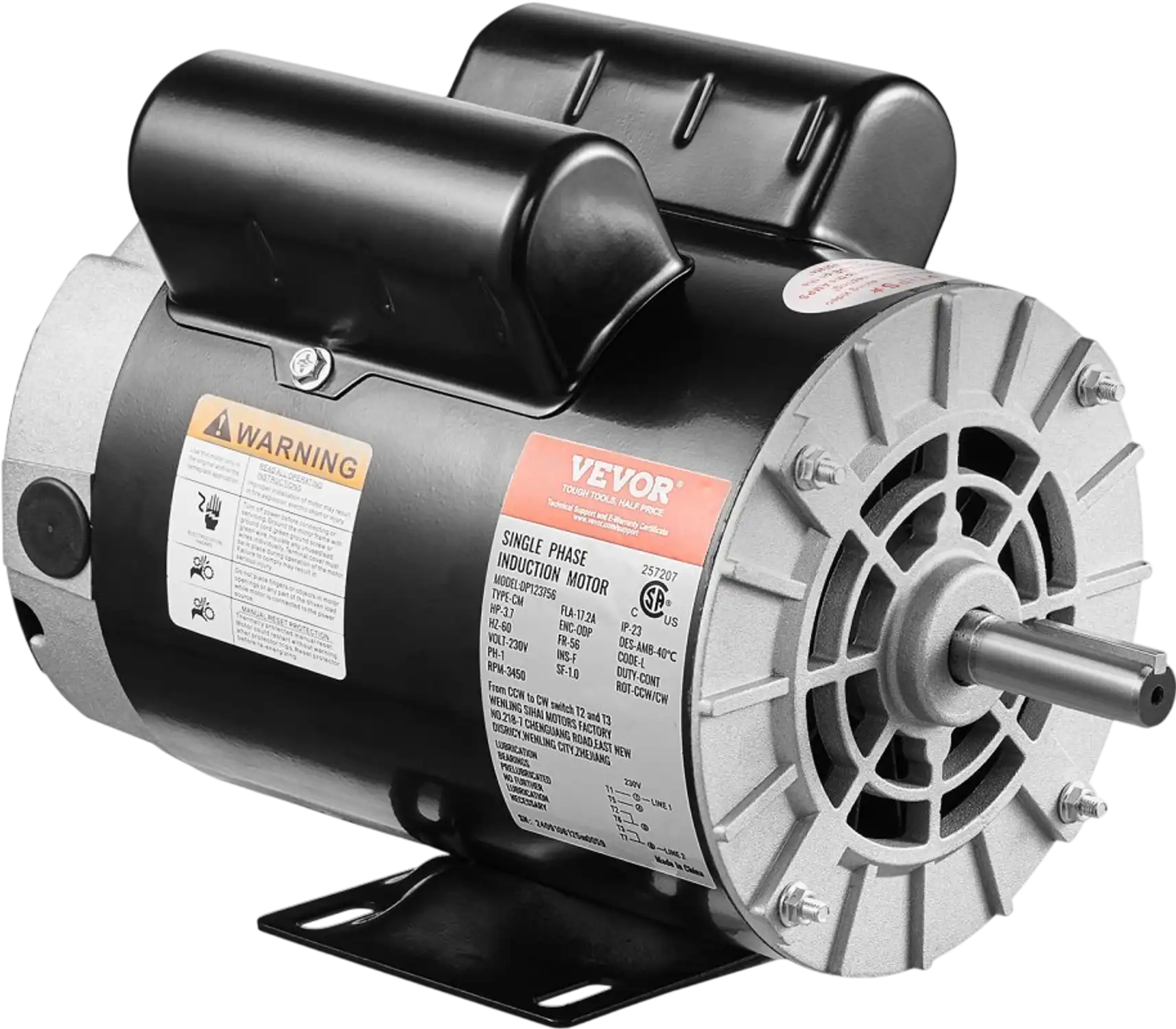

Vevor Air Compressor Motor 3.7 HP 3450 RPM 230V 56 Frame New

Manufacturer: Vevor

SKU: ODPKYJDJ37HPGH6USV7

×
SMS
Messenger
WhatsApp
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)
VEVOR 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

QTY

Product successfully added to your wishlist.
View wishlist

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$236.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

    Customers Also Purchased

    Vevor Air Compressor Motor 3.7 HP 3450 RPM 230V 56 Frame New

    Vevor Air Compressor Motor 3.7 HP 3450 RPM 230V 56 Frame New

    ×
    SMS
    Messenger
    WhatsApp
    Add To Wishlist
    Remove From Wishlist

    Product Overview

    The Vevor air compressor motor is a single-phase electric motor designed for air compressors and other industrial applications. It delivers 3.7 HP power at 3450 RPM with a 56 frame design and a 5/8" keyed shaft. The motor features reversible CW/CCW rotation, with the factory setting configured to CCW for flexible installation. Its open drip-proof construction and steel frame support dependable performance in clean, dry environments. Built for durability, it is suited for workshops, garages, and machinery use.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

    • High Performance: 3.7HP 3450 RPM, Single Phase, Full Load Amps: 17.2Amp, 230V 60Hz, SF: 1.0.

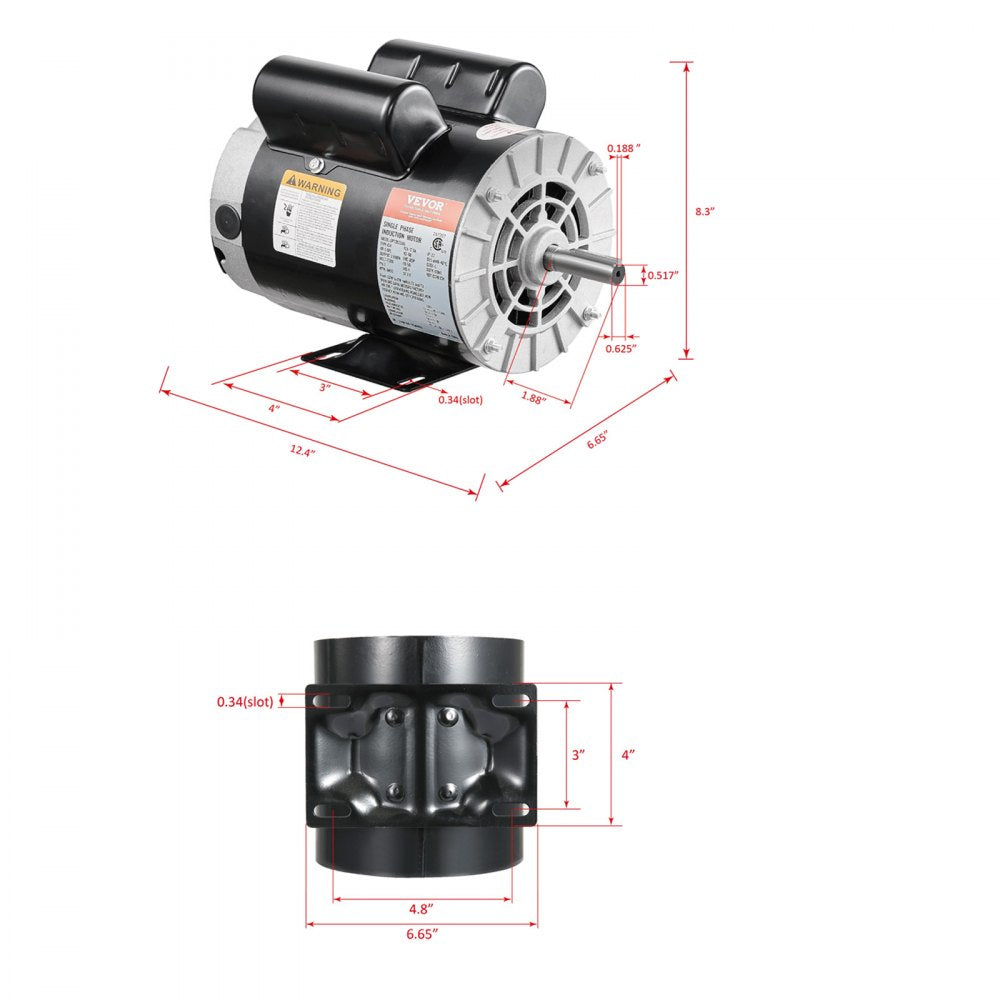

    • Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
    • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

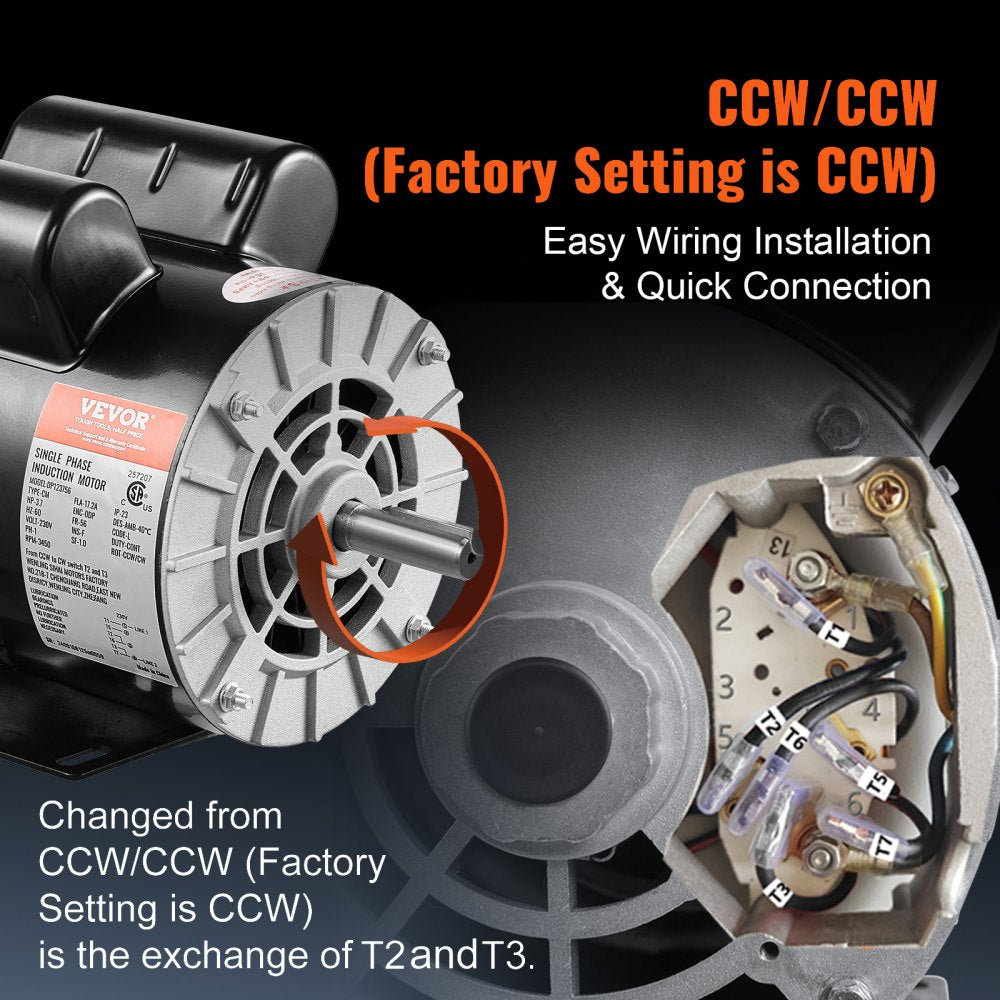

    • Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.

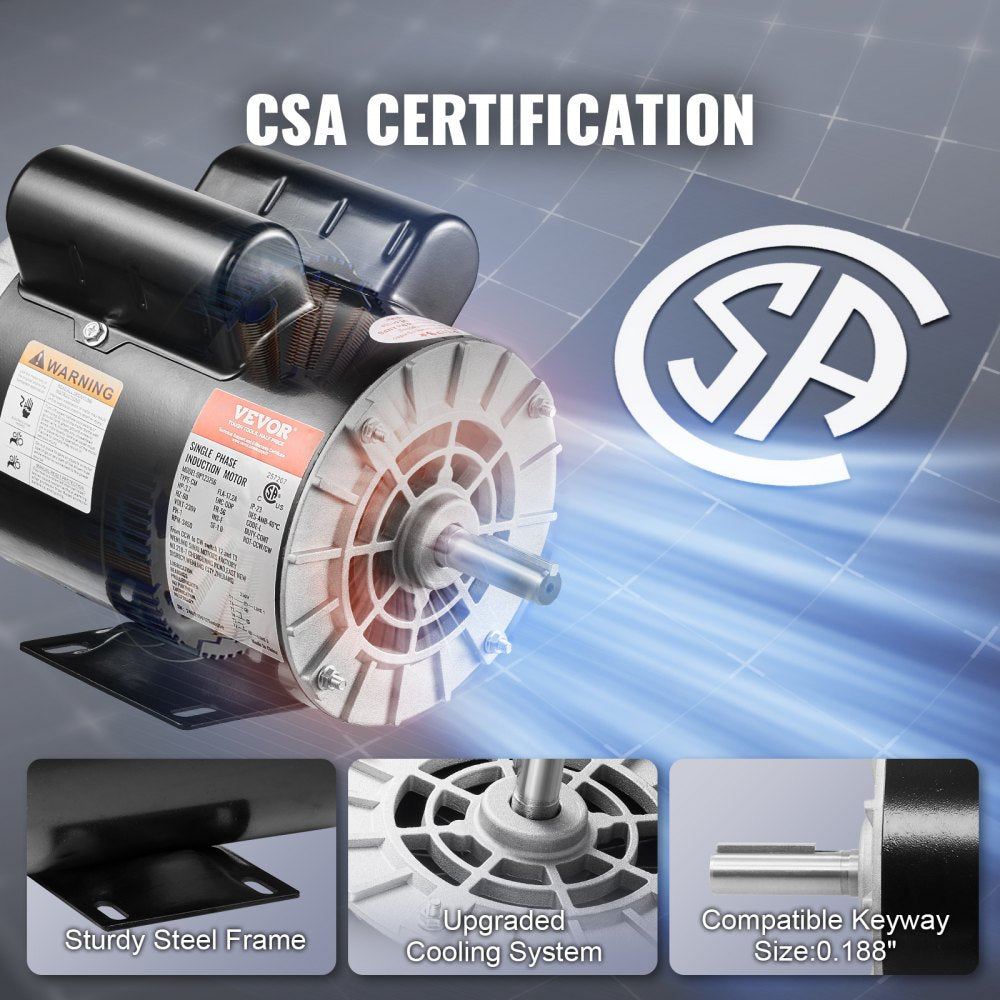

    • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps.)

    Specifications

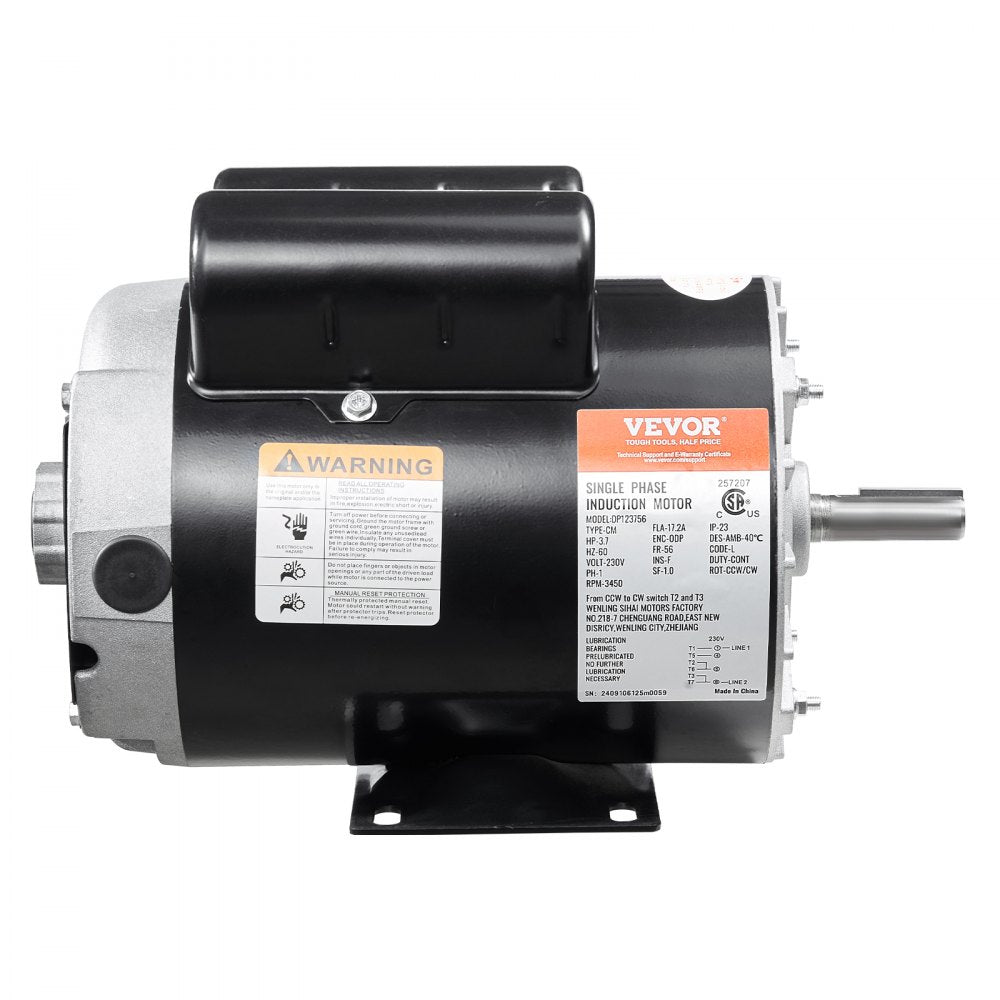

    Item Model Number DP123756
    Voltage 230V
    Frequency 60Hz
    Current 17.2A
    Power 3.7 HP
    Rotation Speed 3450 RPM
    Service Factor 1.0
    Enclosure ODP
    Frame Size 56
    Phase Single Phase
    Shaft Diameter 5/8" keyed shaft
    Shaft Length 1.88"
    Keyway Size 0.188"
    Net Weight 34.3 lbs
    Dimensions Shaft length 1.88", shaft diameter 5/8", keyway size 0.188"

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
