Product Overview

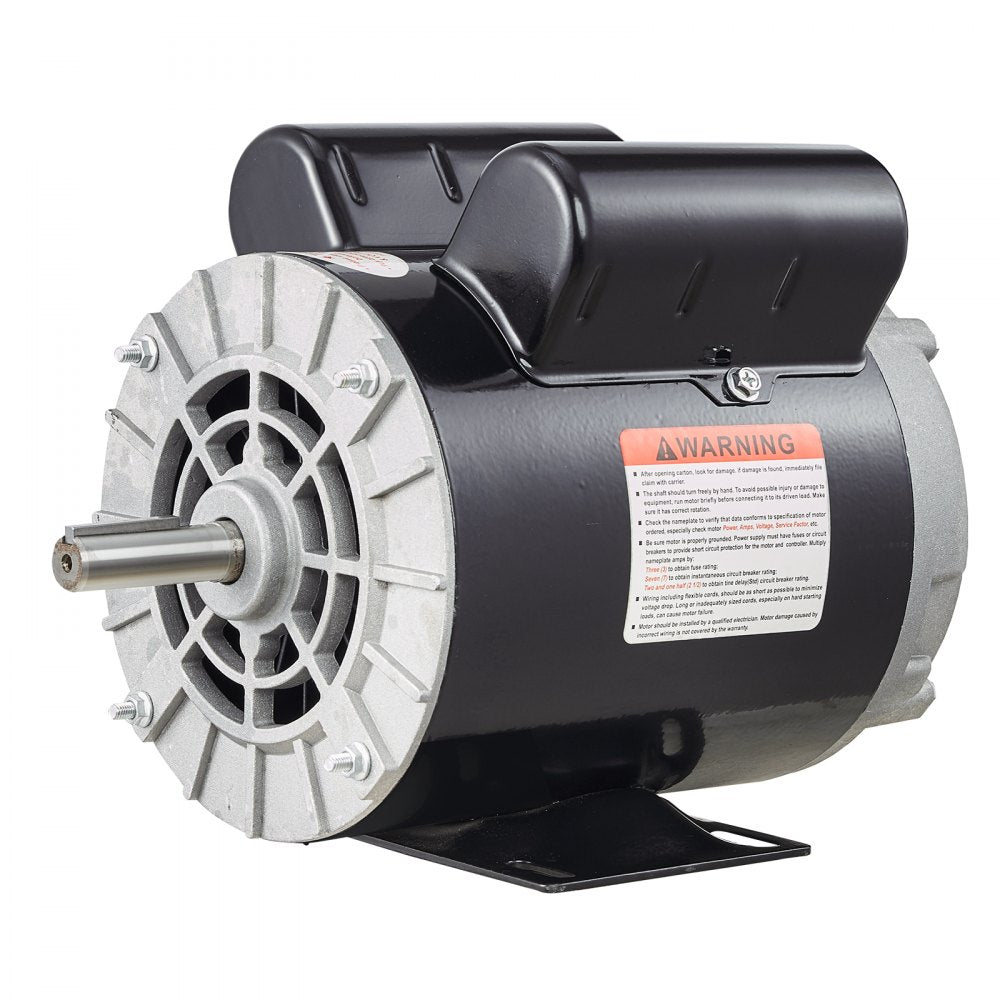

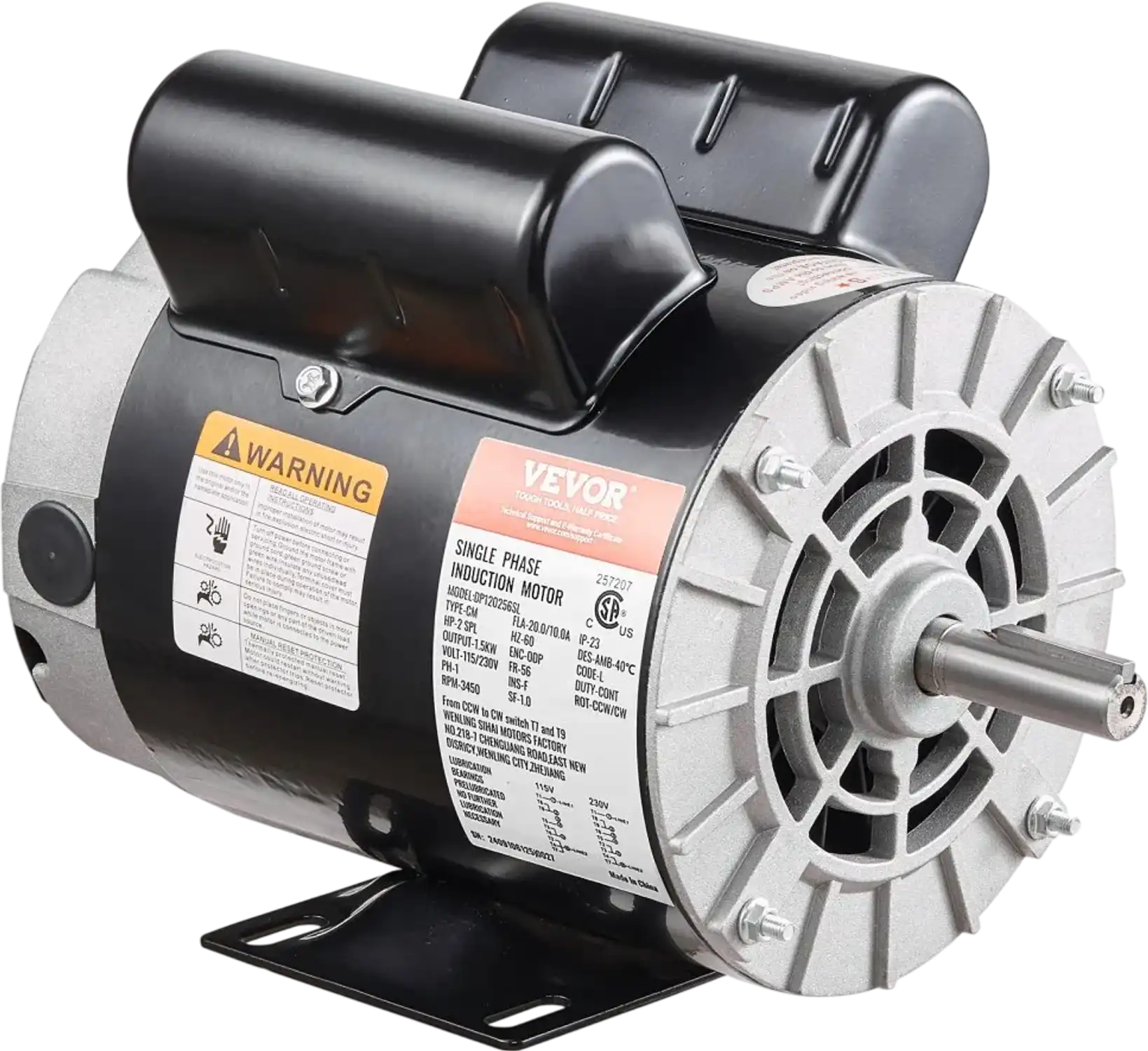

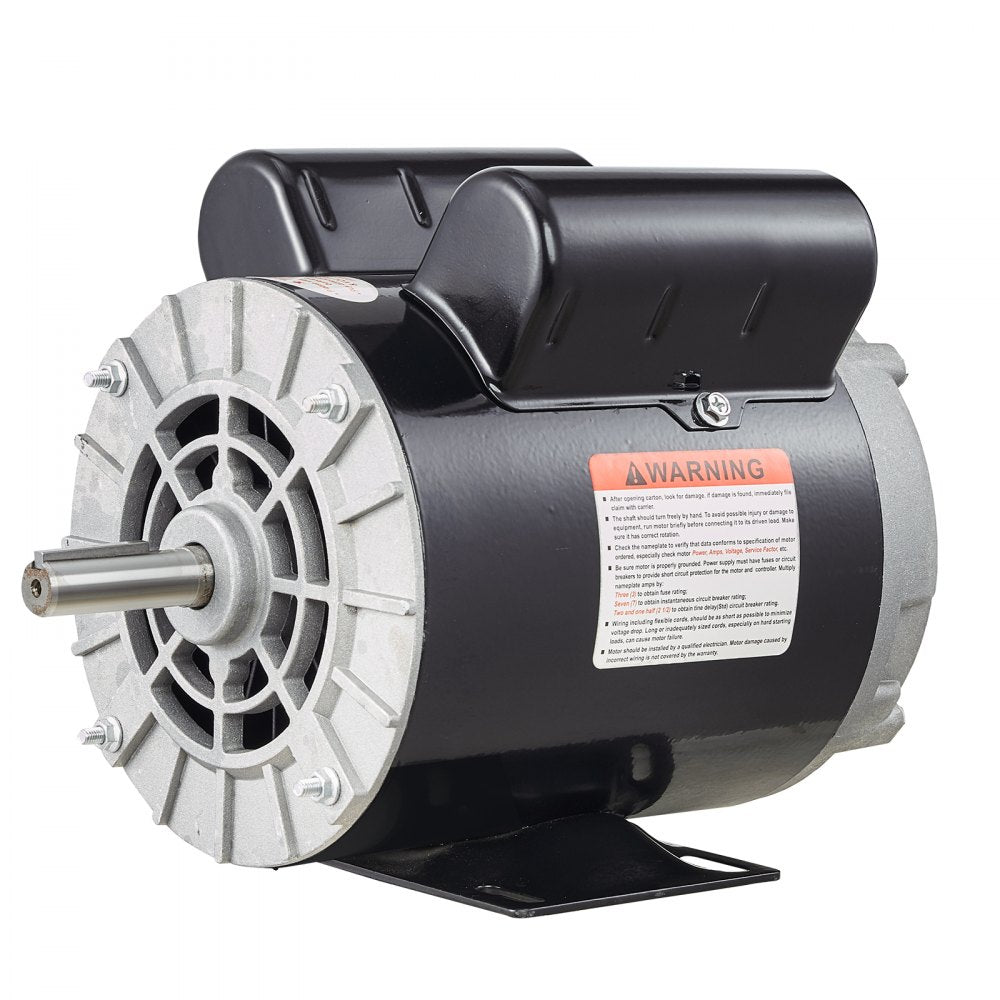

The Vevor 2 HP air compressor motor is designed to deliver reliable power for home and light commercial compressor applications. It features a dual-voltage 115/230V configuration, 3450 RPM operation, and a reversible CCW/CW rotation design for flexible installation. Built with an open drip-proof enclosure and sturdy steel construction, it is suited for clean, dry environments. The 56 frame motor includes a 5/8" keyed shaft and is intended for durable, long-term compressor use.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

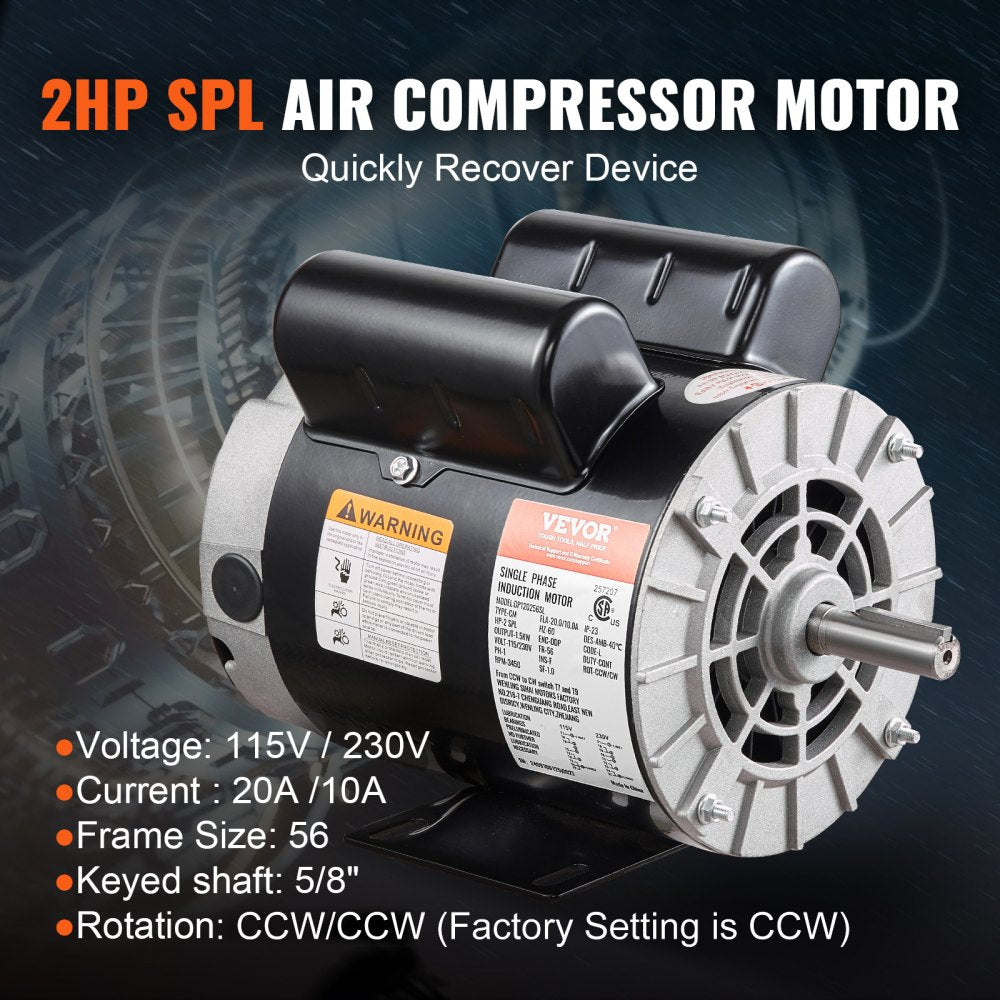

  • High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10Amp, 115V/230V, SF: 1.0.

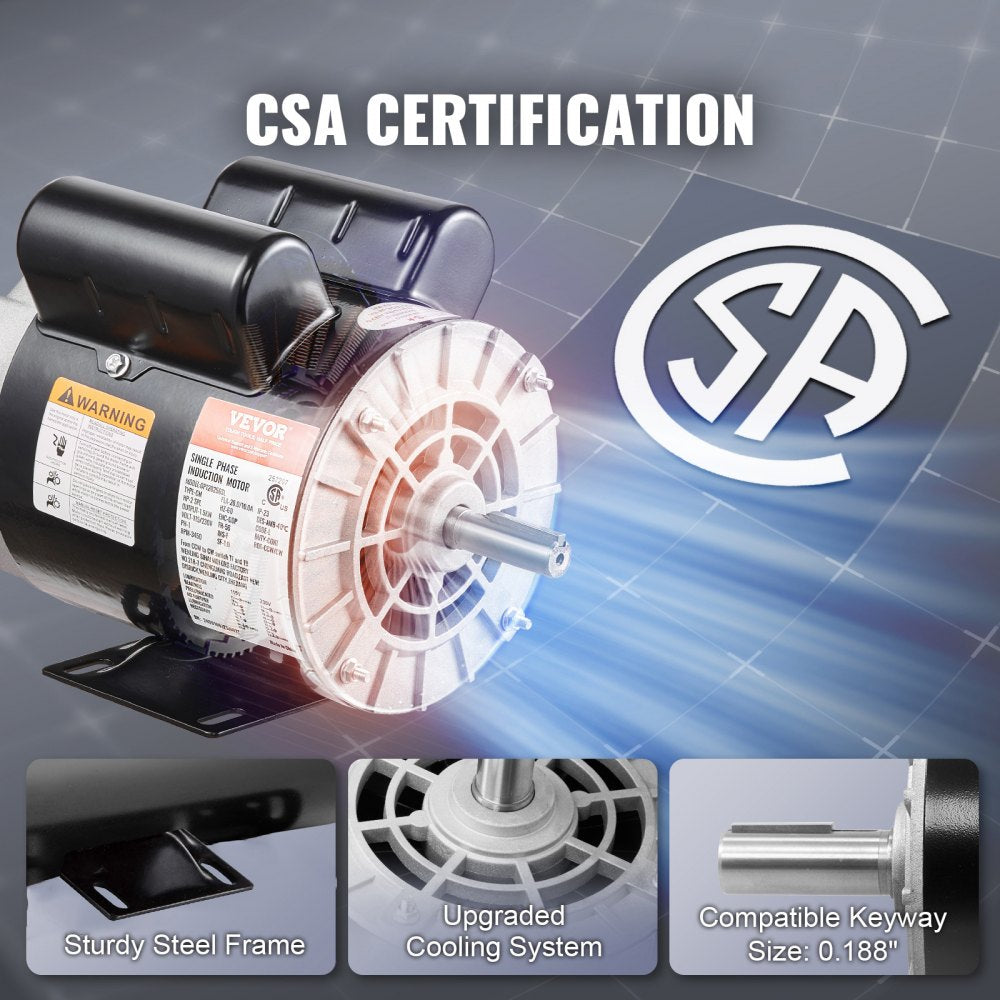

  • Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
  • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

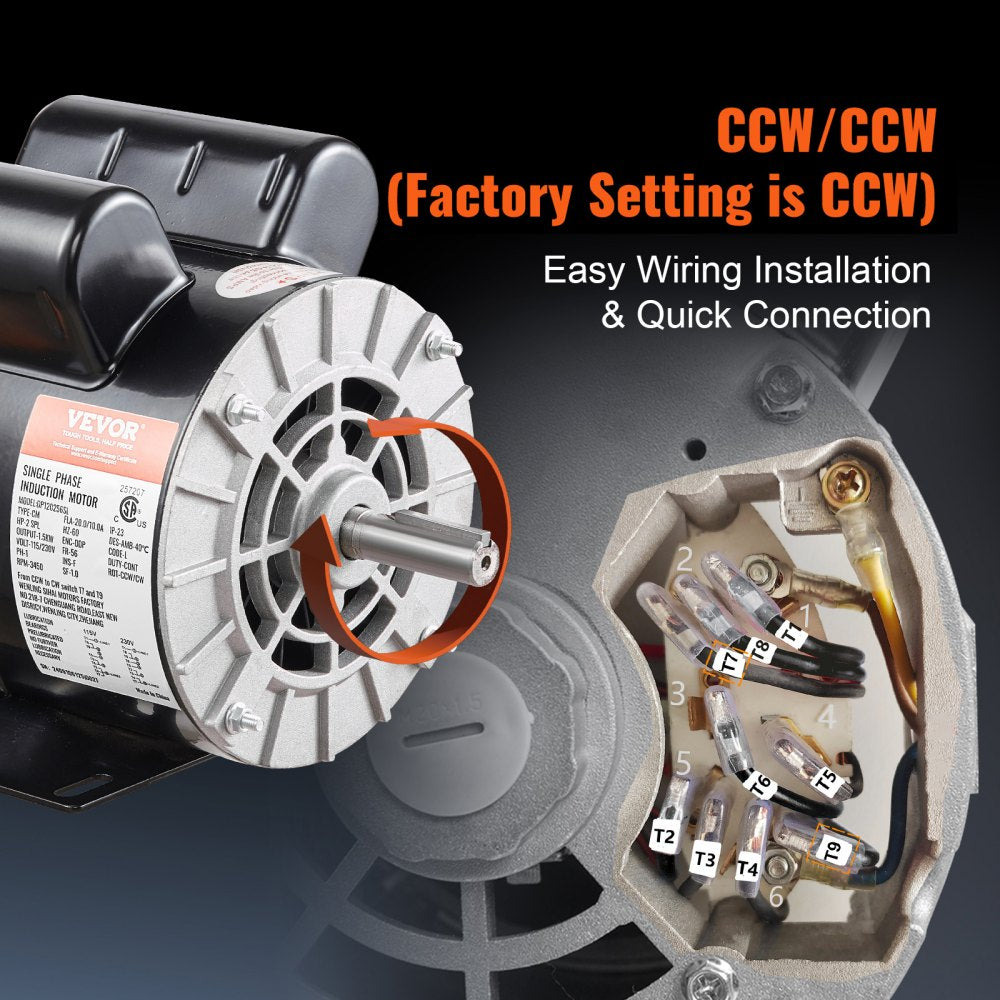

  • Dual Rotation Direction: Motor is Reversible for CCW/CW rotation (Factory Setting is CCW), provides easier wiring operations.

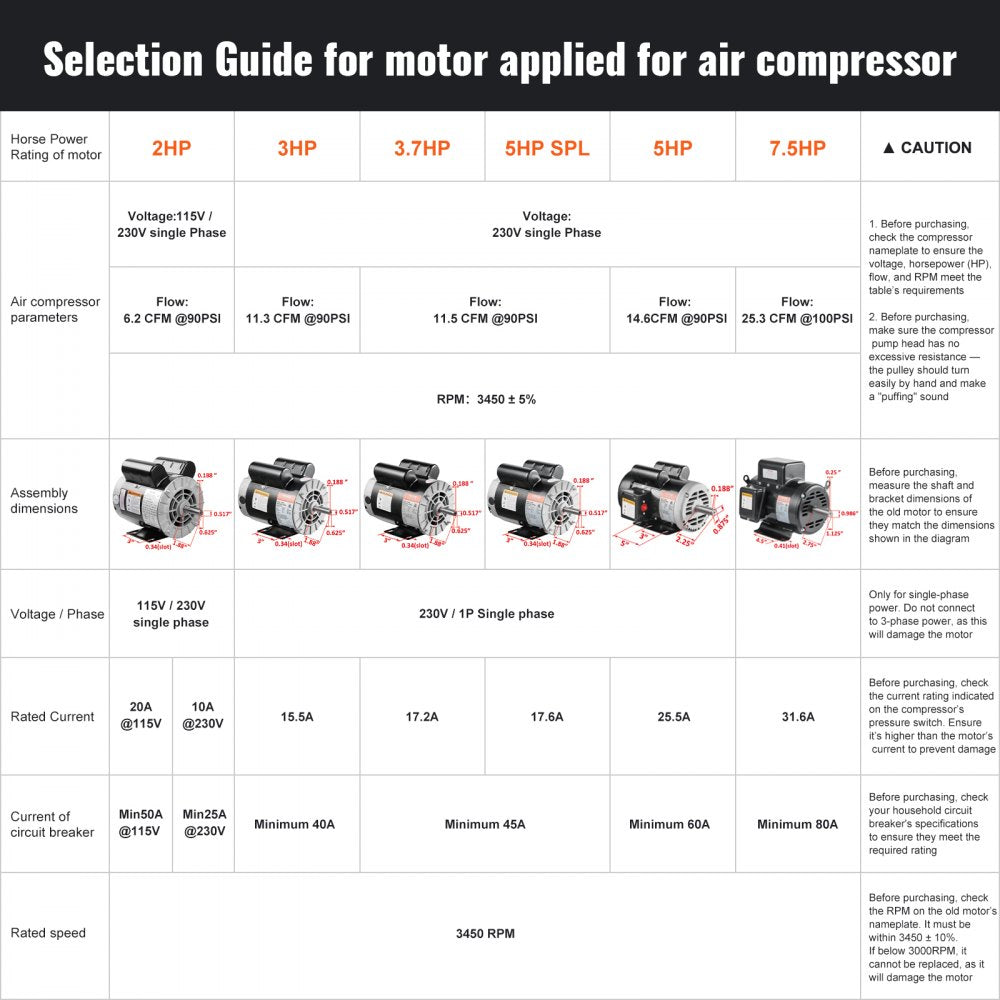

  • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 50 amps at 115V, 25 amps at 230V.)

Specifications

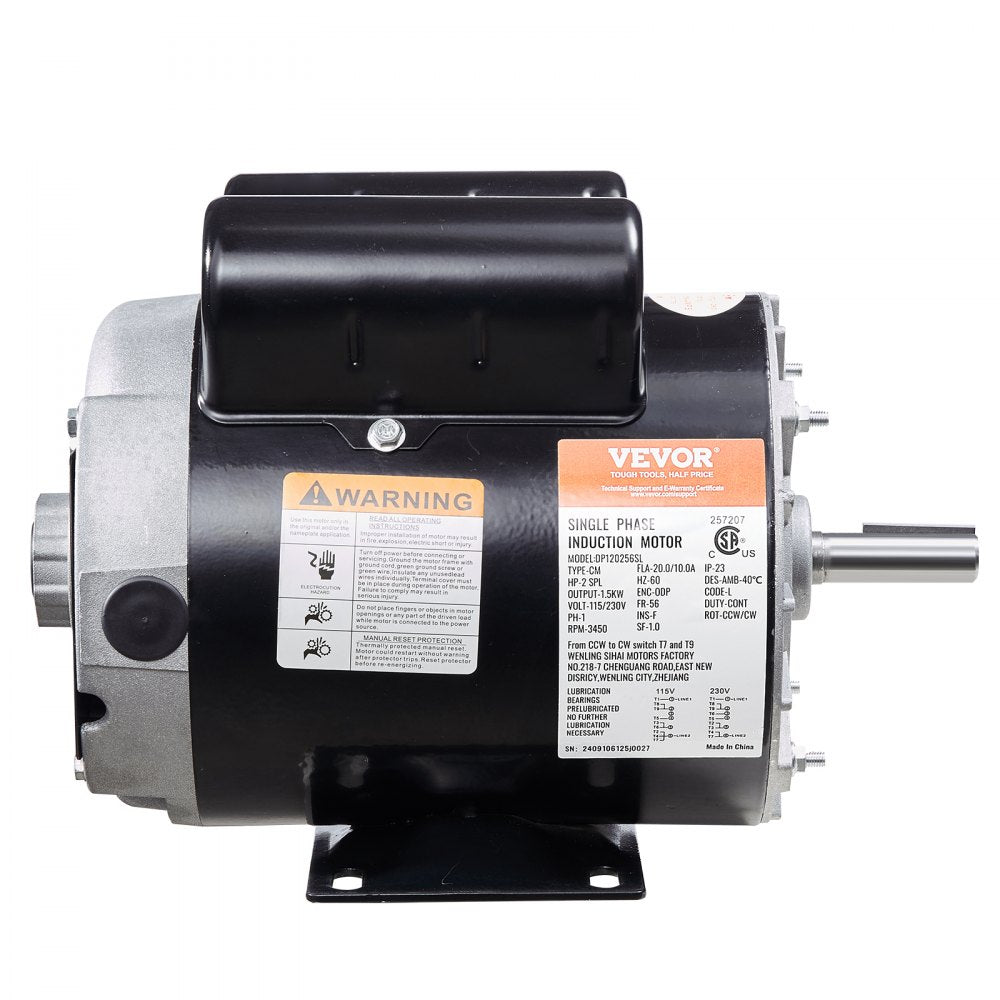

Item Model Number DP120256SL
Product Type Air Compressor Motor
Horsepower 2 HP
Voltage 115V / 230V
Frequency 60 Hz
Current 20 A / 10 A

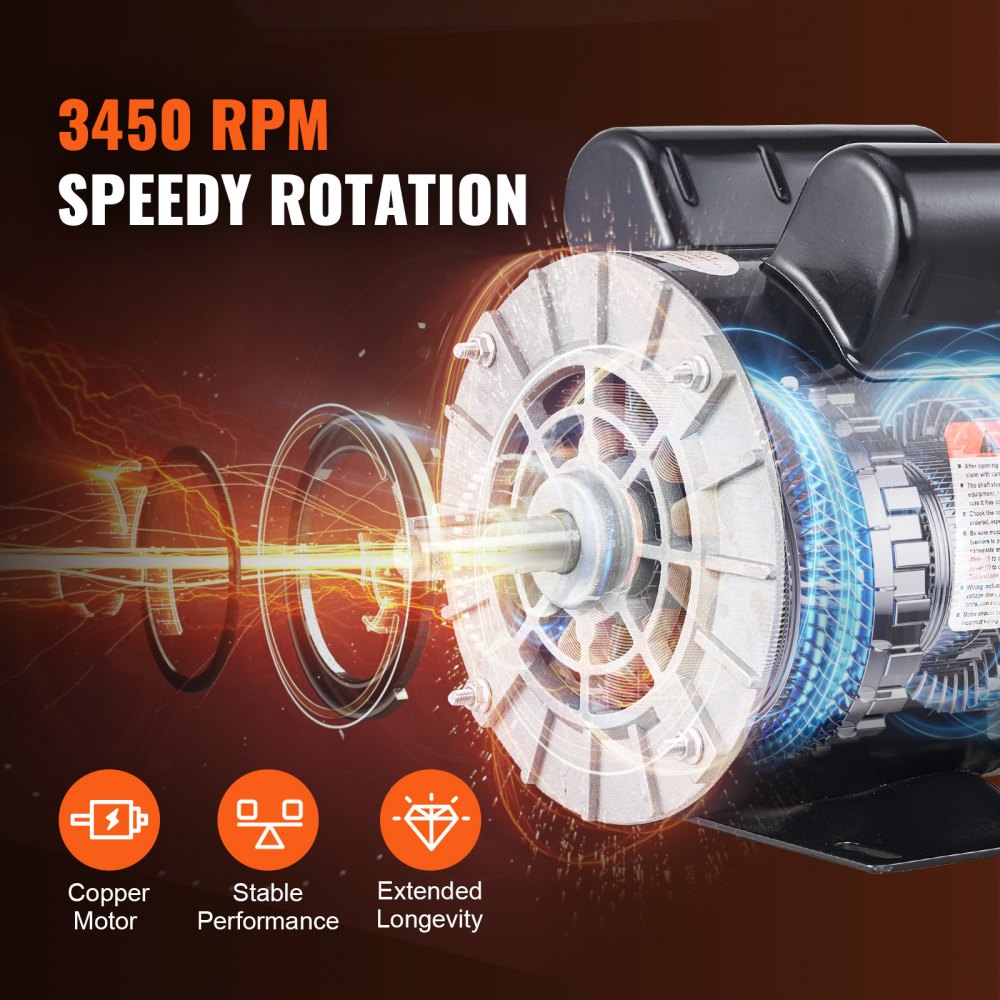

Speed 3450 RPM
Phase Single Phase
Service Factor 1.0
Enclosure ODP
Frame Size 56
Shaft Diameter 5/8" Keyed Shaft
Shaft Length 1.88"
Keyway Size 0.188"
Rotation CCW/CW Reversible
Net Weight 25.2 lbs
Dimensions Shaft Length 1.88", Shaft Diameter 5/8", Keyway Size 0.188"
