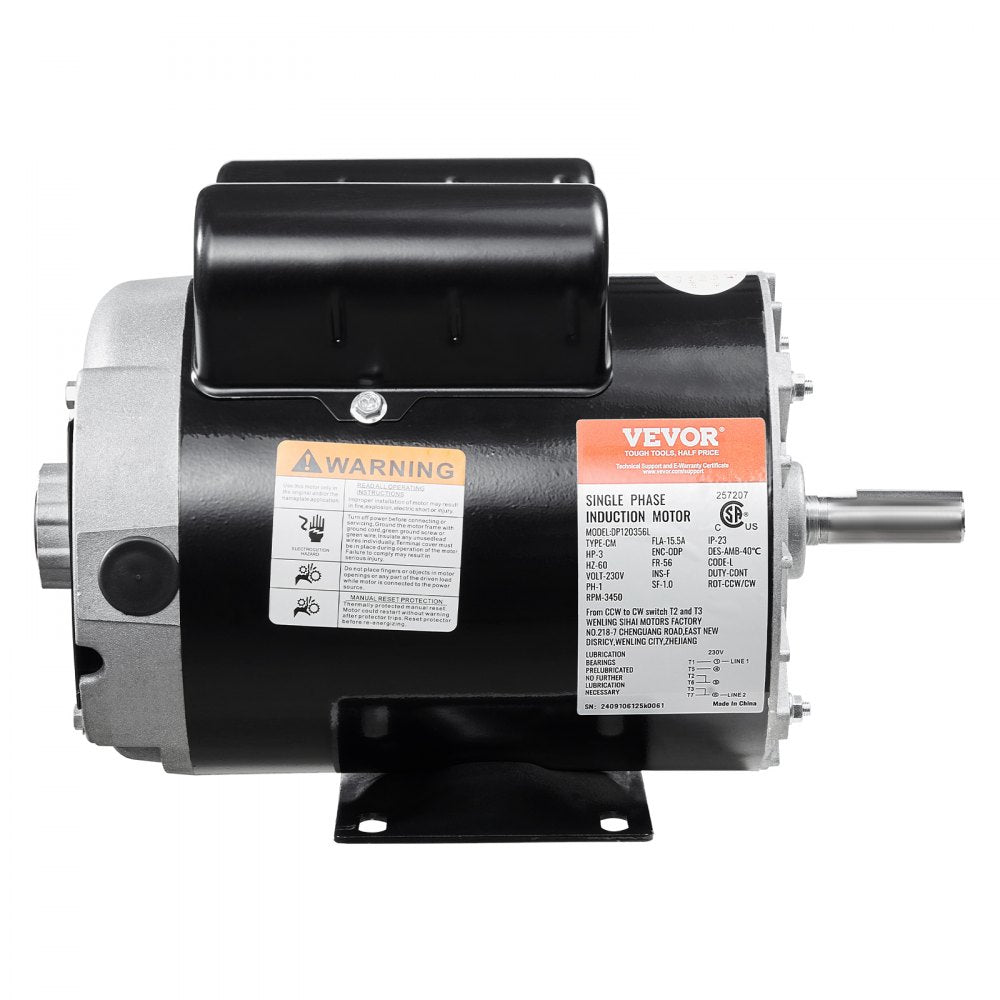

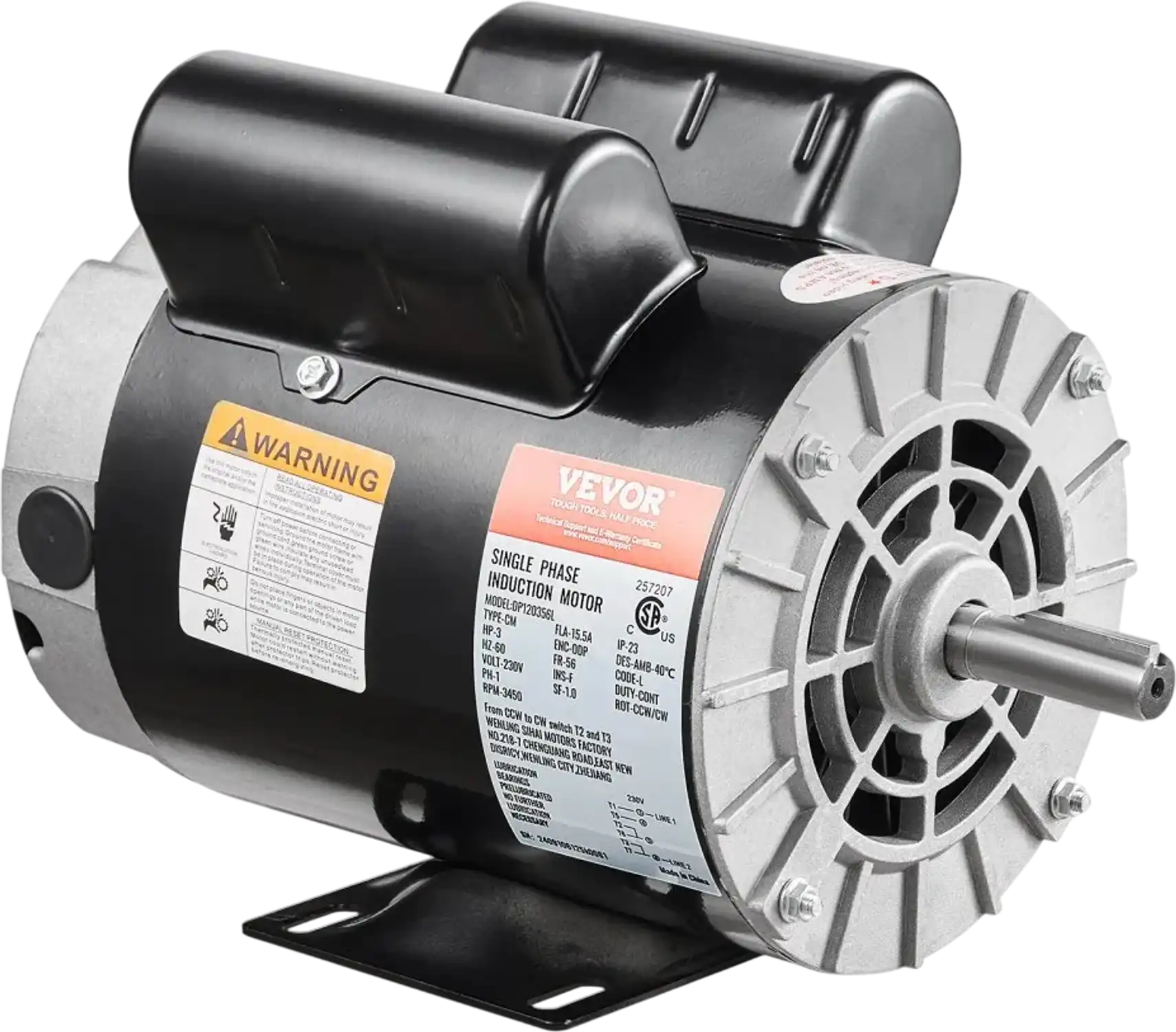

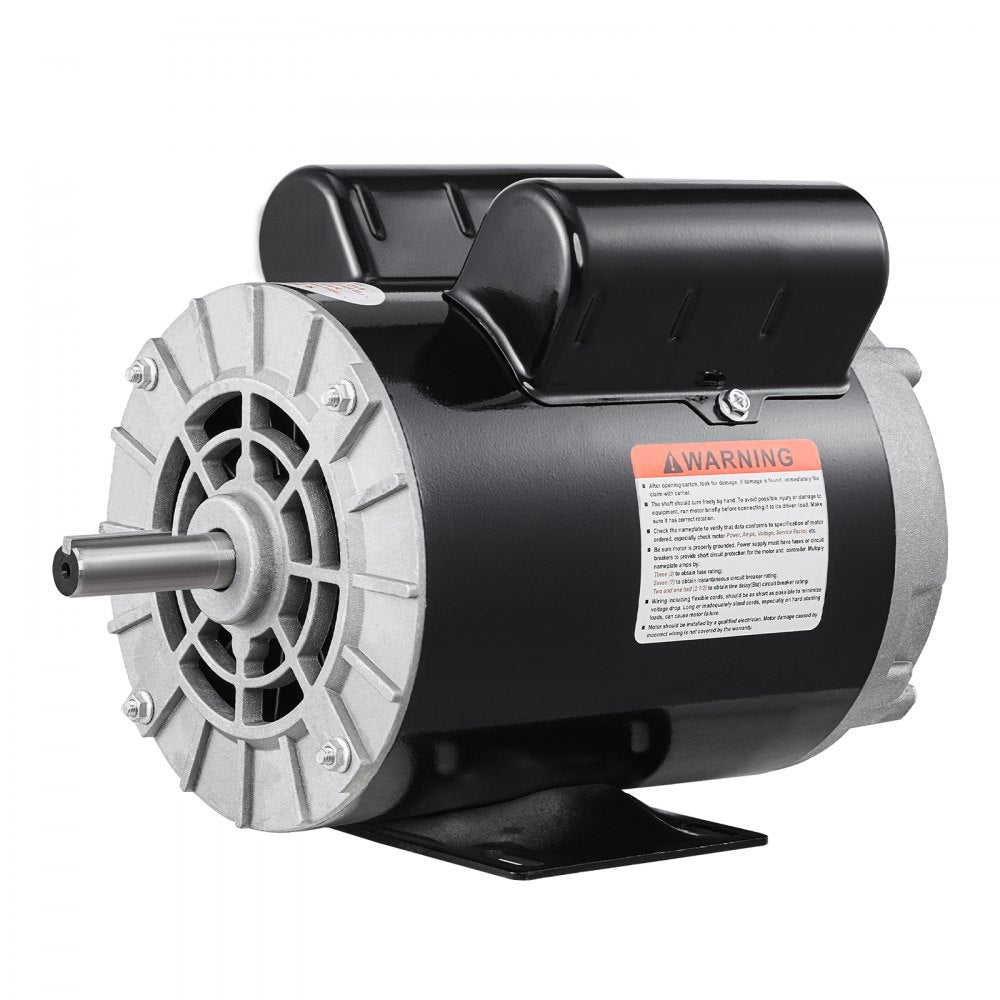

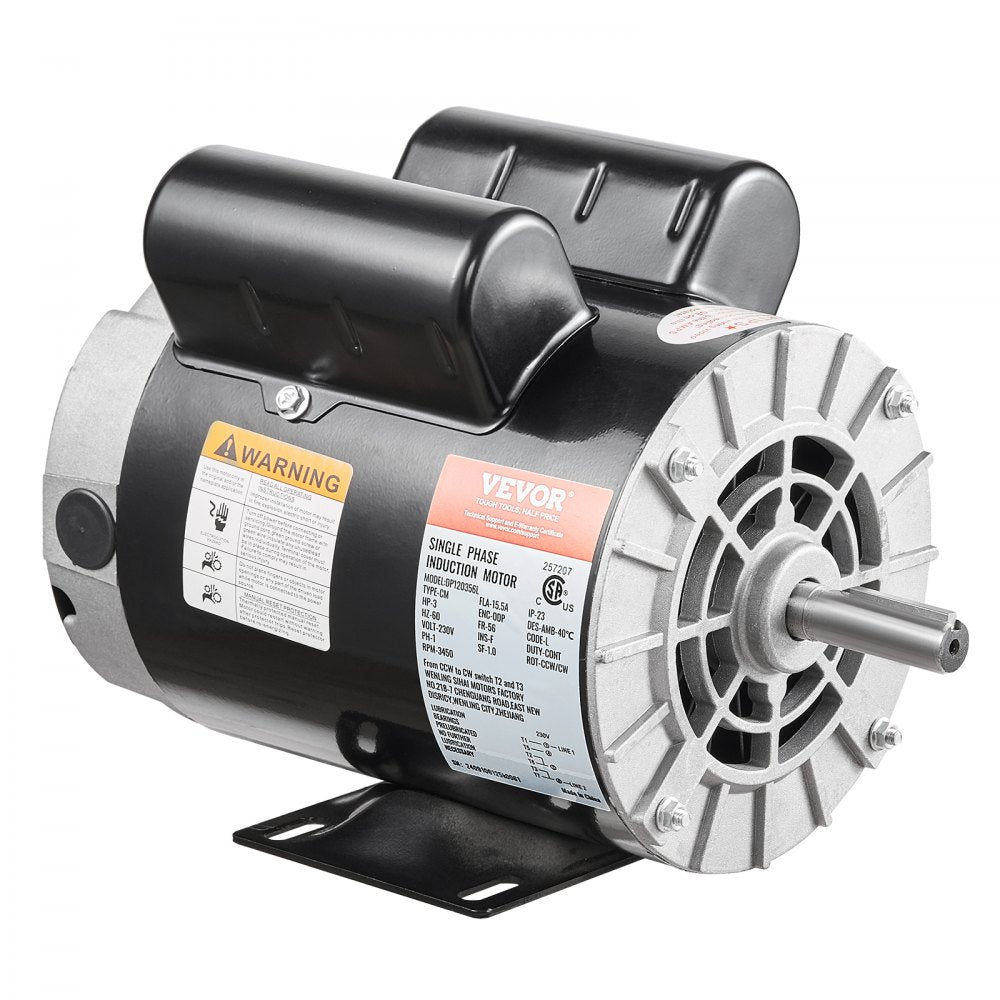

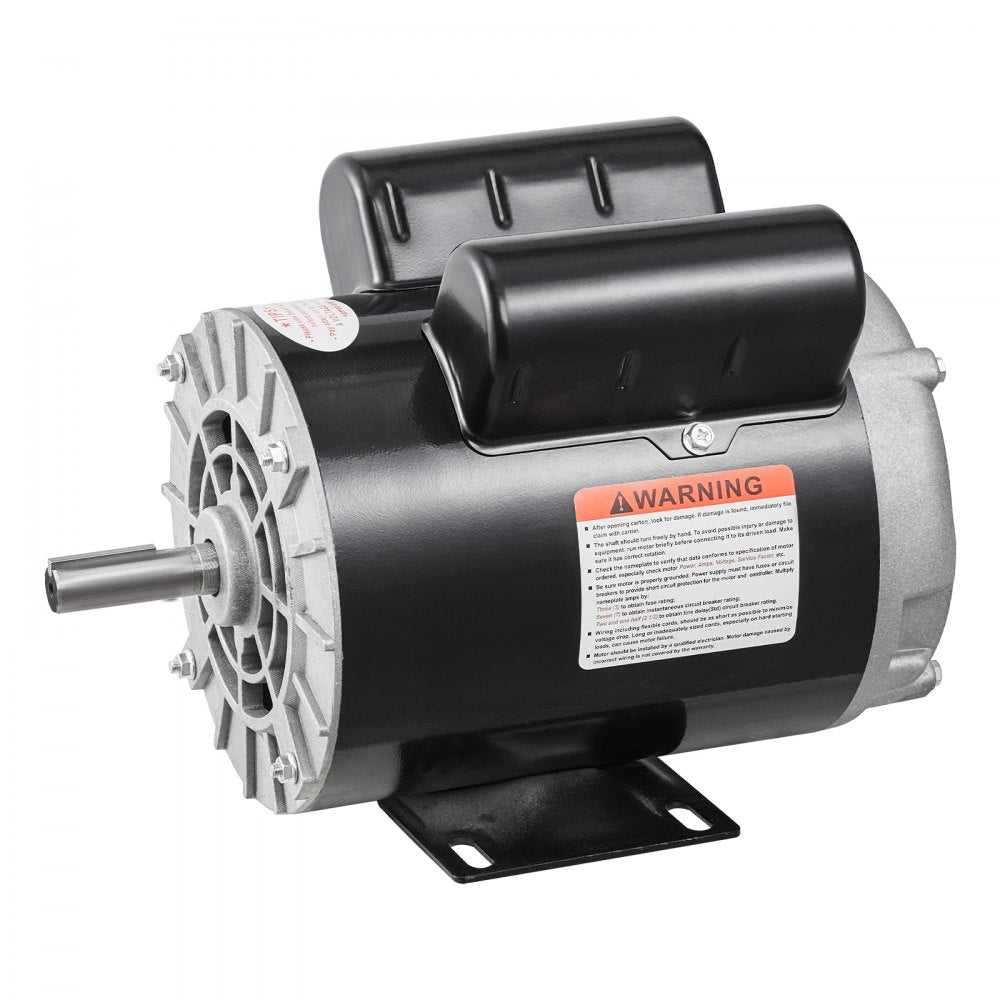

Vevor Air Compressor Motor 3 HP 230V 3450 RPM Reversible Single Phase New

Manufacturer: Vevor

SKU: ODPKYJDJ3HP5Z8MOIV7

SMS
Messenger
WhatsApp
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)
VEVOR 3HP Air Compressor Electric Motor, 230V 15.5 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CW/CCW Rotation (Factory Setting is CCW)

QTY

Product successfully added to your wishlist.
View wishlist

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$167.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

Customers Also Purchased

VEVOR Z-Creeper Seat, 2 in 1 Rolling Folding Car Creeper/Stool, 300 lbs Capacity Mechanic Creeper, Low Profile Creeper with 6 pcs Wheels for Garage, Shop, Auto Repair, Lay Down or Sit, Black Vevor Creeper Seat 2-in-1 Rolling Folding Mechanic Stool New

$48.00

Featured image for product 7885505265853 Vevor 52CC 6-in-1 Gas Trimmer Tool Set with Extension Pole New

$282.00

VEVOR Push Lawn Sweeper, 21inch Leaf & Grass Collector, Strong Plastic Wheels & Heavy Duty Thickened Steel Durable to Use with Large Capacity 3.5 cu. ft. Mesh Collection Hopper Bag, 2 Spinning Brushes Vevor Lawn Sweeper 21" Push Leaf & Grass Collector New

$135.00

VEVOR Retractable Garden Hose Reel, 5/8 Inch x 100 ft Wall Mounted Hose Reel, Heavy Duty Garden Hose Reel with 9 Patterns Nozzle, Any Length Lock, Upgraded Slow Return System and 180°Swivel Bracket Vevor Hose Reel Retractable Garden 100' x 5/8" Wall Mounted with 9-Pattern Nozzle New

$165.00

VEVOR Foldable Z Garage Creeper, 40 in, 450 lbs Load Capacity Rolling Folding Mechanic Creeper Stool, with 6 Universal Wheels Padded Seat Steel Frame, Lay Down or Sit Chair for Garage Shop or Home Vevor Garage Creeper 40" Foldable Z Mechanic Creeper Stool New

$64.00

Featured image for product 8253509435581 Vevor Pool Sand Filter Pump 16 in. for Above Ground 1 HP 4,400 GPH with Timer New

$359.00

VEVOR Mechanics Tool Set and Socket Set, 1/4 Vevor Mechanics Tool Set 1/4", 3/8", 1/2" Drive 450-Pc SAE and Metric Socket Set with Storage Cas...

$190.00

VEVOR 12-Cup Electric Percolator Coffee Pot, 304 Stainless Steel Coffee Percolator with Keep Warm Function & Heat-Resistant Handle, Classic Coffee Maker, Quick Brew & Easy-Pour Spout, Silver Vevor Percolator Coffee Pot 12-Cup Electric Stainless Steel Silver New

$65.00

VEVOR Beach Dolly with Big Wheels for Sand, 29.9 Vevor Beach Cart Folding Sand Dolly with 12" Balloon Wheels New

$129.00

VEVOR Metal Tool Box, 8.6-inch, Portable Metal Tool Box with 5 Drawers, Small Tool Chest with EVA Liners and PP Feet Pads, Heavy-Duty Steel With Ball Bearing Opening and Powder Coated Finish, Red Vevor Tool Box 8.6" Portable Metal 5-Drawer Red New

$37.00

VEVOR Garden Cart, Durable Poly Dump Cart with Simple Assembly Steel Framework, Versatile Dump Cart with Dual-Function Handle, Handy Wheelbarrow with 600 lbs Load Capacity, 10 inch Wheels Vevor Garden Cart Poly Dump Wagon with 2-in-1 Convertible Handle 600 lbs Capacity 10" Tires New

$144.00

VEVOR Battery Powered Backpack Sprayer, 0-90 PSI Adjustable Pressure, 4 Gallon Tank, Back Pack Sprayer with 8 Nozzles and 2 Wands, 12V 8Ah Battery, Wide Mouth Lid for Weeding, Spraying, Cleaning Vevor Battery Powered Backpack Sprayer 4 Gal 0-90 PSI Adjustable Pressure New

$108.00

VEVOR Cordless Vacuum Cleaner, 40KPA Max Suction, Rechargeable Anti-Tangle Stick Vacuum with LED Display Screen, Lightweight Handheld Vac with 47mins Runtime for Home, Carpet, Pet Hair, Hard Floor Vevor Vacuum Cleaner Cordless 40 kPa Stick Vacuum New

$140.00

VEVOR Gas Powered Post Hole Digger, 52cc Post Hole Auger with 6 Vevor Post Hole Digger Gas Powered 52cc Auger with 6" and 10" Bits New

$217.00

20 year 6x300 ft Heavy Duty PP Woven Weed Barrier Landscape Ground Cover 3.2Oz Vevor Weed Barrier Fabric 6' x 300' Heavy-Duty Ground Cover New

$89.00

VEVOR Weed Control Fabric 6ft x 300ft - Geo Textile Fabric Heavy Duty - Woven Ground Cover for Commercial Greenhouse, Yard, Garden Barrier Cloth Blocker Mat Vevor Weed Barrier Fabric 6' x 300' Heavy-Duty Ground Cover New

$60.00

VEVOR 13FTx108FT Premium Heavy Duty Weed Barrier Landscape Fabric, 5OZ Woven Geotextile Fabric Under Gravel, High Permeability for Weed Blocker Weed Mat, Driveway Fabric, Weed Control Garden Cloth Vevor Driveway Fabric 13' x 108' Heavy-Duty Weed Barrier Landscape Fabric New

$129.00

VEVOR Retractable Hose Reel, 100 ft x 1/2 inch, 180° Swivel Bracket Wall-Mounted, Garden Water Hose Reel with 9-Pattern Nozzle, Automatic Rewind, Lock at Any Length, and Slow Return System Vevor Hose Reel 100' x 1/2" Retractable Wall-Mounted Water Hose Reel New

$130.00

VEVOR Flex-Head Ratcheting Wrench Set, 12-Piece SAE Sizes, 72 Teeth, Cr-V Steel Ratchet Flexible Combination Wrench Set with Roll Up Pouch, for General Household and Automotive Repairs, Gray Nickel Vevor Ratchet Wrench Set Flex-Head 12-Piece SAE Cr-V Steel with Roll Up Pouch New

$64.00

Vevor Air Compressor Motor 3 HP 230V 3450 RPM Reversible Single Phase New

Vevor Air Compressor Motor 3 HP 230V 3450 RPM Reversible Single Phase New

SMS
Messenger
WhatsApp
Add To Wishlist
Remove From Wishlist

Product Overview

The Vevor air compressor motor is designed to restore strong, dependable performance to compatible compressor systems. It delivers 3 HP output at 3450 RPM with a 230V single-phase design suited for workshop and garage applications. Its 56 frame and 5/8" keyed shaft help provide a secure fit for installation. The reversible CW/CCW rotation adds wiring flexibility, while the steel construction and open drip-proof design support durability in clean, dry environments.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

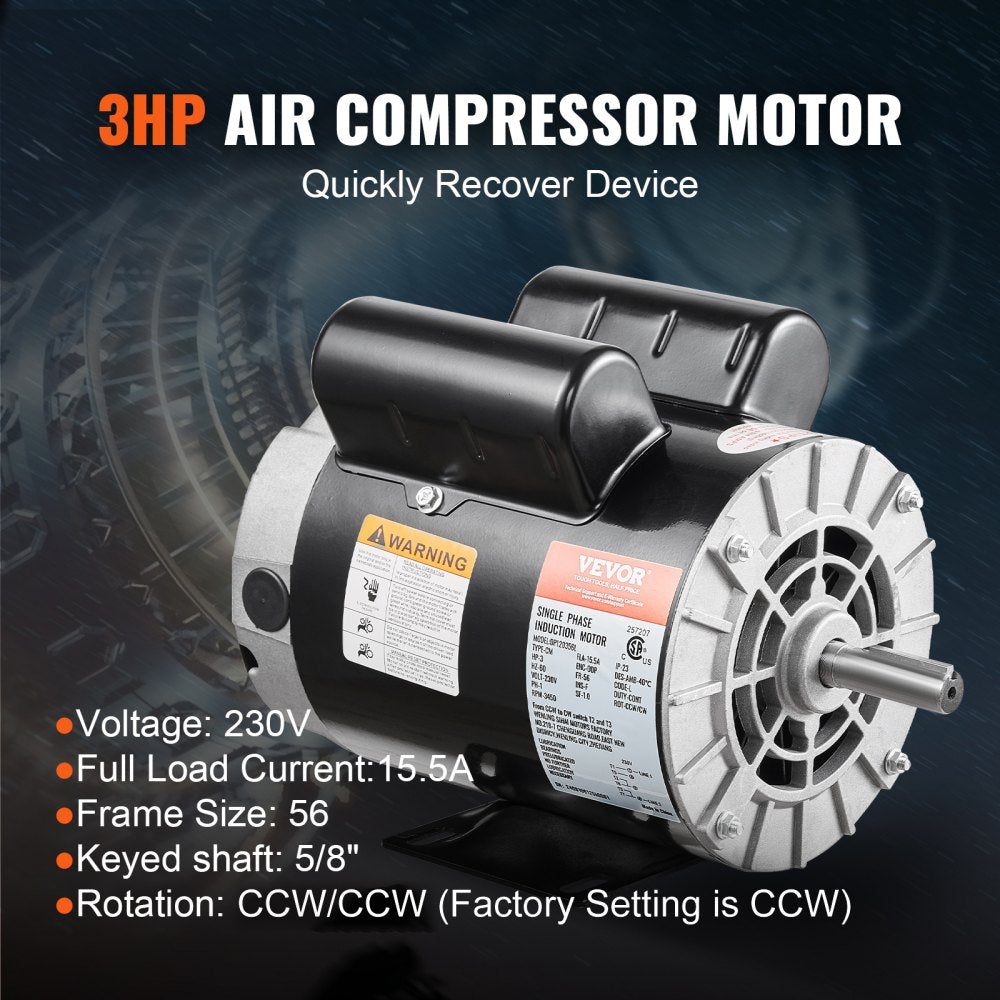

  • High Performance: 3HP 3450 RPM, Single Phase, Full Load Amps: 15.5Amp, 230V 60Hz, SF: 1.0.

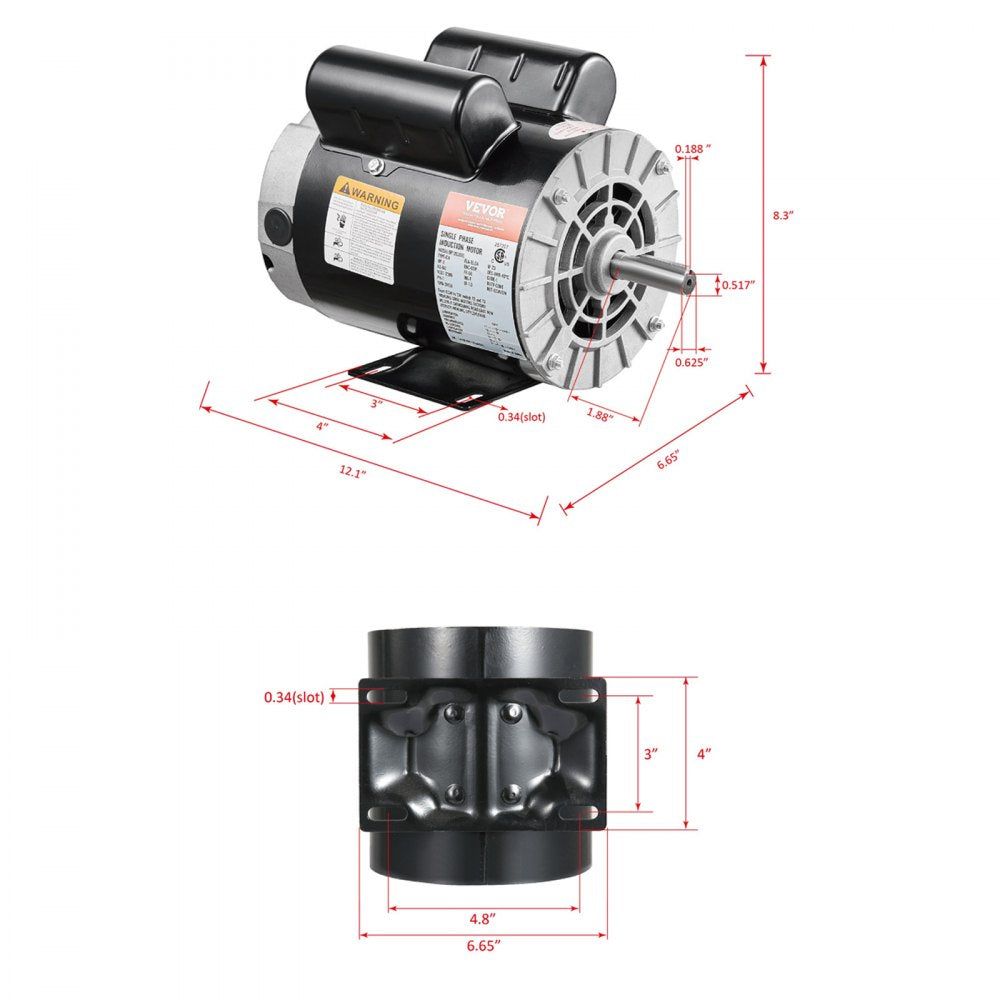

  • Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
  • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

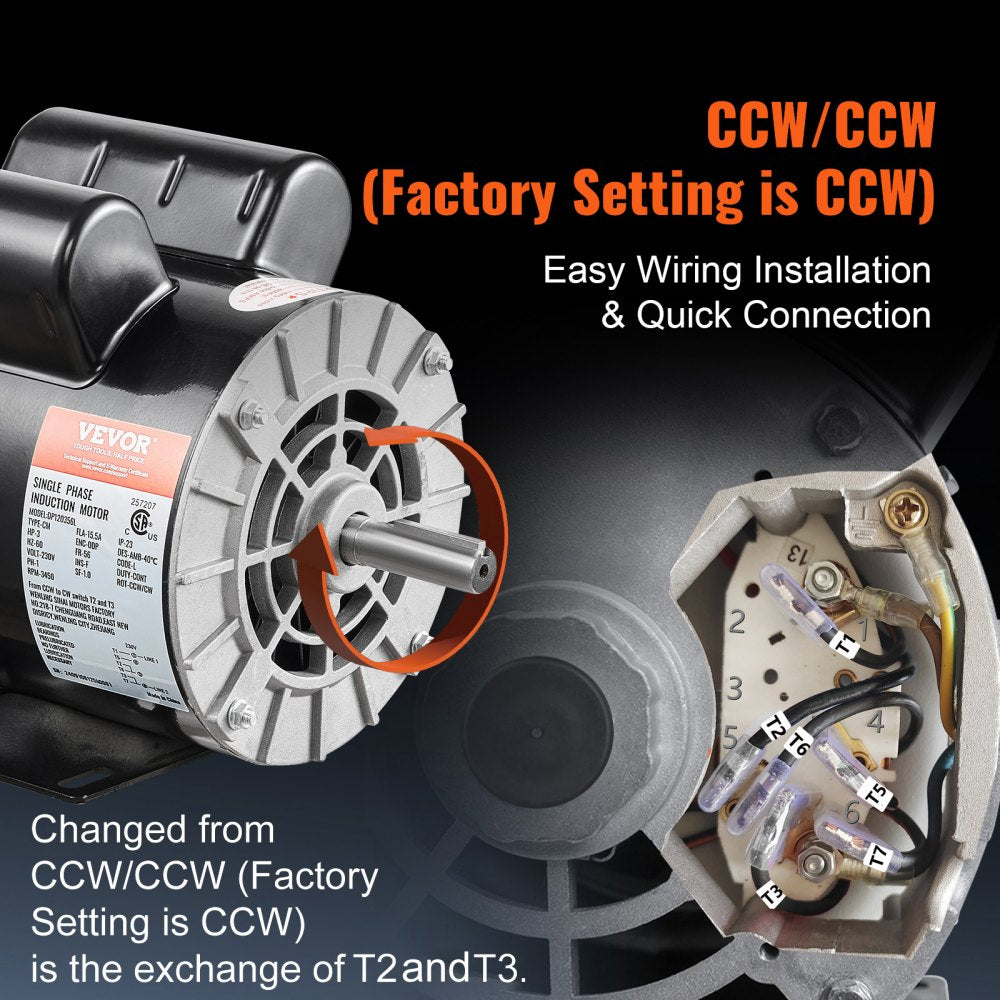

  • Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.

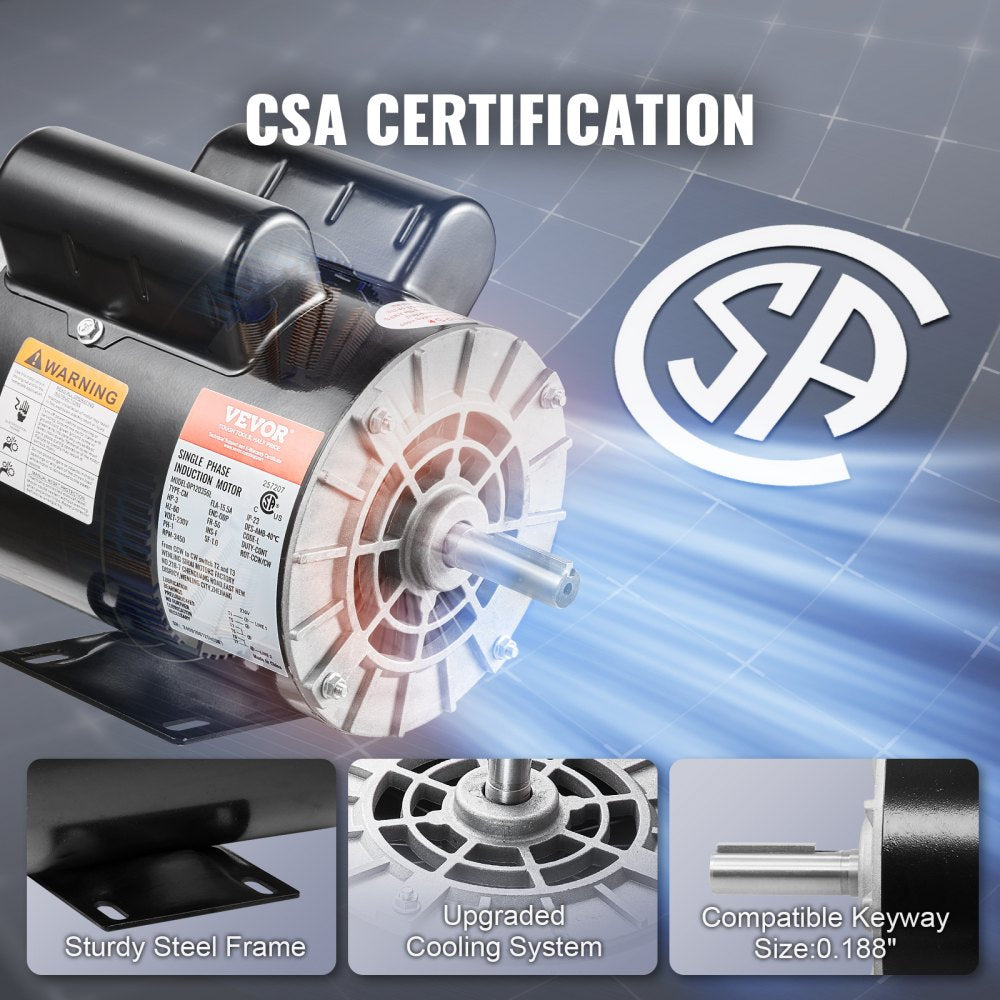

  • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 40 amps.)

Specifications

Product Type Air Compressor Motor
Model DP120356L
Horsepower 3 HP
Voltage 230V
Frequency 60Hz
Current 15.5A
Phase Single Phase
Rotation Speed 3450 RPM
Service Factor 1.0
Enclosure ODP
Frame Size 56 Frame
Rotation CW/CCW Reversible
Factory Rotation Setting CCW
Shaft Diameter 5/8" keyed shaft
Shaft Length 1.88"
Keyway Size 0.188"
Net Weight 29.3 lbs
Dimensions Shaft diameter 5/8", shaft length 1.88", keyway size 0.188"
