    Product Overview

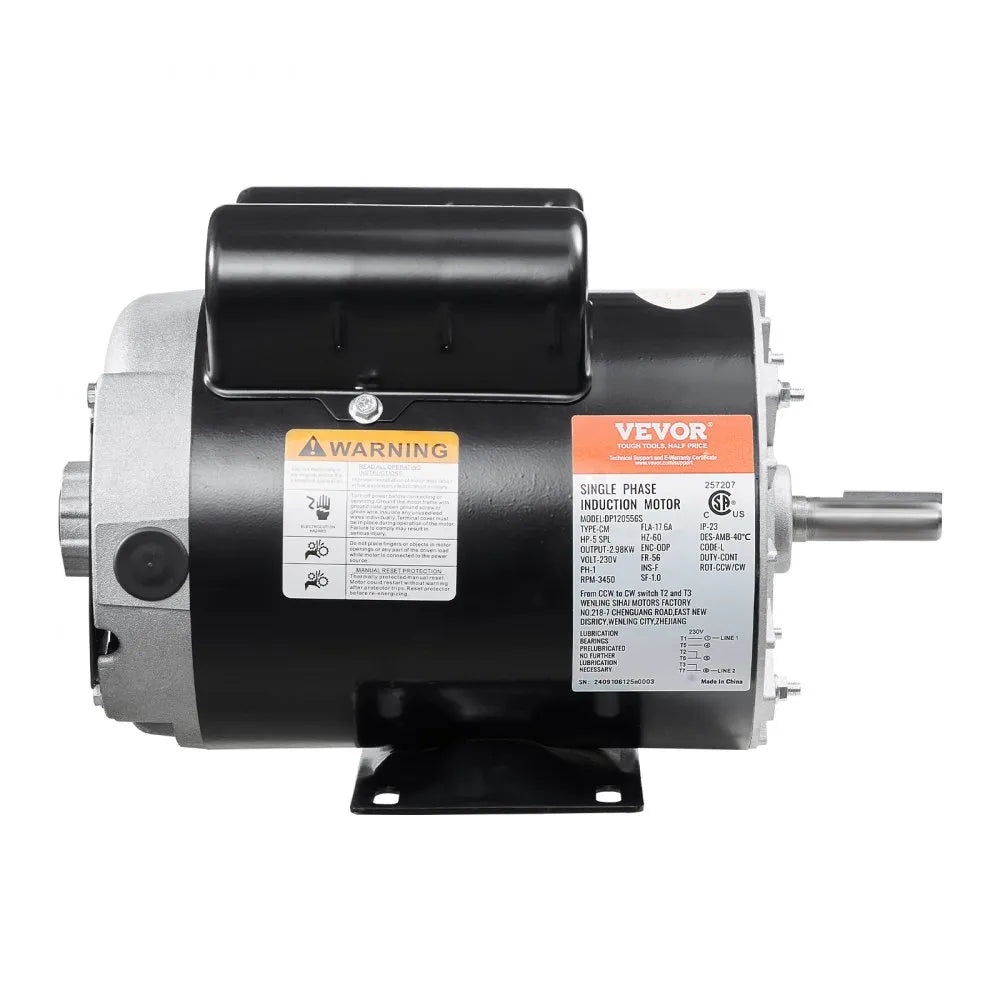

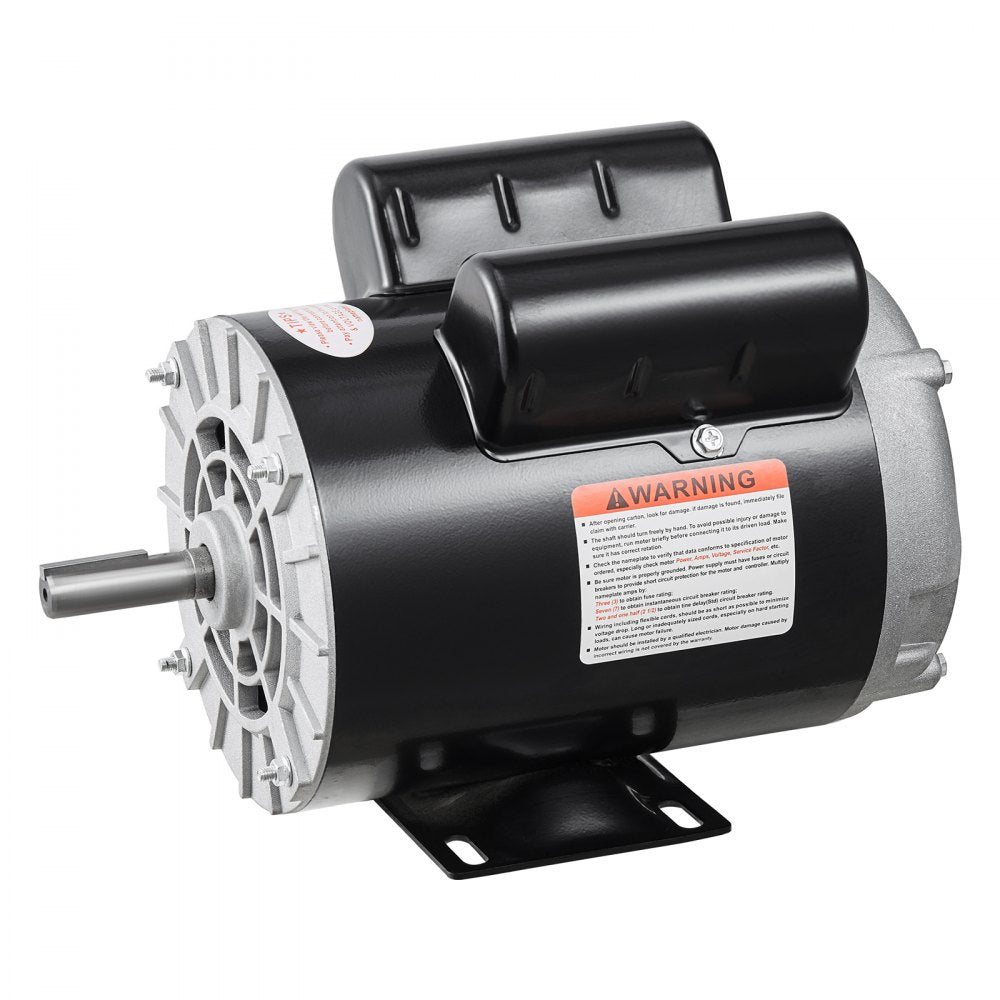

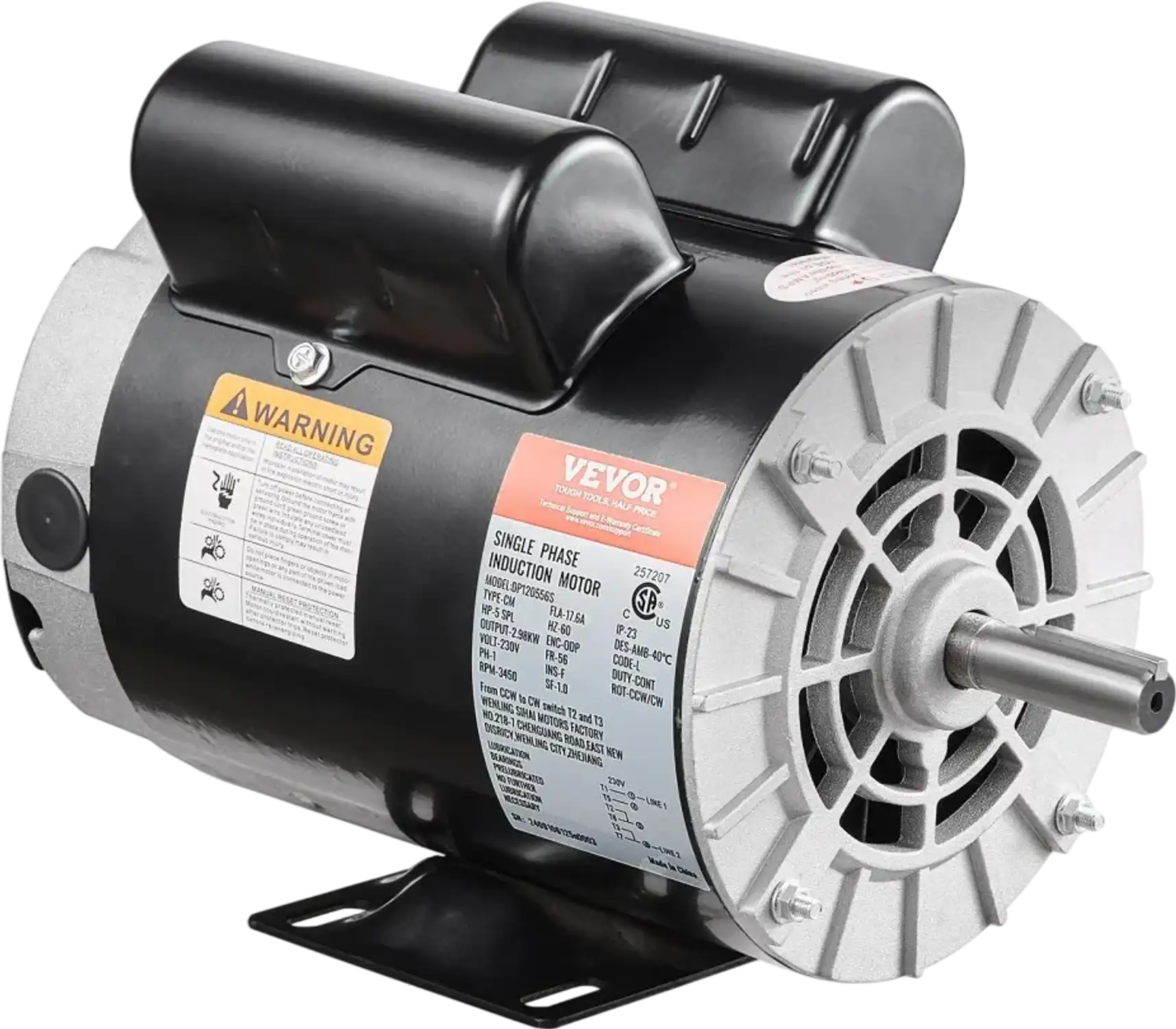

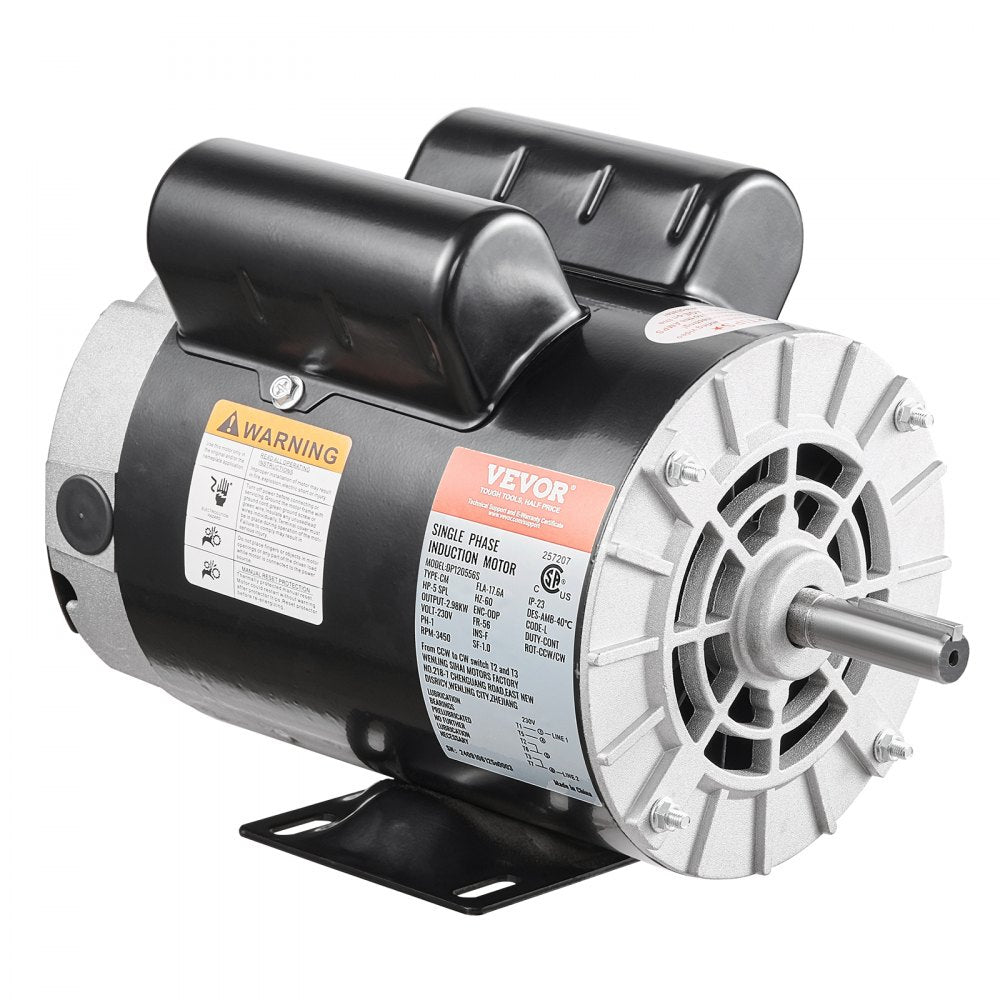

    The Vevor air compressor motor is a 5 HP single-phase replacement motor designed to restore strong, reliable compressor performance. It operates on 230V power with a 3450 RPM speed and a 56 frame design for compatible installations. The motor features a 5/8" keyed shaft, 1.88" shaft length, and reversible CW/CCW rotation for flexible setup. Its open drip-proof construction and steel housing support durability in clean, dry working environments.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

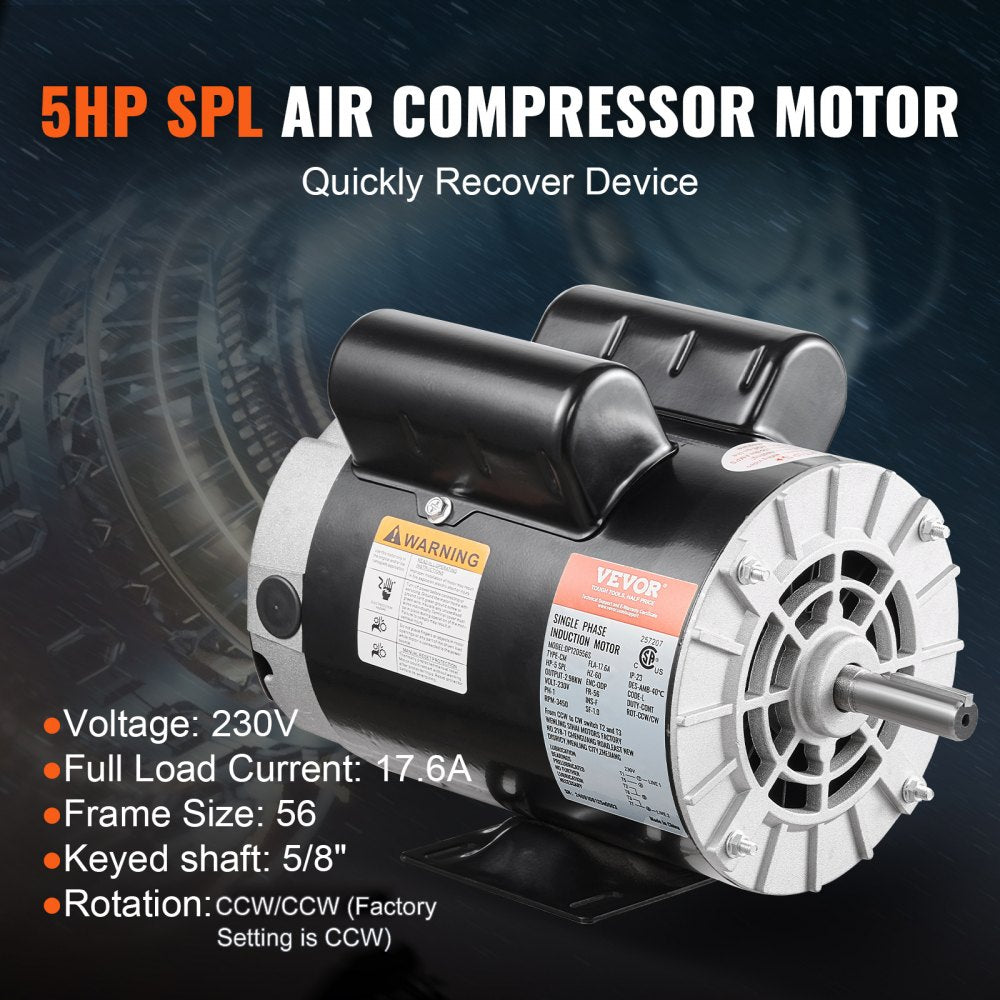

    • High Performance: 5HP SPL, 3450 RPM, Single Phase, Full Load Amps: 17.6Amp, 230V 60Hz, SF: 1.0.
    • Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
    • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

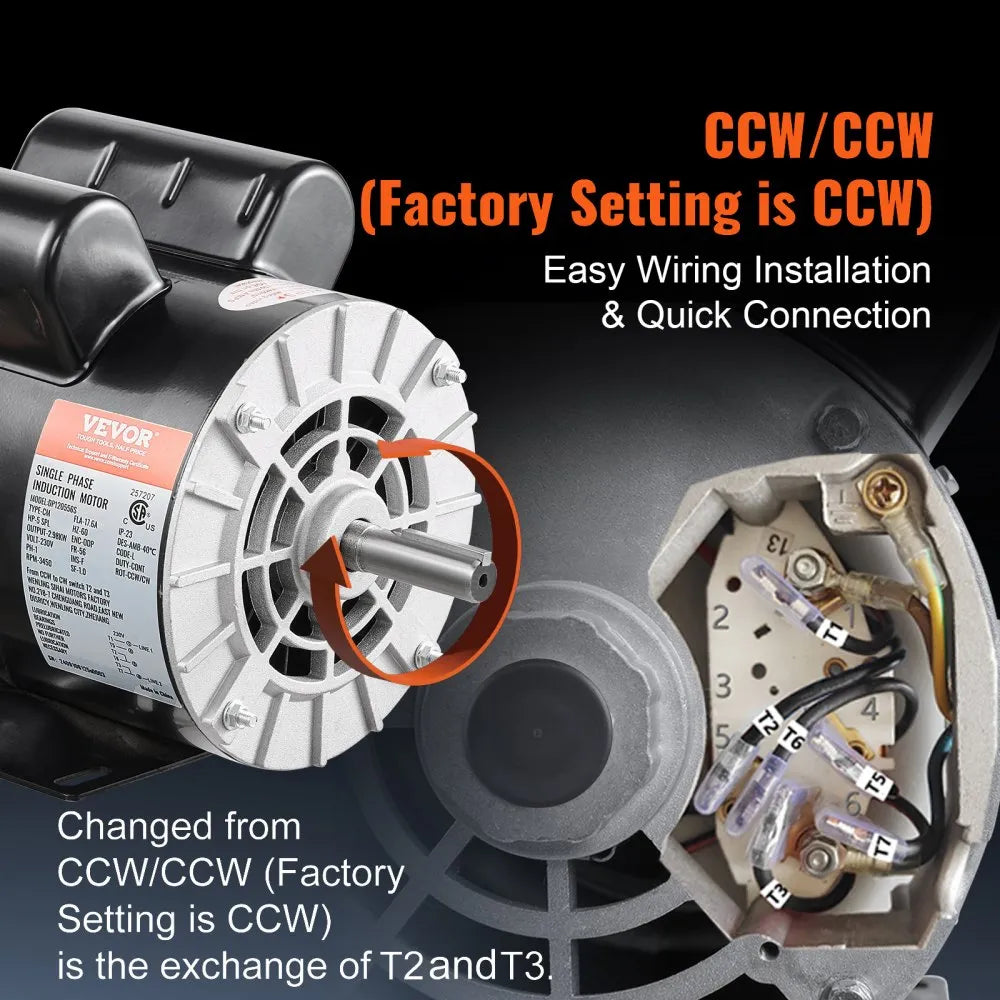

    • Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.

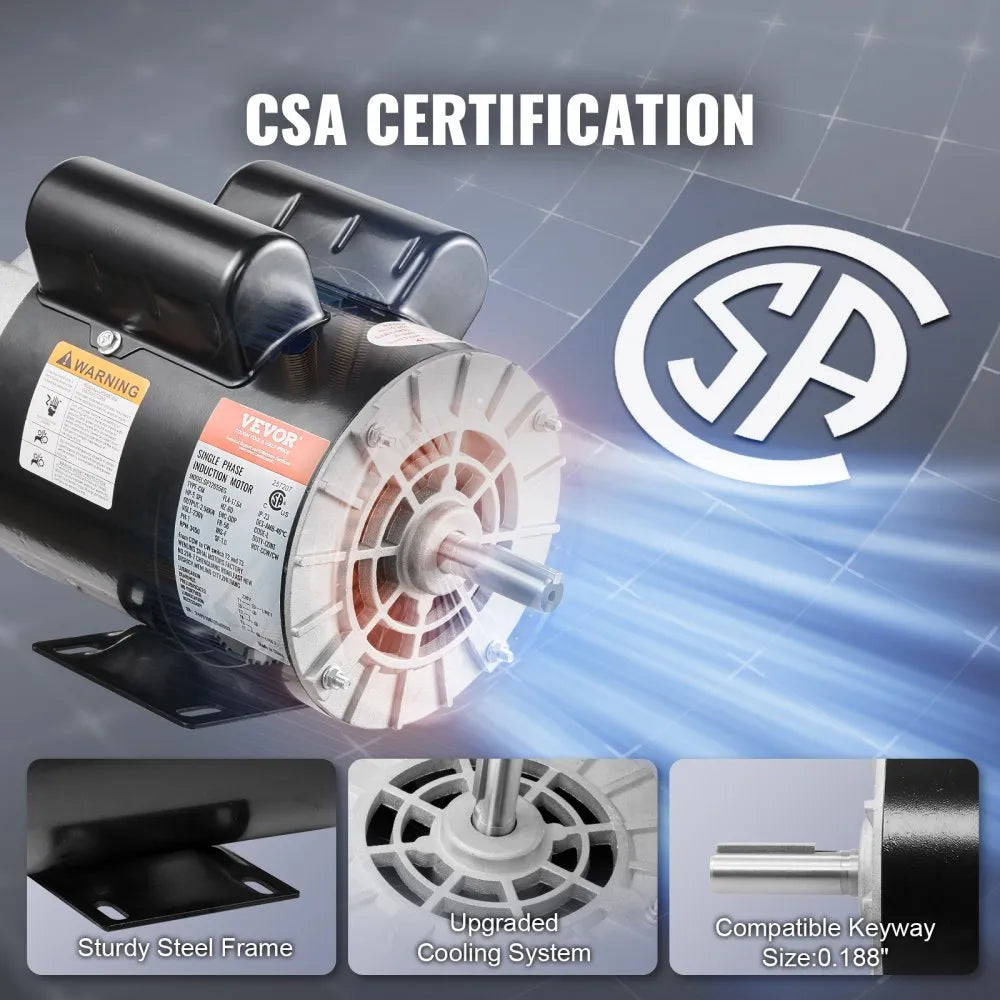

    • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps.)

    Specifications

    Product Type Air Compressor Motor
    Item Model Number DP120556S
    Horsepower 5 HP
    Voltage 230V
    Frequency 60Hz
    Current 17.6A
    Phase Single Phase
    Rotation Speed 3450 RPM
    Service Factor 1.0
    Enclosure ODP
    Frame Size 56 Frame
    Shaft Diameter 5/8" keyed shaft
    Shaft Length 1.88"
    Keyway Size 0.188"
    Net Weight 34.5 lbs
    Dimensions Shaft diameter 5/8", shaft length 1.88", keyway size 0.188"

    Package Contents

    Air compressor motor

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
