Product Overview

Inject powerful energy into your air compressor with this 5 HP electric motor. This high-speed motor reaches 3450 RPM for faster air speed and energy-saving efficiency. The motor supports both forward and reverse rotation (factory setting is counter-clockwise). It features a 2.25" shaft length and 7/8" keyed shaft, 230V voltage, 25 A current.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

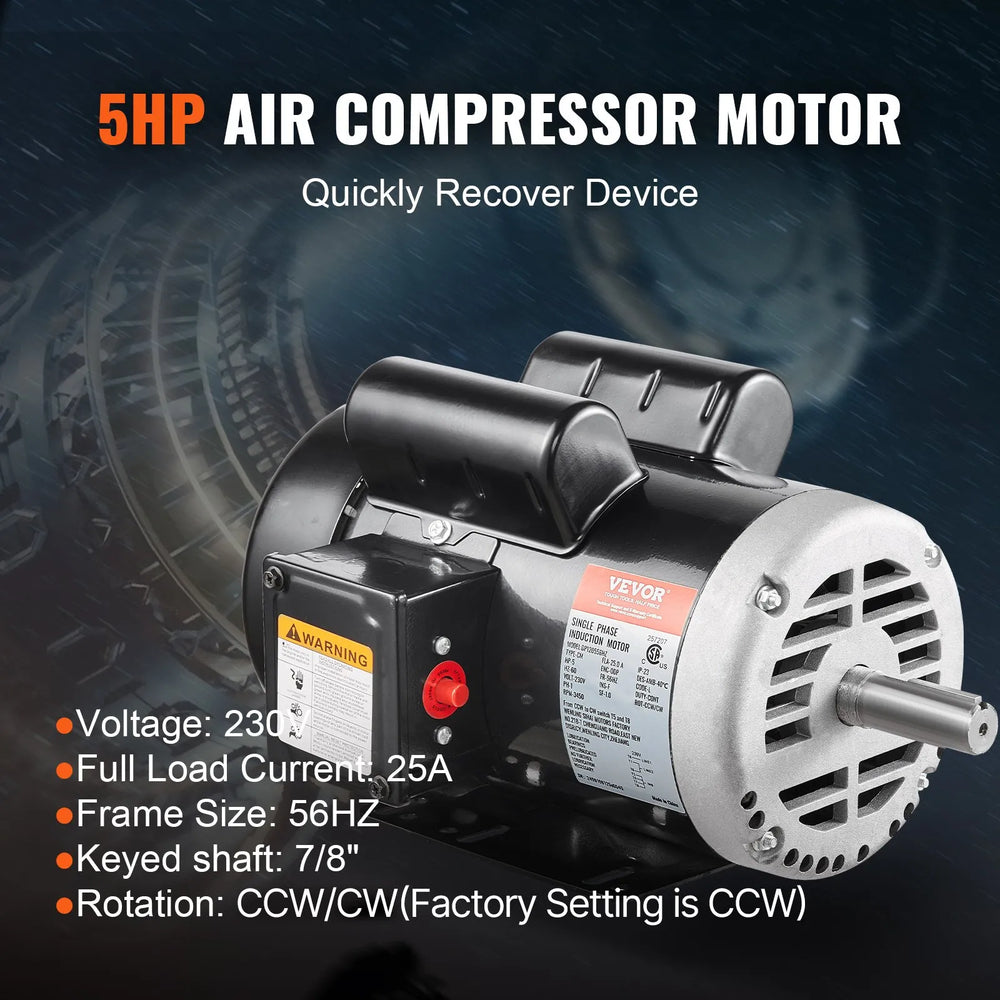

  • High Performance: 5HP 3450 RPM, Single Phase, Full Load Amps: 25Amp, 230V 60Hz, SF: 1.0.
  • Frame Type: 56Hz Frame, 7/8" Keyed shaft, 2.25" Shaft length, 0.188" Keyway Size.
  • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

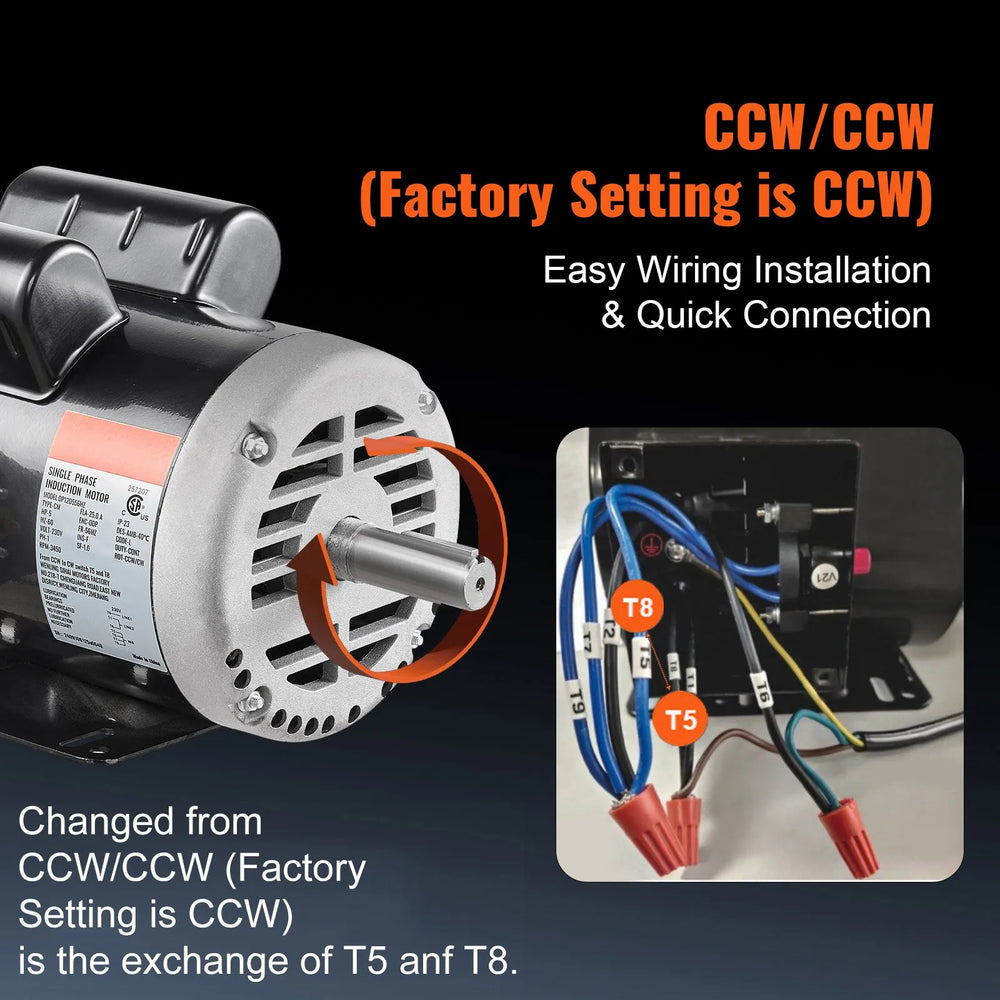

  • Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
  • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)

Specifications

Item Model # DP120556HZ
Voltage 230V
Frequency 60 Hz
Current 25A
Rotation Speed 3450 RPM
Frame Size 56HZ
Shaft Diameter 7/8" Keyed Shaft
Shaft Length 2.25"
Keyway Size 0.188"
Dimensions 14.3" x 8.86" x 8.07"
Net Weight 40.8 lbs

Package Contents

Vevor 5HP Air Compressor Motor

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
