Vevor Motor Electric 1.5HP 1725 RPM CW/CCW Rotation 5/8" Keyed Shaft Single Phase AC115V/230V New
Product Overview

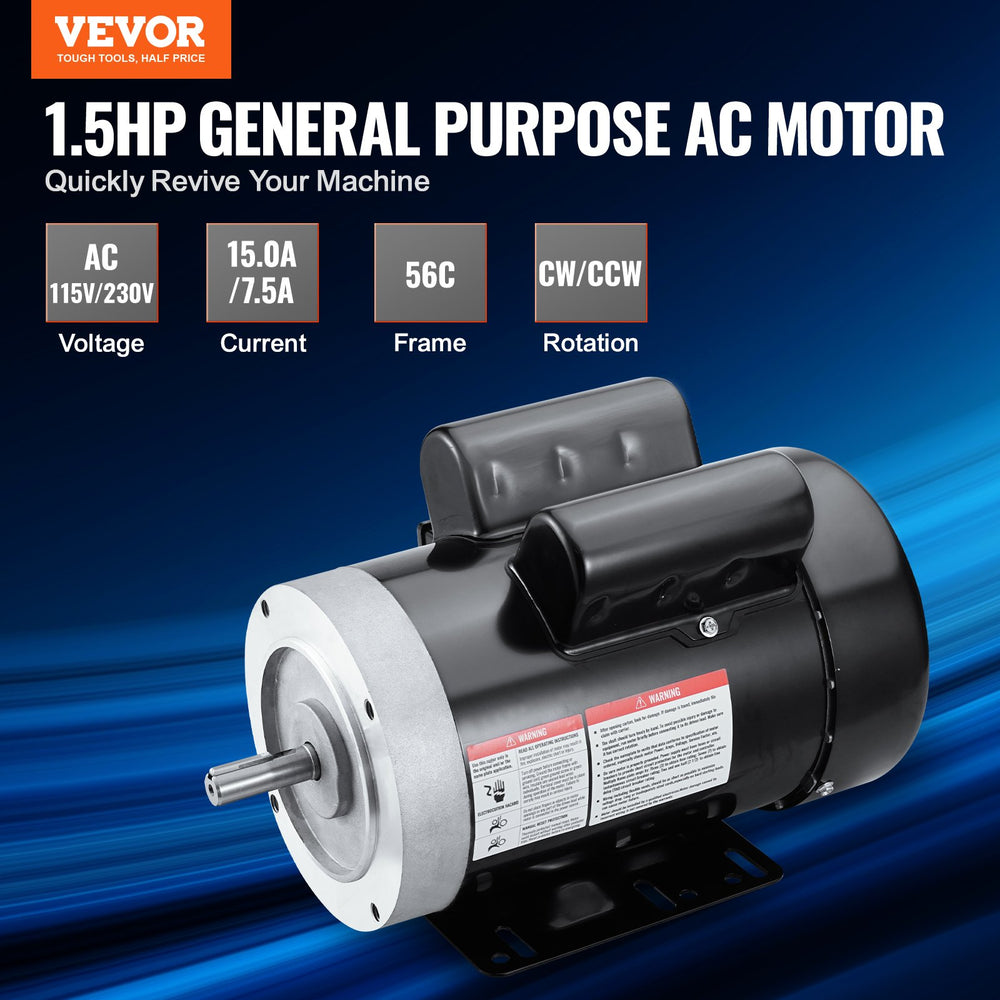

Inject powerful performance into your equipment with Vevor's 1.5HP electric motor. Operating at 115V/230V voltage with 15/7.5A current, it features 1725 RPM high speed, 56C frame, 1.88" shaft length, 5/8" keyed shaft, and CW/CCW dual direction rotation. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting productivity.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

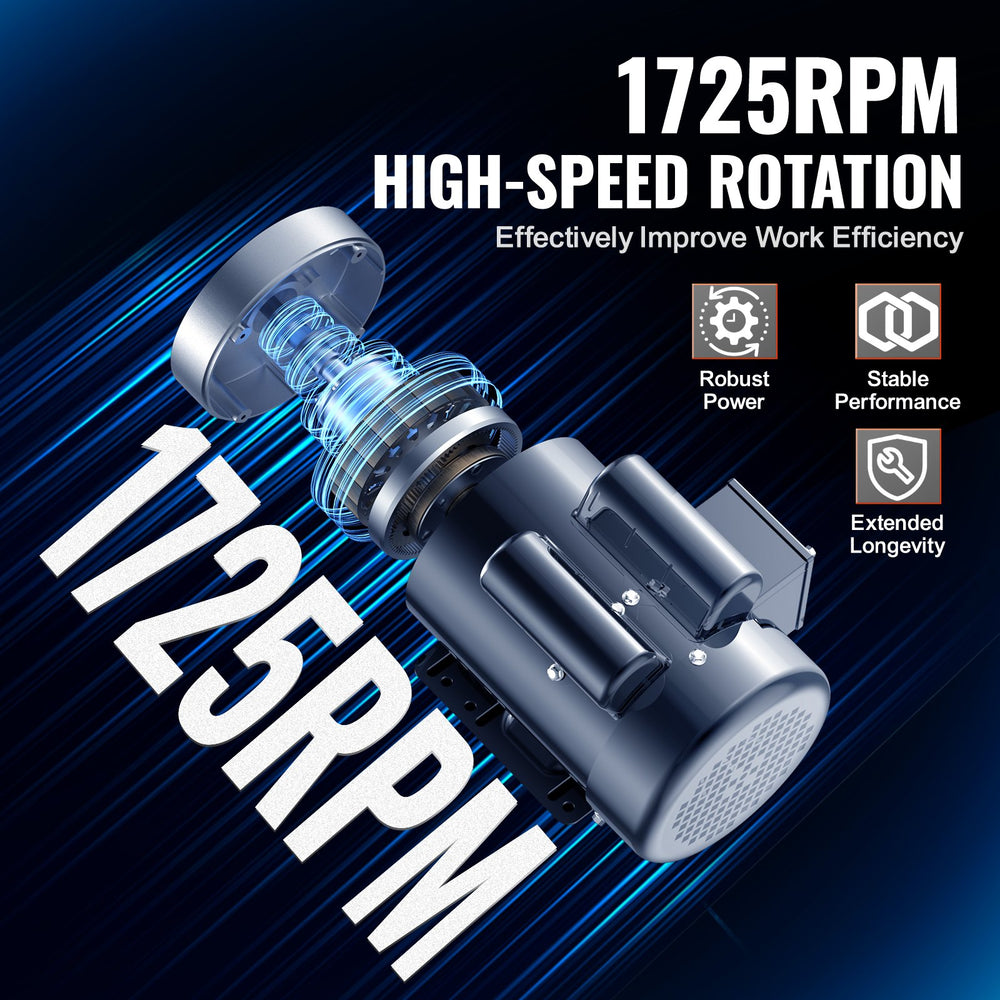

- Powerful Performance: 1.5HP, Single Phase, Full Load Current: 15.0/7.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15.

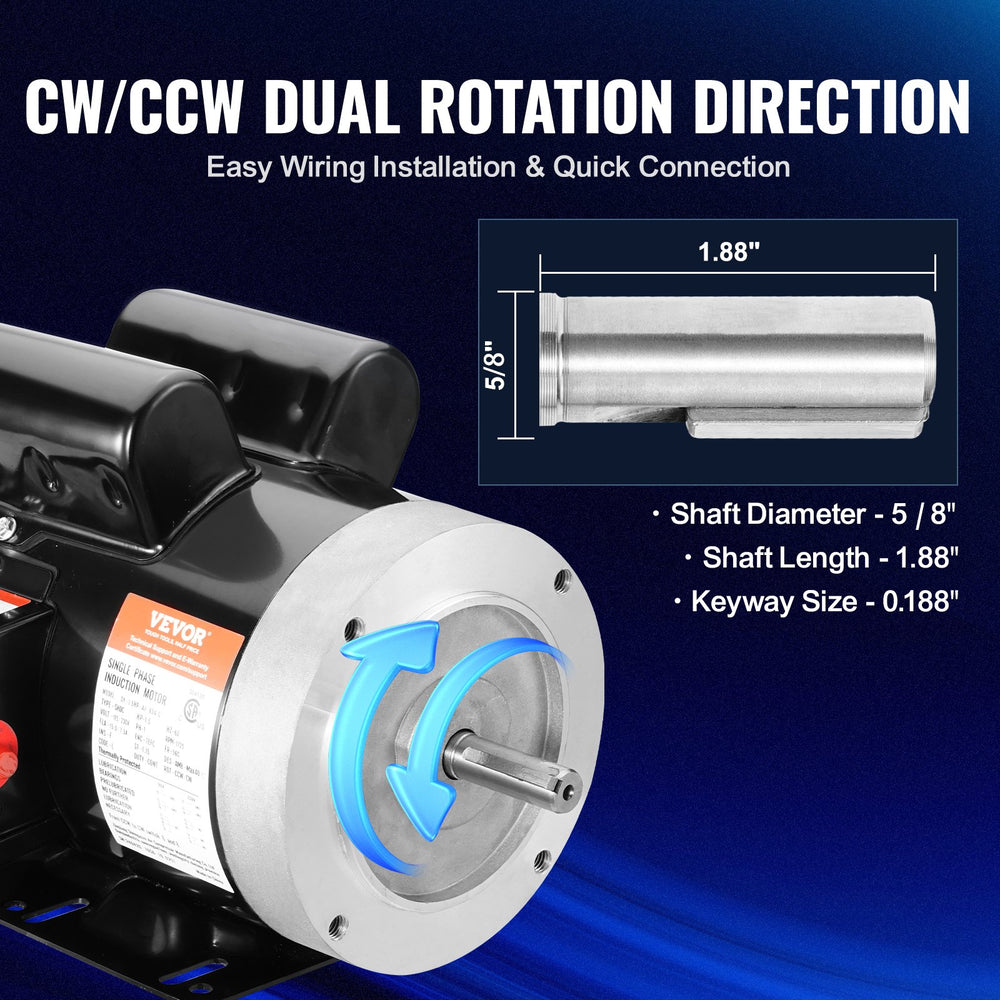

- Sturdy Frame Type: 56C Frame, 5/8" Keyed shaft, Shaft length: 1.88", Keyway size: 0.188".
- Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.

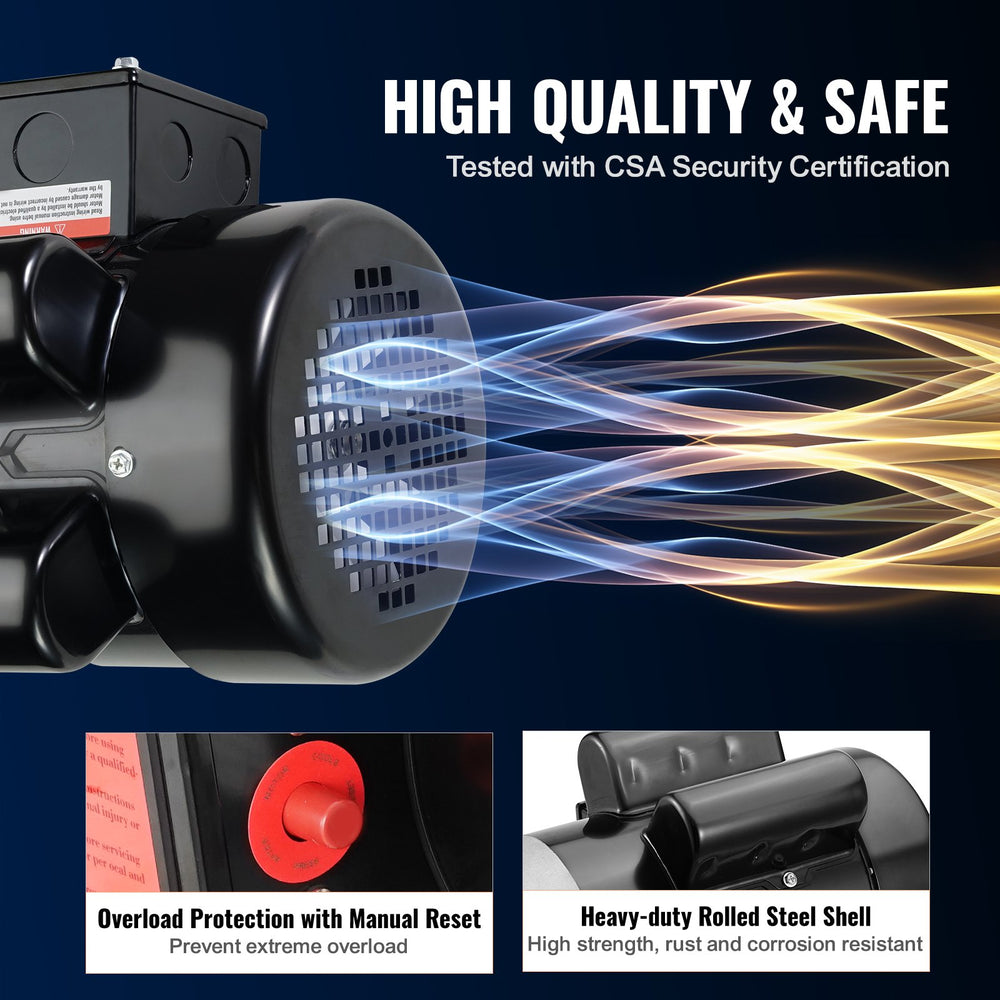

- Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.
- Wide Range of Applications: VEVOR 1.5HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.

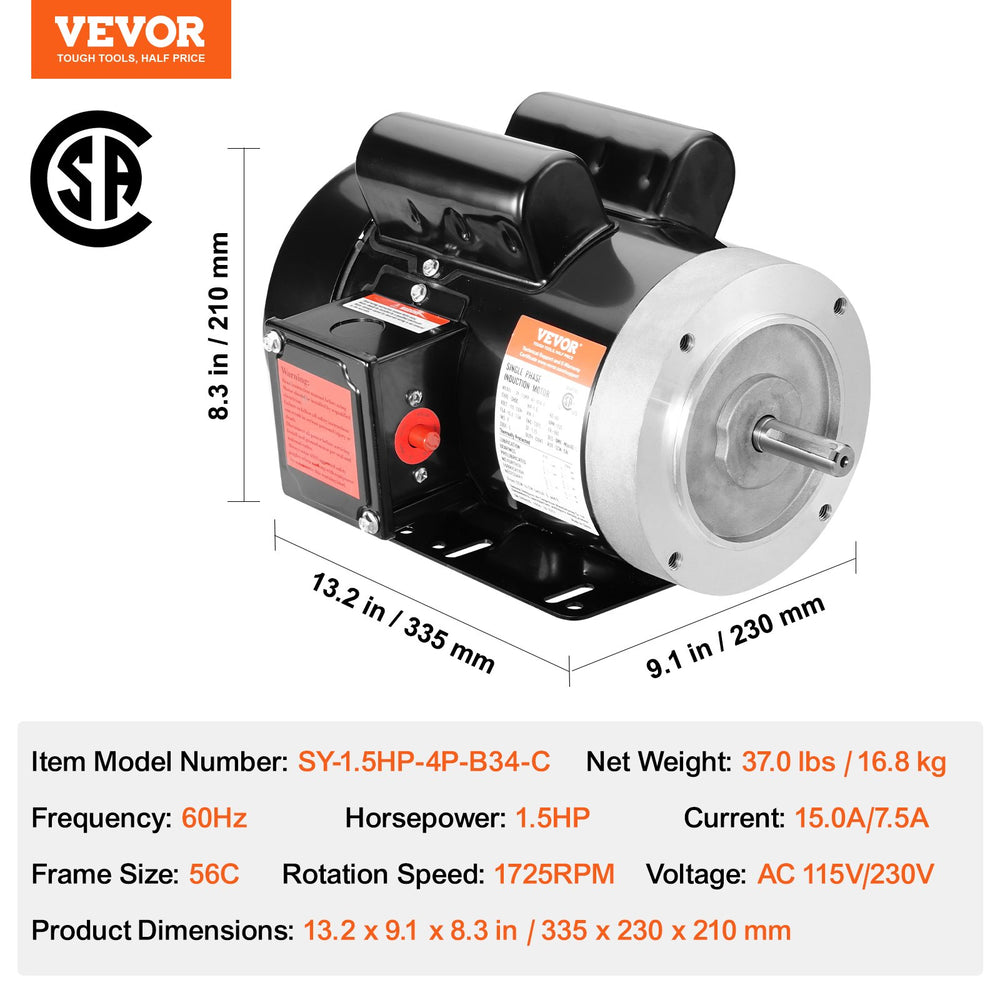

Specifications
| Item Model # | SY-1.5HP-4P-B34-C |
| Voltage | AC 115V/230V |
| Frequency | 60Hz |
| Horsepower | 1.5HP |
| Current | 15/7.5A |
| Frame Size | 56C |
| Rotation Speed | 1725 RPM |
| Shaft Diameter | 5/8" |
| Shaft Length | 1.88" |
| Keyway Size | 0.188" |
| Product Dimensions | 13.2" x 9.1" x 8.3" |
| Net Weight | 37 lbs. (16.8 kg) |
Package Contents
Vevor 1.5HP Electric Motor AC115V/230V
User Manual
Warranty
This item comes with a 1 year factory warranty.
