Vevor Air Compressor Motor CW/CCW Rotation 7.5 HP 230V 31.6A 3450 RPM New
Manufacturer: Vevor
SKU: ODPKYJDJ75HPQ7RREV7
Size Options
QTY
or
(888) 999-1522
C
$522.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Electric Motor 5 HP 1725 RPM Air Compressor Single-Phase ODP 230V 184T New
-
Vevor 10HP 3-Cylinder Air Compressor Pump Head 17.5CFM @ 90PSI Dual-Stage Piston Pump New
-
Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New
-
Vevor Single Phase to 3-Phase Rotary Converter 2.5 HP 7A 208-240V New
-
Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New
-
Vevor Electric Bike Conversion Kit 26" Front Wheel Hub Motor 48V 1000W 420 RPM New
-
Vevor Brushless DC Motor Kit 48V 2000W 4300 RPM with Speed Controller and Throttle Grip New
-
Vevor Brushless DC Motor Kit 1800W 48V 4500 RPM Electric Motor with Upgraded Controller New
-
Vevor Electric Motor 750W 48V Brushless DC Motor Kit with Upgraded Speed Controller New
-
Vevor Brushless DC Motor Kit 2000W 48V 4300 RPM with Upgraded Speed Controller New
-
Vevor Motor Kit 2000W 48V 4300 RPM Brushless DC Electric Motor with Speed Controller and Throttle...
-
Vevor Brushless DC Motor 3000W 72V 4900 RPM Electric Bike Dirt Bike DIY New
-
Vevor Electric Brushless DC Motor Kit 48V 1800W 4500 RPM with Upgraded Speed Controller New
-
Vevor Electric Motor 1.5 HP 3450 RPM 56C Frame 5/8" Keyed Shaft Single Phase 115/230V New
-
Vevor Electric Motor 10 HP 1770 RPM Air Compressor Three-Phase 230V/460V ODP 215T Frame New
-
Vevor Electric Motor 0.5 HP 1725 RPM Air Compressor Single-Phase TEFC 56 Frame New
Vevor Air Compressor Motor CW/CCW Rotation 7.5 HP 230V 31.6A 3450 RPM New

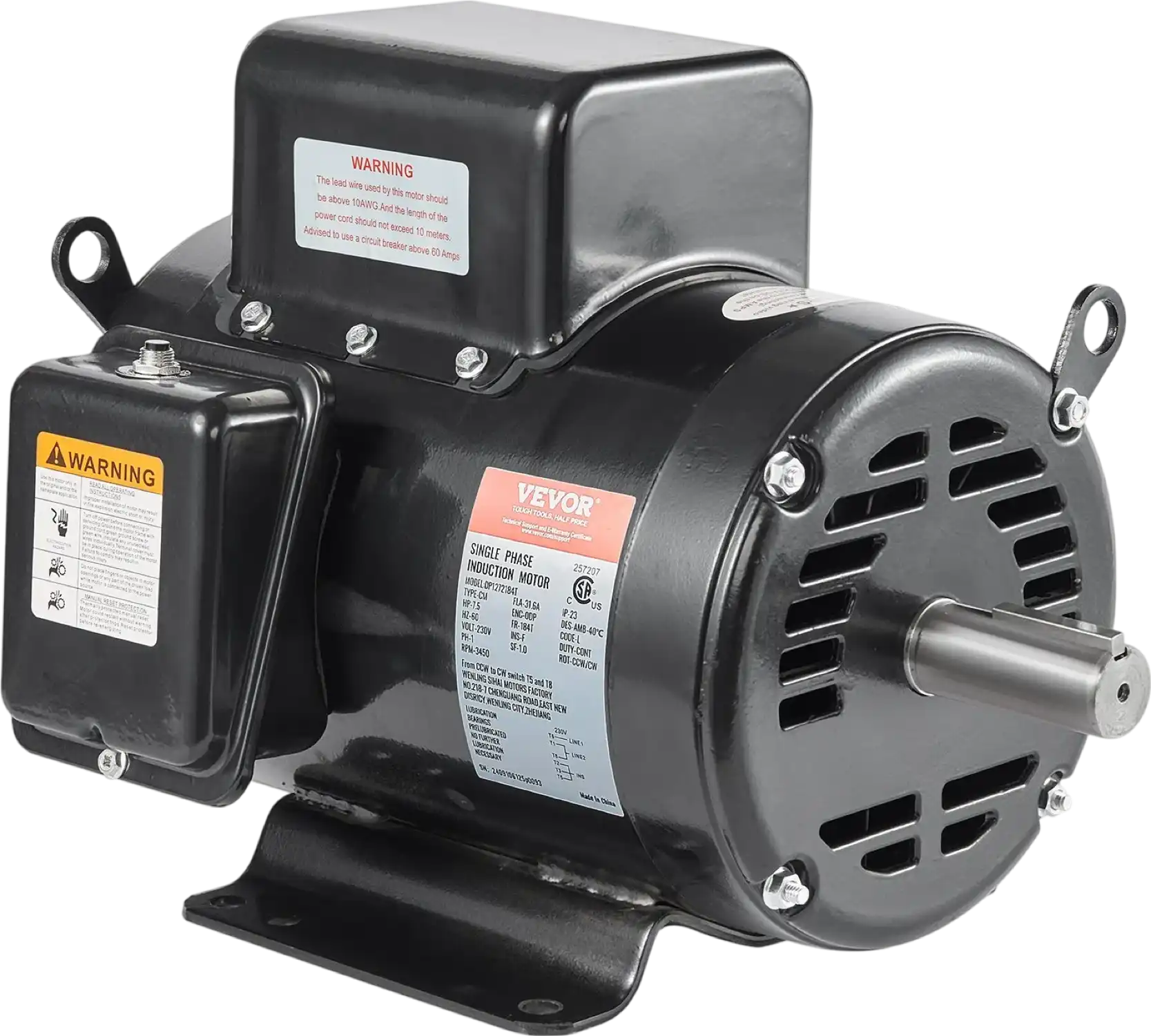

Product Overview
Inject powerful energy into your air compressor with this 7.5 HP electric motor. This high-speed motor reaches 3450 RPM for faster air speed and energy-saving efficiency. The motor supports both forward and reverse rotation (factory setting is counter-clockwise). It features a 2.75" shaft length and 1-1/8" keyed shaft, 230V voltage, 31.6A current.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

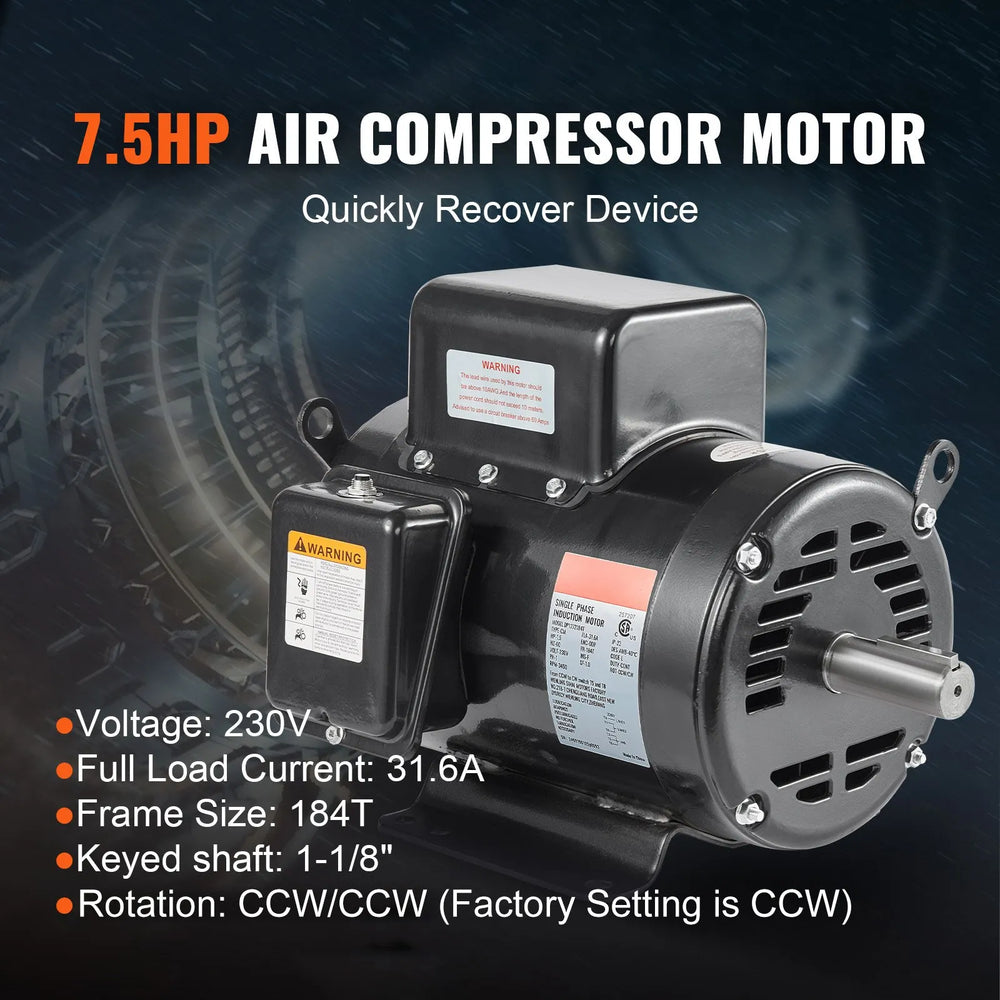

- High Performance: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0.
- Frame Type: 184T Frame, 1-1/8" Keyed shaft, 2.75" Shaft length, 0.25" Keyway Size.
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

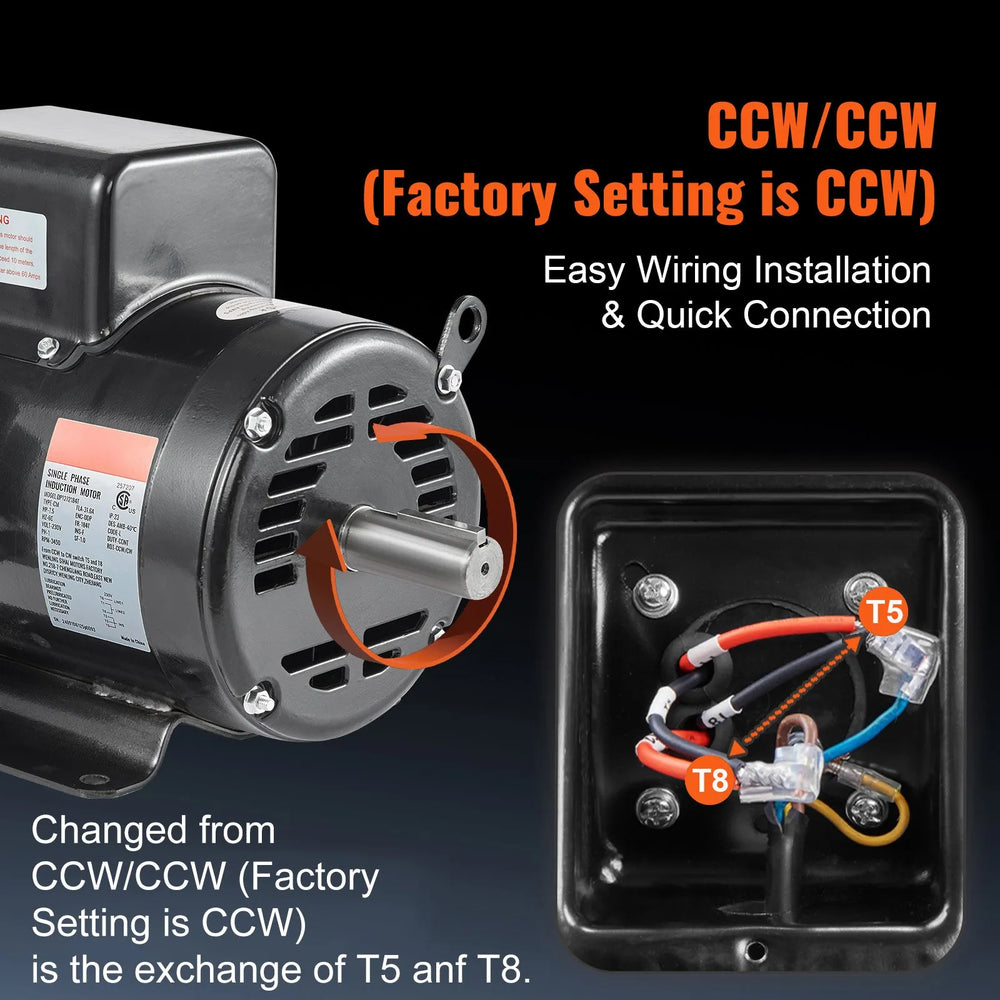

- Dual Rotation Direction: Motor is Reversible for CCW/CCW rotation (Factory Setting is CCW), provides easier wiring operations.
- Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)
Specifications
| Item Model # | DP1272184T |
| Voltage | 230V |
| Frequency | 60 Hz |
| Current | 31.6A |
| Rotation Speed | 3450 RPM |
| Frame Size | 184T |
| Shaft Diameter | 1-1/8" Keyed Shaft |
| Shaft Length | 2.75" |
| Keyway Size | 0.25" |
| Dimensions | 14.8" x 10.43" x 11.02" |
| Net Weight | 67.7 lbs |
Package Contents
Vevor 7.5 HP Air Compressor Motor
User Manual
Warranty
This item comes with a 1 year factory warranty.
