Vevor Electric Motor 10 HP 1770 RPM Air Compressor Three-Phase 230V/460V ODP 215T Frame New

Vevor Electric Motor 10 HP 1770 RPM Air Compressor Three-Phase 230V/460V ODP 215T Frame New

SMS
Messenger
WhatsApp
Add To Wishlist
Remove From Wishlist

Product Overview

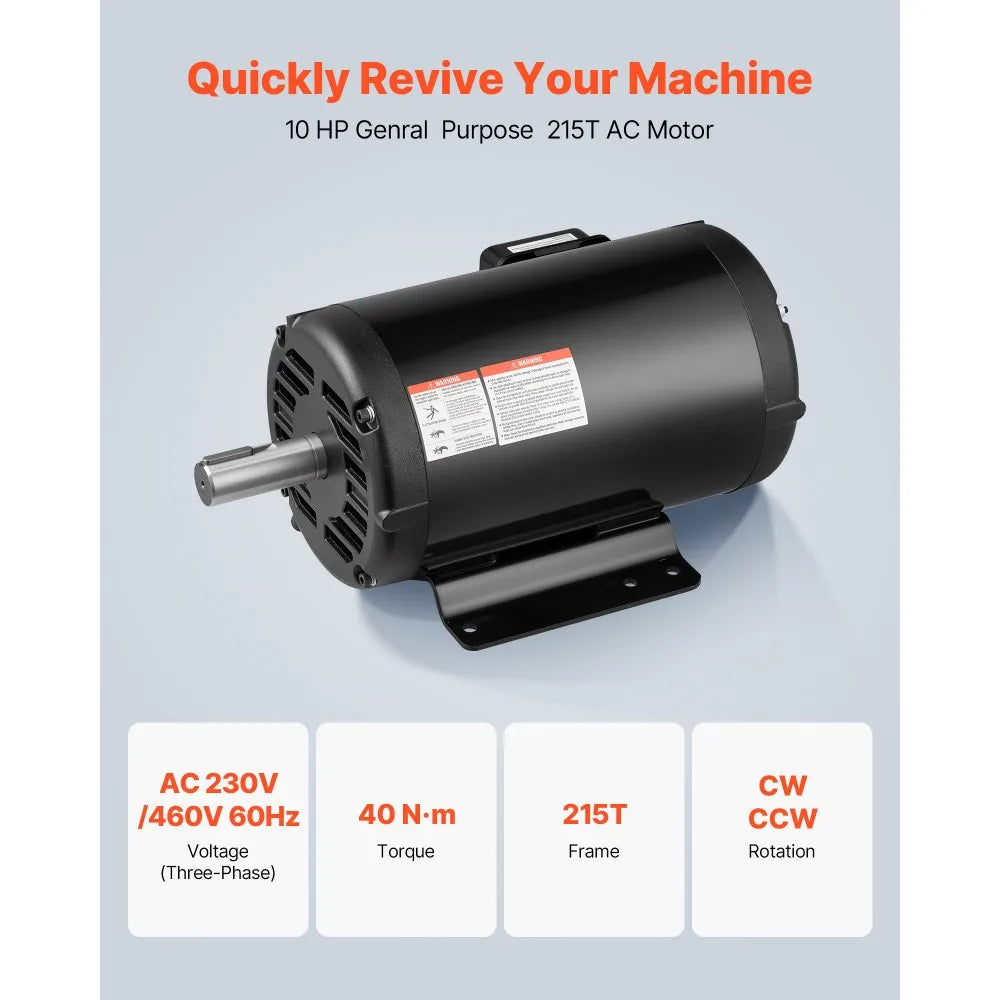

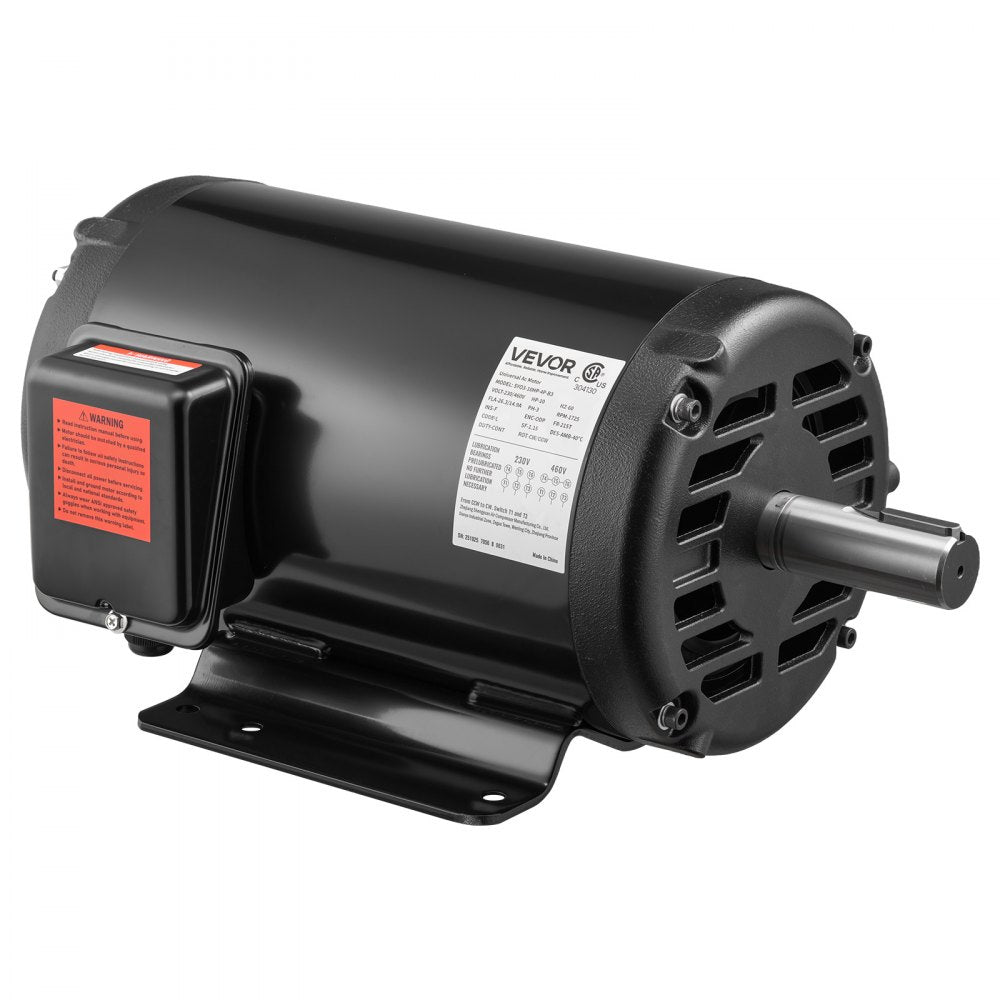

The Vevor electric motor delivers 10 HP of power at 1770 RPM for air compressor and general-purpose applications. It is designed for AC 230V/460V, 60Hz, three-phase power and supports reversible CW/CCW rotation for flexible installation. The motor features ODP cooling, a 215T frame, and a 40 N.m rated torque for dependable performance. Built with aluminum alloy end covers and a steel plate body, it is made for reliable operation in demanding environments. This motor is also suited for repair replacements, water pumps, agricultural machinery, and other equipment.
vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

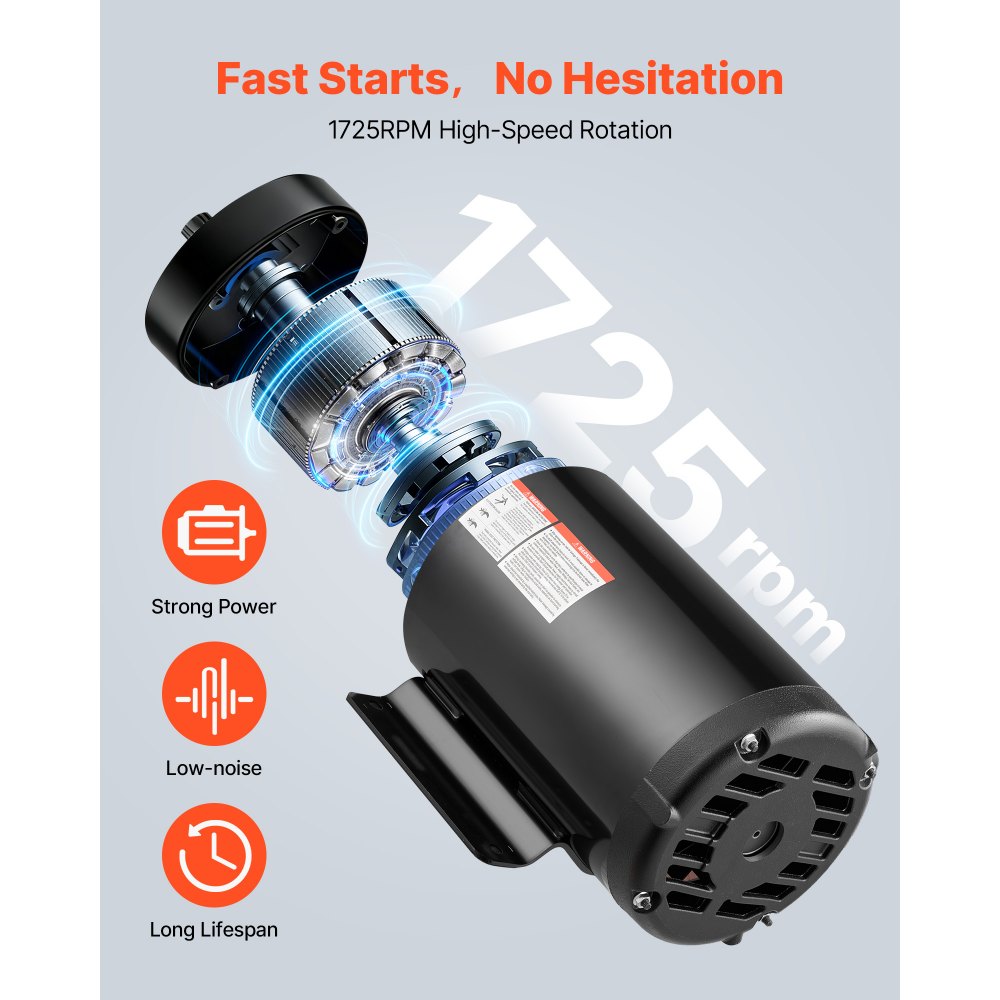

  • High Performance: 10HP high-performance motor featuring 40 N.m rated torque. Designed for AC 230V/460V, 60Hz, three-phase power. The air compressor electric motor operates at 1770 RPM for fast, reliable speed

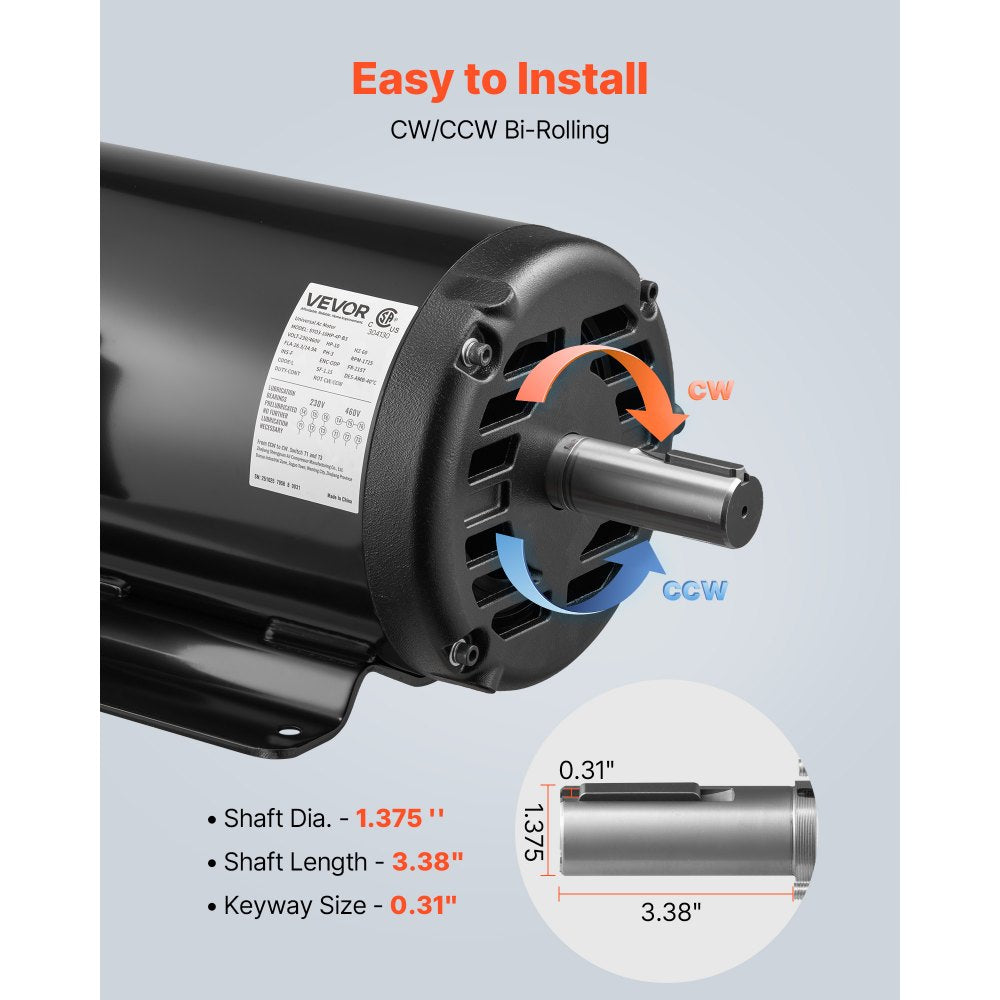

  • Rugged Frame Type: The 215T frame of this electric motor includes a 1.375-inch shaft diameter, 3.88-inch shaft length, and keyway size: 0.31 inch / 7.92 mm width x 0.14 inch / 3.46 mm depth
  • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

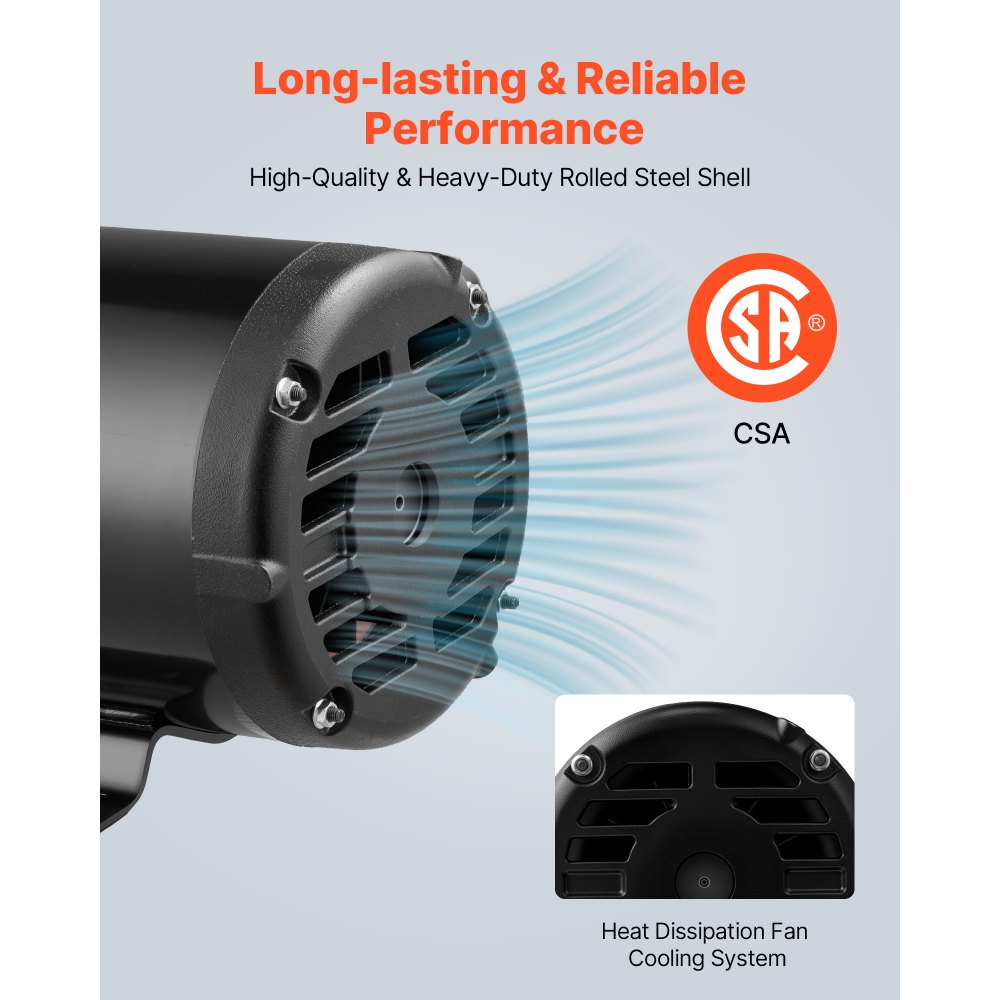

  • Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
  • Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

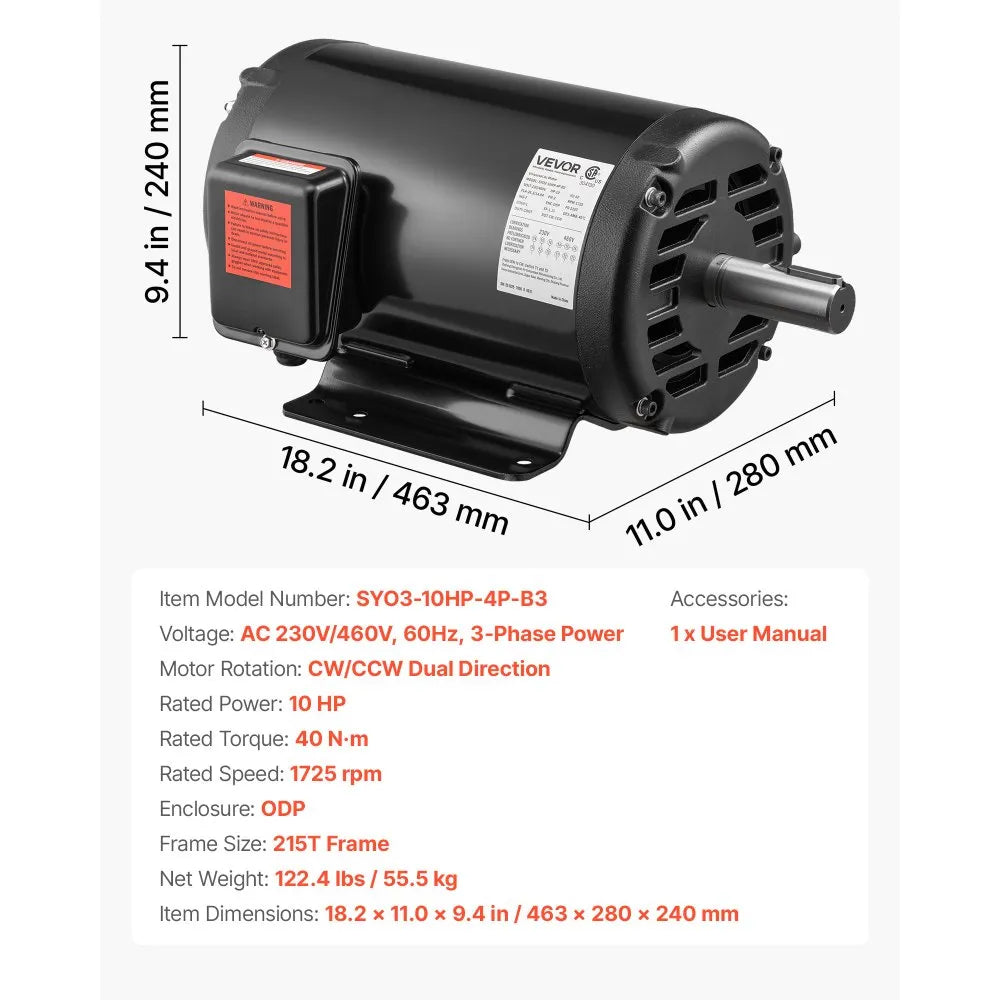

Specifications

Item Model Number SYO3-10HP-4P-B3
Voltage AC 230V/460V, 60Hz, 3-Phase Power
Motor Rotation CW/CCW Dual Direction
Rated Power 10 HP
Rated Torque 40 N.m
Rated Speed 1770 rpm
Cooling Method ODP
Frame Size 215T Frame
Main Materials Aluminum Alloy End Covers; Steel Plate Body
Net Weight 122.4 lbs / 55.5 kg
Item Dimensions 18.2 x 11.0 x 9.4 in / 463 x 280 x 240 mm
Shaft Diameter 1.375 in
Shaft Length 3.88 in
Keyway Size 0.31 in / 7.92 mm width x 0.14 in / 3.46 mm depth

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.

Manuals & Documentation

manual icon

User Manual
