Product Overview

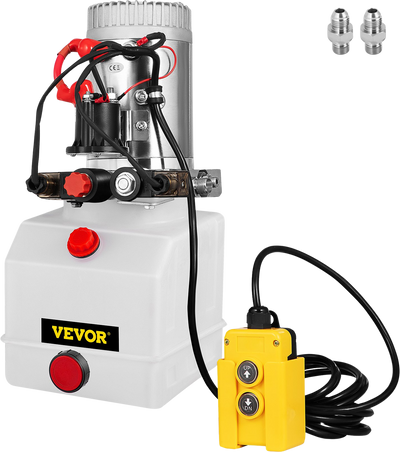

This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 3-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc. It has SAE#6 ports and comes with a handheld remote control, making the whole power unit easy to operate.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Product Details: Vevor's hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 3-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; and it is a double-acting pump for both power up and power down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. 4 SAE#6 connectors and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with relief valves, it avoids overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Mode | Double-Acting Power Up/Power Down |
| Tank Capacity | 3 Quart |
| Flow | 2 GPM |
| Max. Relief Valve Setting A Port | 3200 PSI |
| Max. Relief Valve Setting B Port | 1500 PSI |
| Voltage | DC12V |
| Power | 1.6KW (Rated), 3.0KW (Max) |
| Rated Speed | 2850 RPM |
| Duty | 3 Min |
| Connector | SAE#6 |
| Mount Position | Horizontal/Vertical |
| Control | Solenoid and Handheld Pendant |
| Product Dimensions | 8.2" x 7.4" x 16.5" |
| Gross Weight | 29.1 lbs (13.2 kg) |
Package Contents
Vevor 3QT Double Acting Hydraulic Pump
(2) SAE#6 Connectors
User Manual
Warranty
This item comes with a 1 year factory warranty.
