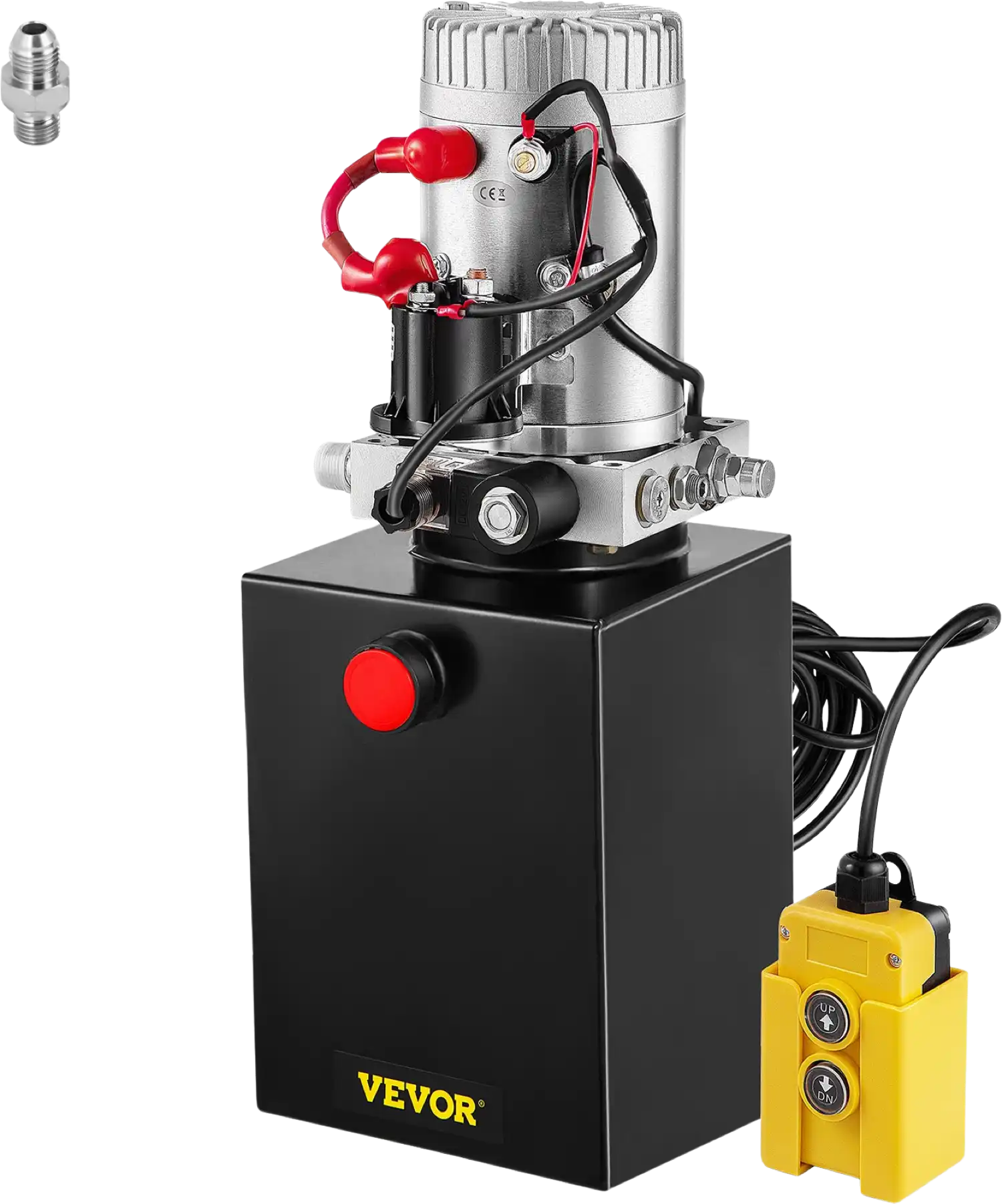

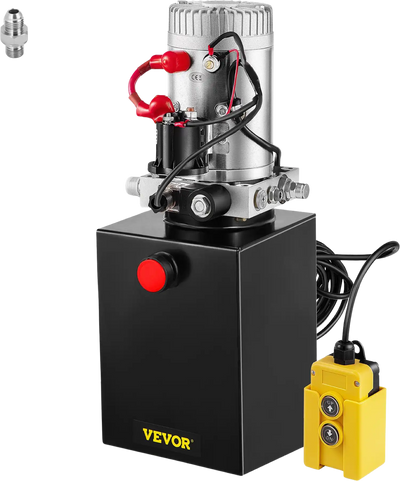

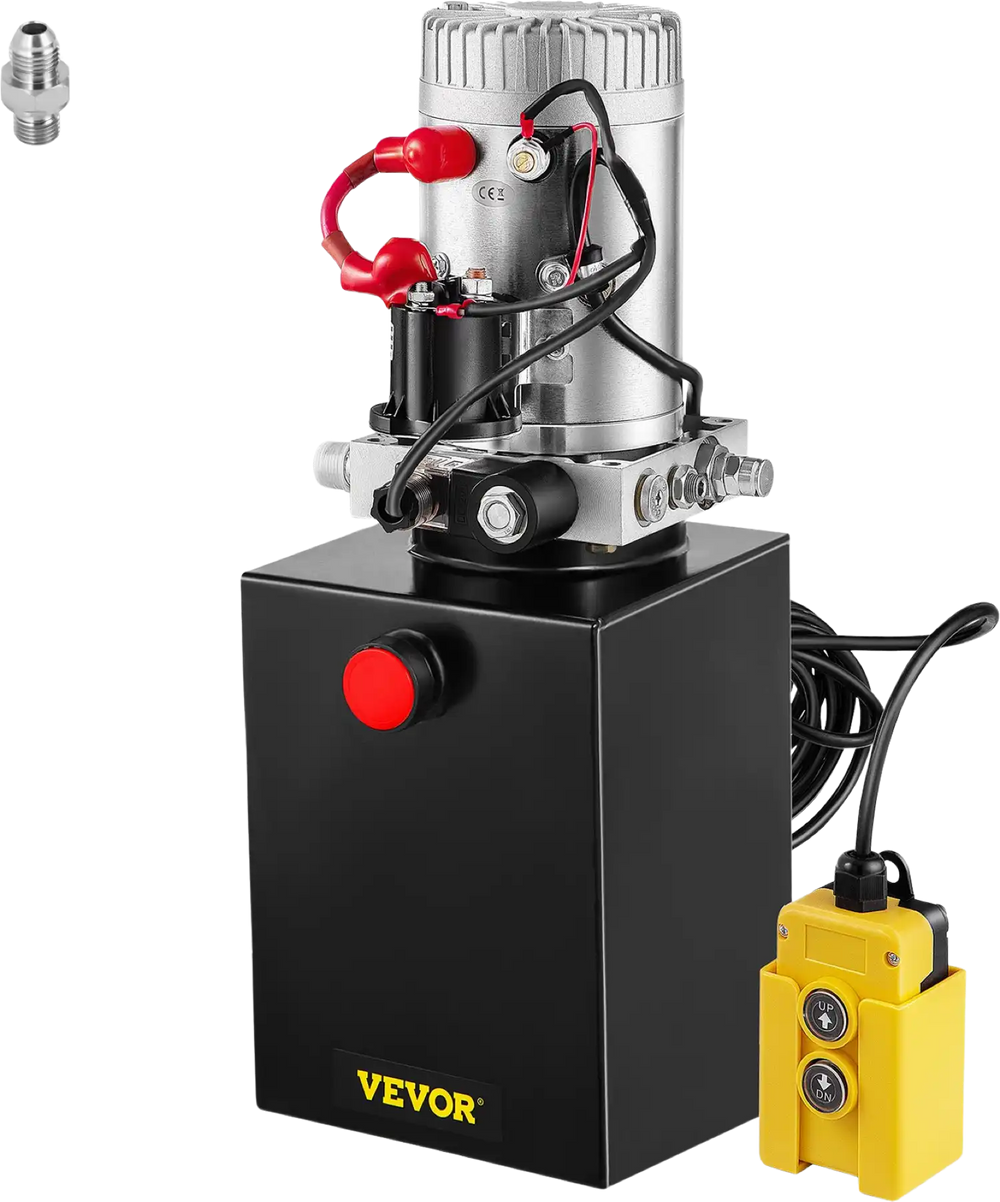

Vevor Hydraulic Power Unit 6 qt. Single Acting 3200PSI Steel New
Product Overview
This hydraulic pump is a single-acting power unit for both lifting and lowering. It has a 6-quart sturdy steel reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it can avoid overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Tank Material | Metal |
|---|---|
| Tank Capacity | 6 qt. |
| Power / Gravity | Single Acting Power Up / Gravity Down |
| Max. Relief Setting (Port A) | 3200 PSI |
| Max. Relief Setting (Port B) | 1500 PSI |
| Rated Speed | 2850 RPM |
| Voltage | DC12V |
| Rated Power | 1.6 kW |
| Max. Power | 3..0 kW |
| Duty | 3 min. |
| Traffic | 1.1 cc/r |
| Rotation | Clockwise |
| Connector | SAE#6 |
|---|---|
| Mount Position | Horizontal/Vertical |
| Control | Solenoid and Handheld Pendant |
| Pendant Control Length | 15 ft. (4.5 m) |
| Product Dimensions | 7 x 8.2 x 20 in. (18 x 21 x 51 cm) |
Package Contents
Vevor 6 qt. Single-Acting Hydraulic Pump
SAE#6 Connector
User Manual
Warranty
This item comes with a 1 year factory warranty.
