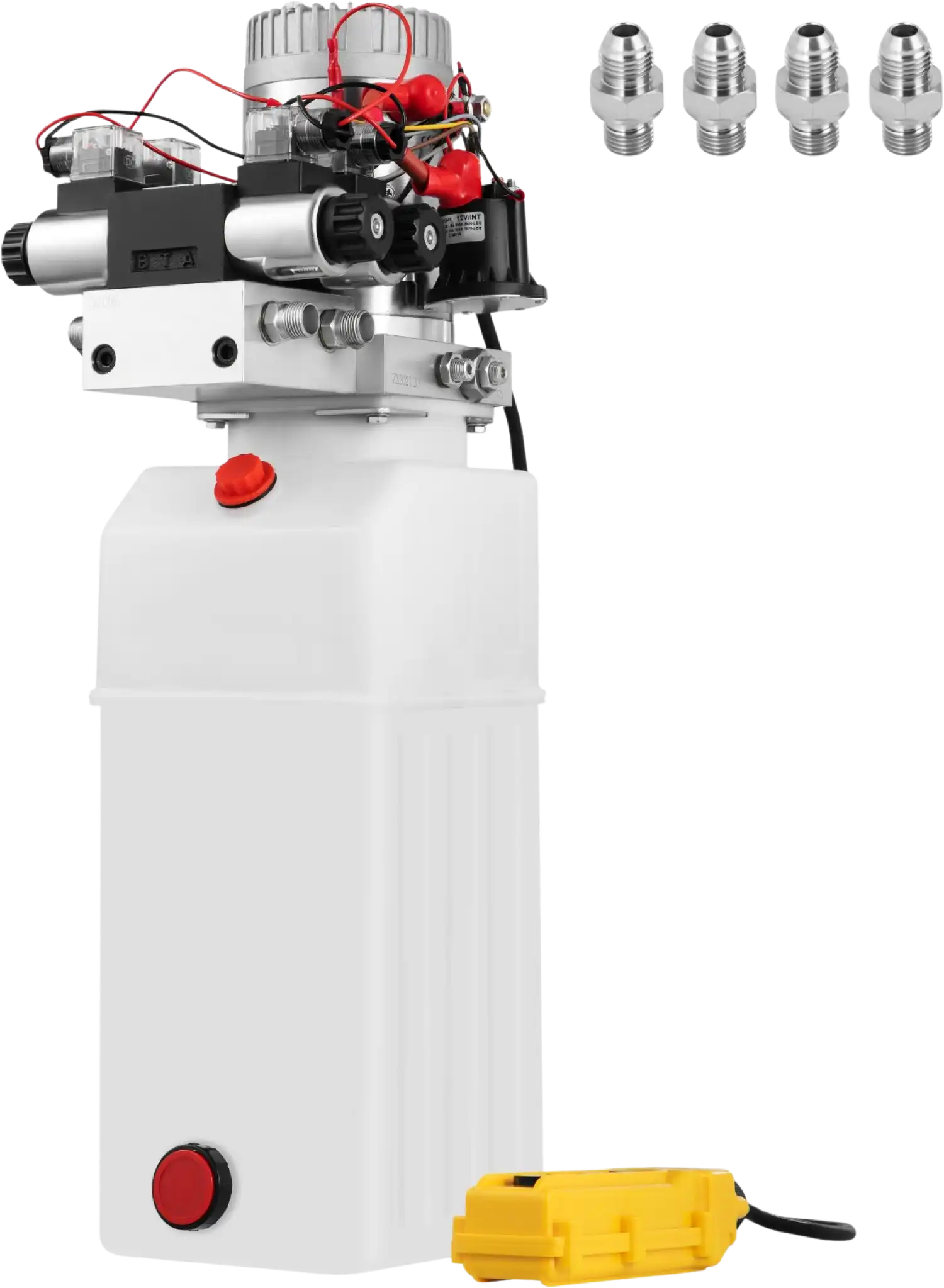

Vevor Hydraulic Pump Double Solenoid Double-Acting 8 Quart Reservoir 12V DC New
Manufacturer: Vevor
SKU: CZYYB8LZZ00423501V0
Similar Products
COMPARE SIMILAR ITEMS
Sort:
Filter
Filter:
×
Clear Filters
Price
Brand
SHOW
0 items match these filters.
Product Overview
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has an 8-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc. It comes with a hand-held remote control and 4 SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Premium Hydraulic Pump: Vevor's hydraulic pump is designed with a 12V DC 1.6-3kW motor, an 8-quart reservoir and a start solenoid. The max relief pressure is 3200 psi, and it is a double-acting pump for both power up and power down.
- Reliable & Stable: The dump trailer pump is made of sturdy plastic, thus the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems.
- Rapid Start: With the powerful motor, this hydraulic electric pump is quick to start and output oil; it can provide strong power for hydraulic systems like dump trailers.
- Easy to Use: The wiring is simple and comes with operating instructions. It comes with a 15 ft. remote for long-distance control and 4 SAE#6 connectors.
- Wide Application: This power unit is widely used in stackers. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Voltage | 12V DC |
| Power | 1.6-3kW |
| Reservoir Capacity | 8 Quart |
| Motor | 12VDC electric motor c/w relay |
| Mount | Horizontal Mounting |
| Max PSI | 3200 PSI |
| Max Flow | 5 L/min |
| Port Size | 3/8" BSP |
| Delivery Rate @ 160 Bar | Approx. 5L/min |
| Product Dimensions | 24.8" x 6.1" x 6.5" |
| Weight | 37.9 lbs (17.2 kg) |
Package Contents
Vevor 12V DC Double-Acting Double Solenoid Hydraulic Power Pack 8-Quart
User Manual
Warranty
This item comes with a 1 year factory warranty.
