Vevor Hydraulic Pump Double Solenoid Double-Acting 4.5 Quart Reservoir 12V DC New
Product Overview

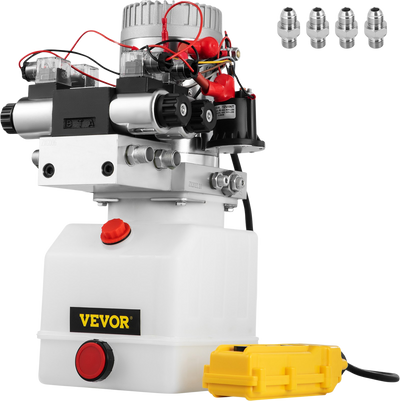

This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 4.5-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc. It comes with a hand-held remote control and 2 additional SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Product Details: Vevor's hydraulic pump is designed with a 12V DC motor (Power: 1.6-3kW) and a 4.5-quart reservoir. The max relief pressure setting is 3200 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 4-button detachable pendant are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safe and reliable.
- Rapid Start: With it powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds, and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Voltage | 12V DC |
| Power | 1600W |
| Reservoir Capacity | 4.5 Quart |
| Motor | 12VDC electric motor c/w relay |
| Mount | Horizontal Mounting |
| Max PSI | 3200 PSI |
| Max Flow | 5 L/min |
| Flow | 2 GPM |
| Port Size | 3/8" BSP |
| Delivery Rate @ 160 Bar | Approx. 5L/min |
| Product Dimensions | 15.4" x 6.9" x 6.5" |
| Weight | 37.25 lbs (16.9 kg) |
Package Contents
Vevor 12V DC Double-Acting Double Solenoid Hydraulic Power Pack
User Manual
Warranty
This item comes with a 1 year factory warranty.
