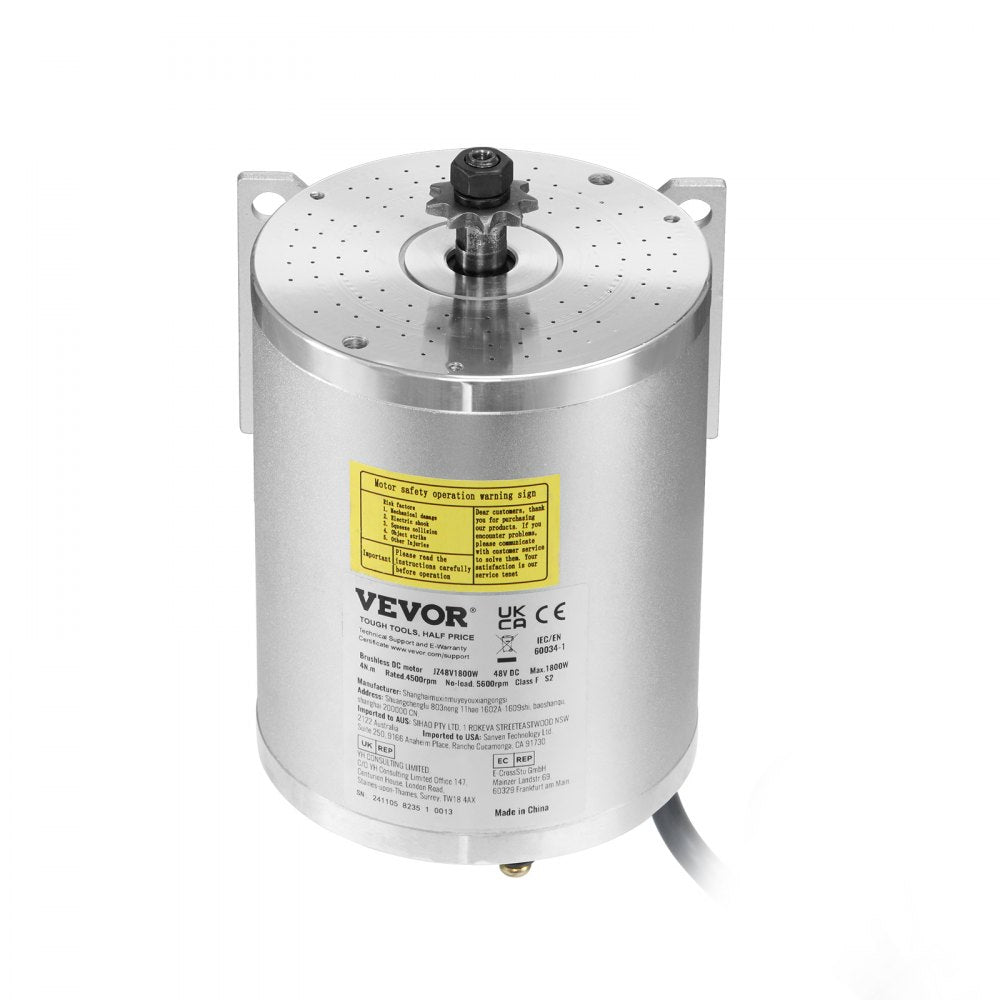

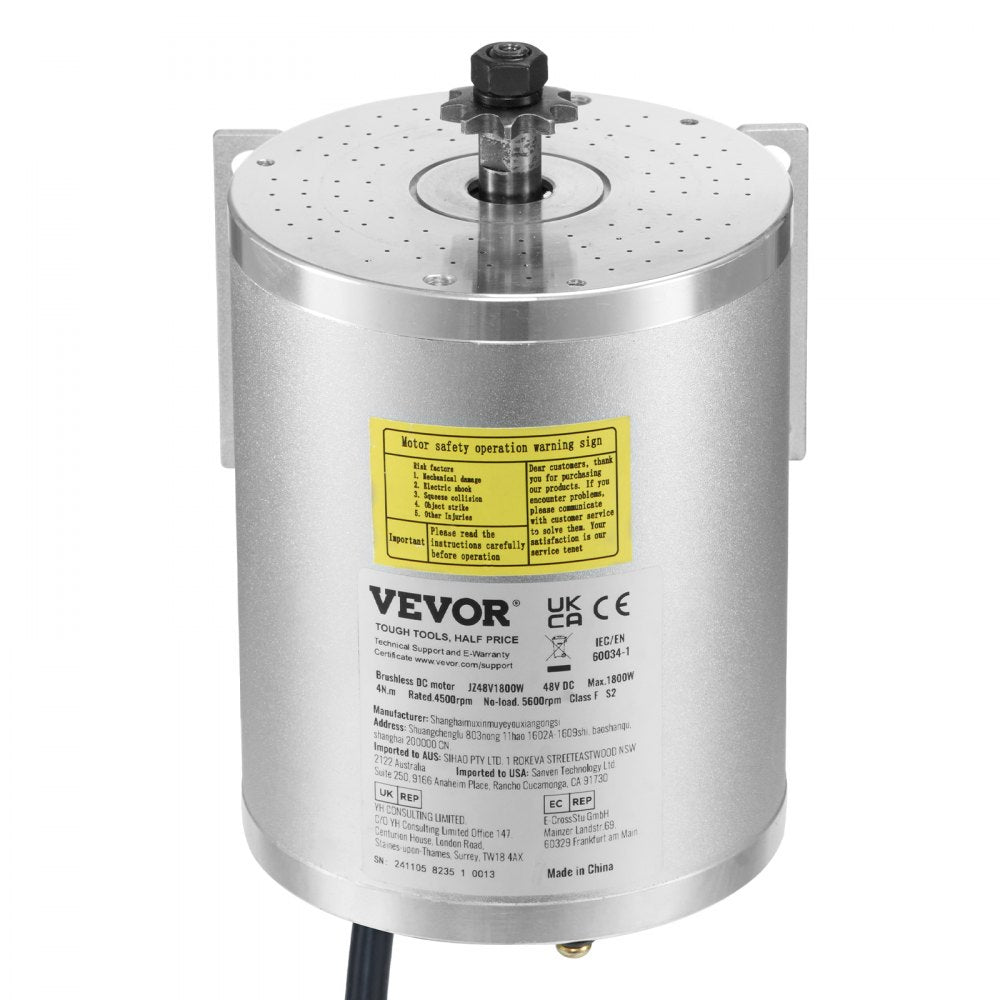

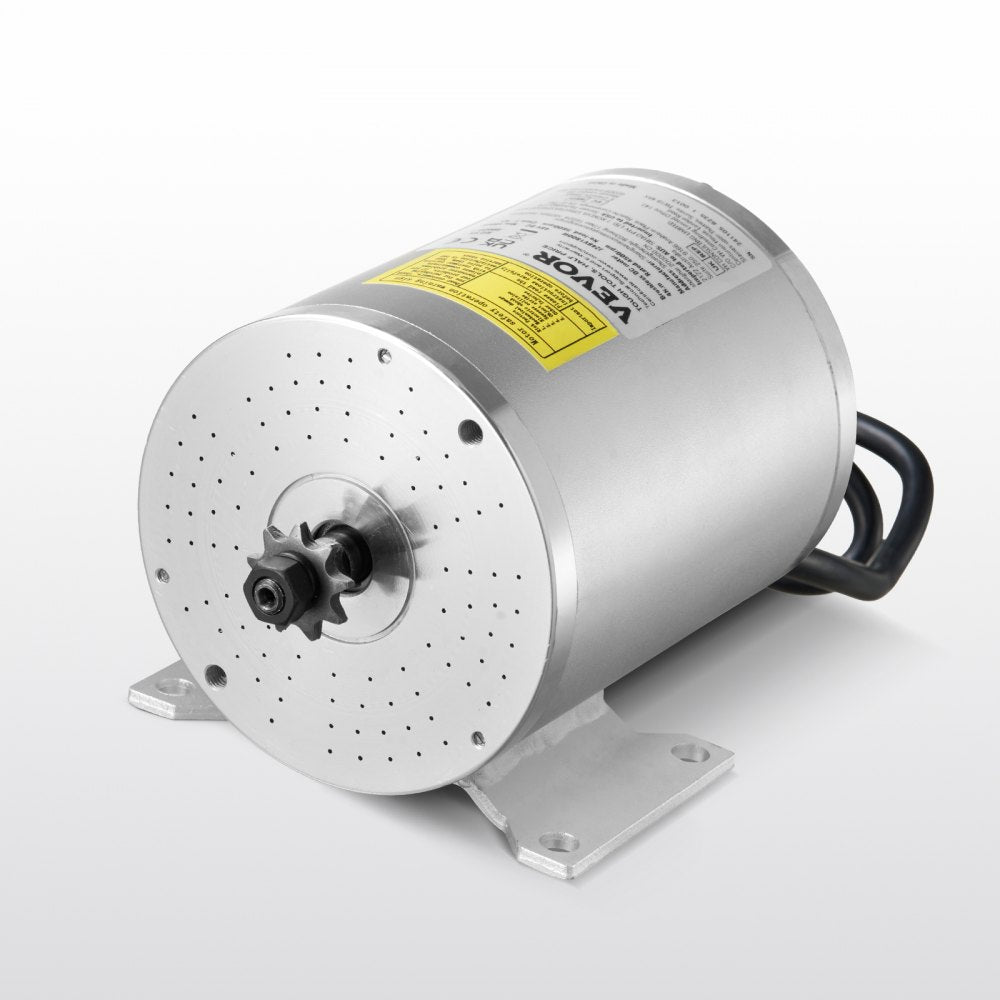

Vevor Brushless DC Motor Kit 48V 1800W 4500 RPM Complete Kit New
Manufacturer: Vevor
SKU: ZLWSDJTJ180083C2DV5
Pedals Options
with handle or not ? Options
With Power Adapter Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$169.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Electric Motor 1 HP 1725 RPM Air Compressor New
-
Vevor Electric Motor 1 HP 1725 RPM 3-Phase 230V/460V 56C Frame Air Compressor Motor New
-
Vevor Electric Motor 5 HP 1725 RPM Air Compressor Single-Phase ODP 230V 184T New
-
Vevor Electric Motor 10 HP 1770 RPM Air Compressor Three-Phase 230V/460V ODP 215T Frame New
-
Vevor Electric Motor 1.5 HP 3450 RPM 56 Frame Single Phase 5/8" Keyed Shaft 115/230V New
-
Vevor Electric Motor 0.5 HP 1725 RPM Air Compressor Single-Phase TEFC 56 Frame New
-
Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New
-
Vevor Electric Motor 5 HP 3450 RPM Air Compressor Single-Phase 230V TEFC New
-
Vevor Air Compressor Motor 3 HP 230V 3450 RPM Reversible Single Phase New
-
Vevor Electric Motor 1.5 HP 3450 RPM 56C Frame 5/8" Keyed Shaft Single Phase 115/230V New
Vevor Brushless DC Motor Kit 48V 1800W 4500 RPM Complete Kit New
Product Overview

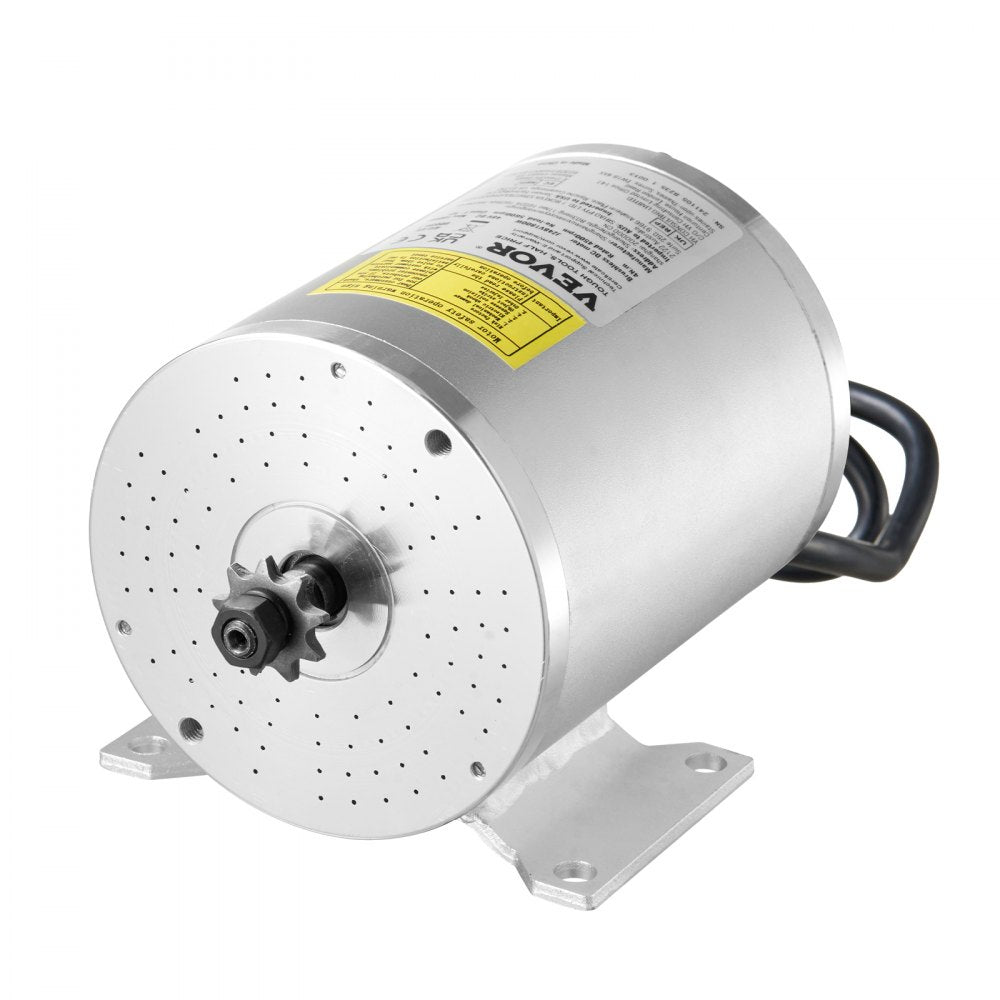

This brushless DC motor kit is designed to deliver strong 1800W performance for DIY electric vehicle builds such as go-karts, e-bikes, scooters, and motorcycles. It features a 48V motor with 4500 RPM rated speed, 4 N·m rated torque, and CW/CCW dual-direction control for flexible operation. The upgraded controller adds protection against overload, undervoltage, and short circuit while supporting speed control, braking, reverse, and slow start. With a copper core motor, quiet 70 dB operation, and an included foot pedal throttle, charger, and hardware, it offers a complete setup for reliable custom projects.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: Our brushless DC motor delivers 1800W of output power and operates efficiently with ≥85% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 36.7 MPH at rated speed, and a no-load speed of 46 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 4N·m ensures reliable performance even on steep inclines and rough terrains.

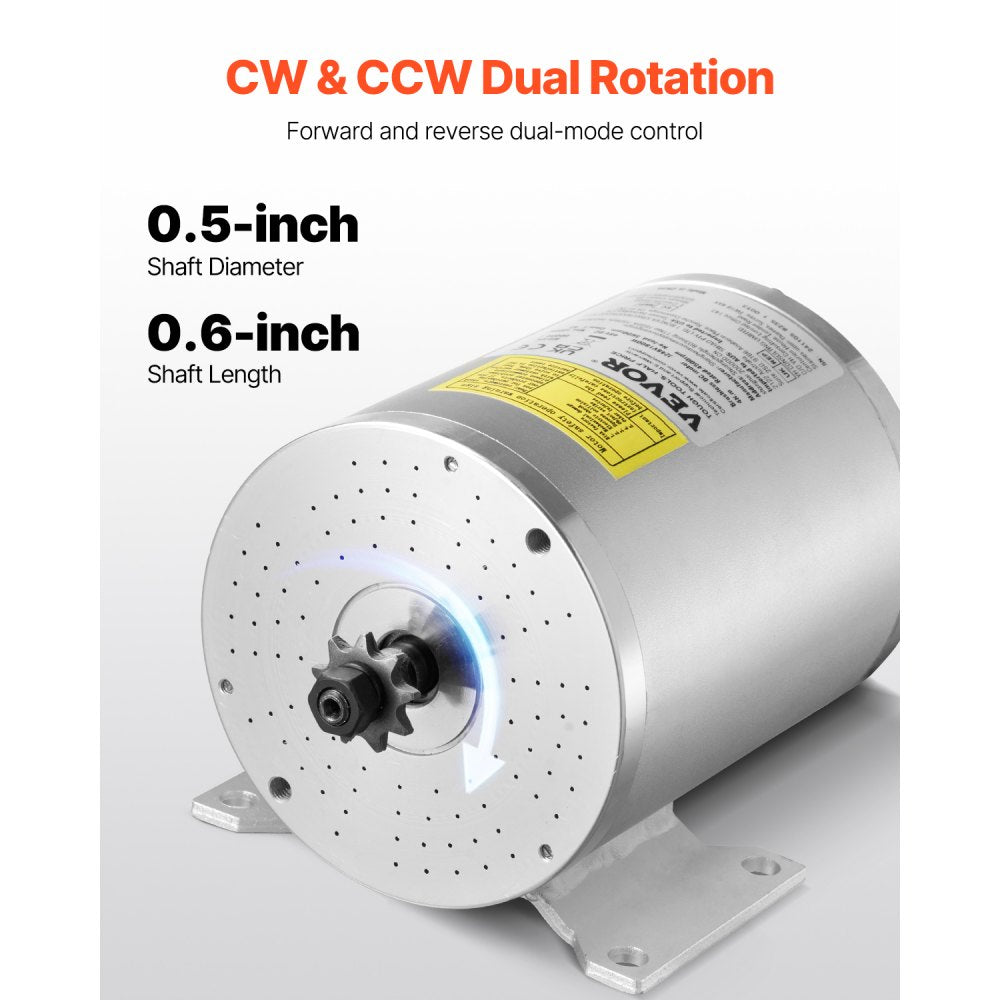

- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. It also features CW & CCW dual-direction control, enabling easy switching between forward and reverse for added versatility in tight spaces.

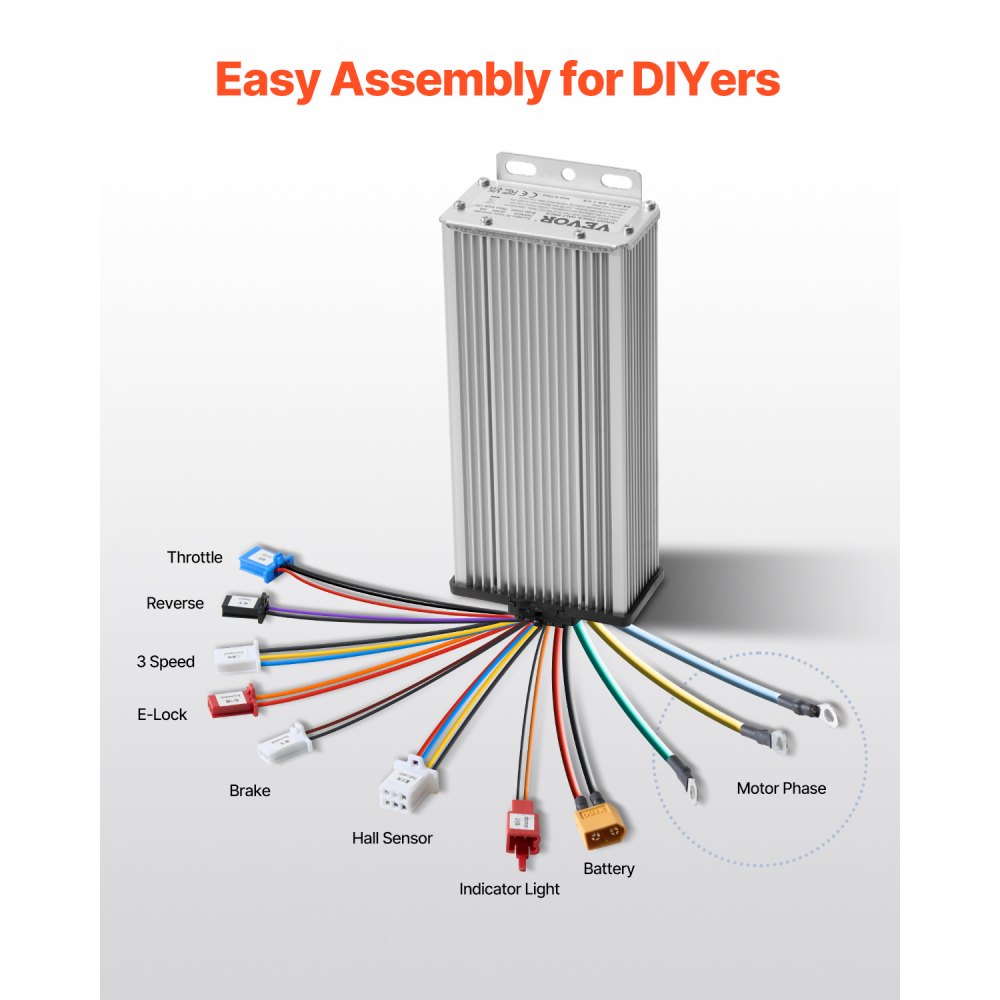

- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control, braking, reverse, and slow start for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.
- Easy DIY Installation: Package includes: 1 x 48V 1800W Brushless Motor, 1 x Motor Controller, 1 x Foot Pedal Throttle, 1 x Charger, 1 x Set of Assembly Hardware, and 1 x User Manual. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

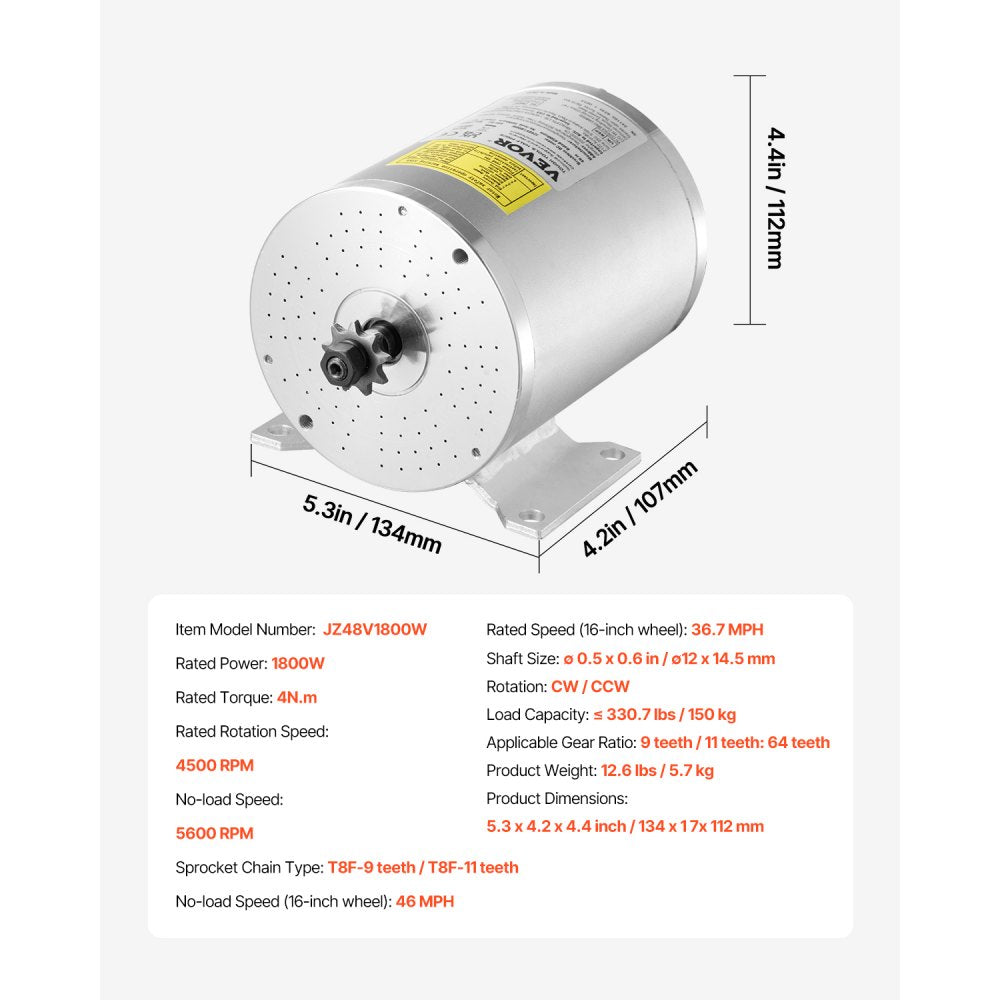

Specifications

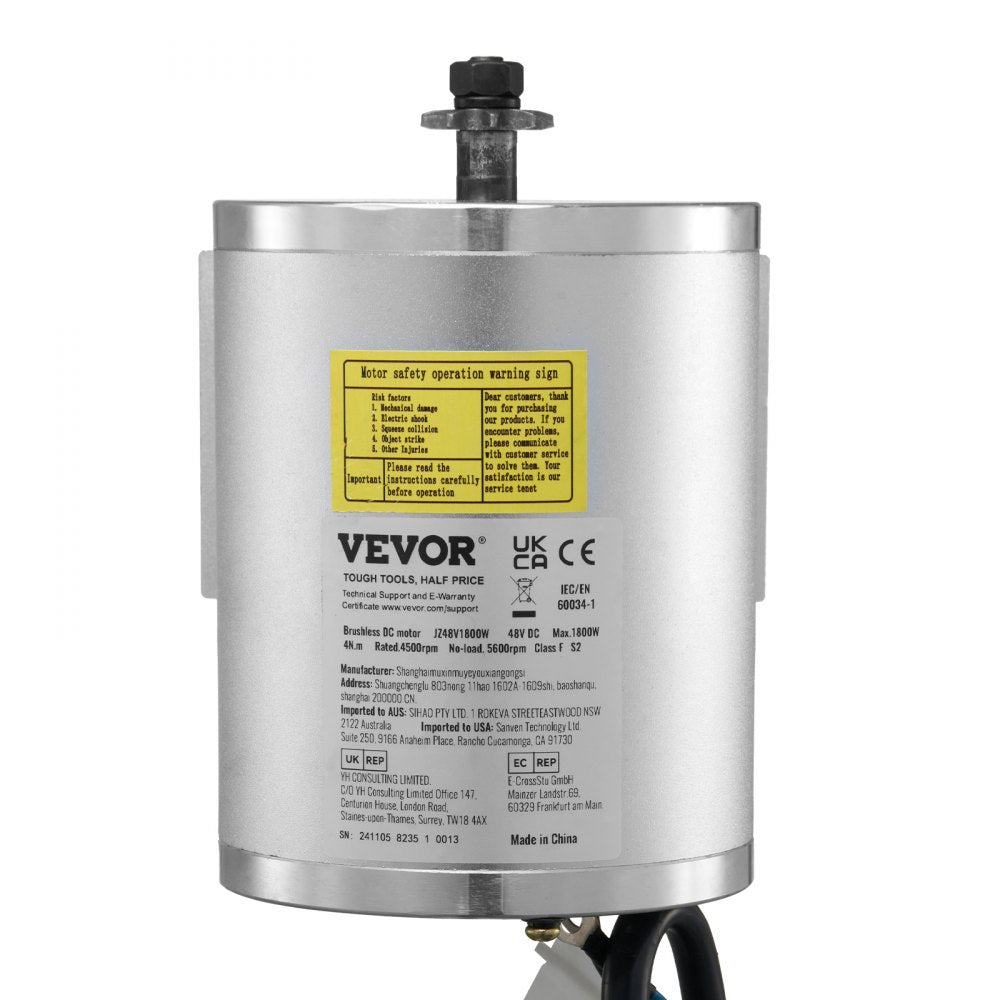

| Item Model Number | JZ48V1800W |
| Rated Power | 1800W |
| Voltage | 48V |
| Rated Torque | 4 N·m |
| Rated Rotation Speed | 4500 RPM |
| No-load Rotation Speed | 5600 RPM |
| Rotation | CW/CCW |
| Load Capacity | ≤ 330.7 lbs / 150 kg |
| Noise | 70 dB |
| Applicable Gear Ratio | 9 teeth / 11 teeth |
| Product Weight | 12.6 lbs / 5.7 kg |
| Dimensions | 5.3 x 4.2 x 4.4" / 134 x 107 x 112 mm |
| Efficiency | ≥85% |

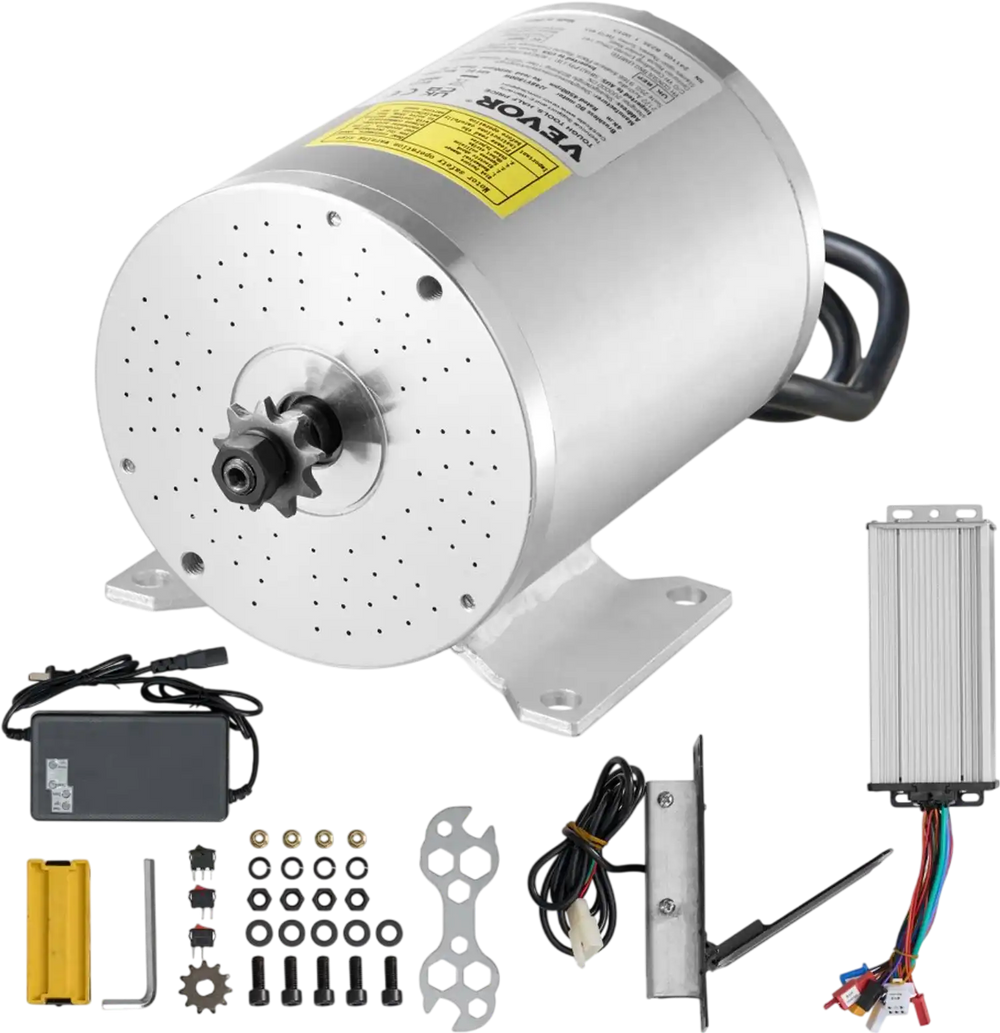

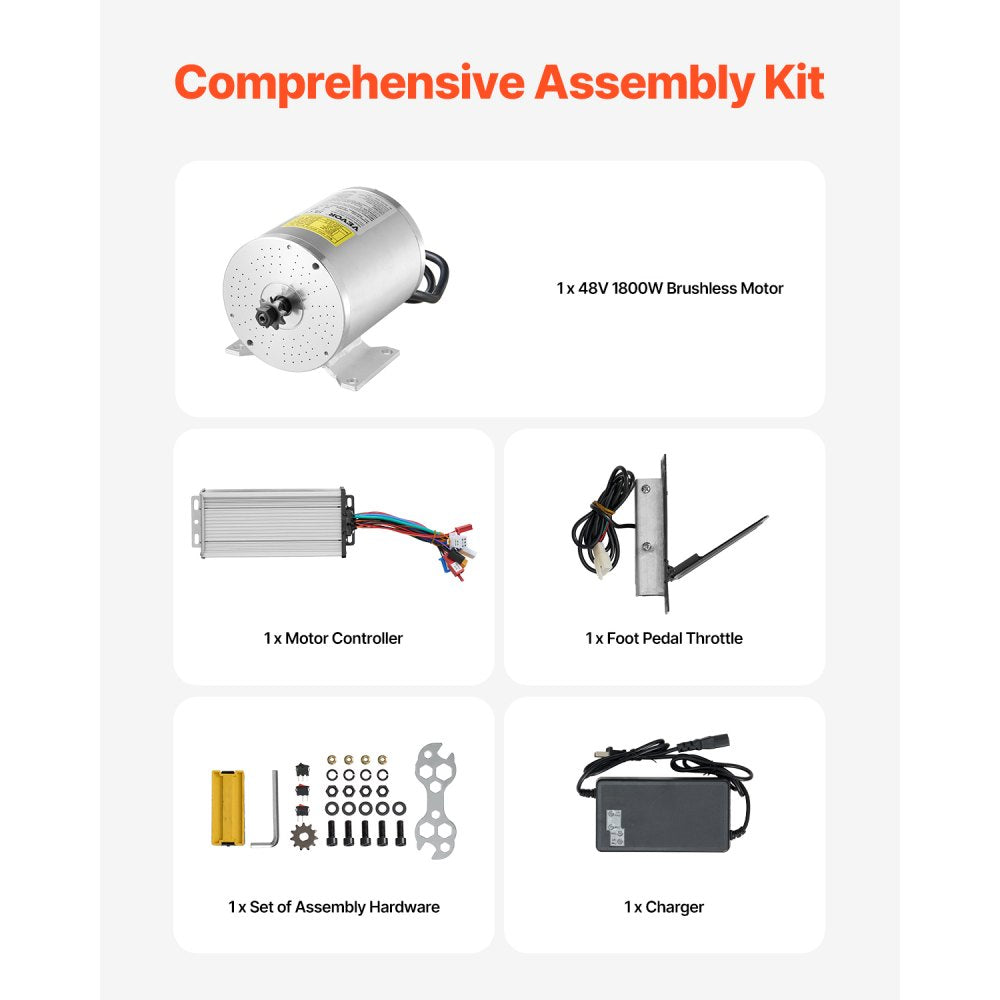

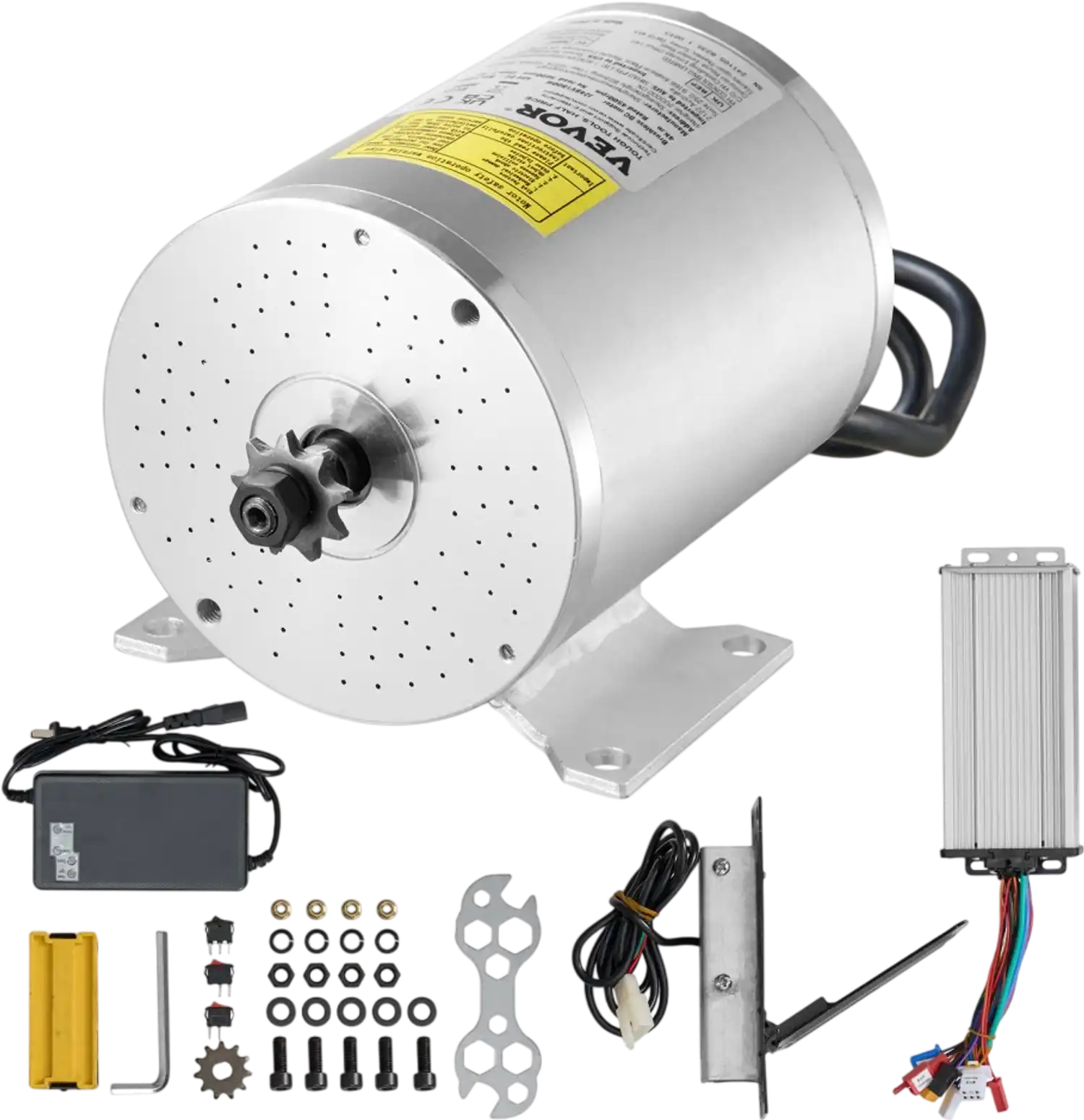

Package Contents
1 x 48V 1800W Brushless Motor
1 x Motor Controller
1 x Foot Pedal Throttle
1 x Charger
1 x Set of Assembly Hardware
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
