Vevor Electrical Enclosure 20" x 16" x 8" NEMA 4X Metal Wall Mount Junction Box New
Manufacturer: Vevor
SKU: DQXJSTCFS50X40X20V0
Size Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$131.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Electrical Enclosure Box 20" x 16" x 8" Wall-Mounted Outdoor Stainless Steel IP66 New
-
Vevor Electrical Box 24" x 20" x 8" 304 Stainless Steel Wall-Mounted Enclosure with Mounting New
-
Vevor Electrical Enclosure Box 16" x 12" x 10" 304 Stainless Steel Wall-Mounted IP66 Waterproof New
-
Vevor Electrical Enclosure 16" x 12" x 6" 304 Stainless Steel Wall-Mount IP66 Waterproof Box New
-
Vevor Electrical Enclosure Box Outdoor ABS Junction Box 16.93 x 12.99 x 7.09" New
-
Vevor Electrical Enclosure 10" x 8" x 6" NEMA 4X Wall Mount Junction Box New
-
Vevor Electrical Enclosure 12" x 8" x 6" NEMA 4X Steel Junction Box New
-
Vevor Electrical Enclosure 24" x 24" x 12" NEMA 4X Steel Box Waterproof & Dustproof New
Vevor Electrical Enclosure 20" x 16" x 8" NEMA 4X Metal Wall Mount Junction Box New
Product Overview

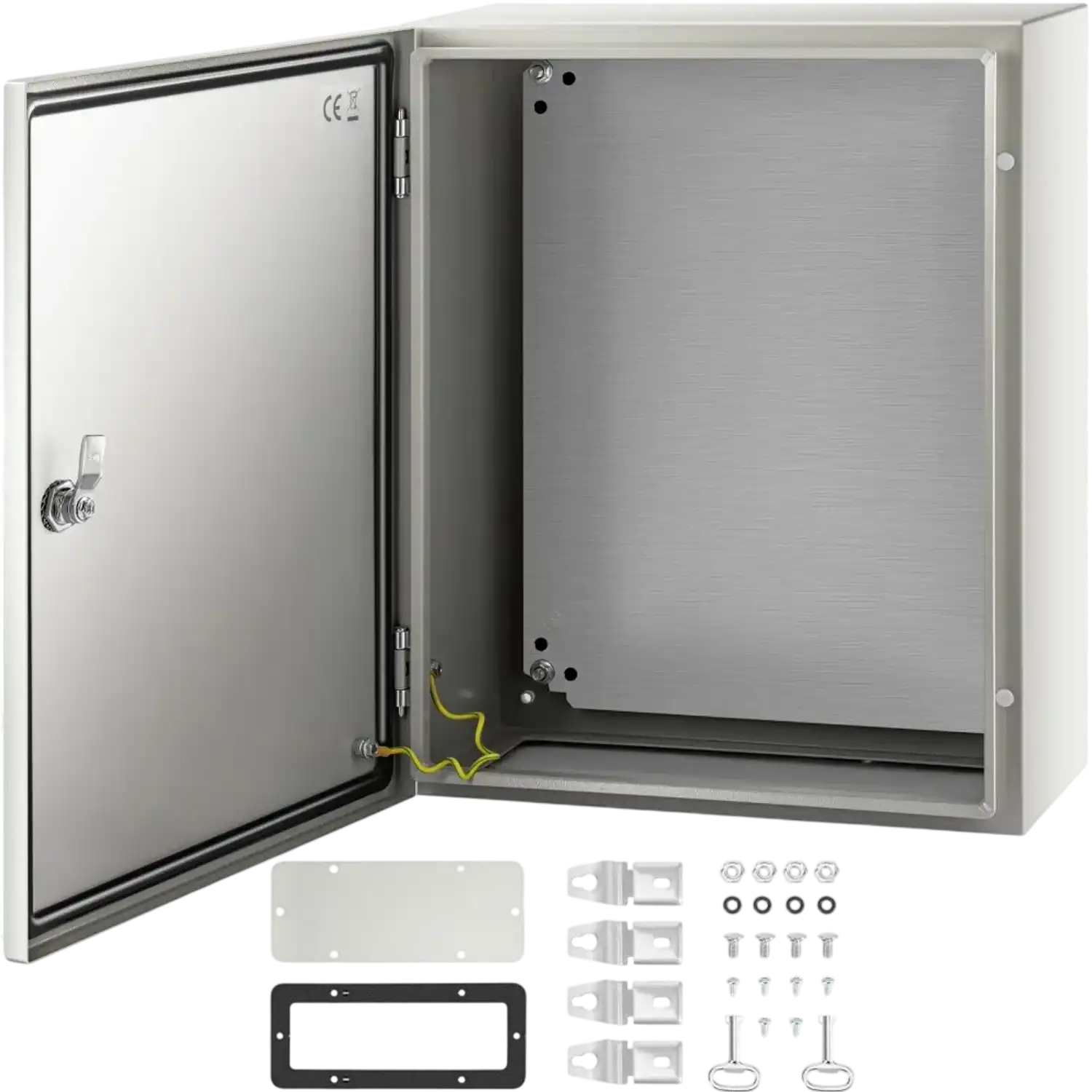

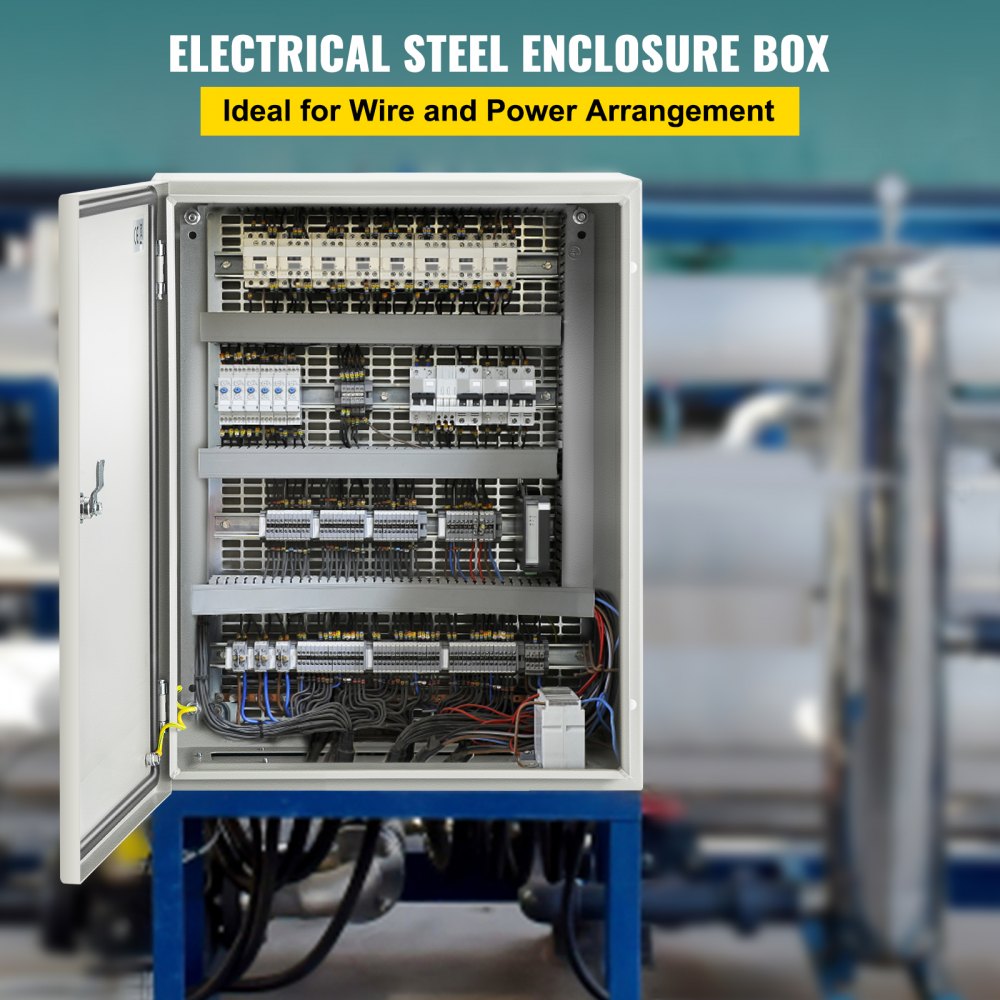

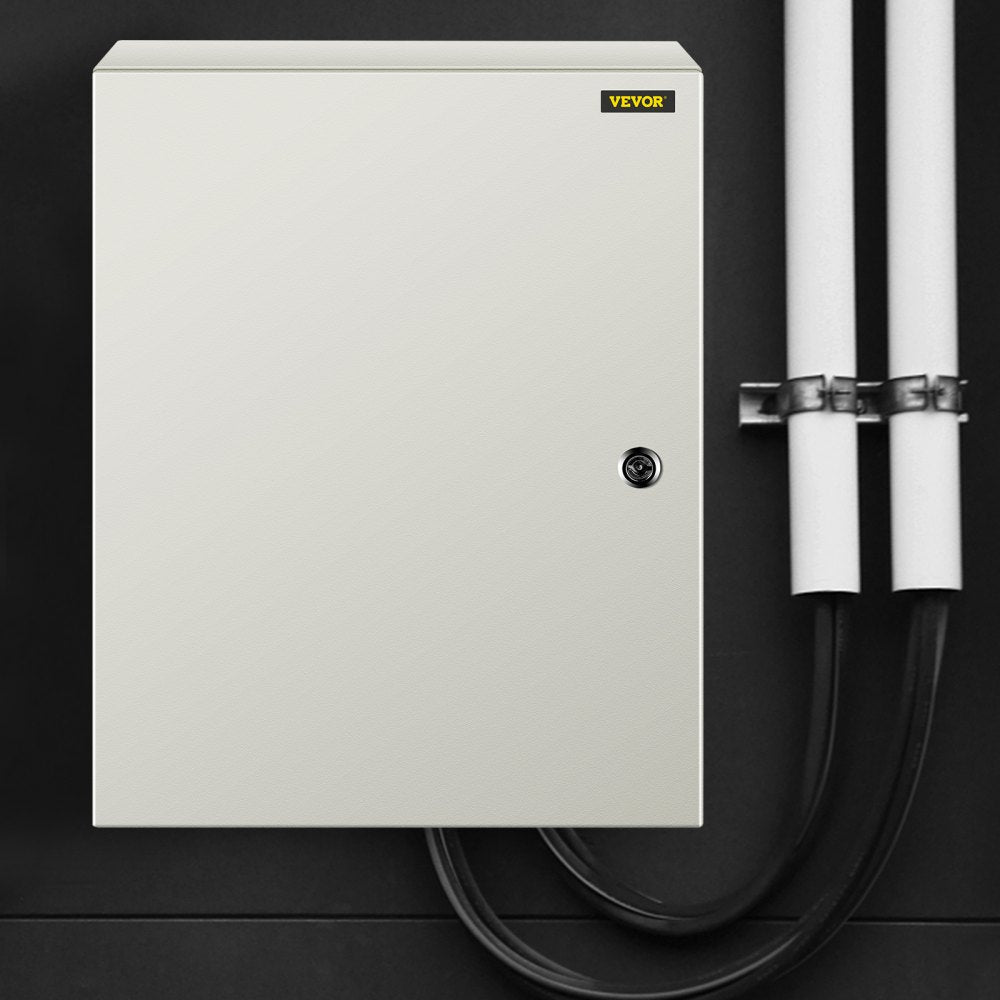

The Vevor electrical enclosure is a wall-mount metal junction box built for indoor and outdoor electrical protection. It features carbon steel construction, an IP66-rated sealed design, and a lockable hinged door for added security. A detachable galvanized mounting plate helps simplify component installation and setup. This enclosure is designed to protect circuits, wiring, and equipment from water, dust, and harsh environments.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

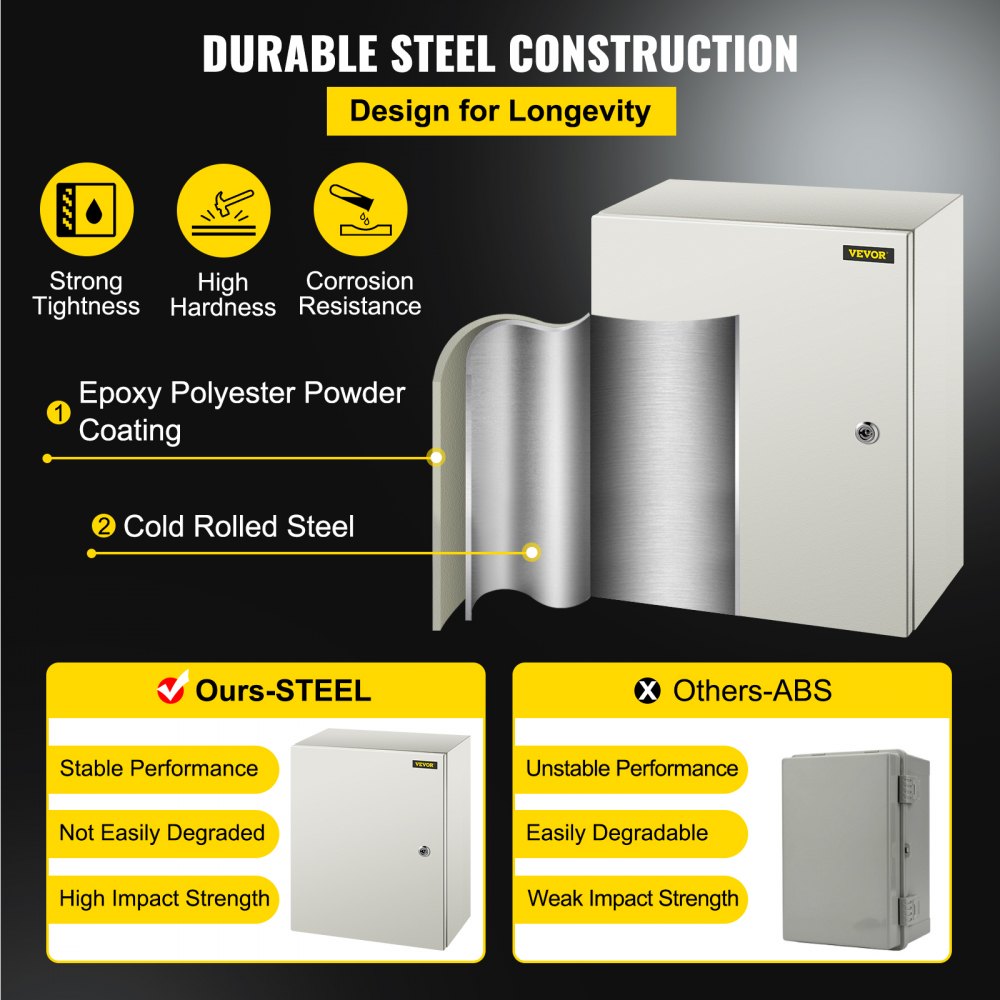

- Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.

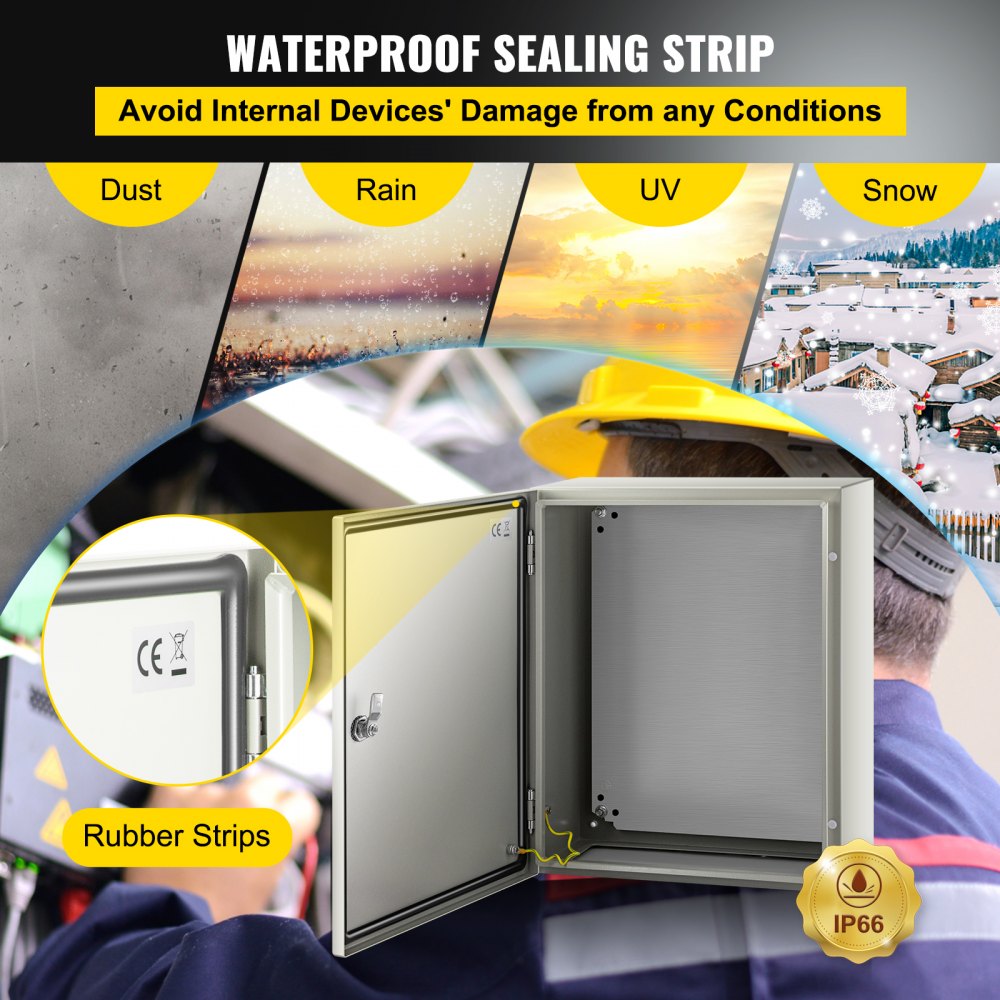

- IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.

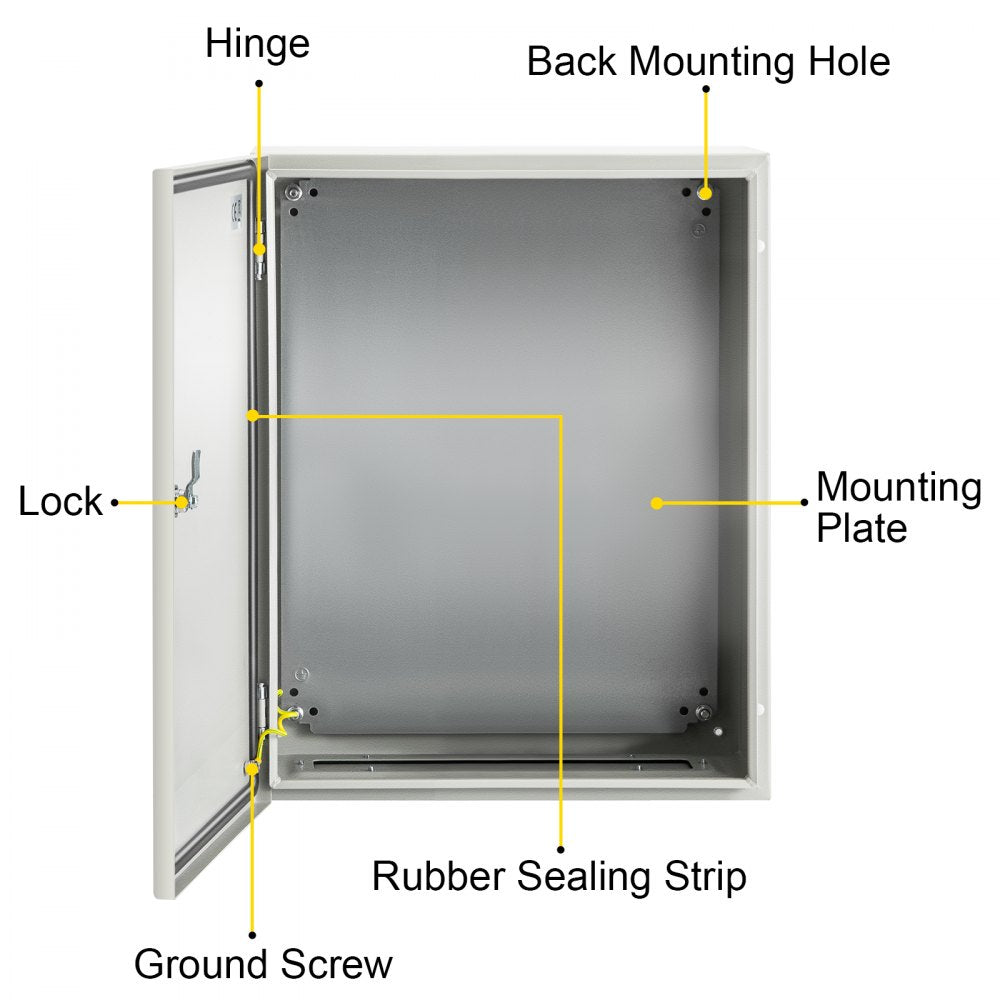

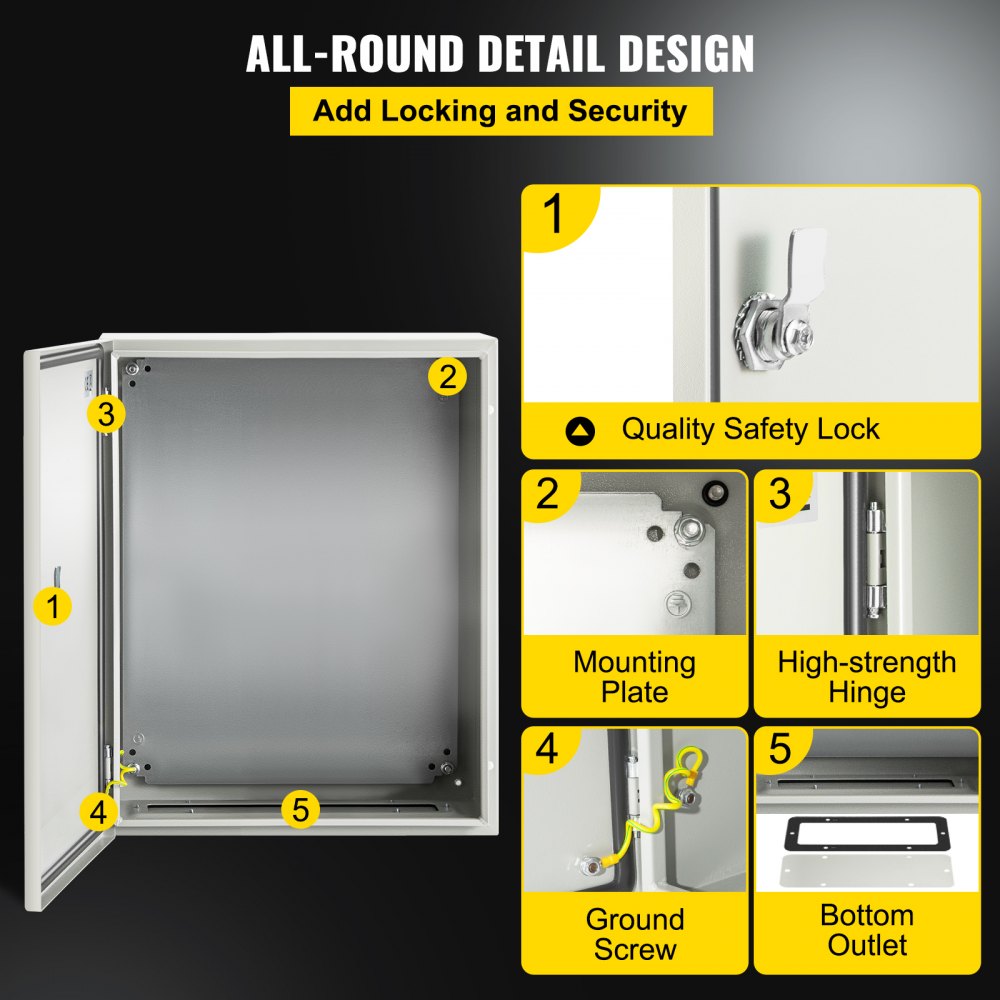

- Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.

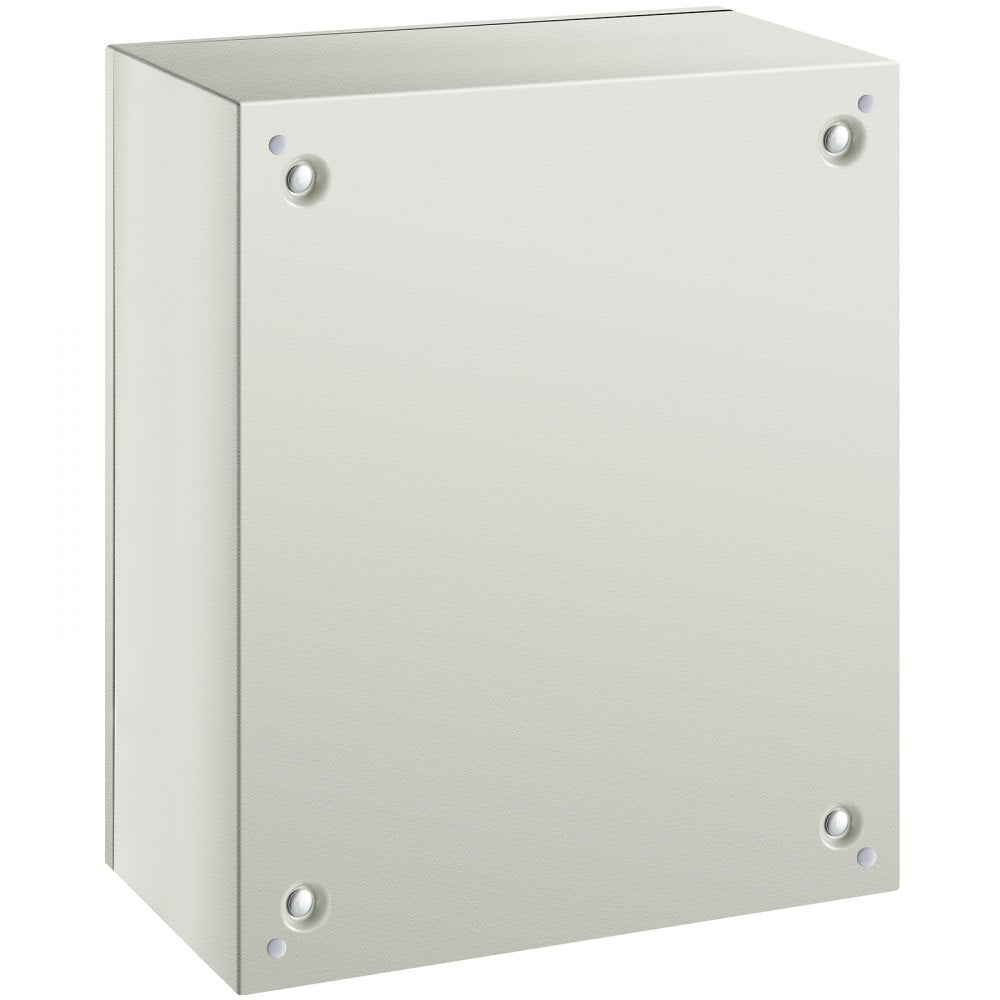

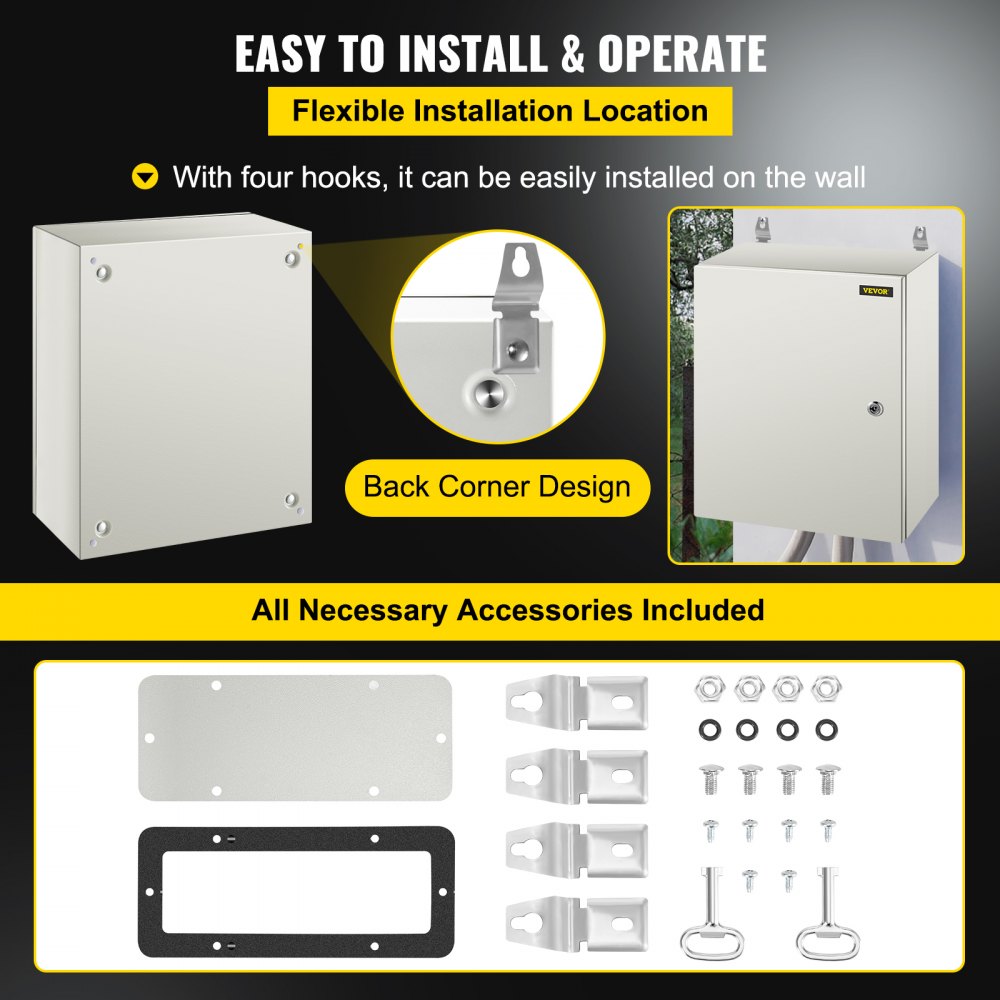

- Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.

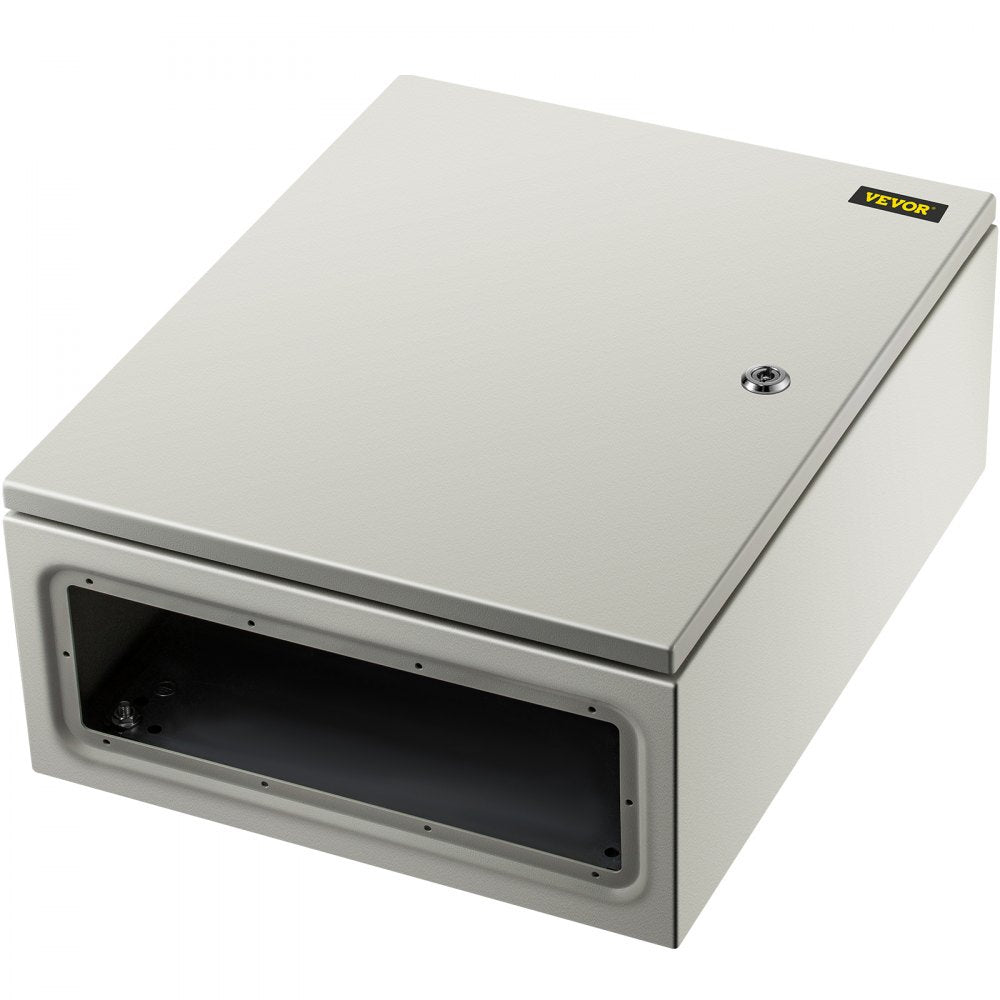

- Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.
Specifications
| Model | SPT |
| Color | Gray White (RAL7035) |
| Material | 0.059" / 1.5 mm Carbon Steel |
| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079" / 2 mm Detachable Galvanized Backplate |
| IP Rating | Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications |
| Connection Type | Hinged |
| Feature | Lockable, Waterproof |

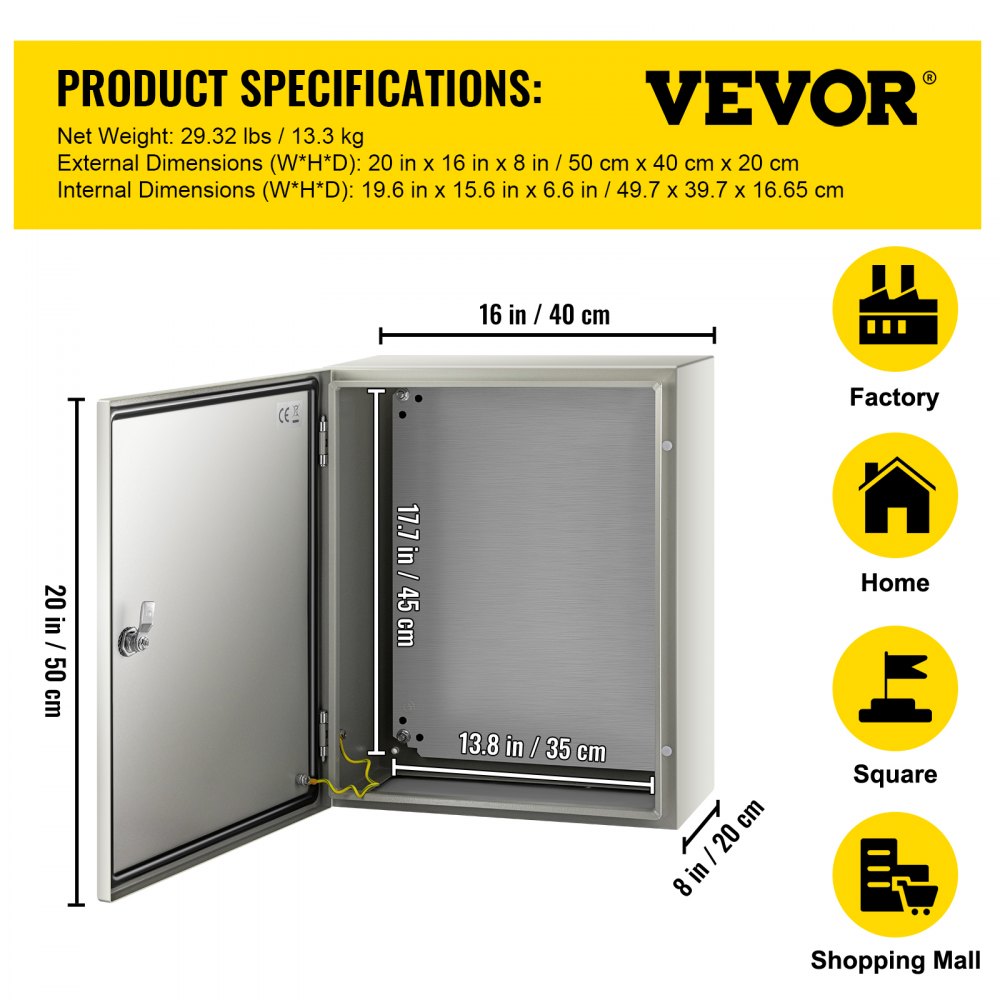

| Galvanized Backplate Dimensions | 17.7" x 13.8" / 45 x 35 cm |

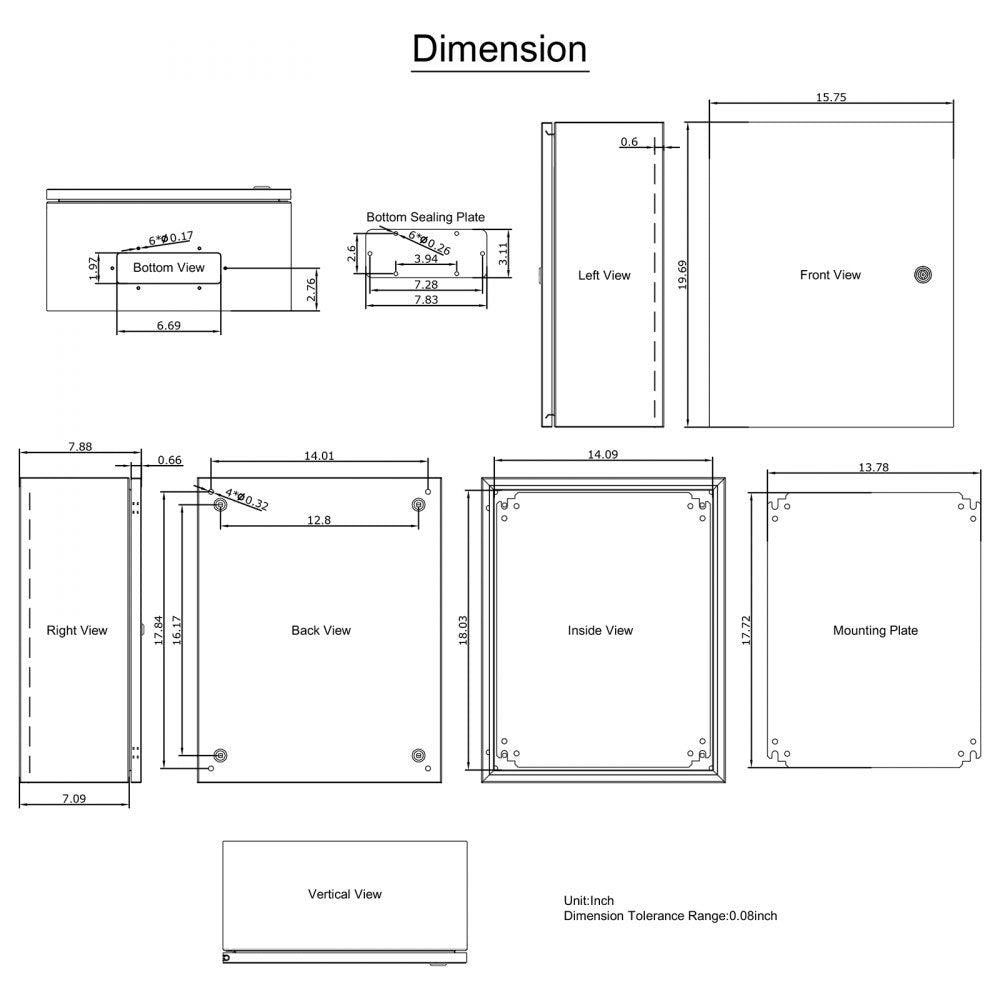

| Outer Dimensions (H x W x D) | 20" x 16" x 8" / 50 x 40 x 20 cm |
| Inner Dimensions (H x W x D) | 19.6" x 15.6" x 6.6" / 49.7 x 39.7 x 16.65 cm |
| Product Weight | 29.32 lbs / 13.3 kg |
| Certification | CE / ROHS Certification |

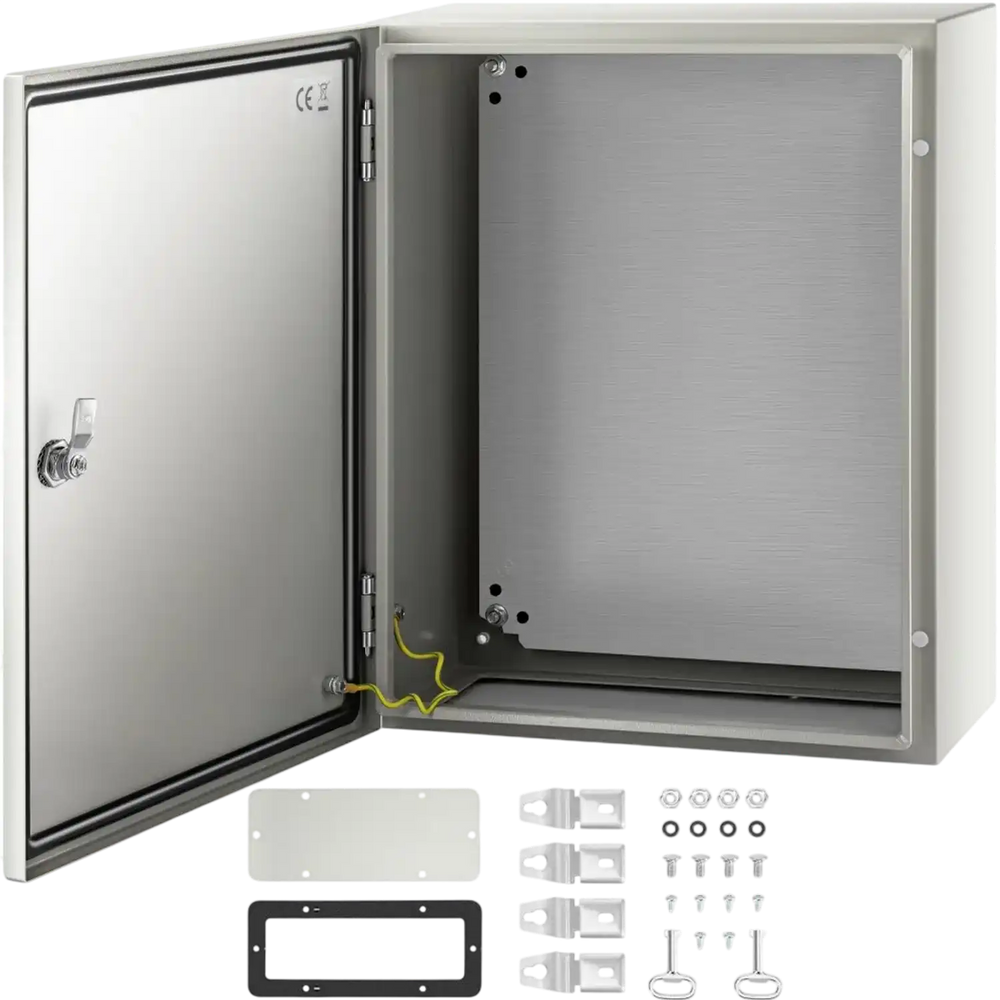

Package Contents
1 x Electrical Box
2 x Keys
1 x Mounting Plate
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
Warranty
This item comes with a 1 year factory warranty.
