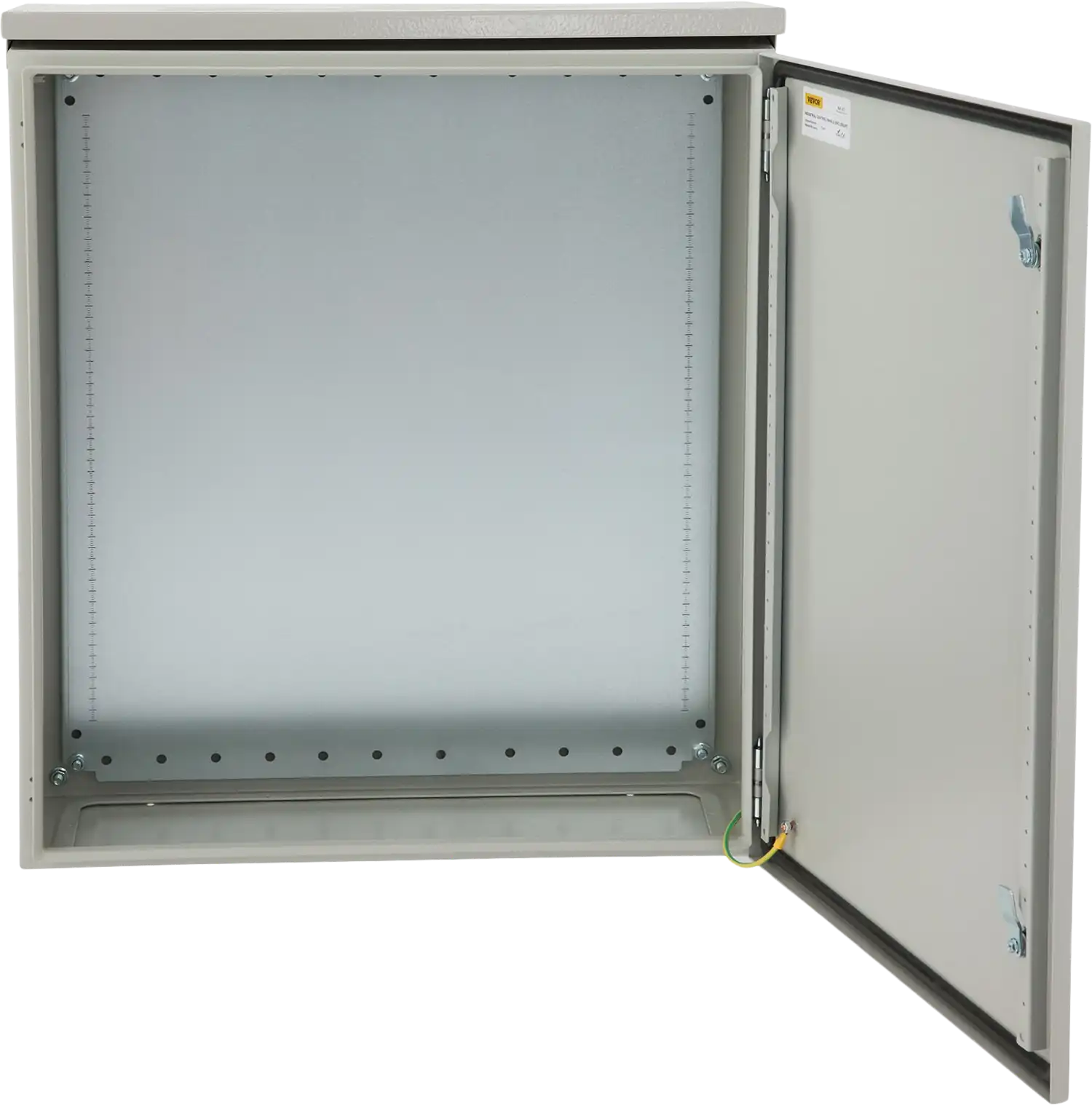

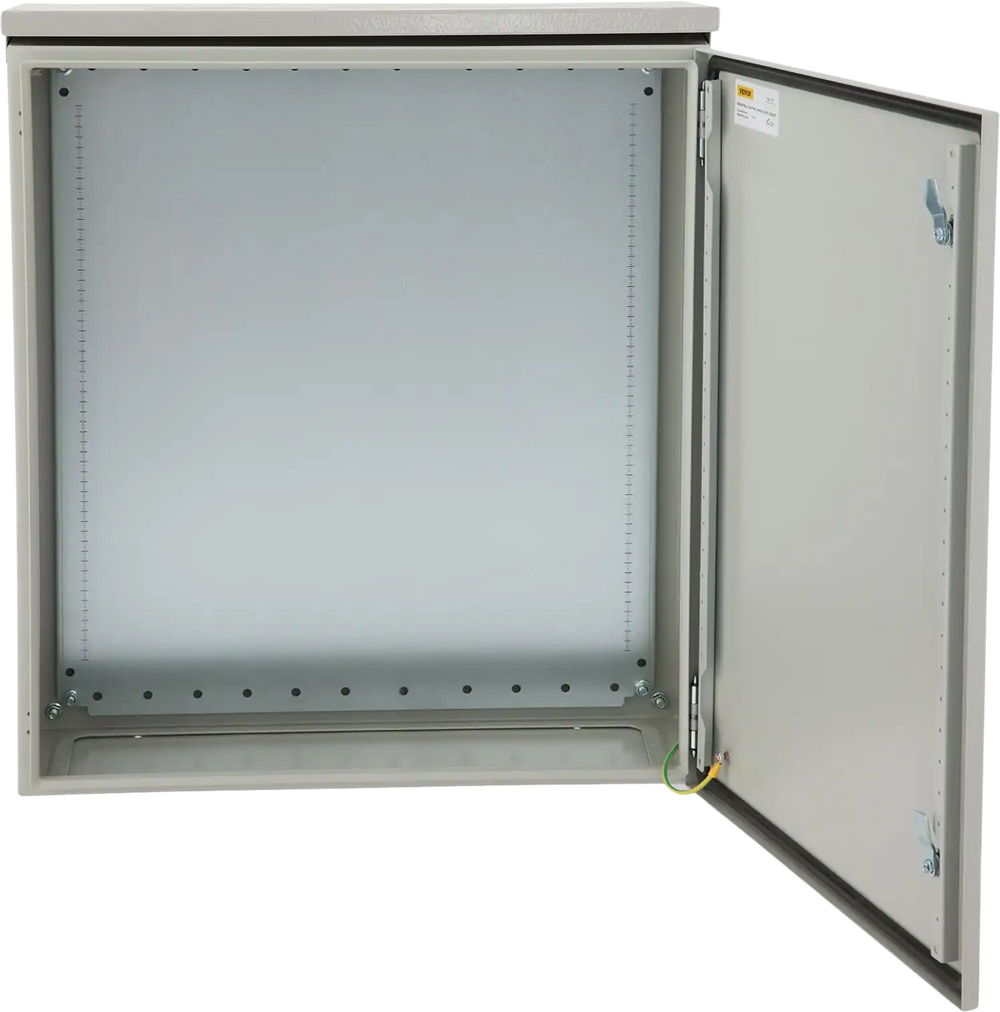

Vevor Electrical Enclosure 24" x 24" x 12" NEMA 4 Outdoor Junction Box Tested to UL Standards New
Manufacturer: Vevor
SKU: TUL60X60X30CMB2JPV0
Size Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$308.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor 52CC 6-in-1 Gas Trimmer Tool Set with Extension Pole New
-
Vevor Hose Reel Retractable Garden 100' x 5/8" Wall Mounted with 9-Pattern Nozzle New
-
Vevor Pool Sand Filter Pump 16 in. for Above Ground 1 HP 4,400 GPH with Timer New
-
Vevor Mechanic Creeper Foldable Z Garage Creeper Stool 36" 300 lbs New
-
Vevor Electrical Enclosure 12" x 12" x 6" NEMA 4X Steel Junction Box New
-
Vevor Conduit Connectors 1/2" Liquid Tight Non-Metallic 100-Piece Set New
-
Vevor PV Combiner Box 6-String 15A Steel Case IP65 for Solar Panel Systems New
-
Vevor Battery Box Group 24/31 Smart Marine Battery Case 12V/24V New
-
Vevor Electrical Enclosure Outdoor Junction Box 11.81 x 7.87 x 7.08" IP67 Waterproof New
-
Vevor Outlet Cover 2-Gang Lockable Weatherproof Electrical Cover New
-
Vevor Electrical Enclosure Box Fiberglass NEMA 4X 12 x 10 x 6" Wall-Mount New
-
Vevor Electrical Enclosure Box 20" x 16" x 8" Wall-Mounted Outdoor Stainless Steel IP66 New
-
Vevor Charger Station Box Tesla Home Outdoor Cable Organizer 28" x 20" x 10" New
-
Vevor Electrical Enclosure 8" x 8" x 6" NEMA 4X IP66 Wall-Mount Metal Case New
-
Vevor PV Combiner Box 4-String Solar Panel System IP65 New
-
Vevor Battery Box Group 24/27 12V/24V Trolling Motor Marine Case New
-
Vevor Electrical Junction Box Outdoor ABS Enclosure Box 13.78" x 9.84" x 5.9" New
-
Vevor Electrical Enclosure Outdoor Electrical Box with Thermostat Fan IP65 20 x 16 x 8 in New
Vevor Electrical Enclosure 24" x 24" x 12" NEMA 4 Outdoor Junction Box Tested to UL Standards New
Product Overview
This electrical enclosure box is crafted from high-quality carbon steel. Featuring a security lock, high-strength hinges, and a rain hood, this enclosure secures your plug-ins, power cords, and other equipment from harsh weather effects. The IP65 protection level ensures protection from dust and rain, keeping all your electrical equipment dry and secure. It also features a detachable outlet hole at the bottom for convenient cable entry and exit.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Sturdy Steel Construction: The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has stronger wear resistance and keeps your equipment well protected in harsh environments.
- IP66 Waterproof Grade: The sealing strip of foam / Nylon has excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP66. A rain hood can be mounted on top of the electrical box, which avoids dirt and water from entering the box when the lid is opened.
- Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock core to increase security and lockability, making it less likely to fall off. The high-strength hinged lid is designed to ensure that the door is not easily damaged or broken due to squeezing.
- Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. Complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
- Exquisitely Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.
Specifications
| Item Model Number | ST6630 |
| Color | RAL 7035 (White Gray) |
| Body Material | Cold-rolled Carbon Steel (0.06") |
| Inner Plate | Galvanized Plate (0.06") |
| Finish | Powder Coated |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Gasket Material | Seamless Foam/Nylon |
| Outer Dimensions | 24" x 24" x 12" |
| Inner Dimensions | 23.5" x 23.5" x 11" |
| Mounting Hole Diameter | 0.35" |
| Net Weight | 60.19 lbs (27.3 kg) |
Package Contents
Vevor Electrical Enclosure 24" x 24" x 12"
Guide Rail
Rain Hood
Gasket
Earth Wire
(4) Hanging Lug
(2)Key
(8) Plug
Set of Accessories
Set of Fasteners
User Manual
Warranty
This item comes with a 1 year factory warranty.
