Vevor PV Combiner Box 4-String Solar Panel System IP65 New
Product Overview
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

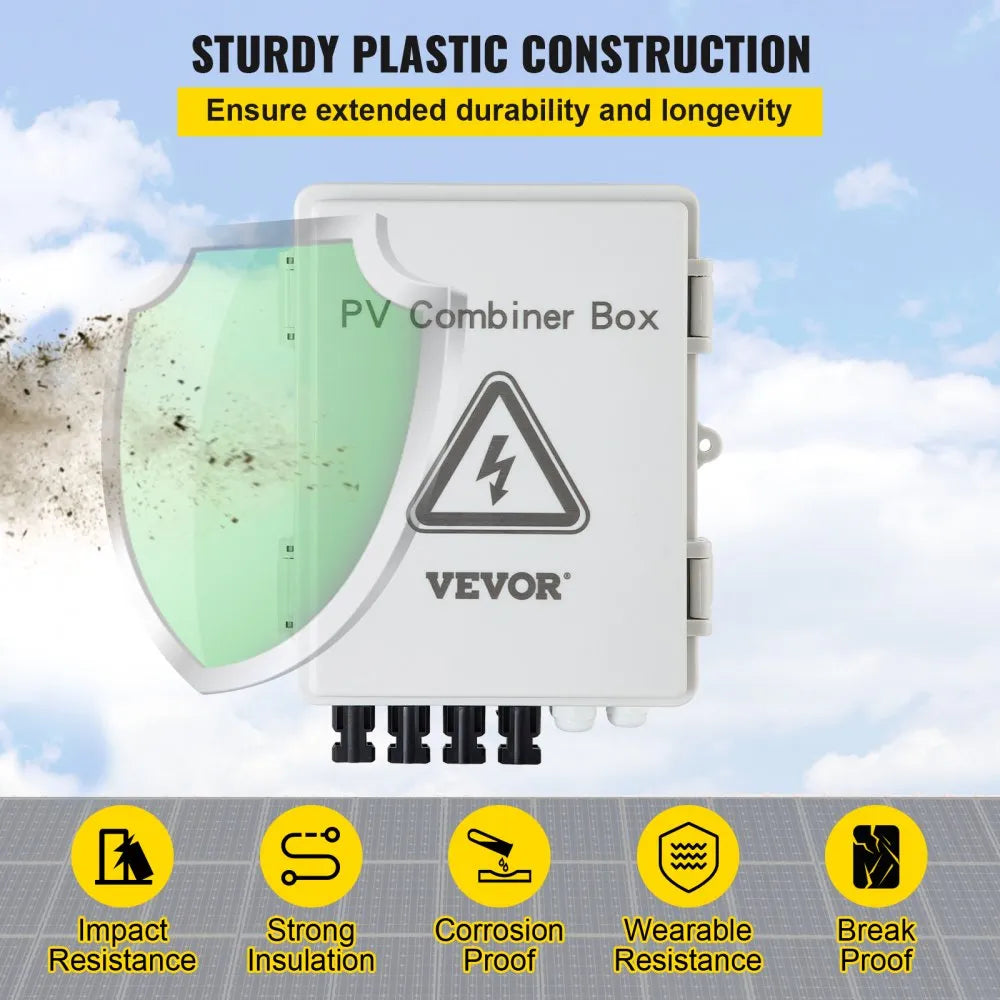

- Durability Meets Reliability:Â Engineered from ABS insulation material and tested to CE standard, our PV combiner box ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, It is built to resist impacts and breakage, ensuring your equipment remains secure in even the most challenging environments. Elevate your solar setup with our solar combiner box!

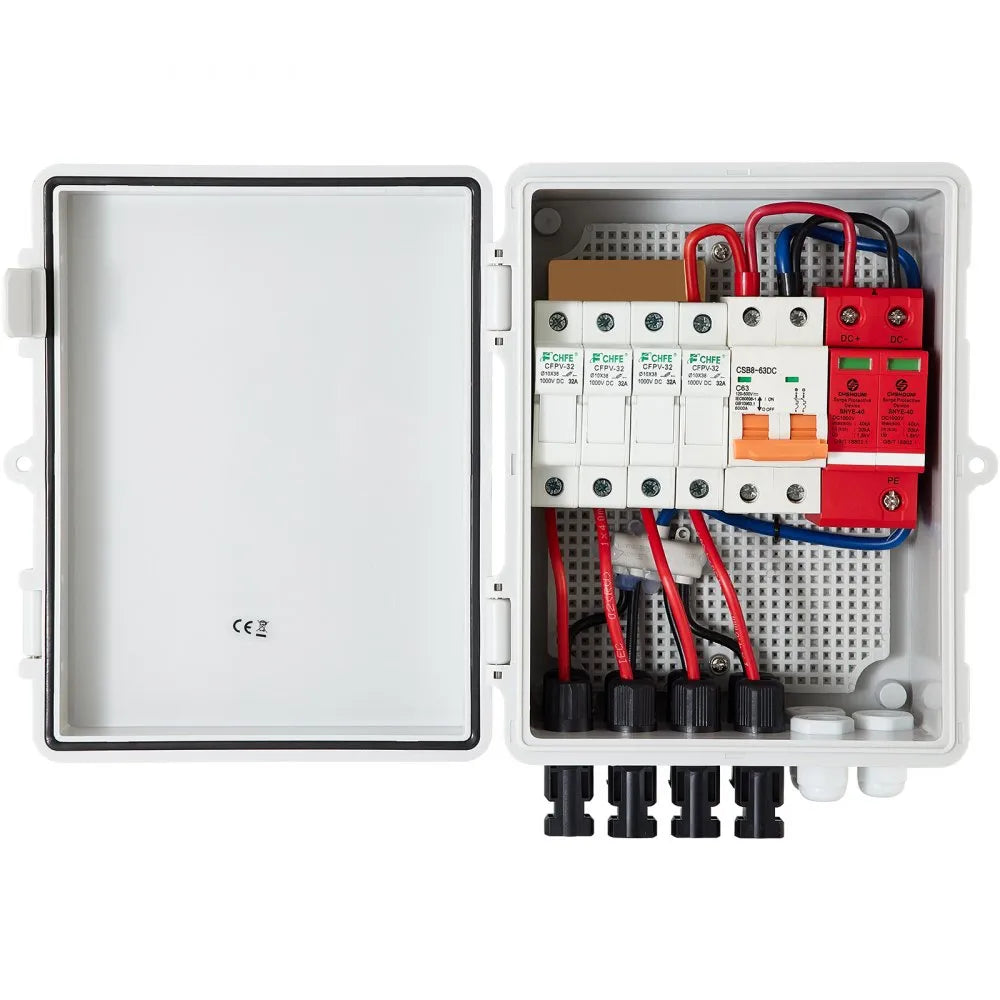

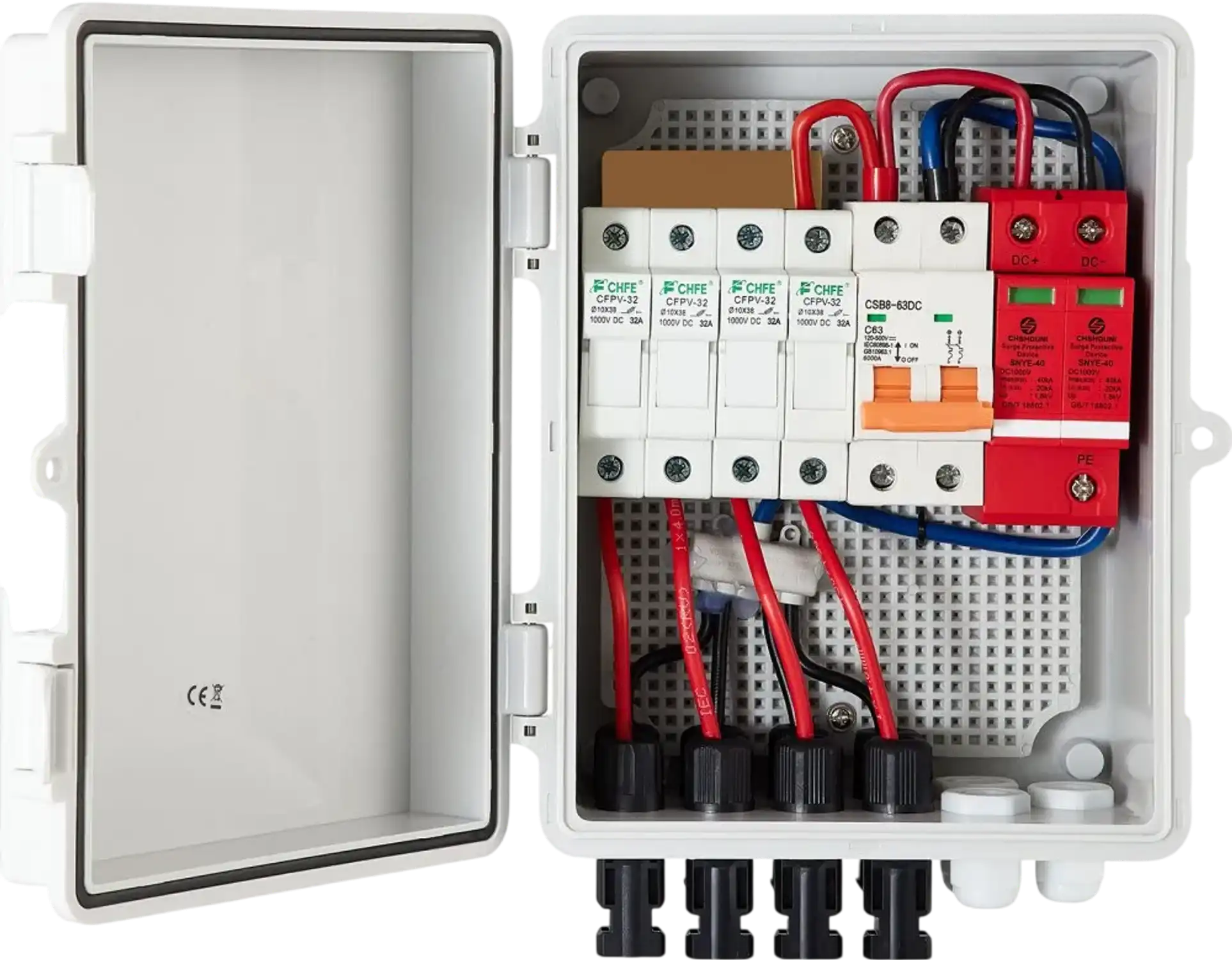

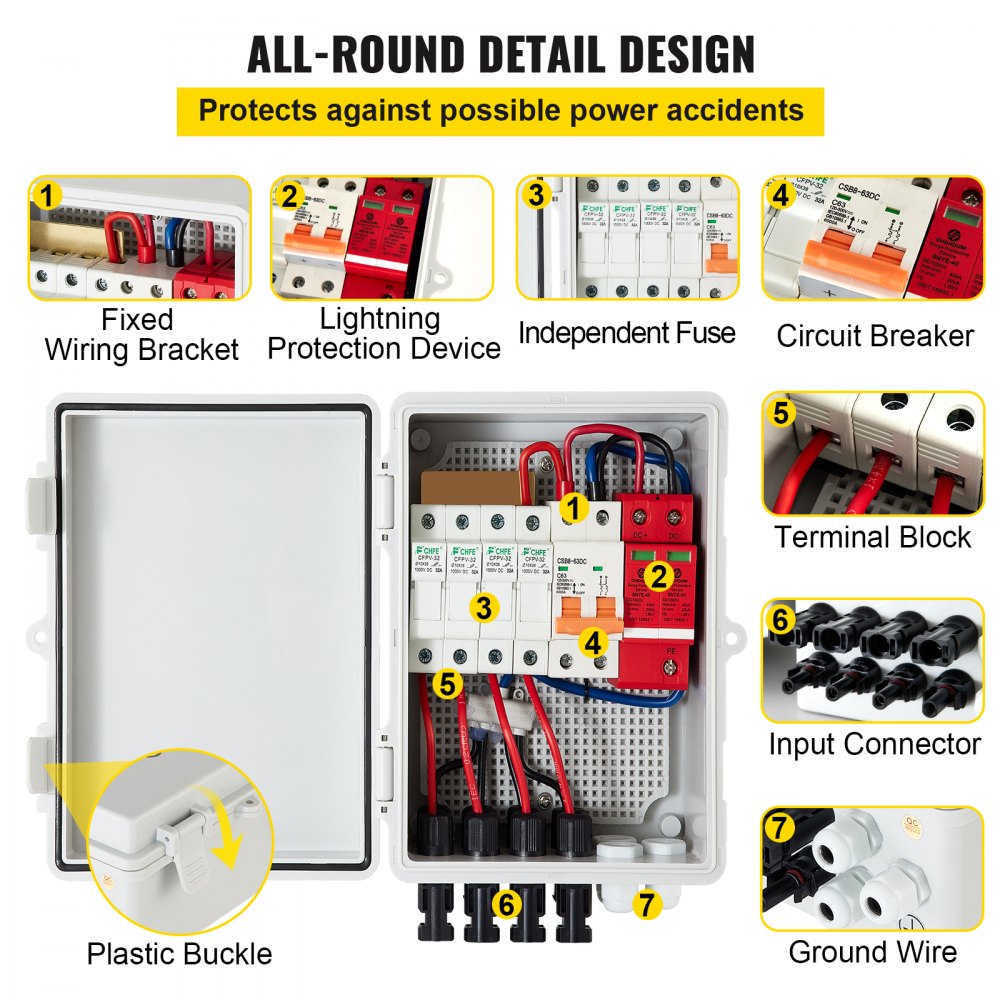

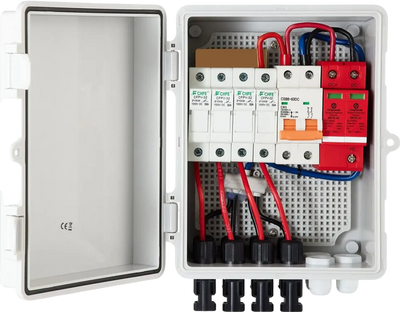

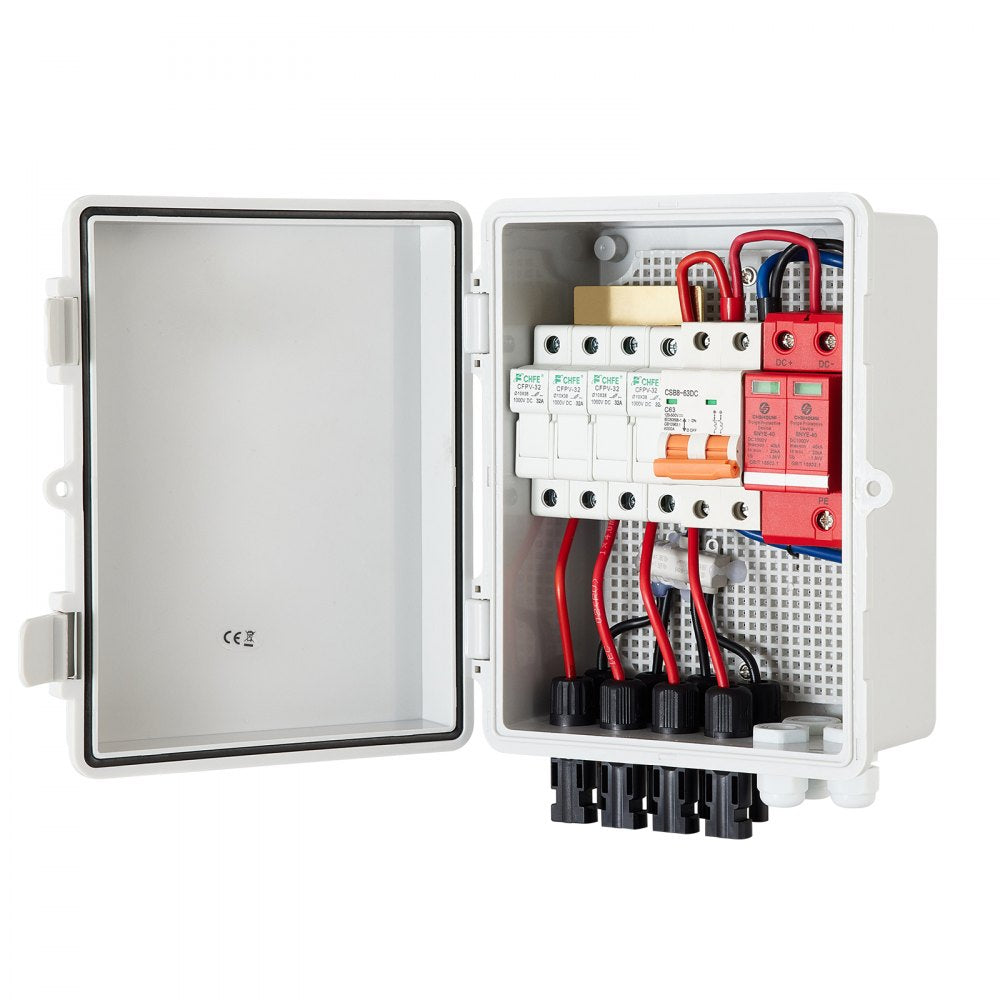

- Professional PV Combiner Box: Featuring 4 15A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.

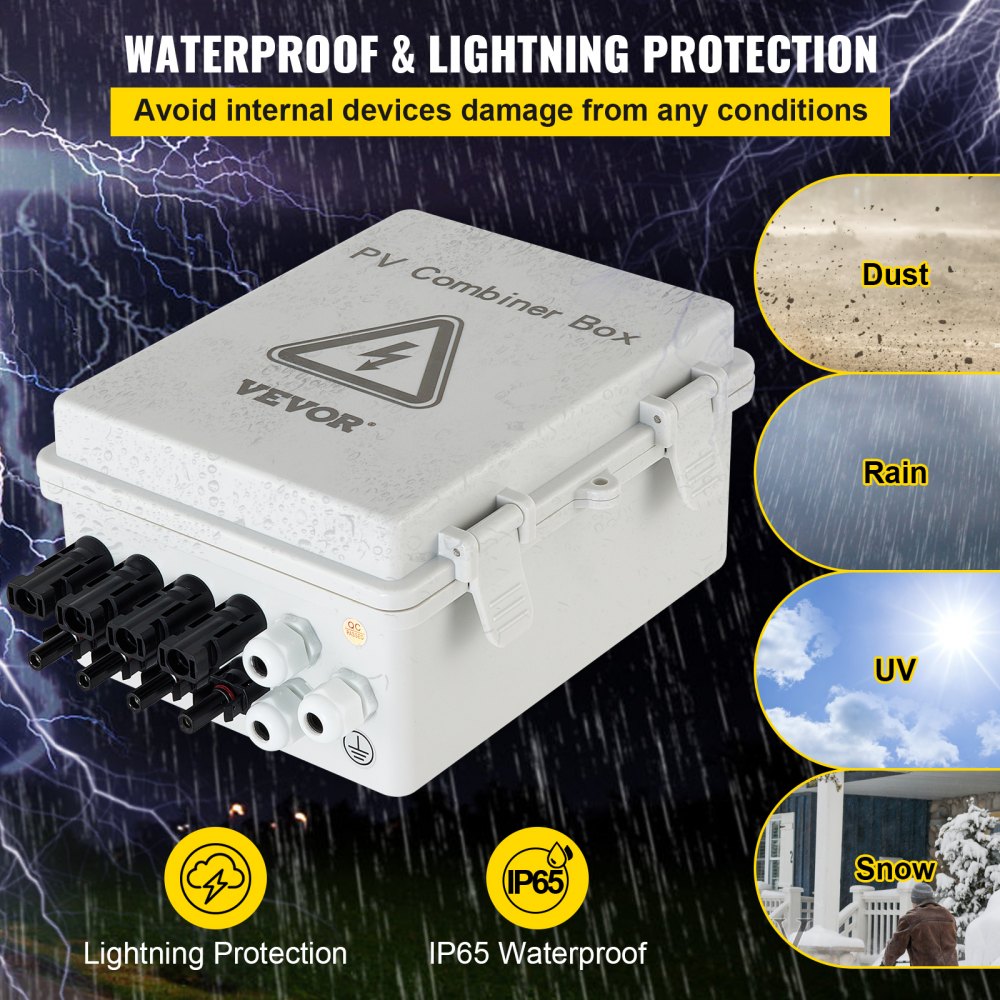

- IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!
- 24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.

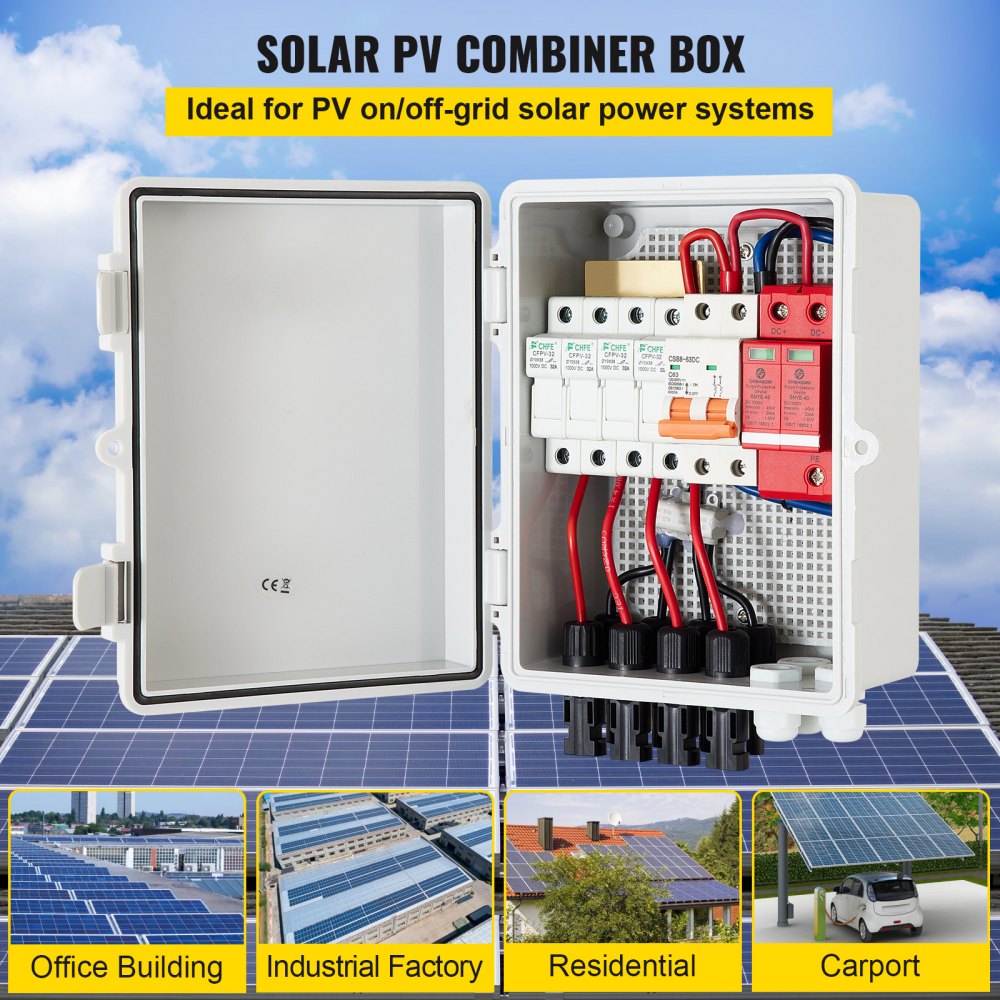

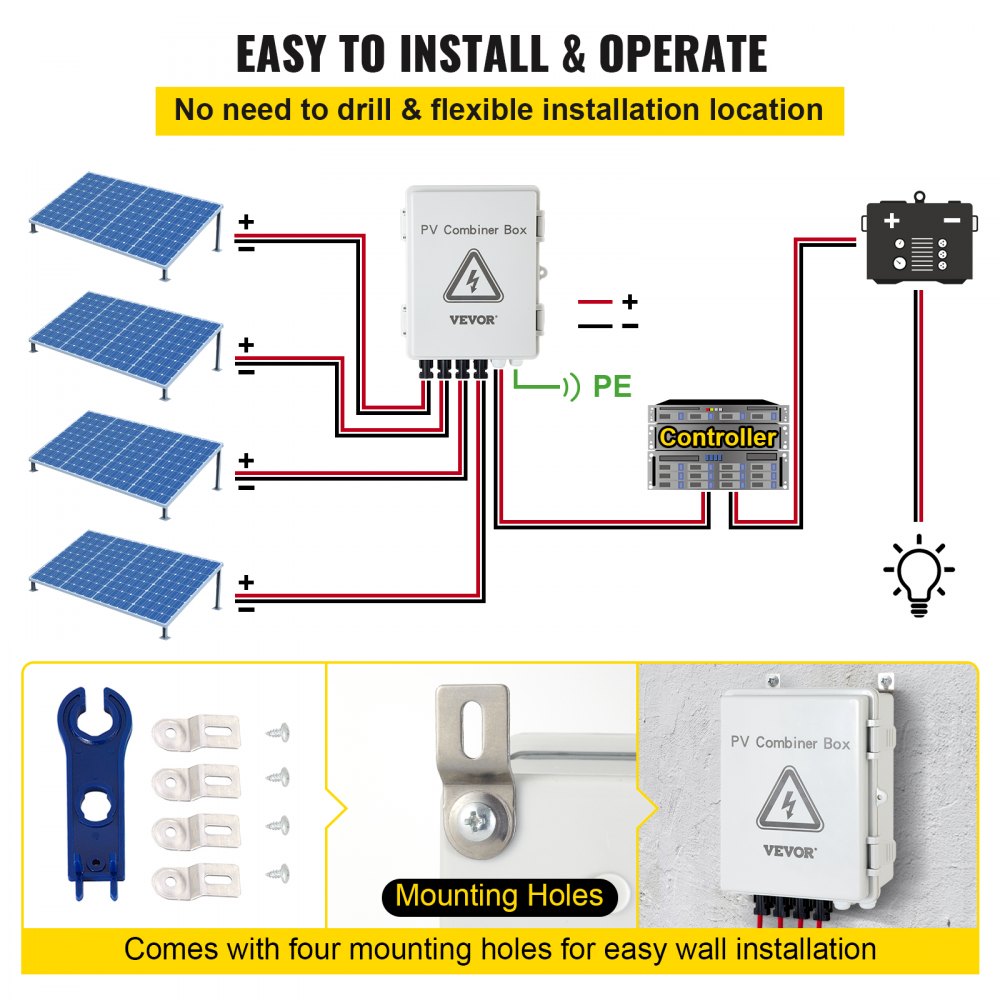

- Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!
Specifications
| Model | SP-HL-P202010-15A |
| Number of Inputs | 4 |
| Number of Outputs | 1 |
| Rated Operating Voltage | DC 500V |
| Fuse Holder Specification | DC 15A/500V |
| Rated Current of Fuse | DC 15A |
| Main Circuit Breaker Specification | 63A 2P DC500V |
| Surge Protector | 40KA 2P DC500V |
| Protection Rating | IP65 |
| Door Opening Method | Latch Opening |
| Mounting Plate | Detachable Mounting Plate |
| Sealing Strip | PU Polyurethane Foam Material Black |
| Main Material | ABS Plastic Material with RAL7035 Grey-White Finish |
| Net Weight | 4.1 lbs |
| Dimensions | 7.87 x 7.87 x 3.94 in |
Package Contents
4 x MCB Female Connectors with Red Wire (2.5 mm²)
4 x MCB Male Connectors with Blue Wire (2.5 mm²)
2 x PG13.5 Plastic Waterproof Glands
1 x PG9 Plastic Waterproof Gland
1 x MC4 Tool
4 x Cold Rolled Steel Wall Mounting Brackets
4 x Screws
Warranty
This item comes with a 1 year factory warranty.
