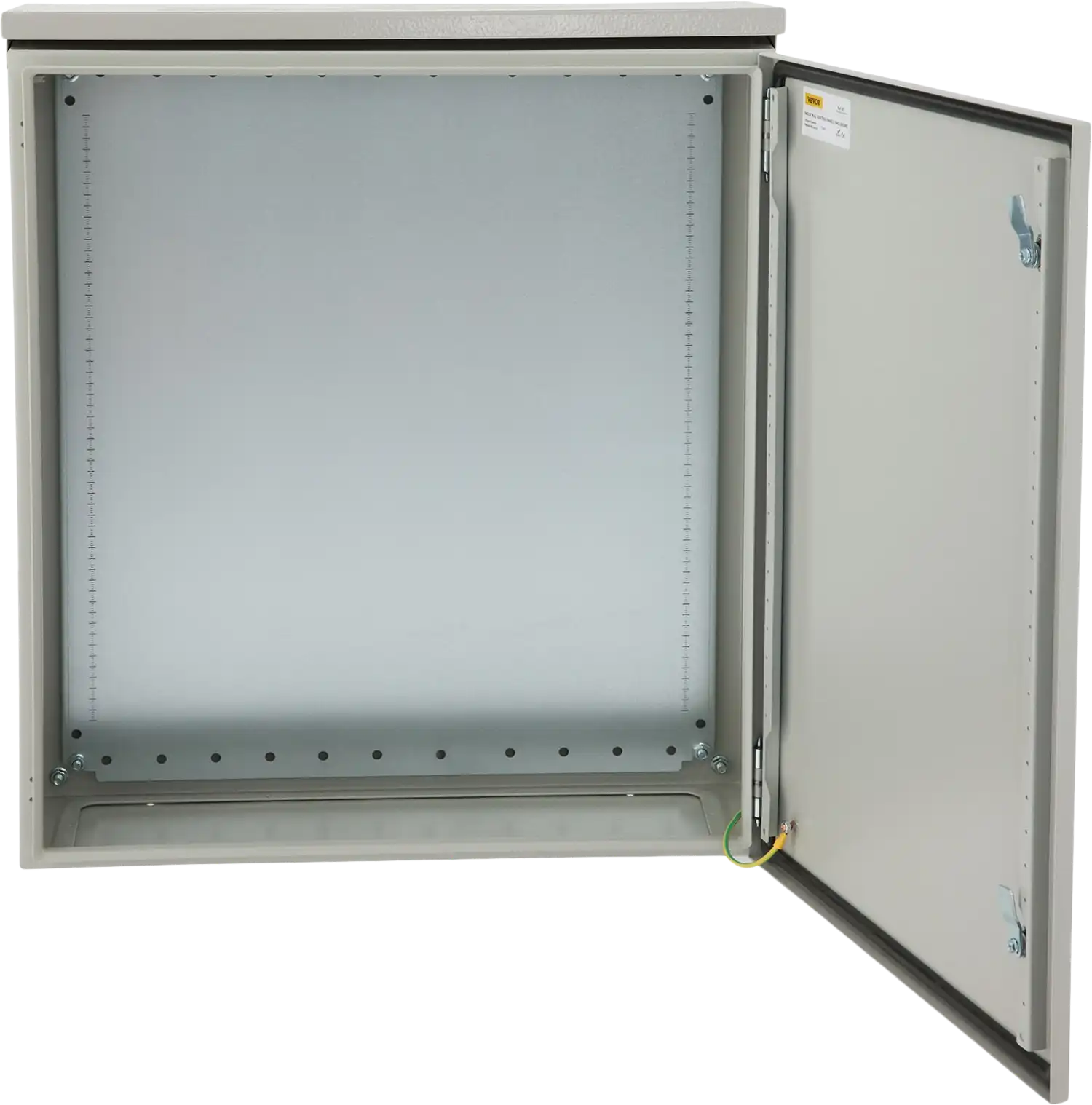

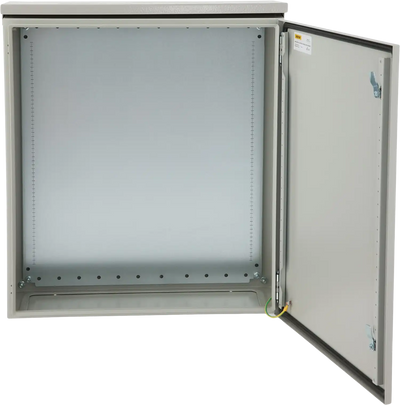

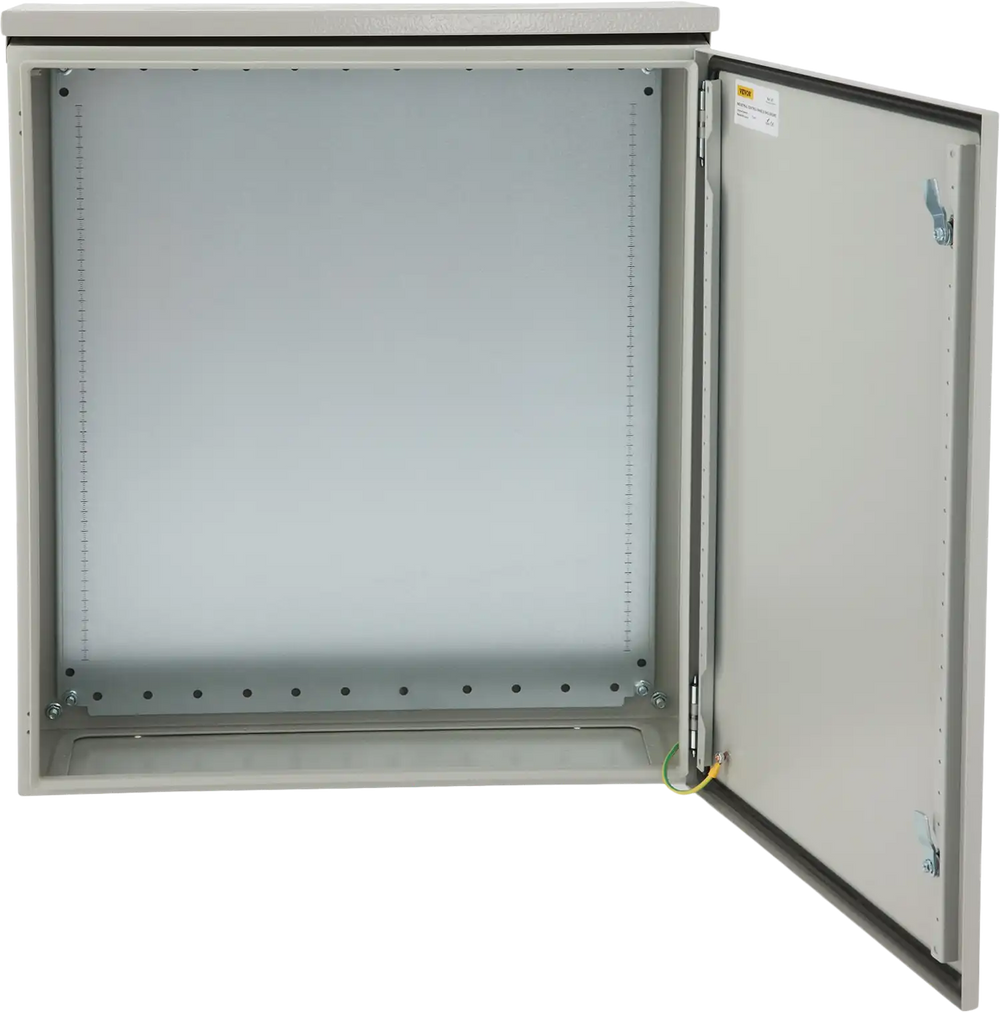

Vevor Electrical Enclosure 24" x 24" x 8" NEMA 4 Outdoor Junction Box Tested to UL Standards New
Manufacturer: Vevor
SKU: TUL60X60X20CMW0NQV0
Size
QTY
(888) 999-1522
C
$238.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-3 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
$39.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$54.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$114.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Vevor Electrical Enclosure 24" x 24" x 8" NEMA 4 Outdoor Junction Box Tested to UL Standards New
Product Overview
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Sturdy Steel Construction: The electrical enclosure is meticulously crafted from cold-rolled carbon steel made by precise cutting and welding. It has strong wear resistance and keeps your equipment well protected in harsh environments.
- IP65 Waterproof Rating: The waterproof rubber strip provides excellent sealing performance, and the NEMA outdoor enclosure provides an optimal protection level of IP65. The rain hood can be mounted on top of the electrical box, preventing dirt and water from entering when the lid is open.
- Reinforced Lock & Hinge: The electrical outdoor enclosure features a high-quality lock to increase security. The high-strength hinged lid is designed to ensure the door is not easily damaged or broken.
- Convenient Operation: The metal electrical enclosure box is equipped with a detachable galvanized mounting backplate for the effortless installation of electrical components. The complete accessories and four mounting holes on the back can quickly fix the NEMA enclosure on the wall.
- Designed Details: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables. Ideal for various applications ranging from industrial equipment to home devices.
Specifications
| Item Model Number | ST6620 |
| Color | RAL 7035 (White Gray) |
| Body Material | Cold-rolled Carbon Steel (0.06") |
| Inner Plate | Galvanized Plate (0.06") |
| Finish | Powder Coated |
| Ratings | NEMA Type 4 |
| Protection Grade | IP65, IK10 |
| Gasket Material | Seamless Foam/Nylon |
| Outer Dimensions | 24" x 24" x 8" |
| Inner Dimensions | 23.5" x 23.5" x 7" |
| Mounting Hole Diameter | 0.35" |
| Net Weight | 55.56 lbs (25.2 kg) |
Package Contents
Vevor Electrical Enclosure 24" x 24" x 8"
Guide Rail
Rain Hood
Gasket
Earth Wire
(4) Hanging Lug
(2)Key
(8) Plug
Set of Accessories
Set of Fasteners
User Manual
Warranty
This item comes with a 1 year factory warranty.
