Vevor Electrical Enclosure 20" x 16" x 6" IP66 Wall Mount Junction Box New
Manufacturer: Vevor
SKU: DQXJSTCFS50X40X15V0
Size Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$103.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Electrical Enclosure 24" x 16" x 10" NEMA 4X Steel Junction Box New
-
Vevor Electrical Box 24" x 20" x 8" 304 Stainless Steel Wall-Mounted Enclosure with Mounting New
-
Vevor Electrical Enclosure 24" x 24" x 8" NEMA 4 Outdoor Junction Box Tested to UL Standards New
-
Vevor Electrical Enclosure Box 20" x 16" x 8" Wall-Mounted Outdoor Stainless Steel IP66 New
-
Vevor Electrical Enclosure 16" x 12" x 6" 304 Stainless Steel Wall-Mount IP66 Waterproof Box New
-
Vevor Charger Station Box Tesla Home Outdoor Cable Organizer 28" x 20" x 10" New
-
Vevor Electrical Enclosure 12 x 12 x 8" NEMA 4X Stainless Steel Junction Box New
-
Vevor Electrical Enclosure Box Outdoor ABS Junction Box 16.93 x 12.99 x 7.09" New
-
Vevor Electrical Enclosure 10" x 8" x 6" NEMA 4X Wall Mount Junction Box New
Vevor Electrical Enclosure 20" x 16" x 6" IP66 Wall Mount Junction Box New
Product Overview

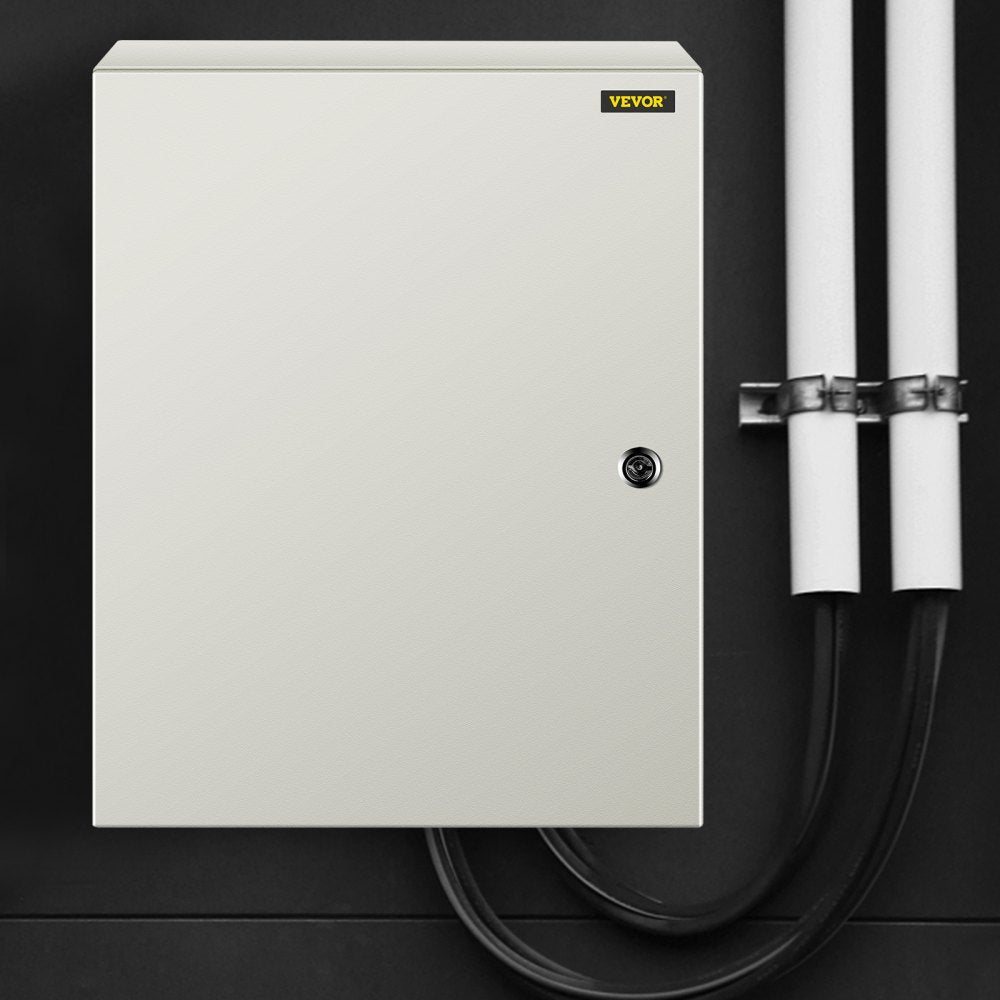

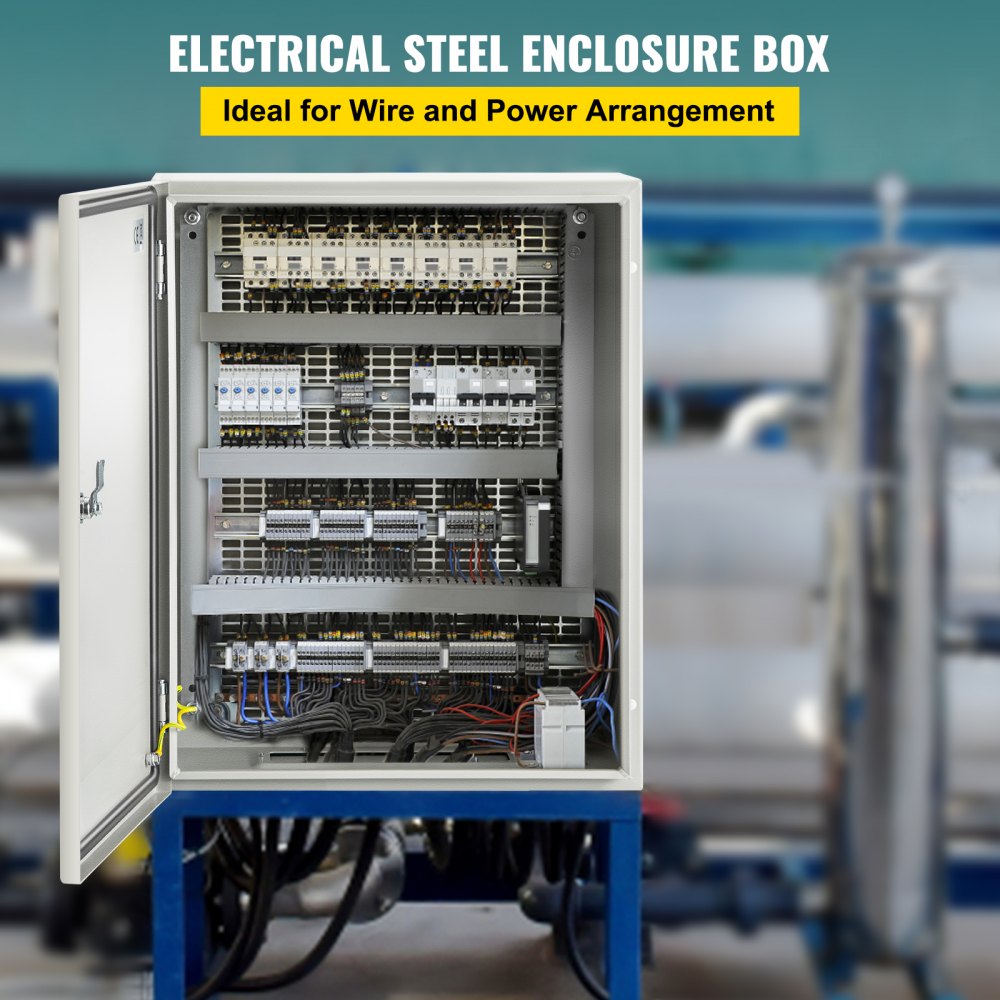

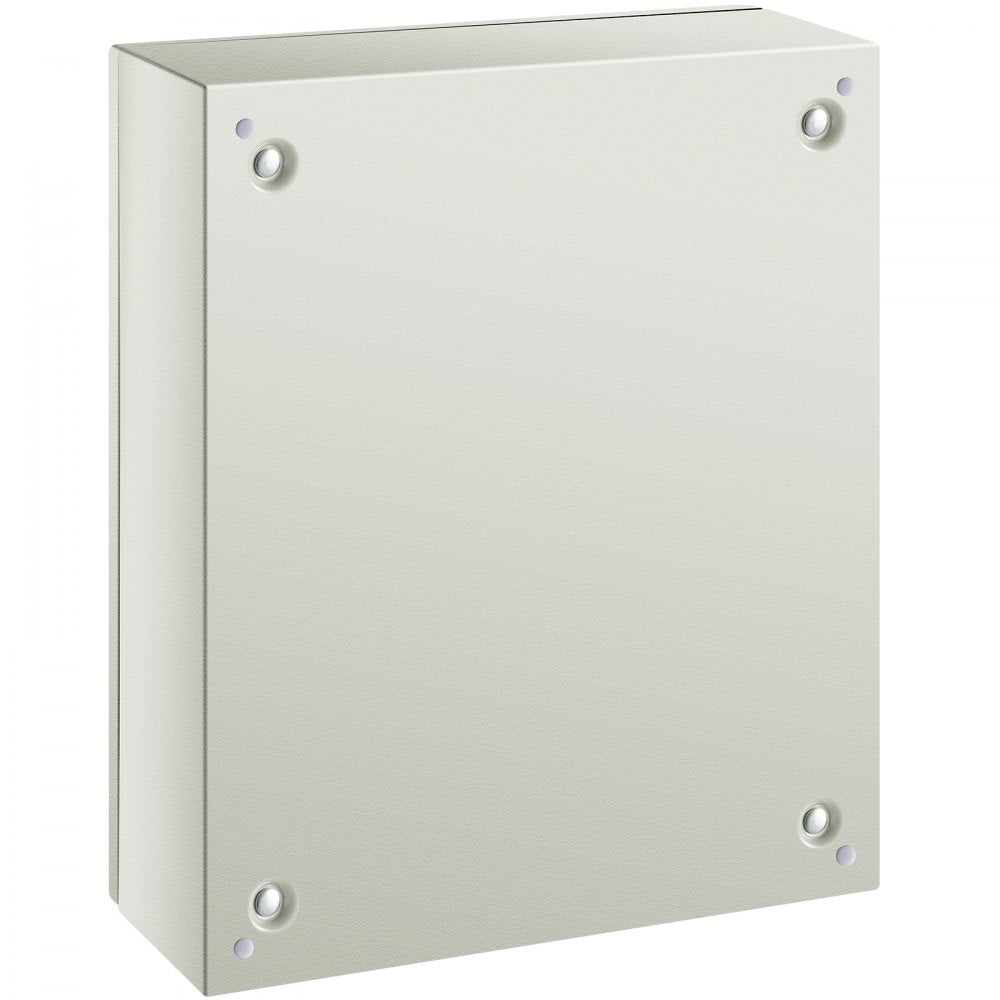

The Vevor electrical enclosure is a carbon steel wall-mount junction box designed for indoor and outdoor protection of electrical components. It features an IP66-rated sealed design to help resist water, dust, and harsh environmental conditions. A detachable galvanized mounting backplate and pre-installed grounding screws support convenient installation and organization. Its hinged, lockable door adds security while maintaining easy access for service and setup.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

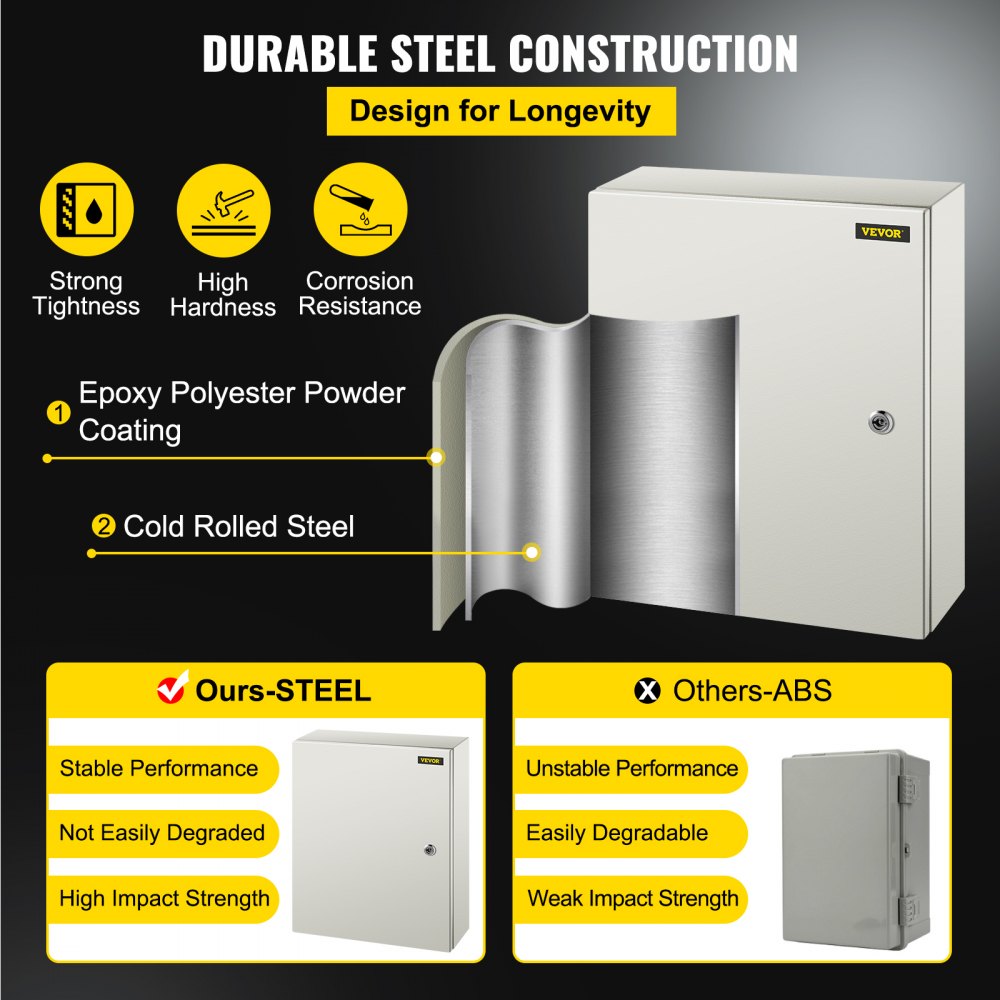

- Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.

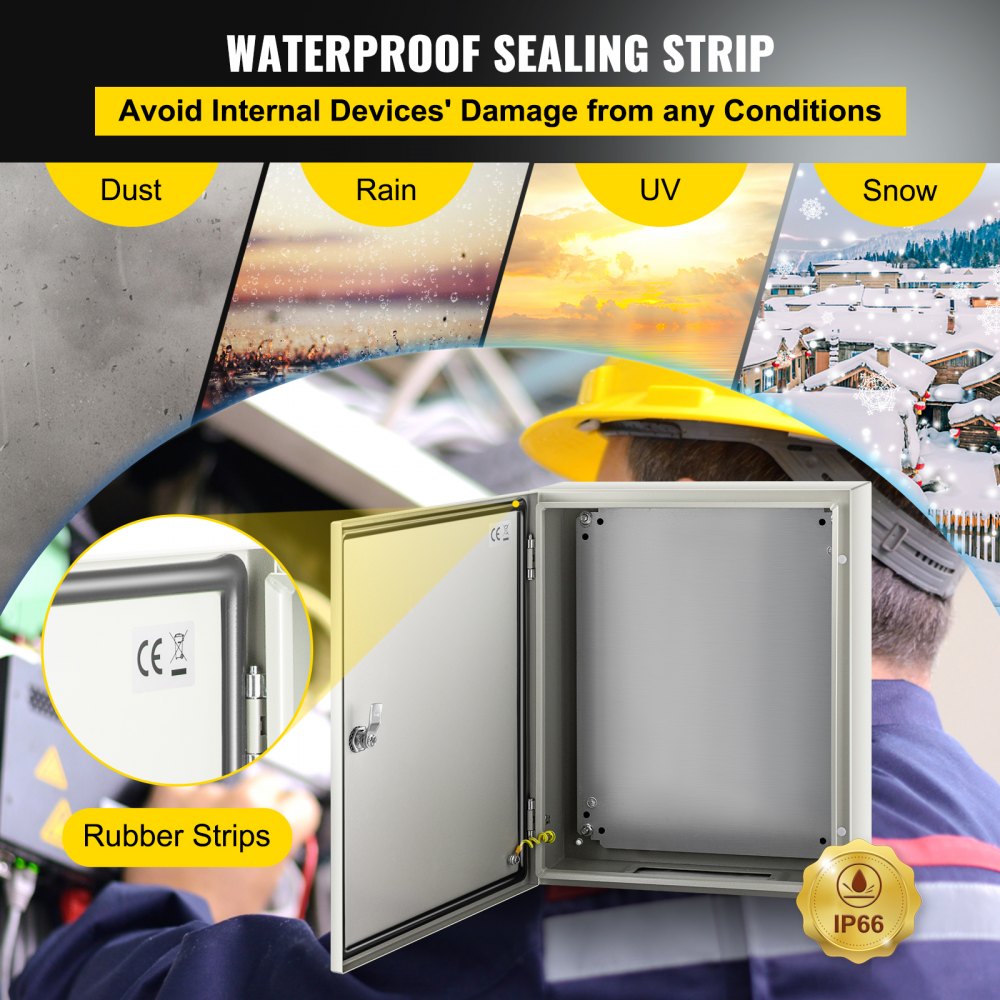

- IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.

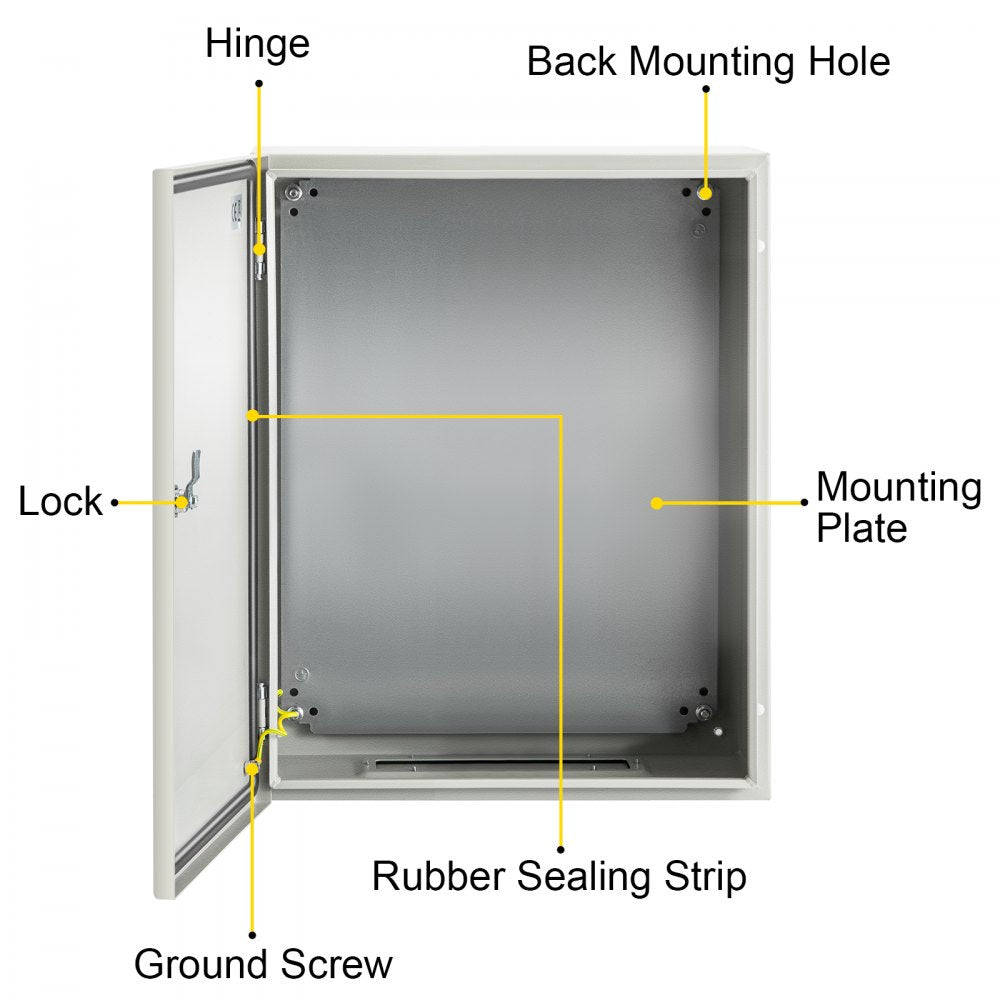

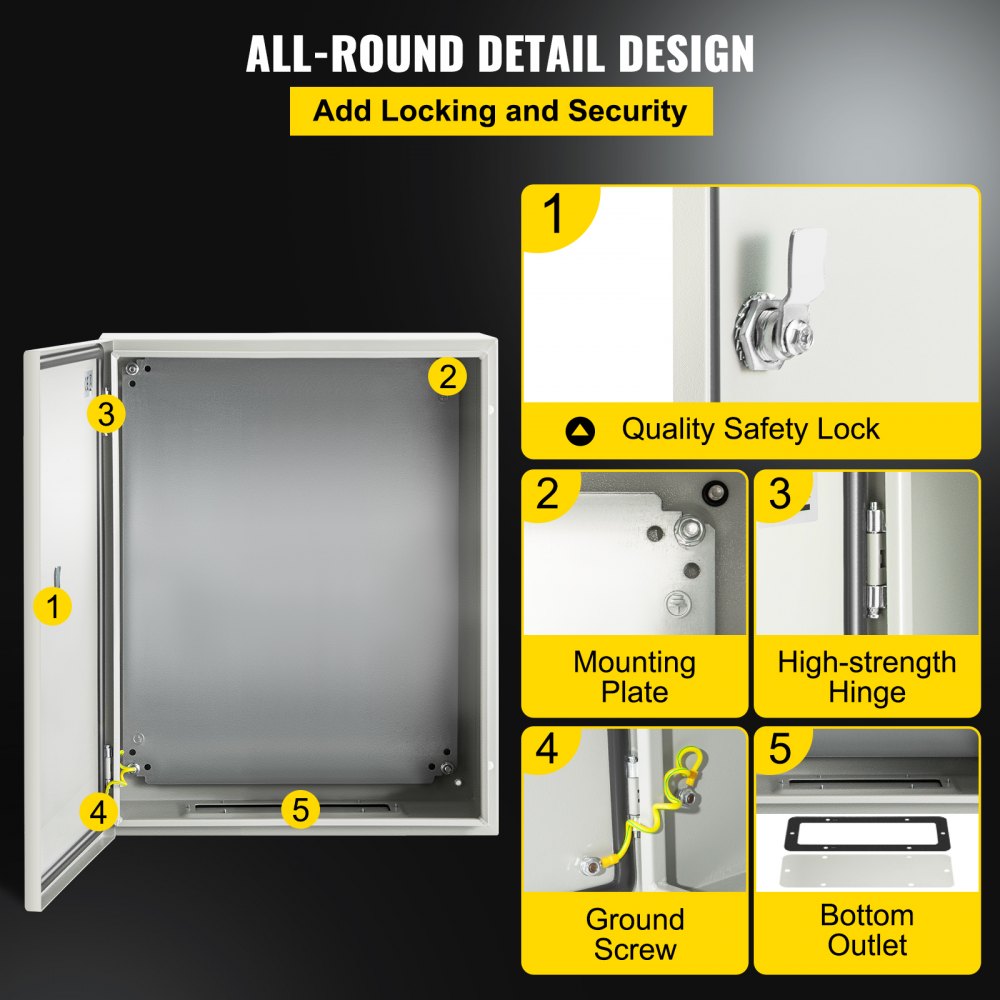

- Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.

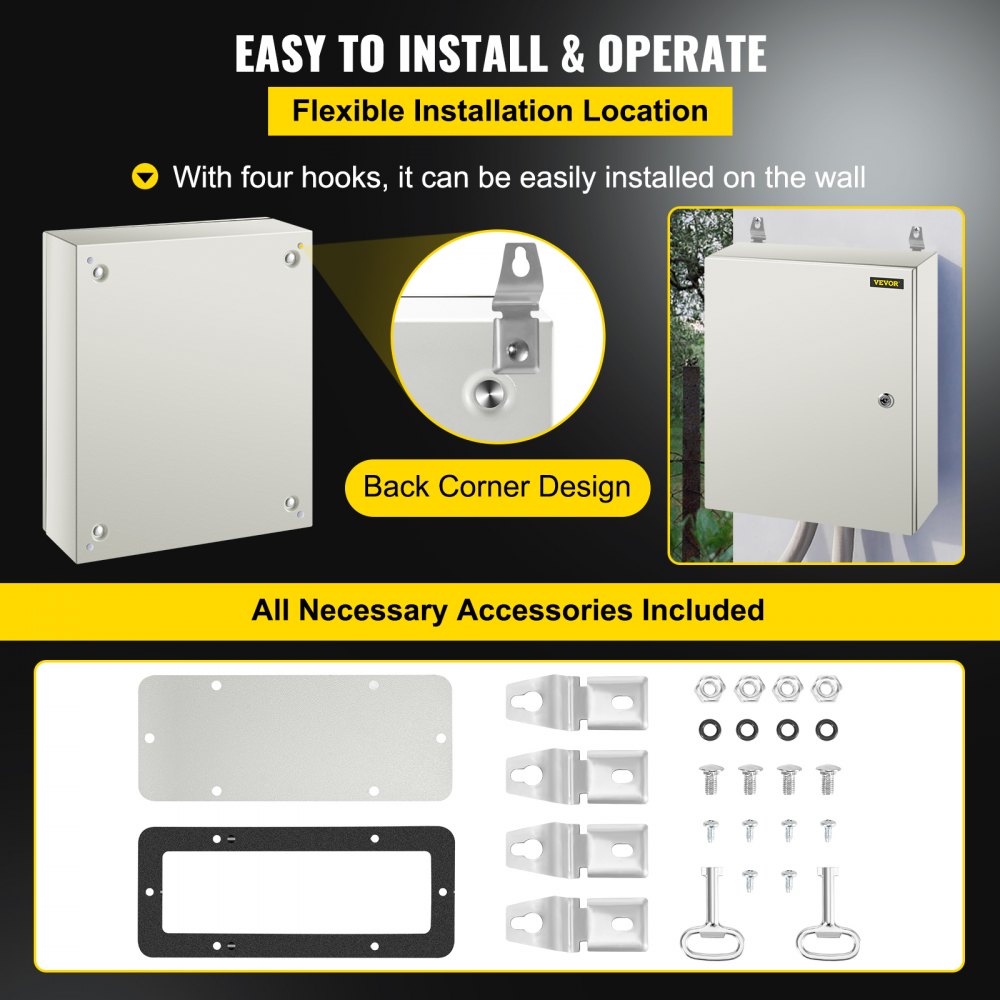

- Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.

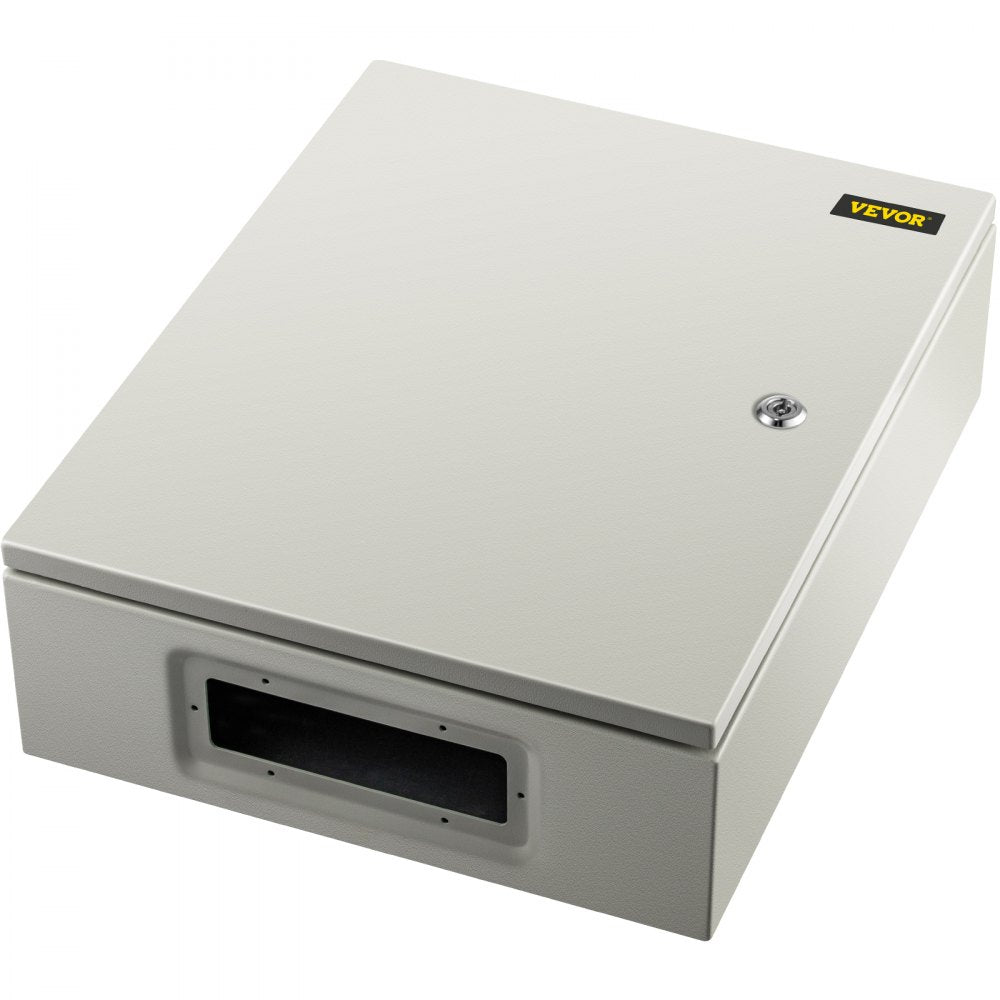

- Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.
Specifications
| Model | SPT |
| Color | Gray White RAL7035 |
| Material | 0.059" / 1.5 mm Carbon Steel |
| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079" / 2 mm Detachable Galvanized Backplate |
| IP Rating | Designed to meet IP66 and NEMA 1, 2, 4, 4X, and 12 specifications |
| Connection Type | Hinged |
| Feature | Lockable, Waterproof |
| Galvanized Backplate Dimensions | 17.7" x 13.8" / 45 x 35 cm |

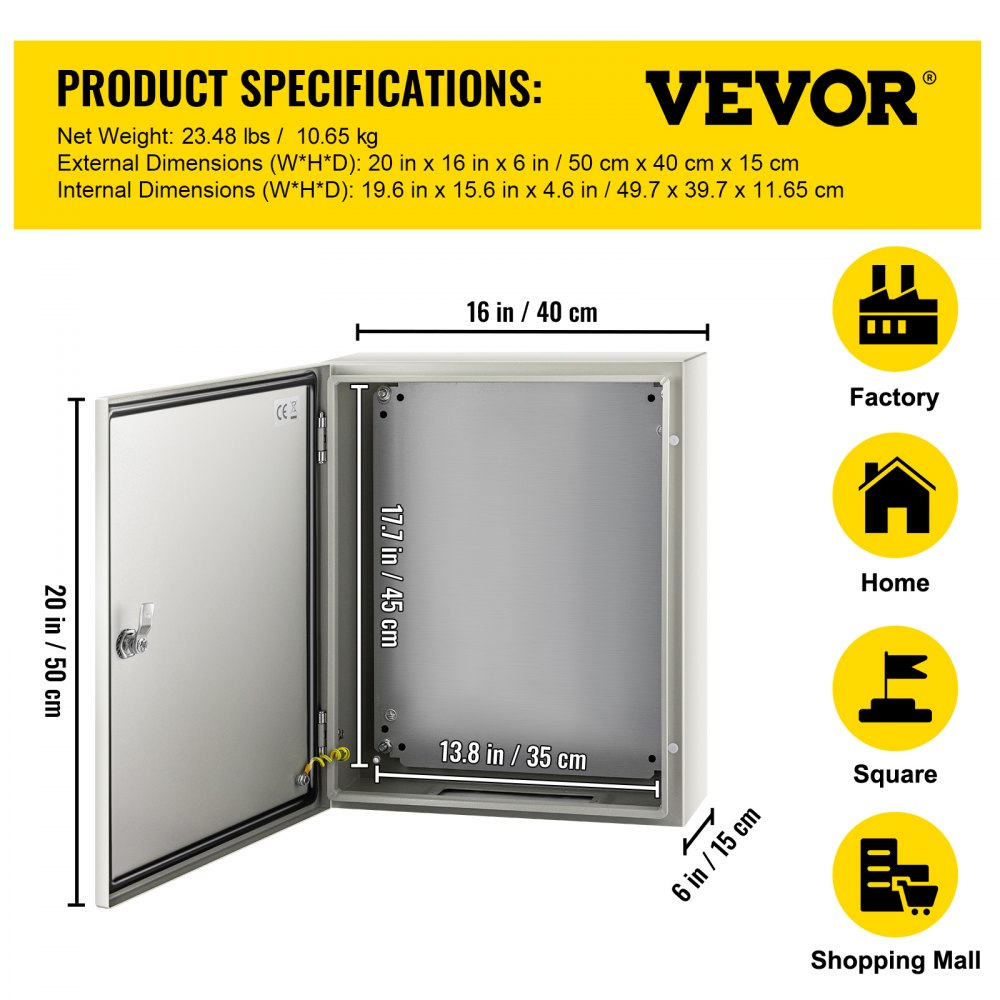

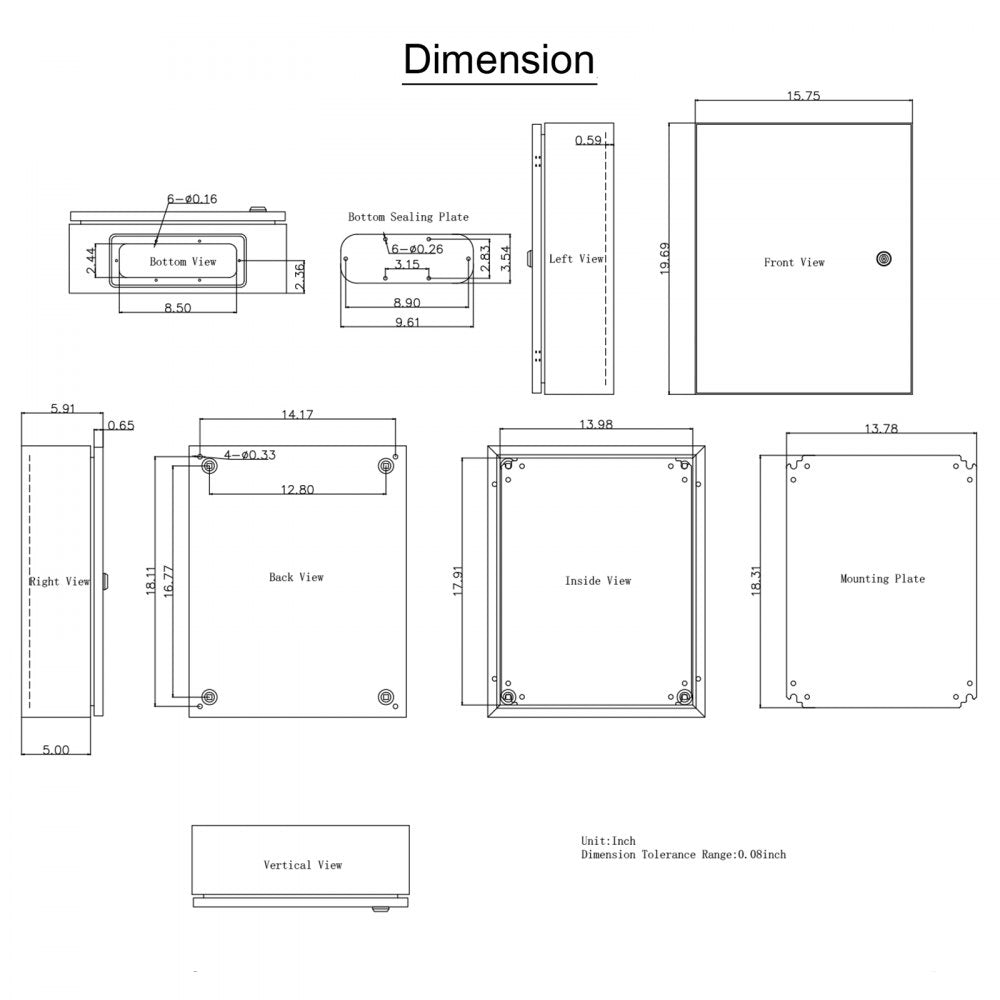

| Outer Dimensions | 20" x 16" x 6" / 50 x 40 x 15 cm |
| Inner Dimensions | 19.6" x 15.6" x 4.6" / 49.7 x 39.7 x 11.65 cm |
| Product Weight | 26.68 lbs / 12.1 kg |
| Certification | CE / ROHS Certification |

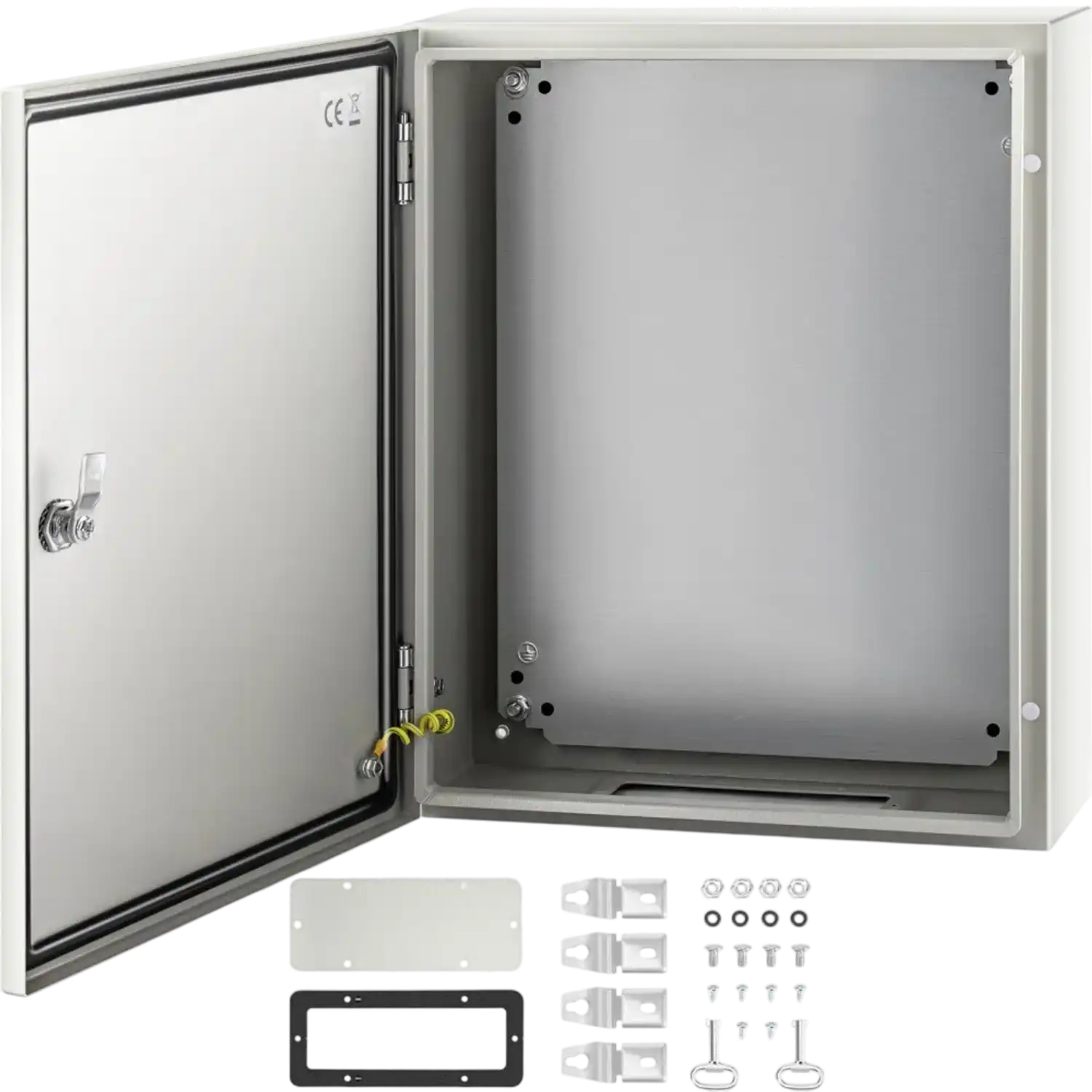

Package Contents
Electrical enclosure
Detachable galvanized mounting backplate
Mounting hardware
Warranty
This item comes with a 1 year factory warranty.
