Vevor Electrical Enclosure 16 x 16 x 6" NEMA 4X Steel Junction Box New
Manufacturer: Vevor
SKU: DQXJSTCFS40X40X15V0
Size Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$103.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor Temporary Power Outlet Panel 20/30/50 Amp RV EV Electrical Outlet Box New
-
Vevor Cooler 26 QT Portable Hard Cooler with Ice Retention New
-
Vevor Pressure Washer 2000 PSI 1.76 GPM Electric Power Washer New
-
Vevor Conduit Connectors 1/2" Liquid Tight Non-Metallic 100-Piece Set New
-
Vevor Cooler 24 QT Portable Hard Cooler Leak-Resistant Ice Chest New
-
Vevor PV Combiner Box 6-String 15A Steel Case IP65 for Solar Panel Systems New
-
Vevor Battery Box Group 24/31 Smart Marine Battery Case 12V/24V New
-
Vevor Electrical Enclosure 24" x 24" x 8" NEMA 4 Outdoor Junction Box Tested to UL Standards New
-
Vevor Electrical Enclosure Outdoor Junction Box 11.81 x 7.87 x 7.08" IP67 Waterproof New
-
Vevor Outlet Cover 2-Gang Lockable Weatherproof Electrical Cover New
-
Vevor Electrical Enclosure Box Fiberglass NEMA 4X 12 x 10 x 6" Wall-Mount New
-
Vevor Charger Station Box Tesla Home Outdoor Cable Organizer 28" x 20" x 10" New
-
Vevor Electrical Enclosure 8" x 8" x 6" NEMA 4X IP66 Wall-Mount Metal Case New
-
Vevor PV Combiner Box 4-String Solar Panel System IP65 New
-
Vevor Battery Box Group 24/27 12V/24V Trolling Motor Marine Case New
-
Vevor Electrical Enclosure 24" x 24" x 12" NEMA 4 Outdoor Junction Box Tested to UL Standards New
-
Vevor Electrical Junction Box Outdoor ABS Enclosure Box 13.78" x 9.84" x 5.9" New
Vevor Electrical Enclosure 16 x 16 x 6" NEMA 4X Steel Junction Box New
Product Overview

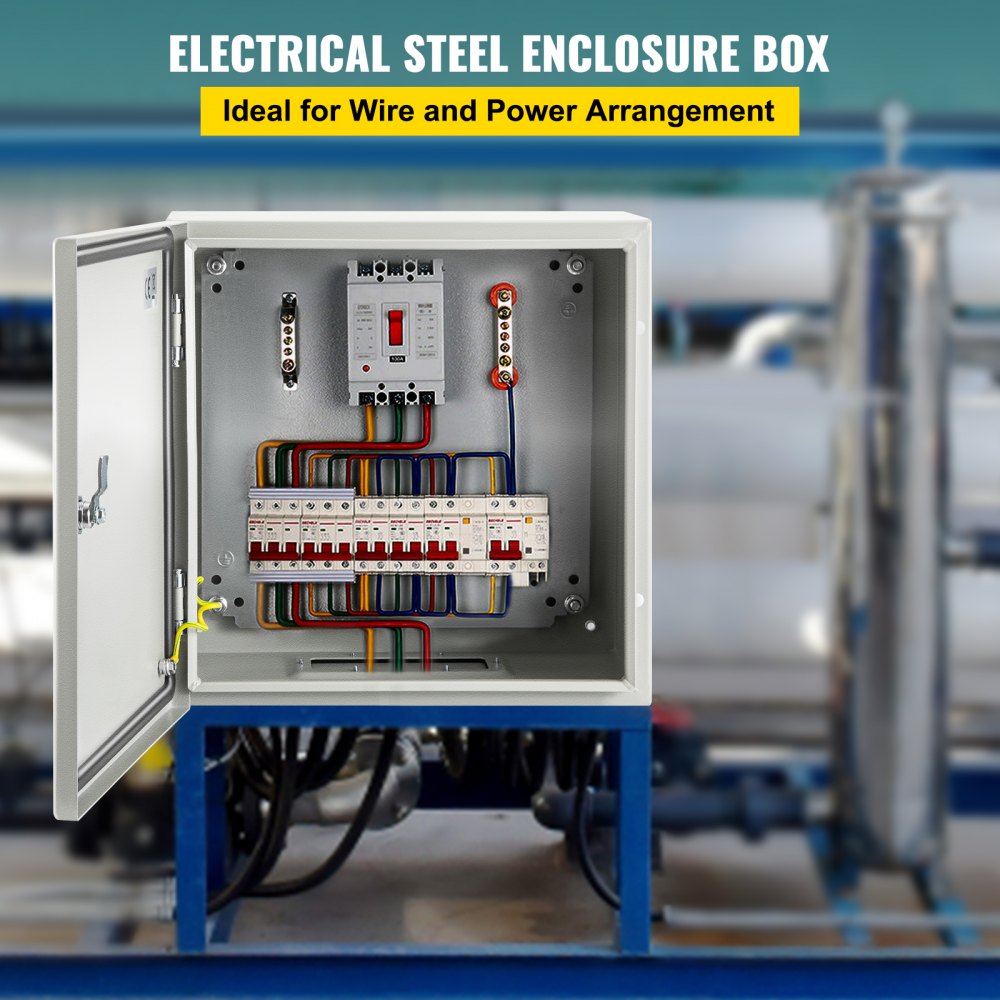

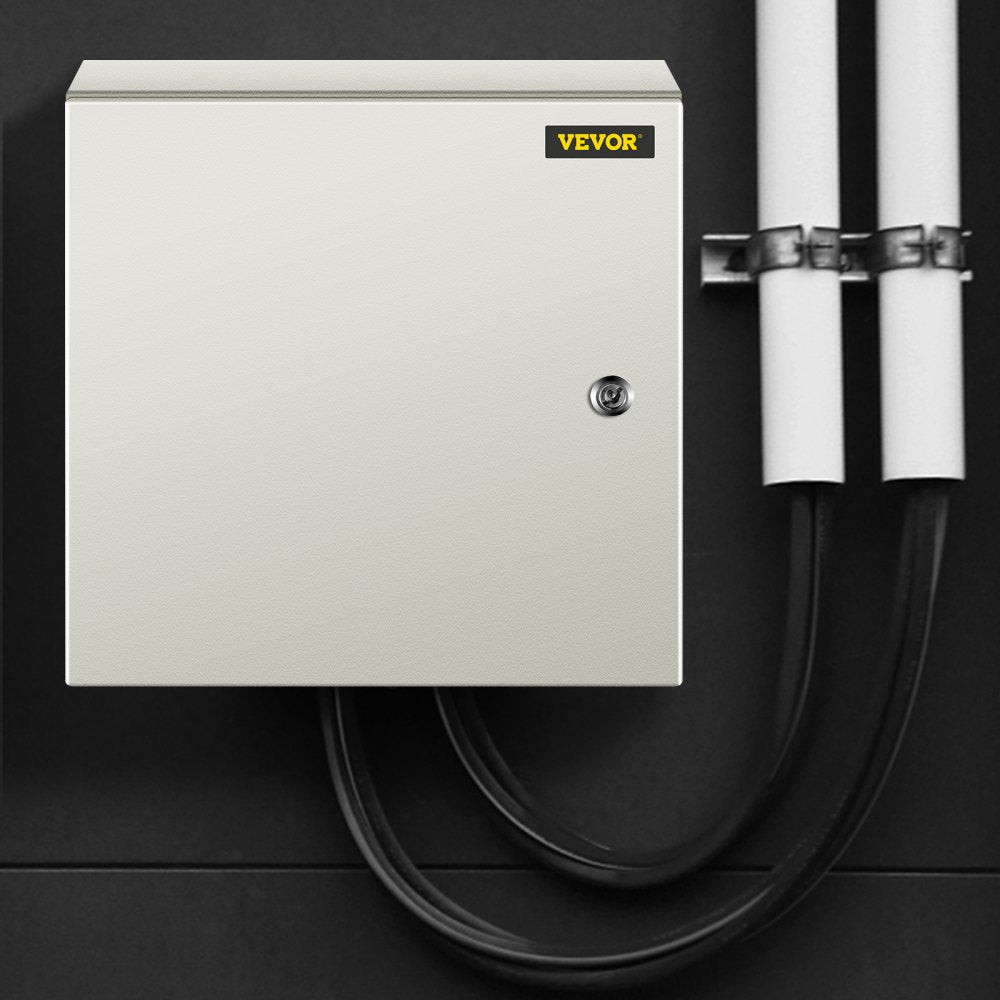

The Vevor electrical enclosure is a wall-mount steel junction box designed to protect electrical components in indoor and outdoor environments. It features carbon steel construction with an epoxy polyester powder coating for durability and corrosion resistance. The lockable hinged door and IP66-rated sealing design help keep out dust and water. A detachable galvanized mounting plate is included for easier installation and component mounting. This enclosure is suited for factories, construction sites, residential areas, and other demanding applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

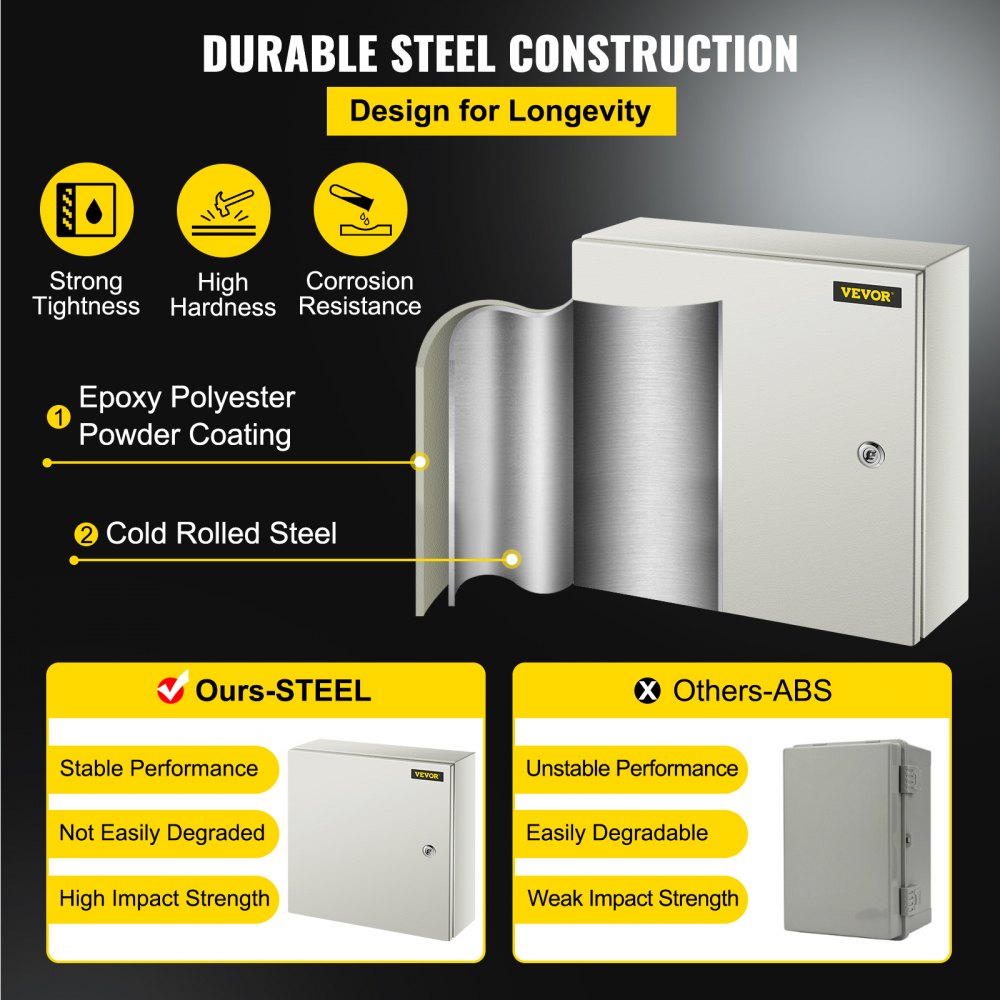

- Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.

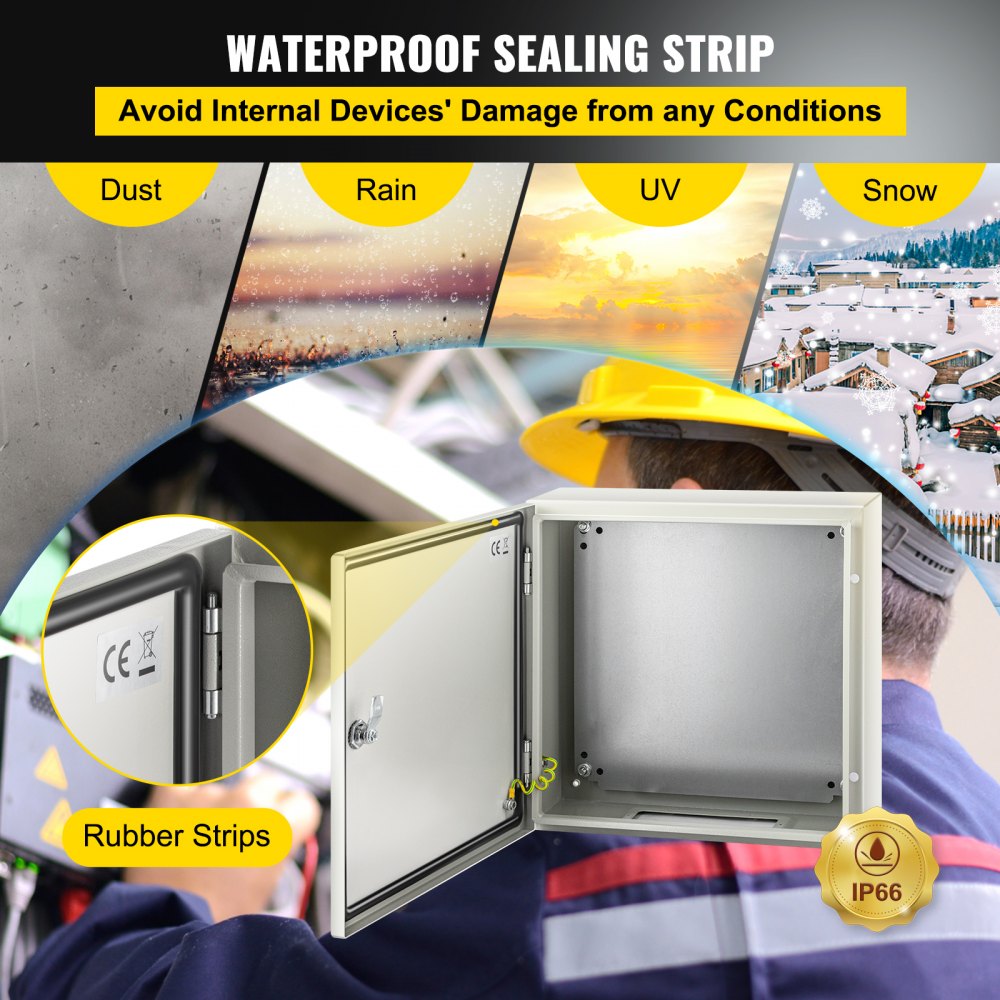

- IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.

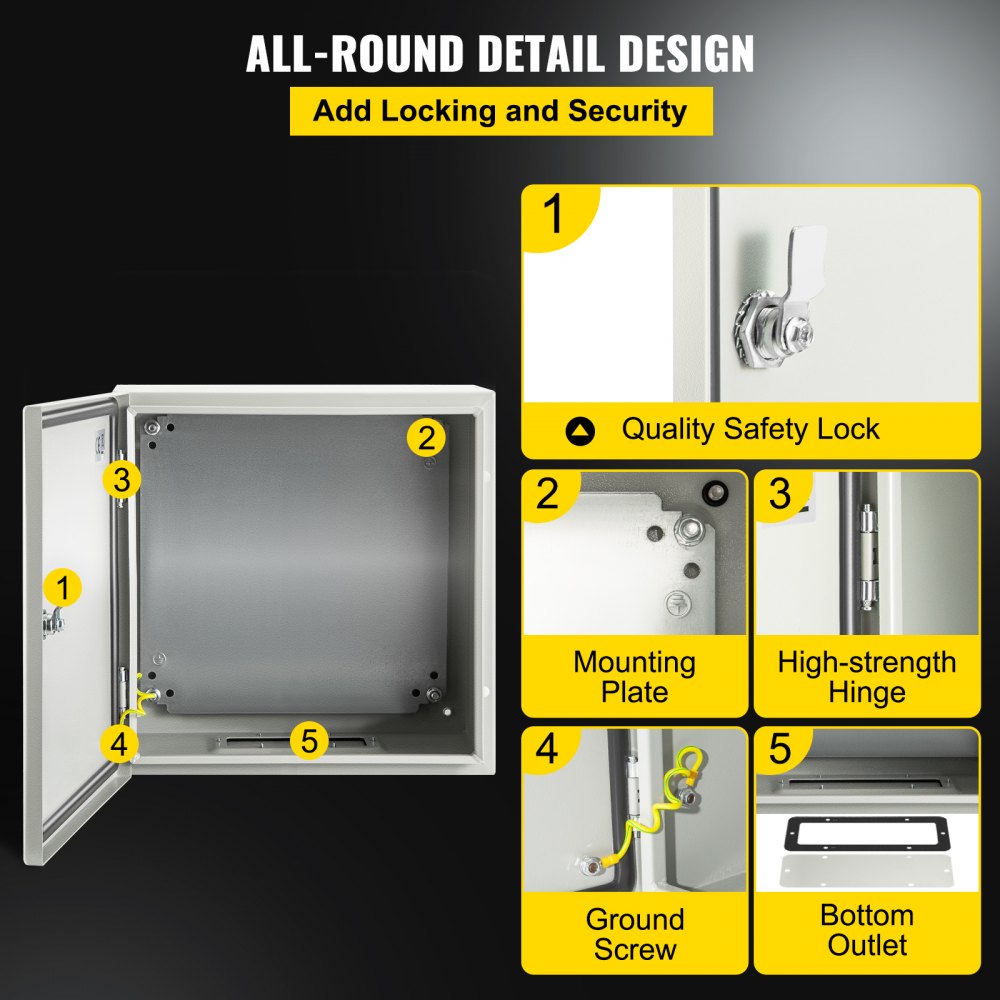

- Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.

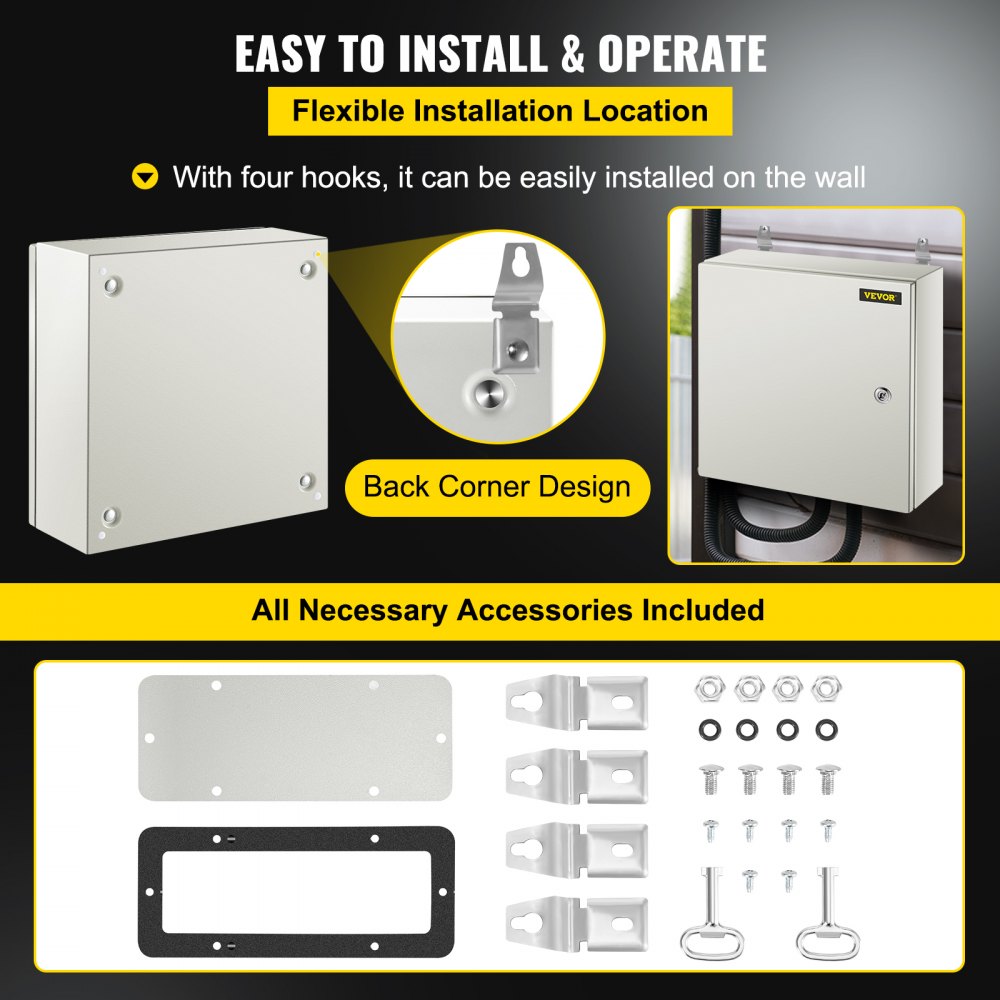

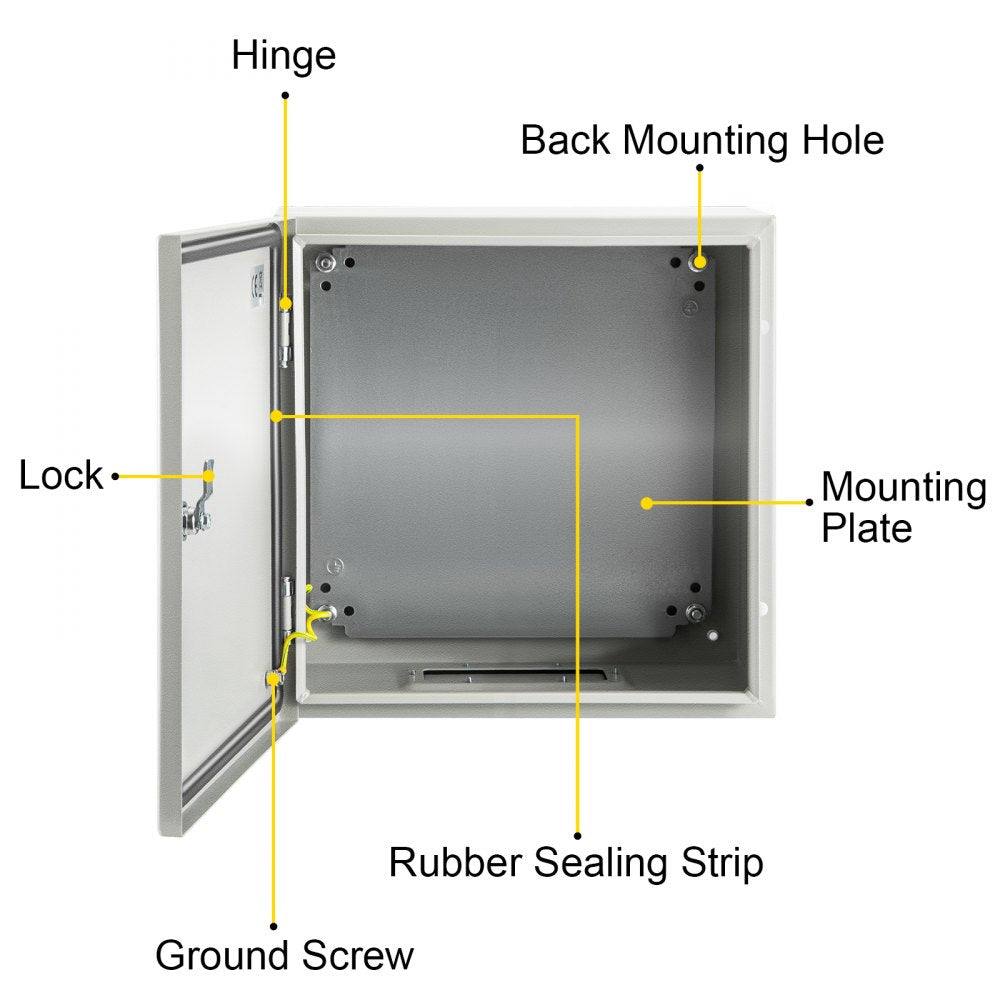

- Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.

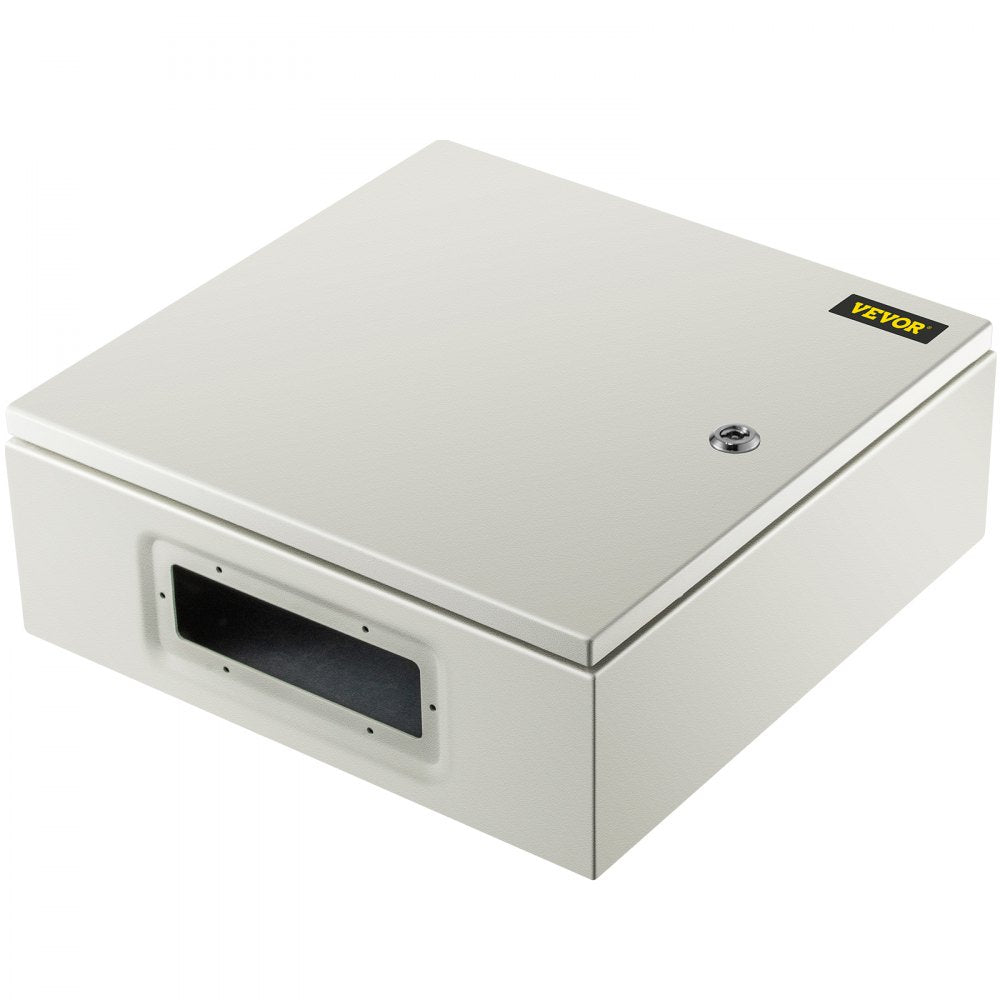

- Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.
Specifications
| Model | SPT |
| Color | Gray White (RAL7035) |
| Material | 0.059" / 1.5 mm Carbon Steel |
| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079" / 2 mm Detachable Galvanized Backplate |
| IP Rating | Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications |
| Connection Type | Hinged |
| Feature | Lockable, Waterproof |
| Galvanized Backplate Dimensions | 13.8" x 13.8" / 35 x 35 cm |

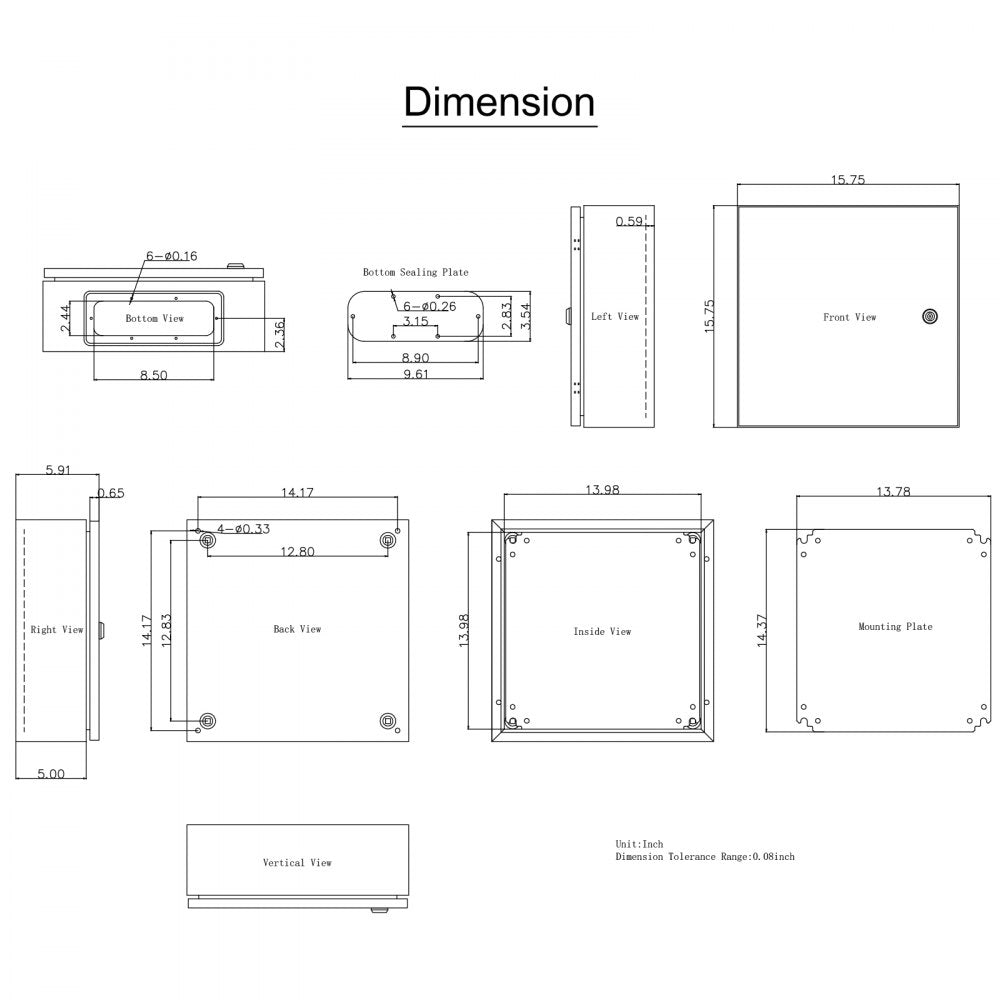

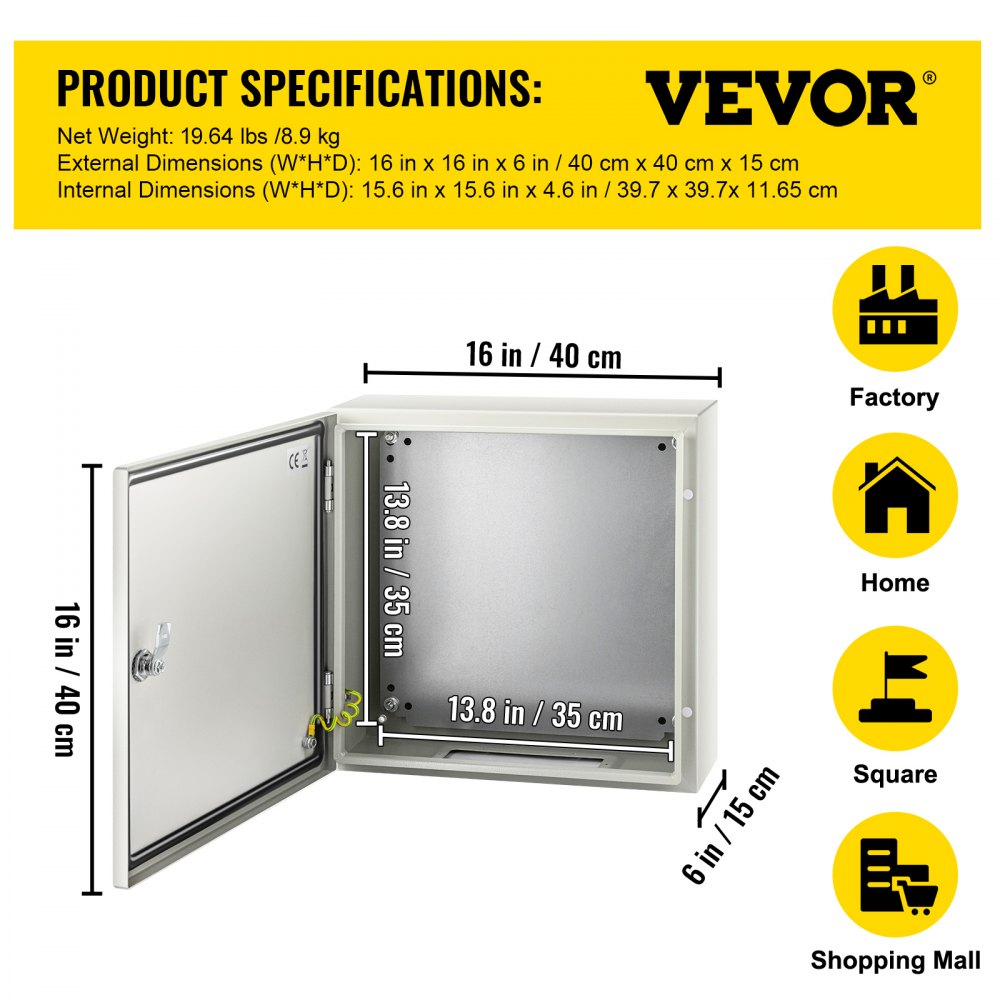

| Outer Dimensions (H x W x D) | 16" x 16" x 6" / 40 x 40 x 15 cm |
| Inner Dimensions (H x W x D) | 15.6" x 15.6" x 4.6" / 39.7 x 39.7 x 11.65 cm |
| Product Weight | 22.27 lbs / 10.1 kg |
| Certification | CE / ROHS Certification |

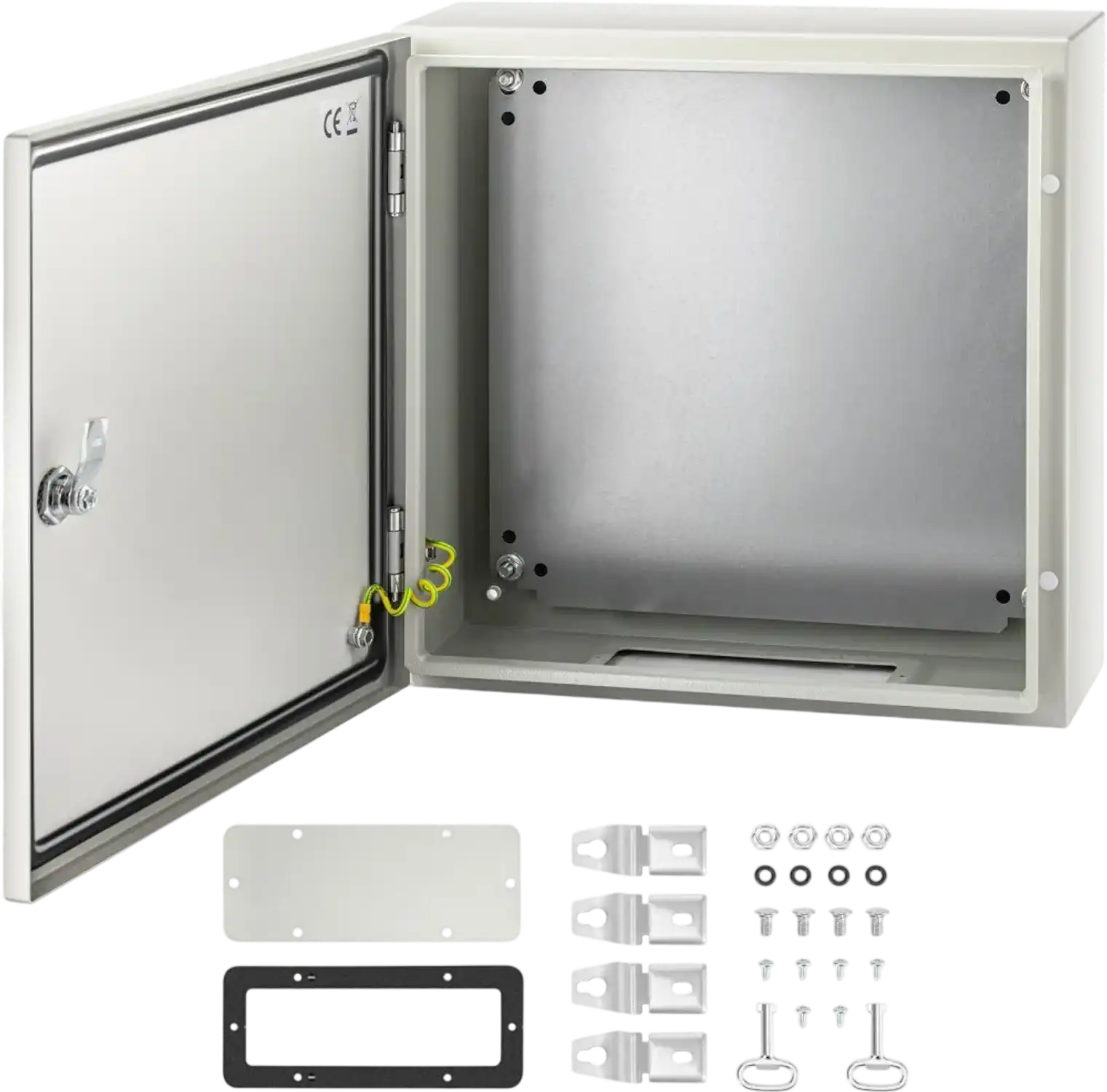

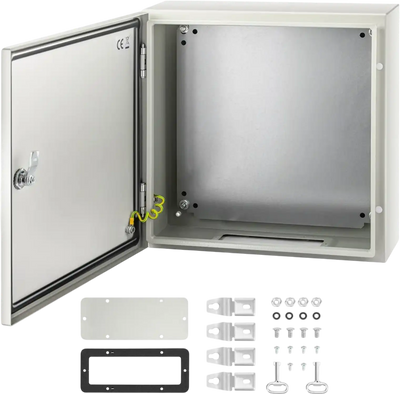

Package Contents
1 x Electrical Box
2 x Keys
1 x Mounting Plate
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
Warranty
This item comes with a 1 year factory warranty.
