Vevor Electrical Enclosure 10" x 8" x 6" NEMA 4X Wall Mount Junction Box New
Product Overview

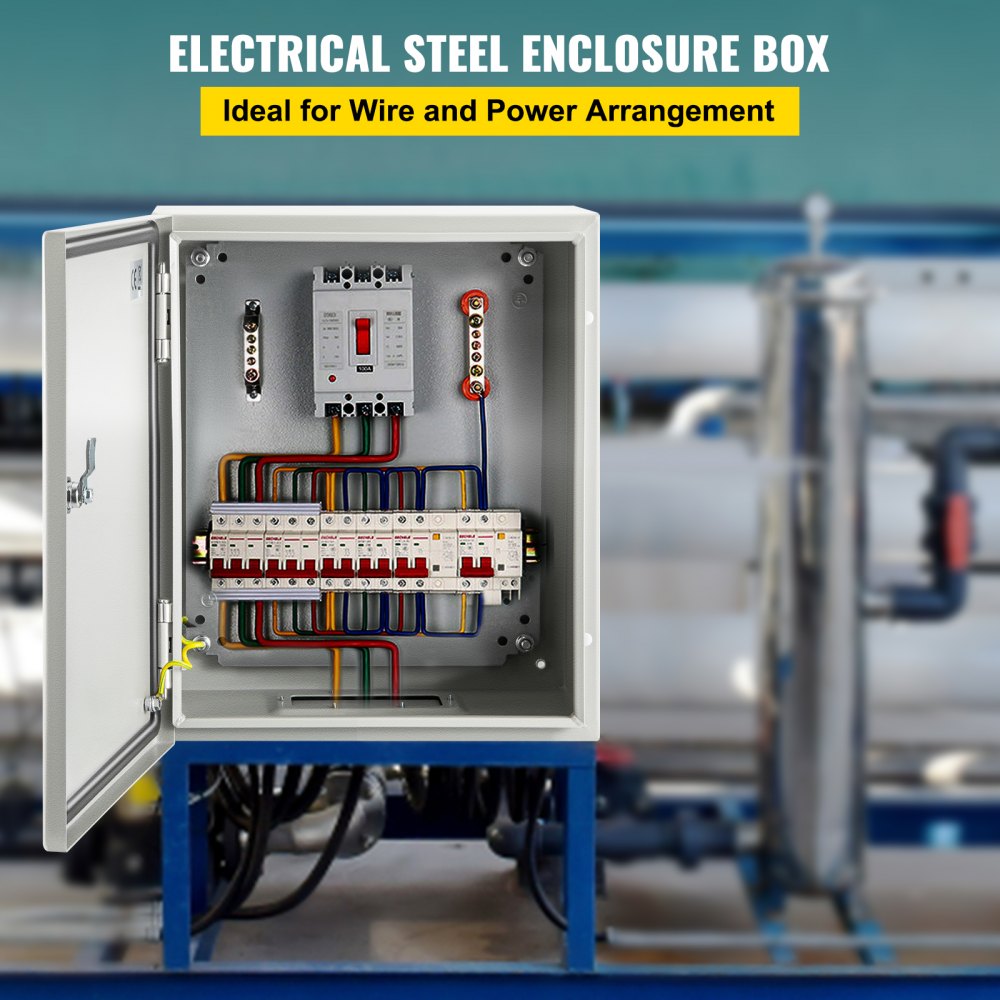

The Vevor electrical enclosure is a wall-mount junction box built from carbon steel for durable indoor and outdoor protection. It is designed to meet IP66 and NEMA 1, 2, 4, 4X, and 12 specifications to help shield electrical components from water, dust, and harsh environments. A detachable galvanized mounting backplate and hinged lockable door support convenient installation and secure access. This enclosure is well suited for factories, construction sites, residential areas, courtyards, and other demanding applications.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

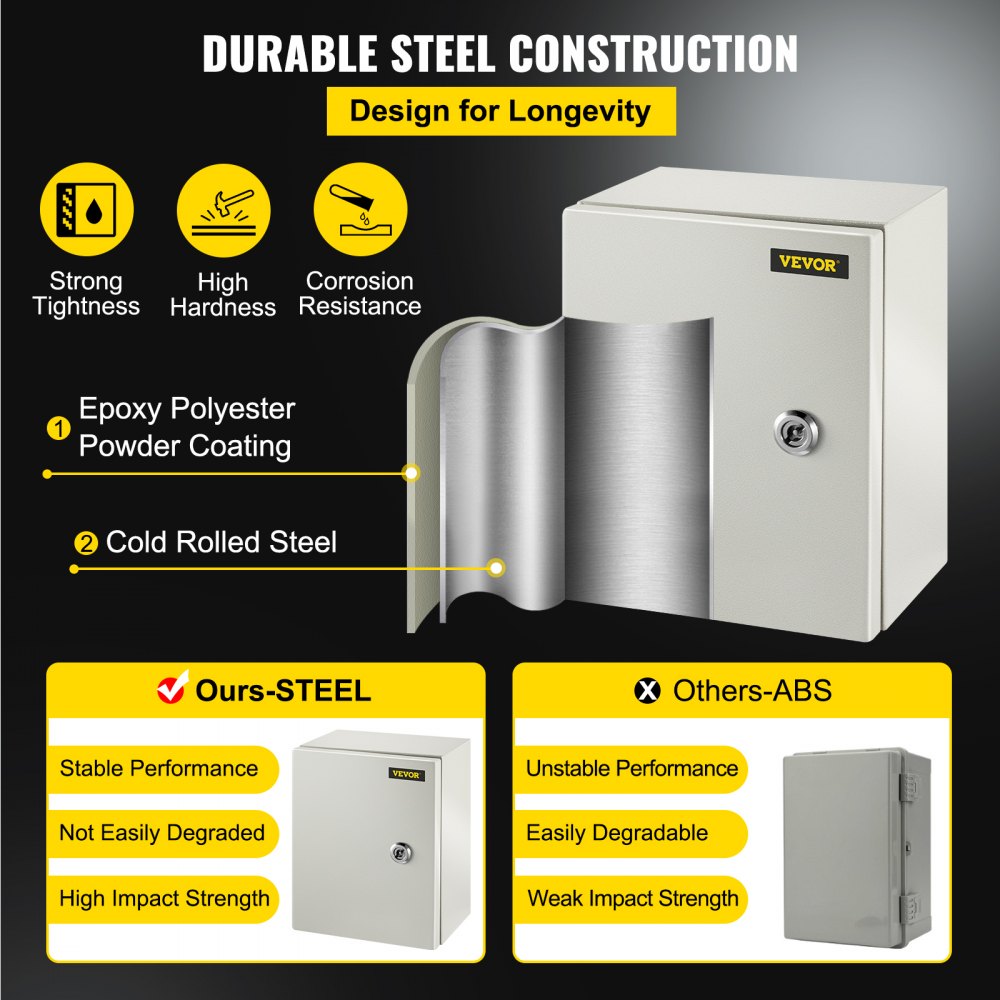

- Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.

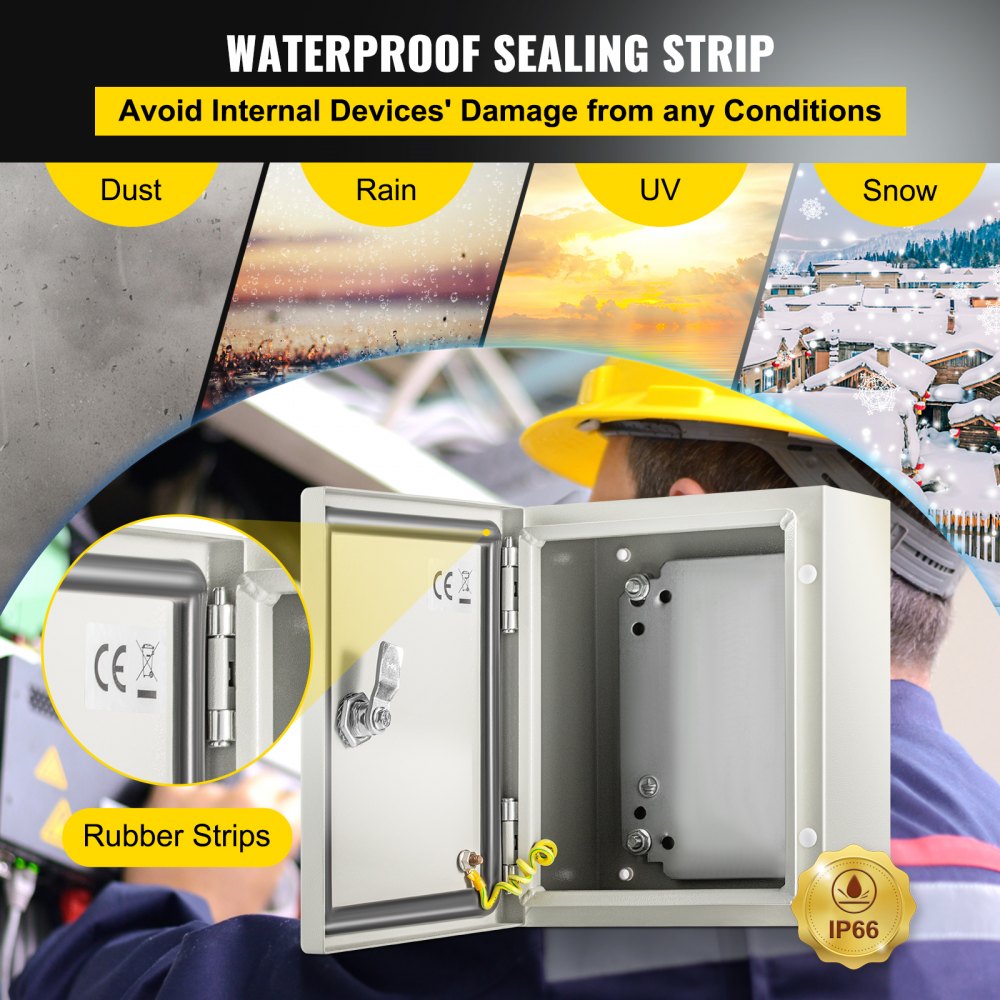

- IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal Choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.

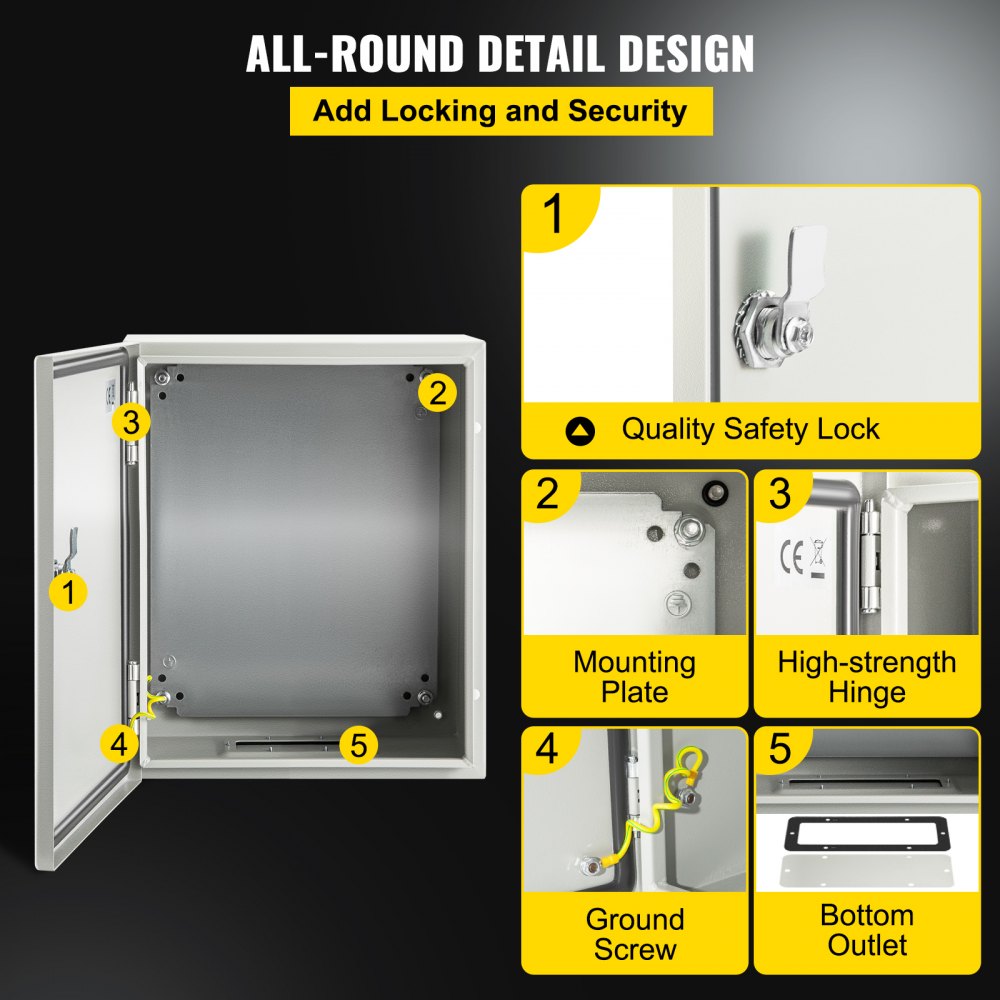

- Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.

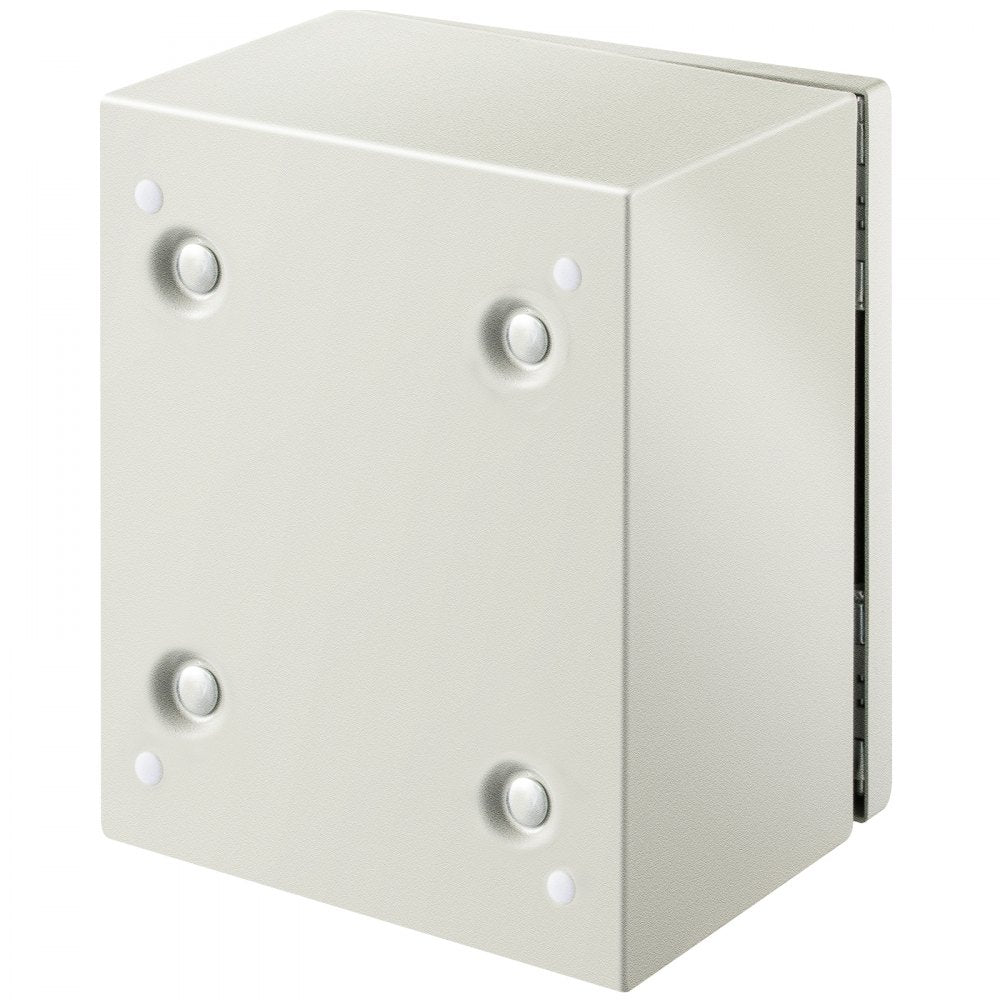

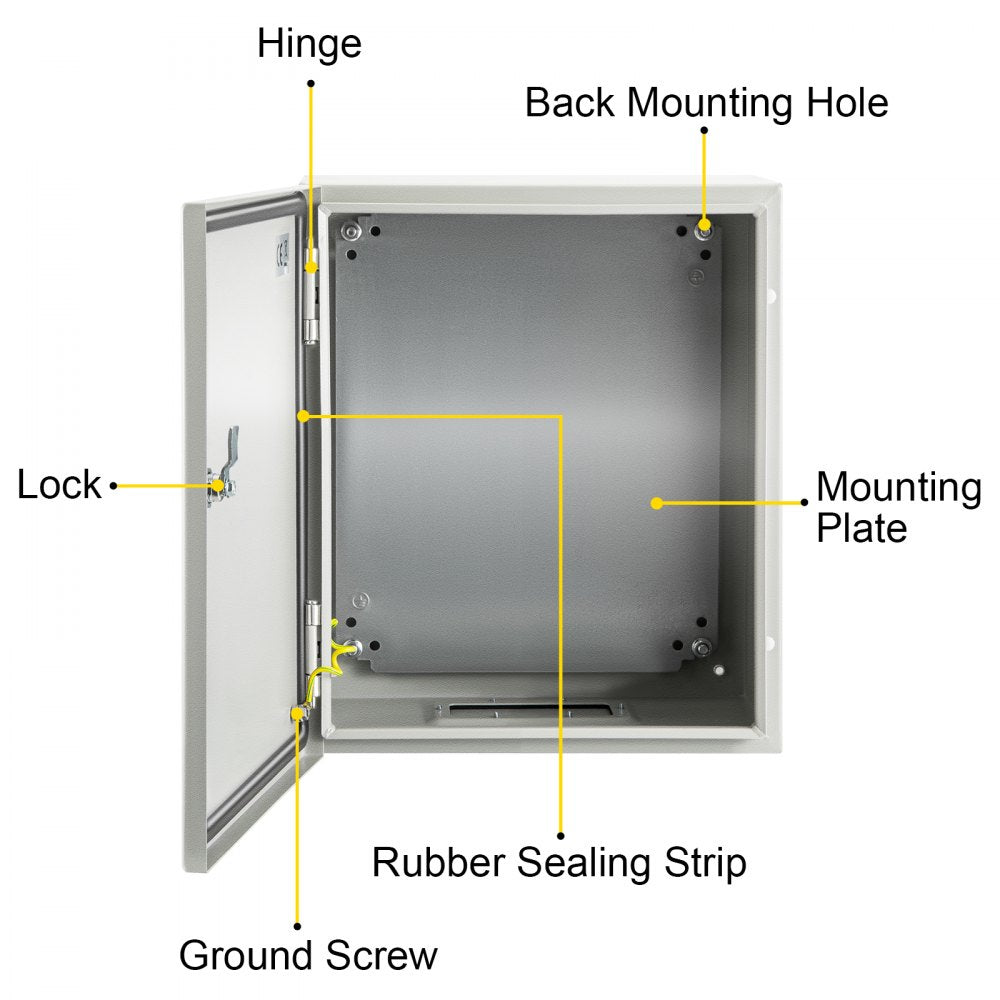

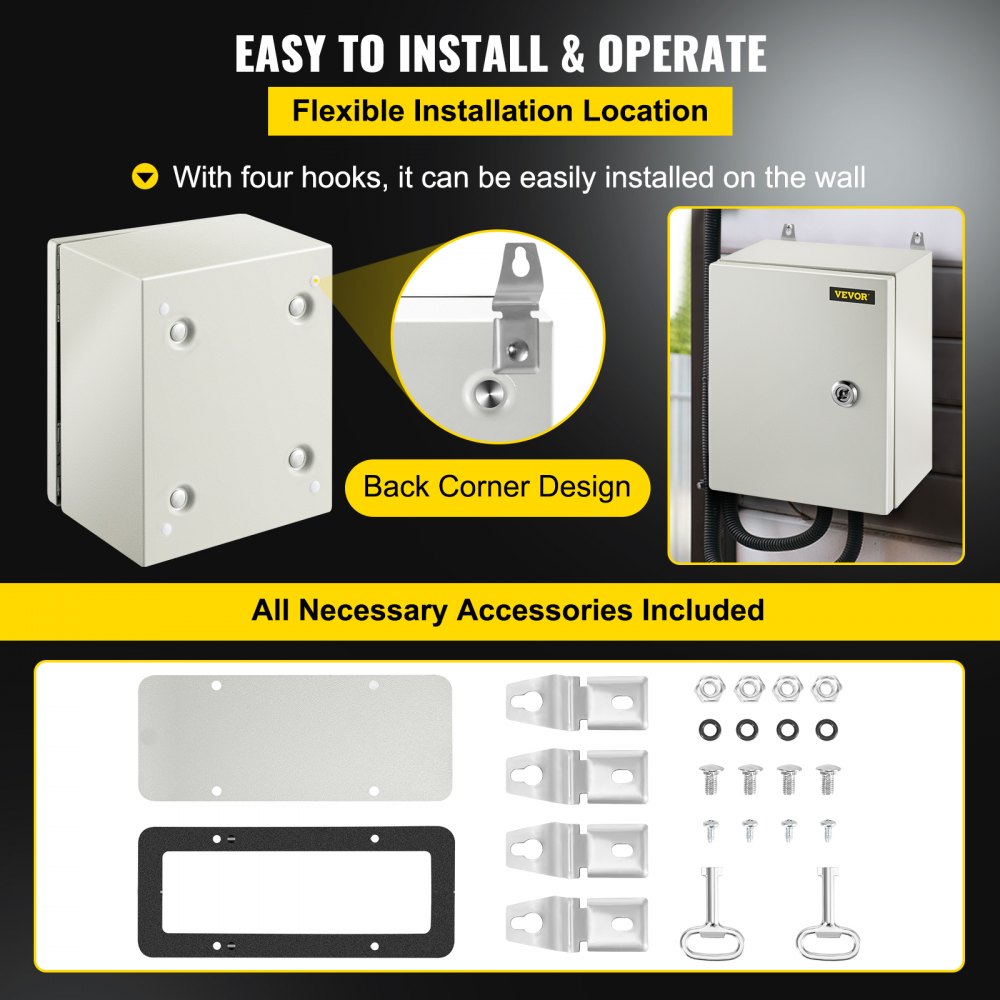

- Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.

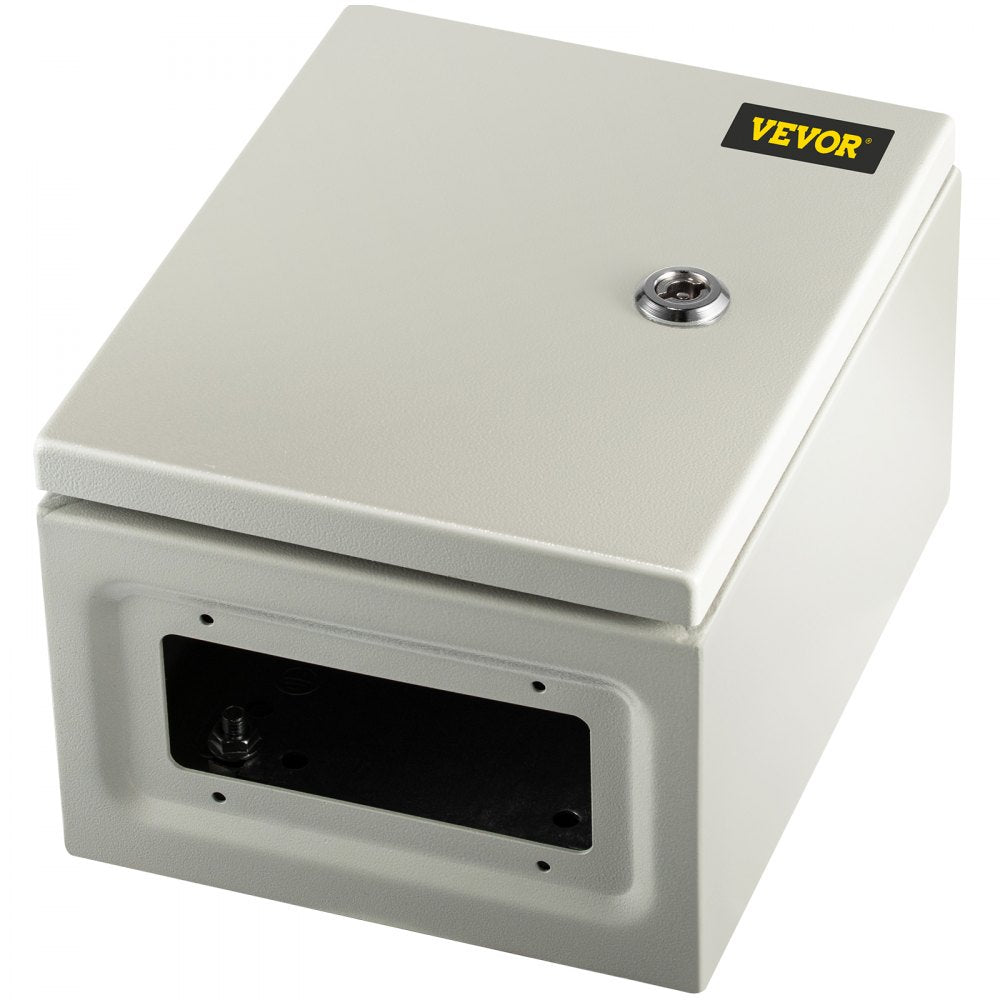

- Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.
Specifications
| Model | SPT |
|---|---|
| Product Type | Electrical Enclosure |
| Color | Gray White RAL7035 |
| Material | 0.059" / 1.5 mm Carbon Steel |
| Coating | Epoxy Polyester Powder Coating |
| Mounting Plate | 0.079" / 2 mm Detachable Galvanized Backplate |
| IP Rating | Designed to meet IP66 and NEMA 1, 2, 4, 4X, and 12 specifications |
| Connection Type | Hinged |
| Feature | Lockable, Waterproof |
| Galvanized Backplate Dimensions | 7.9" x 6" / 20 x 15 cm |

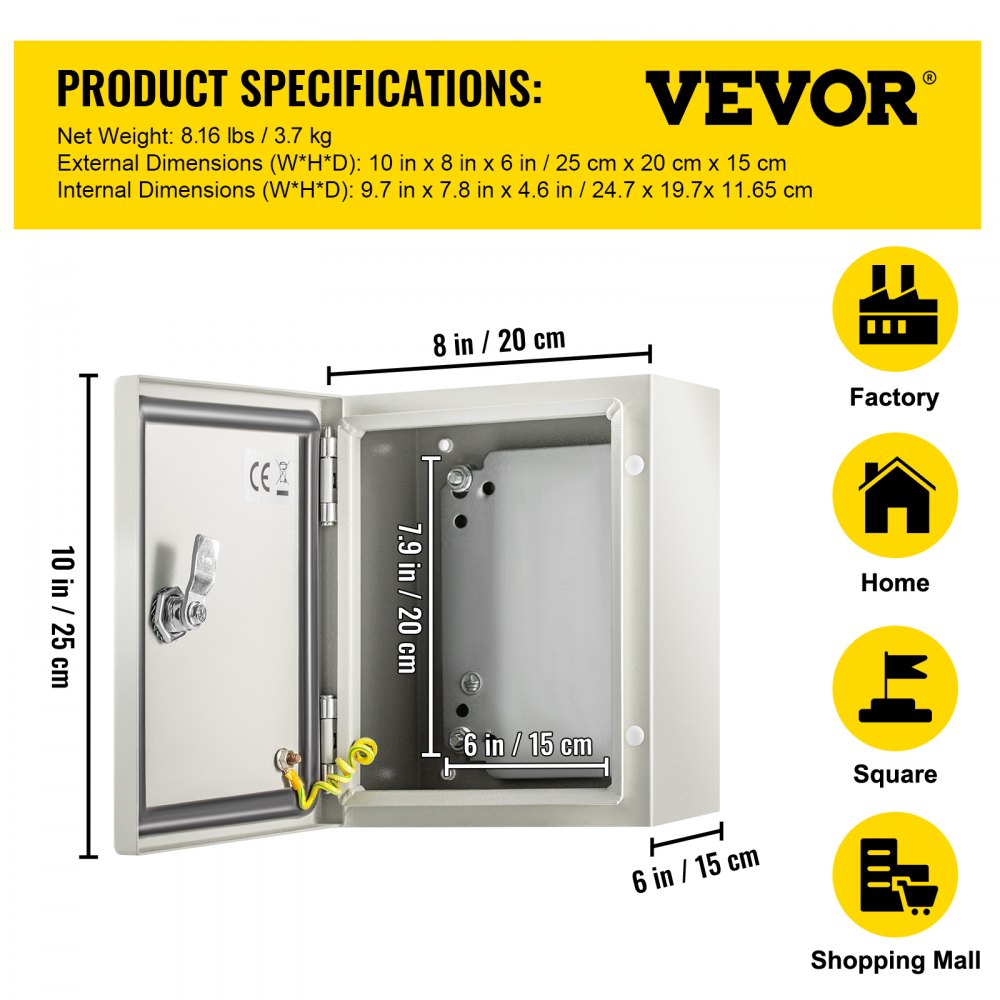

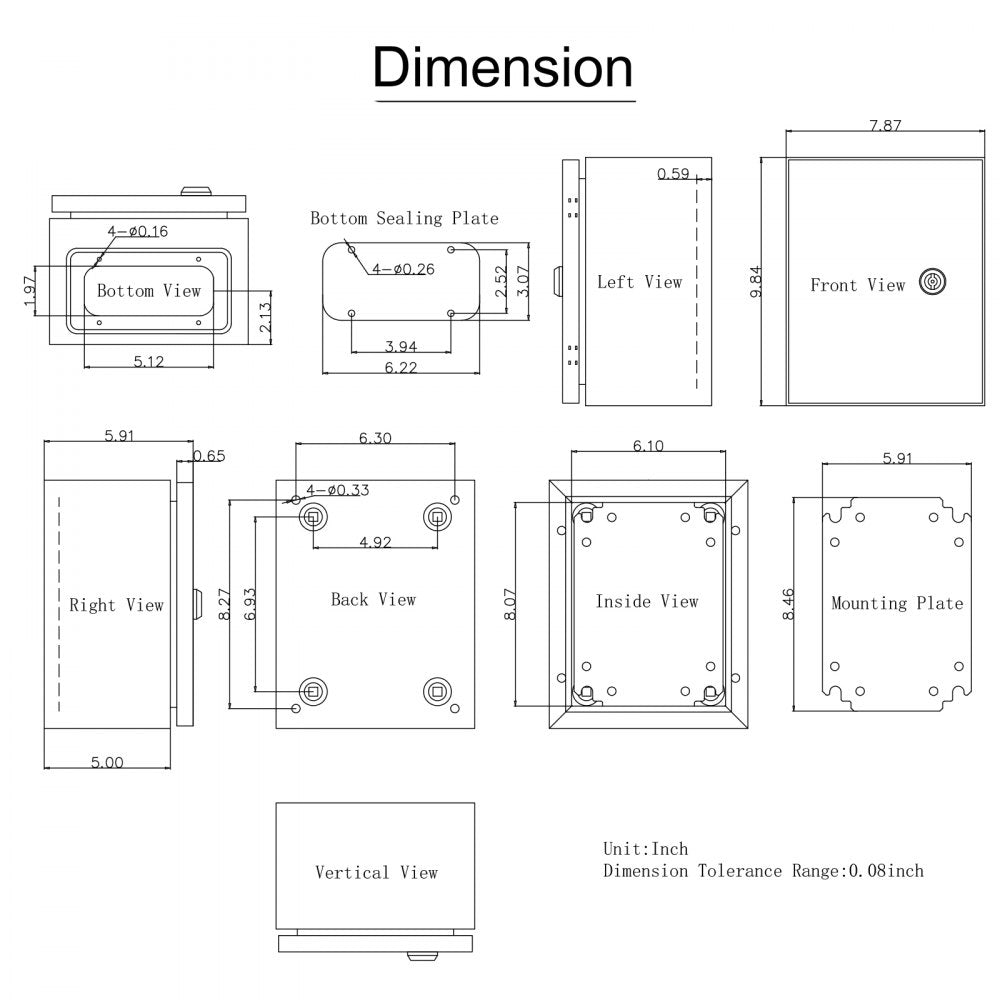

| Outer Dimensions | 10" x 8" x 6" / 25 x 20 x 15 cm |
| Inner Dimensions | 9.7" x 7.8" x 4.6" / 24.7 x 19.7 x 11.65 cm |
|---|---|
| Product Weight | 9.48 lbs / 4.3 kg |
| Certification | CE / ROHS Certification |

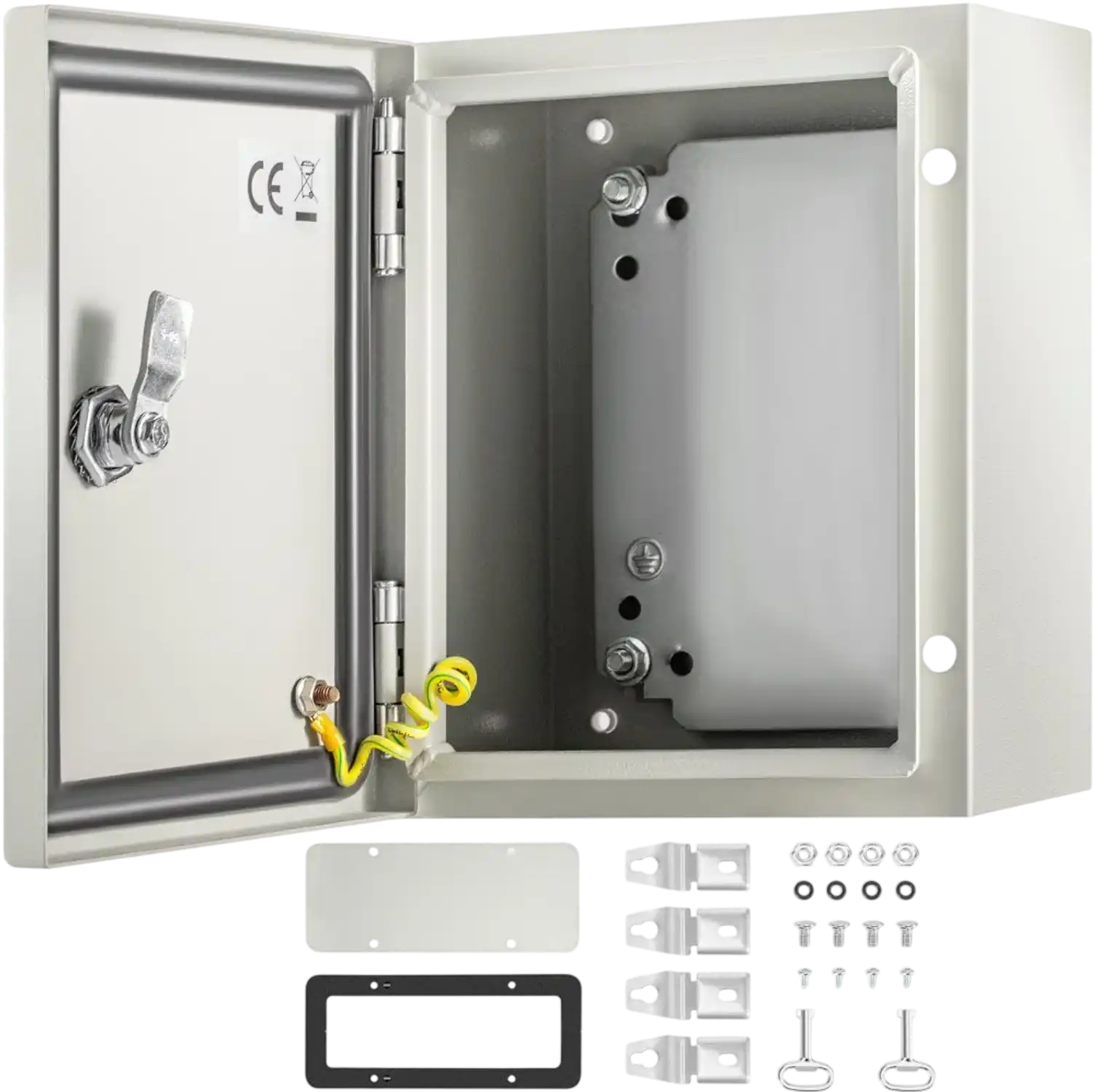

Package Contents
Electrical enclosure
Detachable galvanized mounting backplate
Keys
Wall-mounting hardware
Warranty
This item comes with a 1 year factory warranty.
