    Product Overview

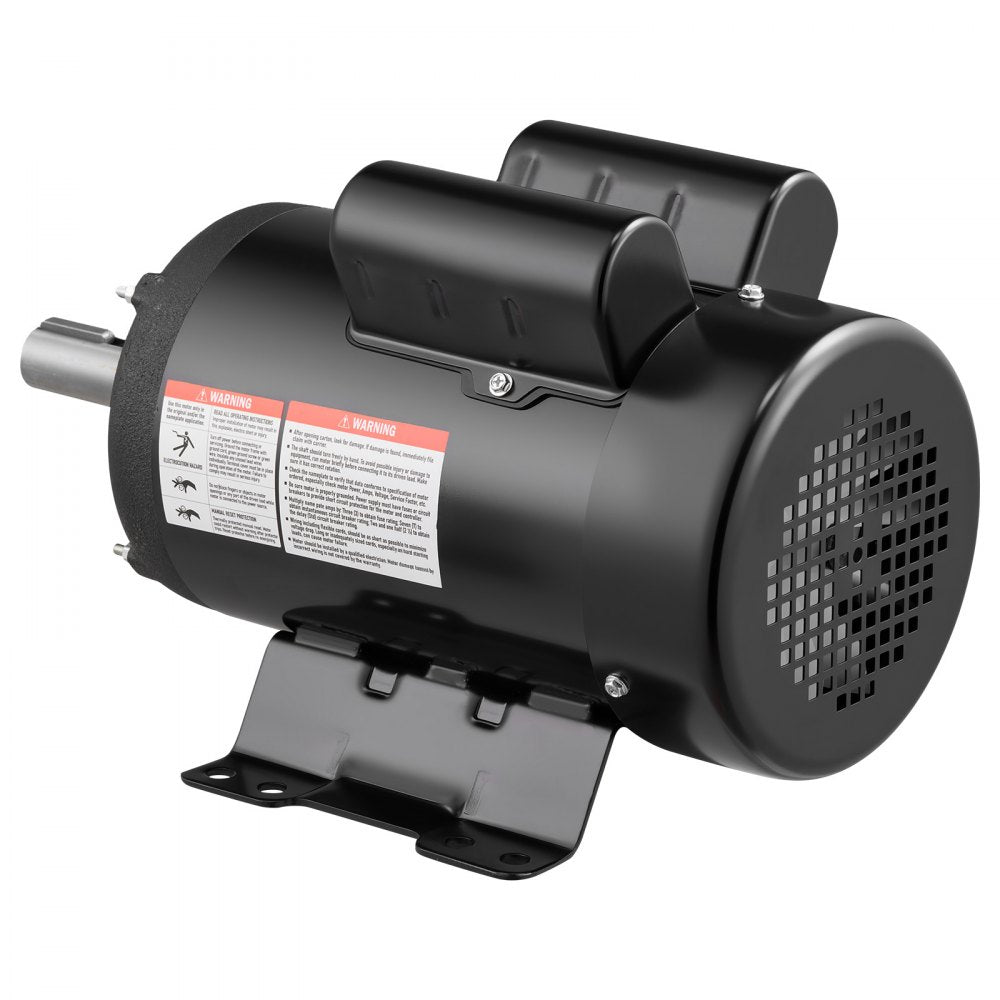

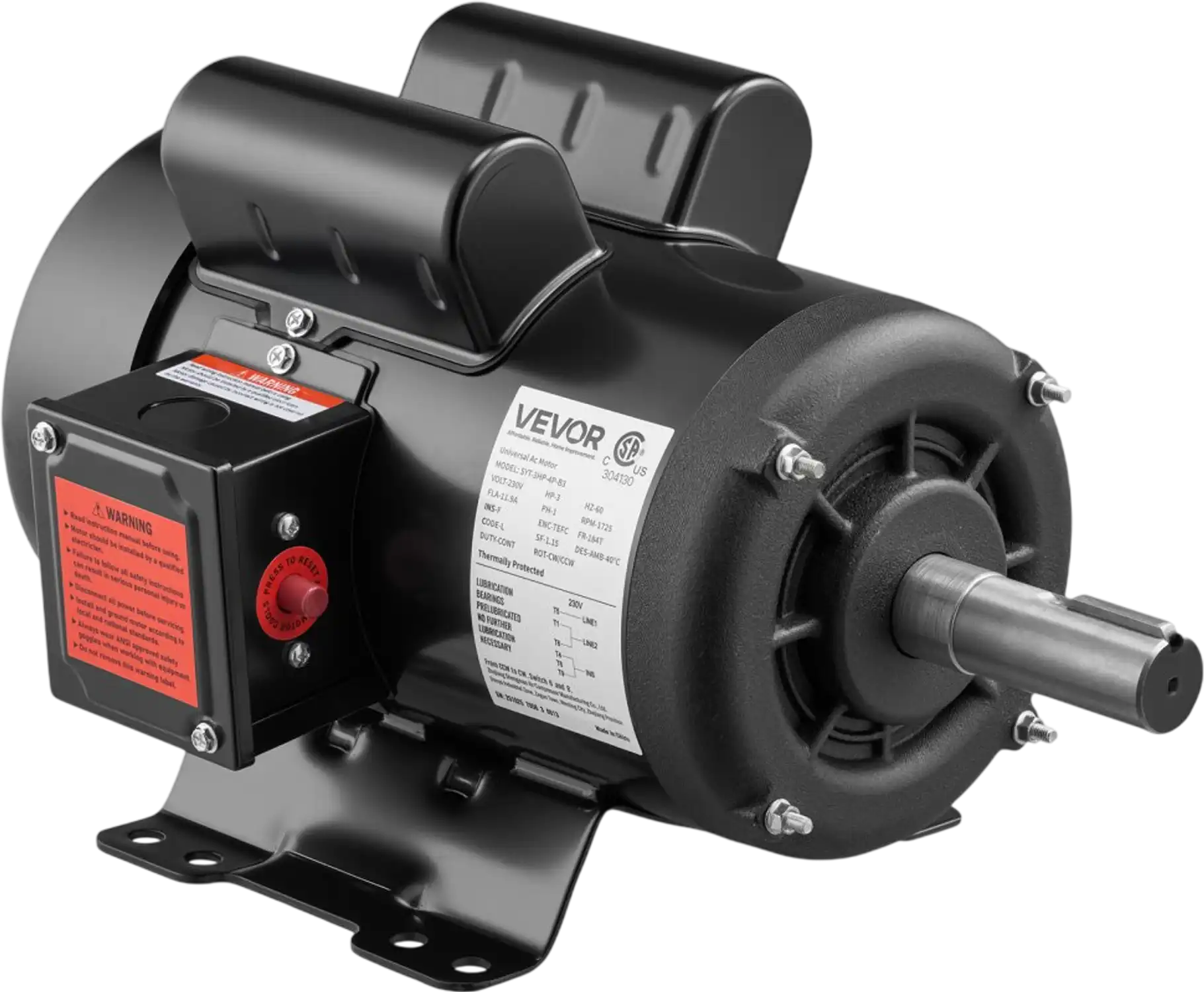

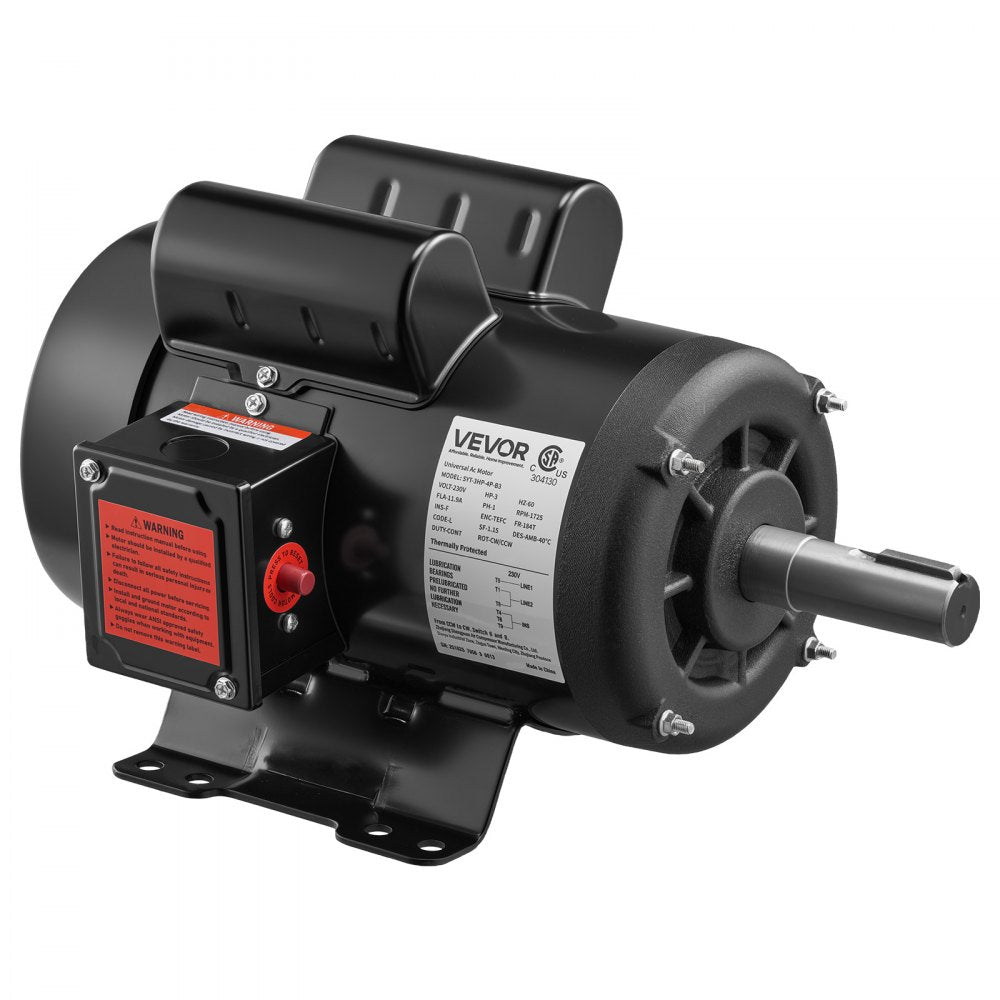

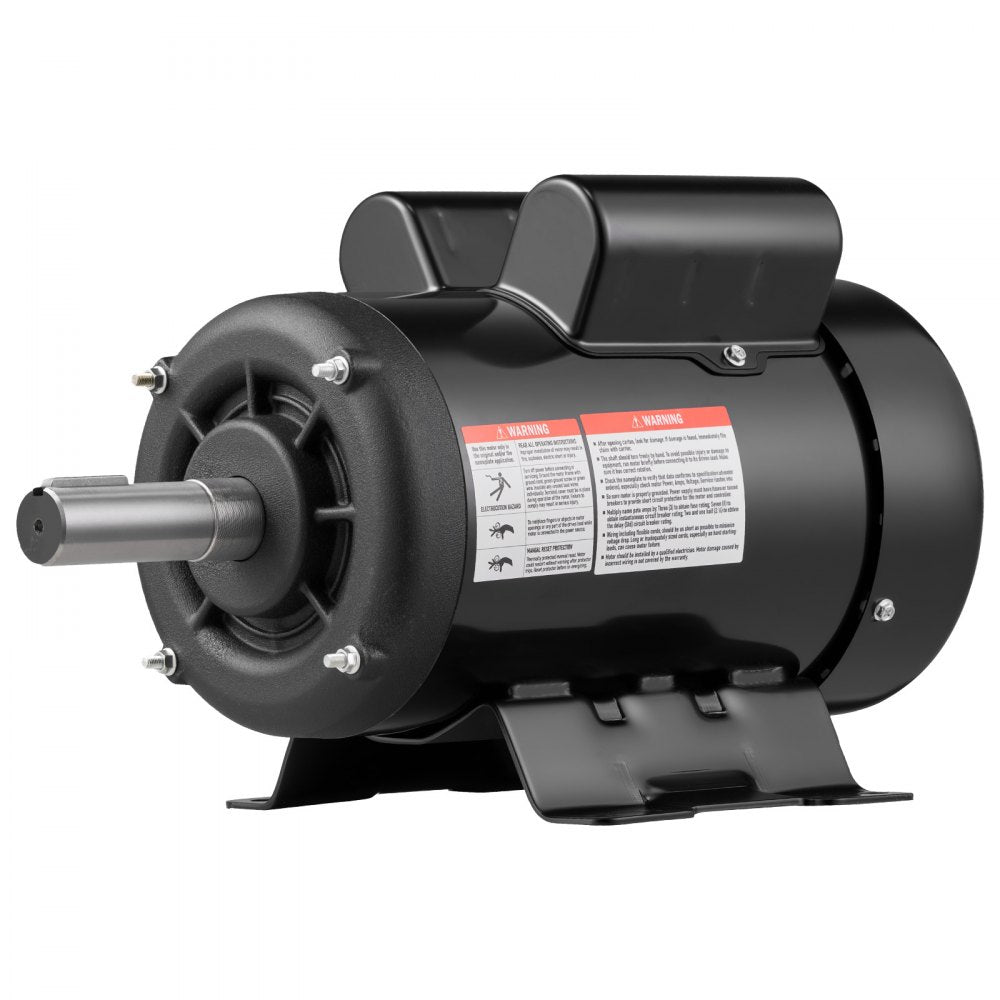

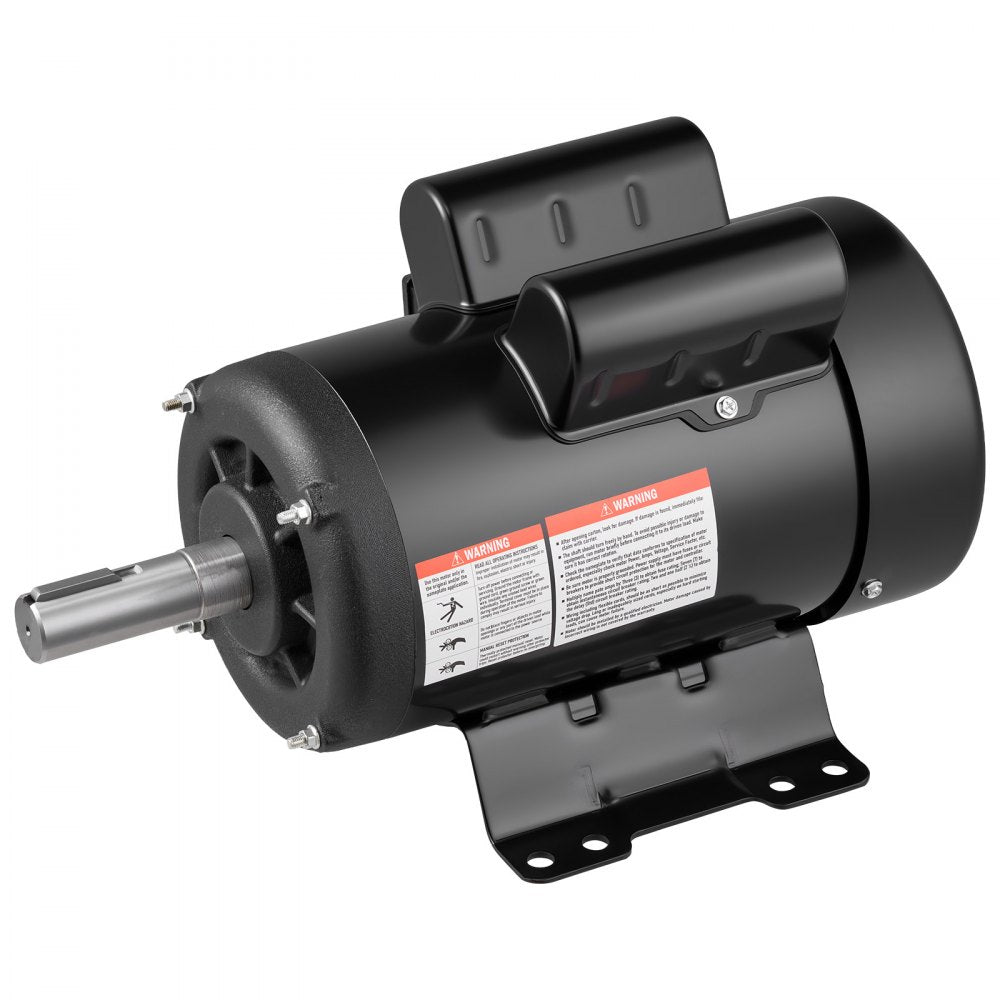

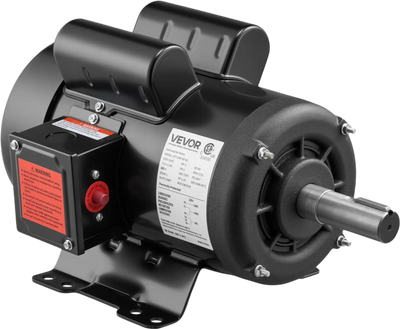

    This Vevor electric motor is a 3 HP single-phase AC motor designed for air compressor and general-purpose equipment applications. It delivers 1750 RPM performance with 12 N.m rated torque and supports both CW and CCW rotation for flexible installation. The TEFC cooling design and steel plate body help provide dependable operation and durability. Its 184T frame includes a 1.125" shaft diameter and 2.75" shaft length for compatible setups. Built for reliable use, it is suited for repair replacements, pumps, agricultural machinery, and other equipment.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

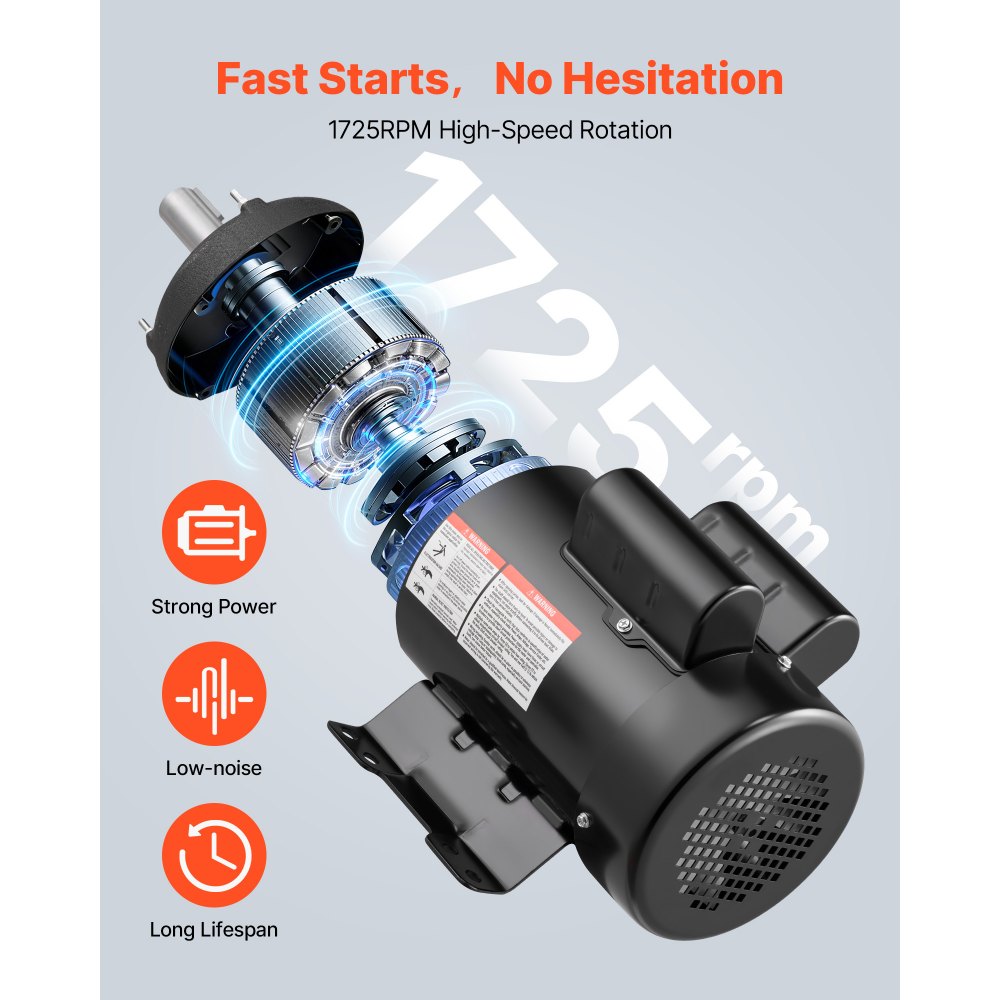

    • High Performance: 3HP high-performance motor featuring 12 N.m rated torque. Designed for AC 230V 60Hz, single-phase power. The air compressor electric motor operates at 1750 RPM for fast, reliable speed

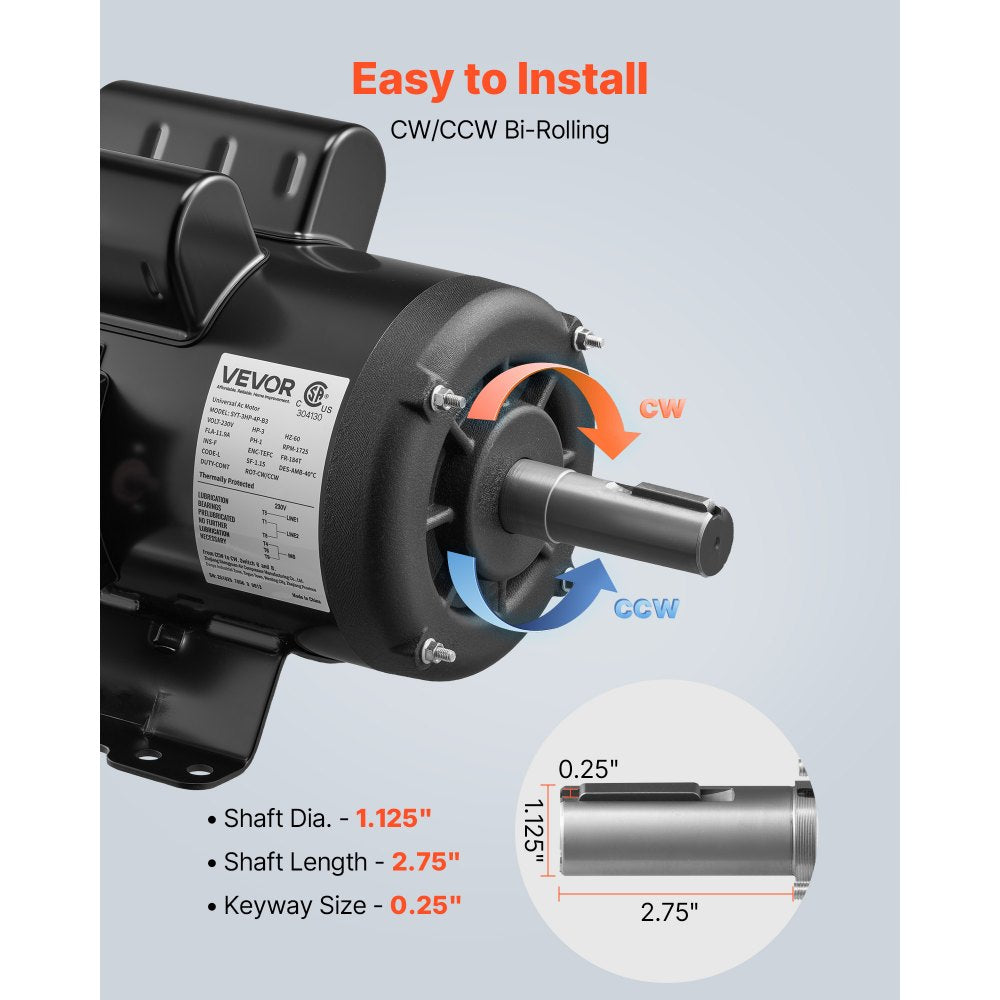

    • Rugged Frame Type: The 184T frame of this electric motor includes a 1.125-inch shaft diameter, 2.75-inch shaft length, and keyway size: 0.188 inch ( 0.25 inch / 6.35 mm width x 0.125 inch / 3.18 mm depth)
    • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

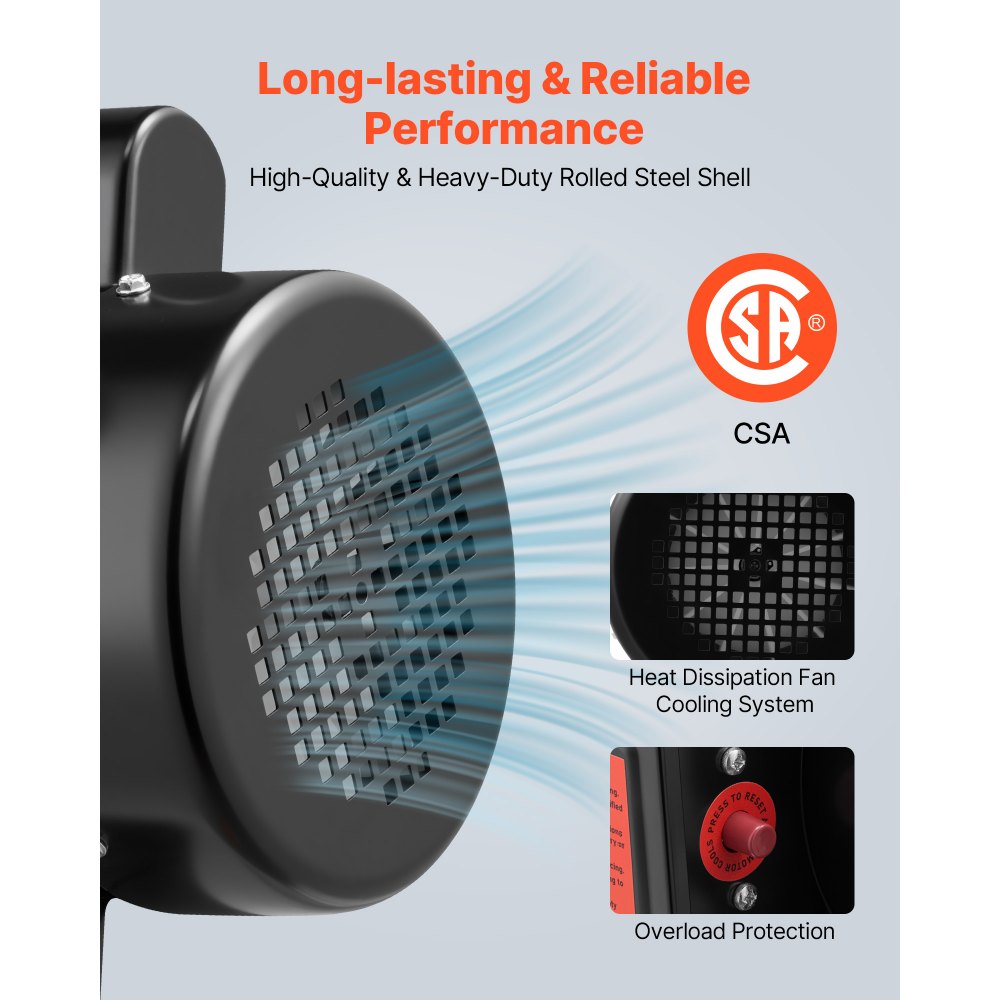

    • Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance
    • Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

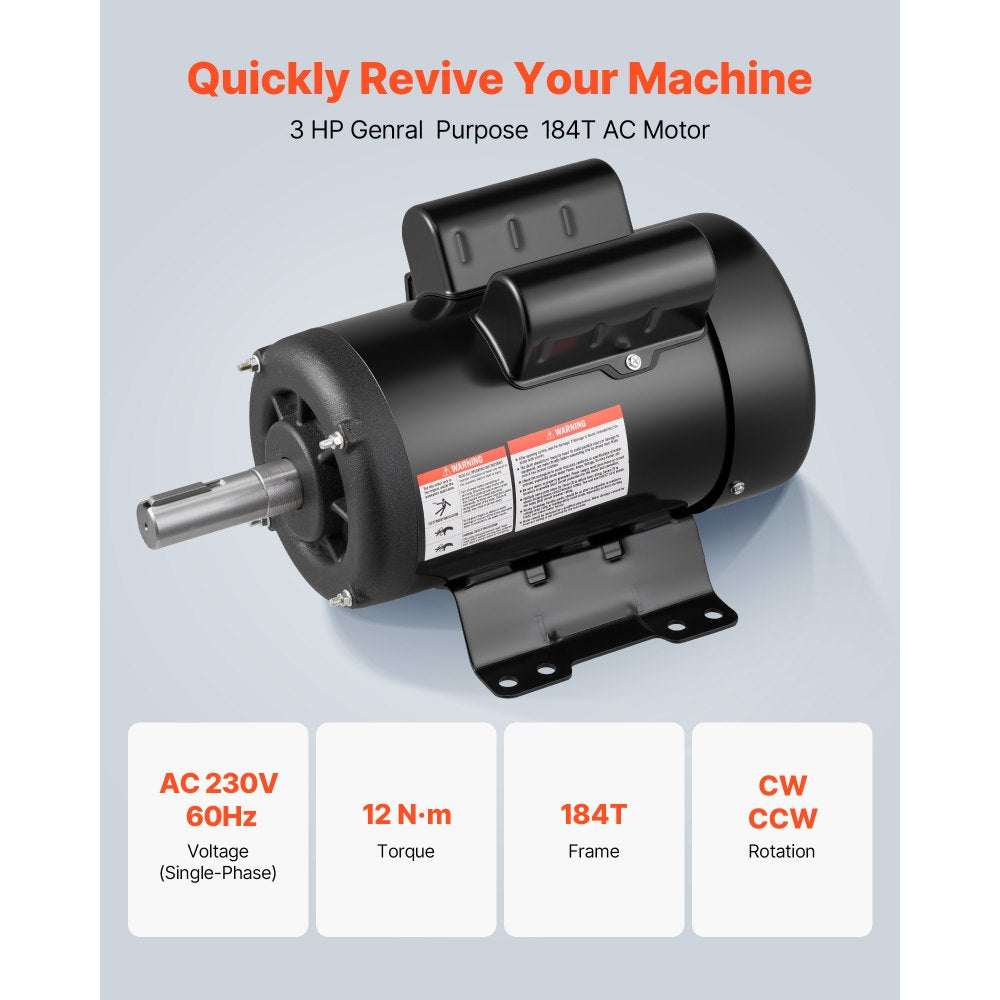

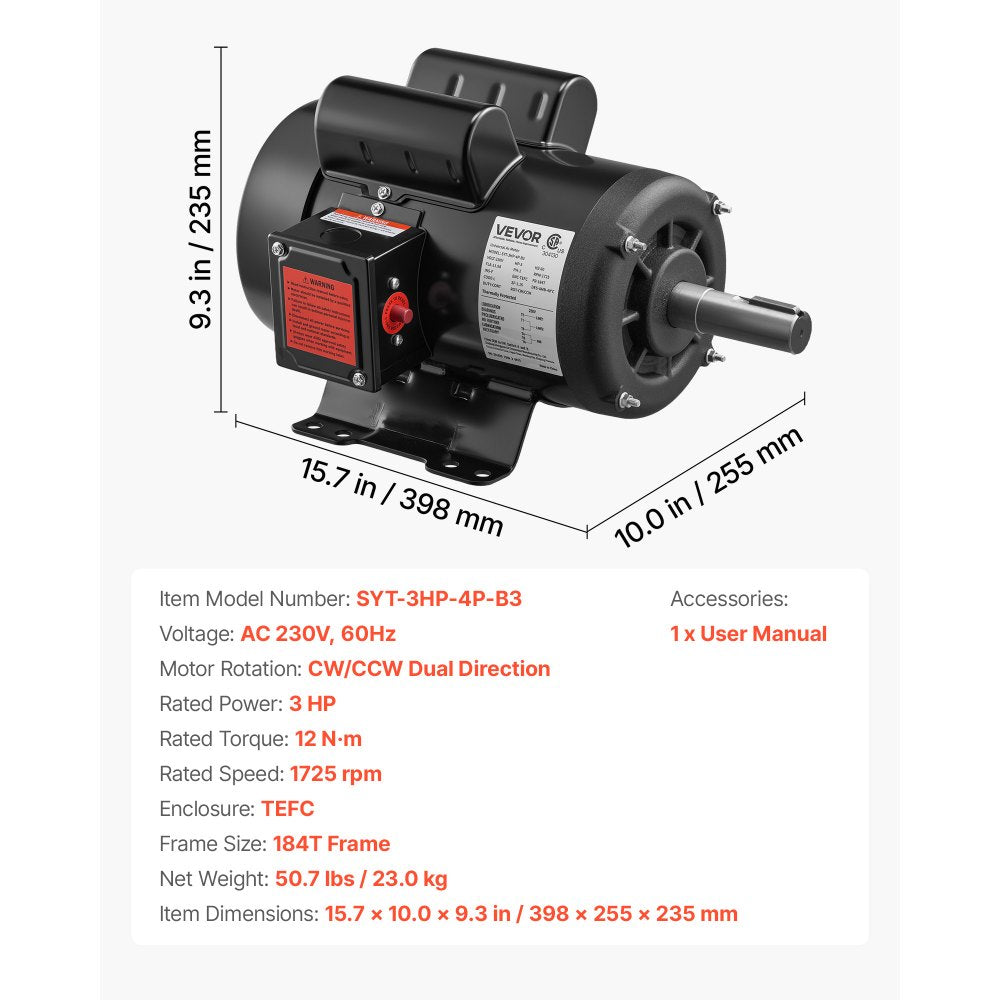

    Specifications

    Item Model Number SYT-3HP-4P-B3
    Voltage / Frequency AC 230V, 60Hz
    Rotation Direction CW/CCW Dual Direction
    Horsepower 3 HP
    Rated Torque 12 N.m
    Speed 1750 RPM
    Cooling Type TEFC
    Frame Type 184T
    Shaft Diameter 1.125"
    Shaft Length 2.75"
    Keyway Size 0.188" 0.25" width x 0.125" depth
    Main Materials Steel Plate Body
    Net Weight 50.7 lbs
    Item Dimensions 15.7 x 10.0 x 9.3"

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
