Vevor VFD CNC Spindle Motor Kit Water Cooled 110V 2.2kW 24000 RPM New
Manufacturer: Vevor
SKU: SLDJ2.2KW110VLIMDV1
QTY
(888) 999-1522
C
$393.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Vevor Dividing Head BS-1 with 6" 3-Jaw Chuck Tailstock Dividing Plates Semi-Universal Milling Set...
-
Vevor Dividing Head K11-100mm 3-Jaw Chuck CNC Router Indexing Head 2.6" Center Height New
-
Vevor Rotary Table 8" Horizontal & Vertical MT-3 Milling Drilling Machine 4 Slots New
-
Vevor Rotary Table 8" Horizontal & Vertical MT-3 Milling Drilling Machine 3 Slots New
-
Vevor Rotary Table 6" (150 mm) 4-Slot Horizontal Vertical Dividing Plates for Milling Machine New
-
Vevor CNC Spindle Motor Air Cooled 2.2kW 24000RPM 220V ER20 Collet New
Vevor VFD CNC Spindle Motor Kit Water Cooled 110V 2.2kW 24000 RPM New
Product Overview

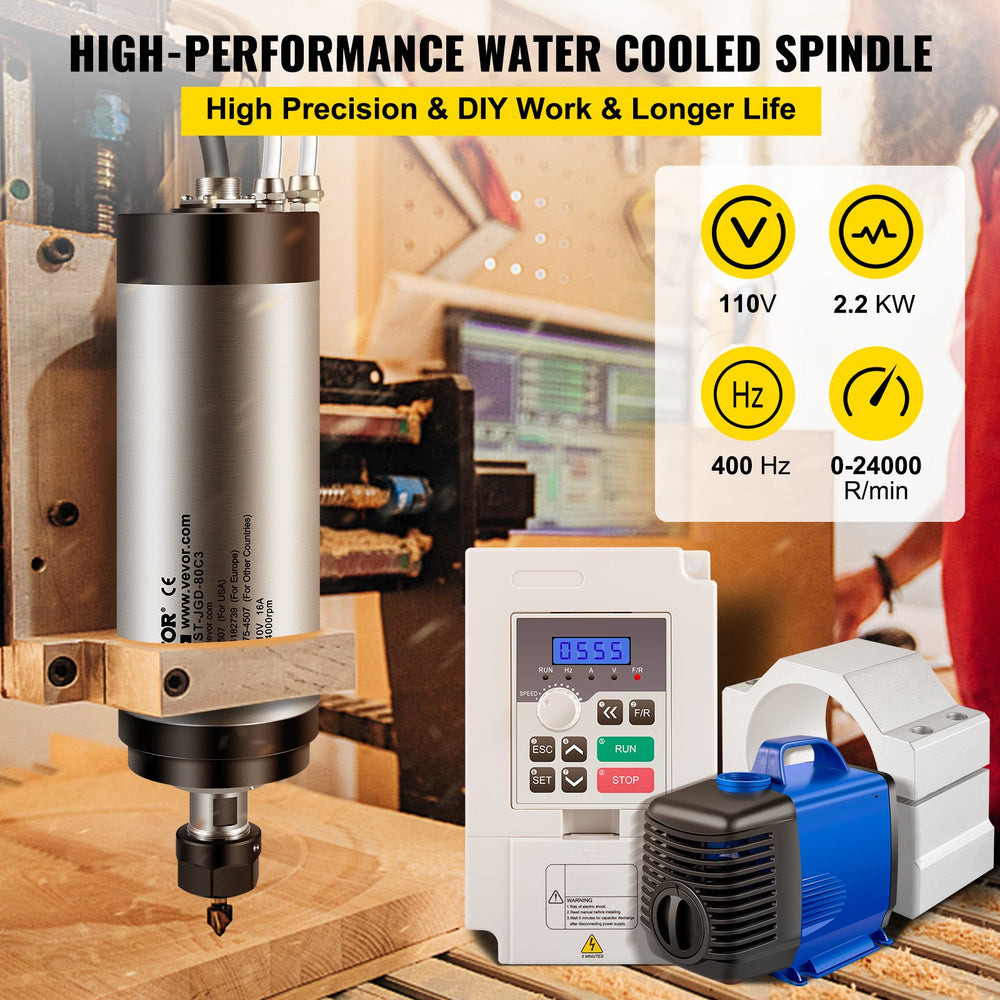

This CNC spindle motor kit comes with a premium spindle motor, variable frequency drive (VFD), water pump, and aluminum spindle clamp for high-temperature resistance, low noise & low friction, and high speed. The variable frequency drive has full-featured buttons and a detachable panel for quick operation and remote control. For your convenience, a set of ER20 collets and milling drill bits are provided. This kit is widely applicable to engraving machines for carving materials such as wood, stone, metal, etc.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

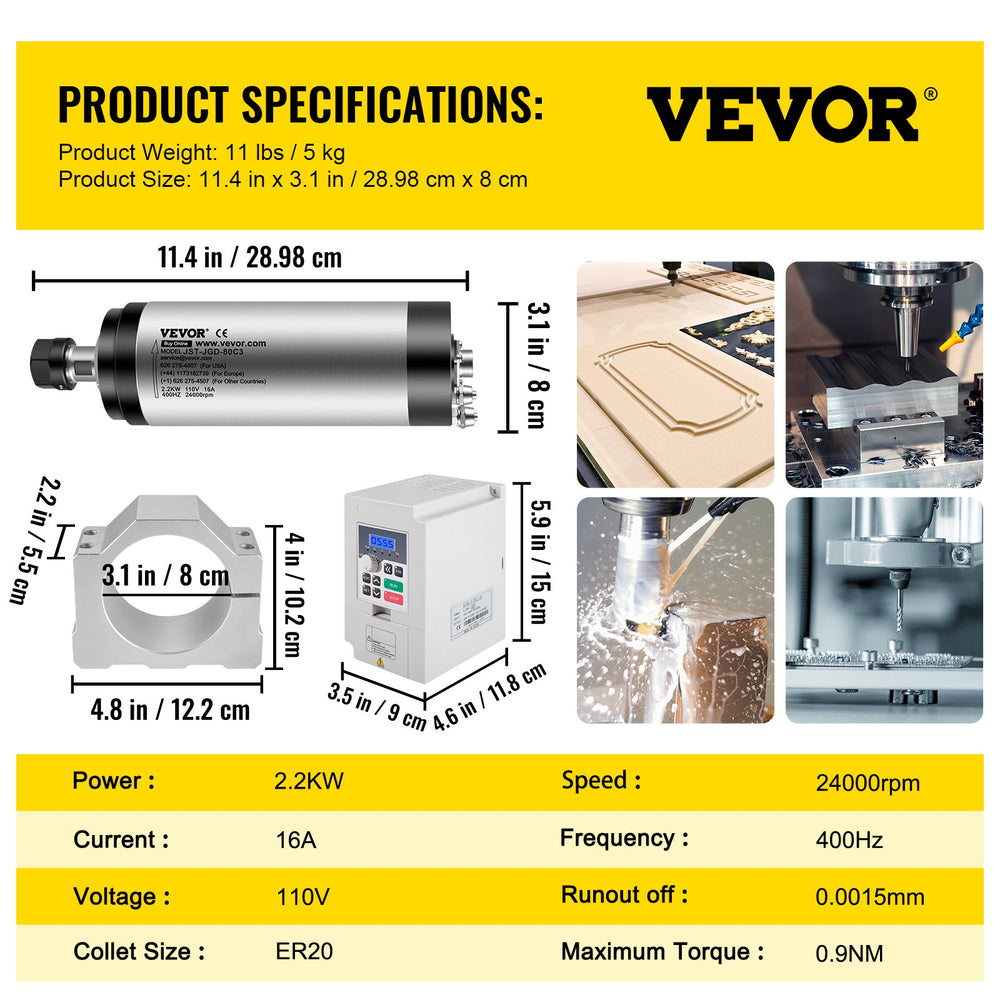

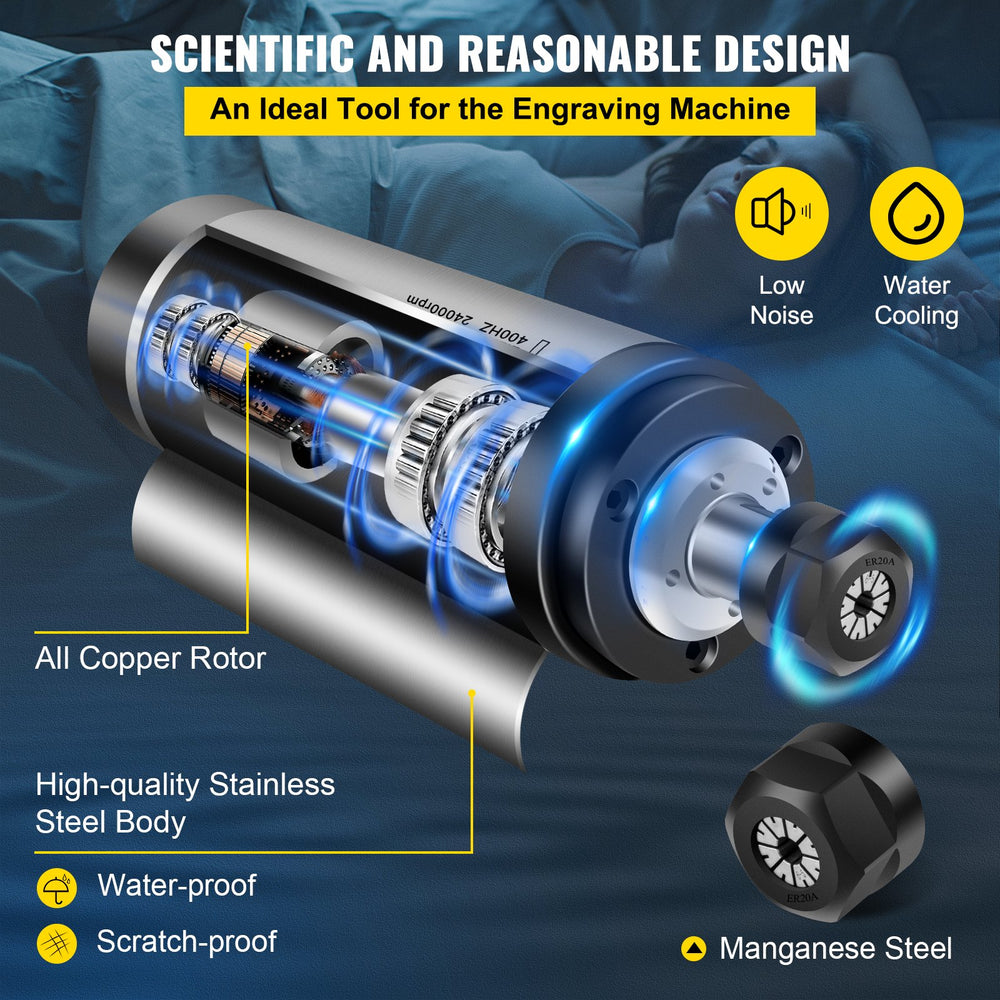

- Technical Parameters: The CNC spindle motor is mainly used for engraving machine or used with frequency converter. Spec: φ3.1 x 11.4 in (Diameter: 8 cm x Length: 29.98 cm); Power: 2.2 KW; Voltage: 110V; Current: 16A; Collet Size: ER20; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 0-24000 R/min; Runout off: less than 0.0015 mm.

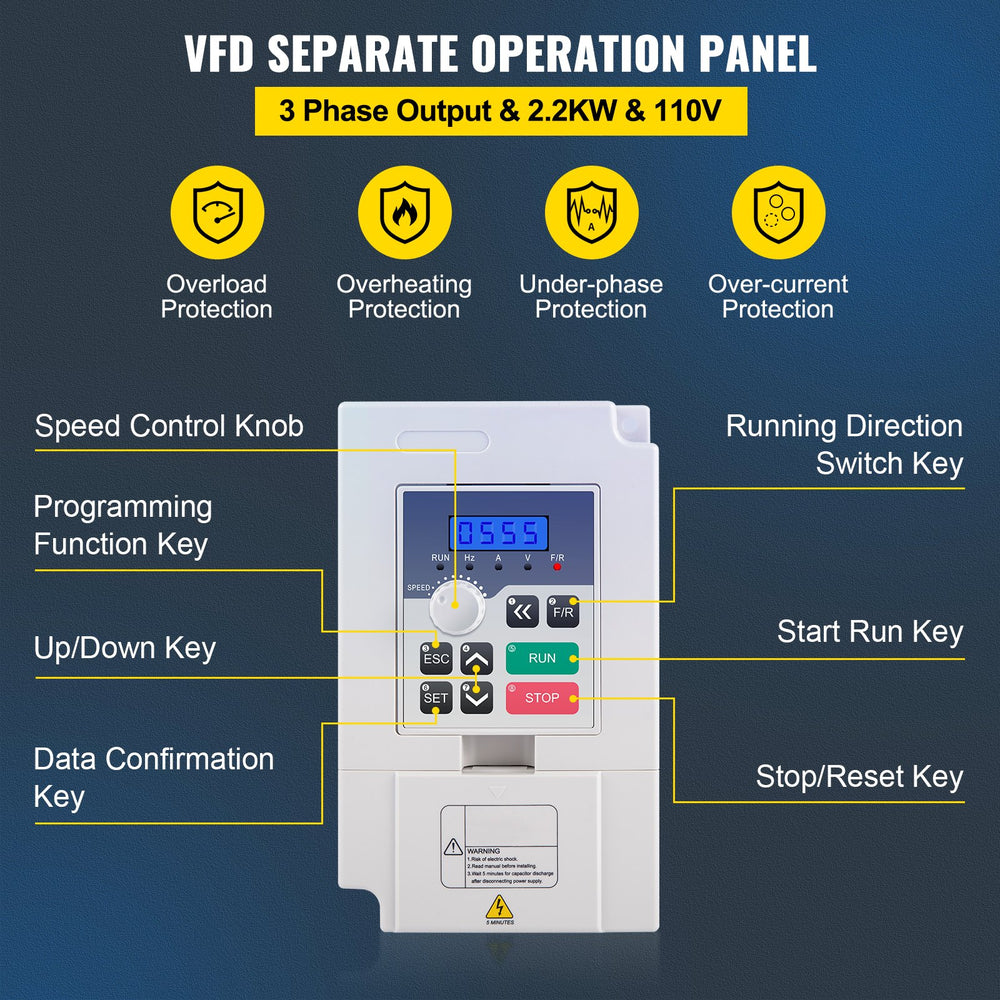

- 2.2KW 110V Inverter VFD: Great match with the water cooled spindle motor. Power: 2.2 KW; Input Voltage: 110V; Output Voltage: 110V; Input Phase: 1 phase; Output Phase: 3 phase; Input Frequency: 50 Hz; Output Frequency: 0-400 Hz; Output Current: 25A.

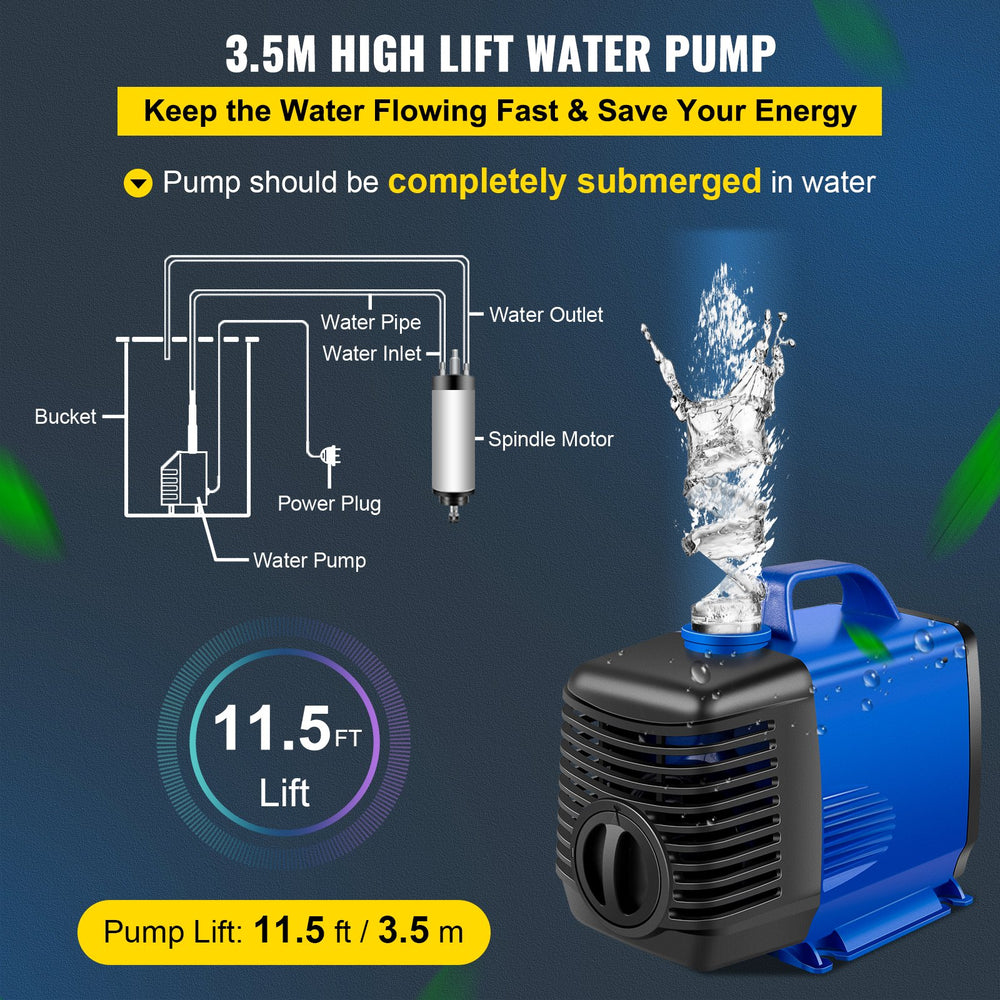

- Energy-efficient Water Pump: The submersible pump of this CNC spindle can achieve a high head of 11.5 ft. and a flow rate of 3500 L/H. It is equipped with a durable shell made of ASB plastic material. Four powerful rubber suction cups can absorb shock and prevent fall off.

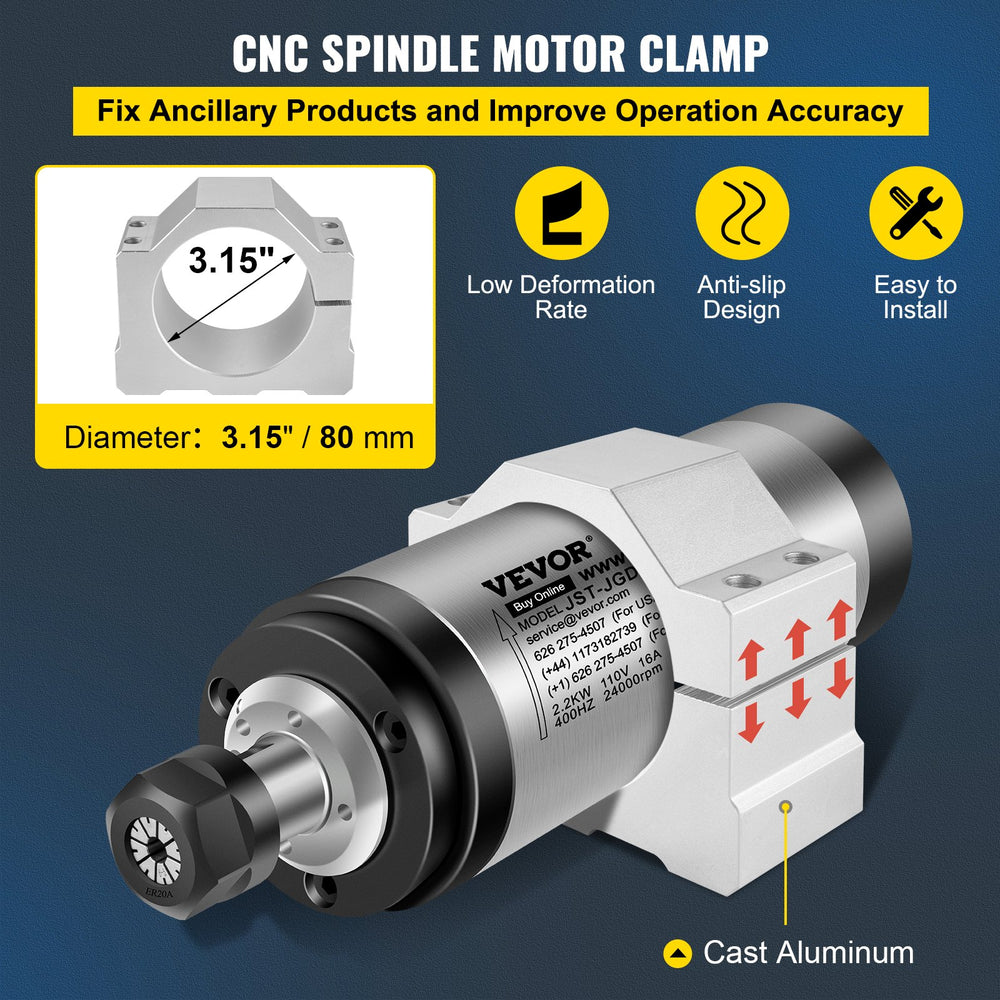

- Aluminum Spindle Clamp: The clamp of the CNC spindle motor kit is constructed of high-quality cast aluminum for sturdiness and durability. And the well-finished surface is designed to provide a better smoothness. It is high-efficiency for you to fasten the spindle.
- Complete Accessories: With ER20 collets, milling drill bits, aviation plugs, the extension cord, and the connecting wire, this water cooled spindle 110V is widely applicable to engraving machines, lathes, mills, car hoists, pumps, conveyors, and many more.
Specifications
| Power | 2.2 kW |
| Voltage | 110V |
| Frequency | 400 Hz |
| Speed | 0-24000 RPM |
| Runout | Less than 0.0015 mm |
| Output Phase | 3 Phase |
| Pump Lift | 11.5 ft. |
| Spindle Motor Dimension | 3.1" x 11.4" |
| VFD Dimensions | 3.5" x 4.6" x 5.9" |
| Spindle Clamp Dia. | 3.1" |
| Weight | 11 lbs / 5 kg |

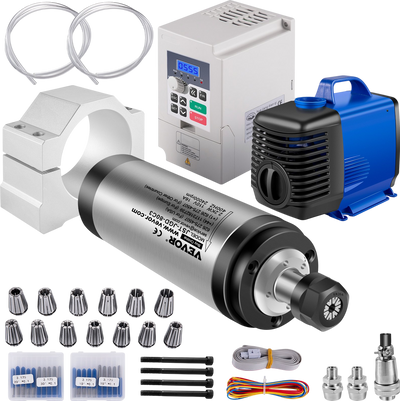

Package Contents
Vevor Water Cooled Spindle Motor
Variable Frequency Drive
Water Pump
Spindle Clamp
Set of Accessories
User Manual
Warranty
This item comes with a 1 year factory warranty.
