Product Overview

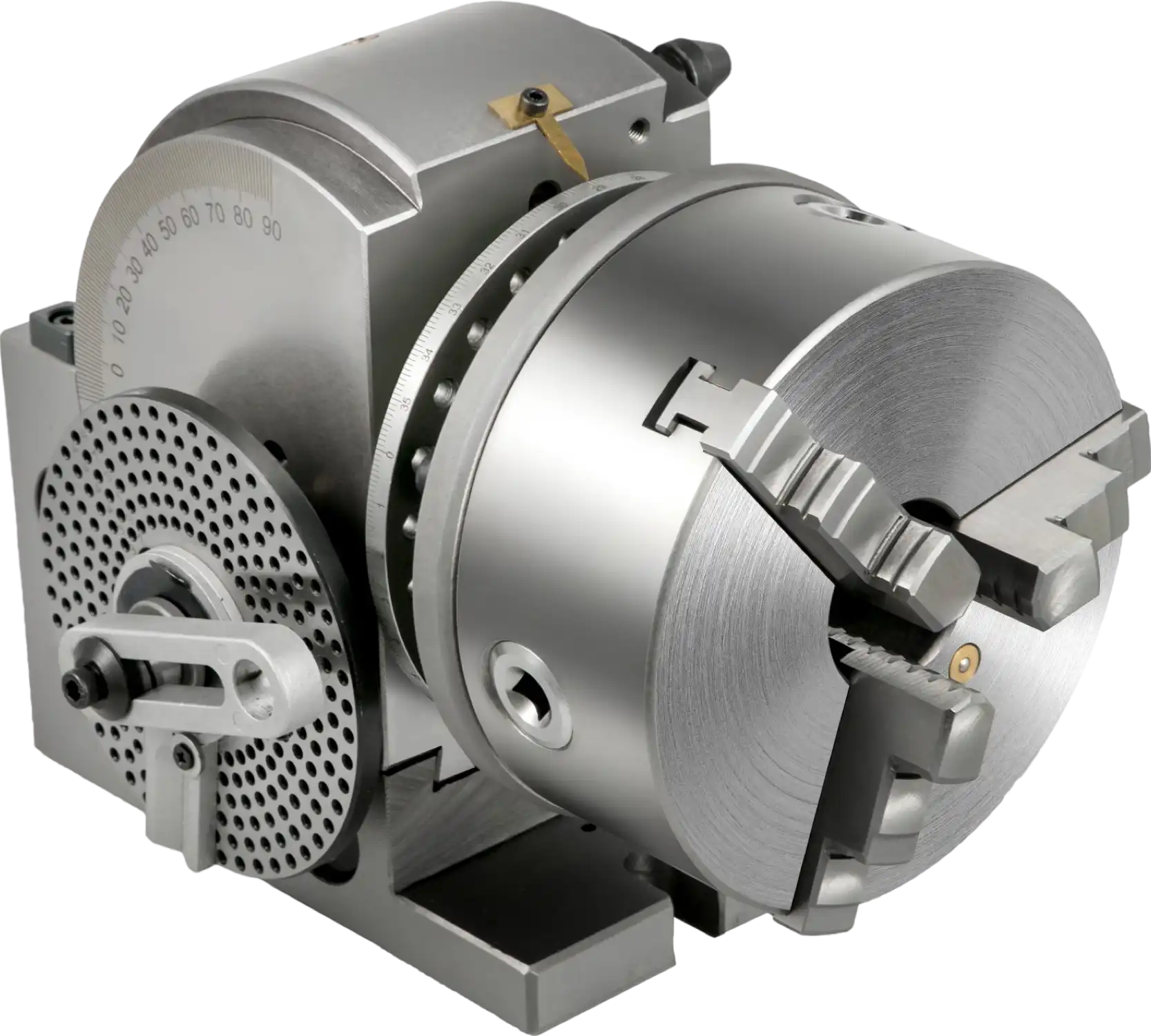

Vevor's semi-universal dividing head set includes a 6-inch 3-jaw chuck, tailstock, and dividing plates. Suitable for vertical and horizontal milling, it is adjustable from 0-90°. Designed with a rotary table and indexing chuck for convenient operation. The rotary indexer comes with 3 dividing plates of different sizes. The tool has easy indexing of divisions from 2 to 50, with most numbers up to 380.

vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA & TX

checkmark

Authorized Vevor dealer

Features

  • Adjustable Angle: The semi-universal dividing head features a 6" 3-jaw chuck, Spindle Speed: 2500 RPM. The headstock is adjustable from the horizontal position to 90° upward. Swing: 6-1/2" / 168 mm, Center Height: 5" / 128 mm. Free 3 more jaws for 6" chuck.
  • Solid Construction: This indexing head is made of durable HT200 for a long service life. A rigid frame provides high accuracy with little backlash for a smooth rotation. The reduction ratio is 1:40.
  • Precise & Accurate: Dividing head milling machine with laser engraving scales. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
  • MT3 Tailstock Adjustable: Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. The model of the tailstock is MT3. One extra dead center is included.
  • Rich Dividing Head Set: 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and specific other numbers.

Specifications

Chuck Diameter 6"
Spindle Speed 2500 RPM
Swing 6-1/2"
Center Height 5"
Reduction Ratio 1:40
Tailstock MT3
Headstock Dimensions 4.4" x 7.9" x 11.8"
Tailstock Dimensions 4.5" x 6.6" x 5.2"
Net Weight 77 lbs (35 kg)

Package Contents

Vevor Dividing Head Set

(2) Dividing Plates

(3) 6" Chuck Jaws

Dead Center

Tailstock
