Product Overview

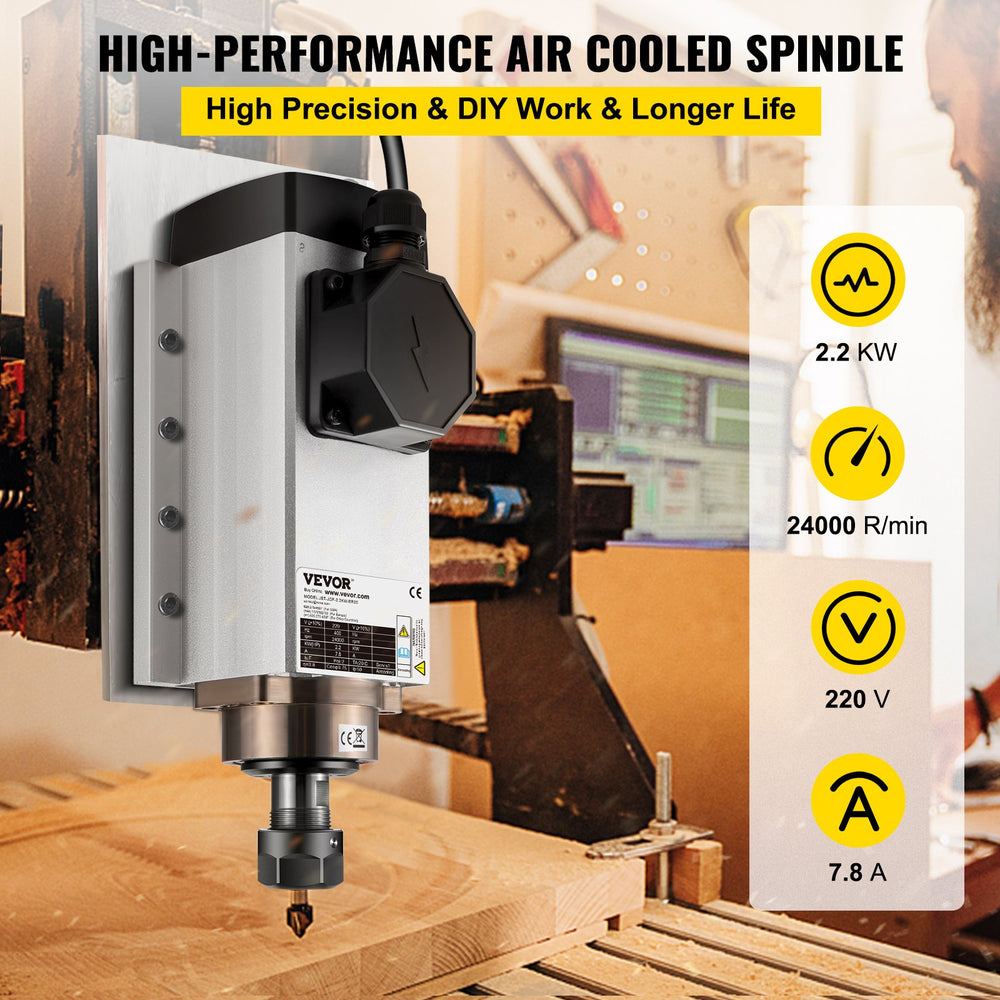

This Vevor CNC router spindle provides robust power of 2.2kW and 24000 RPM speed. It maintains an exceptional runout accuracy of less than 0.002 mm. Upgraded high-quality bearings provide superior durability and anti-rust performance. This air-cooled spindle motor is an excellent choice for daily use, designed to handle various tasks including CNC routing, engraving, and milling. Widely applicable to engraving machines for wood, stone, metal, and other materials.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

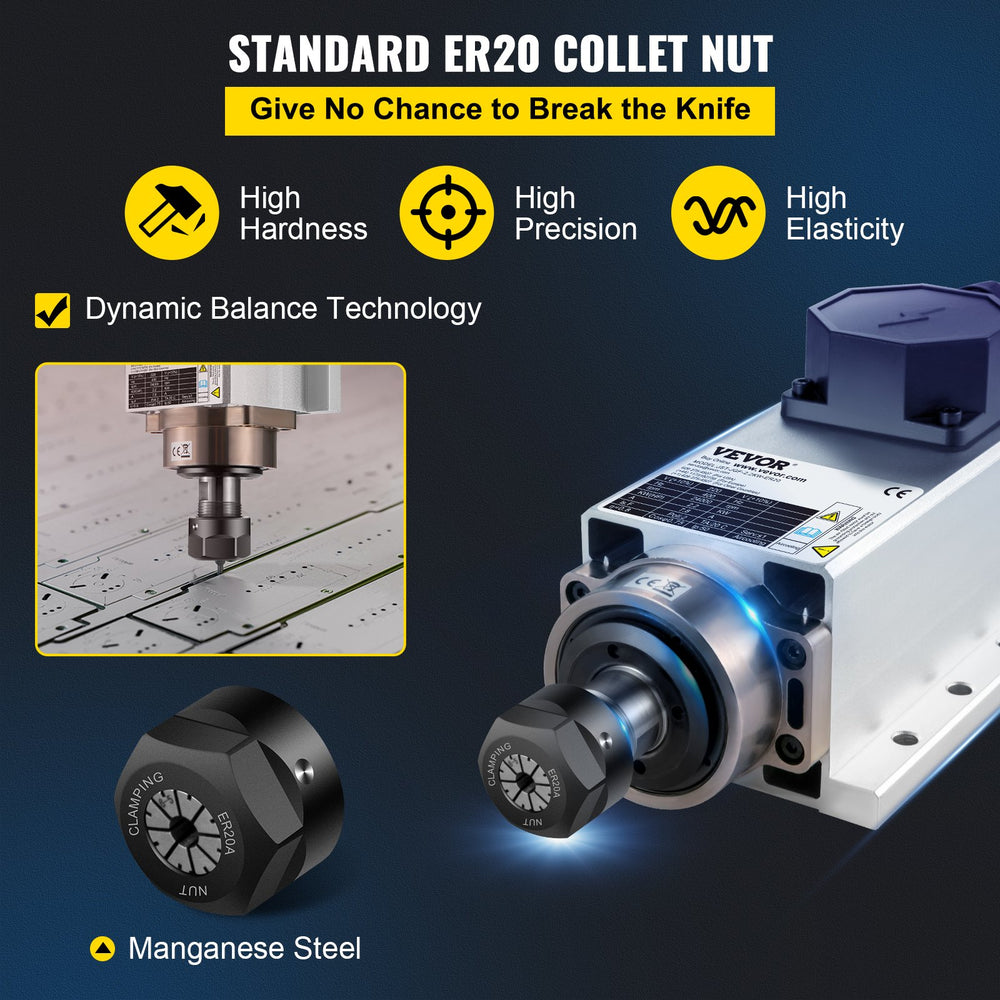

- ER20 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.002 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.

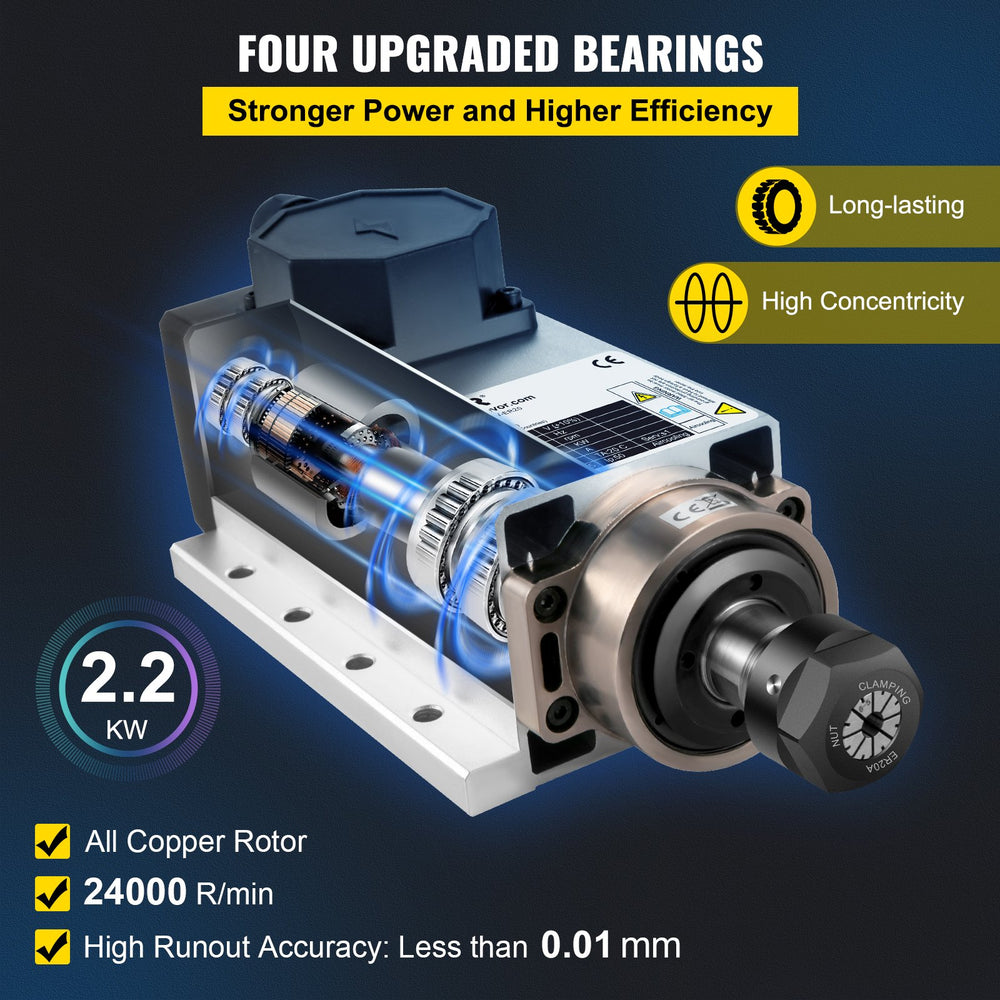

- Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improving the hardness and anti-rust performance.

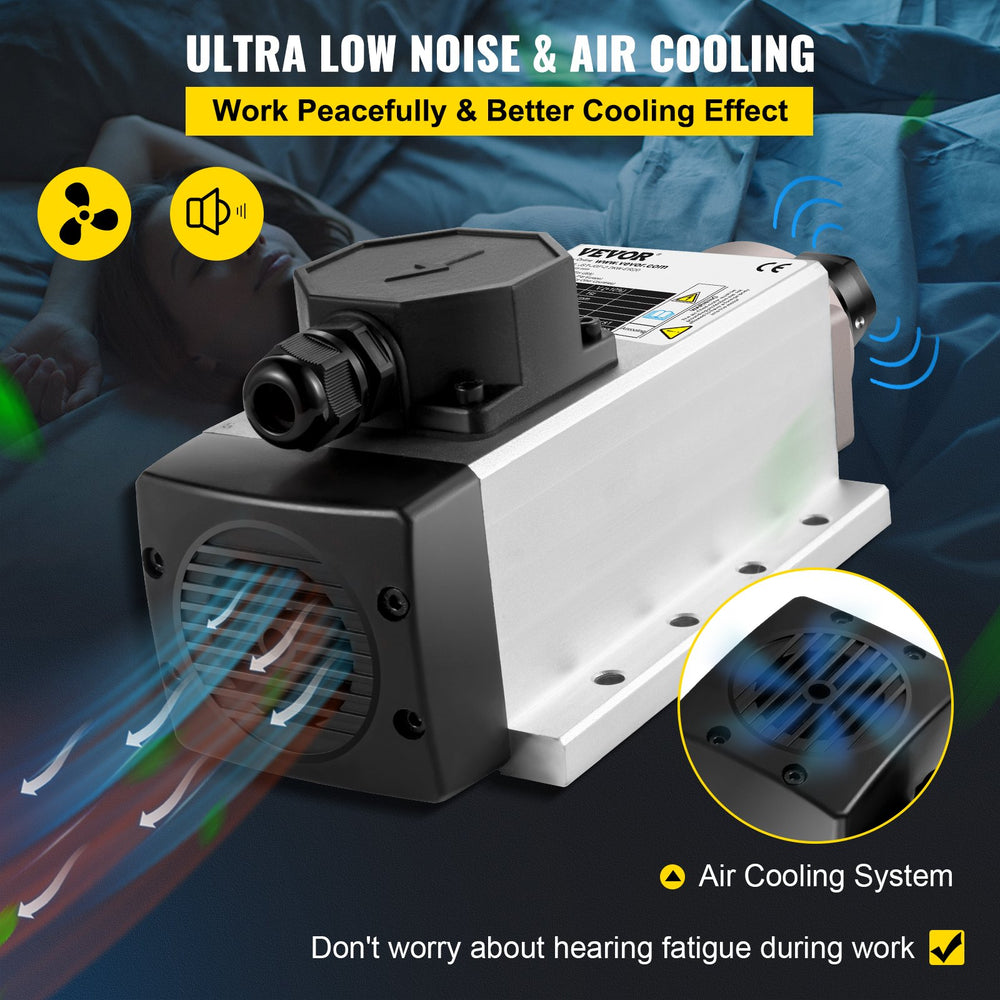

- Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
- Technical Parameters: Mainly used for engraving machine or used with frequency converter. Spec: φ2.4 x 10.3 in (Diameter: 6.2 cm x Length: 26.1 cm); Power: 2.2KW; Voltage: 220V; Current: 7.8A; Collet Size: ER20; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 24000 R/min; Runout off: less than 0.002 mm.
- Wide Application: This CNC spindle motor is versatile to accomplish the tasks of milling, carving, or engraving. Its high-speed performance and precision make it suitable for various materials, a valuable tool for any CNC operation.
Specifications
| Power | 2.2 kW |
| Voltage | 220V |
| Frequency | 400 Hz |
| Speed | 24000 RPM |
| Runout | Less than 0.002 mm |
| Collet Size (Dia.) | 0.005" / 0.02" / 0.24" (0.125 mm / 0.5 mm / 6 mm) |
| Connection of Spindle End | ER20 ø 0.125"-0.5" (3.175 mm-12.7 mm) |
| Bearing Model | 7005 x 2, 7002 x 2 |
| Maximum Torque | 1.2 NM |
| Product Dimensions | 2.4" x 10.3" |
| Weight | 13.2 lbs / 6 kg |

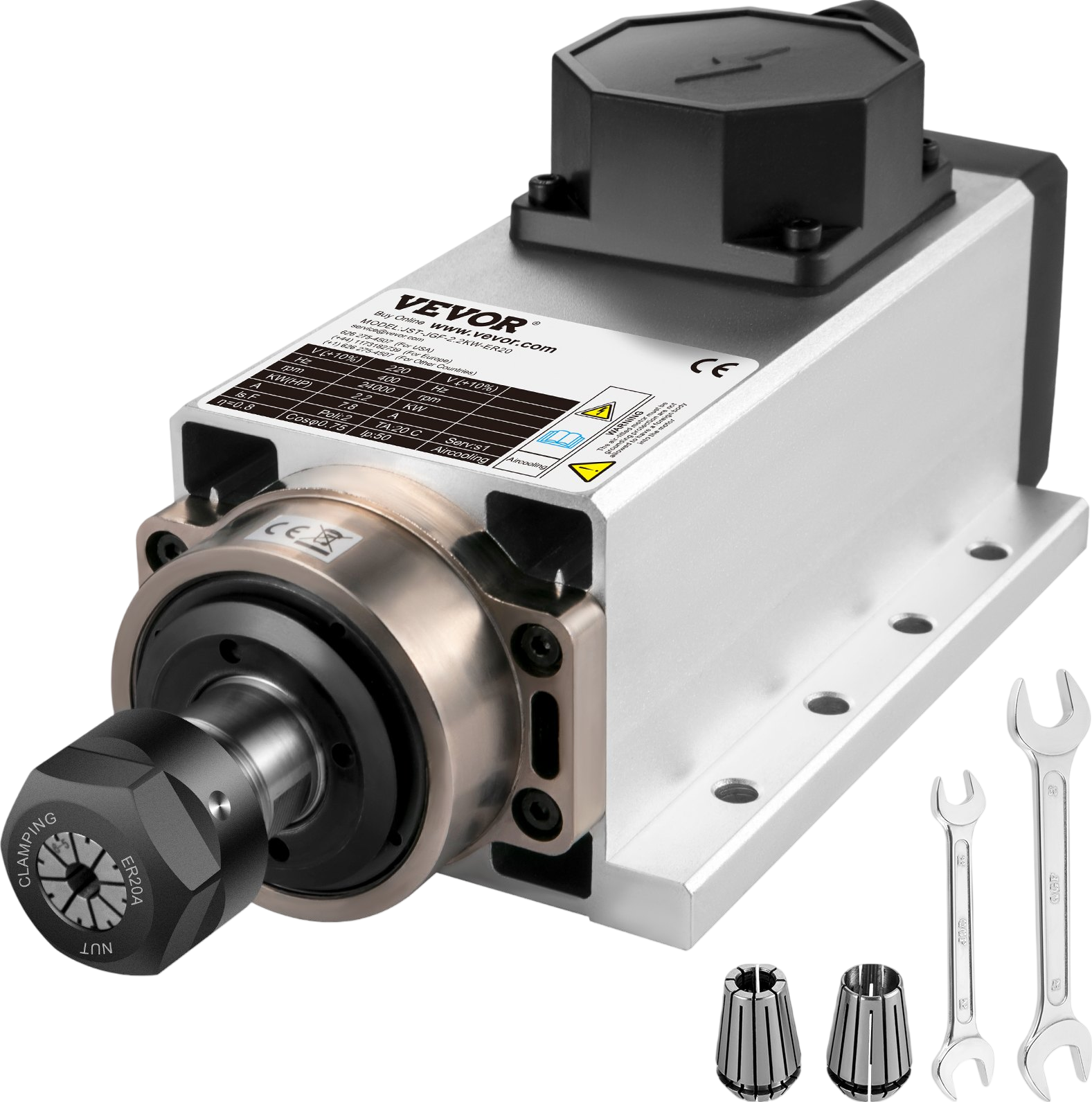

Package Contents
Vevor Air Cooled Spindle Motor 2.2kW
(2) ER20 Collet
(2) Wrench
User Manual
Warranty
This item comes with a 1 year factory warranty.
