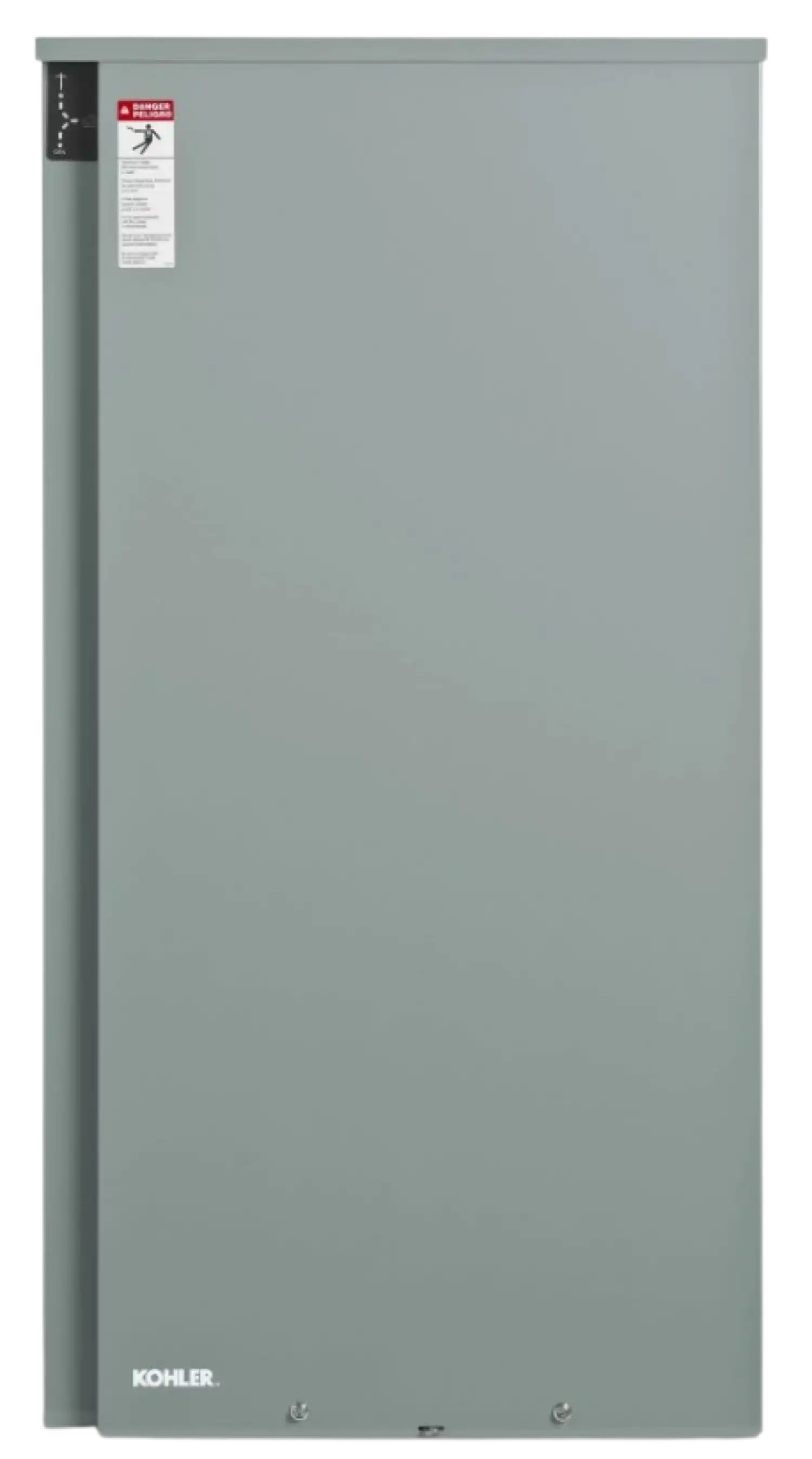

Kohler RXT Series 400A 400 Amp 1ph-120/240V Service Rated Nema 3R Automatic Transfer Switch New
Manufacturer: Kohler
SKU: RXT-JFNC-400ASEQS4
QTY
(888) 999-1522
C
$5,677.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
-

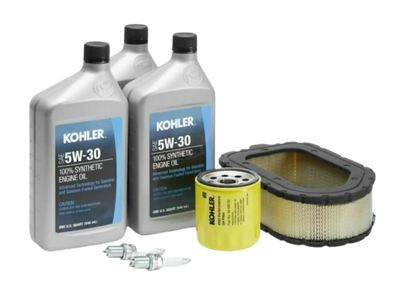

Kohler 17/18/20 kW Maintenance Generator Kit New
-
Kohler OnCue Plus Wireless Radio Kit For RDC2 DC2 and VSC Controllers New
-
Kohler Air Cooled Generator Emergency Stop Kit New
-

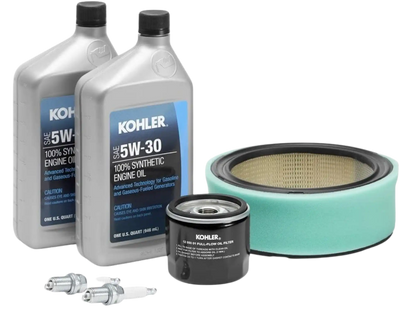

Kohler 10RESV(L) and 12RESV(L) Maintenance Generator Kit New
-
Kohler 12RES, 14RES & 14RCA/RCAL Maintenance Generator Kit New
-
Kohler 120V (20kW) Cold Weather Package Kit New
-
Kohler 120V, 18/20/26kW, 8/10/12RESV(L) Carburetor Heater New
-
Kohler 110-120V 14/18/20RESA/C(L), 8/10/12RESV(L) Battery Heater New
-
Kohler 120V 6/12/14 kW Carburetor Heater New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 100 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
PSP KTWS-1 RXT Kohler RBUS to 2-Wire Start Converter New

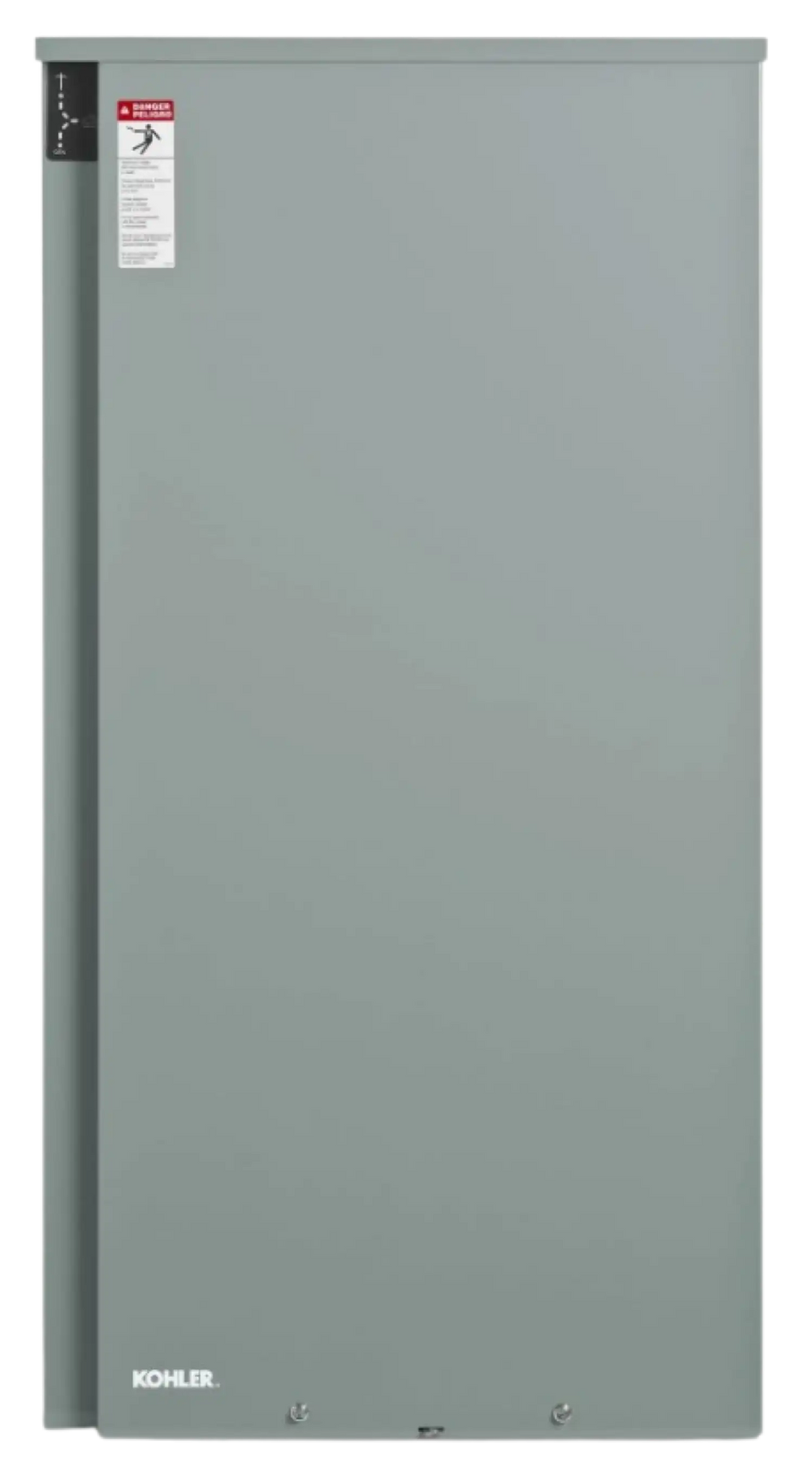

Kohler RXT Series 400A 400 Amp 1ph-120/240V Service Rated Nema 3R Automatic Transfer Switch New
Product Overview
It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.
Brand new in box
Free shipping
Authorized Kohler dealer
Features
- Kohler RXT Series 400-Amp Automatic Transfer Switch
- Only compatible with Kohler generators with RDC2/DC2 controllers
- Service Entrance Rated
- Includes disconnect circuit breakers on both sources
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Combined Interface / Load Management Board
- Built-In Load Shed - Manage (2) HVAC loads
- Manage up to (4) Non-Essential loads
- Added Safety
- Contractor manually operable for maintenance purposes
- Rated at 400-Amps @ 240-Volts
- Requires PRM (Sold Separately)
- 5-Year Limited Warranty
Specifications
| Product Category | Generator Transfer Switches |
| Weight | 101 Pounds |
| Consumer Warranty | 5 Years |
| Product Depth | 12.9 Inches |
| Product Width | 22 Inches |
| Product Height | 42.3 Inches |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 400 Amps |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Service Disconnect |
| ATS Load Prioritizing | Built-In |
| ATS Load Shedding | Built-In |
| ATS Poles | 2 Poles |
| ATS Service Disconnect | Yes |
| Max Utility Input | 400 Amps |
| Max Generator Input | 400 Amps |
| Maximum Wattage | 96000 Watts |
| UL Listed | Yes |
Package Contents
400 Amp Outdoor/Indoor Automatic Transfer Switch (Service Disconnect)
User's manual
Warranty
This item comes with a five year warranty.
