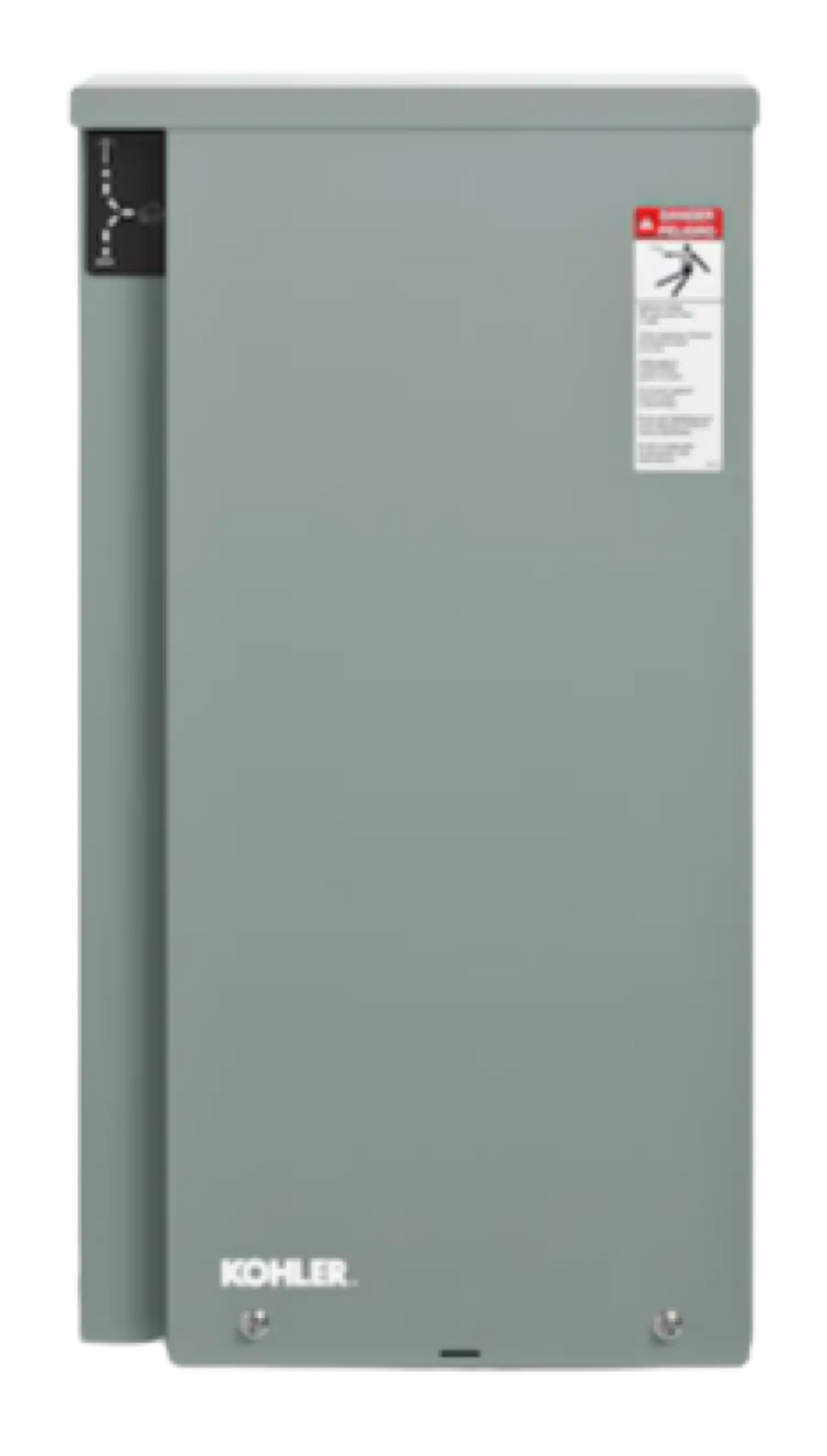

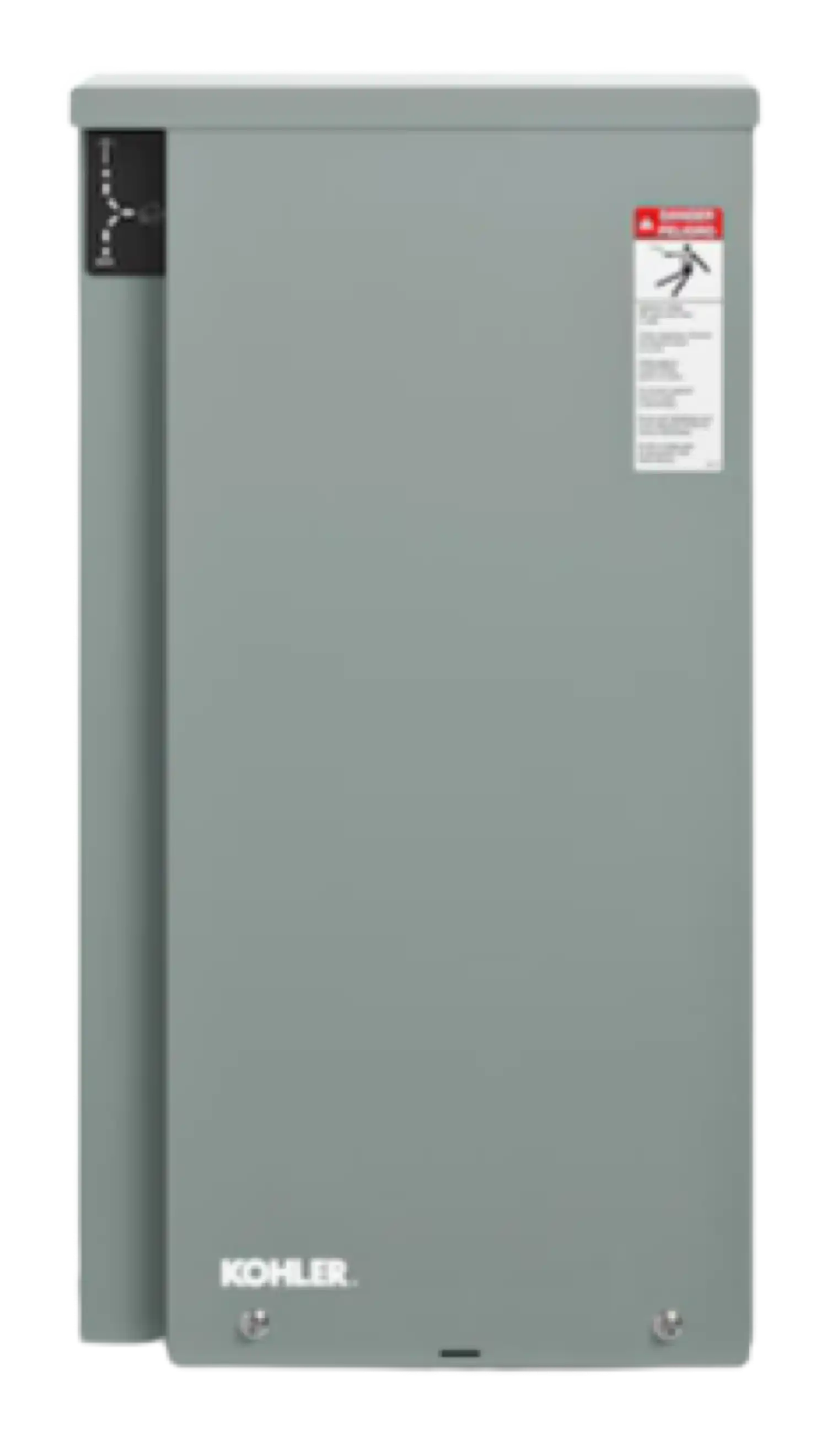

Kohler RXT Series 100 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
Manufacturer: Kohler
SKU: RXT-JFNC-100ASEQS4
QTY
(888) 999-1522
C
$958.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Current special - Add to cart to see lower price
Ships in (est) 3-8 business days
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Kohler RXT Series 100 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
Product Overview
It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.
Brand new in box
Free shipping
Authorized Kohler dealer
Features
- Kohler RXT Series 100-Amp Automatic Transfer Switch
- Only compatible with Kohler generators with RDC2/DC2 controllers
- Service Entrance Rated
- Includes disconnect circuit breakers on both sources
- Corrosion-Resistant NEMA 3R Aluminum Enclosure
- Approved for indoor or outdoor installations
- Switch can be padlocked for additional safety
- Allows utility voltage display on RDC2/DC2 controller
- Interface board for connection to the RDC2/DC2 controller
- Double throw inherently interlocked design
- Combined Interface / Load Management Board
- Built-In Load Shed - Manage (2) HVAC loads
- Manage up to (4) Non-Essential loads
- Contractor manually operable for maintenance purposes
- Rated at 100-Amps @ 240-Volts
- Requires PRM (Sold Separately)
- 5-Year Limited Warranty
Specifications
| Product Category | Generator Transfer Switches |
| Weight | 26 Pounds |
| Consumer Warranty | 5 Years |
| Product Depth | 6.9 Inches |
| Product Width | 16.4 Inches |
| Product Height | 28.9 Inches |
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 100 Amps |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Service Disconnect |
| ATS Load Prioritizing | Built-In |
| ATS Load Shedding | Built-In |
| ATS Poles | 2 Poles |
| ATS Service Disconnect | Yes |
| Max Utility Input | 100 Amps |
| Max Generator Input | 100 Amps |
| Maximum Wattage | 24000 Watts |
| UL Listed | Yes |
Package Contents
100 Amp Outdoor Automatic Transfer Switch (Service Disconnect)
User's manual
Warranty
This item comes with a five year warranty.
