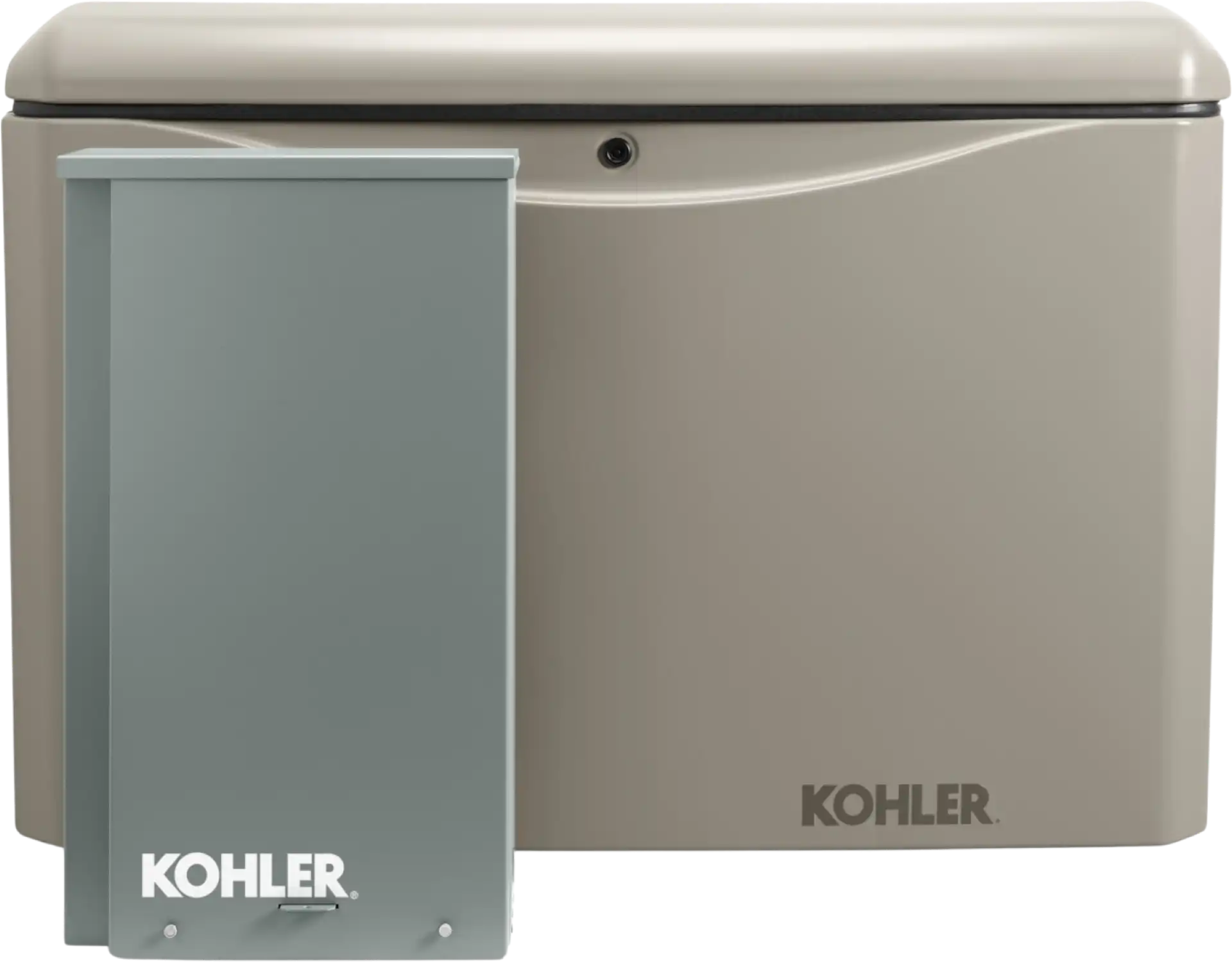

Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and App Connect New
Manufacturer: Kohler
SKU: 26RCAL-200SELS
QTY
(888) 999-1522
C
$10,484.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Current special - Add to cart to see lower price
Ships same or next day
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
-
Kohler Genuine Battery Optimum Duty Series 500CCA Group 51 Wet 12V New
-
Qwikpad Lightweight Pad 180 MPH Wind For 9-26kW Air Cooled Generac / Kohler / Cummins Generators ...
-
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
-
Kohler OnCue Plus Wireless Radio Kit For RDC2 DC2 and VSC Controllers New
-
Kohler Air Cooled Generator Emergency Stop Kit New
-
Kohler Cold Weather Package Kit for 26kW New
-
Kohler Generator Maintenance Kit for 26RCA(L) 5W-30 Synthetic Oil 150 Hour New
-
Kohler Generator Maintenance Kit for 26RCA(L) 10W-50 Synthetic Oil 300 Hour New
-
Kohler 120V, 18/20/26kW, 8/10/12RESV(L) Carburetor Heater New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 100 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 400A 400 Amp 1ph-120/240V Service Rated Nema 3R Automatic Transfer Switch New
-
Micro Air EasyStart Flex Home AC Soft Starter New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and App Connect New
Product Overview
Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 26 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.
KOHLER® generators are designed to provide reliable power and are equipped with a heavy-duty, commercial-grade engine that stands up to harsh weather conditions. With the ability to power a 5-ton (60,000 BTU) air conditioner, major appliances, and electronics in just 10 seconds, these premium generators are backed by a 5-year, 2,000-hour warranty and have won awards, including the MVP Award 2010 by Building Products magazine.
5 year comprehensive warranty
Remote Monitoring
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
- Extraordinary peak motor-starting capacity: 14RCA at 33kVA at 240V, 20RCA at 41kVA at 240V, and 26RCA at 39kVA at 240V
- Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
- Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
- Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.
- Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
- Comes with either an RXT 100-amp indoor-rated automatic transfer switch with 16-circuit load center or an RXT 200-amp outdoor-rated service entrance rated automatic transfer switch with load shed kit
- RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
- Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
- Attractive powder-coated aluminum enclosure designed to handle the elements including hurricane force winds up to 181 mph.
- Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
- Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
Specifications
| Alternator Type | 2-Pole, Rotating Field |
| Fuel Consumption on NG at 50% load? | 180 cfh |
| Fuel Consumption on LP at 50% load? | 85 cfh |
| Controller | RDC2 Controller |
| Cylinder Arrangement | V-2 |
| Dimensions | 1193 mm x 660 mm x 820 mm (47 in. x 26.0 in. x 32.3 in.) |
| Engine Manufacturer/Description | KOHLER |
| Engine Model | CH1006 |
| Engine/Alternator RPM | 3600 |
| Fuel Type | Natural Gas,LPG |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Voltage @ 60 Hz | 120/240 |
| Digital Voltage Regulation | ±1.0% |
| Built in Mounting Pad | Yes |
| Rated kW LP | 26 kW |
| Rated kW NG | 24 kW |
| Amps LP | 109 amps |
| Amps NG | 100 amps |
| Peak Motor Starting kVA @240 V | 39 kVa |
| Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement | 999 cm³ (61 cu. in.) |
| Horsepower | NG 33.0 HP, LP 36.4 HP |
| Enclosure Material | Aluminum |
| Sound Output During Weekly Exercise | 56 dB(A) |
| Sound Output During Full-speed Operation | 67 dB(A) |
| Response Time | 10 seconds |
| Warranty | Premium five-year limited warranty |
| Country of Origin | US |
| Certifications/Listings | EPA,UL 2200,cUL |
| Automatic Transfer Switch Included | Yes |
| Automatic Transfer Switch Amp | 200A |
| Remote Monitoring Available | KOHLER® Energy Management App |
| Off Grid / Utility Backup | Utility Backup |
| Weight | 670 lbs. (304 kg) |
Package Contents
Kohler Standby Generator
User's Manual
Warranty
This item comes with a 5 year comprehensive warranty.
Manuals & Documentation
Customer Reviews
Customer Reviews
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and App Connect New

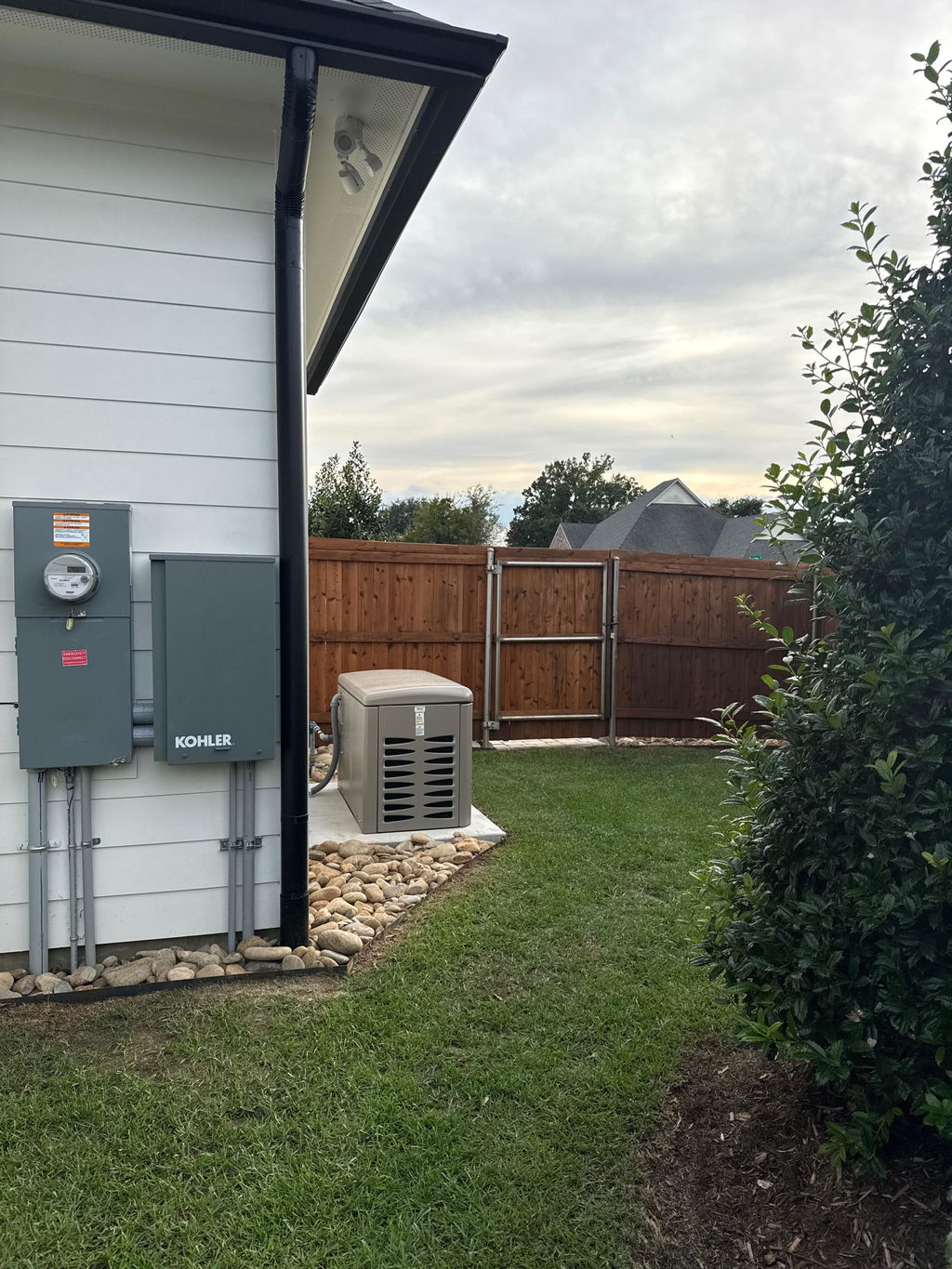

Easy ordering process. Free delivery was a plus. Electrician said it was an easy install. So far we haven’t needed it but we have it on weekly exercise. The only downside is there isn’t a wireless app; from what I understand it has to be wired into the router.
of all of the generators available in this size class this one is the quietest most reliable and most durable. and can be used as a prime power source.
the availability of 12 different color choices as well as camouflage is also very nice
Always super helpful and friendly! Get our generators to us very fast which is always nice!
I did receive new replacement lid that was damaged. I have repeatedly requested Operators manual/installation manual to no avail. I would not order from Factory pure again.
I called to verify the generator was in stock on Tuesday morning. After speaking with someone, I made my order before noon. The unit was delivered to my door on Thursday, within 48 hours! From San Antonio, TX to New Orleans, LA. Just amazing! AND their price was the best I could find.
Lowe’s, Home Depot, just about everywhere else I looked was 2-3 weeks delivery time.
The unit runs like a champ. I truly have peace of mind for my family. If you’re on the fence and have the means, pull the trigger here. You won’t regret it.
