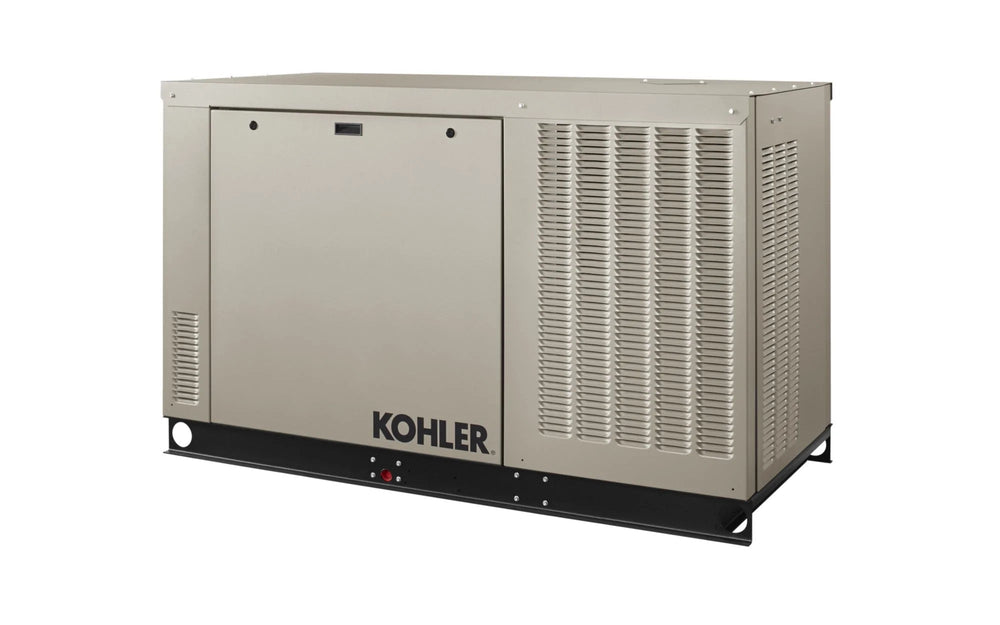

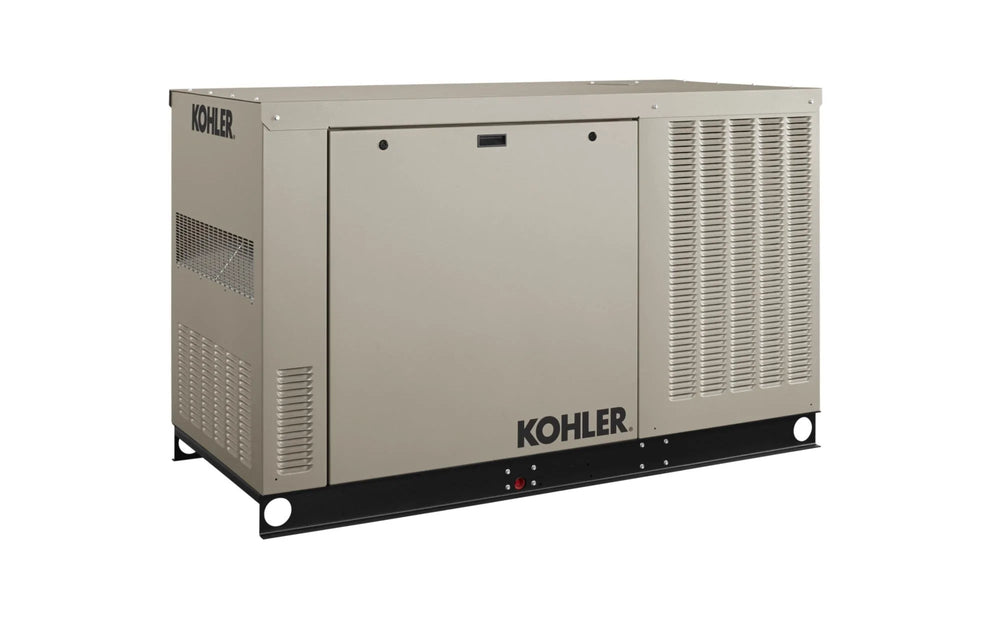

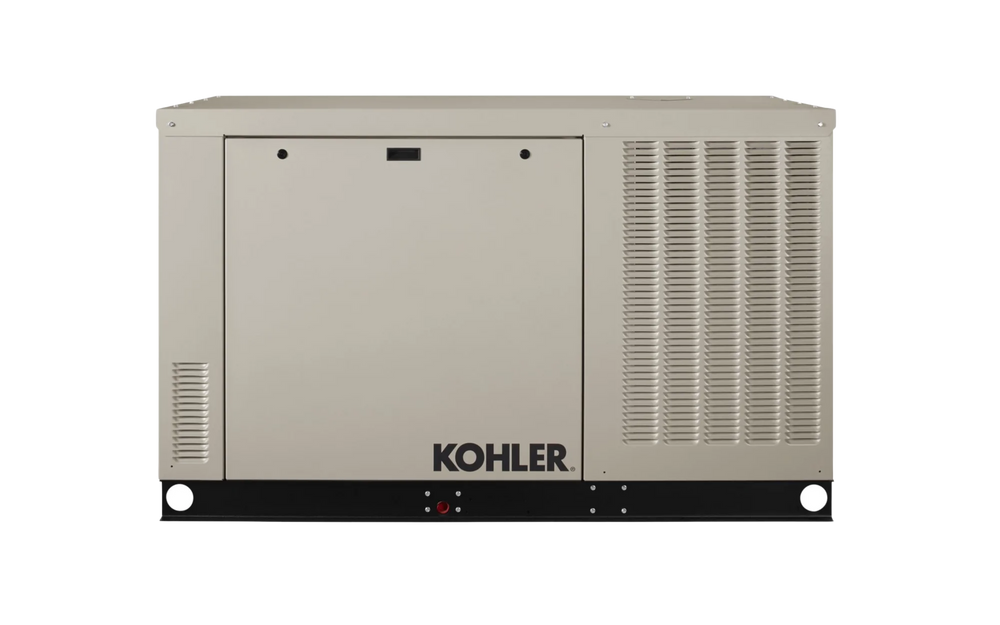

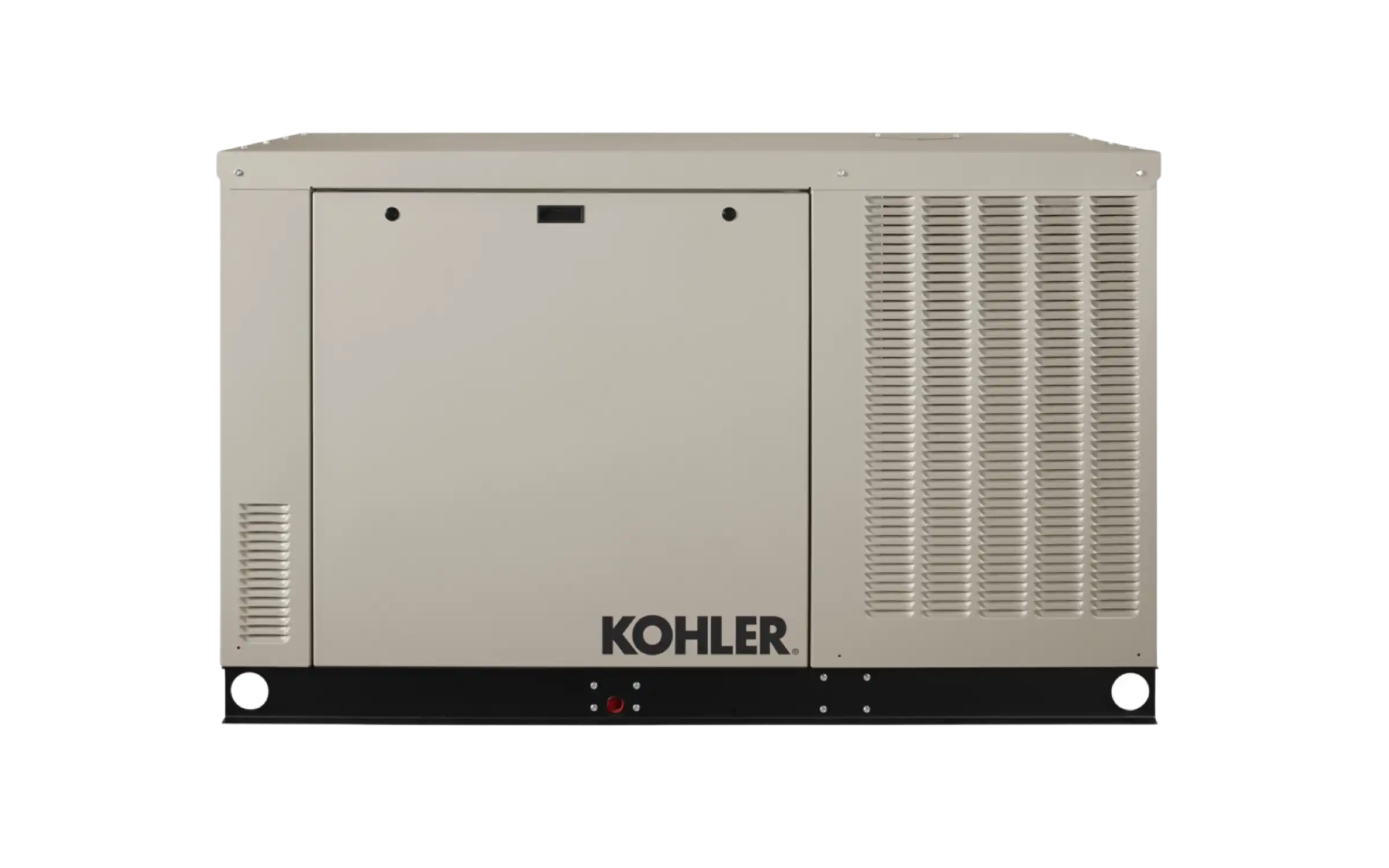

Kohler 24RCLA-QS2 23KW 120/208V 3-Phase Standby Generator with App Connect New
Product Overview
Reliable power for large residential or small business needs. When the power goes out during a bad storm or power failure, your 23 kW KOHLER® generator with industrial-grade engine keeps your home or business – from central air to sump pump to personal computers – up and running.
5 year comprehensive warranty
Remote Monitoring
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- 23kW (LPG) / 21kW (NG) Liquid-Cooled Standby Generator
- Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.
- For commercial buildings with 120/208V 3-Phase service
- Premium 5-Year / 2000 Hour Limited Warranty
- Backed by Kohler's extraordinary reliability & performance
- Brushless-Alternator For High Quality, Cleaner Generator Power
- Advanced voltage / Hz regulation prevents unstable power
- Protects sophisticated electronics with ultra-low distortion (THD)
- RDC2 Digital Controller - Controls Generator & RXT Transfer Switch
- Provides advanced control, system monitoring & diagnostics
- Electronic speed control and digital voltage regulation (DVR)
- Built-in 2.5 amp battery charger
- 2-Line Backlit LCD Digital Display
- Easy to read local data access in all lighting conditions
- Programmable exerciser for weekly or bi-weekly self-testing
- 2.2L Liquid-Cooled Engine (1800 RPM)
- Runs on clean burning Natural Gas or LP fuel
- Simple field conversion while maintaining emission certification
- Sound-Attenuating Aluminum Enclosure
- Fade, scratch, & corrosion-resistant powder-baked finish
- Meets 181 MPH wind load rating
- "Quieter" Cooling System
- Electronic fan, internal silencer & acoustic insulation
- Keeps dB under 61 @ 7M (23') during normal operation
- Meets NFPA 37 4.1.4 Requirements For Reduced Setback
- Can be installed within 18" of structure
- GFCI Service Outlet
- Ideal for powering heater kits or for powering service tools
- Not Compatible For Off-Grid Applications
- Approved for stationary standby applications in locations served by a reliable utility source
- Requires Automatic Transfer Switch (Sold Separately)
- Please Note - Requires Loading Dock, Forklift or Crane For Delivery
Specifications
| Rated Amps | 81 Amps |
| Decibel Rating @ 7m | 53 Test (61 Run) dbA |
| Transfer Switch | Automatic (Not Included) |
| Battery | Not Included (630 CCA) |
| Enclosure | Aluminum |
| Mounting Pad | Concrete (Not Included) |
| Cooling System | Liquid Cooled |
| Grade Type | Emergency |
| Remote Monitoring Available | KOHLER® Energy Management App |
| Engine Brand | Kohler |
| Starting System | 12v Auto Start |
| CC | 2200 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
| NEMA 5-20R - GFCI | 1 |
| Product Category | Generator - Standby |
| Weight | 1260 Pounds |
| Made in USA | Yes |
| Consumer Warranty | 5 Years |
| Commercial Warranty | 5 Years |
| Product Style | Standby Generator |
| Product Length | 74 Inches |
| Product Width | 32.9 Inches |
| Product Height | 45.1 Inches |
| Voltage | 120/208 Three-Phase |
| Frequency | 60 Hertz |
| Alternator | Brushless |
| Rated Watts | 23000 Watts |
| Fuel Type | LP/Natural Gas |
| NG Power Capacity | 21000 Watts |
| LP Power Capacity | 23000 Watts |
| NG Fuel Consumption @ 50% Load | 199 ft³/hr |
| NG Fuel Consumption @ 100% Load | 301 ft³/hr |
| LP Fuel Consumption @ 50% Load | 2.4 gallons/hr |
| LP Fuel Consumption @ 100% Load | 3.2 gallons/hr |
Package Contents
Kohler 24RCLA-QS2 23KW Standby Generator
User's Manual
Warranty
This item comes with a 5 year comprehensive warranty.
