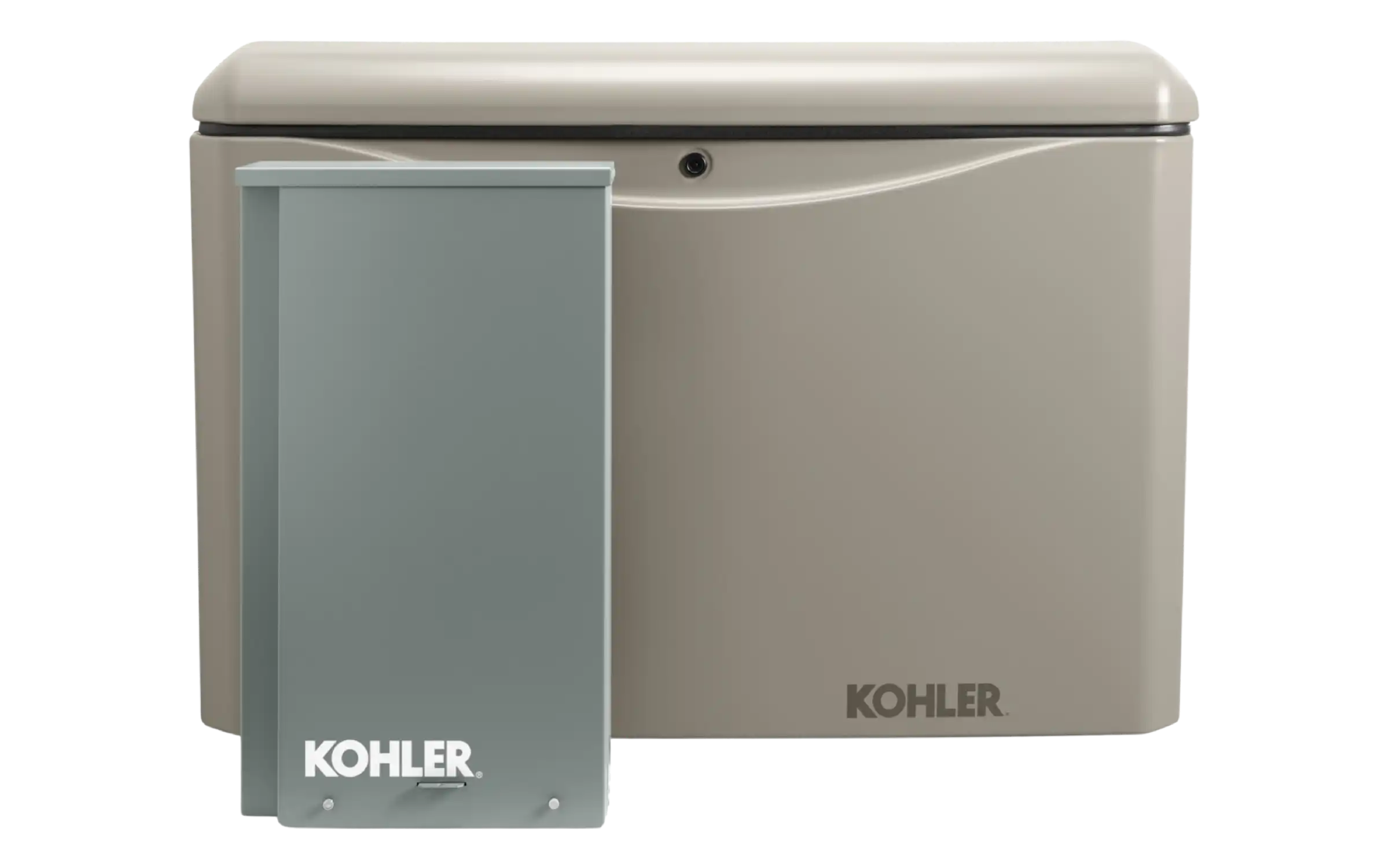

Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Manufacturer: Kohler
SKU: 20RCAL-200SELS
QTY
(888) 999-1522
C
$8,629.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Current special - Add to cart to see lower price
Ships same or next day
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Kohler Genuine Battery Optimum Duty Series 500CCA Group 51 Wet 12V New
-
Qwikpad Lightweight Pad 180 MPH Wind For 9-26kW Air Cooled Generac / Kohler / Cummins Generators ...
-
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
-
Kohler 17/18/20 kW Maintenance Generator Kit New
-
Kohler OnCue Plus Wireless Radio Kit For RDC2 DC2 and VSC Controllers New
-
Kohler Air Cooled Generator Emergency Stop Kit New
-
Kohler 120V (20kW) Cold Weather Package Kit New
-
Kohler 120V, 18/20/26kW, 8/10/12RESV(L) Carburetor Heater New
-
Kohler 110-120V 14/18/20RESA/C(L), 8/10/12RESV(L) Battery Heater New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 100 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 400A 400 Amp 1ph-120/240V Service Rated Nema 3R Automatic Transfer Switch New
-
Micro Air EasyStart Flex Home AC Soft Starter New
-
Kohler Battery Heater Kit 230-240V 50W for 14RES(L), 20RCA(L), 20RESC(L), 26RCA New
Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and App Connect New
Product Overview
Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.
5 year comprehensive warranty.
Includes NEMA 200 Amp Transfer Switch
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
- In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.
- We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.
- KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.
- PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances.
- Extraordinary peak motor-starting capacity: 14RCAL at 33kVA at 240V and 20RCAL at 41kVA at 240V.
- Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics.
- Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators).
- Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.
- Management Systems, and Programmable Interface Module (PIM).
- Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only.

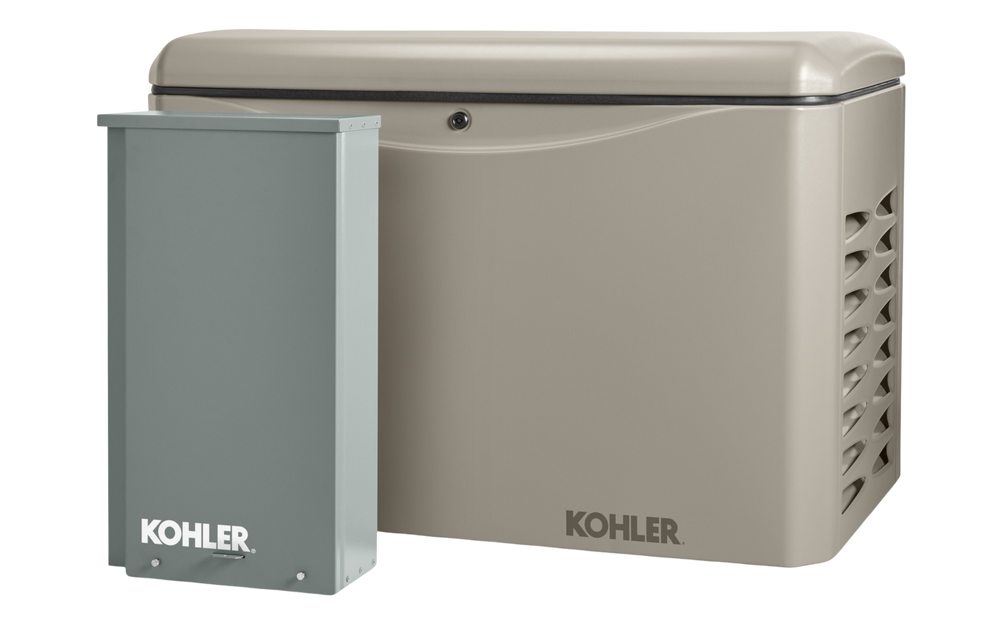

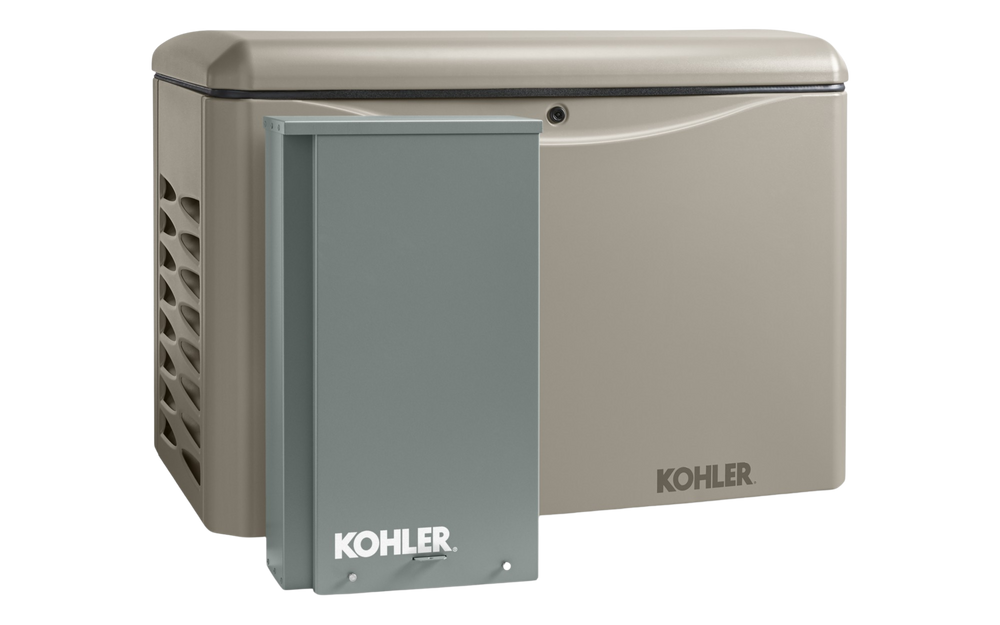

- Comes with an RXT 200-amp outdoor-rated service entrance rated automatic transfer switch with load shed kit.

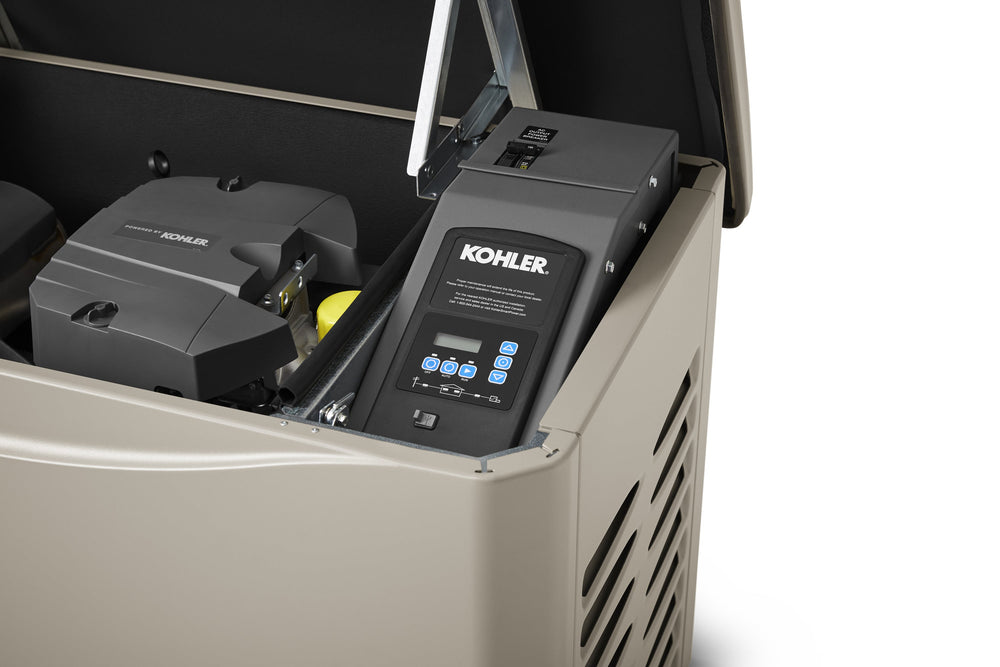

- RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions.
- Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner.
- Stylish corrosion-proof enclosure impact tested to -30°F.
- Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field.
- Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
Specifications
| Fuel Consumption on NG at 50% load | 161 cfh |
| Fuel Consumption on LP at 50% load | 82 cfh |
| Controller | RDC2 Controller |
| Remote Monitoring Available | KOHLER® Energy Management App |
| Cylinder Arrangement | V-2 |
| Dimensions | 1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.) |
| Engine Manufacturer/Description | KOHLER |
| Engine Model | CH1000 |
| Engine/Alternator RPM | 3600 |
| Fuel Type | Natural Gas, LPG |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Voltage @ 60 Hz | 120/240|277/480 |
| Digital Voltage Regulation | ±1.0% |
| Built-in Mounting Pad | Yes |
| Model | 20RCAL |
| Rated kW LP | 20 kW |
| Rated kW NG | 18 kW |
| Amps LP | 83 amps |
| Amps NG | 75 amps |
| Peak Motor Starting kVA @240 V | 41 kVa |
| Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement | 999 cm³ (61 cu. in.) |
| Horsepower | NG 27.1 HP, LP 30.9 HP |
| Enclosure Material | Aluminum |
| Sound Output During Weekly Exercise | 64 dB(A) |
| Sound Output During Full-speed Operation | 69 dB(A) |
| Response Time | 10 seconds |
| Warranty | Premium five-year limited warranty |
| Country of Origin | US |
| Certifications/Listings | cUL, EPA, UL 2200,CSA |
| Automatic Transfer Switch Included | Included |
| Remote Monitoring Available | Included |
| Off Grid / Utility Backup | Utility Backup |
| Weight | 600/611 lbs. (272/277 kg) |
| Alternator Type | 2-Pole, Rotating Field |
Package Contents
Kohler 20RCAL-200SELS 20KW Single Phase with Automatic Transfer Switch
User's Manual
Warranty
This item comes with a 5 year comprehensive warranty.
