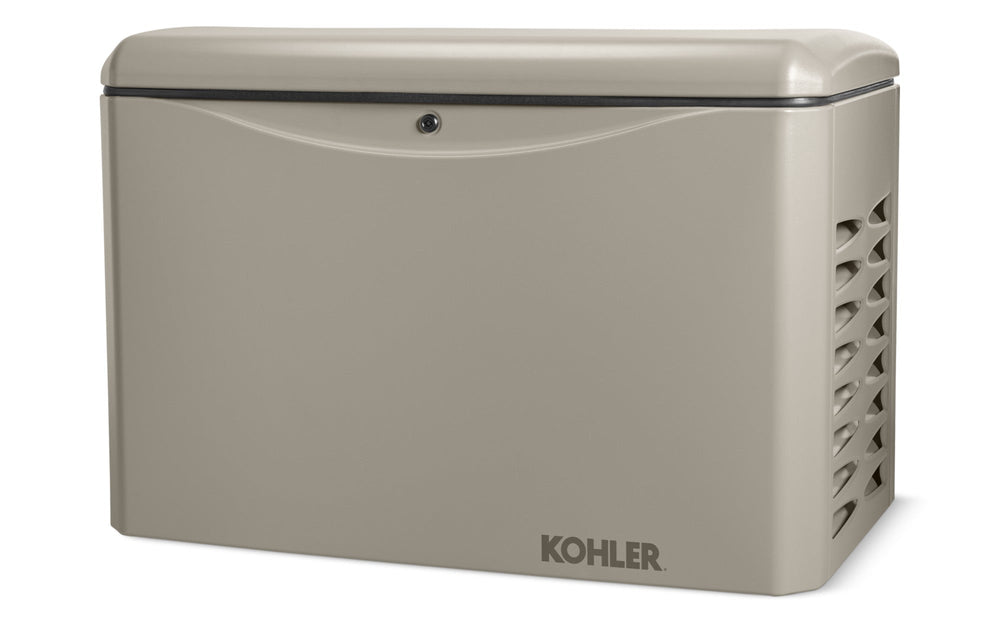

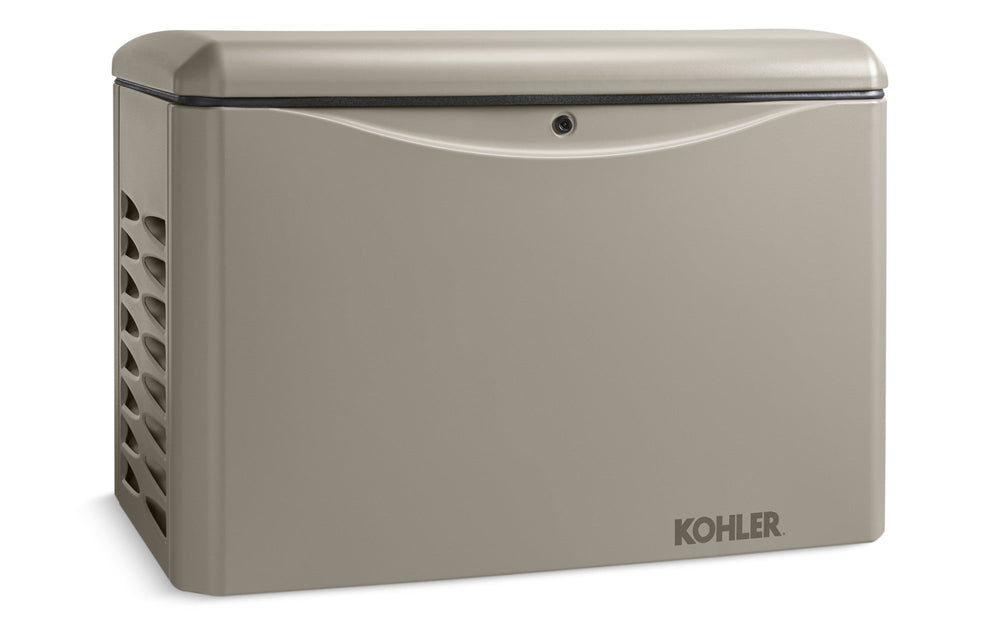

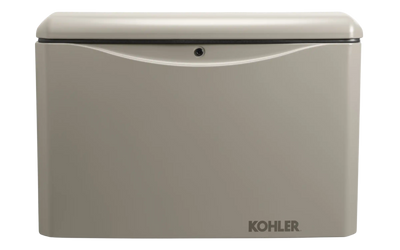

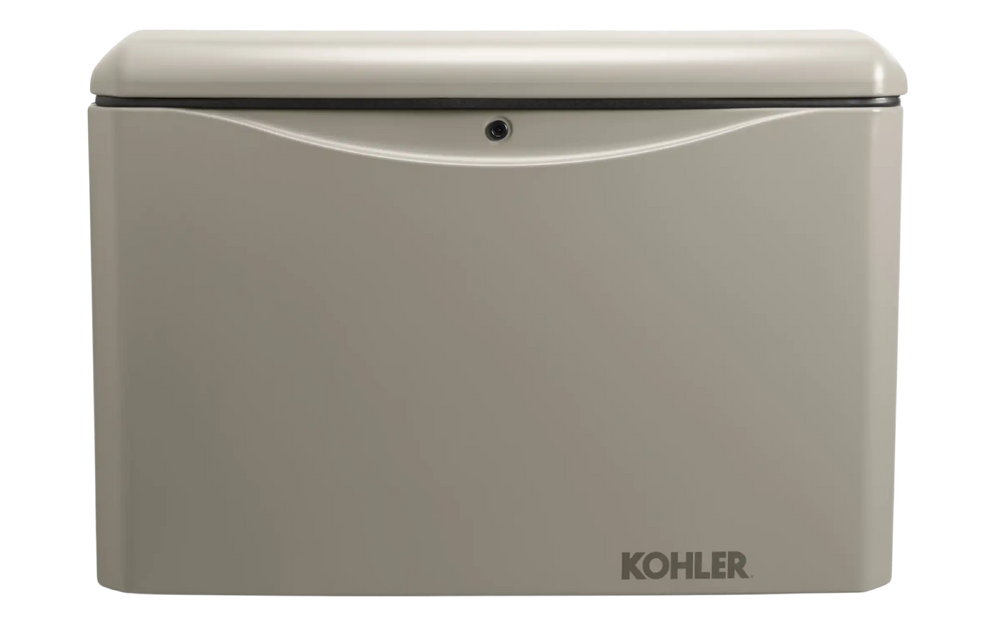

Kohler 20RCA-QS6 20KW Standby Generator with App Connect New
Manufacturer: Kohler
SKU: 20RCA-QS6
Color Options:
Standard

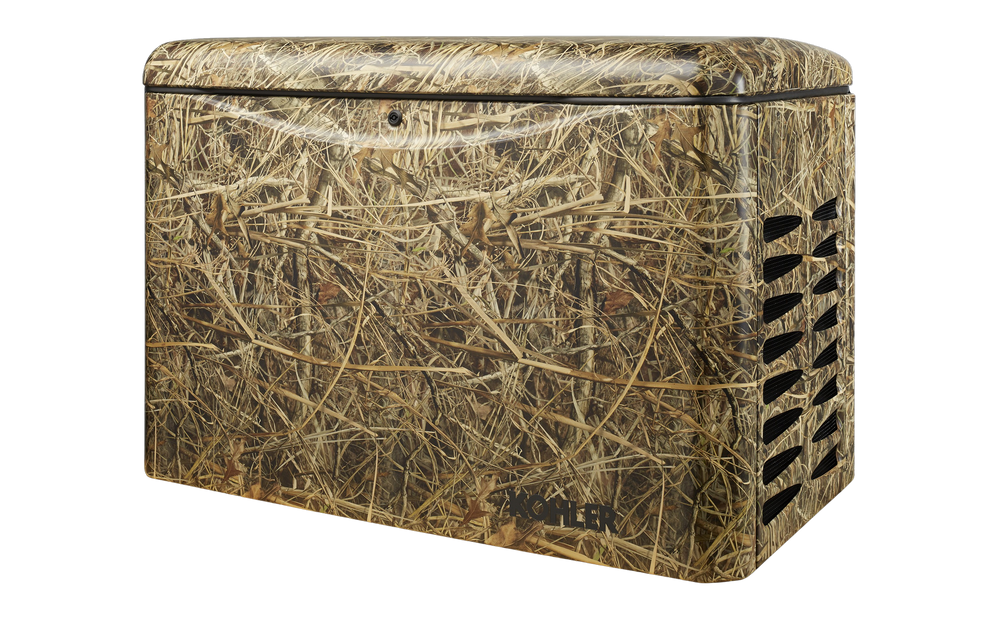

Mossy Oak Shadow Grass

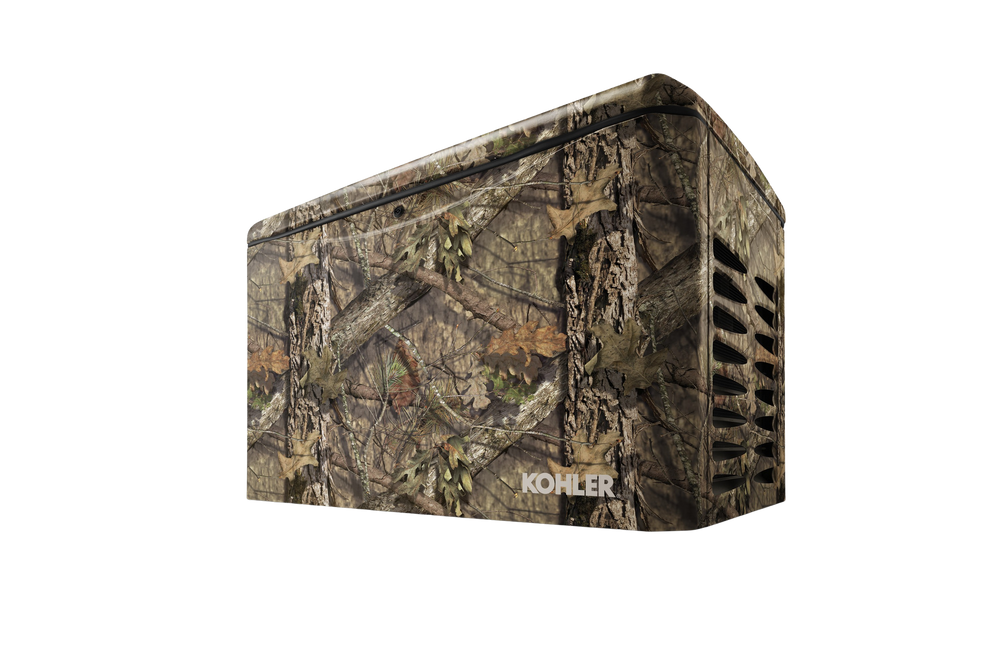

Mossy Oak Break-Up Country

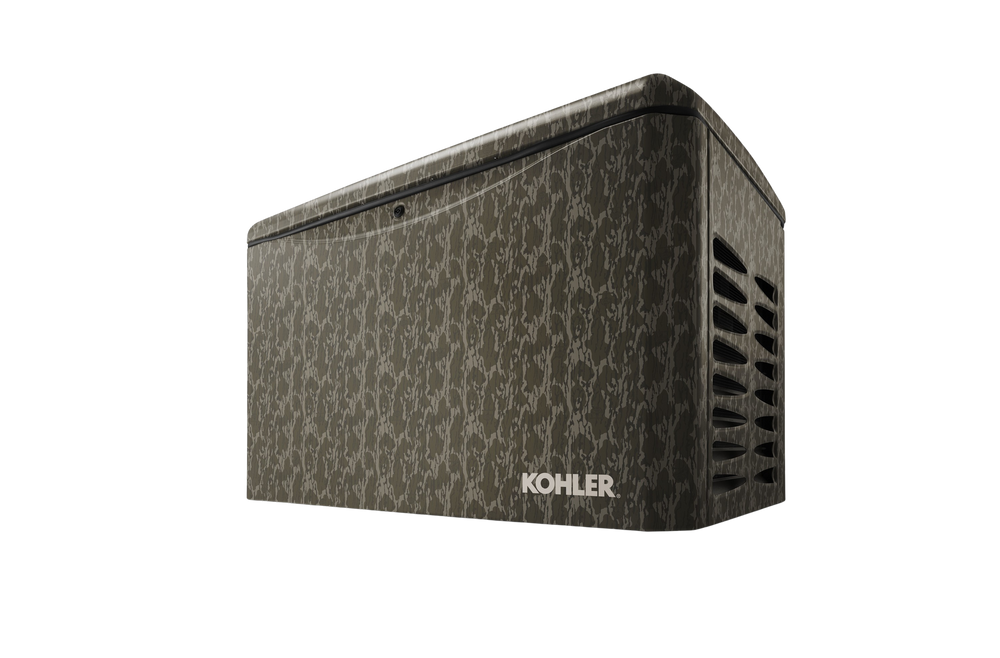

Mossy Oak Bottomland
Pegasus (White)

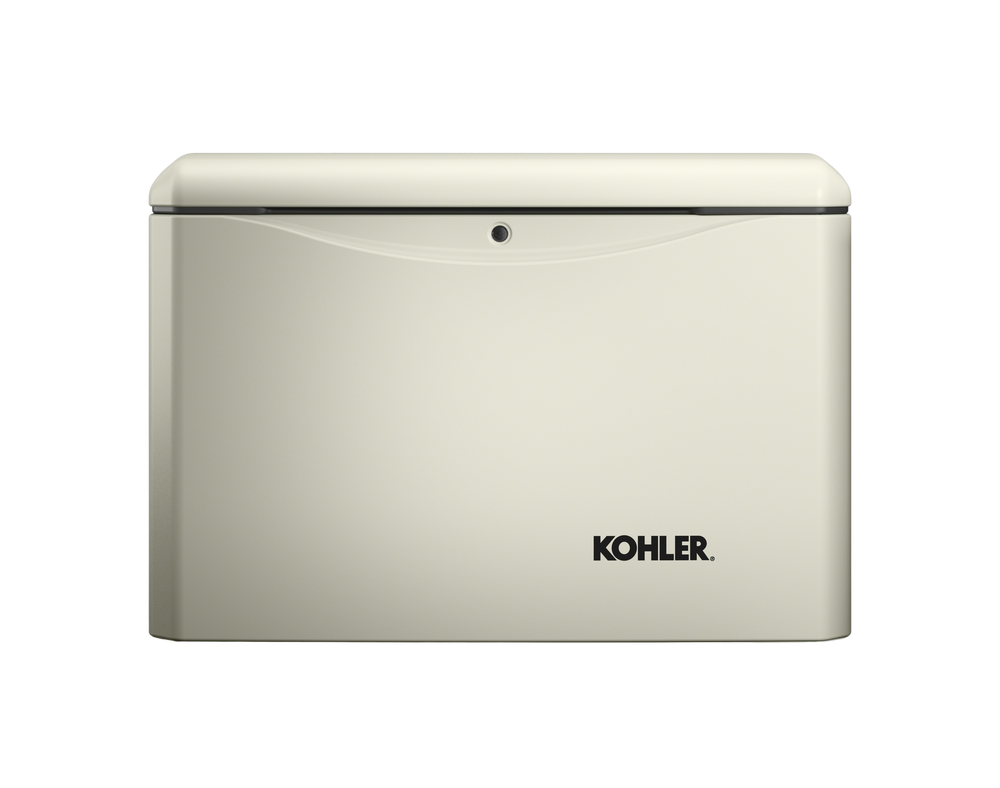

French Gray Linen (Beige)
Dover Gray (Dark Gray)
Pigeon Feather (Light Gray)

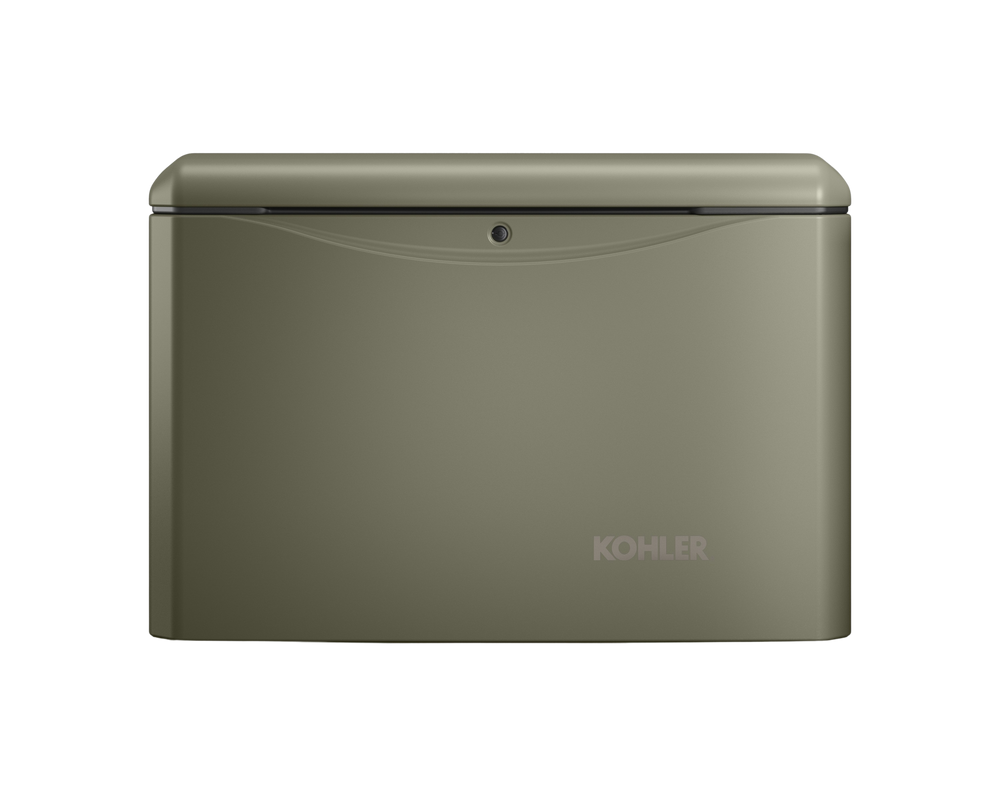

Nevergreen (Brown)
Admiralty (Dark Blue)

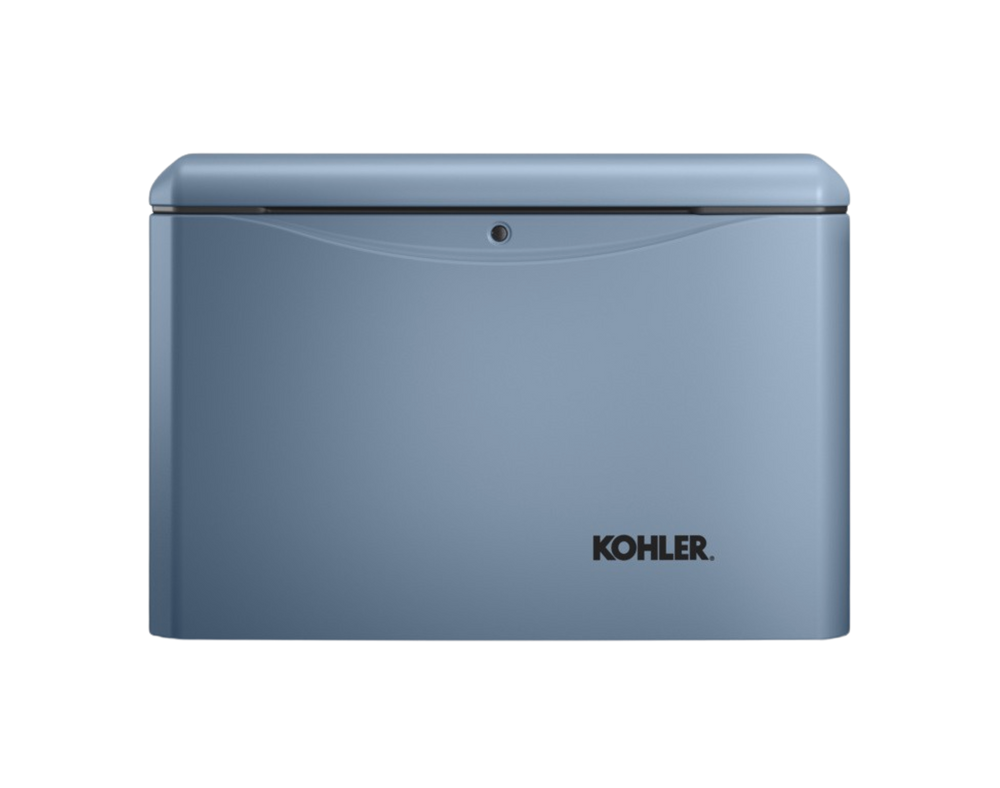

Canyon Blue (Blue-Gray)
Royal Hunter Green (Green)
Brick Dust (Red)

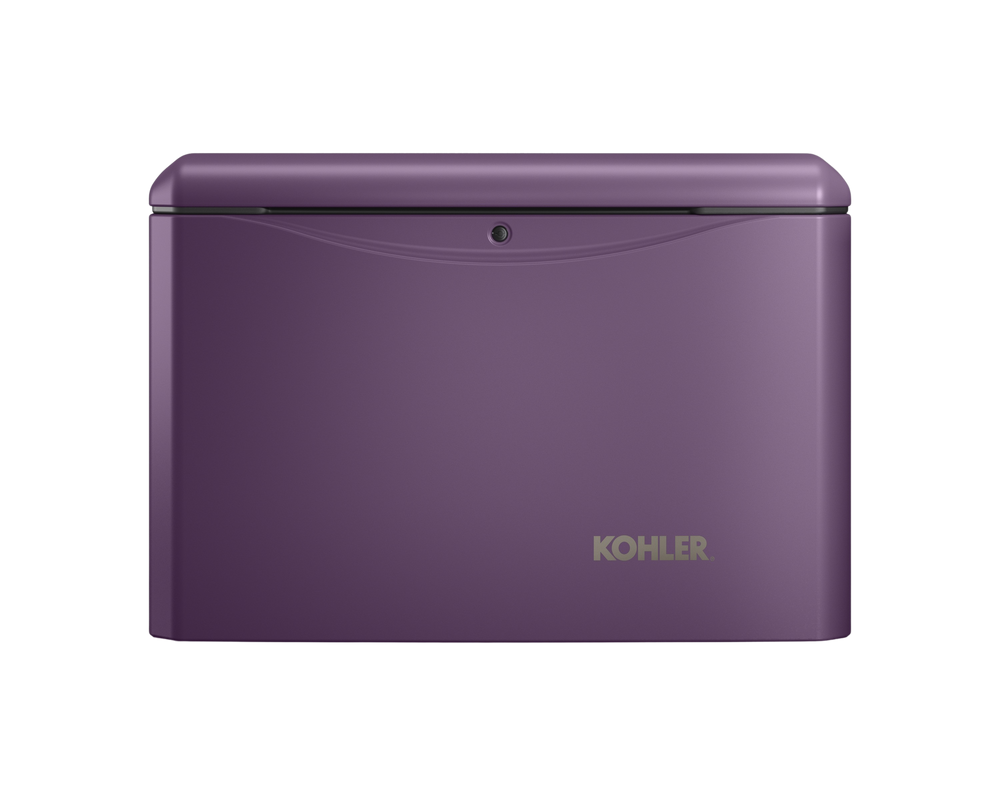

Royal Plum (Purple)
QTY
(888) 999-1522
C
$7,263.00
$7,263.00
Infinity
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Current special - Add to cart to see lower price
Ships same or next day
Similar Products
Customers Also Purchased
-
Kohler Genuine Battery Optimum Duty Series 500CCA Group 51 Wet 12V New
$213.00
-
Qwikpad Lightweight Pad 180 MPH Wind For 9-26kW Air Cooled Generac / Kohler / Cummins Generators ...
$526.00
-
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
$232.00
-
Kohler 17/18/20 kW Maintenance Generator Kit New
$156.00
-
Kohler OnCue Plus Wireless Radio Kit For RDC2 DC2 and VSC Controllers New
$300.00
-
Kohler Air Cooled Generator Emergency Stop Kit New
$127.00
-
Kohler 120V (20kW) Cold Weather Package Kit New
$841.00
-
Kohler 120V, 18/20/26kW, 8/10/12RESV(L) Carburetor Heater New
$270.00
-
Kohler 110-120V 14/18/20RESA/C(L), 8/10/12RESV(L) Battery Heater New
$364.00
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
$1,211.00
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch New
$1,467.00
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
$1,061.00
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
$1,966.00
-
Kohler RXT Series 100 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
$940.00
-
Kohler RXT Series 400A 400 Amp 1ph-120/240V Service Rated Nema 3R Automatic Transfer Switch New
$5,553.00
-
Micro Air EasyStart Flex Home AC Soft Starter New
$490.00
-
Kohler Battery Heater Kit 230-240V 50W for 14RES(L), 20RCA(L), 20RESC(L), 26RCA New
$399.00

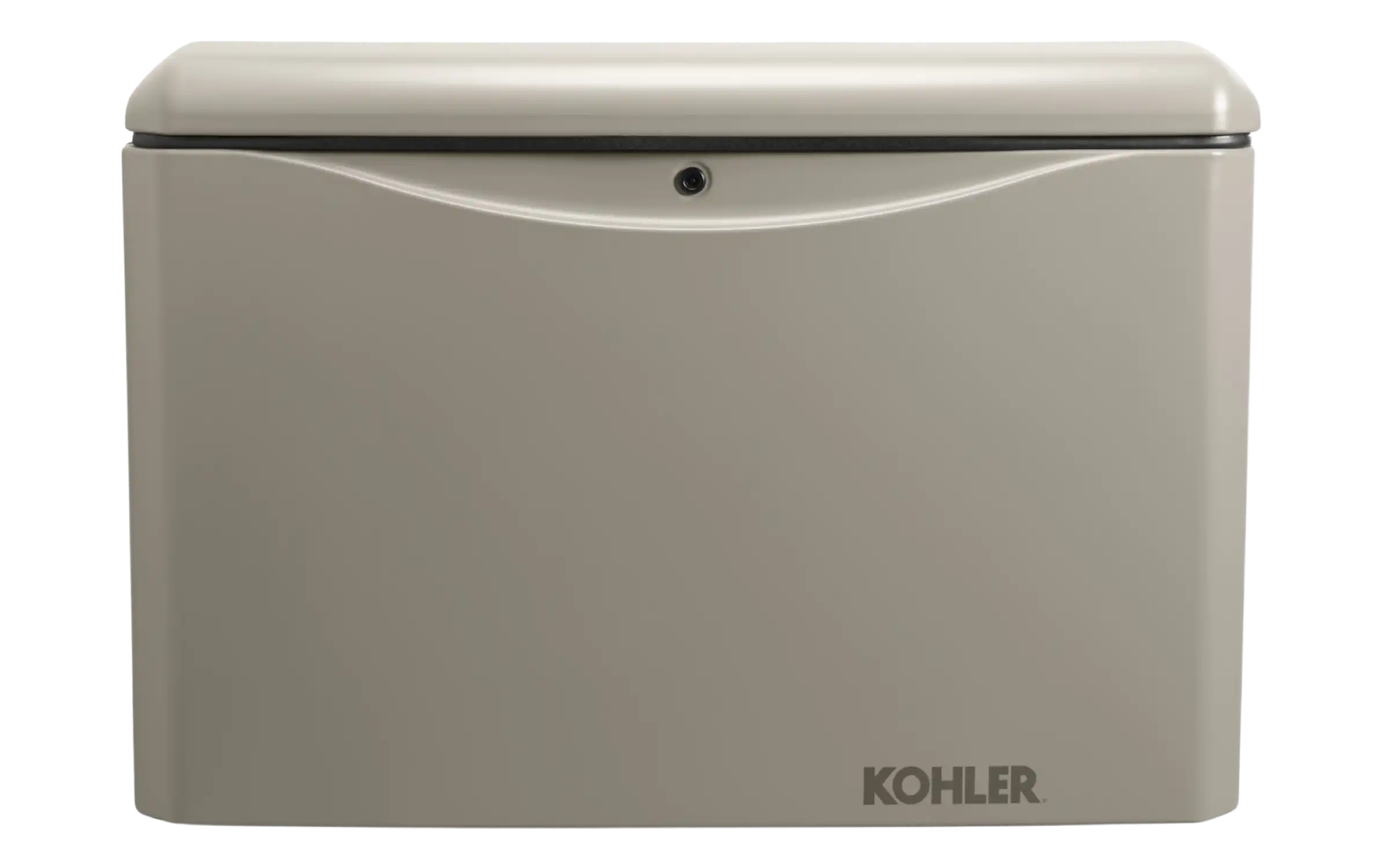

Kohler 20RCA-QS6 20KW Standby Generator with App Connect New
Product Overview
Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 14/20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.
5 year comprehensive warranty
Remote Monitoring
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather
- In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics
- We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last
- KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine
- PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
- Extraordinary peak motor-starting capacity: 14RCA at 33kVA at 240V and 20RCA at 41kVA at 240V
- Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
- Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
- Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
- RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
- Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
- Stylish corrosion-proof enclosure impact tested to -30°F
- Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
- Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
- Get real-time alerts on the status of your generator, thanks to the continuous monitoring done by the KOHLER® Energy Management App.
Specifications
Fuel Consumption on NG at 50% load | 161 cfh |
Fuel Consumption on LP at 50% load | 82 cfh |
Controller | RDC2 Controller |
Cylinder Arrangement | V-2 |
Dimensions | 1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.) |
Engine Manufacturer/Description | KOHLER |
Engine Model | CH1000 |
Engine/Alternator RPM | 3600 |
Fuel Type | Natural Gas, LPG |
Frequency | 60 Hz |
Phase | Single Phase or Three Phase |
Voltage @ 60 Hz | 120/240|277/480 |
Digital Voltage Regulation | ±1.0% |
Built in Mounting Pad | Yes |
Model | 20RCA |
Rated kW LP | 20 kW |
Rated kW NG | 18 kW |
Amps LP | 83 amps |
Amps NG | 75 amps |
Peak Motor Starting kVA @240 V | 41 kVa |
Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
Displacement | 999 cm³ (61 cu. in.) |
Horsepower | NG 27.1 HP, LP 30.9 HP |
Enclosure Material | Aluminum |
Sound Output During Weekly Exercise | 64 dB(A) |
Sound Output During Full-speed Operation | 69 dB(A) |
Response Time | 10 seconds |
Warranty | Premium five-year limited warranty |
Country of Origin | US |
Certifications/Listings | EPA, CSA, cUL, UL 2200 |
Automatic Transfer Switch | Sold Separately |
Remote Monitoring Available | KOHLER® Energy Management App |
Off Grid / Utility Backup | Utility Backup |
Weight | 555 lbs. (252 kg) |
Alternator Type | 2-Pole, Rotating Field |
Package Contents
Kohler 20RCA-QS6 20KW Standby Generator
User's Manual
Warranty
This item comes with a 5 year comprehensive warranty.
Manuals & Documentation
Customer Reviews
I ordered this to replace a 20+ year old Kohler 12kw generator that just wasn't getting it done anymore for us. We needed something bigger with better reliability. I was really surprised at just how much nicer this was than our old one. It just screams quality when you unbox it.
It was super easy to get hooked up since I already had all the connections made. We've only lost power here in the mountains of CO at 9400' twice in the last 9 months and as luck would have it the power went out the day the unit was delivered. I had it uncrated, installed and hooked up within a couple of hours and was able to get us going with power again. This was great for us because my wife and I both work from home. Love it!!!!
