Vevor Twin-Cylinder Air Compressor Pump Head 5.5HP 5.75 CFM @ 90 PSI New
Product Overview

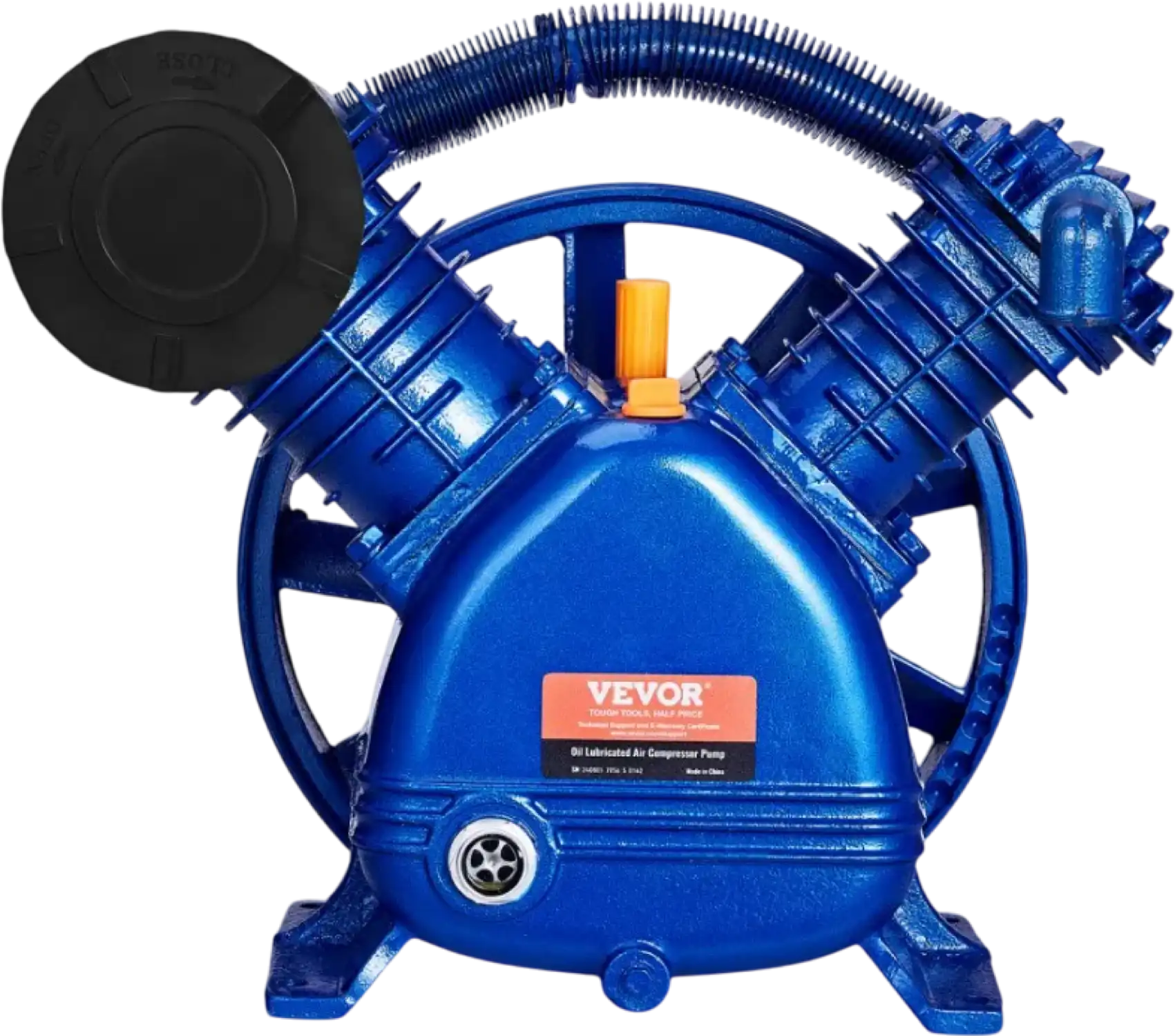

The Vevor 5.5HP twin-cylinder air compressor pump head delivers 5.75 CFM at 90 PSI with a max pressure of 185 PSI. Featuring a durable cast iron build, dual-stage belt-driven design, oil lubrication, efficient heat dissipation, and precision valves, it ensures reliable, continuous compressed air for tire inflation, spray painting, woodworking, and more. Includes an oil observation mirror for easy maintenance. (Motor not included.) Ideal for industrial, automotive, and home workshop use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features

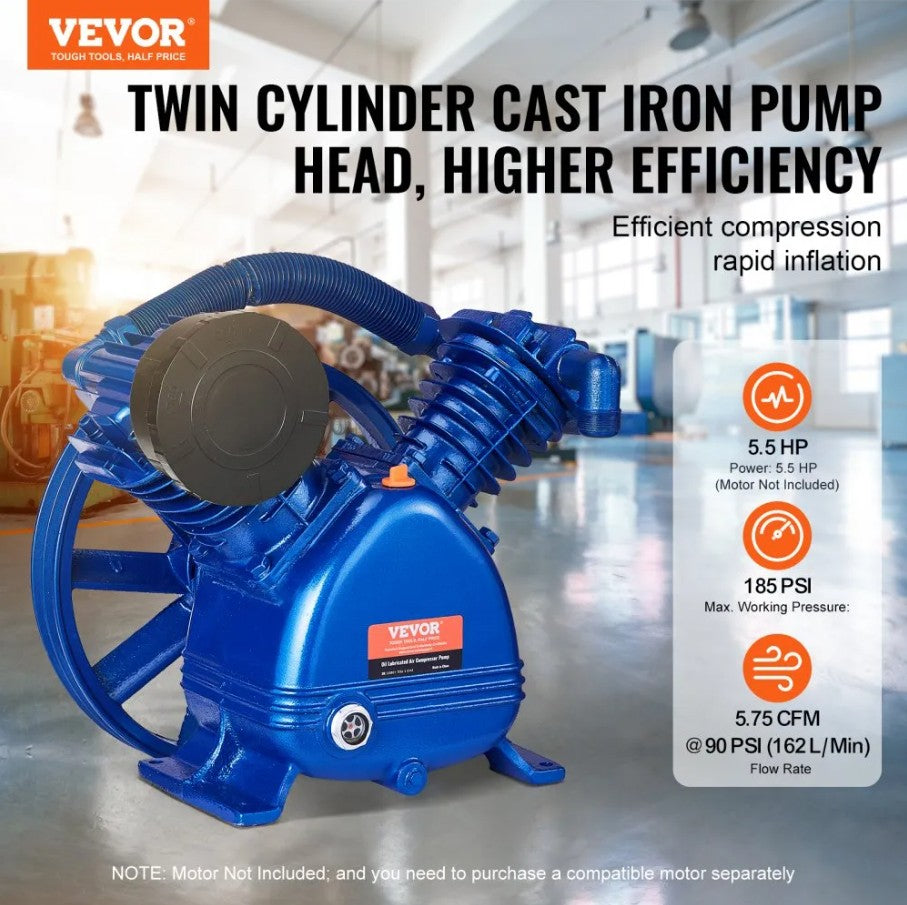

- 5.5HP Air Compressor Pump Head: VEVOR 5.5HP twin-cylinder air compressor pump head features 5.75CFM @ 90PSI air delivery rate, dual-stage compression and 185PSI max working pressure, provides a continuous and sufficient air supply for a wide range of equipment, ideal for tire inflation, spray painting, woodworking, and more tasks. (NOTE: Motor Not Included)

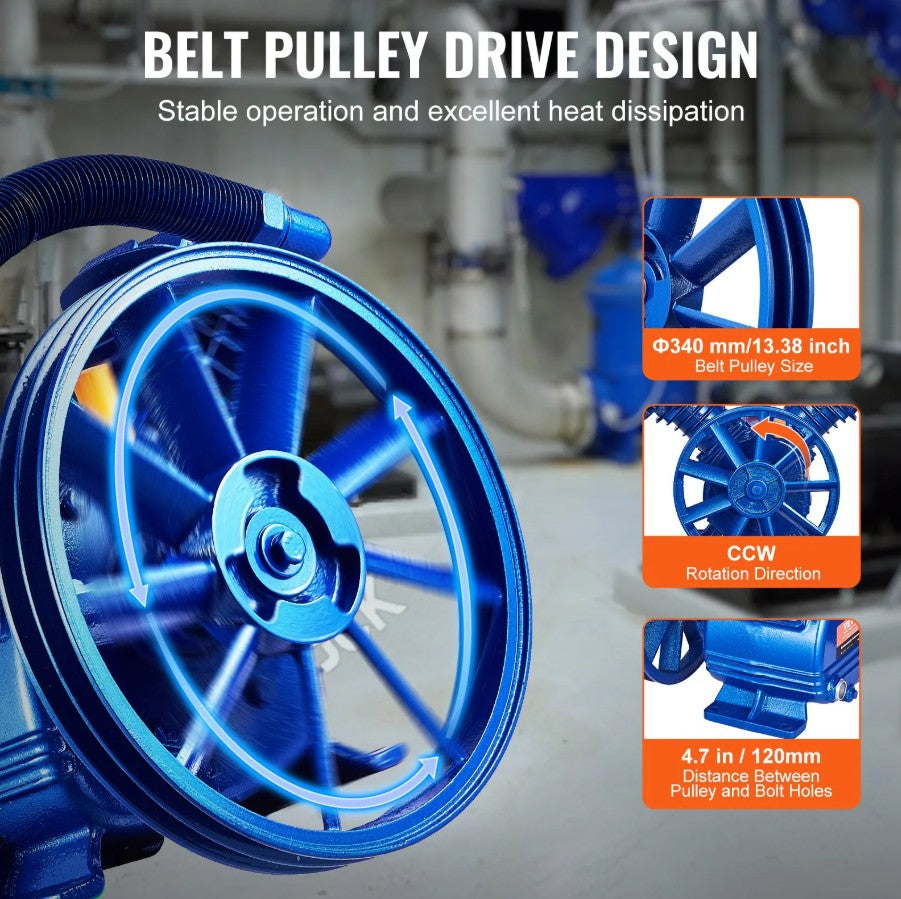

- Proven Belt-Driven Design: Utilizing the proven belt-driven design to avoid bearing displacement, our dual stage V-type pump head provides excellent compression and smooth running. (Installation notes: When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.)

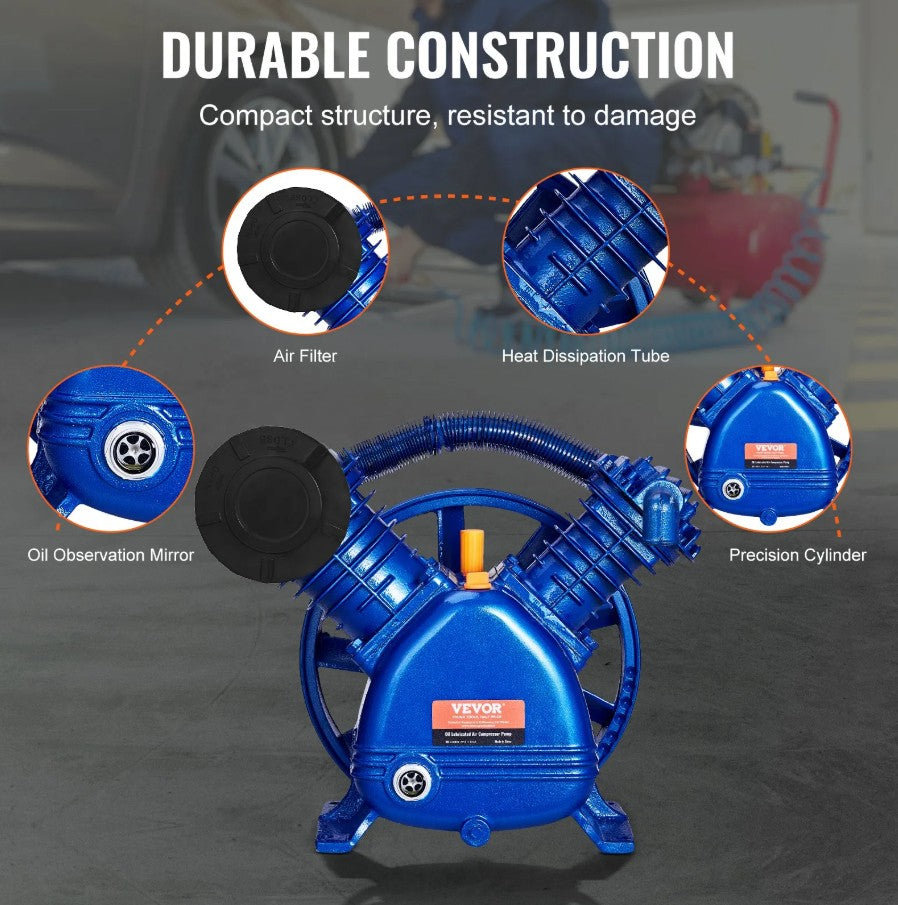

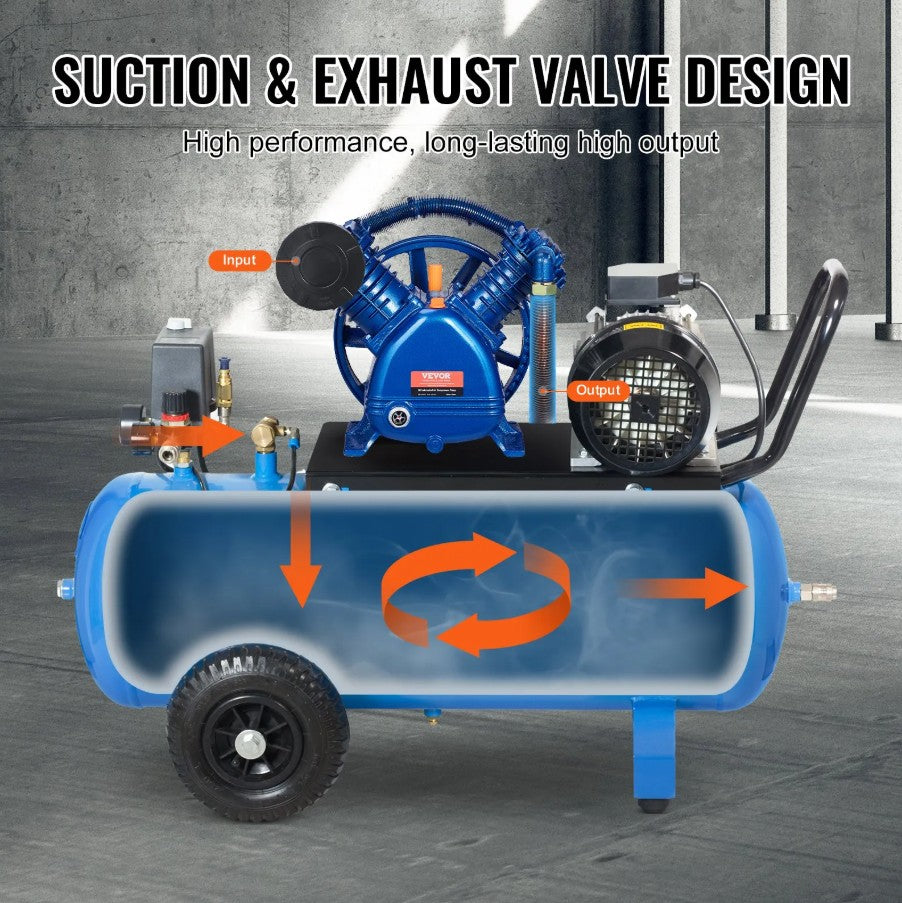

- Superior Features: This oil lubricated air compressor pump features an high-quality intake and exhaust valve design, precision cylinder, efficient heat dissipation fins, and air filter to enhance stability and extend service life, and the convenient oil observation mirror allows users to easily monitor the oil level.
- Durable and Efficient: The compact piston pump head is mainly made of durable cast iron, which offers excellent wear resistance and is not easily damaged. Coupled with its high efficiency and low energy consumption, it delivers powerful pneumatic performance while helping you save on operational costs.
- Wide Applications: VEVOR 5.5HP air compressor pump head is widely used in chemical, light industry, textile, mining, construction, home decoration, woodworking shops, auto repair, etc. It delivers reliable compressed air to meet the demands of various equipment and tools, greatly enhancing your work efficiency.

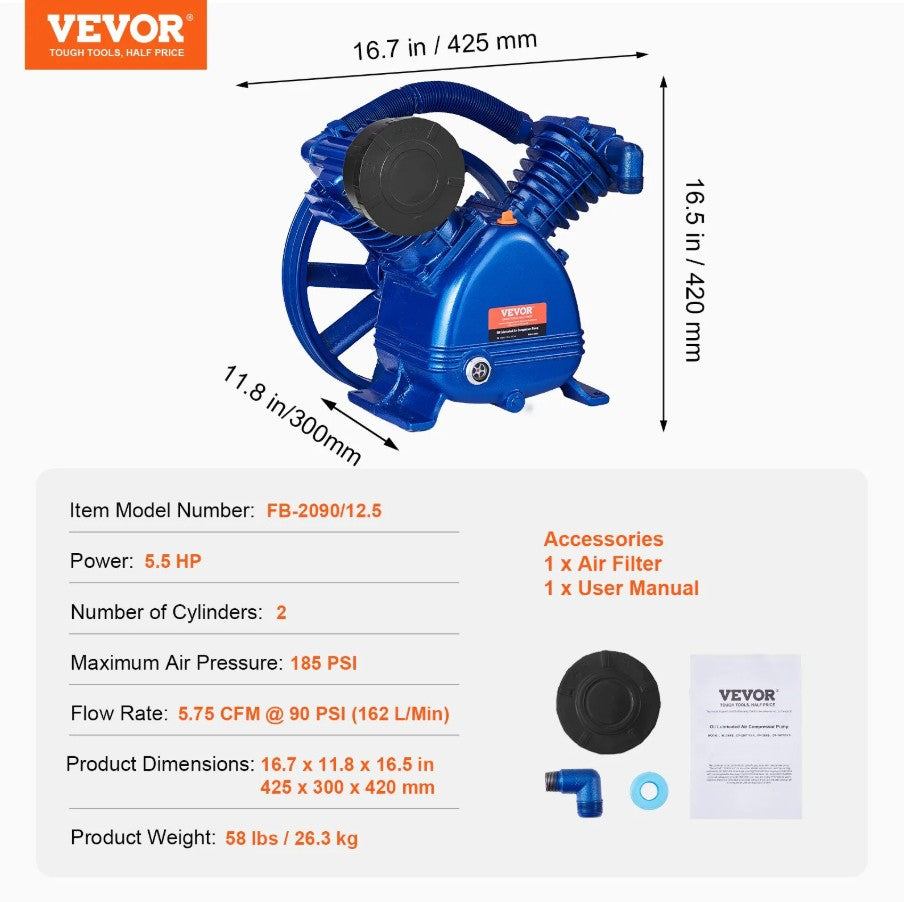

Specifications
| Item Model # | FB-2090/12.5 |
| Power | 5.5 HP |
| Number of Cylinders | 2 |
| Maximum Air Pressure | 185 PSI |
| Flow Rate | 5.75 CFM @ 90 PSI (162 L/Min) |
| Product Dimensions | 16.7 x 11.8 x 16.5 in / 425 x 300 x 420 mm |
| Product Weight | 58 lbs / 26.3 kg |
Package Contents
Vevor Twin-Cylinder Air Compressor Pump Head 5.5HP 5.75 CFM @ 90 PSI
Air Filter
User Manual
Warranty
This item comes with a 1 year factory warranty.
