Vevor Compressed Air Dryer Refrigerated 125 CFM Automatic Drainage 110/120V New
Product Overview
This compressed air dryer, with a flow rate of 125 CFM, combines efficient moisture removal, powerful heat dissipation, and smart control. Compatible with 20-30 HP air compressors, it's an ideal solution for delivering dry, clean, high-quality air in industrial environments. The electronic drain valve significantly reduces air loss and equipment wear, and eliminates the need for frequent checks. The air dryer is equipped with a color screen control panel for easy operation and clear status visibility at a glance.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Key Specifications: Voltage: 110-120V 60Hz; Flow Rate: 125 CFM; Working Pressure: 87 - 232 PSI; Dew Point Temperature: 35.6 - 50 °F; Inlet Air Temperature: 59 - 149 °F; Compatible Air Compressors: 20HP & 25HP & 30HP; Refrigerant Type: R410a, Connection Size: RC 1"
- Efficient Moisture Removal: This VEVOR compressed air dryer handles up to 125 CFM air flow rate, effectively removing moisture, oil, and impurities from compressed air—an ideal solution for efficient, energy-saving air drying in industrial applications
- High Performance: Equipped with a refrigeration compressor and a large-area evaporator assembly, our refrigerated air dryer ensures efficient heat exchange and fast moisture condensation for rapid, reliable moisture removal
- Rapid Heat Dissipation: Featuring a high-efficiency cooling fan and premium copper tubing, our refrigerated air drying system enhances airflow and effectively prevents overheating - ensuring your compressed air system runs smoothly under demanding conditions
- Easy to Operate: The compressed air dryer features a color screen control panel for simple operation and real-time monitoring of the air-drying system. Paired with an electronic drain valve, it ensures efficient and automatic drainage
Specifications
| Item Model Number | TR-03 |
| Voltage | AC 110-120V, 60Hz |
| Maximum Flow Capacity | 125 CFM |
| Item Color | Blue |
| Working Pressure | 87 - 232 PSI / 0.7 - 1.6 MPa |
| Dew Point Temperature | 35.6 - 50 °F / 2 - 10 °C |
| Inlet Air Temperature | 59 - 149 °F / 15 - 65 °C |
| Compatible Air Compressors | 20 HP, 25 HP & 30 HP |
| Refrigerant Type | R410a |
| Connection Size | RC 1" |
| Product Dimensions | 25.2 x 20.5 x 32.7 in |
| Net Weight | 134 lbs |

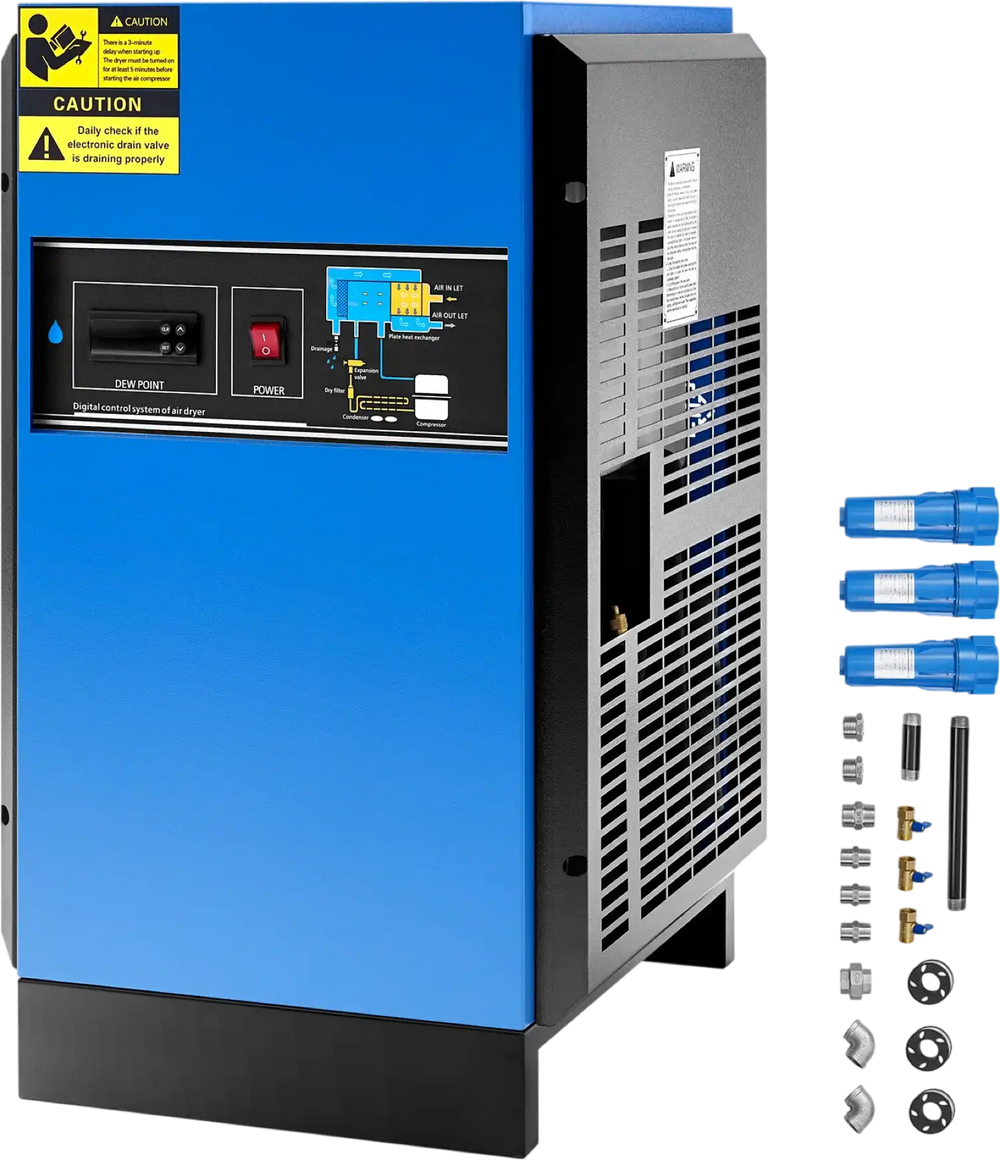

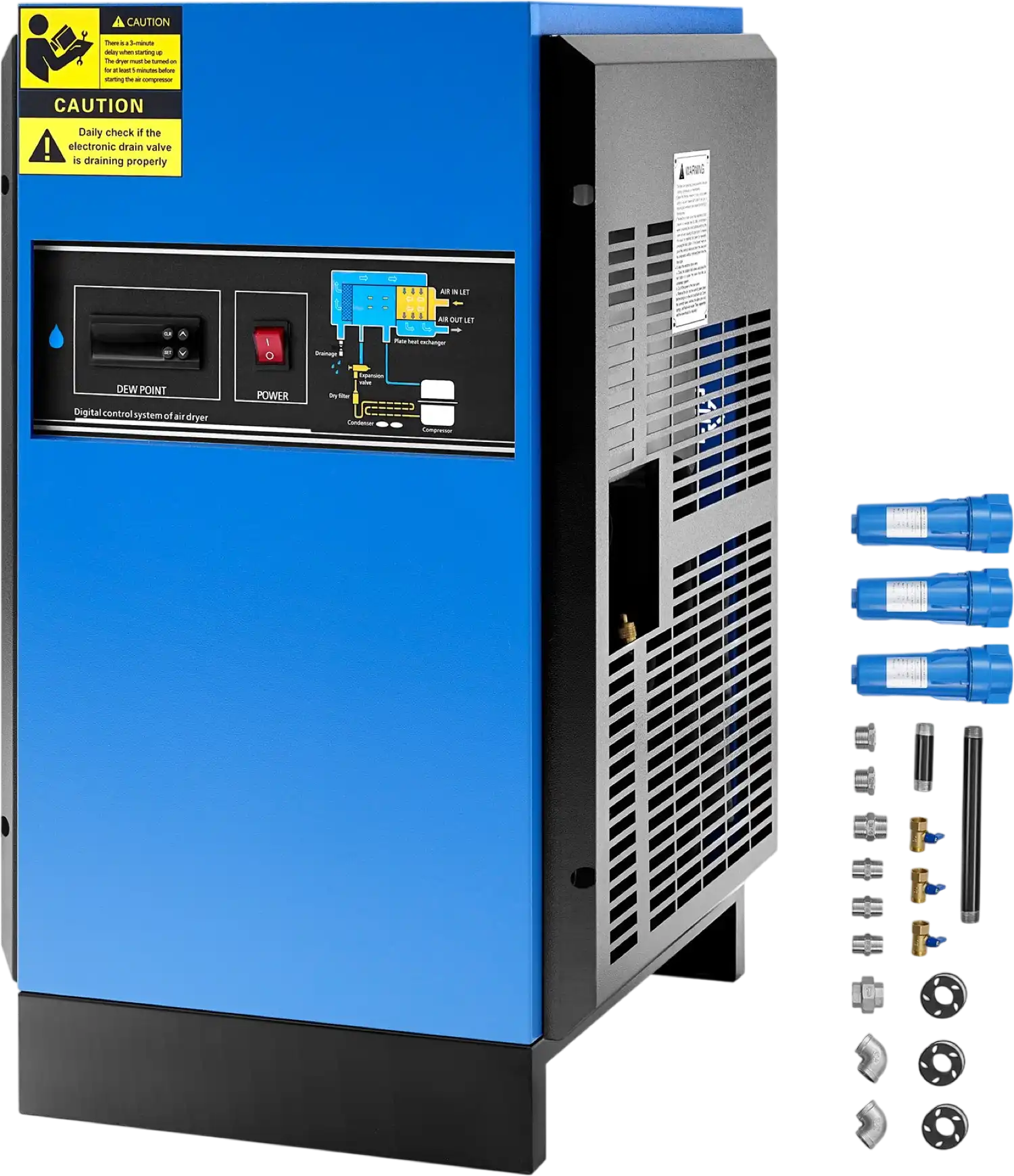

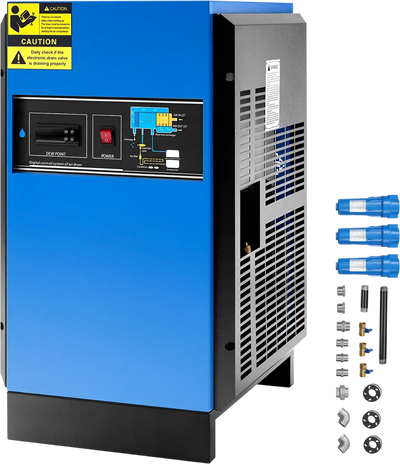

Package Contents
Vevor Compressed Air Dryer
(3) Filters
(3) Pressure Relief Valves
(3) PTFE Tape
(2) Connector Pipe
Union Joint
(2) Elbow Fitting
(2) Reducing Bushing
(4) Female-to-male Thread Adapters
User Manual
Warranty
This item comes with a 1 year factory warranty.
