Vevor Rack and Pinion Hydraulic Power Steering for Chevy Silverado 1500 1999-2006 New
Product Overview

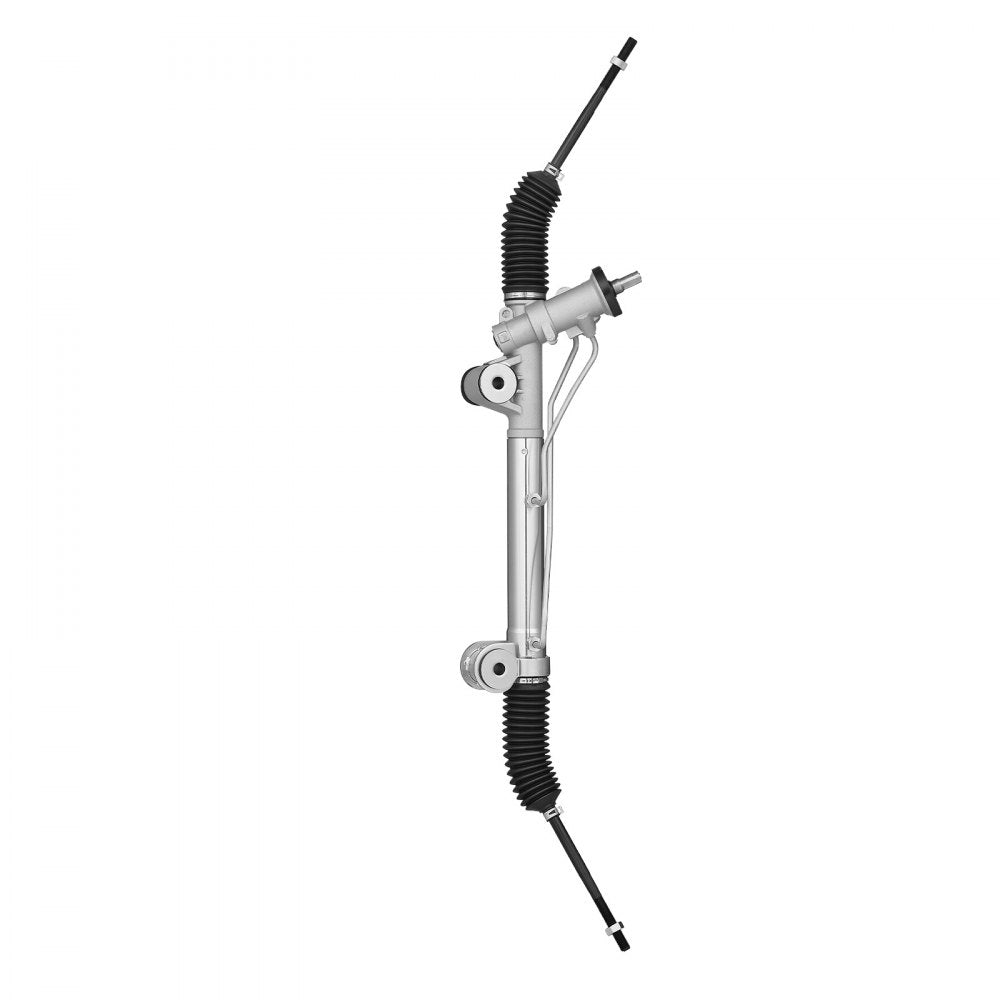

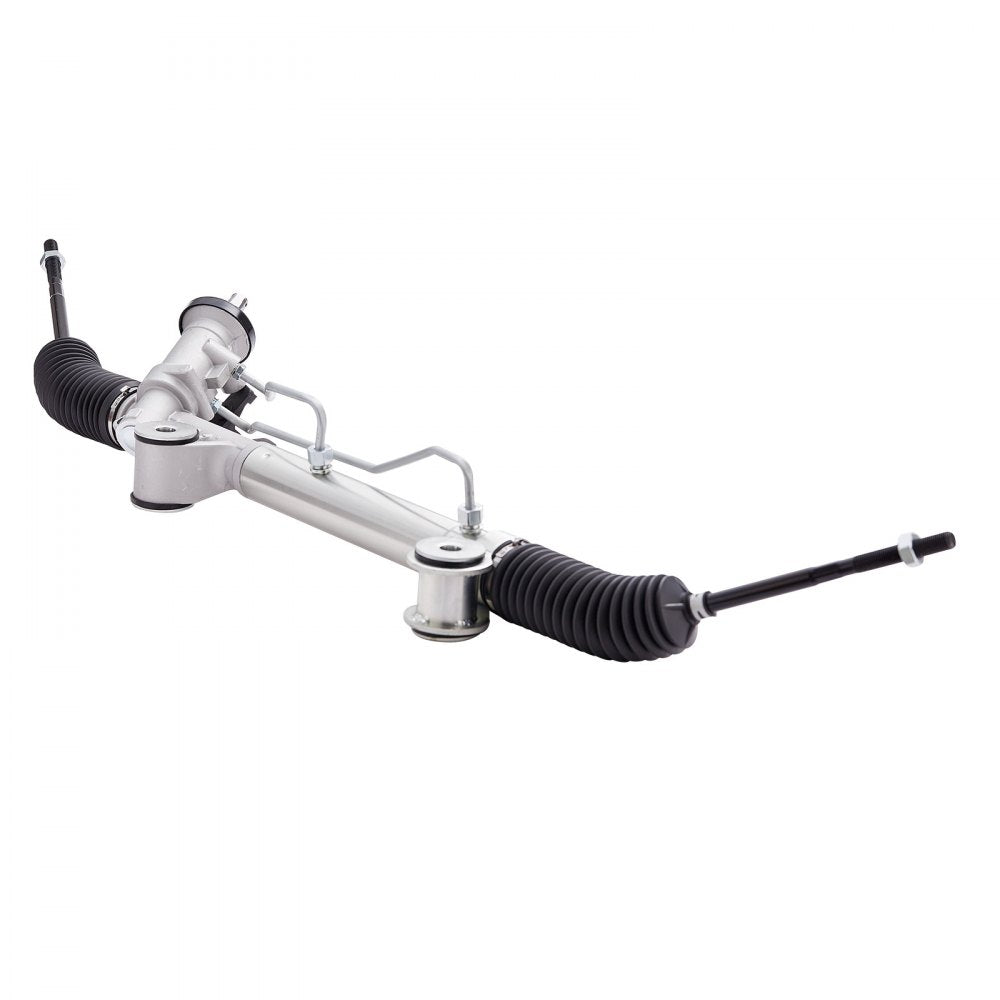

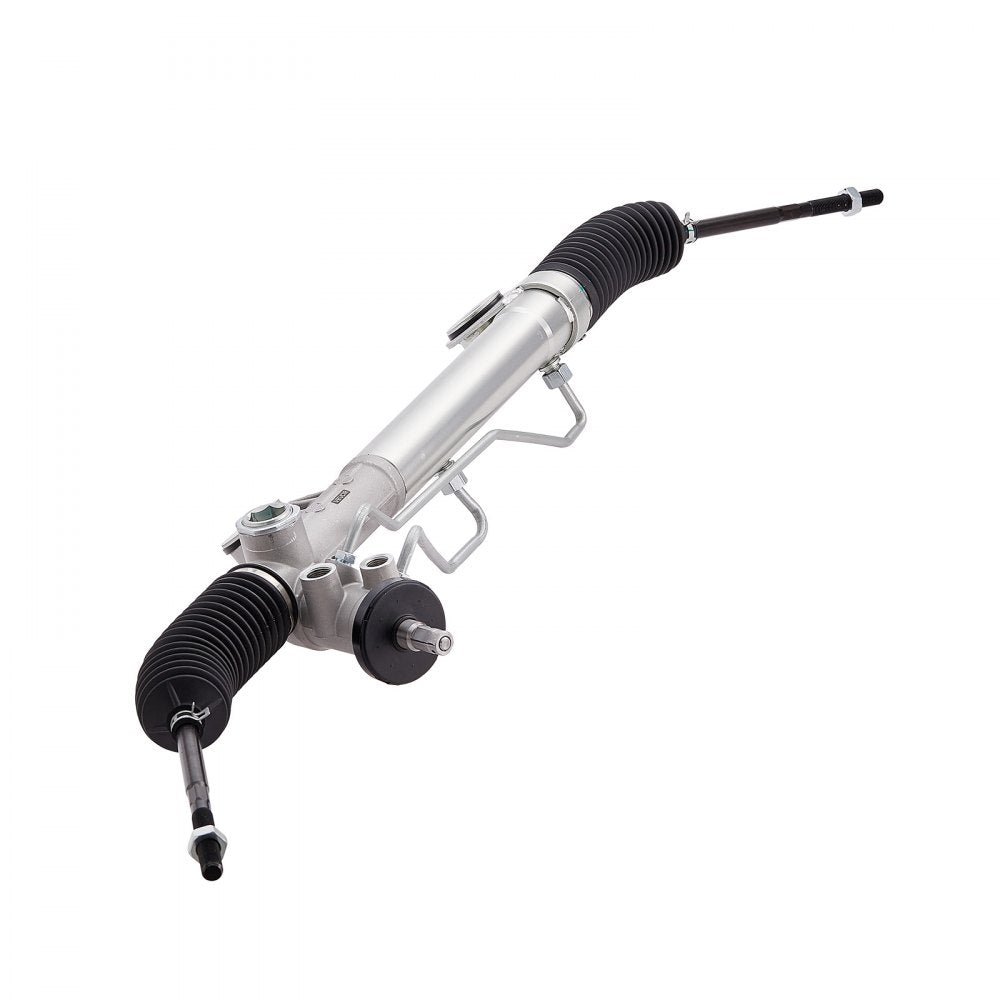

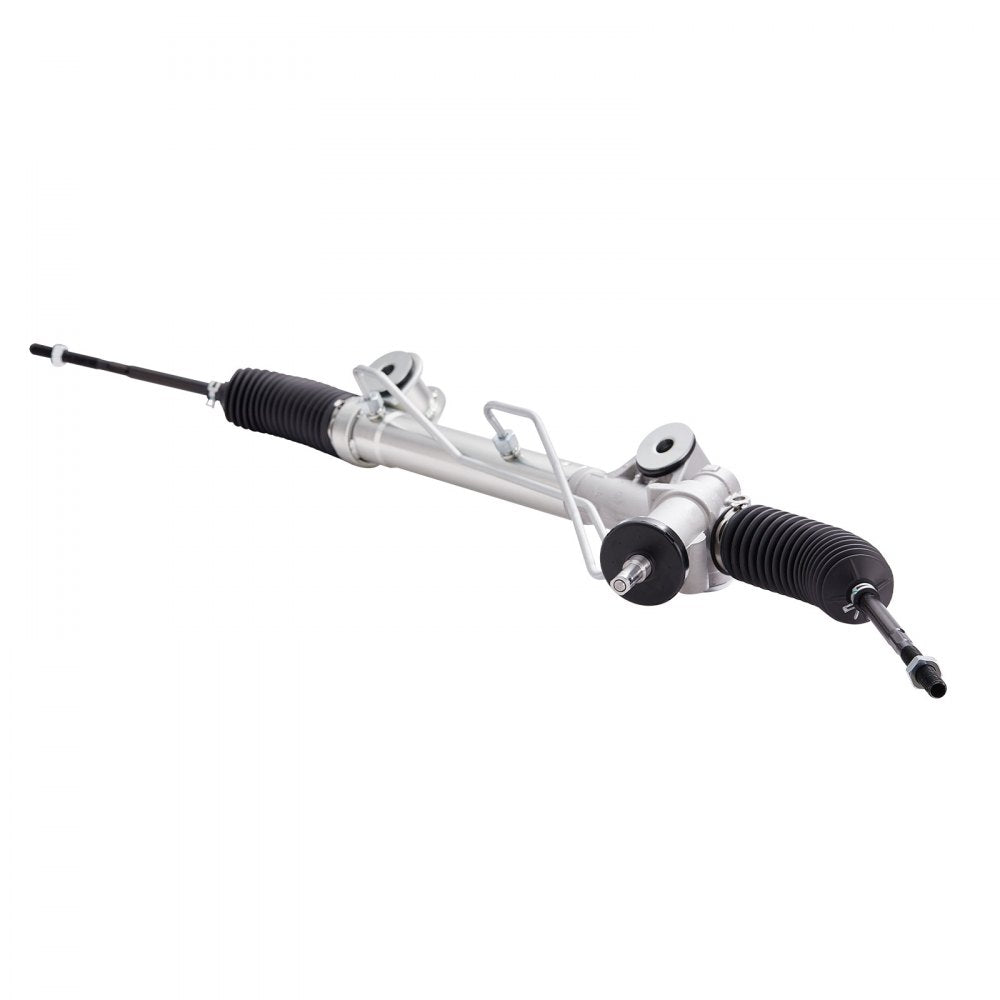

The Vevor hydraulic power steering rack and pinion assembly is designed as a direct replacement for select Chevy Silverado 1500 models from 1999-2006. It features a corrosion-resistant alloy construction, enclosed dust boot protection, and optimized gear meshing for smooth, responsive steering. Built for precise fitment, it matches multiple OE replacement numbers for easier installation. This assembly is intended for left-hand drive vehicles only.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Wide Vehicle Compatibility: Our hydraulic power steering rack and pinion fits Chevrolet; Silverado 1500 1999-2003; Silverado 1500 2004-2005 (Without Spring Special (B2E) or High Output Package (B4V)); Silverado 1500 Classic 2007 (with Hybrid Electronic Power (HP2)); Silverado 1500 Classic 2007 (Without Hybrid Electronic Power (HP2) & with 2 Wheel Steering). Note: For left-hand drive only.
- OE Part Numbers: This steering rack and pinion assembly is a direct replacement for OE part numbers: 19133675, 22-1000, 221000, 97-1000, 971000, 26079794, 26079801, 26087761, 26091958, 26101929, 88963415.
- Specifications: Input shaft diameter: 16.75 mm / 0.66 inch; Input shaft length: 50 mm / 1.97 inch; Rack length: 1284 mm / 50.55 inch; Tie rod thread length: 74 mm / 2.91 inch; Tie rod thread size: M14×1.5-6g; Pressure port thread size: M18×1.5 mm; Return port thread size: M16×1.5 mm; Total turns lock to lock: 3.4.
- Corrosion-Resistant Alloy: Crafted from high-quality aluminum alloy, the steering rack and pinion assembly offers exceptional strength and durability for smooth driving on harsh terrains while preventing the steering system from jamming with a leak-free dust boot design.

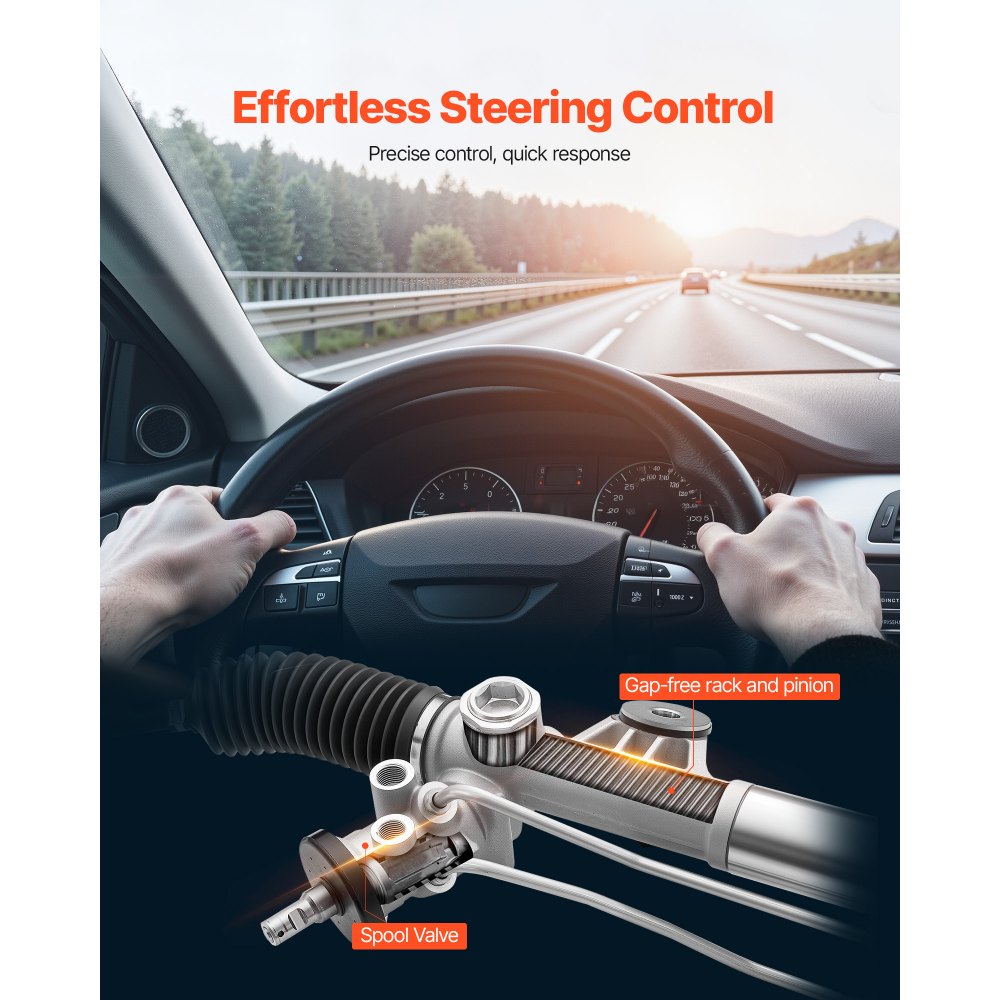

- Agile Steering: Optimized gear and rack meshing technology provides enhanced stability and quick, responsive steering, ensuring smooth and precise control for a superior driving experience.

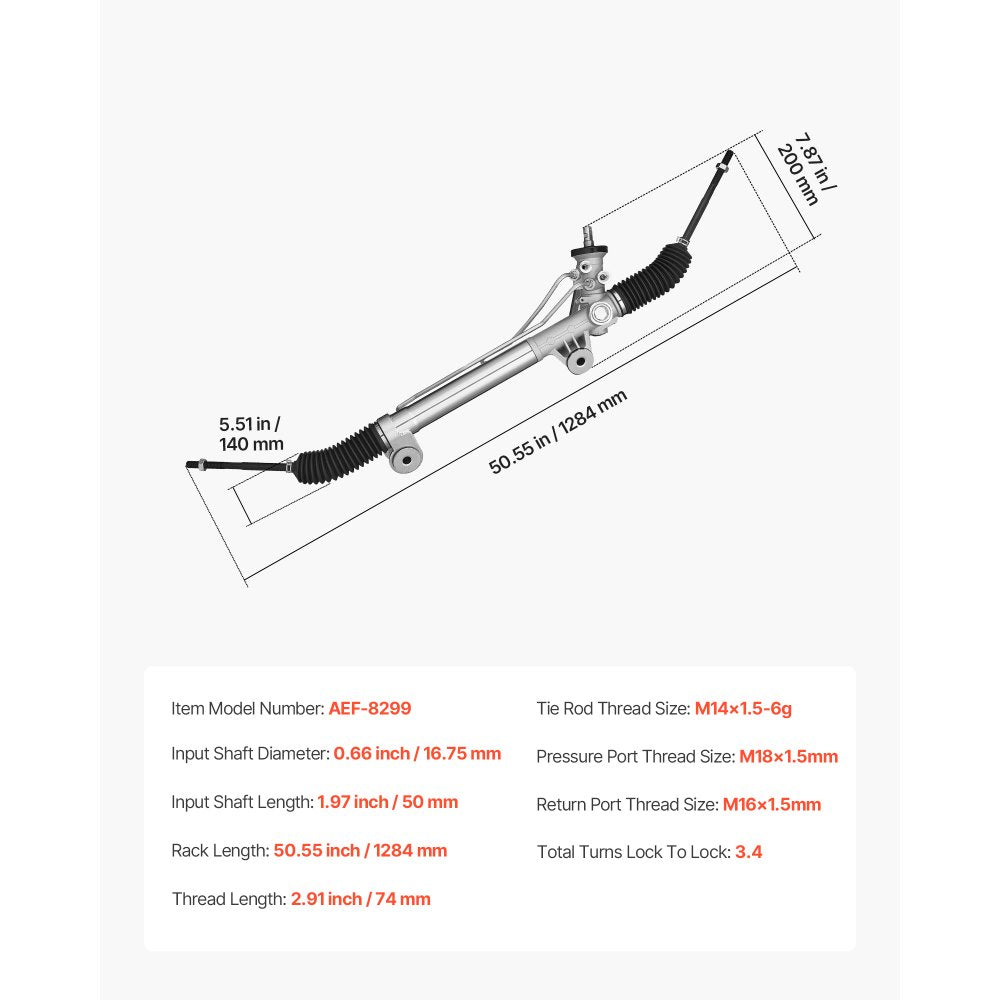

Specifications
| Item Model Number | AEF-8299 |
|---|---|
| Compatible Vehicle | Chevy Silverado 1500 1999-2006 |
| Drive Side | Left-hand drive only |
| Input Shaft Diameter | 0.66 in |
| Input Shaft Length | 1.97 in |
| Rack Length | 50.55 in |
| Tie Rod Thread Length | 2.91 in |
| Tie Rod Thread Size | M14 x 1.5-6g |
| Pressure Port Thread Size | M18 x 1.5 mm |
| Return Port Thread Size | M16 x 1.5 mm |
| Total Turns Lock to Lock | 3.4 |
|---|---|
| Net Weight | 21.2 lbs |
| Dimensions | 50.55 x 5.51 x 7.87 in |
| OE Part Numbers | 19133675, 22-1000, 221000, 97-1000, 971000, 26079794, 26079801, 26087761, 26091958, 26101929, 88963415 |

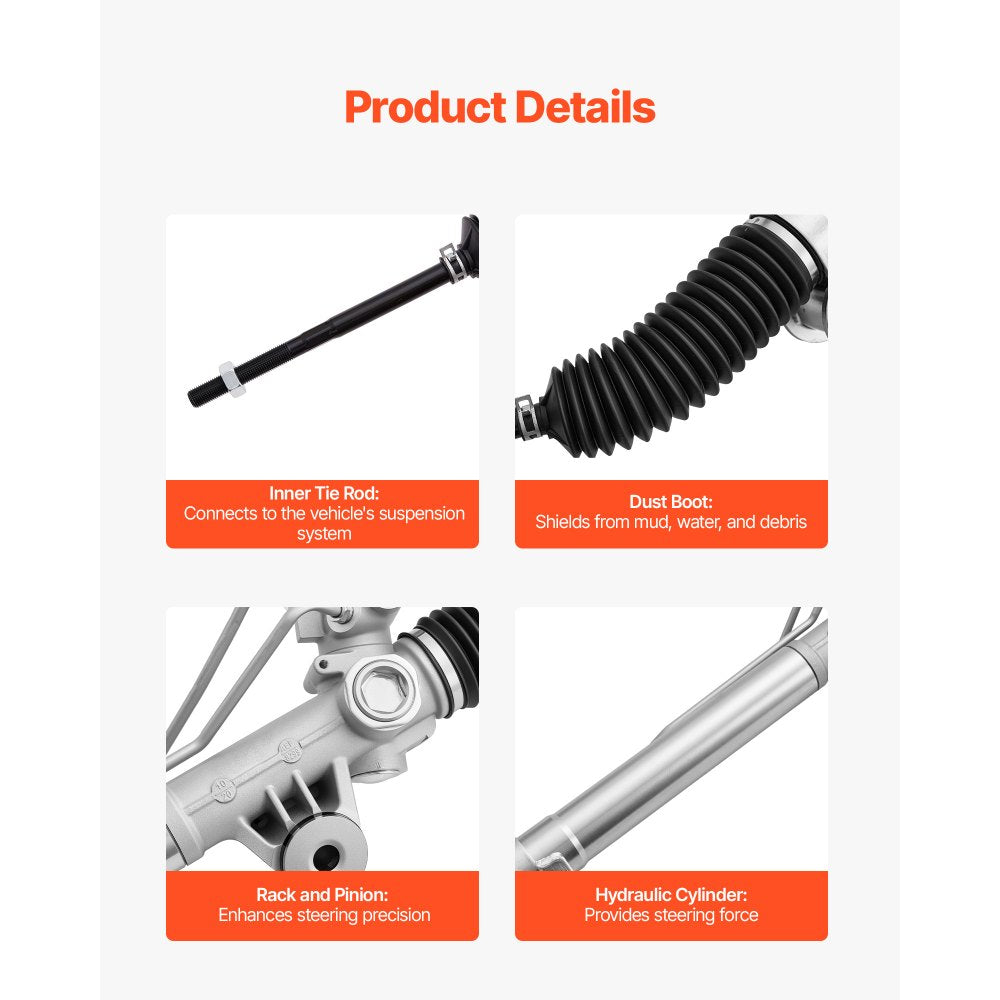

Package Contents
Hydraulic power steering rack and pinion assembly
Inner tie rod
Dust boot
Warranty
This item comes with a 1 year factory warranty.
