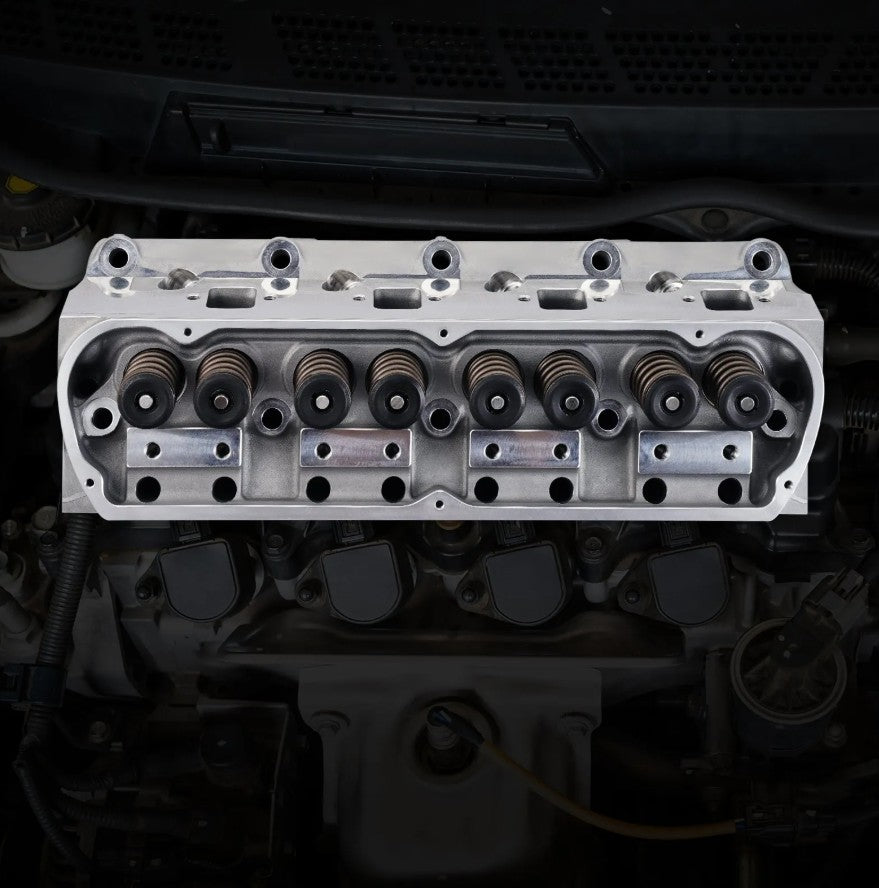

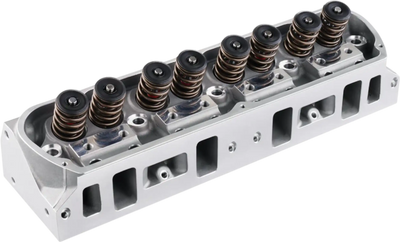

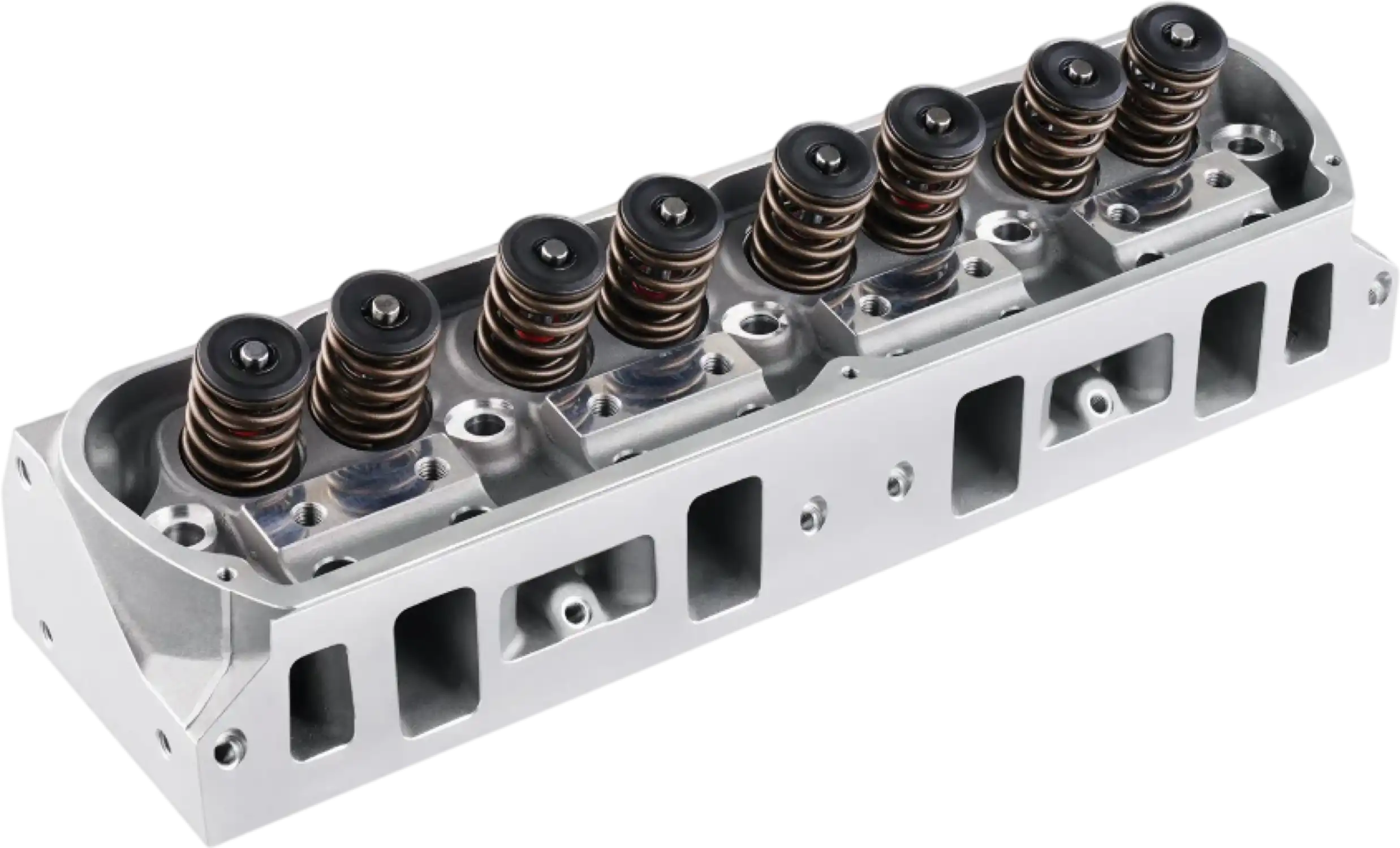

Vevor Aluminum Engine Cylinder Head Assembly for SBF Ford Mustang 289/302/351W New
Product Overview
The Vevor Aluminum Cylinder Head Assembly is a precision-engineered replacement for SBF Ford Mustang engines, compatible with GT40/289/302/351W models. CNC-machined for smooth airflow and exact fit, it ensures optimal sealing and performance. Built from durable aluminum alloy with manganese bronze valve guides and hardened valve seats, it offers excellent heat dissipation, wear resistance, and long service life. Fully assembled with valves, springs, and seals, this cylinder head improves horsepower, fuel efficiency, and emissions while providing a reliable solution for engine issues like leaks, vibrations, and power loss.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Perfect Fit: Replaces the original cylinder head assembly to resolve failure and damage issues. As a cylinder head for small block Ford engines, it fits the following models: SBF GT40/289/302/351W, FORD Mustang. You will experience unprecedented smoothness in engine operation.

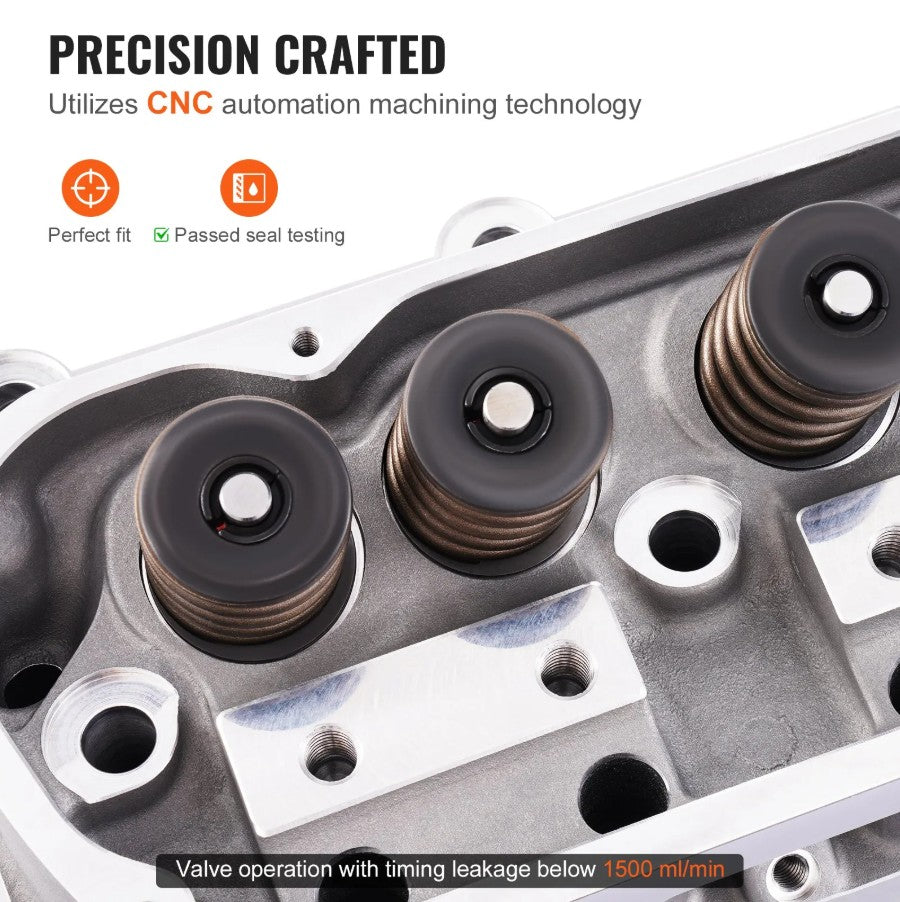

- Precise Manufacturing: Utilizes CNC precision machining for the combustion chamber, intake, and exhaust passages. Compared to standard casting, this cylinder head provides provides smoother airflow and high precision with excellent sealing. Ensures that all components (such as valves, threaded holes, etc.) are correctly positioned, sized, and angled, avoiding issues such as improper valve heights. Passed sealing tests to ensure correct installation and operation. Compatible with angled spark plugs, M14*1.25mm installation holes.

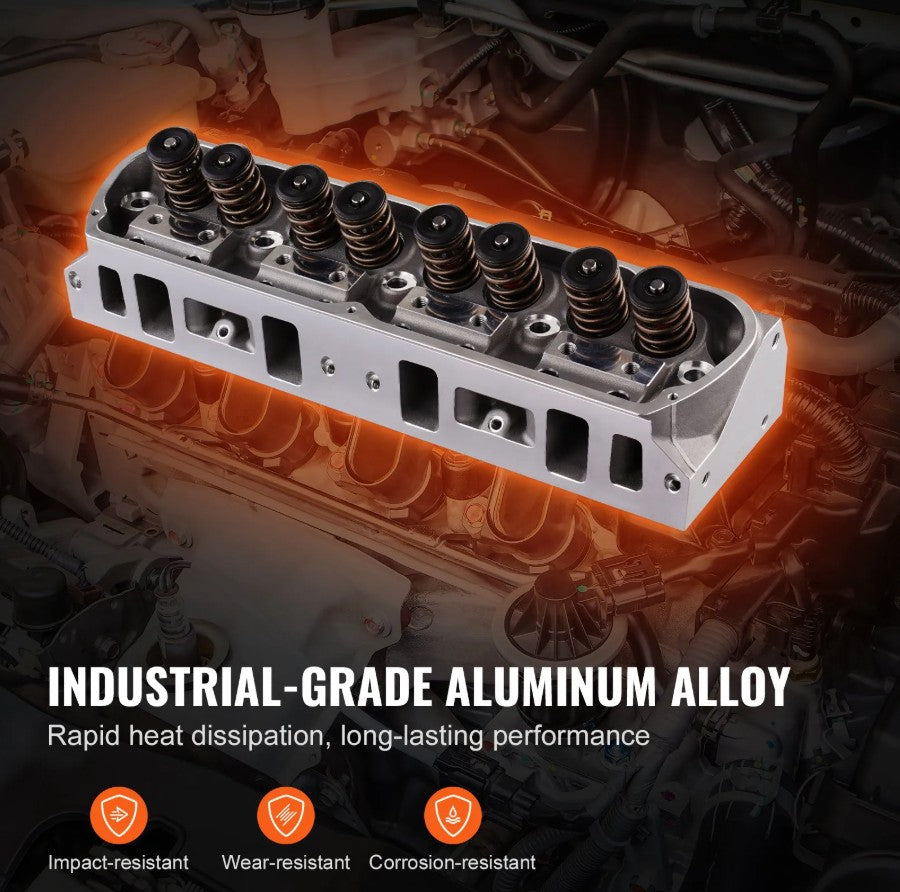

- Long Service Life: The cylinder head assembly is crafted from premium materials to extend its lifespan. Made with industrial-grade aluminum alloy, it offers excellent impact resistance, wear resistance, and rapid heat dissipation to prevent overheating. We also include manganese bronze valve guides and hardened valve seats to maintain engine performance stability. Upgrade from disappointing old cylinder heads with our reliable option.

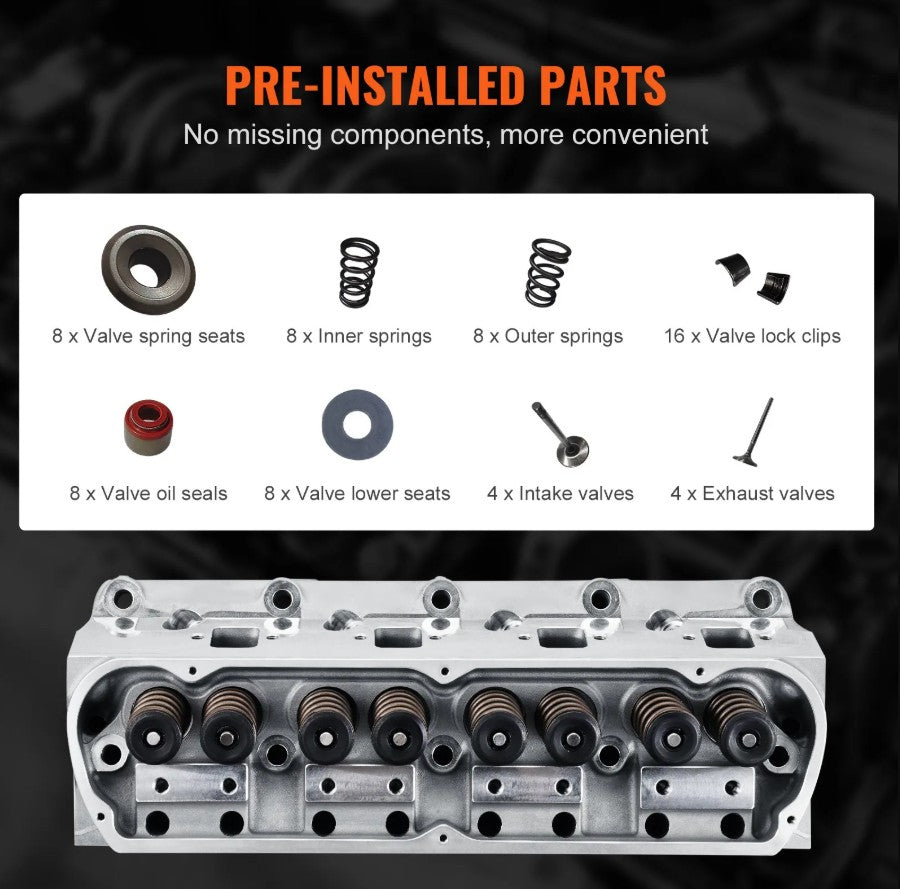

- Fully Assembled: The cylinder head assembly comes fully assembled with all necessary components, including valve spring seats, inner springs, outer springs, valve locks, valve seals, valve seats, intake valves, and exhaust valves. This reduces the likelihood of installation errors and ensures ease of use. It is carefully packaged and ready to be delivered to you. Please keep the installation environment clean and have a professional perform the installation.

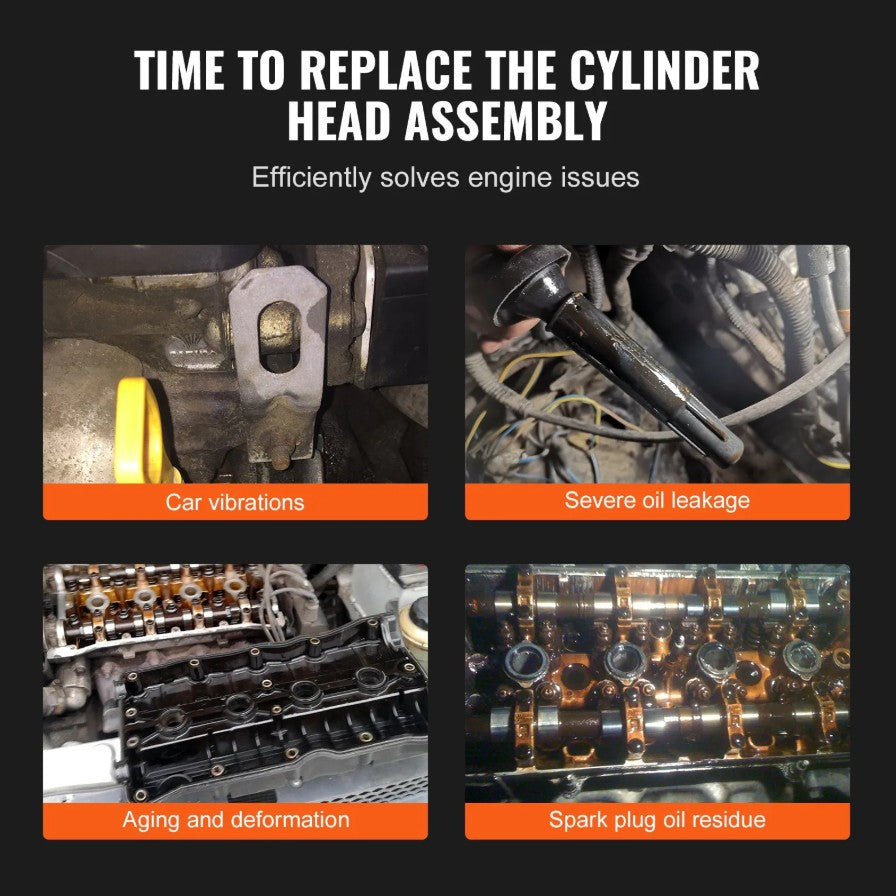

- Efficient Solution for Common Issues: If your vehicle experiences abnormal vibrations, severe oil leaks, aging or deformation, or excessive spark plug oil deposits, consider replacing it with this high-quality engine cylinder head. It will enhance horsepower, improve fuel efficiency, and reduce emissions.

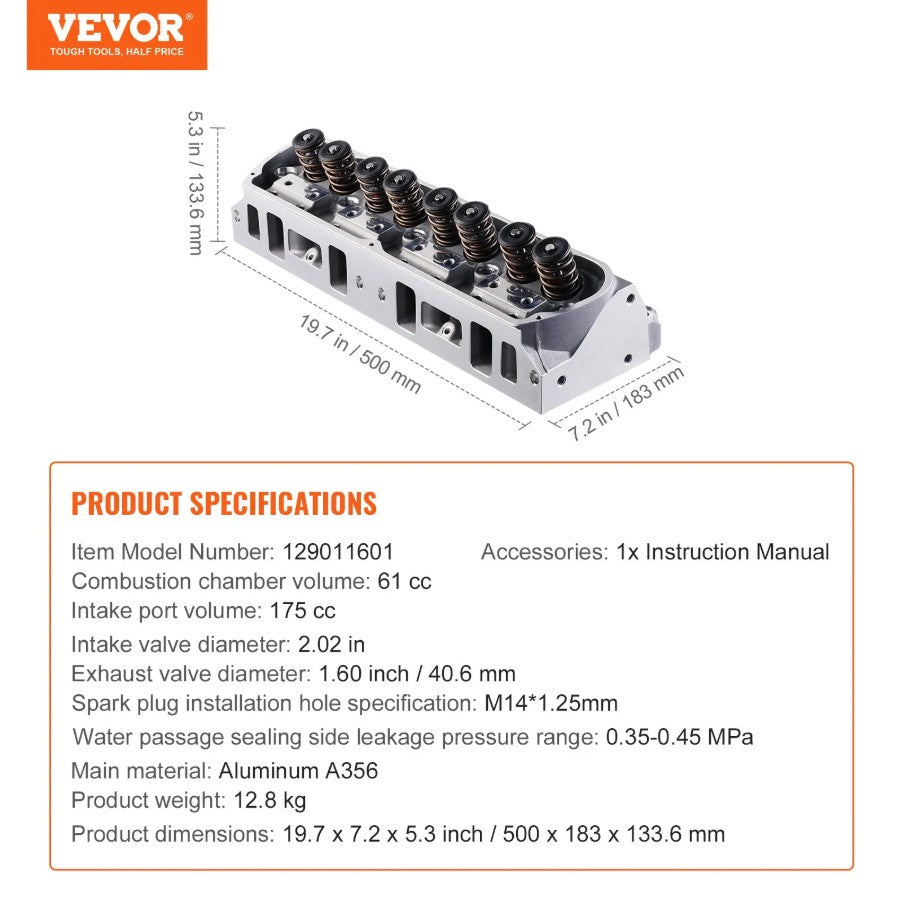

Specifications
| Item Model # | 129011601 |
| Combustion Chamber Volume | 61 cc |
| Intake Port Volume | 175 cc |
| Intake Valve Diameter | 2.0 inch / 51.3 mm |
| Exhaust Valve Diameter | 1.60 inch / 40.6 mm |
| Spark Plug Type | Slant Hole |
| Spark Plug Installation Hole Specification | M14*1.25mm |
| Water Passage Sealing Side Leakage Pressure Range | 0.35-0.45 MPa |
| Main Material | Aluminum A356 |
| Product Weight | 26.0 lbs / 11.8 kg |
| Product Dimensions | 19.7x7.2x5.3 inch / 500x183x133.6 mm |
Package Contents
Vevor Aluminum Engine Cylinder Head Assembly for SBF Ford Mustang 289/302/351W
User Manual
Warranty
This item comes with a 1 year factory warranty.
