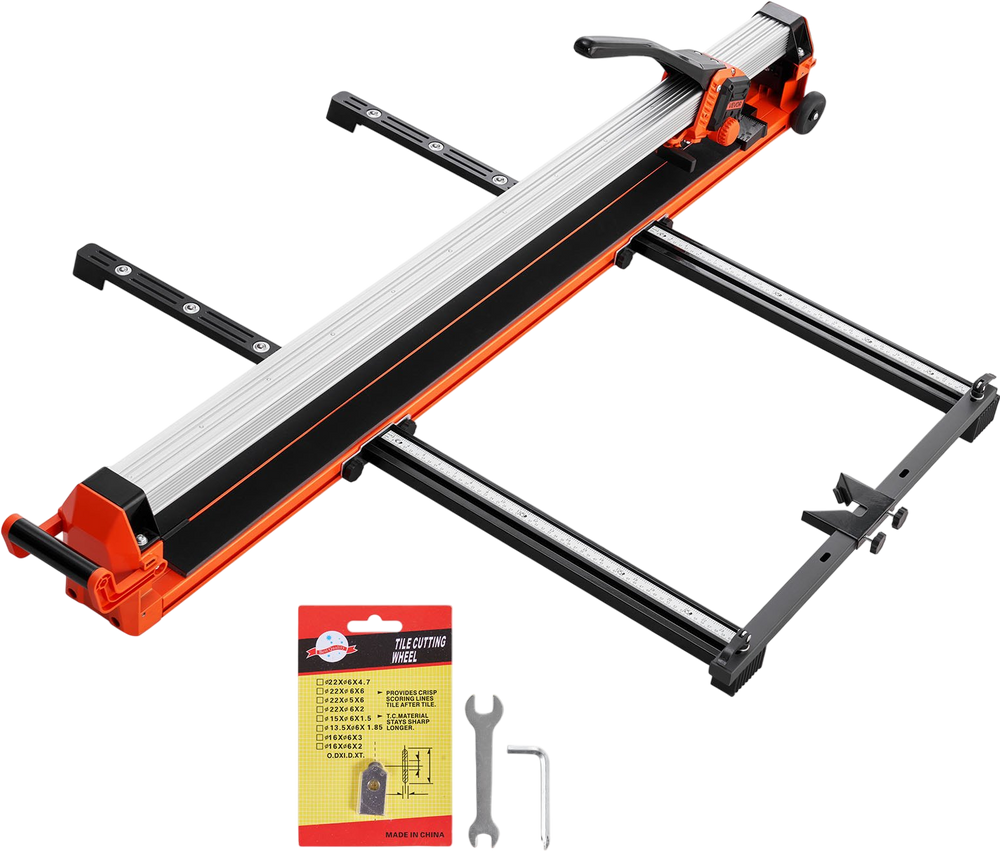

Featured image for product 8254116528317
VEVOR 47.2-Inch Manual Tile Cutter - image 2
VEVOR 47.2-Inch Manual Tile Cutter - image 3
VEVOR 47.2-Inch Manual Tile Cutter - image 4
VEVOR 47.2-Inch Manual Tile Cutter - image 5
VEVOR 47.2-Inch Manual Tile Cutter - image 6
Vevor Manual Tile Cutter 47.2 in. with Precision Alignment Guide Swivel Wheels New
Featured image for product 8254116528317
VEVOR 47.2-Inch Manual Tile Cutter - image 2
VEVOR 47.2-Inch Manual Tile Cutter - image 3
VEVOR 47.2-Inch Manual Tile Cutter - image 4
VEVOR 47.2-Inch Manual Tile Cutter - image 5
VEVOR 47.2-Inch Manual Tile Cutter - image 6
Vevor Manual Tile Cutter 47.2 in. with Precision Alignment Guide Swivel Wheels New

Type Options





Cutting Length Options





QTY

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

C

$326.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Vevor Manual Tile Cutter 47.2 in. with Precision Alignment Guide Swivel Wheels New

Vevor Manual Tile Cutter 47.2 in. with Precision Alignment Guide Swivel Wheels New

Product Overview

This VEVOR 47.2-inch manual tile cutter is built for fast, accurate straight and diagonal cuts on ceramic wall and floor tile. It features an upgraded rail and sliding head with a visible alignment guide to help align cuts faster and keep cuts on track without a ruler or marking pencil. A rotating ball support stand and support legs with swivel wheels make loading and positioning large-format tile easier for one person. Two interchangeable cutting wheels are included to handle different tile surfaces and cutting needs.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

1 year factory warranty

checkmark

Manufacturer direct shipping from CA, NJ, & TX

checkmark

Authorized Vevor Dealer

Features

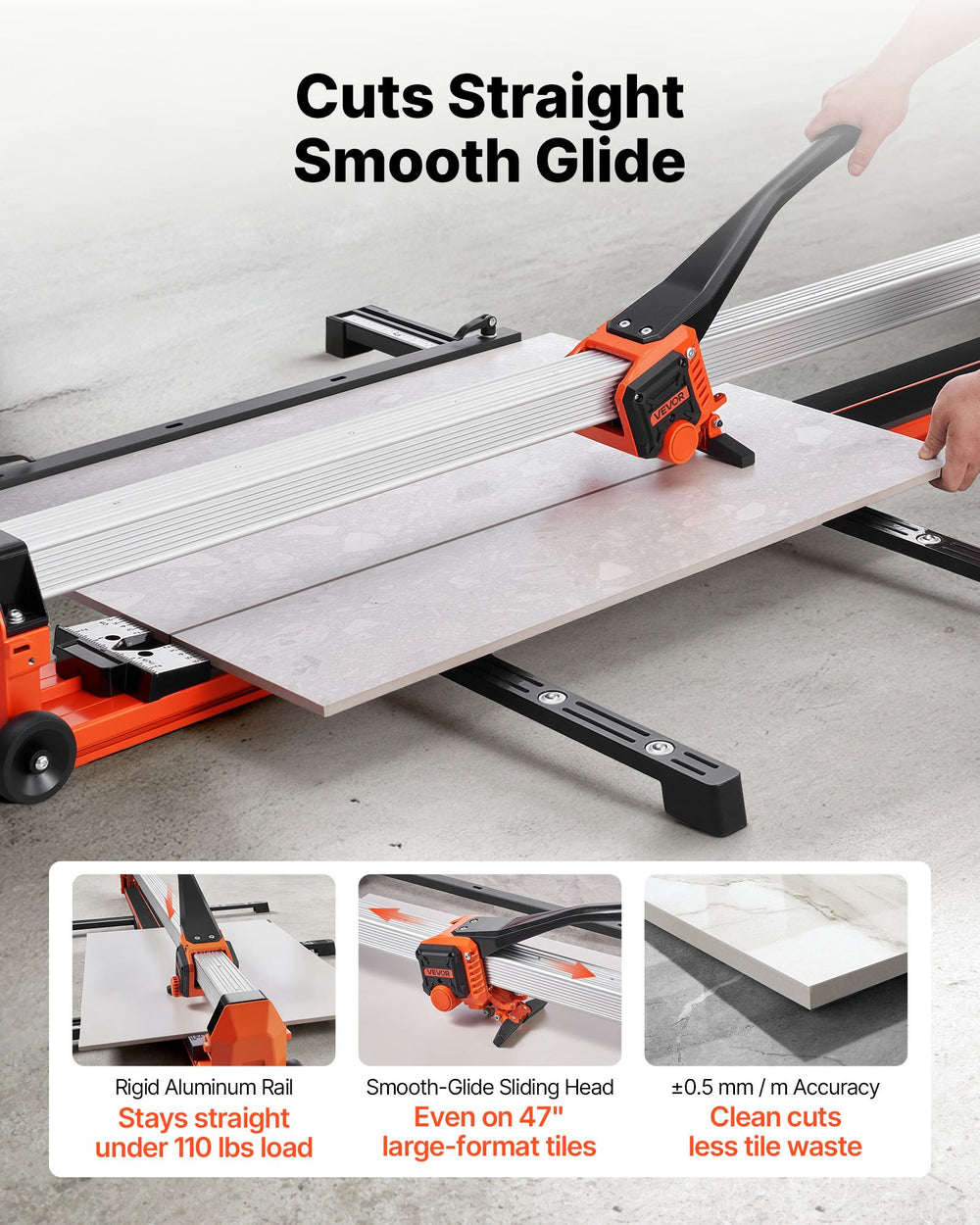

  • Cut Once, No Rework: A stable aluminum rail stays aligned under up to 110 lbs load, keeping long cuts on track. This tile cutter handles 47 in tiles with confidence, while ±0.5 mm/m accuracy delivers clean edges with less chipping and no extra passes

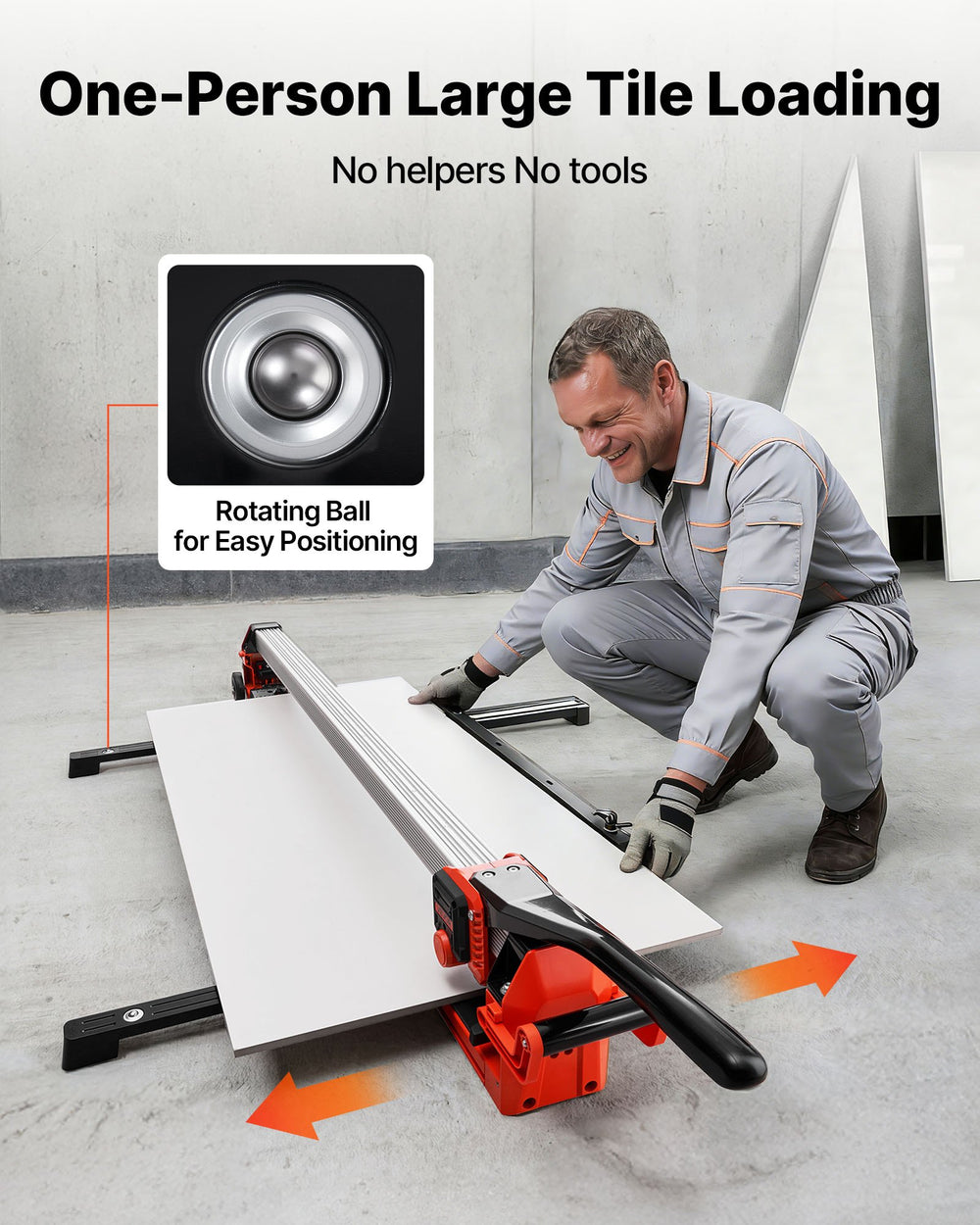

  • One-Person Tile Loading: Load large-format tiles on your own with ease. The rotating ball support stand of the manual tile cutter helps guide and position tiles smoothly, allowing to slide tiles into place without extra hands or tools, for large tiles

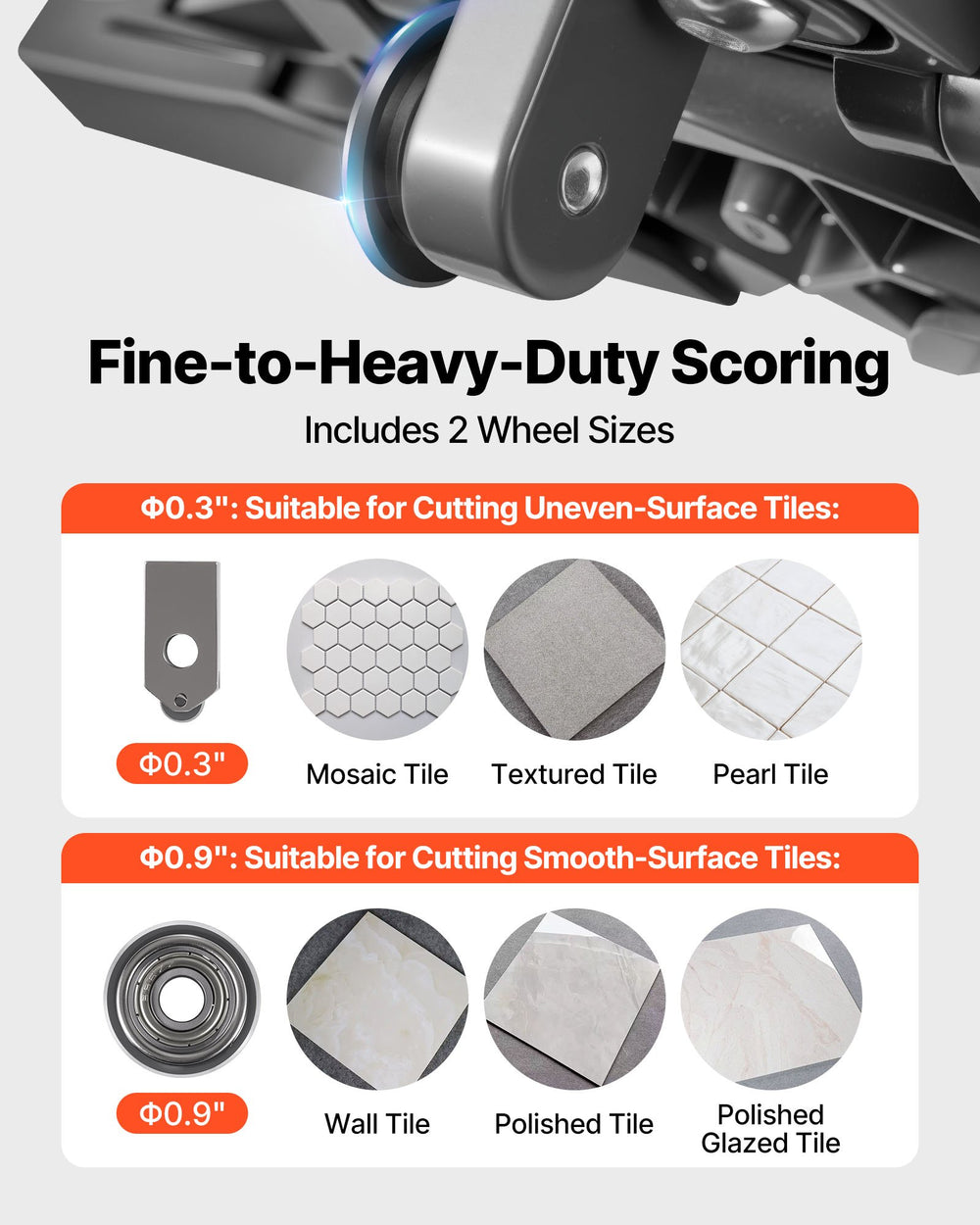

  • Two Wheel Sizes Included: Tackle both fine and heavy-duty cuts with two interchangeable cutting wheels. The 0.3 in wheel suits mosaic and textured tiles, while the 0.9 in wheel handles smooth and polished tiles

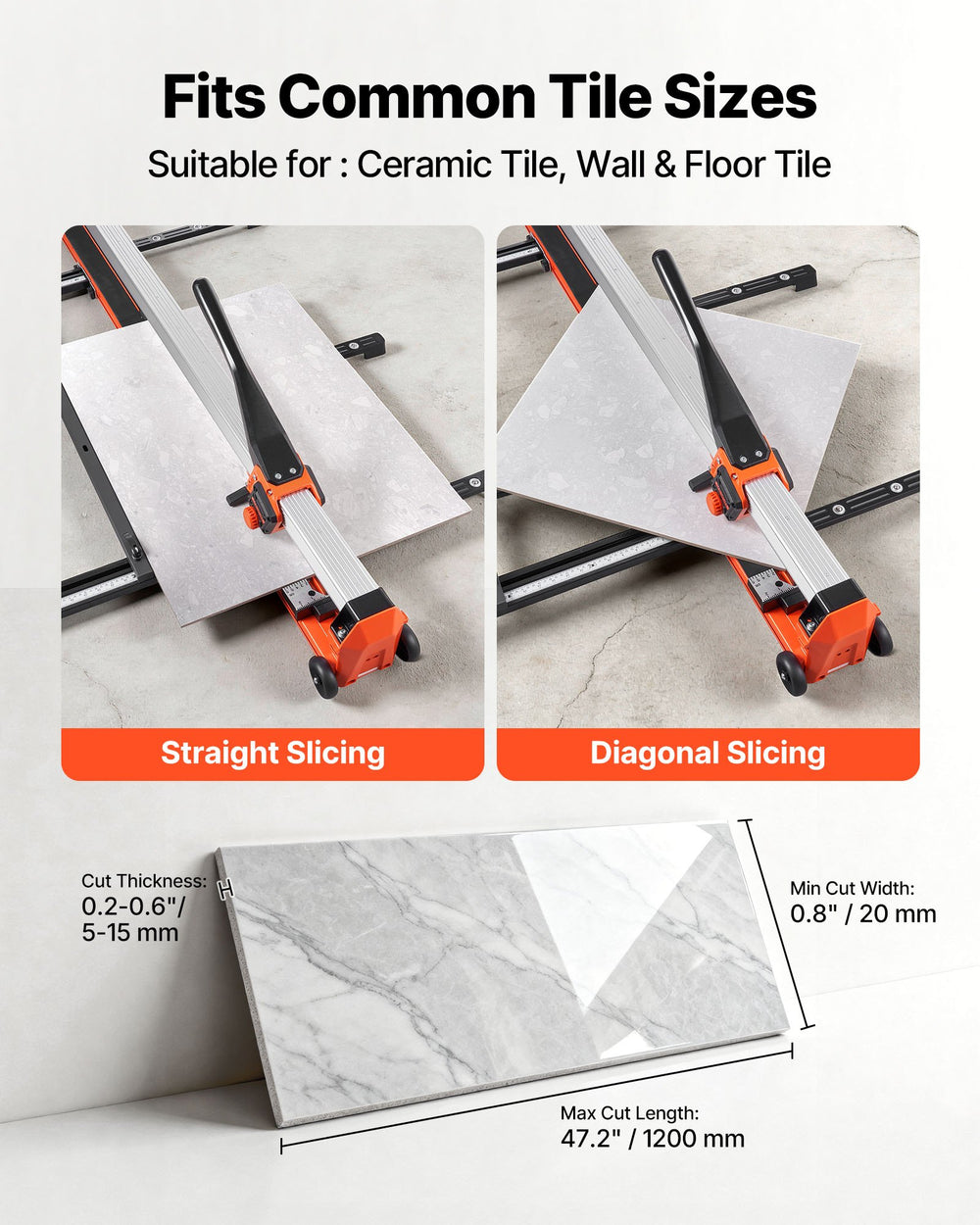

  • Supports Common Tile Sizes: The tile cutters are designed for straight and diagonal cuts on common formats. Supports ceramic, wall, and floor tiles with a max cut length of 47.2 in, minimum cut width of 0.8 in, and a cutting thickness range of 0.2–0.6 in

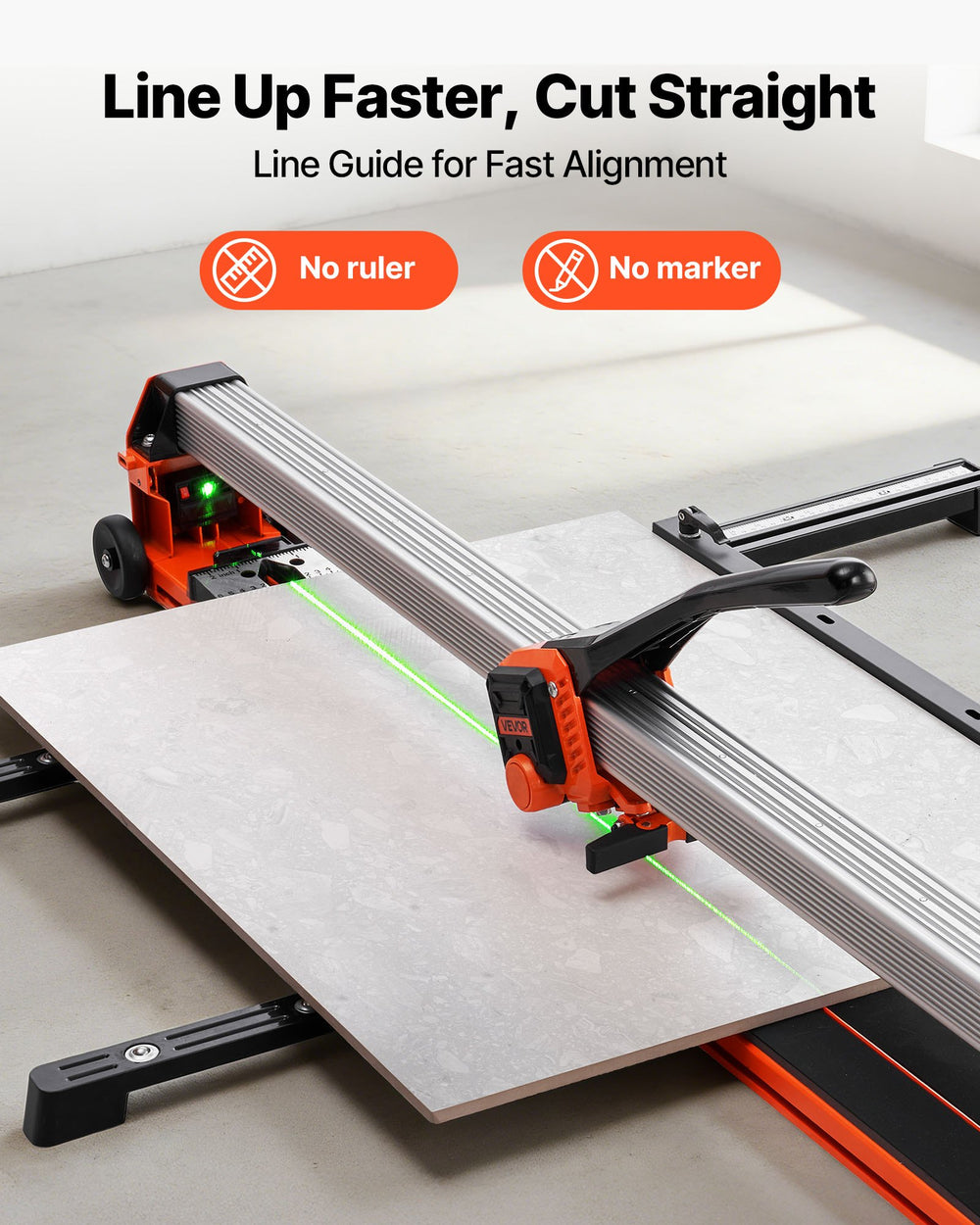

  • Fast Line-Up, Accurate Cuts: Align cuts faster with the built-in visible line guide. The wall tile cutter helps you stay on track without a ruler or marking pencil, reducing setup time and making straight cuts easier and more consistent

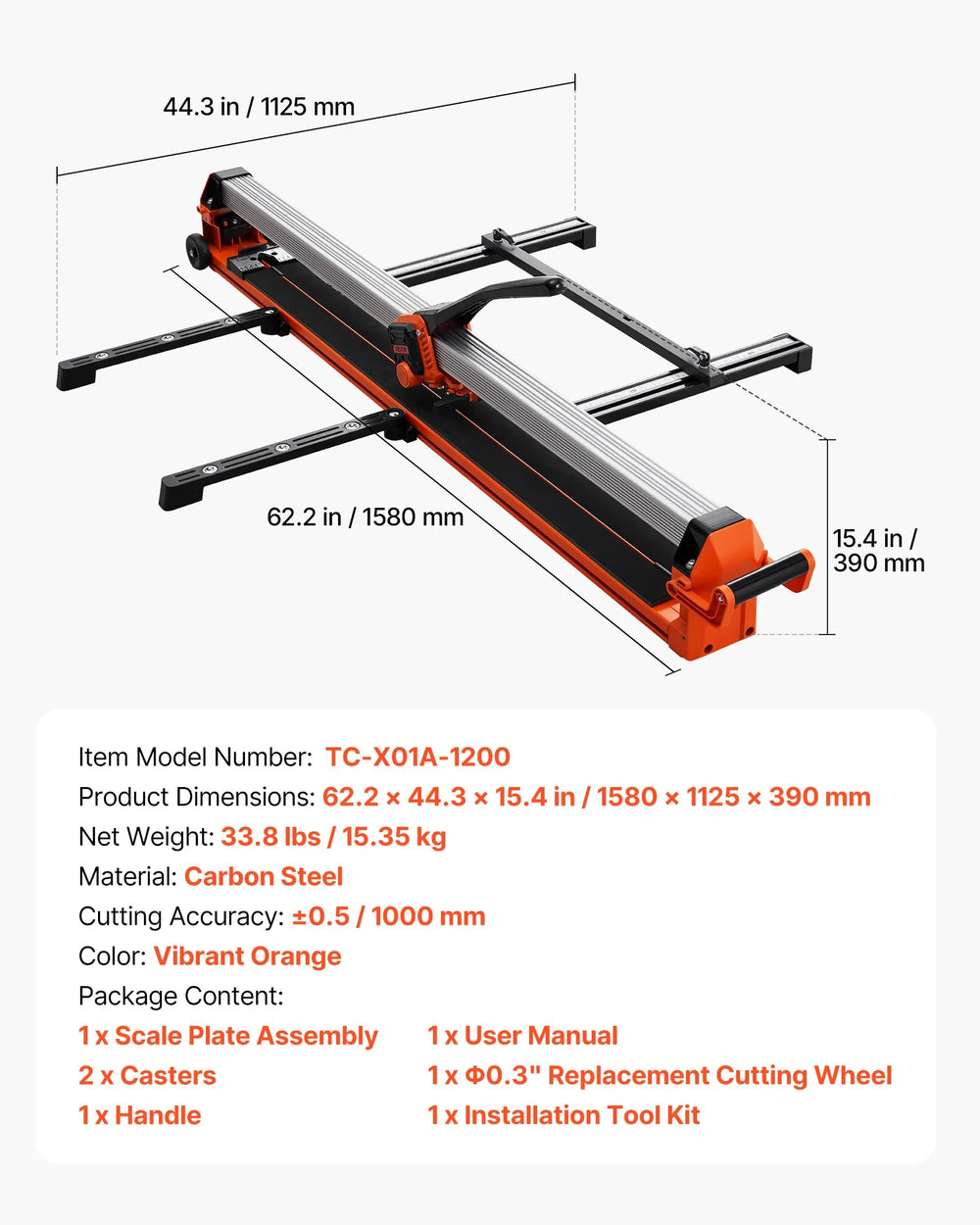

Specifications

Item Model Number TC-X01A-1200
Max Cutting Length 47.2 in (1.2 m)
Minimum Cutting Width 0.8 in (20 mm)
Cutting Thickness Range 0.2–0.6 in (5–15 mm)
Cutting Accuracy ±0.5 / 1000 mm
Main Material Carbon Steel
Base Type Fixed Base
Net Weight 33.8 lbs (15.35 kg)
Product Dimensions 62.2 x 44.3 x 15.4 in (1580 x 1125 x 390 mm)

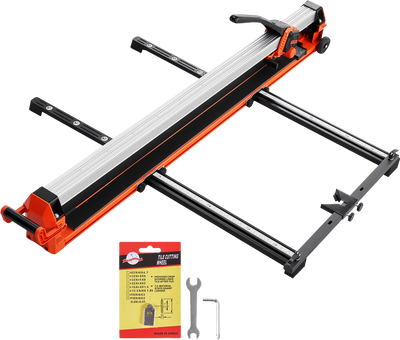

Package Contents

Vevor Manual Tile Cutter

Scale Plate Assembly

(2) Casters

Replacement Cutting Wheel

Handle

Installation Tool Kit

User Manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 1 year factory warranty.
