Vevor Shower Curb Install Kit Center Drain 38" x 60" with Installation Tools New
Product Overview
Vevor's shower curb install kit features a 38" x 60" water-impermeable foam shower tray with a 4" diameter center drainage position. Includes other accessories and materials needed to complete the drain installation and create a watertight shower area.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- PREMIUM SHOWER TRAY - The 38 x 60 in. (965.2 x 1524 mm) shower tray is made of EPS high-pressure foam board and forms a 5° inclination (from four sides to the middle) to ensure convenient drainage through the center 4 in. (10 cm) drain.
- DRAINAGE ACCESSORIES - The shower curb overlay includes a durable PVC flange and auxiliary drainage device (fits 2 in. pipes) to ensure smooth water flowing. The gravity automatic seal grate ensures that the pipes won’t be blocked. Included are (2) 38 x 4.5 x 6 in. (965.2 x 114.3 x 152.4 mm) shower curbs made of XPS plastic that is easy to cut to fit your needs.
- WATER IMPERMEABLE - There are (2) rolls of HDPE material water-impermeable membrane included in this shower curb kit. The small roll is 5 in. x 32.8 ft. (12.7 cm × 10 m) and the large roll is 3.3 ft. x 32.8 ft. (1 m x 10 m). Additionally, there are 4 inside corners and 2 outside corners of the membrane that are provided ready for use.
- STAINLESS STEEL TROWEL - The square-toothed stainless steel trowel helps create uniform lines during mortar brushing to help secure the adhesion between the membrane and another surface.
Specifications
| Model | VV-LYDZ-PVC3860Z |
| Shower Tray Material | EPS Foam |
| Shower Tray Size (W x L) | 38 x 60 in. (965.2 x 1524 mm) |
| Drain Inclination | 5° |
| Drain Position | Center |
| Pipe Fits | 2 in. (51 mm) |
| Drain Material | 304 Stainless Steel |
| Drain Size (W x L) | 4 x 4 in. (10 x 10 cm) |
| Flange Material | PVC |
| Shower Curb Size (L x W x H) | 38 x 4.5 x 6 in. (965.2 x 114.3 x 152.4 mm) |
| Cuttable Shower Curbs | Yes |
| Membrane Size (sq. ft.) | 121.3 ft² (11.3 m²) |
| Small HDPE Roll | 5 in. x 32.8 ft. (12.7 cm x 10 m) |
| Large HDPE Roll | 3.3 x 32.8 ft. (1 m x 10 m) |
| Trowel | Square-tooth |
| Space Between Tooth | 0.1 x 0.1 in. (2.5 x 2.5 mm) |

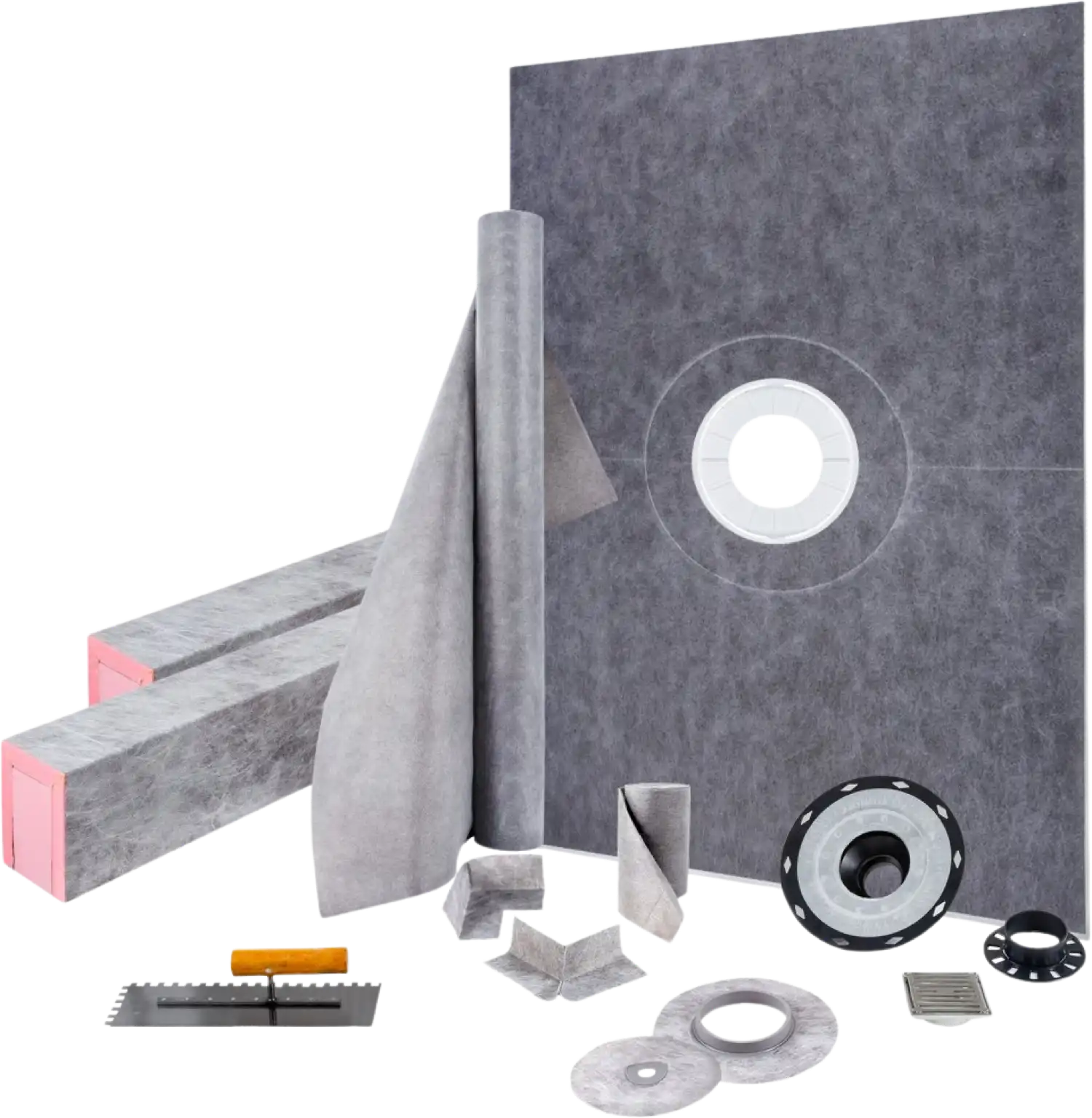

Package Contents
Vevor Shower Curb Install Kit Center Drain 38" x 60"
Shower Tray
(2) Shower Curbs
PVC Flange
Flange Collar
Drainage Assistant
Stainless Steel Grate
Square Tooth Trowel
(4) Inside Corners
(2) Outside Corners
(2) HDPE Rolls
Valve and Pipe Seal
User Manual
Warranty
This item comes with a 1 year factory warranty.
