    Product Overview

    The Vevor hydraulic steering kit is designed to deliver smooth, precise steering control for single-station, single-engine boats with outboards up to 300 HP. It features a high-pressure helm pump, a compact hydraulic cylinder, and two 26' high-strength hoses built for demanding marine use. The system is made with durable materials including aluminum alloy and 304 stainless steel for reliable long-term performance. Its space-saving cylinder and wide boat compatibility make it suitable for cruisers, center consoles, speedboats, and offshore fishing boats.

    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

    • Handle Up to 300 HP Engines: This hydraulic steering kit delivers steady, efficient steering performance for outboards up to 300 HP, providing a 7.5 turns lock-to-lock for precise and responsive handling on every trip

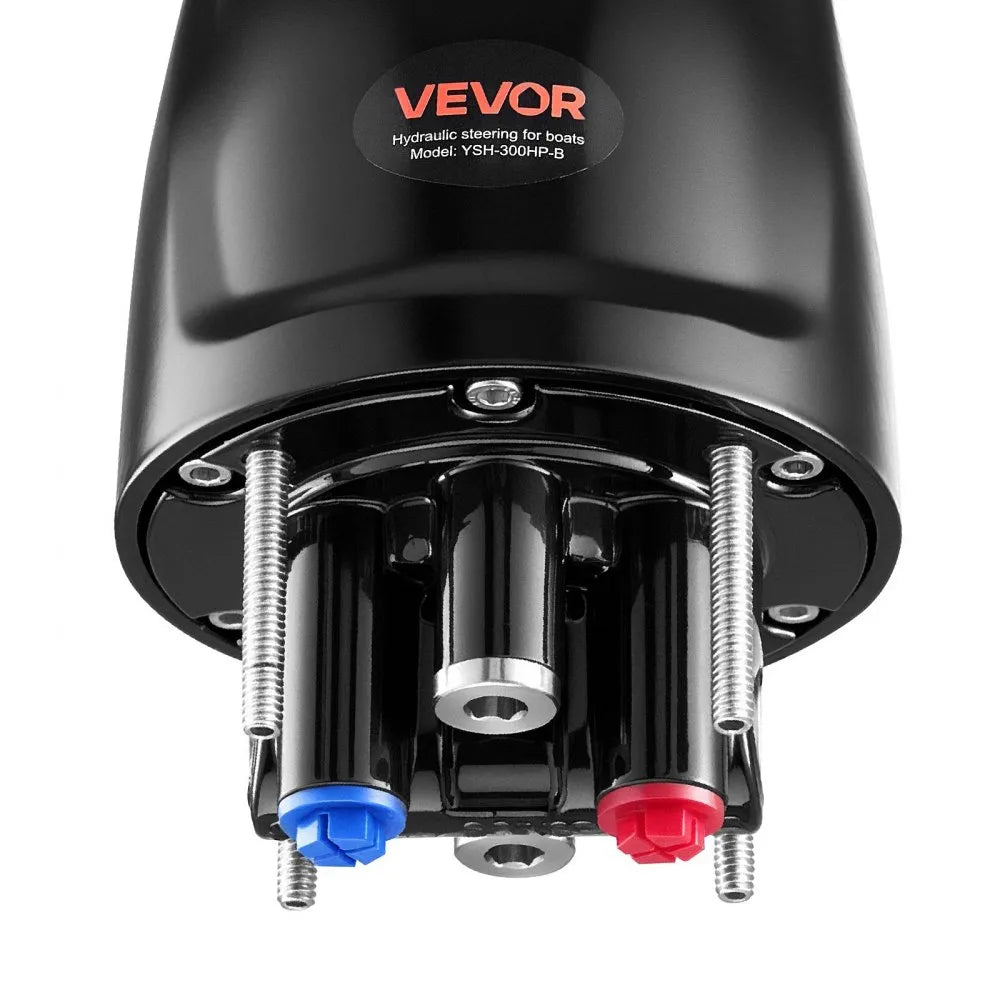

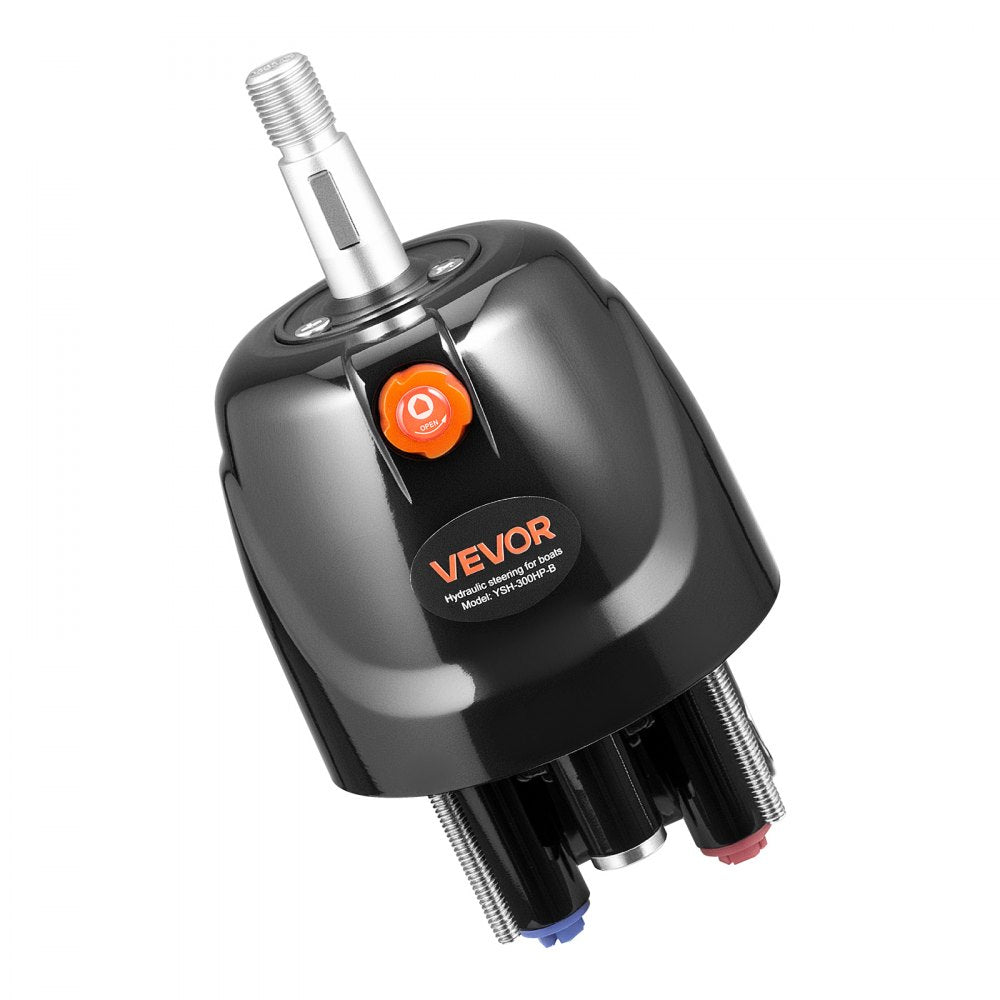

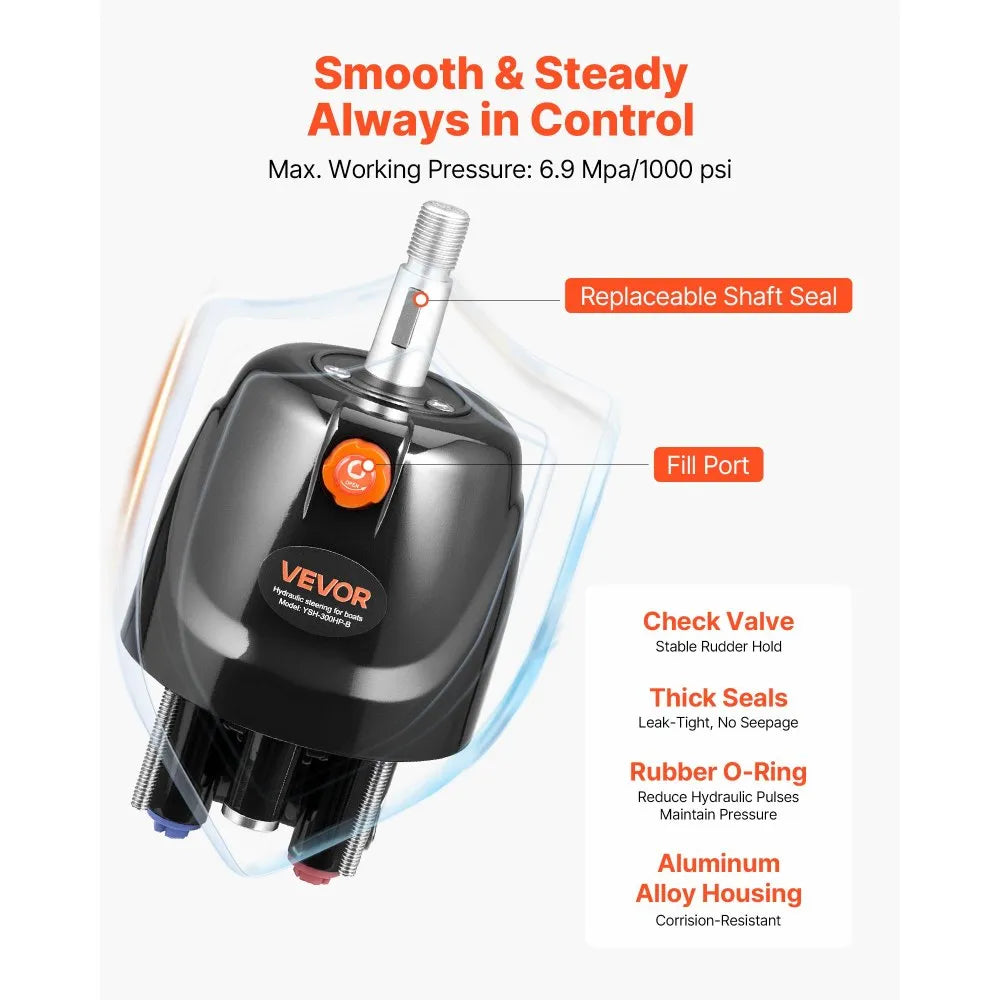

    • Durable & Reliable Helm Pump: Built to handle 6.9 MPa/1000 psi, this marine hydraulic steering kit features a check valve, fill port, stainless steel ORB fittings, and a replaceable shaft seal. The aluminum alloy housing ensures long-term use

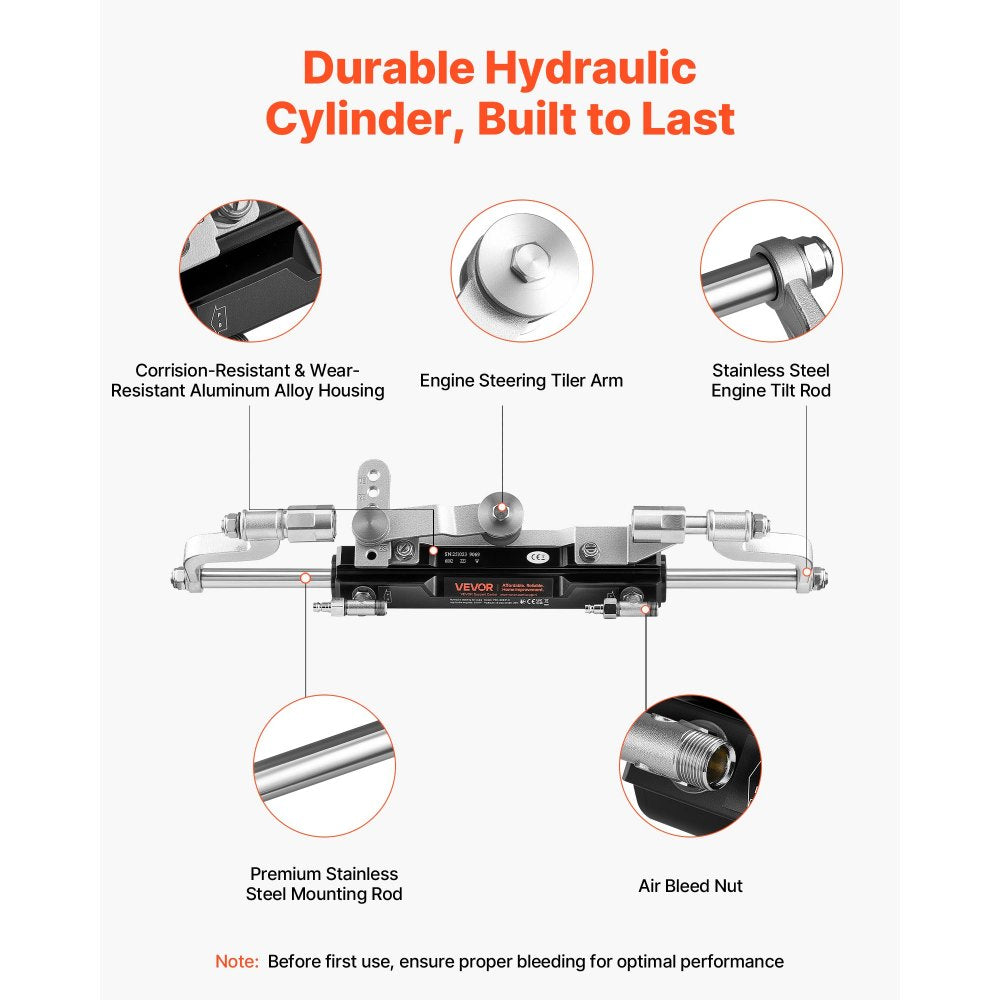

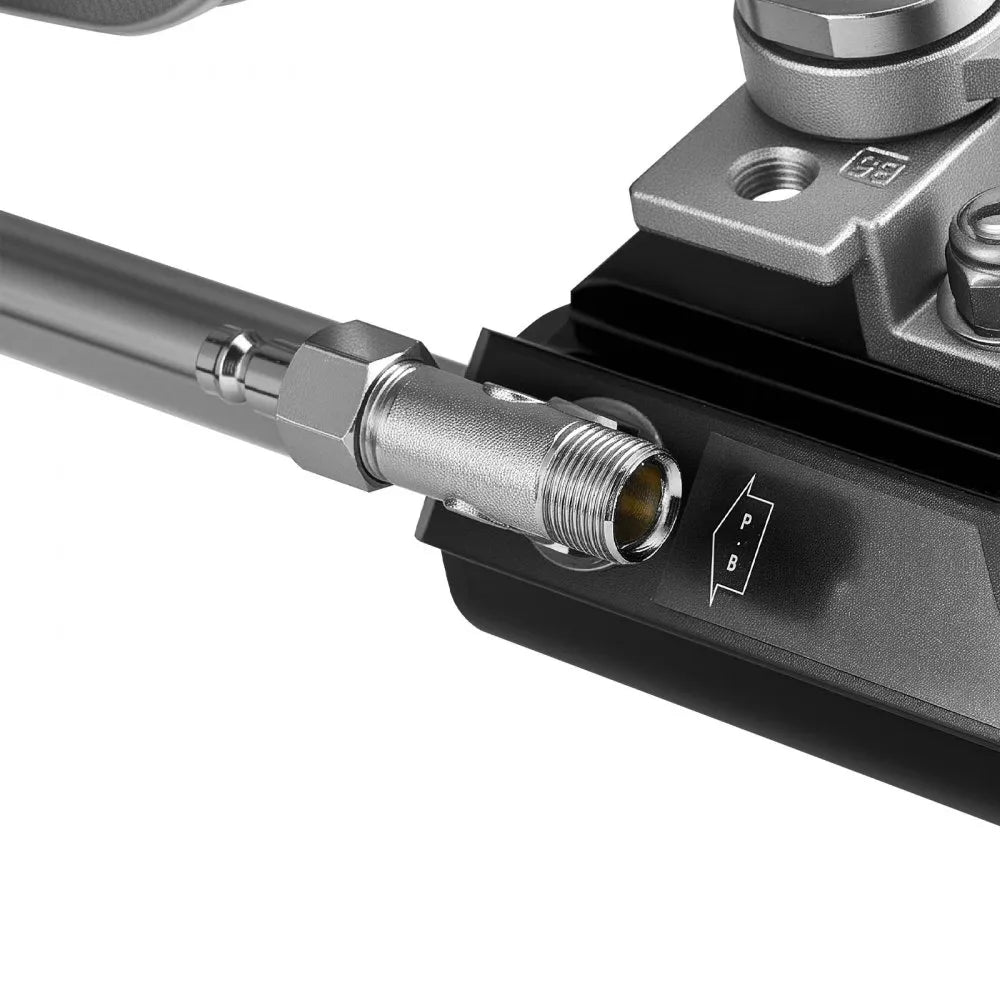

    • Compact Hydraulic Cylinder: The boat hydraulic steering system includes a space-saving cylinder that fits a variety of boat types. Its reinforced sealing structure ensures smooth steering performance and durability even in rough marine conditions

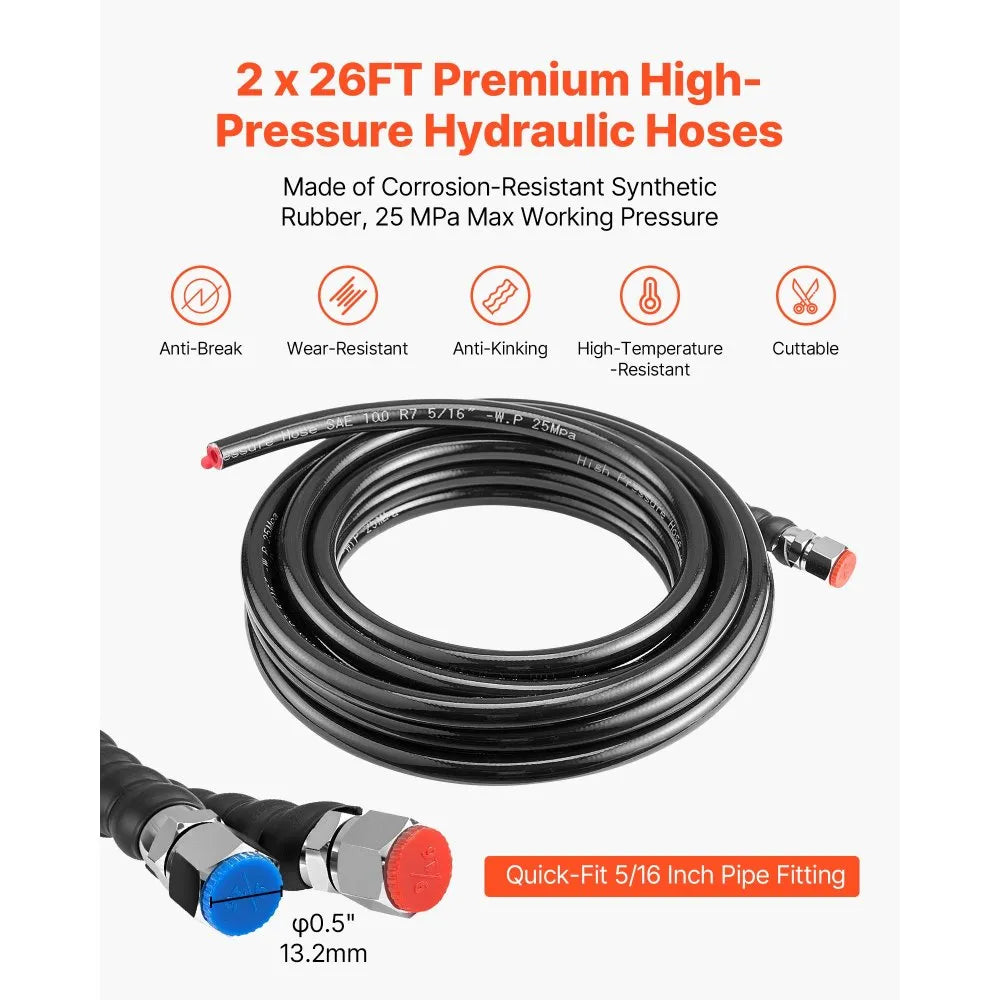

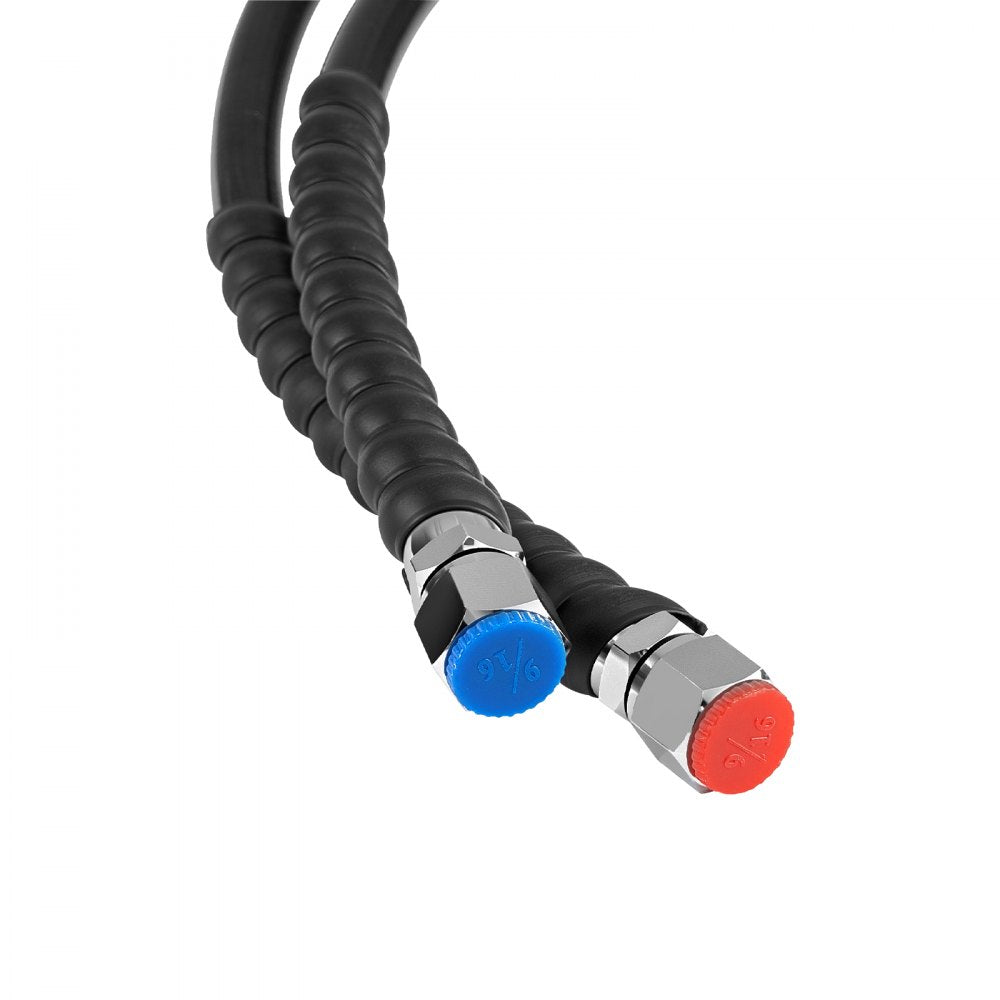

    • 2 x 26FT High-Strength Hoses: With a max working pressure of 25MPa, these premium hoses resist bursting, kinking, and leaking under heavy load. Equipped with a quick-fit 5/16-inch fitting, allowing for flexible, fast installation across various boats
    • Wide Boat Compatibility: This hydraulic steering helm pump kit works with cruisers, center consoles, speedboats, and offshore fishing boats, making it a versatile choice for a wide range of outboard setups

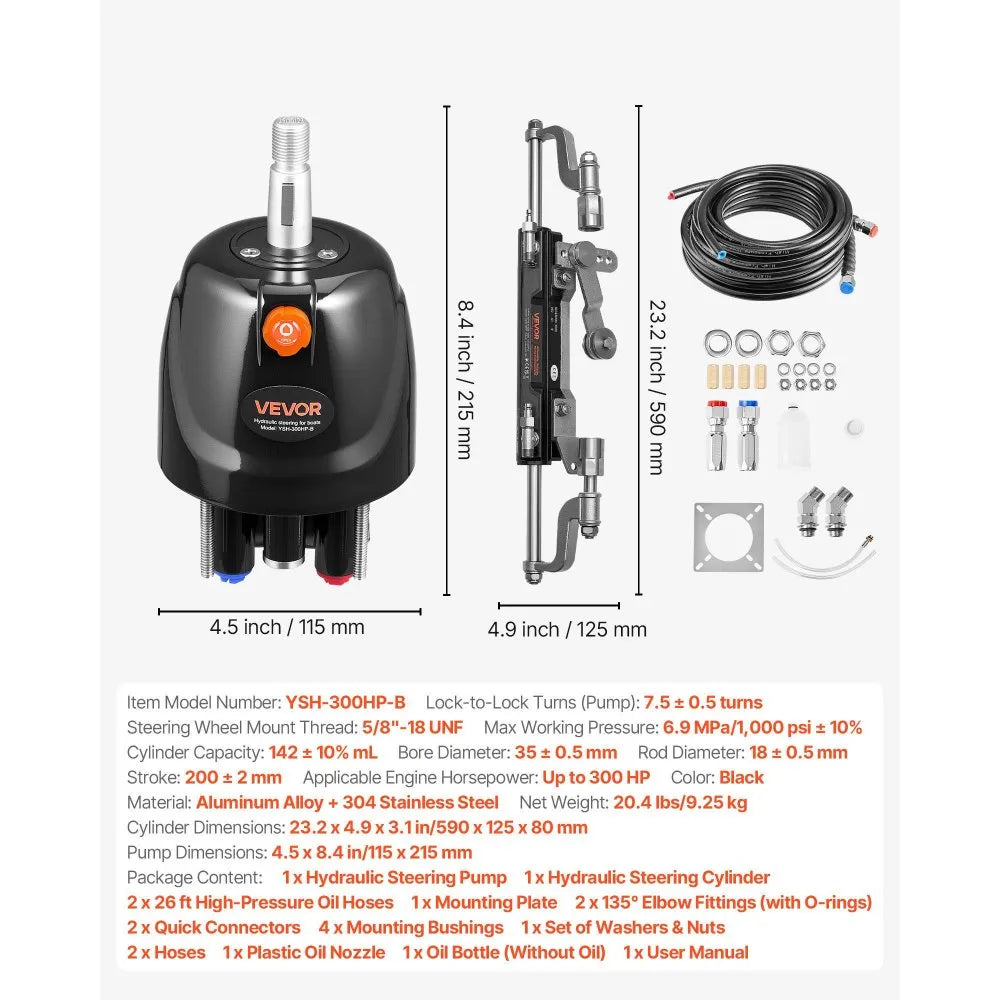

    Specifications

    Item Model Number YSH-300HP-B
    Product Type Hydraulic Steering Kit
    Lock-to-Lock Turns (Pump) 7.5 ± 0.5 turns
    Steering Wheel Mount Thread 5/8"-18 UNF
    Max Working Pressure 6.9 MPa / 1,000 psi ± 10%
    Cylinder Capacity 142 ± 10% mL
    Bore Diameter 35 ± 0.5 mm
    Rod Diameter 18 ± 0.5 mm
    Stroke 200 ± 2 mm
    Applicable Engine Horsepower Up to 300 HP
    Hose Length 26'
    Hose Quantity 2
    Hose Max Working Pressure 25 MPa
    Hose Fitting Size 5/16"
    Color Black
    Material Aluminum Alloy + 304 Stainless Steel
    Compatible Use Single station, single-engine use
    Dimensions Hose Length 26'; Stroke 200 ± 2 mm; Bore Diameter 35 ± 0.5 mm; Rod Diameter 18 ± 0.5 mm

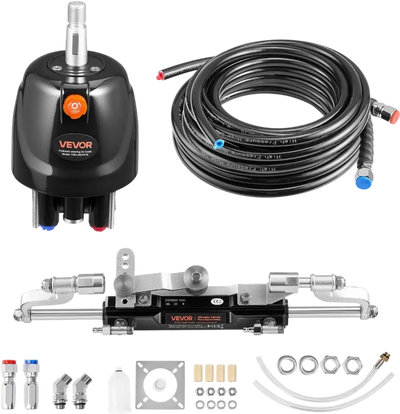

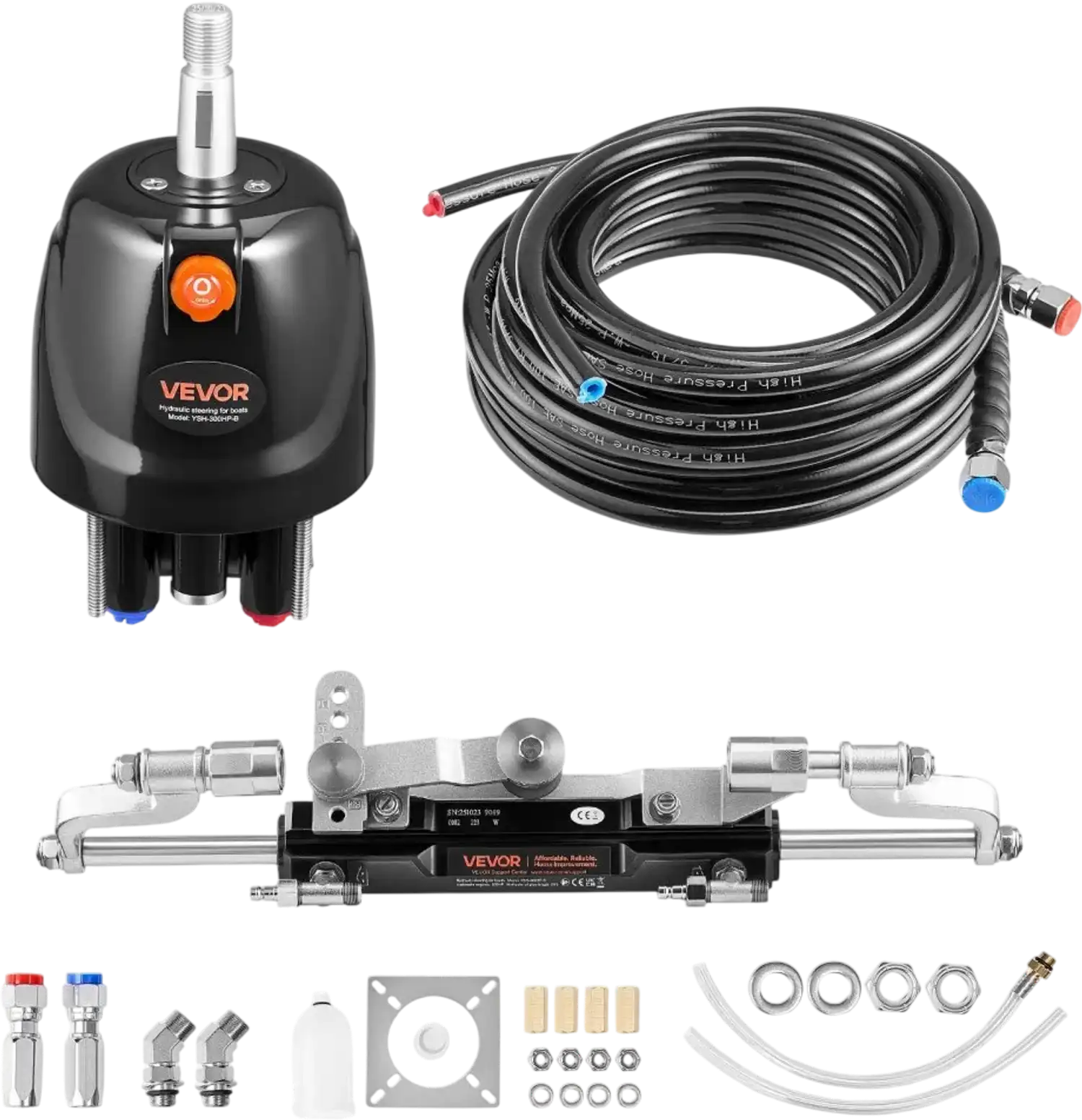

    Package Contents

    Hydraulic helm pump

    Hydraulic steering cylinder

    2 x 26' high-strength hoses

    Simple step-by-step instructions
