Vevor Hydraulic Pump Electric Driven 10,000 PSI Double Acting Solenoid Valve with Pedal 750W 120V New
Product Overview

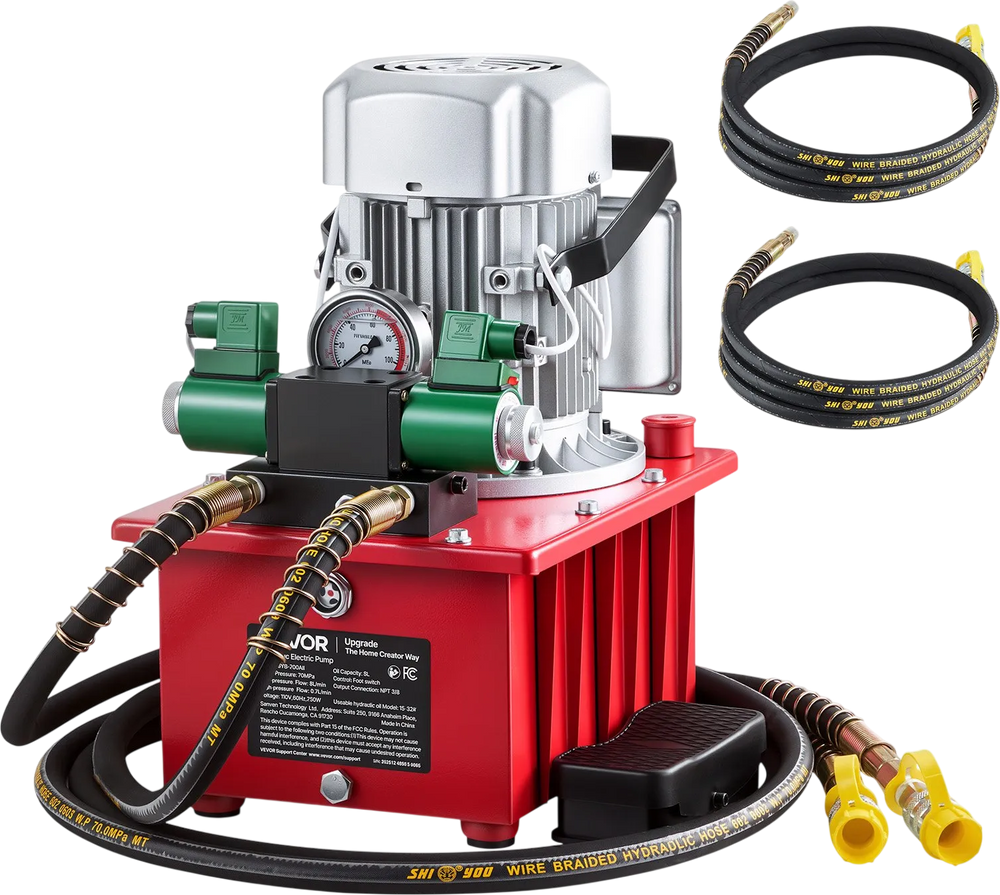

This VEVOR electric-driven hydraulic pump power unit delivers up to 10,000 PSI from a 750W motor for demanding double-acting hydraulic applications. A solenoid valve and foot pedal switch provide hands-free control for efficient lifting and return operations. The large 2.11 gal (8 L) reservoir helps reduce refills, and the included high-pressure hose supports longer reach. Built with a rugged metal housing and a precision gauge for easy pressure monitoring.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features

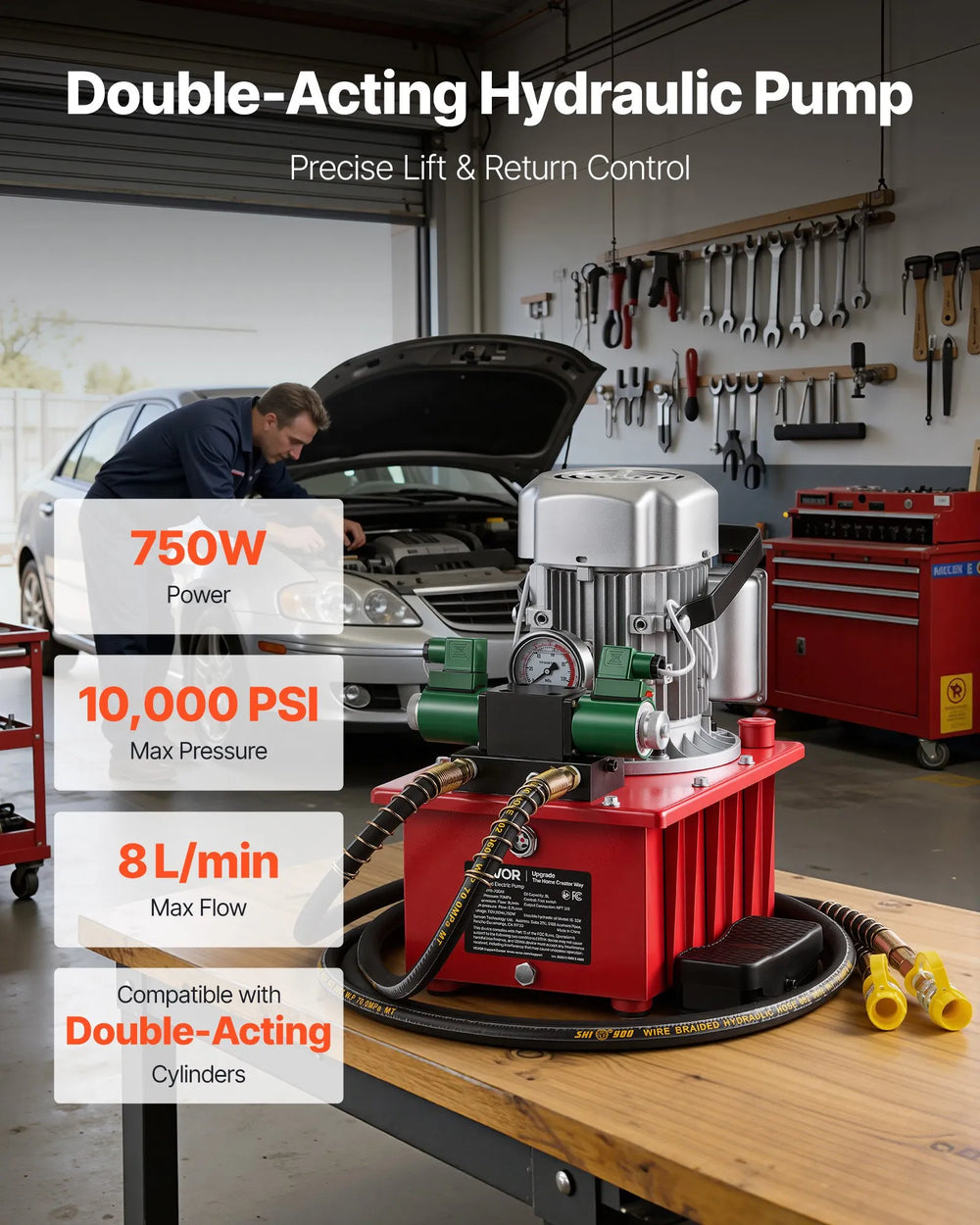

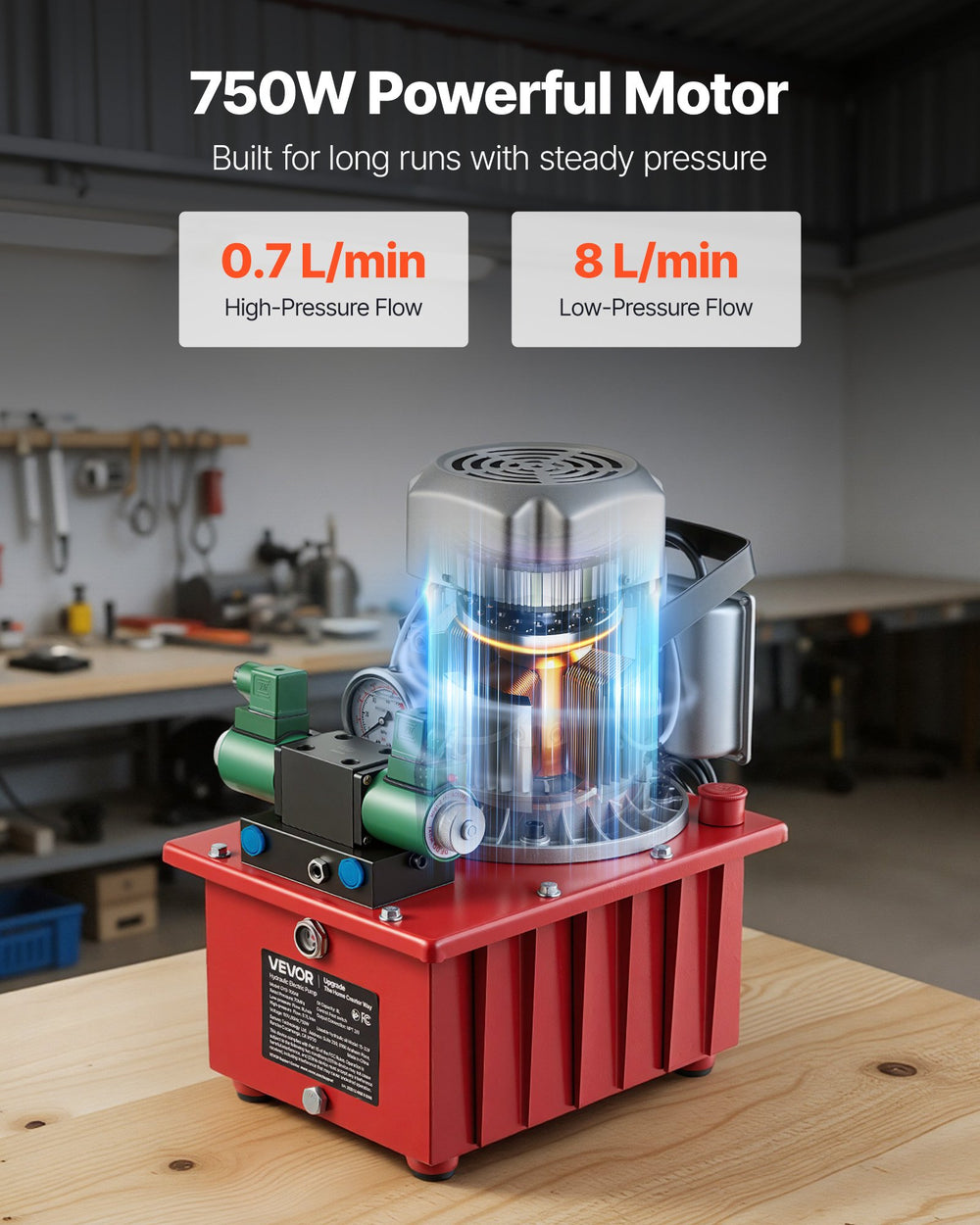

- High-Efficiency Lift & Return: This 750W electric hydraulic pump delivers a 10,000 PSI max pressure and 8 L/min max flow. As a double acting power unit, it precisely controls lifting and return for lifting, bending, pressing, straightening, cutting, etc

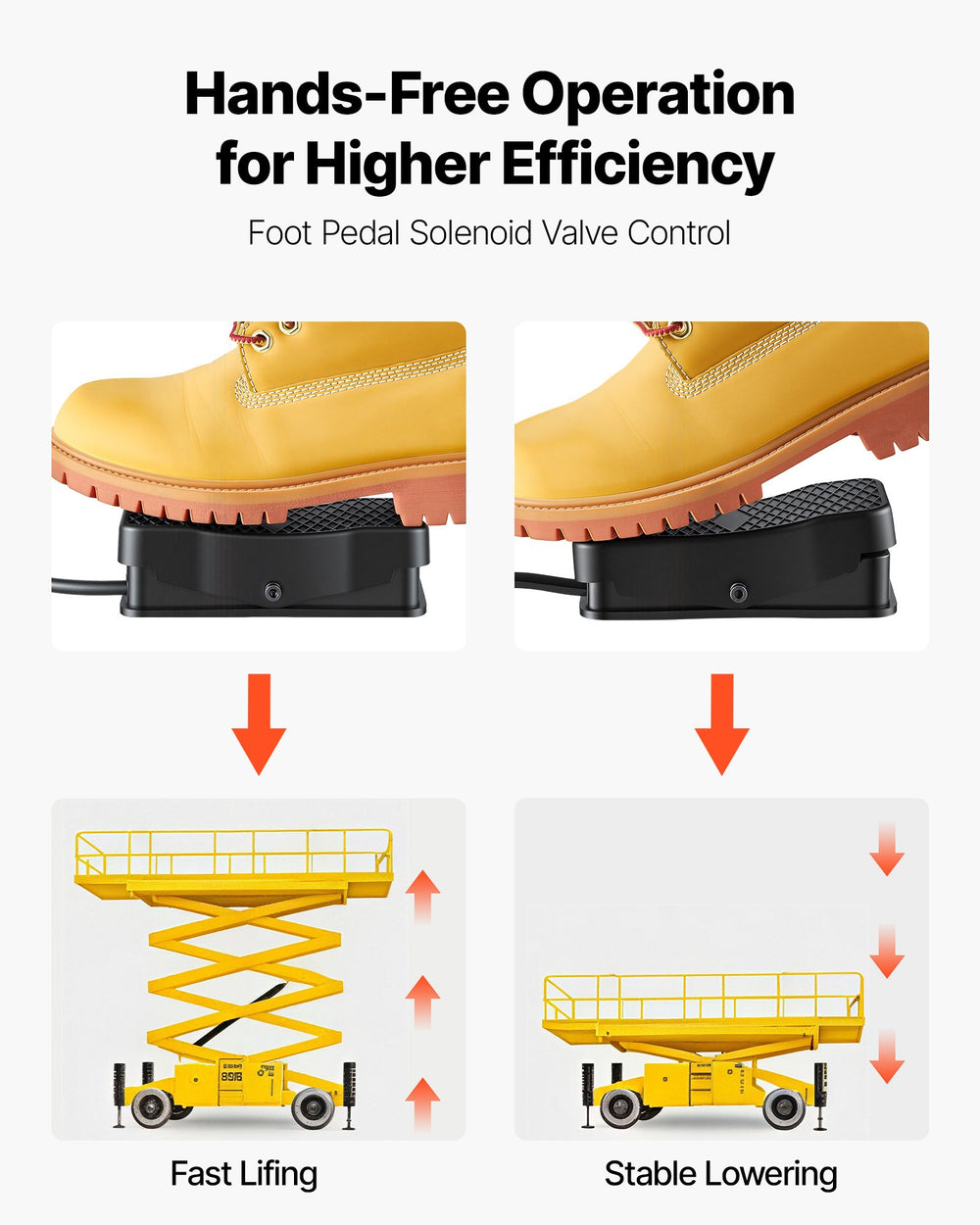

- Easy Hands-Free Control: The electric hydraulic pump power unit features a solenoid valve with a pedal switch, press to run, release to stop. Keeps both hands available for positioning and other tasks, helping you work fast and steady

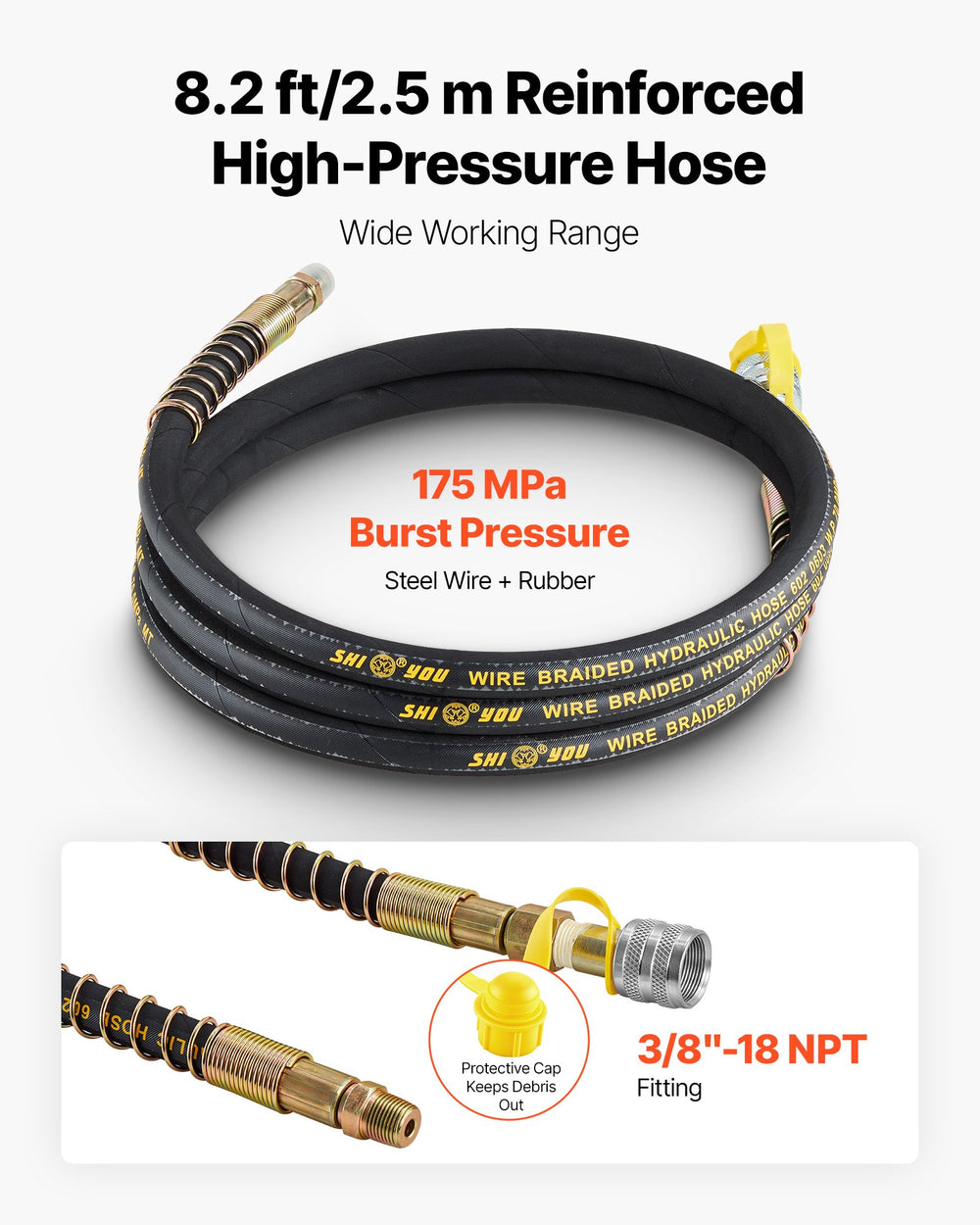

- 8.2 ft High-Pressure Hose: This hydraulic pump power pack includes an 8.2 ft / 2.5 m anti-burst hose for long-reach operation and quick replacement. Work farther without constantly moving the pump. The NPT 3/8" port enables broad compatibility
- 2.11 Gal Large Oil Reservoir: The double acting hydraulic pump is built with a 2.11 gal / 8 L tank to reduce frequent refills. Plus a sight glass window so you can check the oil level at a glance. Recommended hydraulic oil: 15–32# for optimal performance

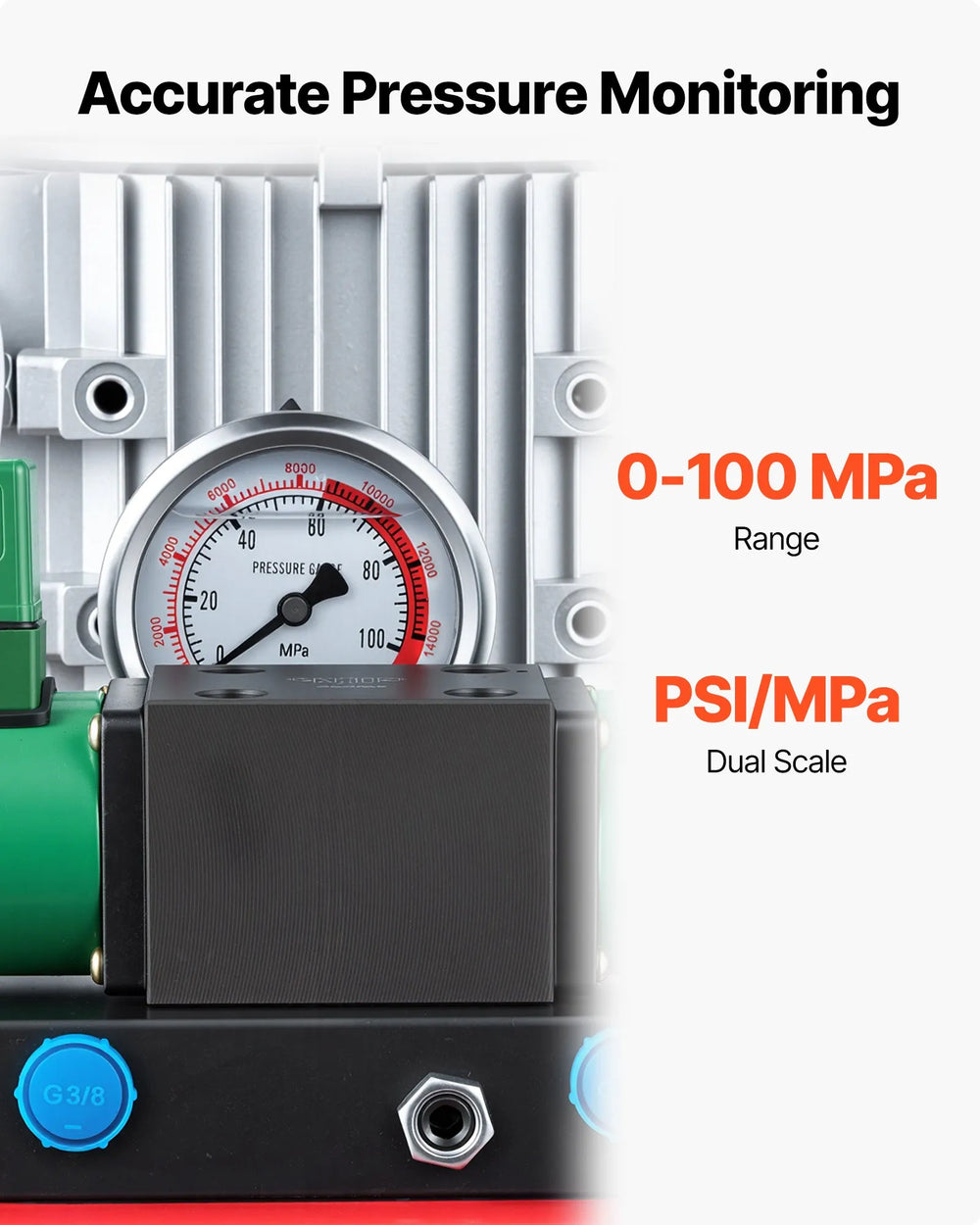

- Rugged, Industrial-Ready Build: The electric driven hydraulic pump comes with an accurate pressure gauge for easy pressure monitoring. Max pressure: 100 MPa. Set the pressure you need. Metal housing and corrosion-resistant oil reservoir for industrial use

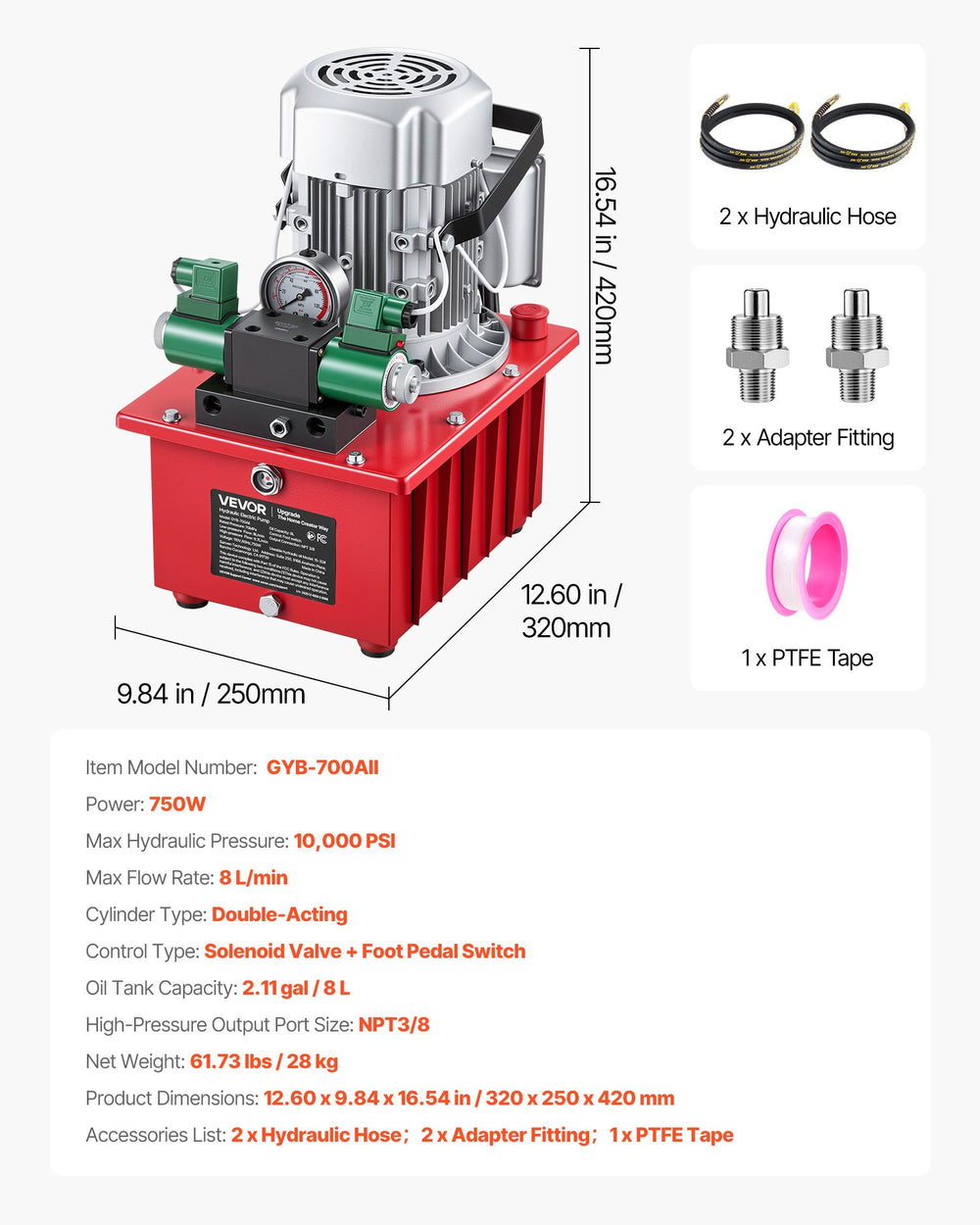

Specifications
| Item Model Number | GYB-700AII |
| Power | 750W |
| Voltage | 120V |
| Max Hydraulic Pressure | 10,000 PSI |
| Max Flow Rate | 8 L/min |
| Cylinder Type | Double-Acting |
| Control Type | Solenoid Valve + Foot Pedal Switch |
| Oil Tank Capacity | 2.11 gal / 8 L |
| High-Pressure Output Port Size | NPT 3/8" |
| Hose Length | 8.2 ft / 2.5 m |
| Net Weight | 61.73 lbs / 28 kg |
| Dimensions (L x W x H) | 12.60 x 9.84 x 16.54 in / 320 x 250 x 420 mm |
Package Contents
Electric Driven Hydraulic Pump
Foot pedal Switch
Hydraulic Hose (2)
Adapter Fitting (2)
PTFE Tape
User Manual
Warranty
This item comes with a 1 year factory warranty.
