Vevor Hydraulic Outboard Steering Kit System 90 HP 24' Hose Helm Pump 2-Way Lock for Single Engine Boat New
Product Overview
The Vevor kit enables the installation of a hydraulic steering system on engines up to 90HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve and features a detachable oil seal design, simplifying future inspections and maintenance. The 24 ft. hoses, can be cut to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- 90 HP Hydraulic Steering Kit: Our 90 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, (2) 24 ft. high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys！
- Two-Way Locking Valve: Our advanced hydraulic pump features a built-in dual-directional valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.
- 2 x 24 ft. Hydraulic Hoses: With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.
- High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force of 232 kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.
- Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 90HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.
Specifications
| Item Model Number | HSX-90HP |
| Applicable Engine Horsepower | ≤90HP |
| Maximum Pressure | 363 PSI (2.5 Mpa) |
| Output Force | 232 KGF |
| Capacity | 73 cc |
| Tube (Inner Diameter) | 1 in. (25 mm) |
| Rod (Inner Diameter) | 0.6 in. (14 mm) |
| Stroke | 7.9 in. (200 mm) |
| Pump Dimensions (W x H) | 4.5 x 7.9 in. (115 x 200 mm) |
| Hydraulic Steering Cylinder Dimensions (W x H) | 6.1 x 20.9 in. (155 x 530 mm) |
| Item Weight | 16.31 lbs. |
| Package Dimensions | 23.23 x 13.78 x 7.87 in. |
| Package Weight | 18.96 lbs. |
Package Contents

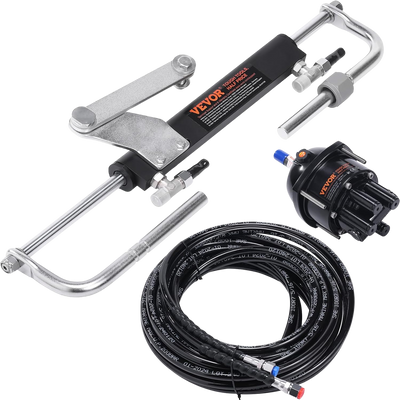

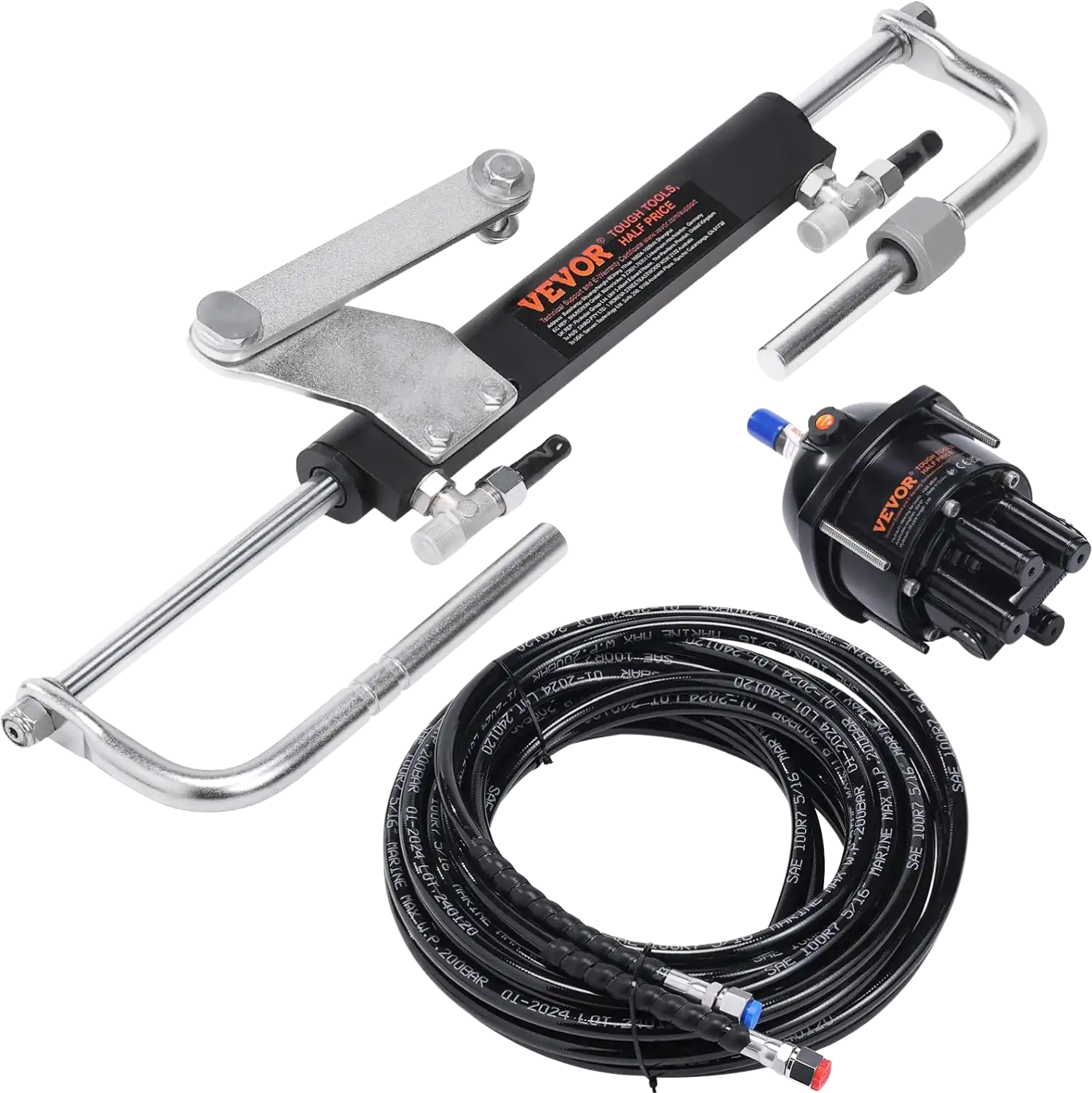

Vevor Hydraulic Outboard Steering Kit System
Install Accessories
Hydraulic Steering Pump
Hydraulic Steering Cylinder
(2) 24 ft. Hoses
User's Manual
Warranty
This item comes with a 1 year factory warranty.
