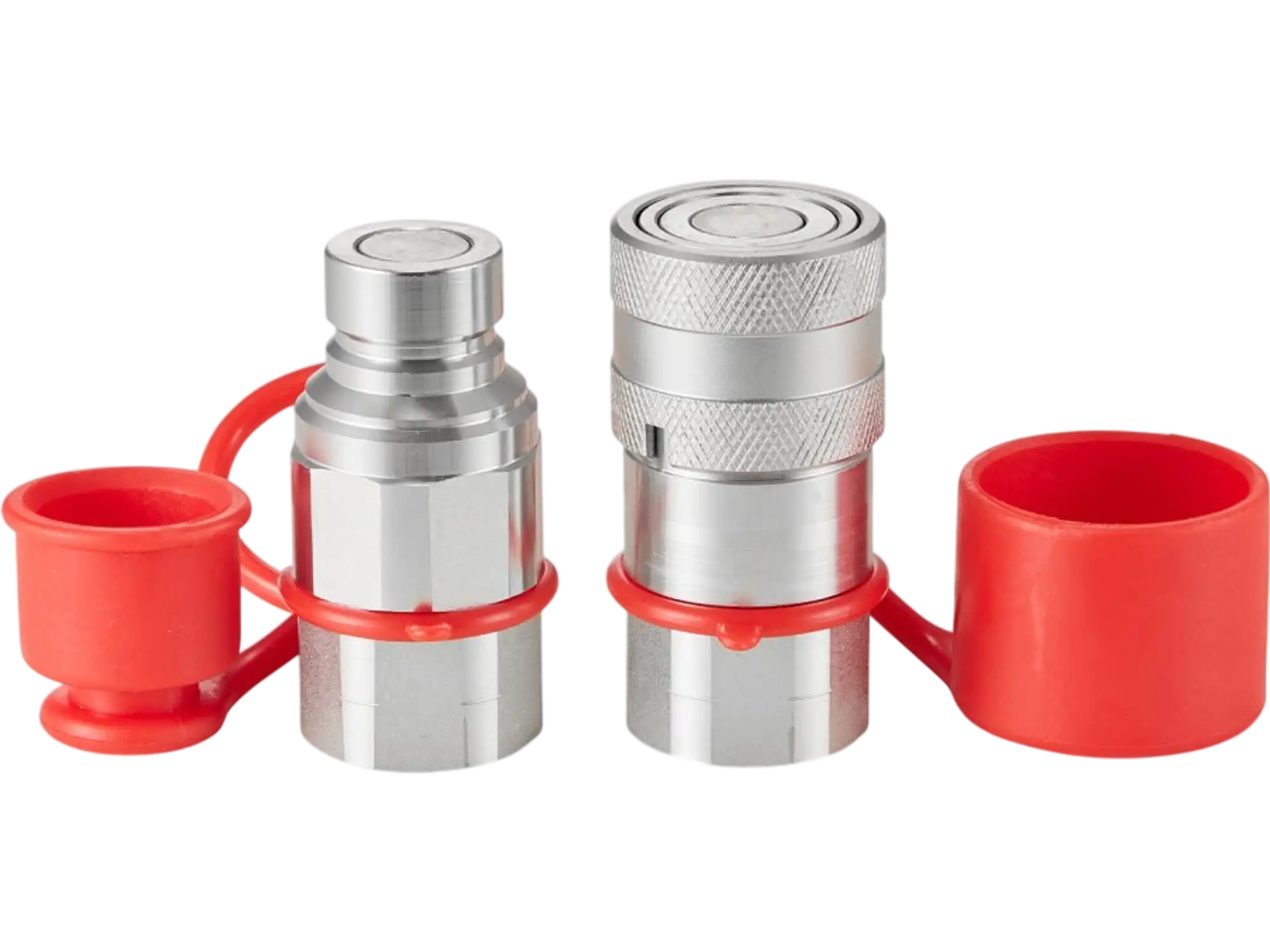

Vevor Flat Hydraulic Fitting 1/2" NPT Quick Connect Couplers with Dust Caps New
Manufacturer: Vevor
SKU: YYKSJTISO1605BND4V0
Quantity Options
Product Type Options
Thread Type Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$45.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-

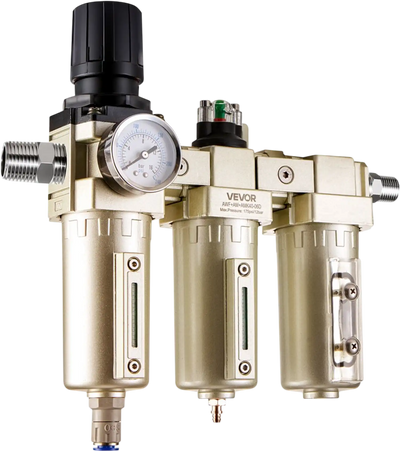

Vevor Air Compressor Filter Regulator 3/4" NPT 3-Stage Air Drying System New
-
Vevor Air Hose Reel Retractable 1/2 in. x 50 ft. Max 300 PSI Ceiling/Wall Mount 5 ft. Lead In New
-
Vevor Skid Steer Hydraulic Quick Connect Coupler 1/2" Body 1/2" NPT 27.6 MPa 12 Pairs New
-
Vevor Filter Regulator 3/8" NPT 3-Stage Air Compressor Water Separator New
-
Vevor Air Compressor Filter Regulator 3/4" NPT 4-Stage Air Drying System New
-
Vevor Air Compressor Filter Regulator Combo 1/2" NPT 3-Stage Compressed Air Drying System New
-

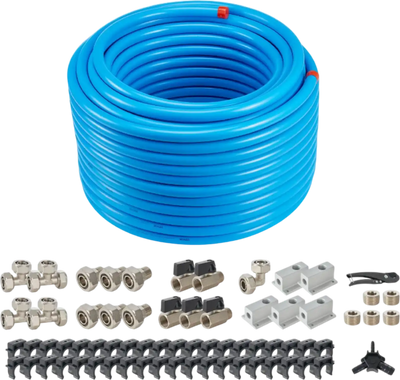

Vevor Air Compressor Line Kit 100' x 3/4" HDPE Aluminum Compressed Air Piping System Blue New
-
Vevor Air Hose Reel Retractable 3/8" x 50' Rubber Hose 300 PSI New
-
Vevor Air Hose Reel Retractable 3/8" x 100' Rubber 300 PSI New
-
Vevor Air Hose Reel Retractable 1/2 in. x 65 ft. Rubber Max 300 PSI Ceiling/Wall Mount New
-
Vevor Piston Compressor Pump 3 HP Single-Stage Twin Cylinder Aluminum Air Compressor Head New
-
Vevor Air Hose Reel Retractable 1/4" x 50' Hybrid Auto Rewind 300 PSI New
-

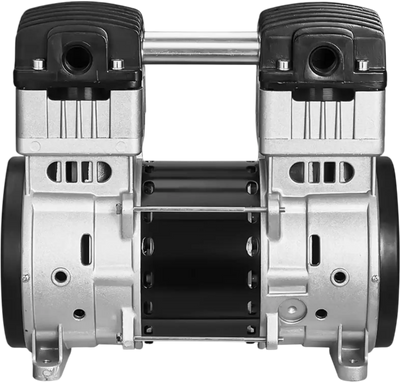

Vevor Air Compressor Pump Motor 2 HP Oil-Free 5.2 CFM 145 PSI New
-
Vevor Air Hose Reel Retractable 3/8" x 80' Hybrid Auto Rewind 300 PSI New
-
Vevor Air Hose Reel Retractable 3/8" x 65' Hybrid Air Hose with Double Arms New
-
Vevor Air Hose Reel Retractable 3/8" x 65' 300 PSI Hybrid Enclosed New
-

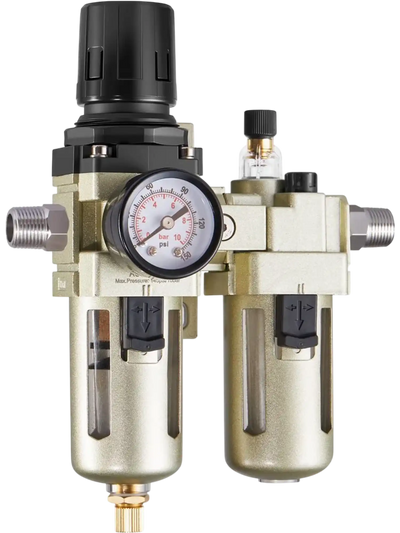

Vevor Filter Regulator Lubricator 3/8" NPT Air Compressor Water Separator New
-
Vevor Air Compressor Line Kit 3/4" x 300' HDPE Aluminum Complete Piping System New
-
Vevor Air Hose Reel Retractable 3/8" x 50' 300 PSI Wall or Ceiling Mount New
-
Vevor Air Compressor Filter Regulator 1/2" NPT 3-Stage Air Drying System New
-

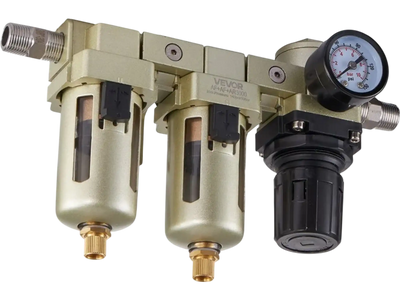

Vevor Air Compressor Filter Regulator 3/8" NPT Dual Stage Air-Drying System New
-
Vevor Air Hose Reel Retractable 1/2" x 50' Hybrid 300 PSI New
-
Vevor Air Compressor Line Kit 3/4" x 200' HDPE Aluminum Complete Piping System New
-
Vevor Air Hose Reel Retractable 3/8" x 50' Rubber Hose 300 PSI New
Vevor Flat Hydraulic Fitting 1/2" NPT Quick Connect Couplers with Dust Caps New
Product Overview
The Vevor flat hydraulic fitting set is designed for skid steer hydraulic connections and includes a pair of flat face quick connect couplers with dust caps. Built from hardened carbon steel and made to ISO 16028 standards, it is engineered for durability, clean connections, and reliable hydraulic performance. The flat-face design helps reduce contamination during connection and disconnection, while the sleeve locking design supports simple push-to-connect use. Heavy-duty knurled sleeves provide a secure grip for easier handling. This coupler set is suitable for use with many common skid steer loader systems.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- Standards Compliant: This hydraulic coupler features a 1/2" body size, with 1/2" NPT thread size for both the male and female couplers, adhering to ISO 16028 standards, making it ideal for connecting hydraulic lines.

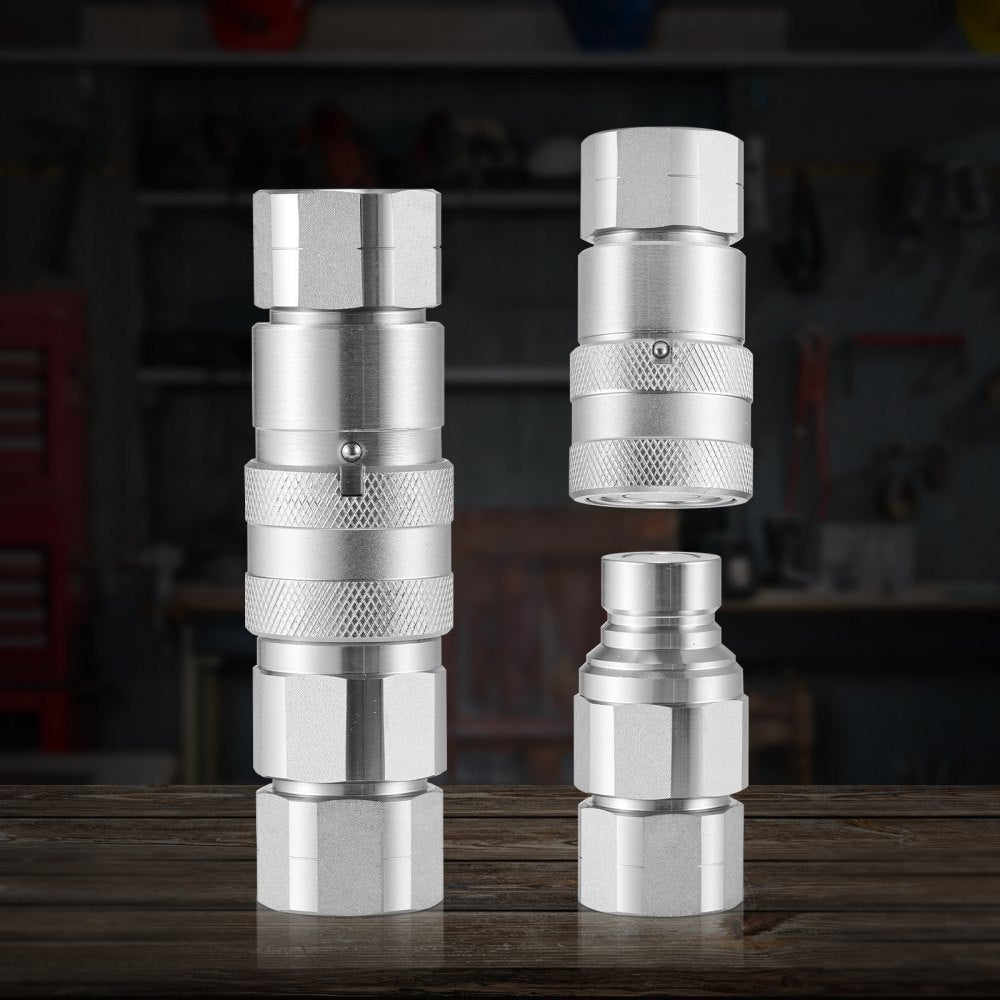

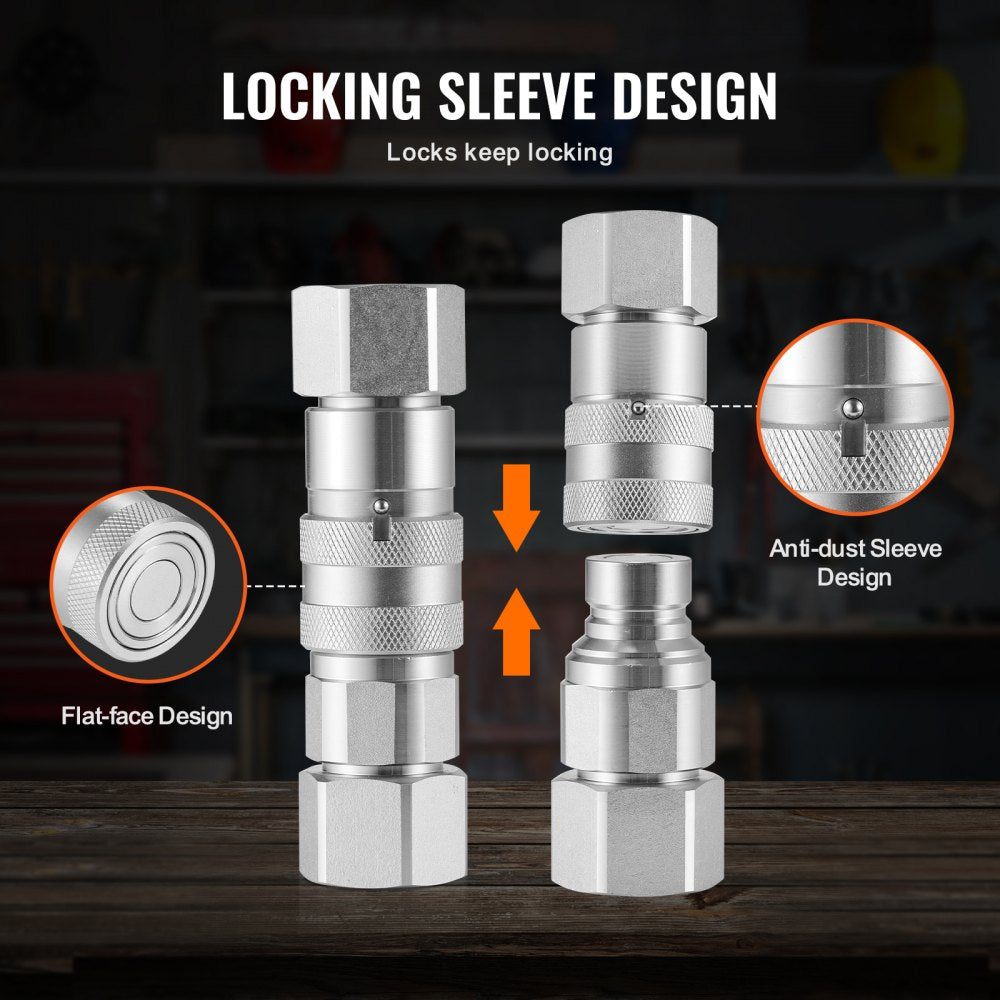

- Sleeve Locking Design: The flat face hydraulic couplers employs a sleeve locking design, allowing for easy connection with just a simple push. The flat-faced design of the coupler facilitates easy cleaning and prevents dust from entering the hydraulic system during connection and disconnection.

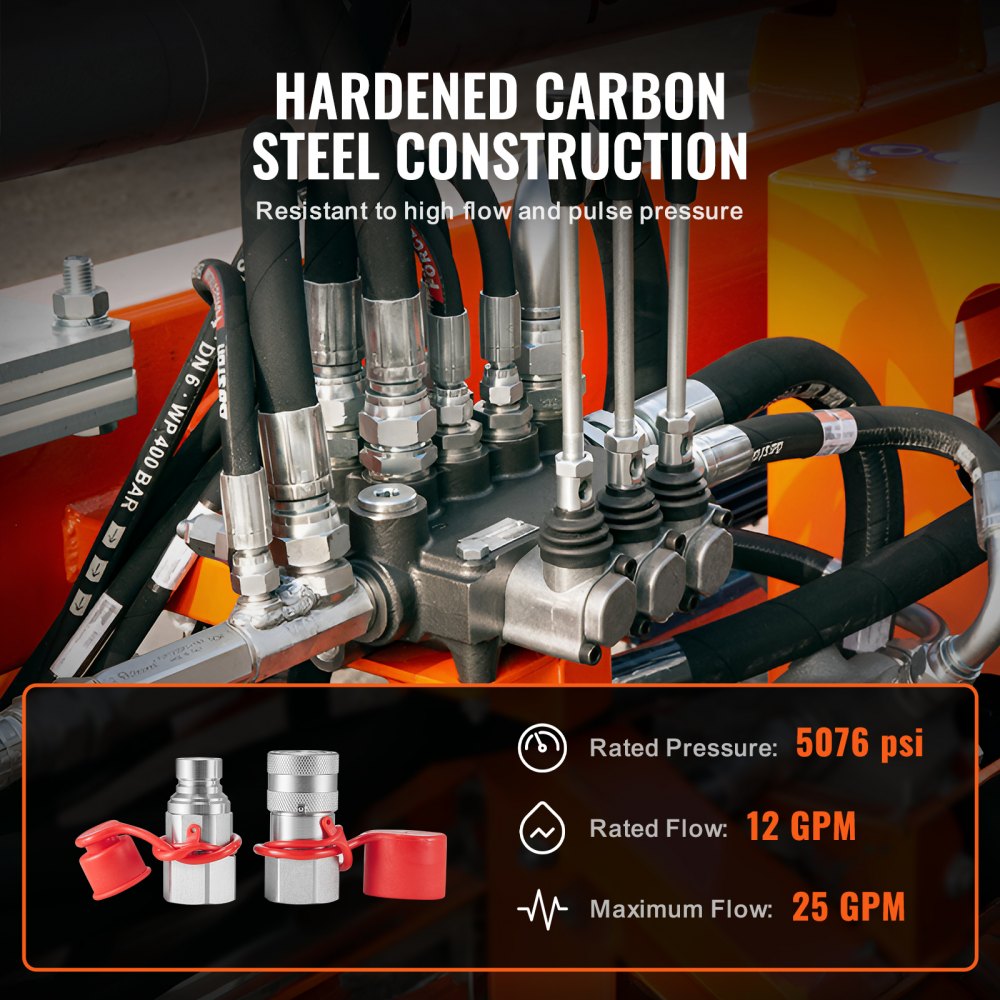

- Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 5076 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.

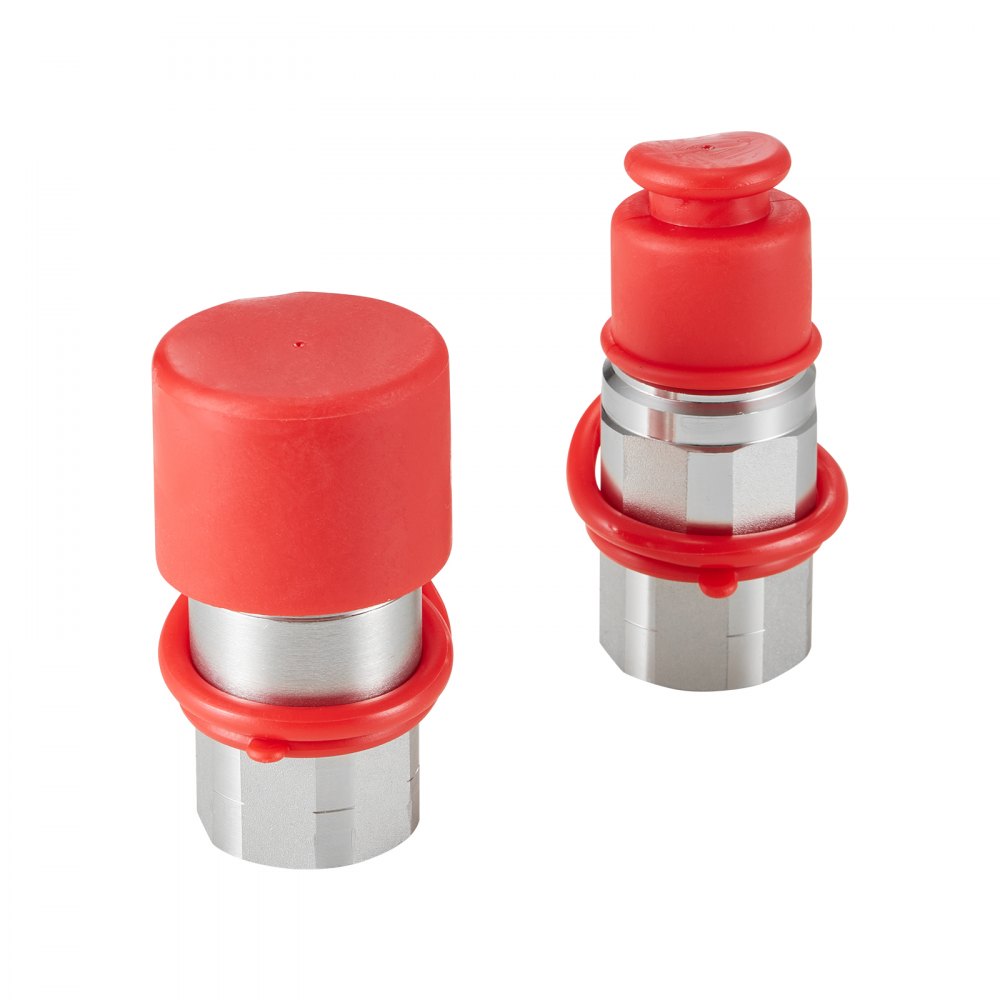

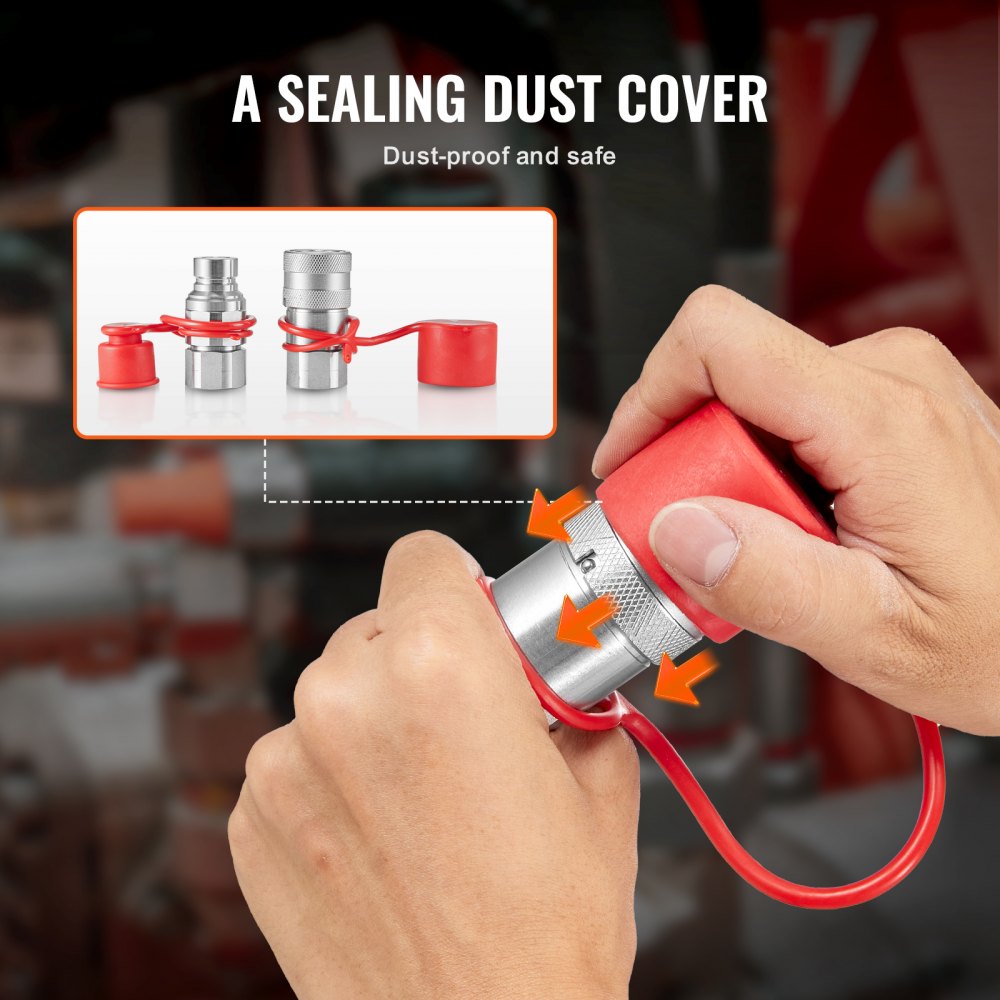

- Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use. Internal dust seals also ensure that the sleeve locking system operates smoothly without interference.

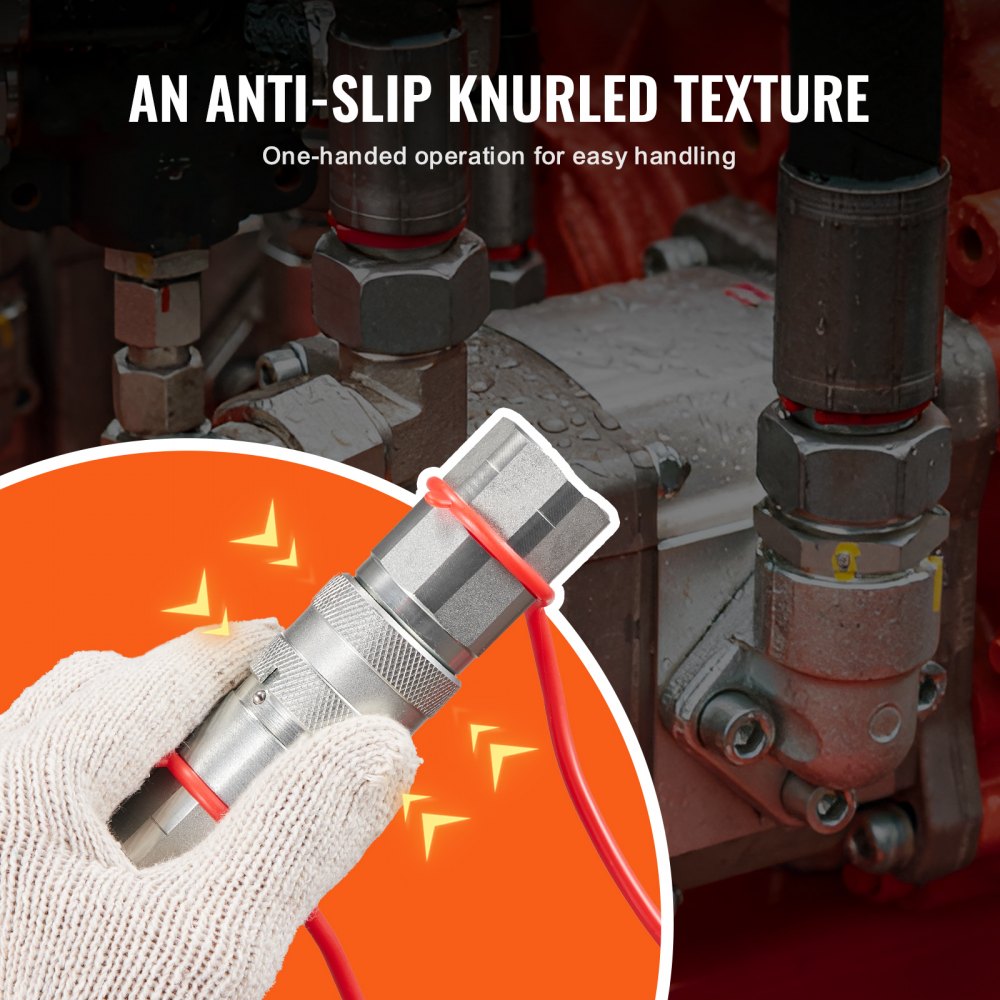

- Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip. This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
Specifications
| Model | LSQ-FF |
| Coupler Type | Flat Face Hydraulic Coupler |
| Standard | ISO16028 |
| Coupler Body Size | 1/2" |
| Rated Pressure | 5076 psi |
| Rated Flow | 12 GPM |
| Maximum Flow | 25 GPM |
| Quantity | 1 pair |
| Male Coupler Thread Size | 1/2" NPT internal thread |
| Female Coupler Thread Size | 1/2" NPT internal thread |
| Configuration | Dust caps |
| Color | White |
| Main Material | 45# carbon steel |

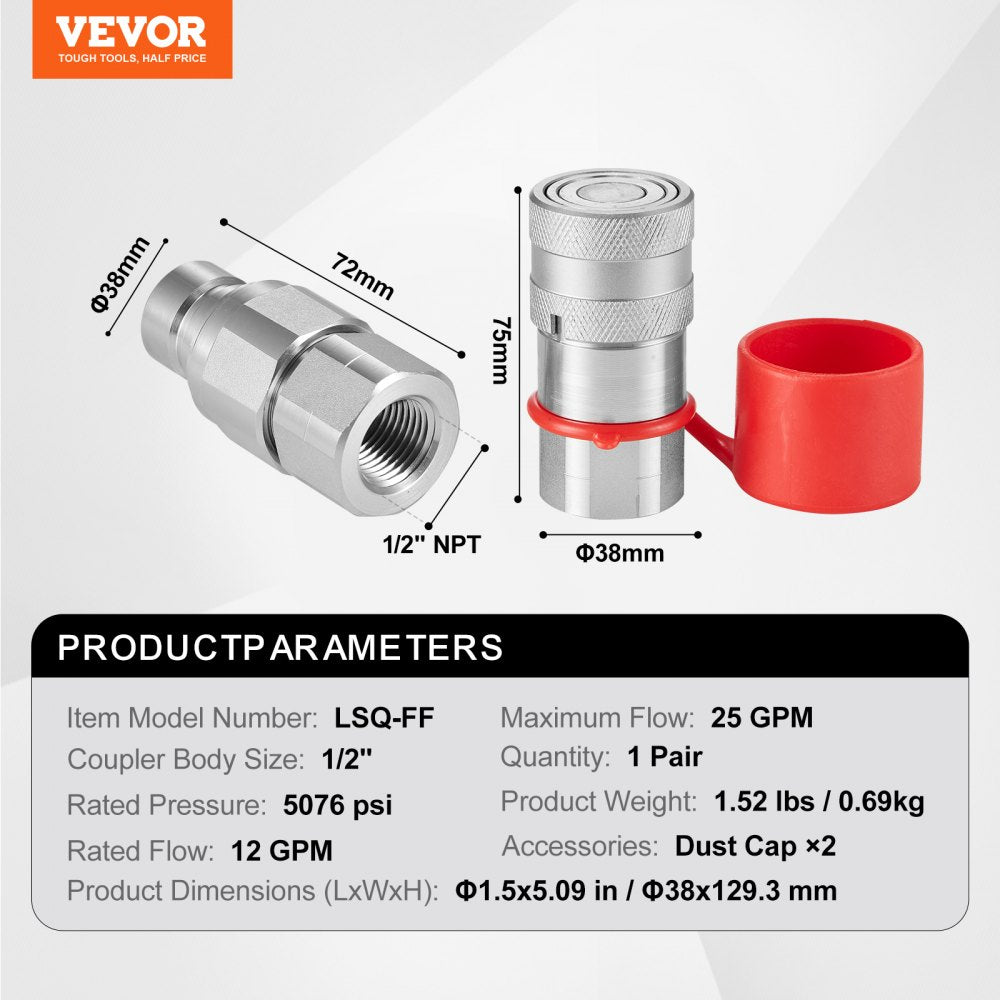

| Male Coupler Dimensions | Φ38 × 72 mm O.D. x L |
| Male Coupler Finish | Chrome plating |
| Female Coupler Dimensions | Φ38 × 75 mm O.D. x L |
| Female Coupler Finish | Chrome plating |
| Dust Cap Dimensions | Φ40 × 260 mm O.D. x L |
| Dust Cap Material | Rubber |
| Dust Cap Color | Red |
| Product Weight | 1.52 lbs |
| Product Dimensions | Φ1.5 x 5.09" |
Package Contents

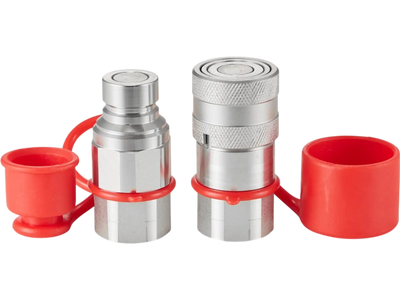

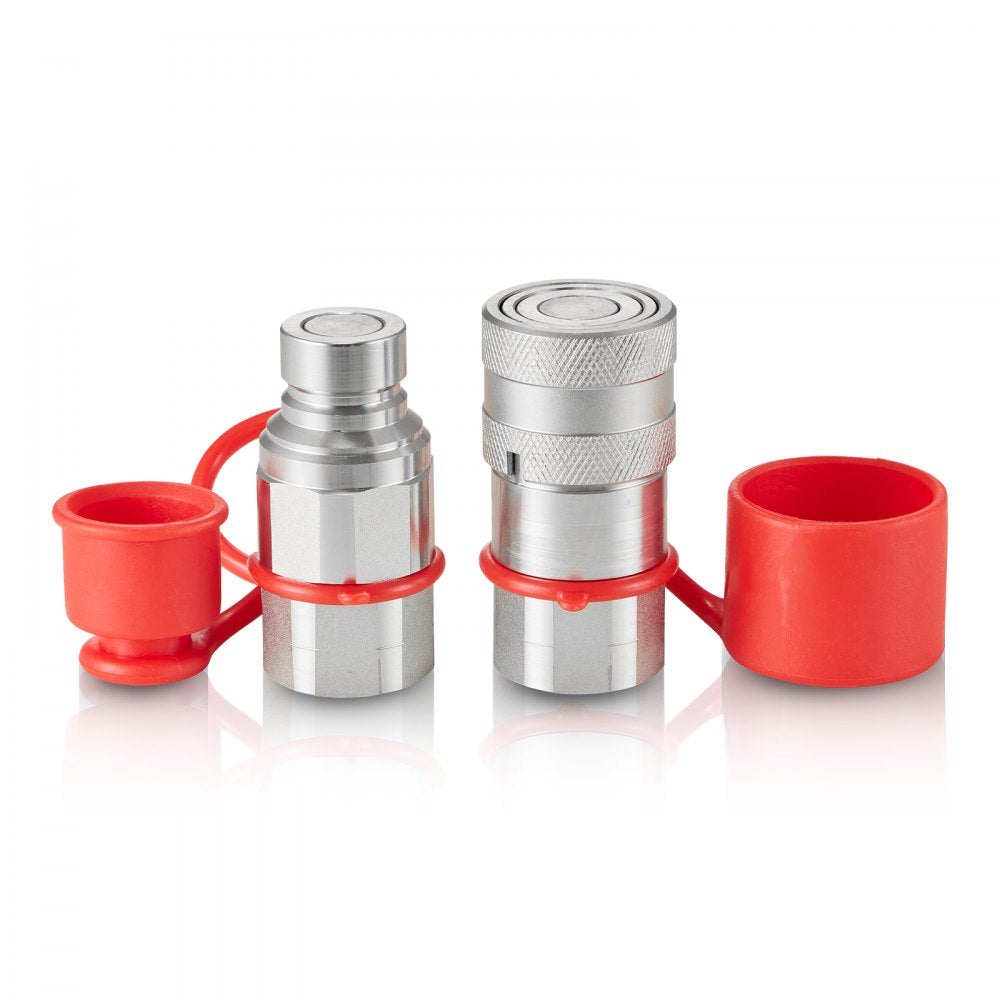

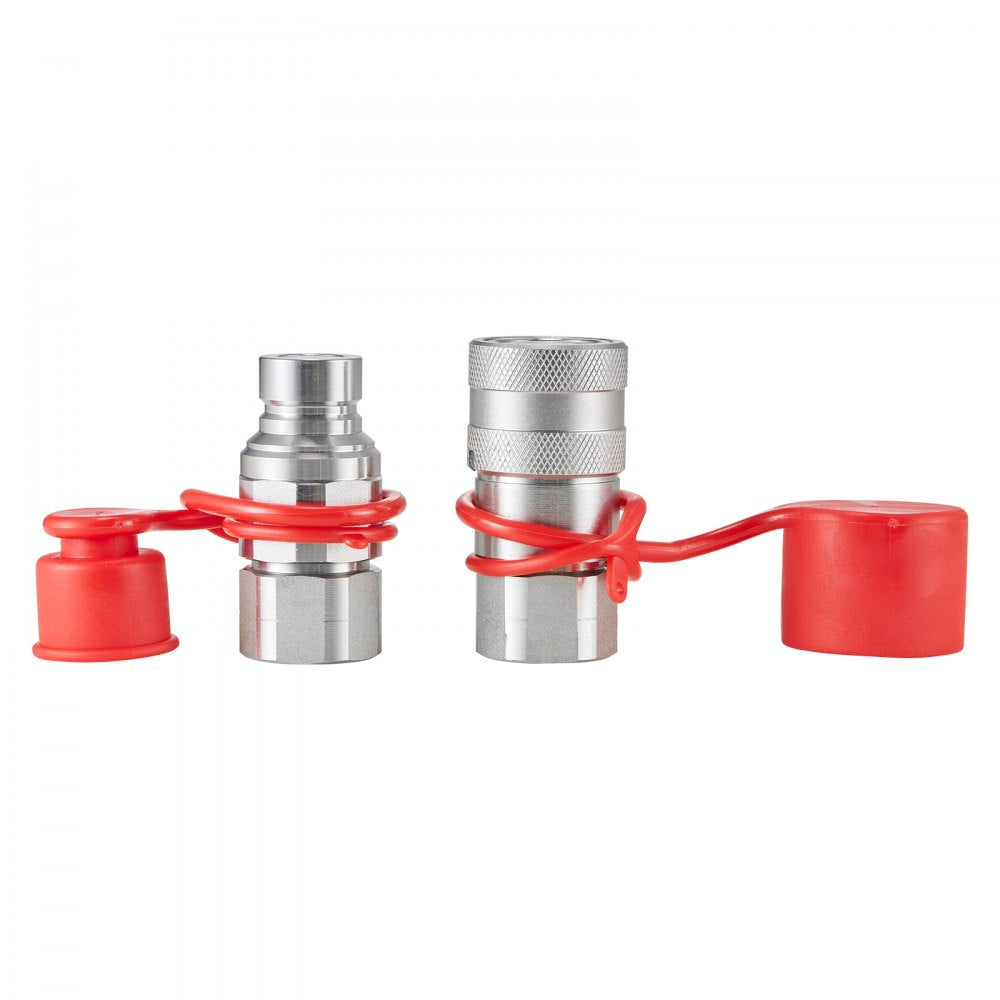

1 pair of flat face hydraulic couplers
2 dust caps
Warranty
This item comes with a 1 year factory warranty.
