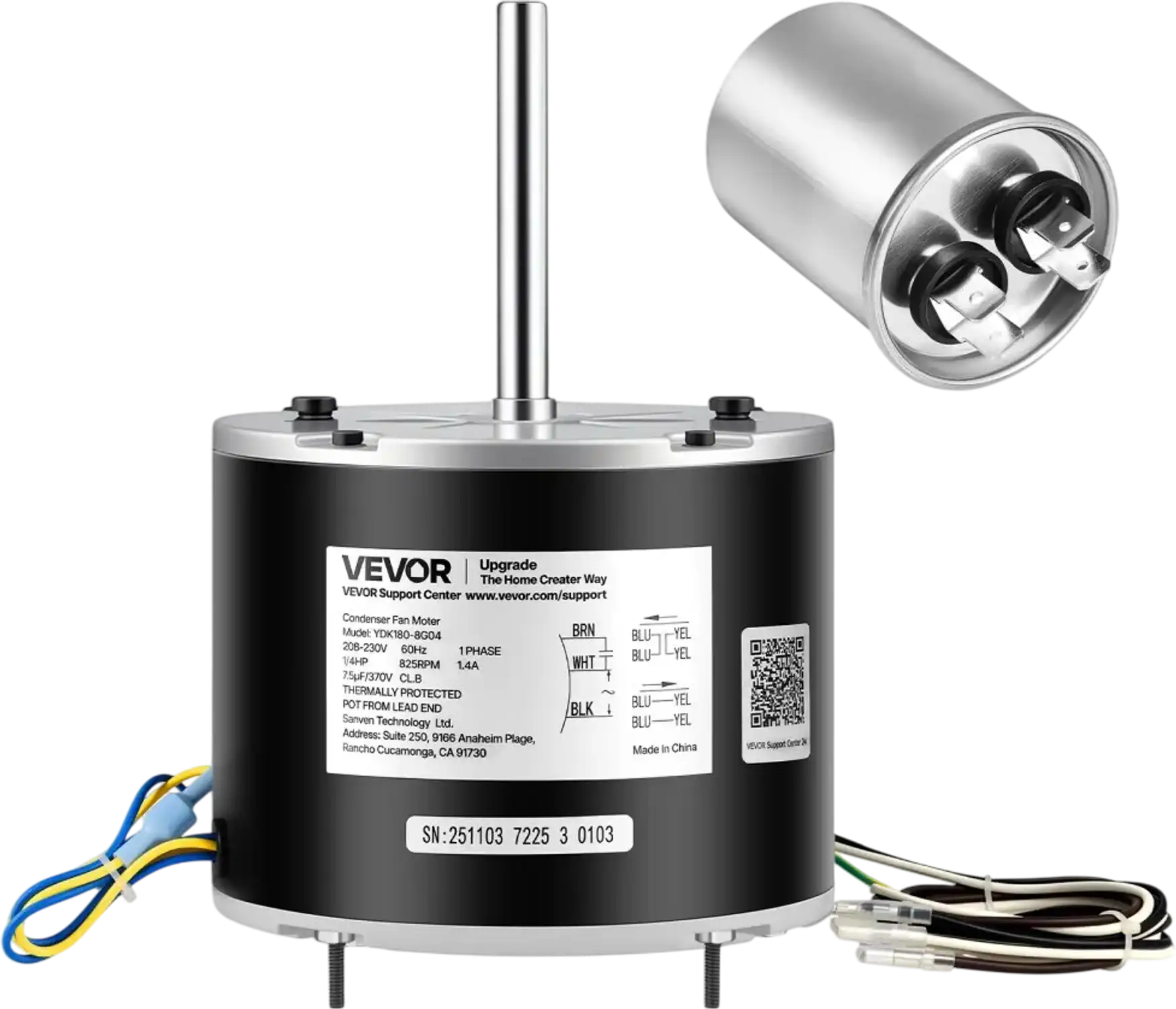

Vevor Condenser Fan Motor with Capacitor 1/4HP 825RPM 208-230V New
Manufacturer: Vevor
SKU: LNQDJ48Y14HPWVYR3001V7
Frame Size Options
Power Options
Speed Options
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions
will be validated and approved before shipping.
C
$125.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Vevor RV Air Conditioner Motor 1/3 HP 115V 2-Speed Replacement with Capacitor New
-
Vevor Furnace Blower Motor 3/4HP 208-230V 1075RPM 5-Speed CW/CCW 48 Frame with Capacitor and Hold...
-
Vevor Fan Motor RV AC Replacement New
-
Vevor Furnace Blower Motor 1/3HP 1075 RPM 4-Speed 110/120V New
-
Vevor Furnace Blower Motor 1/2 HP 1720 RPM 115V Single Phase Belt Drive New
-
Vevor RV AC Fan Motor 1/5 HP 115V 3-Speed Replacement New
-
Vevor Furnace Blower Motor 1/2HP 208/230V 1075RPM 5-Speed CW/CCW New
-
Vevor Furnace Blower Motor 1/4 HP 115V 1725 RPM Belt Drive Single Phase New
Vevor Condenser Fan Motor with Capacitor 1/4HP 825RPM 208-230V New
Product Overview

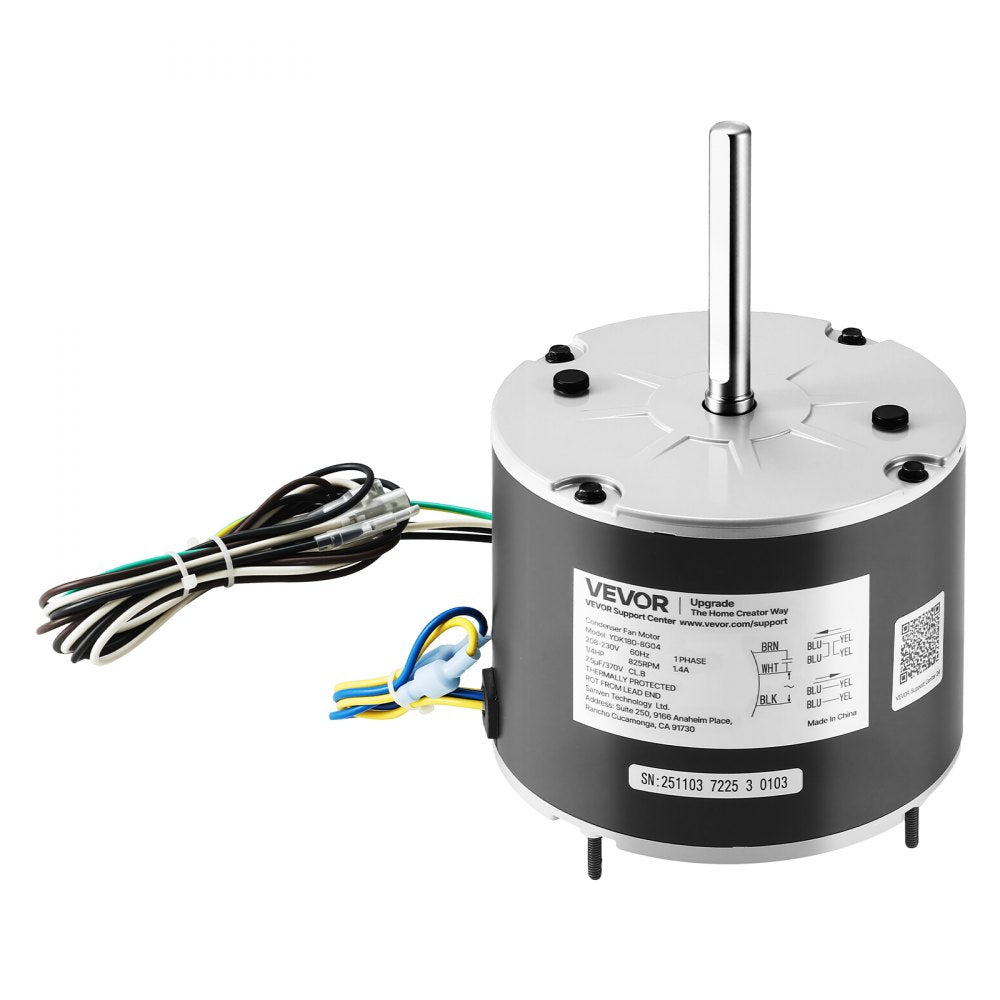

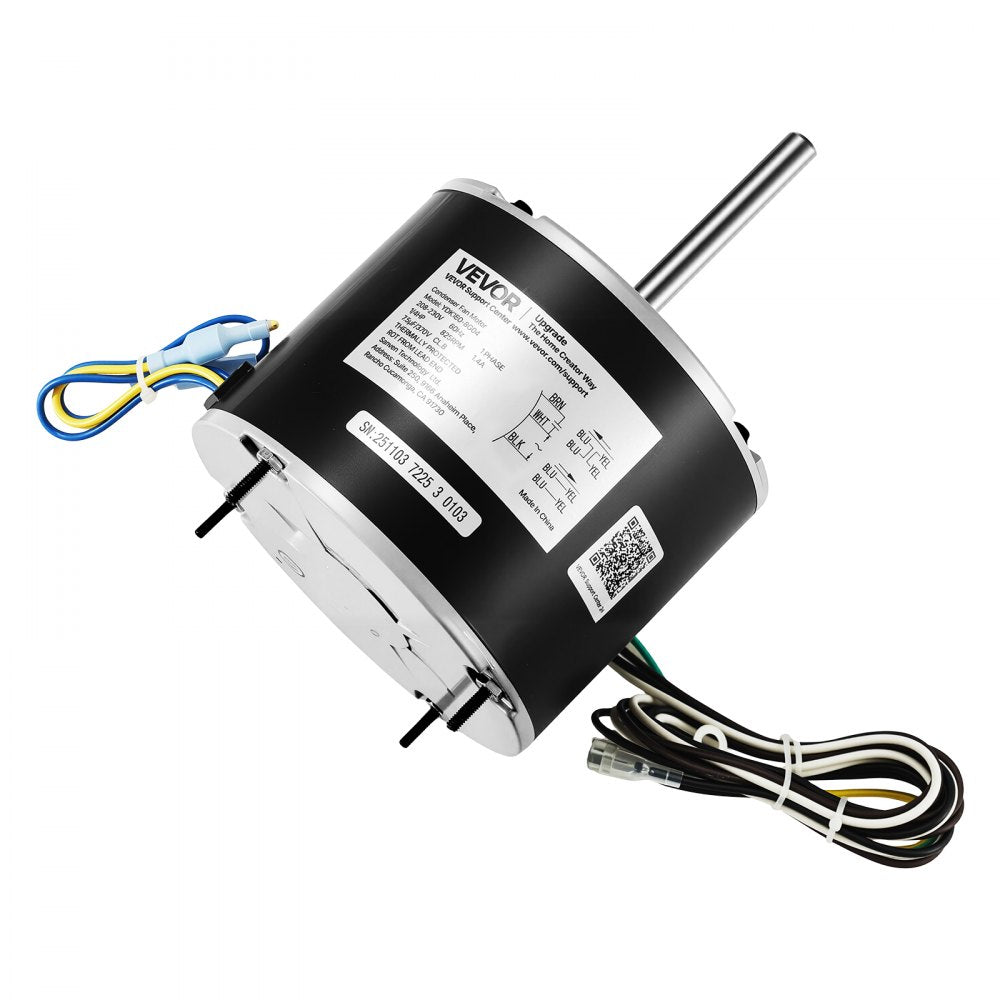

The Vevor condenser fan motor with capacitor is designed to provide steady airflow for condenser systems, helping dissipate heat quickly and maintain stable air conditioning performance. It features a 1/4HP motor rated at 825 RPM, 208-230V, and 60Hz for dependable replacement performance. The included capacitor helps support fast starts with no extra purchase required. Its reversible CCW/CW rotation, 48Y frame, and color-coded wires help simplify installation. Built with a pure copper coil and stainless steel bearings, it is made for reliable operation in demanding conditions.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- OEM Standard Quality: 1/4HP 60HZ, AC208-230V, 825RPM, 1.4A Rated Current, Single Phase

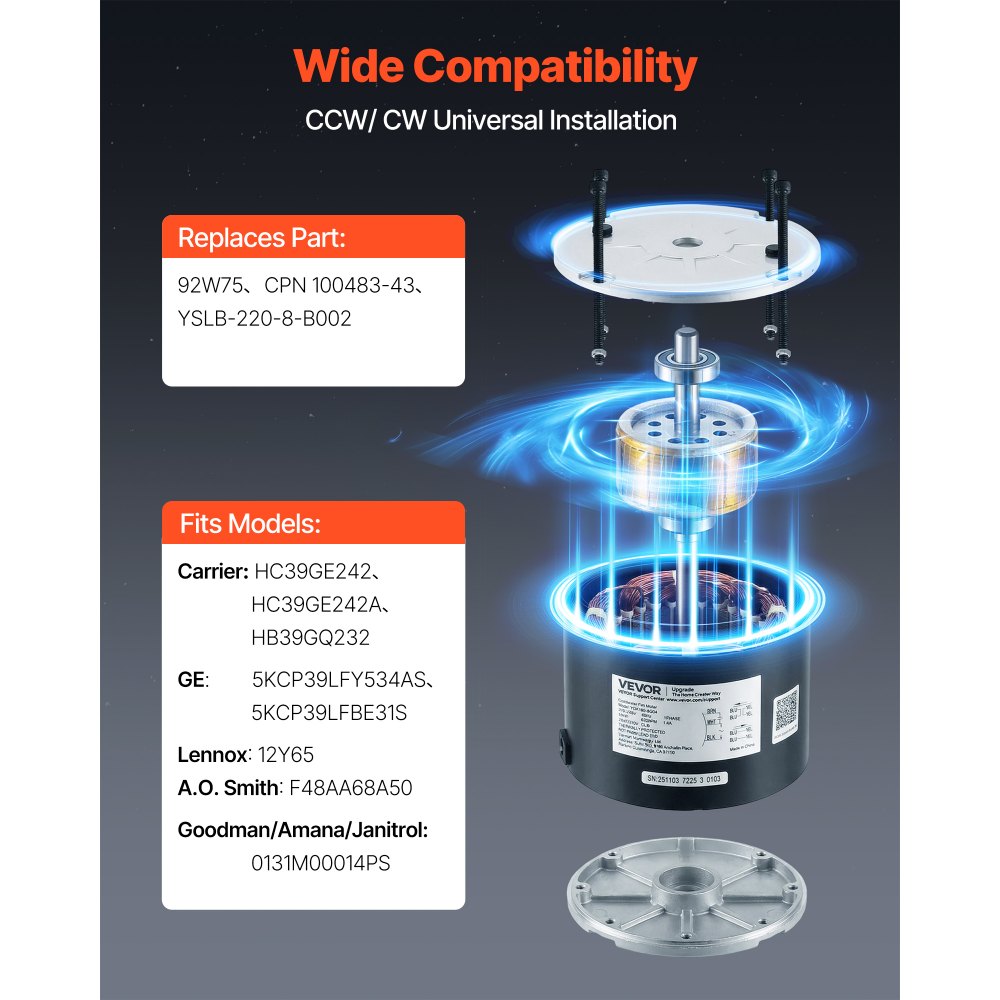

- Replacement & Compatibility: Replacement for Goodman Amana Janitrol 0131M00014PS, Lennox 92W75, 100483-43, YSL YSLB-220-8-B002. Compatible with A.O. Smith F48AA68A50, Carrier HC39GE242, HC39GE242A, HB39GQ232, GE Genteq 5KCP39LFBE31S, 5KCP39LFY534AS, and Lennox 12Y65 models

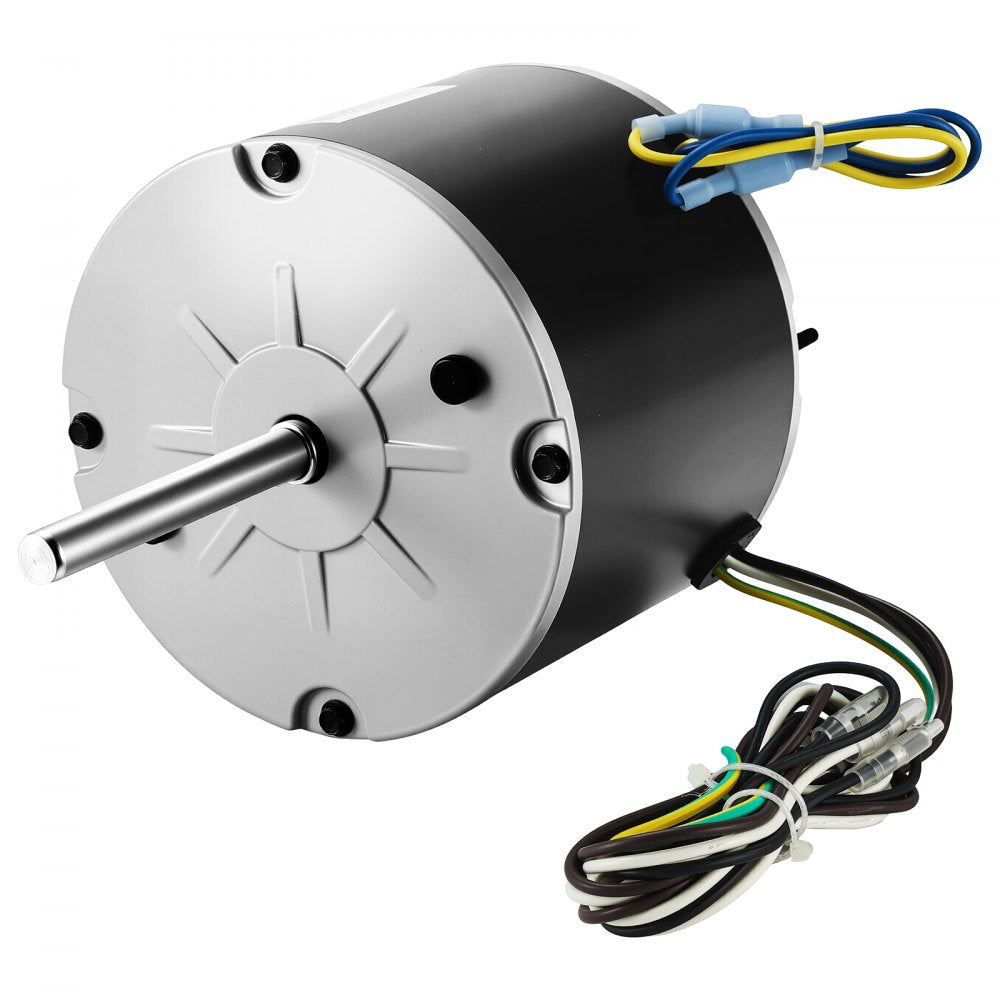

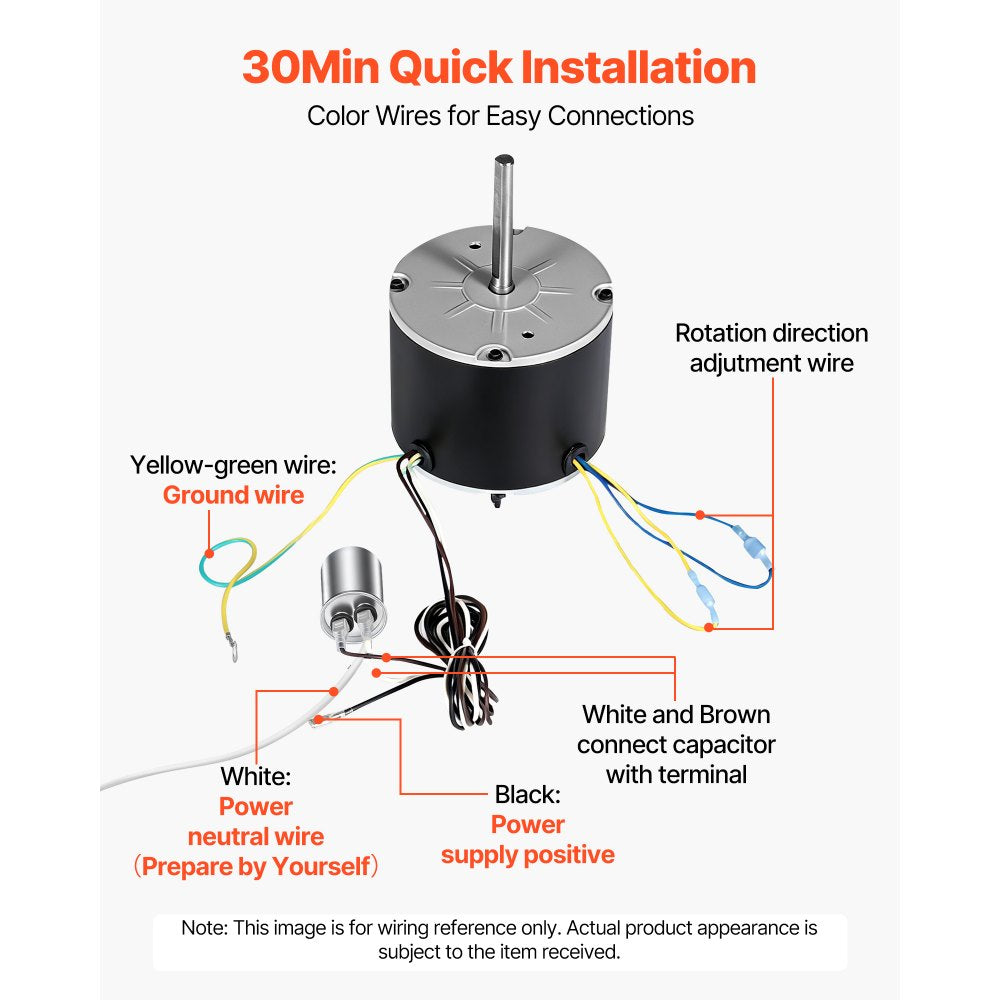

- Easy Installation: 48Y Frame, Shaft Length: 3.42 inch, Shaft Diameter: 0.5 inch. This condenser fan motor supports reversible rotation (CCW / CW), and includes a 47" cut-to-length wire for easier wiring and quick installation

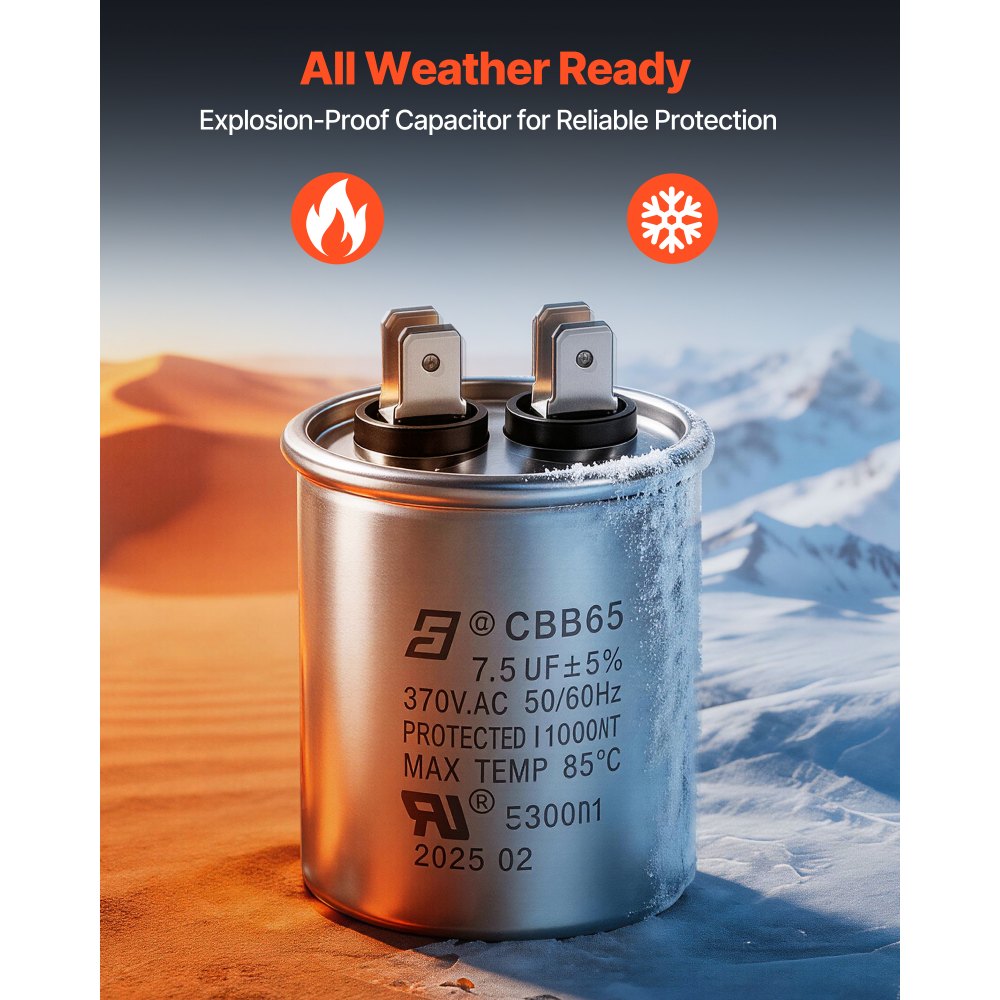

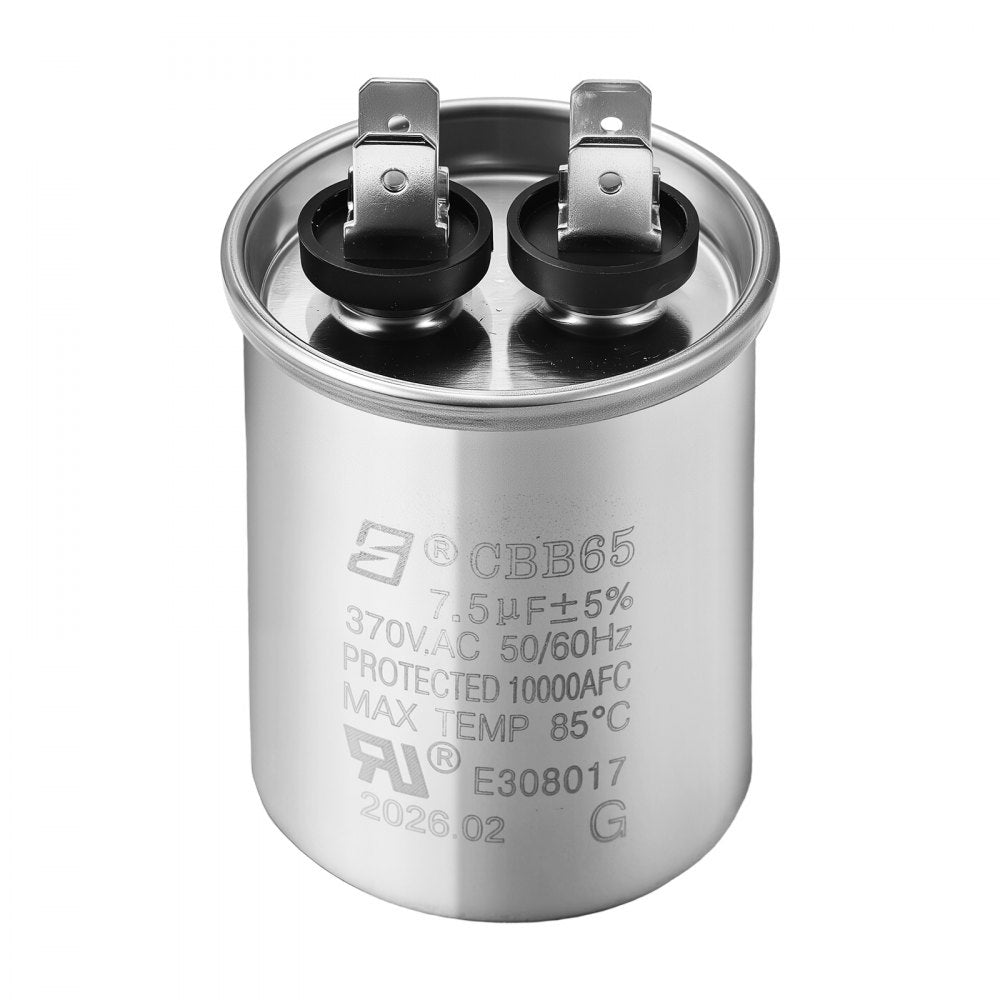

- Includes Capacitor: Replacing the motor also requires replacing the capacitor. Includes 1 explosion-proof capacitor for fast starts—no extra purchase needed, install and use right away

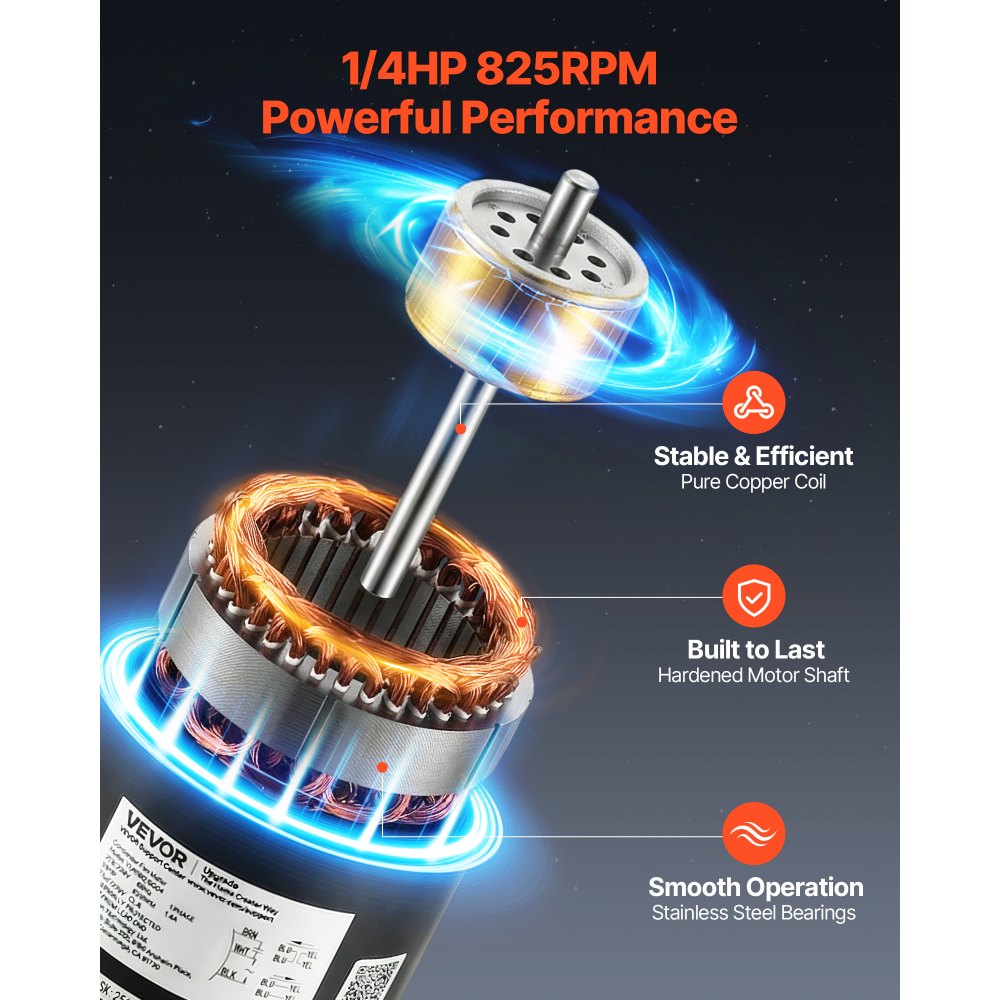

- Secure and Durable: Built with a pure copper coil and stainless steel bearings for reliable performance. Features overload protection with automatic reset and is designed for all-weather durability in ambient temperatures up to 40°C

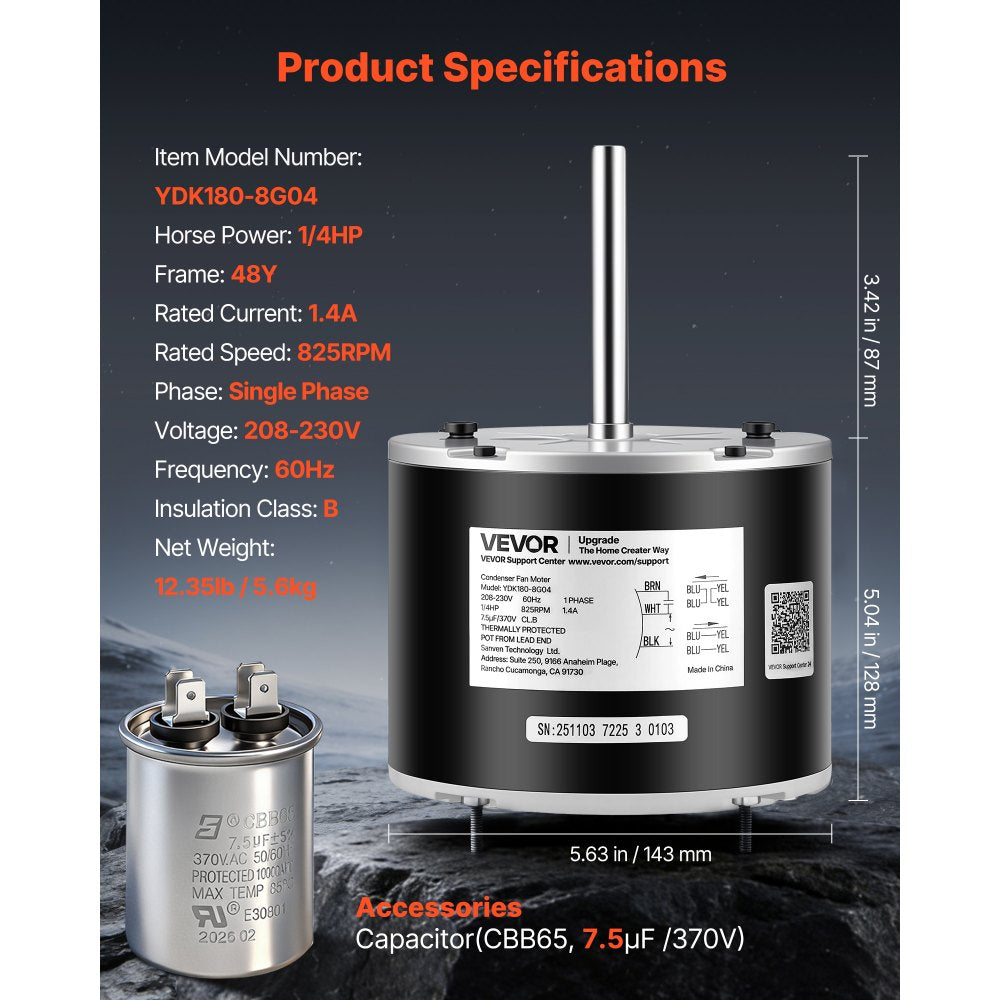

Specifications
| Item Model Number | YDK180-8G04 |
| Horse Power | 1/4HP |
| Rated Current | 1.4A |
| Rated Speed | 825RPM |
| Voltage | 208-230V |
| Frequency | 60Hz |
| Frame | 48Y |
| Rotation | CCW / CW |
| Phase | Single Phase |
| Shaft Length | 3.42 in / 87 mm |
| Shaft Diameter | 0.5 in / 12.7 mm |
| Insulation Class | B |
| Net Weight | 12.35 lbs / 5.6 kg |
| Product Size | 5.63 x 5.63 x 8.46 in / 143 x 143 x 215 mm |

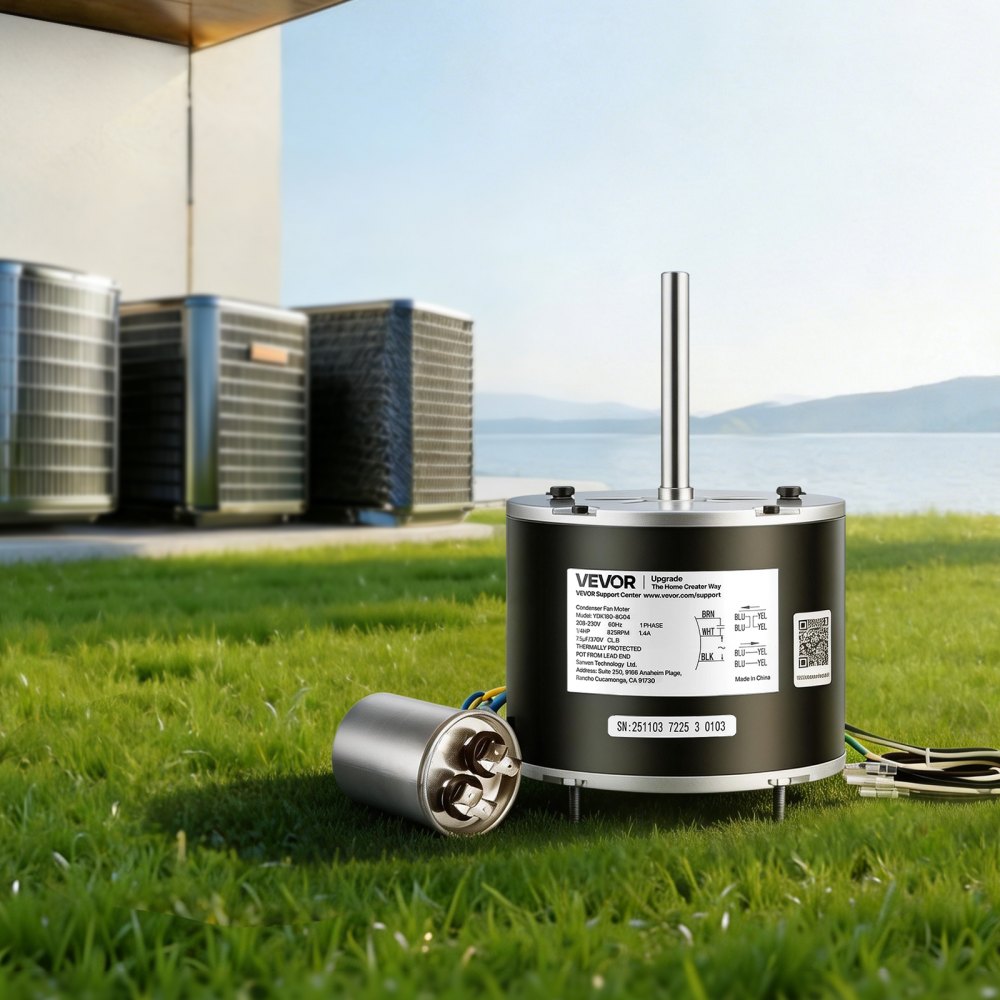

Package Contents
Condenser fan motor
Capacitor
Warranty
This item comes with a 1 year factory warranty.
