    Product Overview

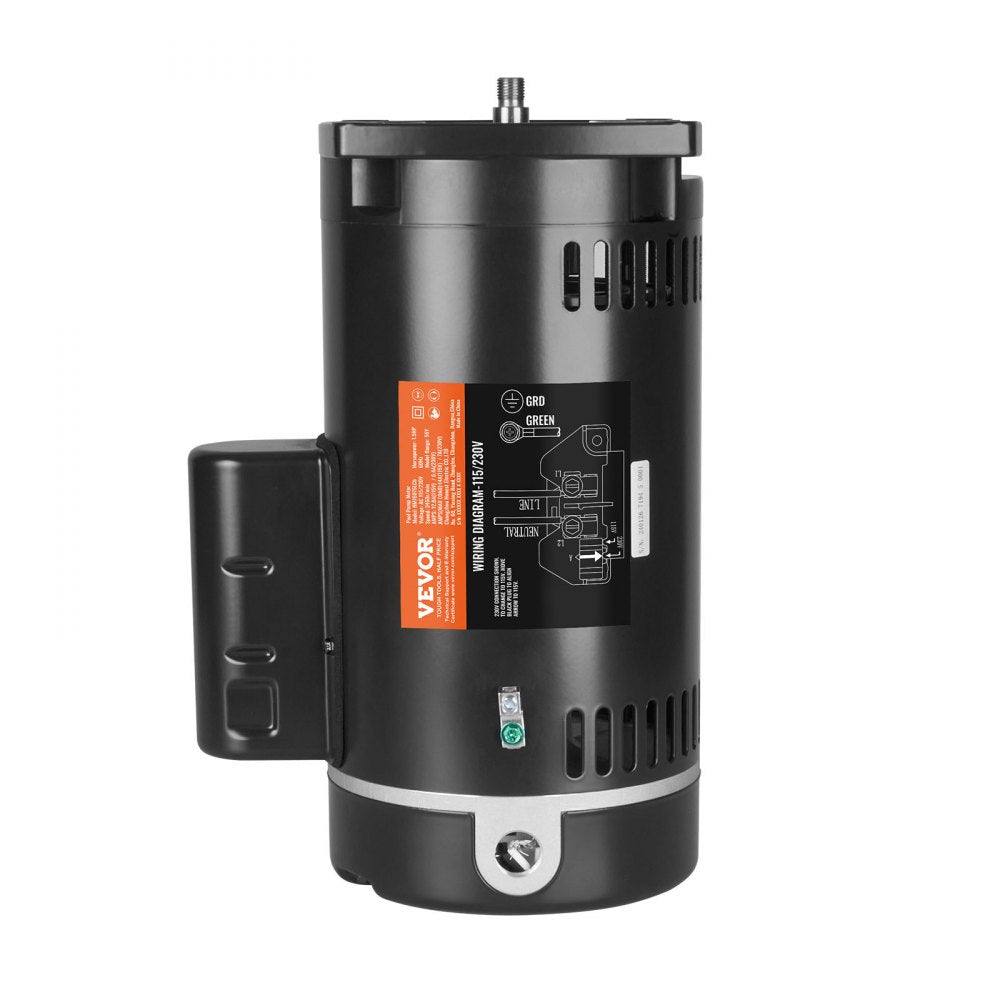

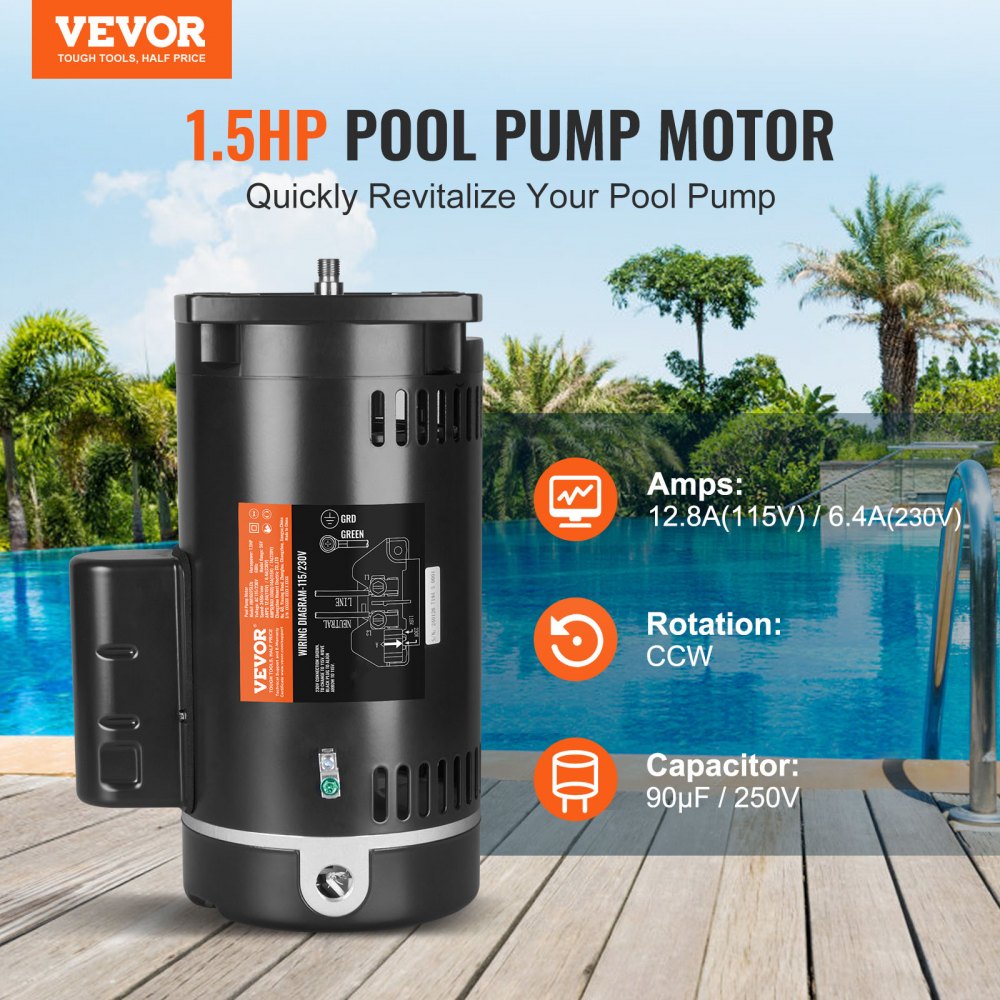

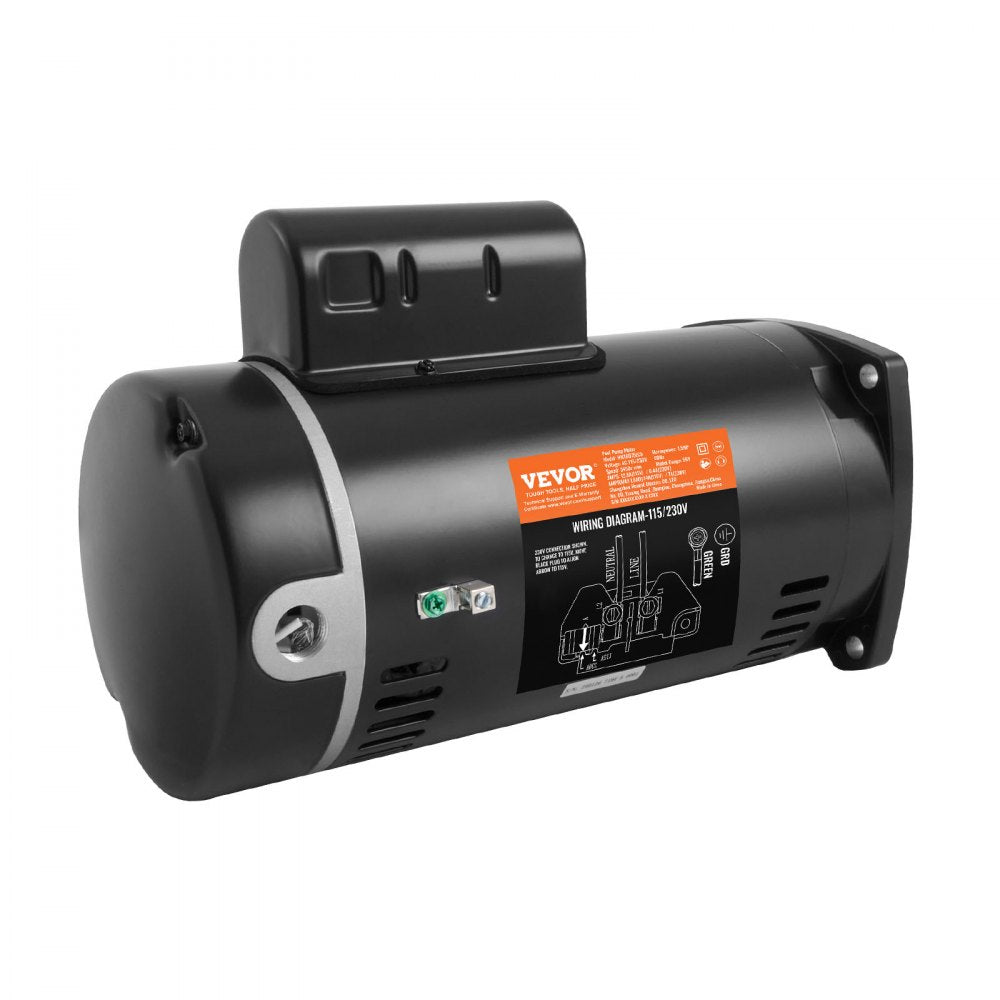

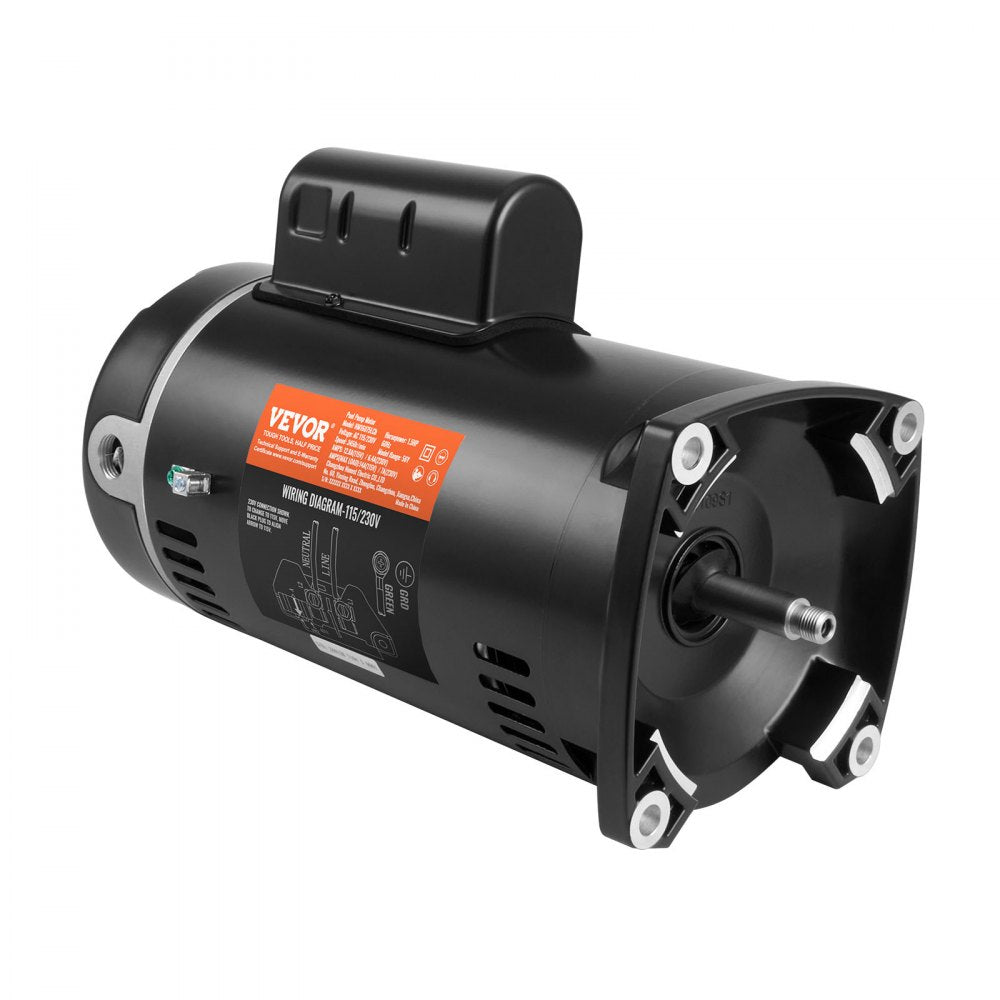

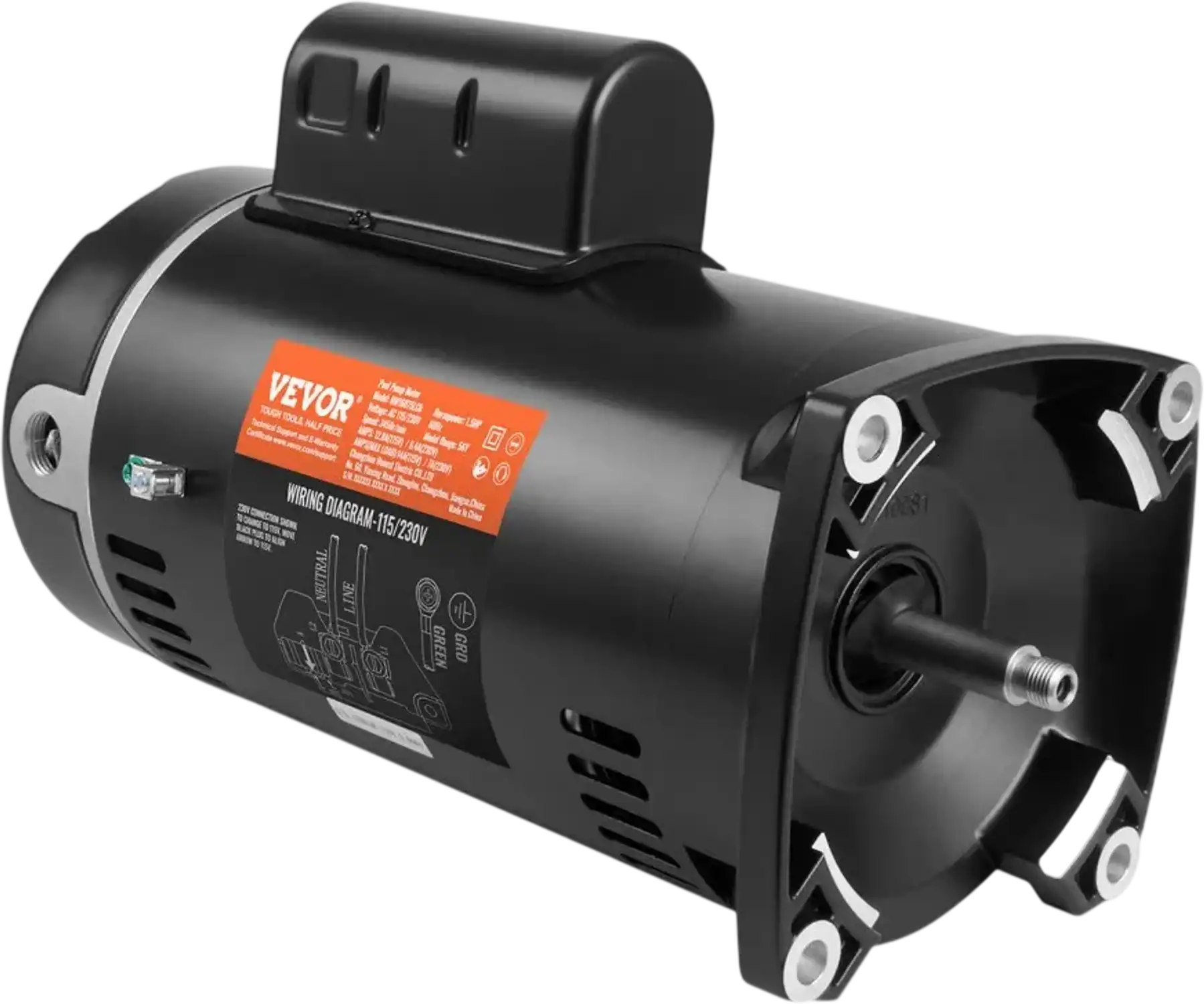

    The Vevor pool pump motor is a 1.5 HP replacement motor designed to help restore strong, efficient water circulation in residential or commercial pool systems. It operates on AC 115/230V power with a 56Y frame, 3450 RPM speed, and CCW rotation for dependable performance. Its corrosion-resistant steel housing, ball-bearing construction, and overload protection support long-term durability. The included 90μF/250V capacitor helps provide smooth starts and consistent operation. With low-noise performance and a square flange design, it is built for efficient and straightforward replacement use.


    *Not for sale in California*

    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

    • Reliable Performance: VEVOR 1.5HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V; Amps: 12.8/6.4A ; Amps (Max Load): 14/7A ; SF: 1.1 ; Capacitor: 90μF/250V ; Model Flange: 56Y.

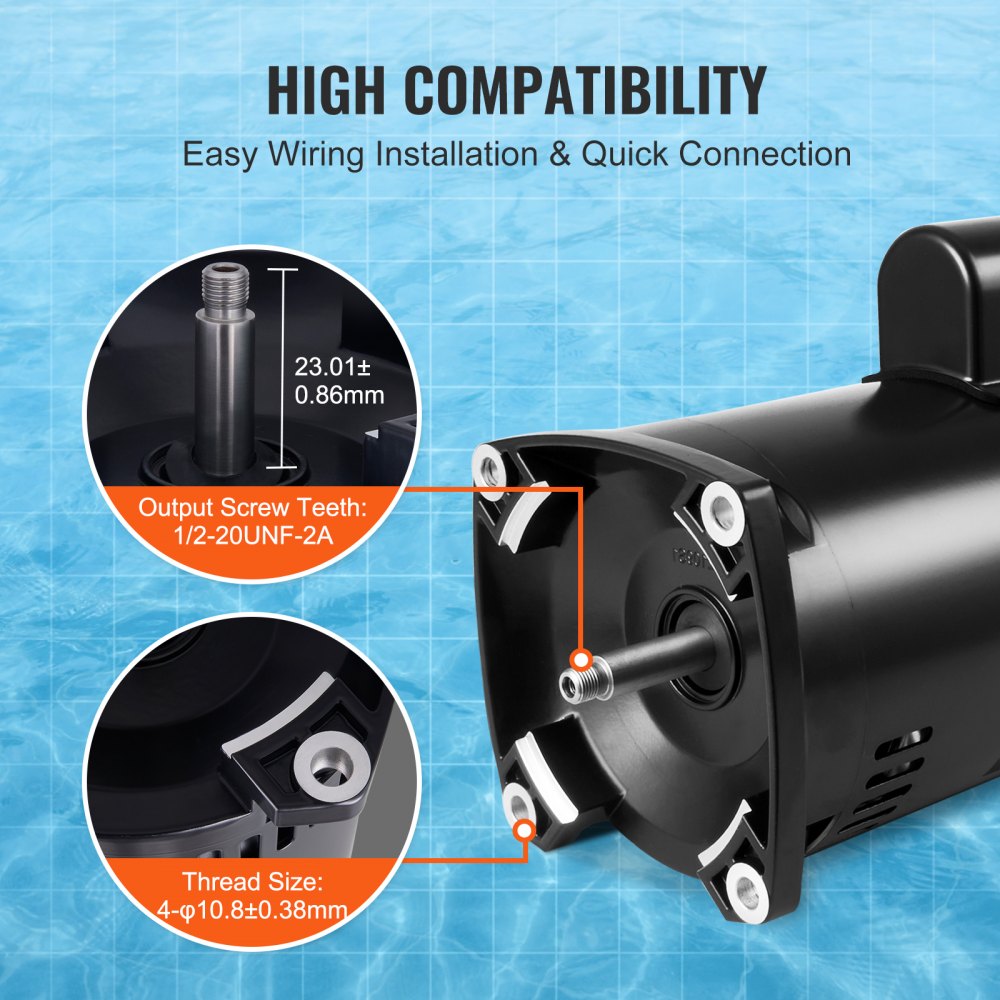

    • Easy Installation: Installing our swimming pool pump motor is a breeze with a thread size of 4-φ10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual.

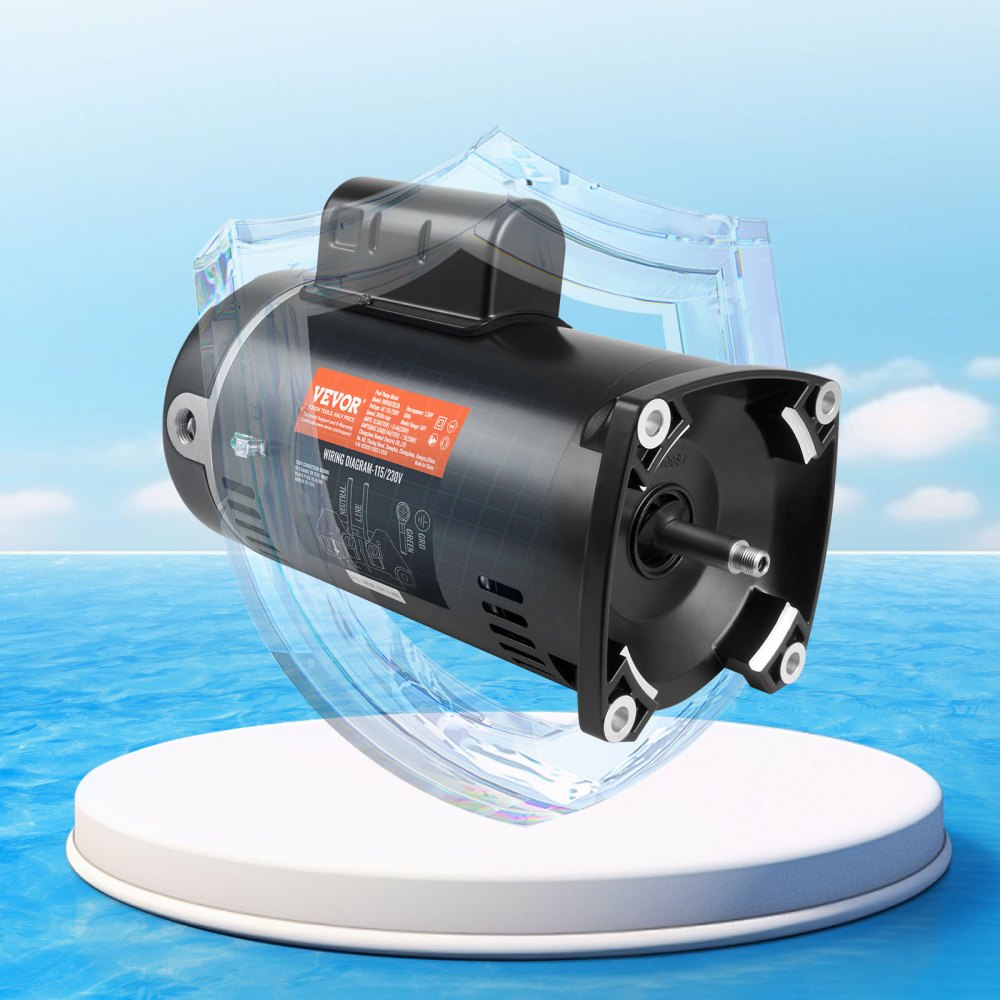

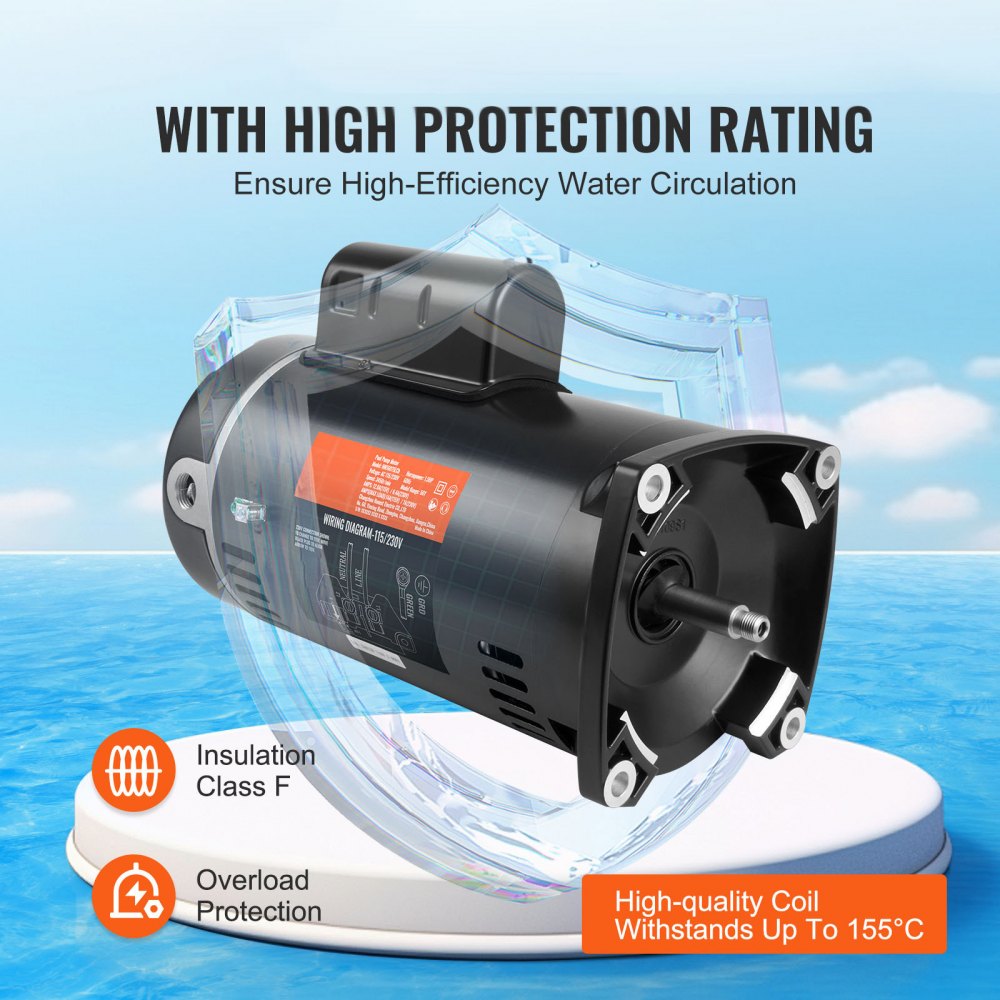

    • Safety and Durability: Our 1.5HP pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction and overload protection, it ensures safe and enduring power support for pool system.
    • High Efficiency, Energy-Efficient: VEVOR pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 70db low noise level. Dive into a refreshing pool experience with reliability and tranquility.
    • Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

    Specifications

    Item Model Number HM16075LCb
    Product Type Pool Pump Motor
    Horsepower 1.5 HP
    Voltage AC 115/230V
    Current 12.8A at 115V / 6.4A at 230V
    Current Max Load 14A at 115V / 7A at 230V
    Frequency 60Hz
    Service Factor 1.1
    Capacitor 90μF/250V
    Model Flange 56Y
    Rotation CCW
    No-Load Speed 3450 RPM
    Noise Level ≤ 70 dB
    Thread Size 4-φ10.8 mm
    Output Screw Teeth 1/2-20UNF-2A
    Shaft Extension 0.9 in
    Working Temperature Range 0 to 40 degrees
    Duty Cycle Continuous operation

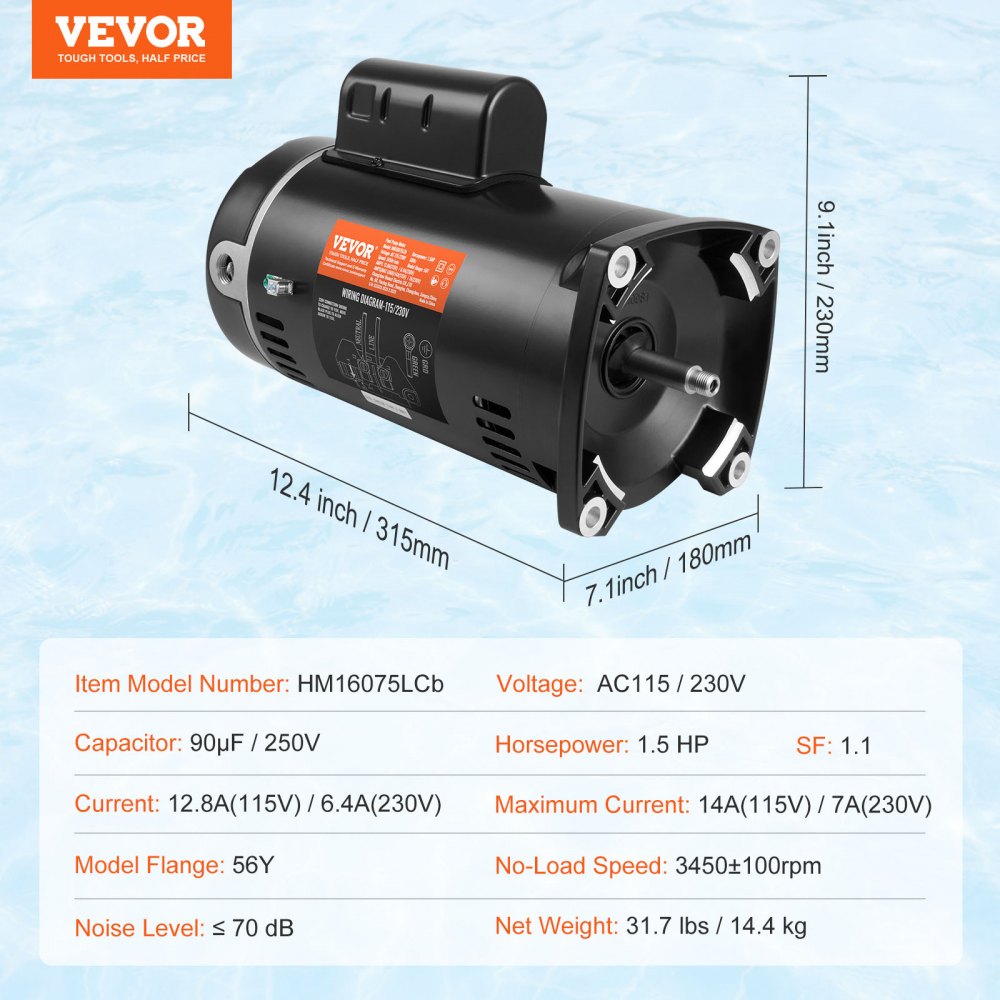

    Product Dimensions 12.4 x 7.1 x 9.1 in
    Product Weight 31.7 lbs

    Package Contents

    Pool pump motor

    User manual

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
