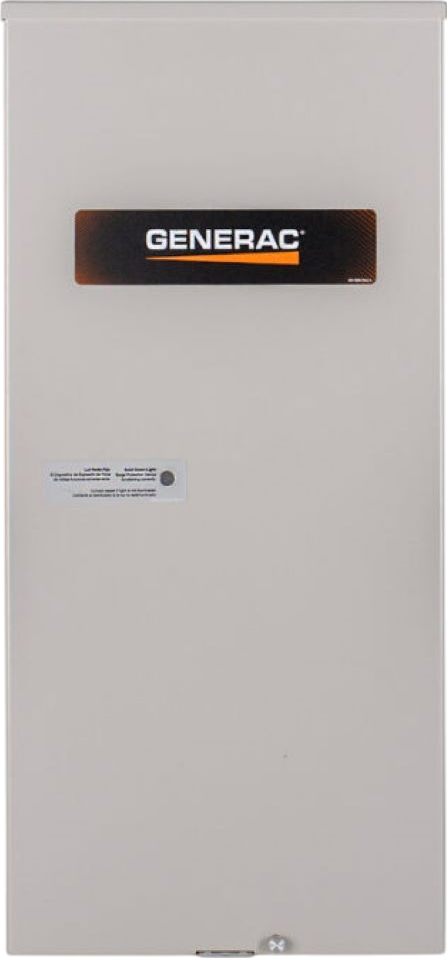

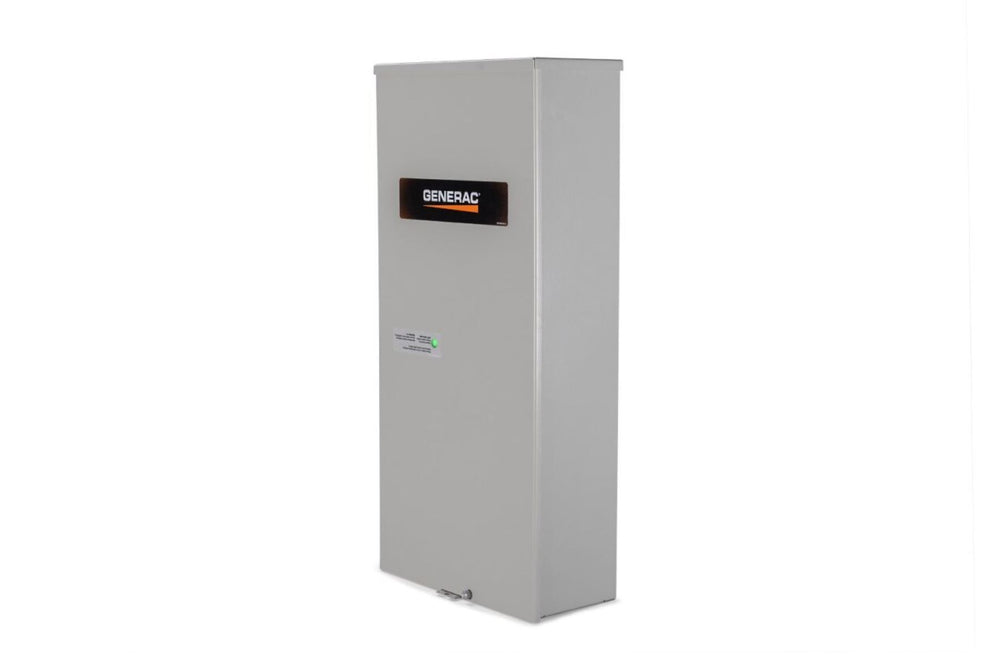

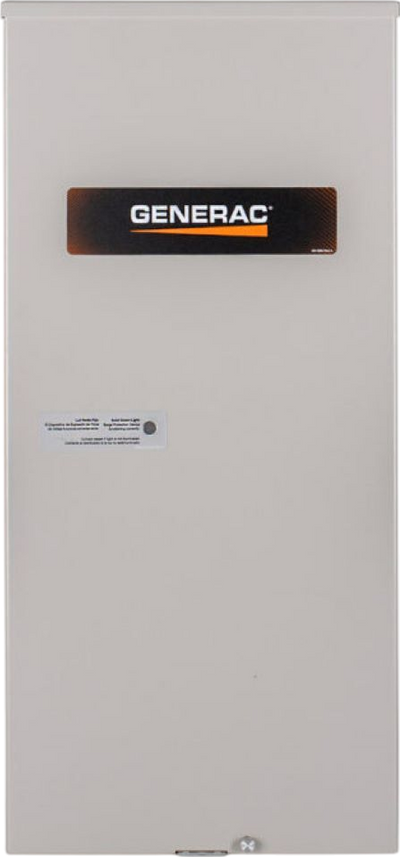

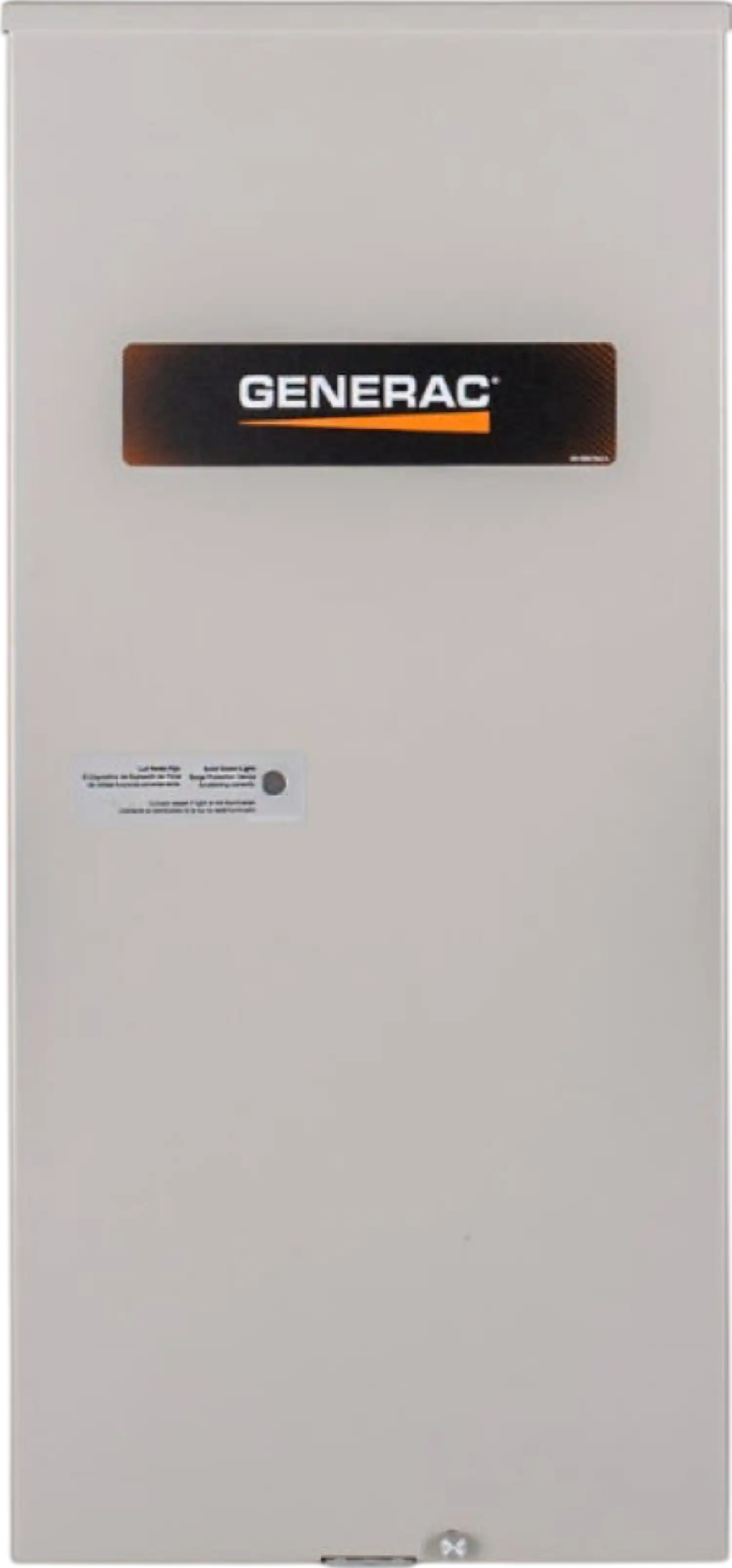

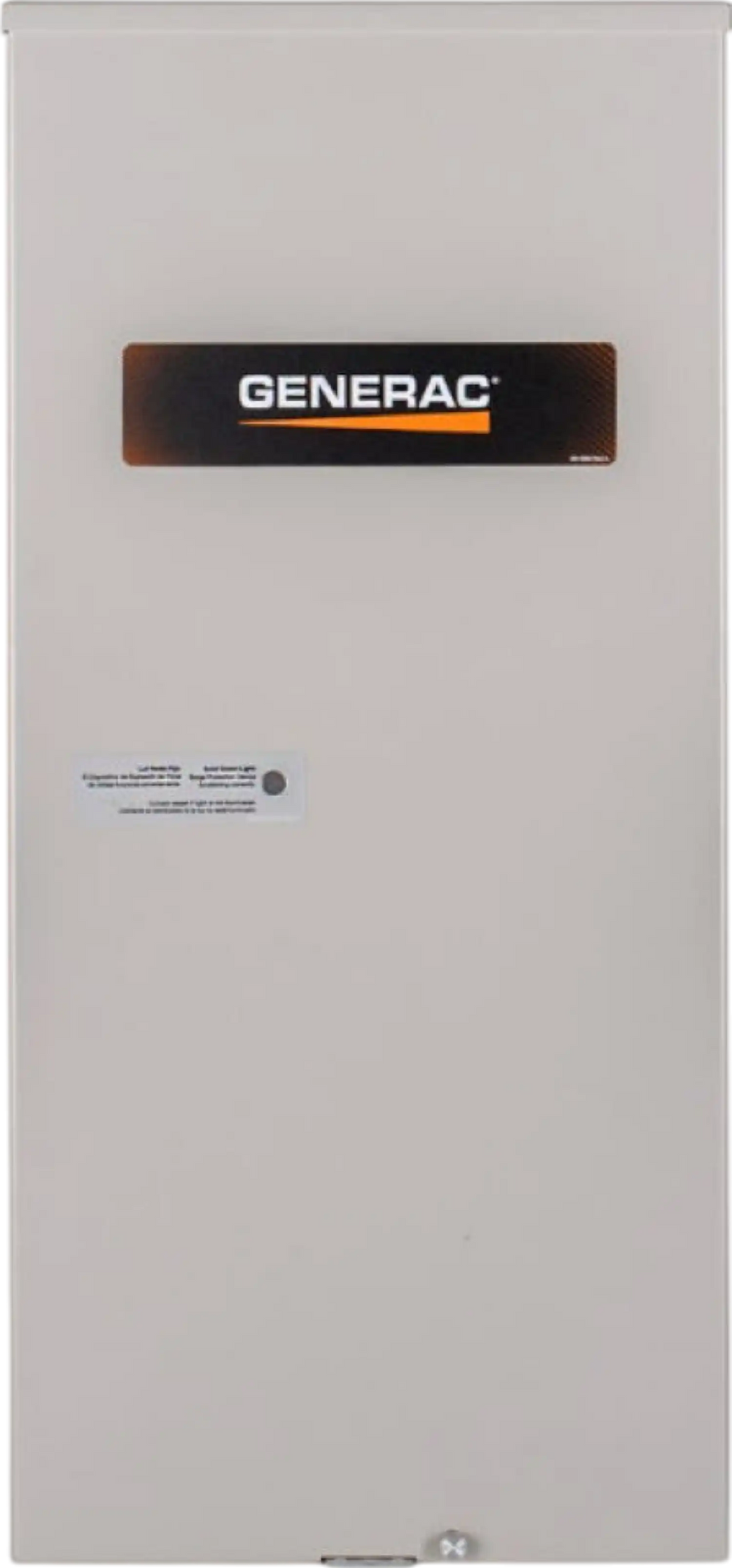

Generac RXSW200A3SPD 200 Amp Service Entrance Rated Automatic Transfer Switch Surge Protection Device New
Product Overview
The Generac RXSW200A3SPD is a 200A automatic transfer switch designed for use with single phase standby generators and features a factory-installed whole-home surge protection device. This hardened transfer switch control with the all new Fuse Control Module has been purposely designed to combat harmful utility power disturbances such as brownouts, while ensuring reliable automatic transfer performance. Designed for indoor or outdoor installation, the NEMA 3R enclosure protects the internal components of the switch from rain, snow, ice, and debris to ensure lasting reliability.
5 year factory warranty
NEMA 200A Transfer Switch
Brand new in box
Ships from TX
Authorized Generac dealer
Features
- SPD: Generac’s whole-house surge protection device (SPD) helps protect against these damaging surges and transients by blocking them from entering homes or businesses. It has thermally protected metal oxide varistors (MOVs) that help reduce risk of thermal damage. Its compact, weather-resistant design offers installation flexibility. Service-rated (RXSW) Generac Automatic Transfer Switches are housed in an aluminum NEMA Type 3R enclosure, with electrostatically applied and baked powder paint.
- NEMA 3R Outdoor Rated Enclosure: Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris.
- 5-Year Limited Warranty: We stand by our high-quality, innovative product design with a strong 5-year limited warranty.
Specifications
| Model | RXSW200A3SPD |
|---|---|
| Enclosure Type | NEMA 3R |
| Service Entrance Rated | Yes |
| Amp Rating | 200 |
| Phase | 1 |
| Voltage | 120/240V |
| Input Power Frequency | 50/60Hz |
| Operating Temperature -4 °F through 122 °F (-20 °C through 50 °C) | Operating Humidity 5% through 95%, non-condensing |
| Product Dimensions (W x D x H) | 13.5 x 6.3 x 30 in. (342.9 x 160.1 x 672 mm) |
|---|---|
| Product Weight | 29 lbs. (17.7 kg) |
Package Contents
Generac RXSW200A3SPD 200A Automatic Transfer Switch
User Manual
Warranty
This item comes with a 5 year factory warranty.
