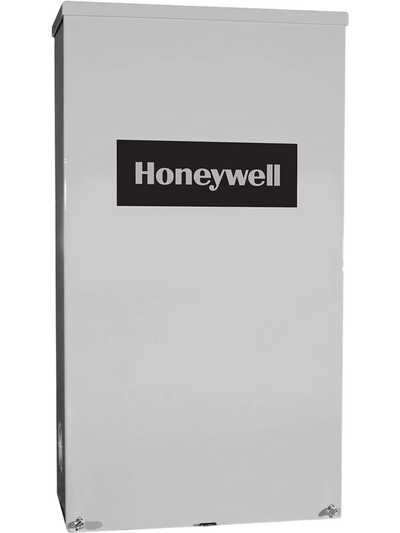

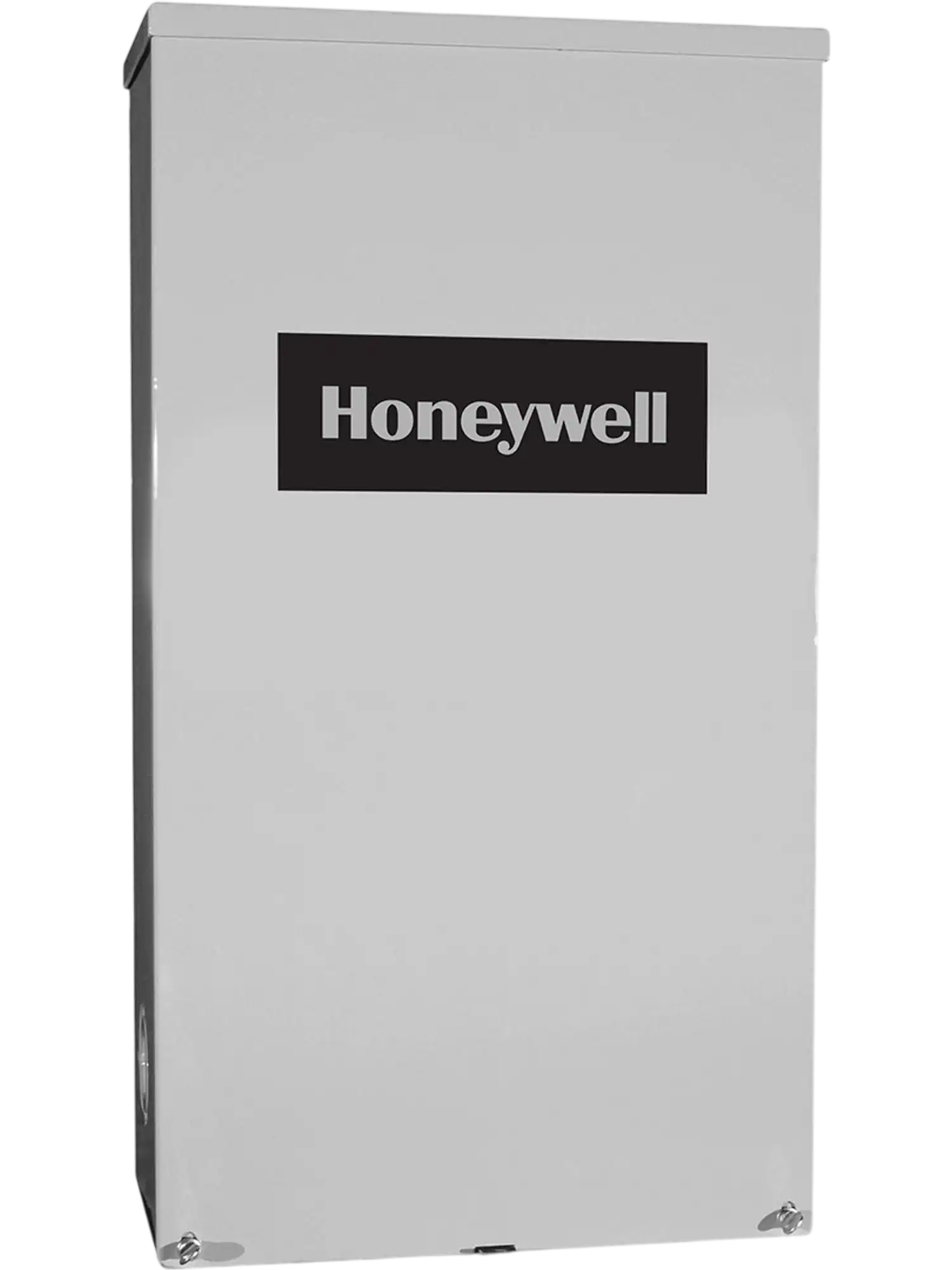

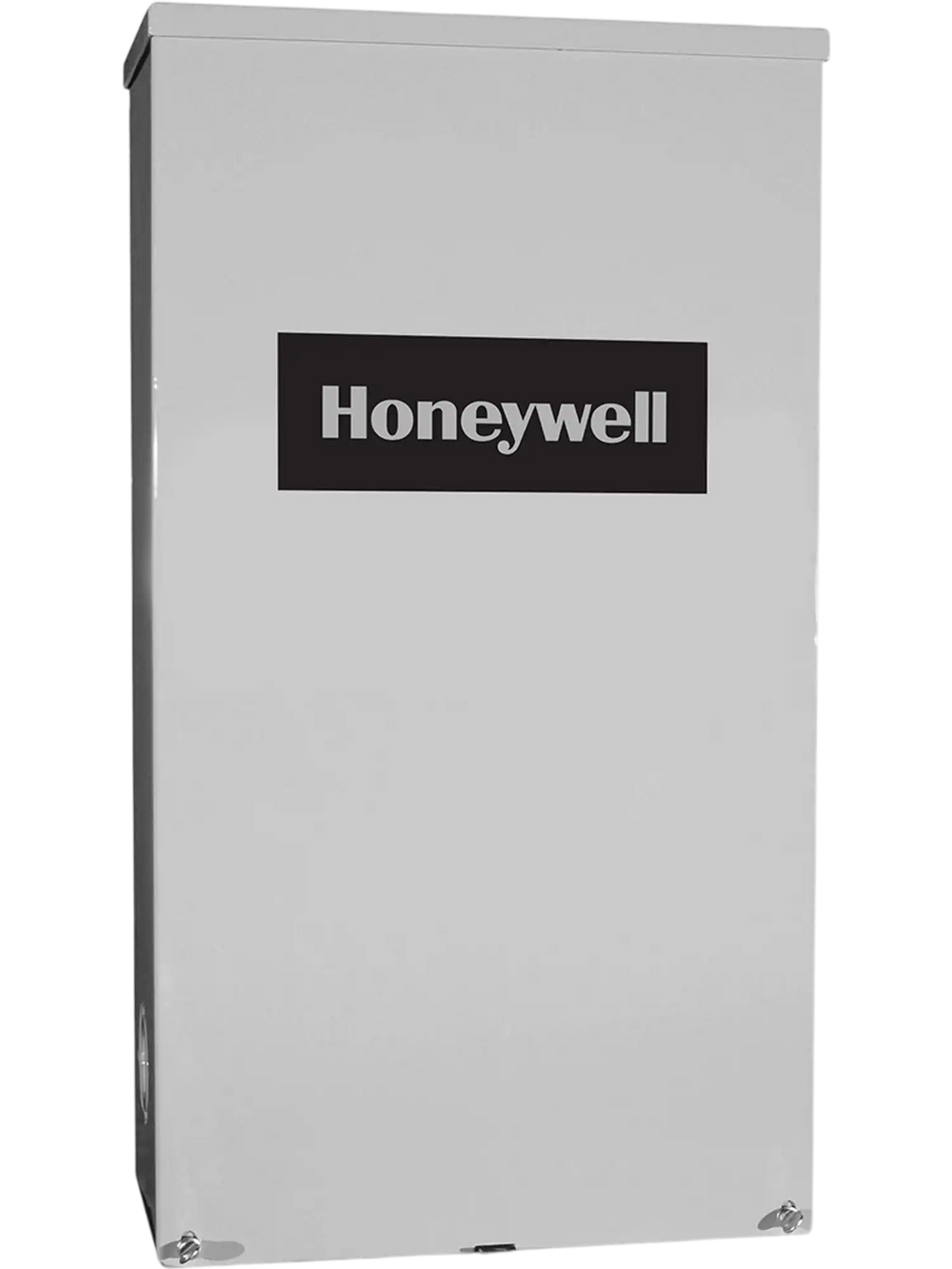

Generac/Honeywell Automatic Transfer Switch 100A 120/240V Single Phase Service Entrance Rated RXSW100A3CULH New
Manufacturer: Generac
SKU: RXSW100A3CULH
QTY
or
(888) 999-1522
$1,013.00
C
$752.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Estimated to ship in 1 week
Free liftgate included
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Generac/Honeywell Automatic Transfer Switch 100A 120/240V Single Phase Service Entrance Rated RXSW100A3CULH New
Product Overview
The Honeywell RXSW100A3CULH is an automatic transfer switch designed for single-phase standby generator applications. This 100A service entrance rated model features a NEMA 3R aluminum enclosure and a heavy-duty Generac contactor for durable outdoor or indoor installation. It includes integrated load management technology that can manage up to four individual HVAC loads without additional hardware. Built for reliable automatic power transfer, it helps protect essential home systems during utility outages.
5 year factory warranty
Brand new in box
Ships directly from Generac
Authorized Generac dealer
Features
- Electrically operated, mechanically-held contacts for fast, positive connections
- Rated for all classes of load, 100% equipment rated, both inductive and resistive
- 30 millisecond transfer time
- Dual coil design
- Main contacts are silver plated or silver alloy to resist welding and sticking
- NEMA/CUL 3R (indoor/outdoor rated) aluminum enclosure is standard
- Employs cETL rated circuit breakers on the utility side of the transfer contactor for full downstream protection
Specifications
| Model | RXSW100A3CULH |
|---|---|
| Rated Amperage | 100A |
| Voltage | 120/240V |
| Phase | 1 |
| Load Transition Type | Open transition, service rated |
| Enclosure Type | NEMA 3R |
| Compliance | cETL approved |
| Withstand Rating | 10,000A |
| Lug Range | 1/0 - #14 |
| Service Entrance Rated | Yes |
|---|---|
| Dimensions | 14.6 x 7.09 x 20 in. |
| Weight | 20 lbs |
Package Contents
RXSW100A3CULH Automatic Transfer Switch
Owner's Manual
Warranty
This item comes with a 5 year limited warranty.
