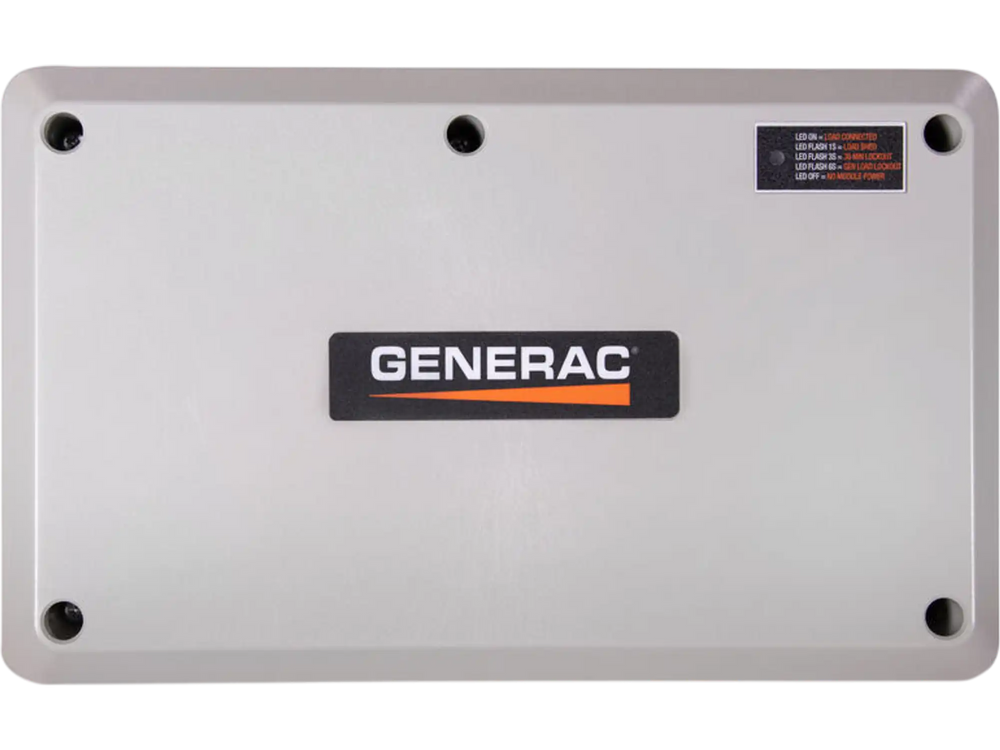

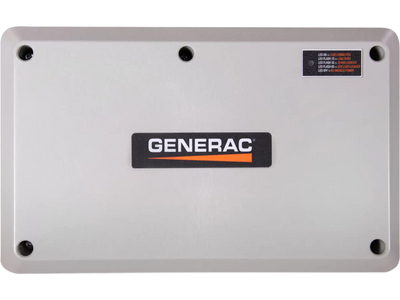

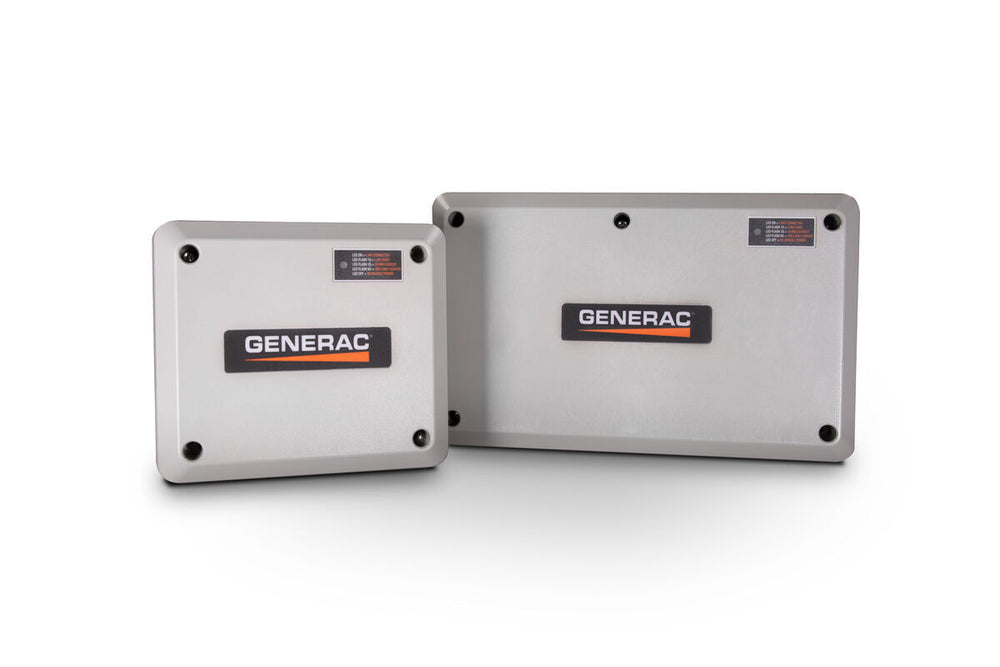

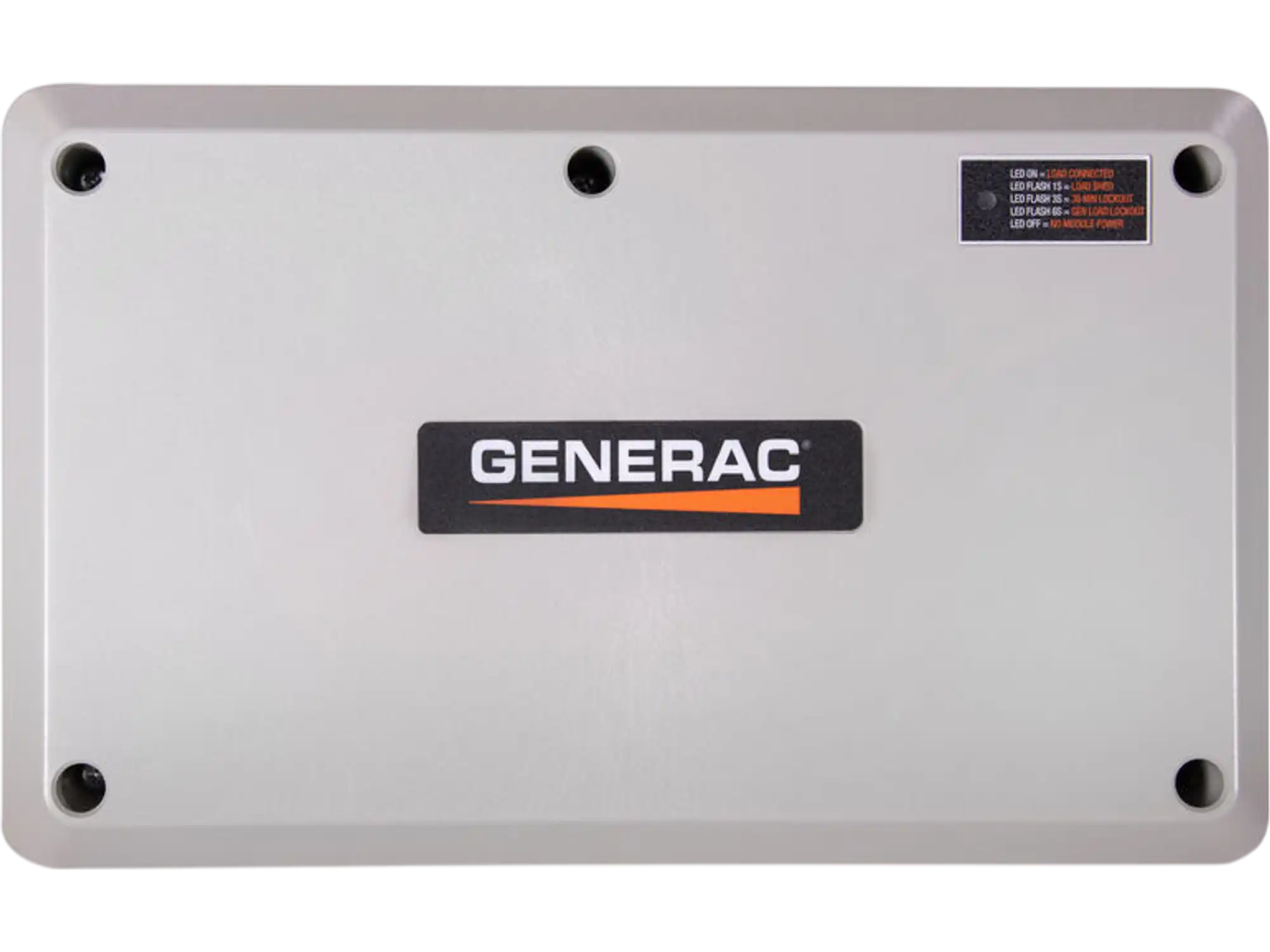

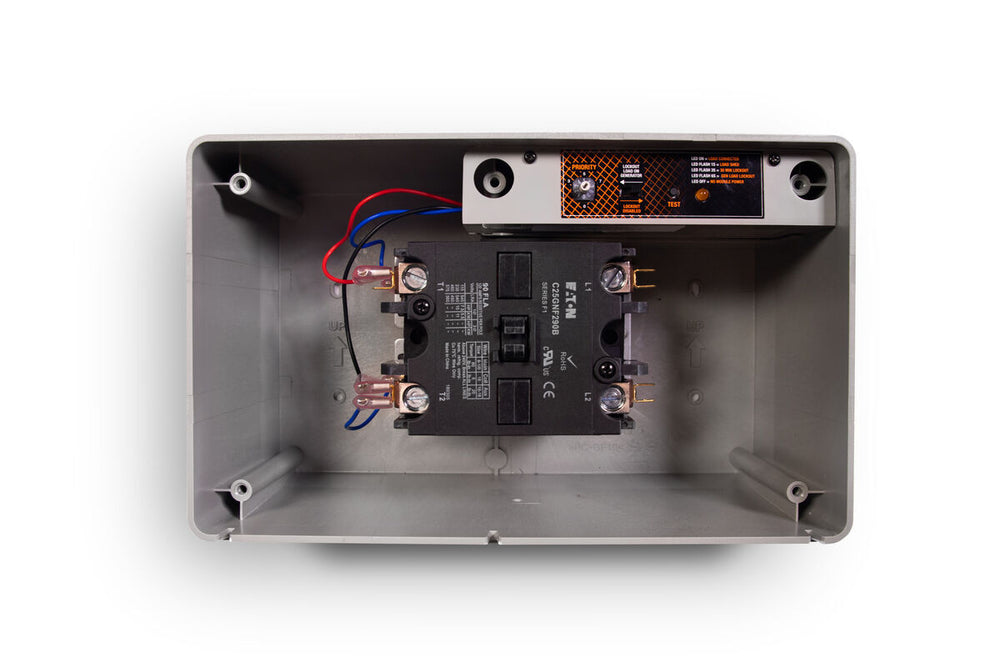

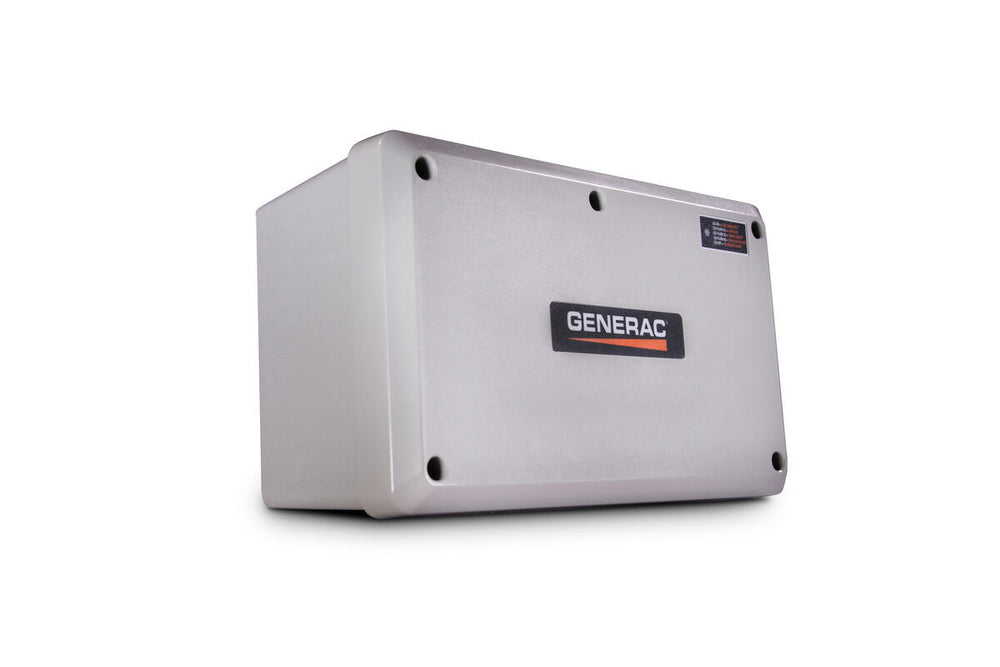

Generac 7006 Load Manager 100A Smart Management Module New
Product Overview
The Generac 7006 100-Amp Smart Management Module helps manage power usage in PWRcell backup power systems to reduce overload risk during outages. This 100A smart management module can control individual appliances or entire branch circuits. It supports load prioritization so critical loads recover first and also includes a lockout mode for non-essential loads. Up to eight modules can be used on a single PWRcell installation for expanded load management. It is also compatible with home standby backup systems.
3 year factory warranty
Brand new in box
Ships directly from Generac out of WI
Authorized Generac dealer
Features
- Wire-Free Technology: Smart management modules are self-aware and operate autonomously, automatically shedding the managed loads to allow the generator to recover if sensing a drop in frequency
- Prioritize Loads: Power items that are most important during an outage through customizable load priority selection and up to 8 modules per system can be used
- Lock-Out Feature: Smart management modules feature a lock-out system, which permits blocking of specific loads only when using generator power, allowing for the important loads to be powered more often
- Durable Enclosure: Type 3R enclosure for indoor or outdoor installation
Specifications
| Power supply source | 240 VAC (from line input) |
|---|---|
| Contact voltages | 220/240 VAC |
| Contactor coil voltage | 240 VAC |
| Coil VA inrush | 300 |
| Coil VA sealed | 35 |
| Poles | 2 |
| Resistive amps | 100 |
| F/L Inductive amps | 90 |
| Locked rotor amps | 540 |
| NEMA | 3R |
| Enclosure rating | UL 50 |
| Frequency selectability | 50 Hz / 60 Hz |
| Wire gauge range box lugs | 1/0 to 8 AWG |
| Wire material | Cu |
| Coil pick up voltage | 80% |
|---|---|
| Coil drop out voltage | 20% |
| Maximum contact voltage | 600VAC |
| Ambient temperature maximum | 149 °F (65 °C) |
| Coil terminals | 18 AWG |
| Adjustable frequency sensitivity | Yes — 0.2 or 2.0 Hz |
| Dimensions | 11.4 x 5.3 x 7 in |
| Weight | 5.3 lbs |
Package Contents
7006 Generac Load Manager
Owner's Manual
Warranty
This item comes with a 3 year warranty.
