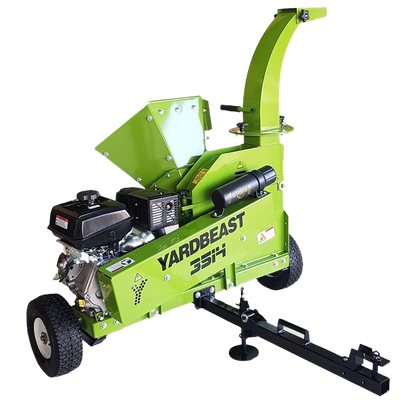

YARDBEAST 3514 ATV 429cc 14HP Kohler CH440 Engine 3.5" Heavy Duty Wood Chipper Shredder Tow Trailer New
Manufacturer: YARDBEAST
SKU: 3514-ATV
QTY
(888) 999-1522
C
$4,970.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Please allow 3-5 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
$574.00
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$717.00
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
$861.00
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
YARDBEAST 3514 ATV 429cc 14HP Kohler CH440 Engine 3.5" Heavy Duty Wood Chipper Shredder Tow Trailer New
Product Overview
The Yardbeast 3.5” is a heavy-duty chipper is powered by 429CC Kohler CH440 Engine, capable of delivering the torque needed. It counts with a centrifugal clutch that provides protection to the engine.
It’s offered in two versions: ATV towable or Hand Towable. The gooseneck discharger gives you the convenience that you need. The ATV tongue can be configured for trailer coupler and standard tongue hitch most commonly used on Garden tractors.
2 year factory warranty
Ships directly from YARDBEAST out of FL
Authorized YARDBEAST dealer
Features

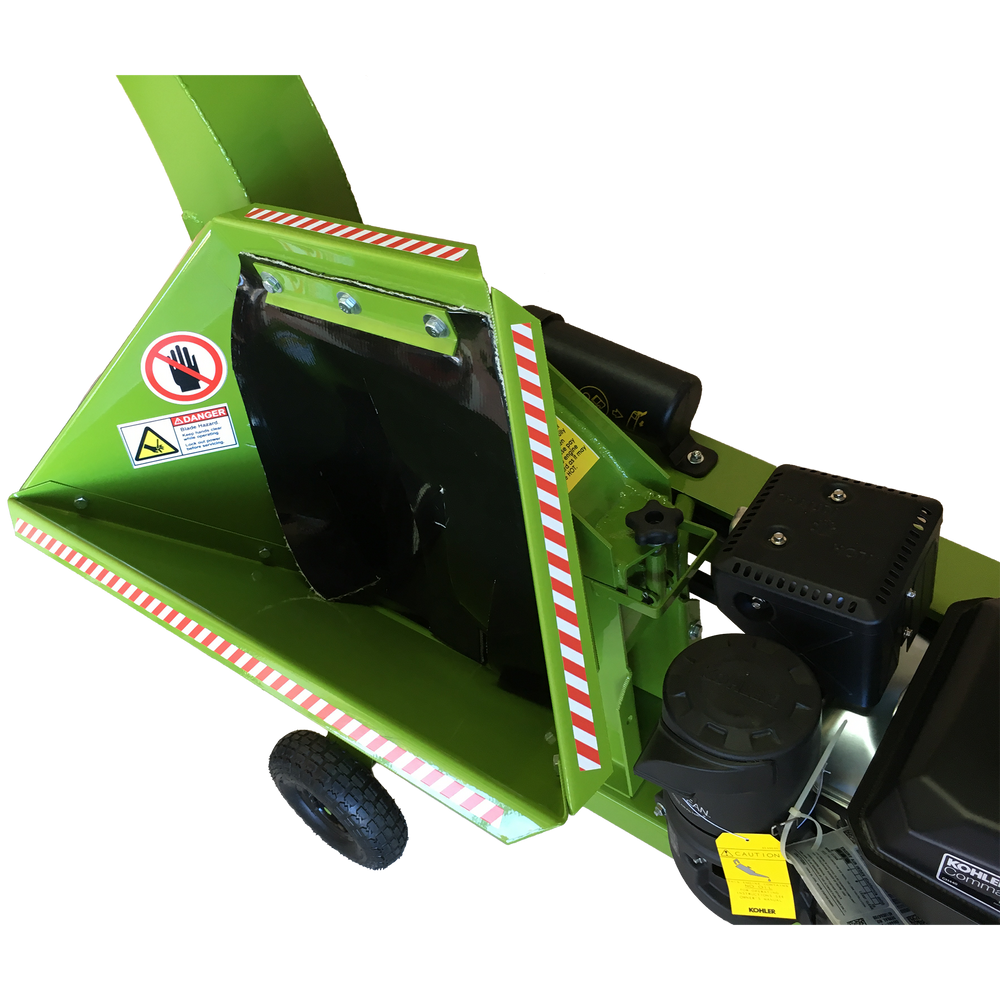

- Pivotal Chipper Box – open the chipper box in half for a quick inspection of the blade and interior
- Gooseneck Discharge – deposit the branches in trash bins, pick-up beds and more
- ATV Tow Kit – Take your chipper directly to the job site
- The towable kit makes it a breeze to hook the beast onto the quad or ATV
- If storing it, the tow bar folds to save space
- Wide Chute Feed – wide enough to accommodate riddled branches with twigs and leaves

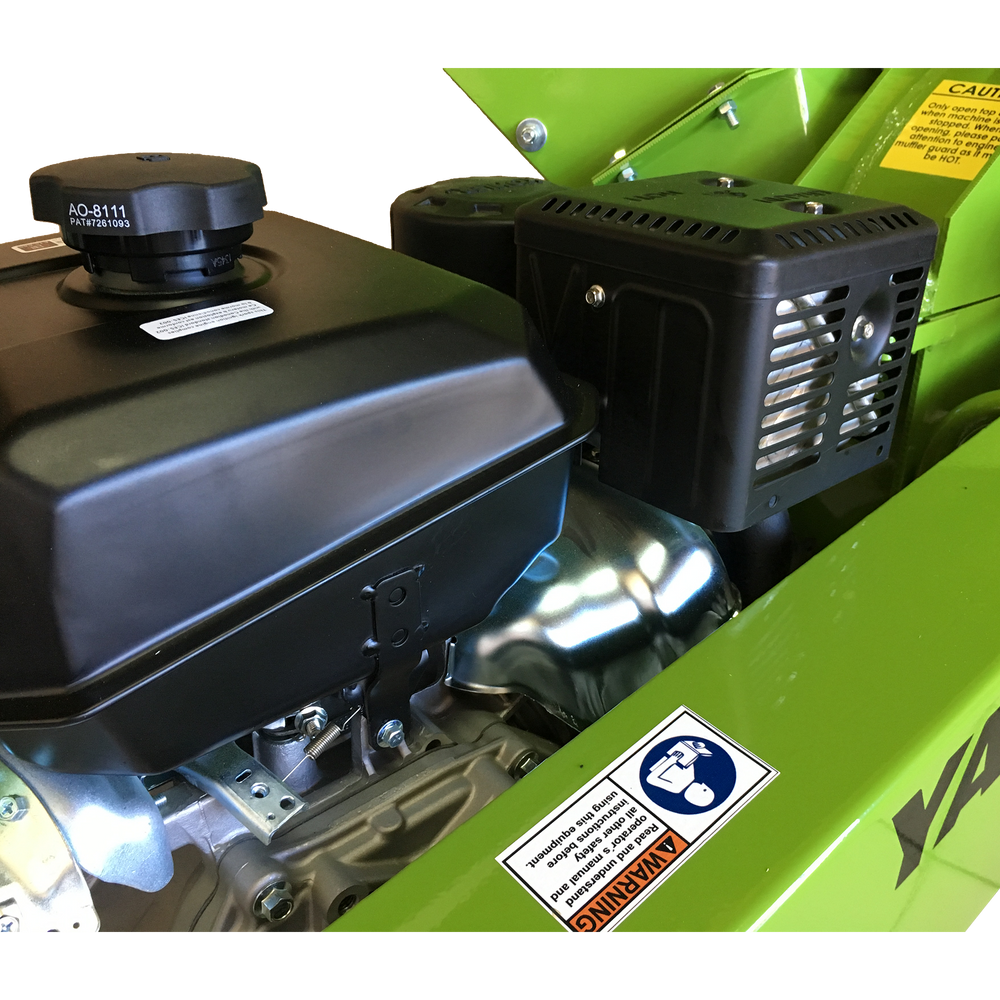

- 429CC Kohler CH440 engine
- Quad-clean cyclonic air cleaner
- Forged-steel crankshafts
- Stellite® -faced exhaust valves
- Tufftride-coated stems and cast-iron cylinder bores
- Torque output rated at 22.7ft-lbs
- Oil Sentry™ – automatically shuts engine down in low-oil conditions
- Centrifugal Clutch: commercial-grade clutch allow to efficiently pass on the torque generated from the engine
- Built for long hours of operation and virtually zero-maintenance
- Chips up to 3.5” true feed capacity
Specifications
| Drive | NORAM® Heavy Duty centrifugal clutch |
| Belts | 2- Gates® Hi-Power II B64 Belts |
| Rotor Pulley | Cast Iron 2-groove pulley with 1-3/8" taper hub |
| Wheels | 4 - 10" Dia. Pneumatic Wheels |
| Frame construction | 1/8" thick steel with engine base tension plate |
| Guards | Belt Guard with 3-point support |
| Rear Axle | Fixed, 1/8" Steel thick 21-1/4" wide |
| Front Axle | Pivoting. 1/8" Steel thick, 21-1/4" wide |
| Hand tow bar length | 37.5" |
| Chipping capacity | 3.5" |
| Rotor RPM | 3,000 |
| Rotor Weight | 56 lbs. |
| Blade | D2 Tool Steel Blade |
| Blade dimensions | 5.82" x 2.33" |
| Rotor Construction | 7/16" wafer front disc with 1/4" rotor vanes |
| Flywheel | 17.32" |
| Feed Hopper | 24" x 11" |
| Frame construction | 7-ga steel. Weld seams all around |
| Bearing units | SKF® roller sealed bearings /custom steel housing |
| Discharge height | 54.7" |
| Control | Discharge deflector |
| Chipper Weight (w/engine) | 320 lbs |
| Make | Kohler CH440 Command Pro® 14HP engine |
| RPM | 3,600 |
| Torque | 19.8ft-lb @ 2,400RPM |
| Dry Weight | 72.8 Lbs |
| Displacement | 429 cc |
| Oil Capacity | 1.4 quarts (1.3 Lts) |
| Fuel Capacity | 7.0 Lts |
| Emissions | CARB Tier III certified |
Package Contents
1 Wood Chipper
1 Discharge neck
1 Feed hopper
1Bag of nuts and bolts that includes bolts, washers, nuts, cotter pins, link pins, etc.
2 Axles (Rotating, Fixed)
4 Wheels
1 Pull Bar
Manuals and Operator safety accessories
Warranty
This item comes with a 2 year factory warranty.
