WindyNation SOK-400WPI-30RS Complete 400 Watt Solar Panel Kit with 3000W VertaMax Power Inverter for 12 Volt Battery Systems and Remote Switch Standard 12 AWG New
Share
Product Overview
The Windy Nation 400 Watt Complete Solar Charging Kit + VertaMax 3000 Watt Power Inverter comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! WindyNation's 400 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 4pcs 400 Watt total Polycrystalline Solar Panels, 3000W VertaMax 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 30-Amp P30L Solar Charge Controller, 40 ft of UL Listed 12 AWG Solar Cable, all necessary MC4 Connectors for wiring, and all the necessary mounting hardware. Product photos above show pictures of all the included items and additional technical information. The WindyNation 400 Watt Solar Charging Kit with 3000W VertaMax Inverter is the ideal solution for providing back-up power or off-grid power when you need it! Kit will produce an average of 1600 Watt Hours (Wh) or 135 Amp Hours (Ah) of charge per day (depends on sunlight availability).
Brand new in box
1 year factory warranty
Fast shipping from CA
Authorized WindyNation dealer
Features

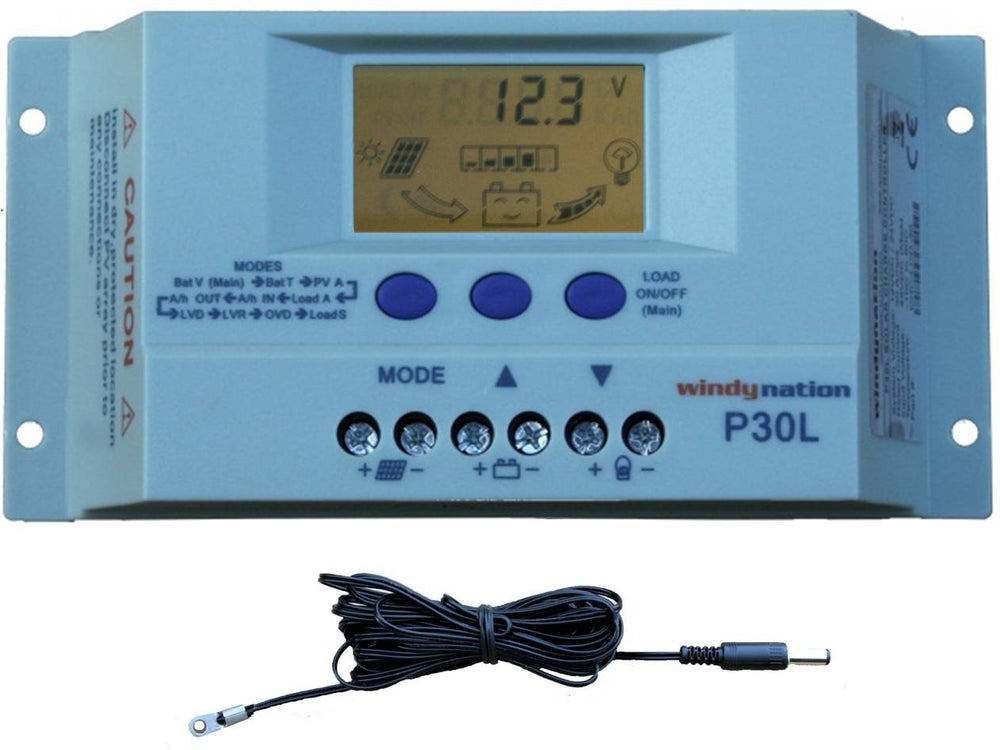

- 30 Amp P30L Solar Charge Controller with LCD Display
- WindyNation P30L PWM 30 Amp solar charge controller prevents battery from being overcharged and damaged by the solar panel
- LCD digital display provides system information (amperage, voltage, temperature, etc).
- System settings are user adjustable by using the MODE and UP and DOWN buttons
- Overload, short circuit, and reverse polarity protected. Battery temperature sensor (BTS) is included

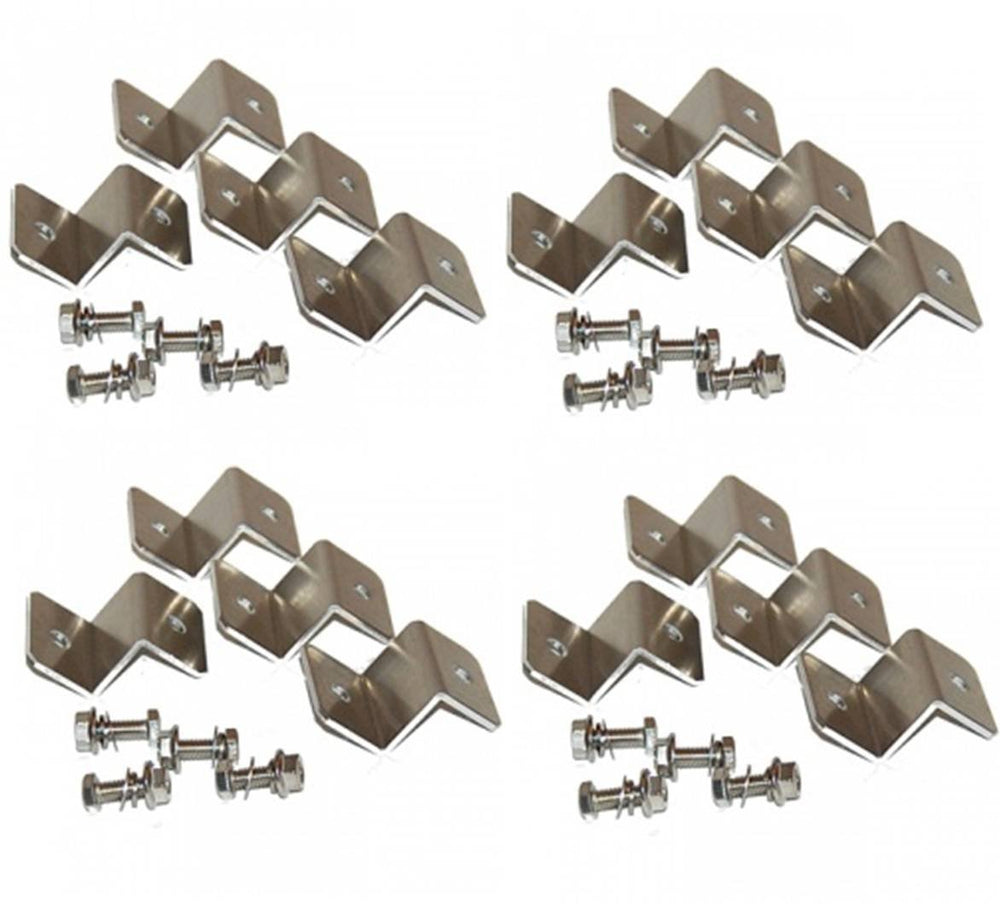

- Solar Panel Mounting Bracket and Fastener Set
- Includes sixteen anodized aluminum Z-brackets and sixteen sets of stainless steel fasteners
- Quickly and easily mount the solar panel to a RV, boat or roof
- Corrosion resistant materials (anodized aluminum and stainless steel)

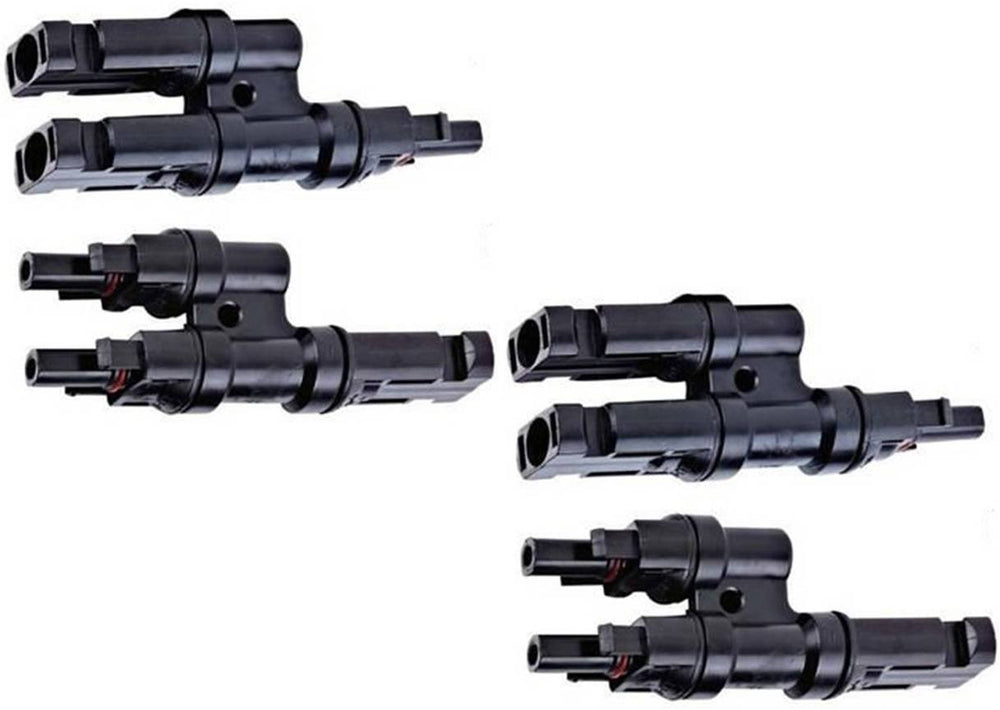

- Solar Branch Connectors
- Three Pairs of Solar Branch Connectors
- The solar branch connectors are used to wire the two solar panels in parallel for 12V battery charging. For 24V battery charging they will not be used

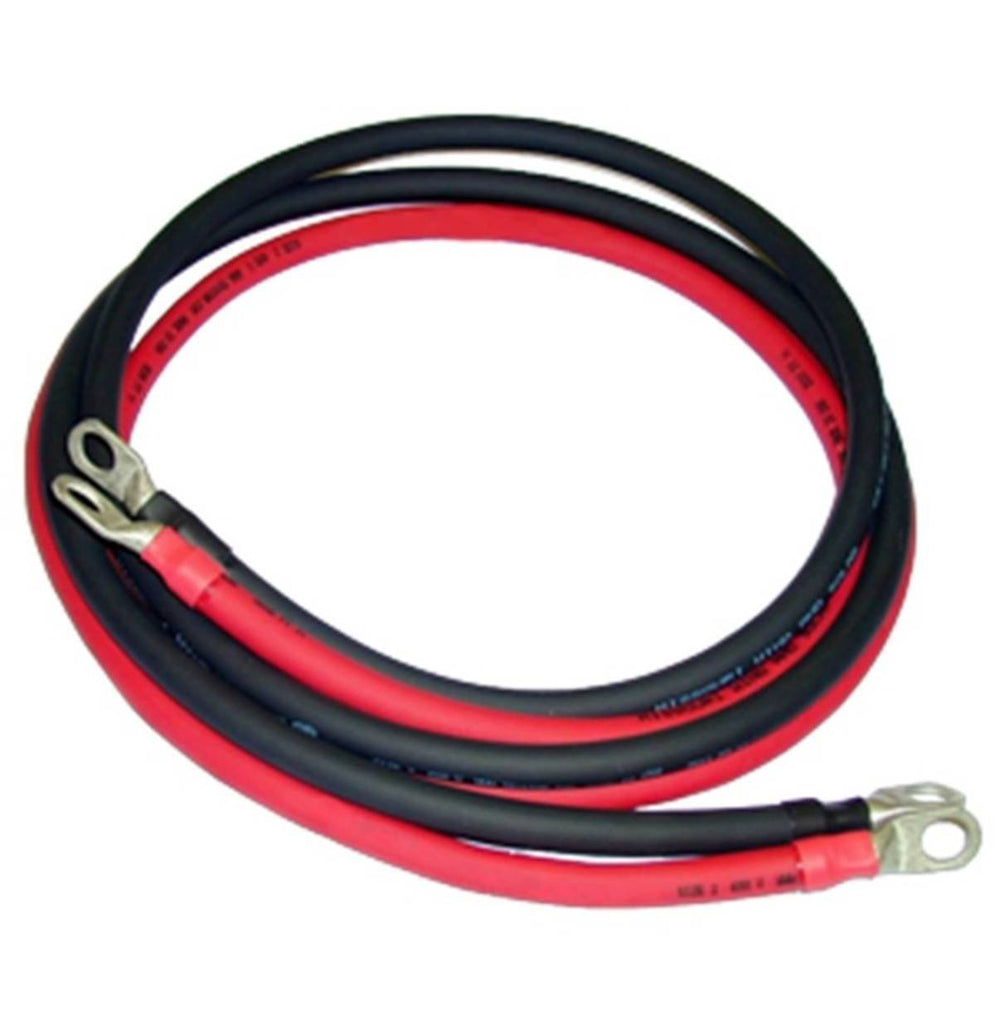

- Inverter Battery Cables
- Used to connect the inverter to the 12 volt battery. Capable of carrying high current.
- One red 2 gauge cable 3 feet in length + one black 2 gauge cable 3 feet in length with pre-attached cable lugs
- 3000 Watt (6000 Watt Surge) VertaMax Power Inverter
- Input Voltage (Nominal) 12VDC Output Voltage (Nominal) 120VAC
- Inverter Remote On/Off Switch
- Allows user to remotely turn the inverter off and on (convenient if the inverter is located in a difficult to access location)
- Remote Swtich extension cord is 16.5 feet in length

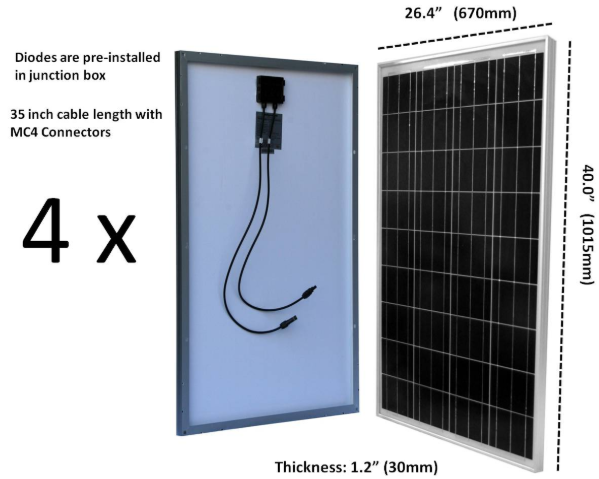

- 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
- Four panels are perfect for 12 or 24 Volt battery bank charging
- Windynation's 100 Watt Solar Panel combines high efficiency with long term reliability and stability
- Outstanding electrical performance under high temperature and low irradiance conditions
- See image in the photo gallery above for the technical specifications of the solar panel.
- Wiring diagrams for wiring the two solar panels in parallel (12V) and series (24V) are shown in the owners manual

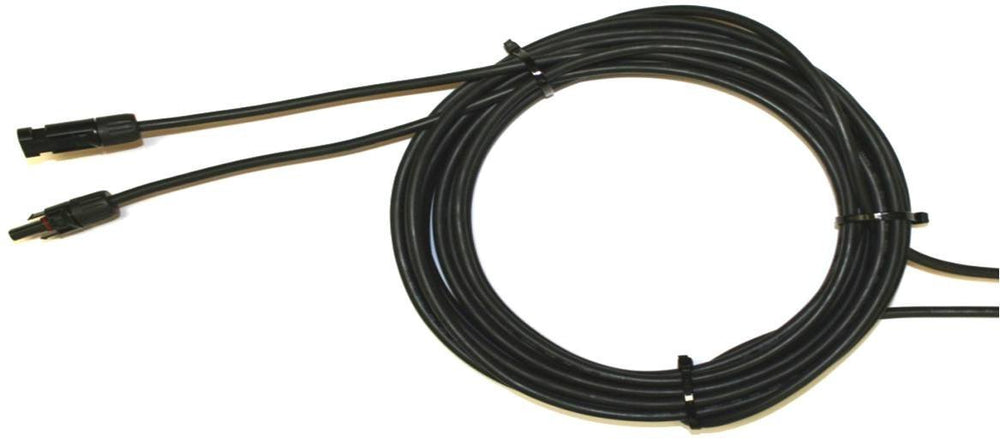

- Solar Panel Cable and Solar Connectors
- 40 continuous feet of UL Listed 12 AWG solar extension cable (E331483)
- One Pair of Solar Connectors
- The solar connectors allow for a quick and waterproof connection of the solar extension cable to the solar connectors attached to the back of the solar panel.
(Note: Solar Connectors do not come pre-attached to cable. Cut cable to length and attach Solar Connectors. The 12 AWG cable is used to connect the solar panels to the charge controller.)
Specifications
| 100W POLYCRYSTALLINE PHOTOVOLTAIC SOLAR PANEL | |
| MAX POWER | 100 WATTS |
| OPEN CIRCUIT VOLTAGE | 21.60 VOLTS |
| SHORT CIRCUIT CURRENT | 6.32 AMPS |
| MAX POWER VOLTAGE | 17.40 VOLTS |
| MAX POWER CURRENT | 5.75 AMPS |
| MAX SYSTEM VOLTAGE | 1000 VDC (600 VDC UL) |
| MAX SERIES FUSSSE RATING | 8 AMPS |
| NOM OPERATING CELL TEMP | 45 C [+/-2] |
| DIMENSIONS | 40" x 26.4" x 1.2" |
| WEIGHT | 17.6 LBS |
| 3000W VERTAMAX POWER INVERTER | |
| PARAMETER | PIN-3000-12M |
| CONTINUOUS RATED POWER | 3000W |
| PEAK SURGE POWER | 6000W |
| INPUT VOLTAGE (NOMINAL) | 12-13 VDC |
| INPUT VOLTAGE (MIN-MAX) | 11-15 VDC |
| OUTPUT VOLTAGE (NOMINAL) | 115 VAC |
| OUTPUT FREQUENCY (NOMINAL) | 60 HZ |
| OUTPUT WAVEFORM | MODIFIED SINE WAVE |
| STANDBY CURRENT | <1.00A |
| LOW BATTERY VOLTAGE ALARM | 10.5 VDC (+/-0.3VDC) |
| LOW BATTERY VOLTAGE SHUTDOWN | 10.0 VDC (+/-0.3VDC) |
| HIGH BATTERY VOLTAGE SHUTDOWN | 16 VDC (+/-0.5VDC) |
| EFFICIENCY | 85-90% |
| DIMENSIONS (L x W x H) | 16.7" x 10.3" x 3.7" |
| UNIT WEIGHT | 15.4 LBS |
| COOLING | AUTO POWERED FAN |
| OPERATING TEMPERATURE | 32°F - 104°F |
| STORAGE TEMPERATURE | -13°F - 158°F |
| OPERATING HUMIDITY | 20 TO 80% RELATIVE HUMIDITY (NONCONDENSING) |
| THERMAL PROTECTION | >149°F |
Package Contents
(4 pcs) 100 Watt WindyNation 12 volt Polycrystalline WindyNation Solar Panel
(1 pc) 30 Amp P30L Solar Charge Controller with LCD Display
(1 pc) 3000 Watt (6000 Watt Surge) VertaMax Power Inverter
(4 Set) Solar Panel Mounting Bracket and Fastener Set
Inverter Remote Switch
Solar Panel Cable and Solar Connectors
Solar Branch Connectors
Warranty
This product comes with a 1 year factory warranty.
